SITOP UPS1600 under STEP 7 V5
Getting Started
Introduction
1
Safety notes
2
Description
3
Assigning the IP address
4
Installing and configuring the
SITOP UPS1600 in STEP 7
V5
5
Parameterizing the SITOP
UPS1600
6

Siemens AG
Industry Sector
Postfach 48 48
90026 NÜRNBERG
GERMANY
Ⓟ
02/2014 Technical data subject to change
Copyright © Siemens AG .
All rights reserved
Legal information
Warning notice system
This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent
damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert
symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are
graded according to the degree of danger.
DANGER
indicates that death or severe personal injury will result if proper precautions are not taken.
WARNING
indicates that death or severe personal injury may result if proper precautions are not taken.
CAUTION
indicates that minor personal injury can result if proper precautions are not taken.
NOTICE
indicates that property damage can result if proper precautions are not taken.
If more than one degree of danger is present, the warning notice representing the highest degree of danger will
be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to
property damage.
Qualified Personnel
The product/system described in this documentation may be operated only by
personnel qualified
for the specific
task in accordance with the relevant documentation, in particular its warning notices and safety instructions.
Qualified personnel are those who, based on their training and experience, are capable of identifying risks and
avoiding potential hazards when working with these products/systems.
Proper use of Siemens products
Note the following:
WARNING
Siemens products may only be used for the applications described in the catalog and in the relevant technical
documentation. If products and components from other manufacturers are used, these must be recommended
or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and
maintenance are required to ensure that the products operate safely and without any problems. The permissible
ambient conditions must be complied with. The information in the relevant documentation must be observed.
Trademarks
All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication
may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.
Disclaimer of Liability
We have reviewed the contents of this publication to ensure consistency with the hardware and software
described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the
information in this publication is reviewed regularly and any necessary corrections are included in subsequent
editions.

SITOP UPS1600 under STEP 7 V5
Getting Started, 3
Table of contents
1 Introduction...................................................................................................................................5
1.1 Purpose of this document......................................................................................................... 5
1.2 Technical support..................................................................................................................... 5
1.3 Additional documentation ......................................................................................................... 6
2 Safety notes .................................................................................................................................7
3 Description ...................................................................................................................................9
3.1 System overview...................................................................................................................... 9
4 Assigning the IP address.............................................................................................................. 11
5 Installing and configuring the SITOP UPS1600 in STEP 7 V5 ........................................................... 17
6 Parameterizing the SITOP UPS1600 ............................................................................................. 21
6.1 Buffering an S7 IO controller, including the I/O when the power fails....................................... 21
6.2 Switching off the UPS by a user program when the power fails............................................... 29

SITOP UPS1600 under STEP 7 V5
Getting Started, 5
Introduction
1
1.1
Purpose of this document
This Getting Started guides you through configuring the UPS1600 under STEP 7 V5 for the
following two tasks:
●Buffering the S7 IO controller including I/O when the power fails
●Switching off the UPS when the power fails by the user program
Basic knowledge required
The following are required to understand the Getting Started:
●Knowledge about using personal computers with the Windows operating system
●Knowledge about how to configure an uninterruptible power supply using the SITOP
UPS1600, including the S7 IO controller and connected battery modules
●Creating and editing projects under STEP 7 V5.
Range of validity
Getting Started is valid for STEP 7 V5 from version 5.4.
1.2
Technical support
Technical support
Technical support for all IA/DT products can be accessed through the following
communication channels:
●Phone: + 49 (0) 911 895 7222
●E-Mail (mailto:[e-mail])
●Internet:
Online support request form (http://www.siemens.com/automation/support-request)
Technical documentation on the Internet
Operating instructions and manuals for SITOP are available in the Internet:
Operating instructions/manuals (http://www.siemens.com/sitop/manuals)
SITOP power supply homepage
General news about our power supplies is available in the Internet at the SITOP home page
(http://www.siemens.com/sitop).

Introduction
1.3 Additional documentation
SITOP UPS1600 under STEP 7 V5
6Getting Started,
1.3
Additional documentation
Further information is available in the following documents:
●SITOP UPS1600 and SITOP UPS1100 manuals
●S7 IO controller manual
●STEP 7 V5 manual

SITOP UPS1600 under STEP 7 V5
Getting Started, 7
Safety notes
2
WARNING
Correct handling of the devices
When operating electrical devices, it is inevitable that certain components will carry
dangerous voltages.
Therefore, failure to handle the units properly can result in death or serious physical injury
as well as extensive property damage.
Only appropriately qualified personnel may work on or in the vicinity of this equipment.
Perfect, safe, and reliable operation of this equipment is dependent on proper
transportation, storage, installation and mounting.
Before installation or maintenance work can begin, the system's main switch must be
switched off and measures taken to prevent it being switched on again.
If this instruction is not observed, touching live parts can result in death or serious injury.
The relevant DIN/VDE regulations or country-specific specifications (e.g. VDE 0510 Part 2 /
EN50272-2) must be observed for the storage, assembly and operation of the lead
accumulators. It must be ensured that the battery location is suitably ventilated. Potential
ignition sources must be separated by at least 50 cm.

SITOP UPS1600 under STEP 7 V5
Getting Started, 9
Description
3
3.1
System overview
Application
The principal tasks that you can perform with the SITOP UPS Management:
●Connecting the uninterruptible SITOP UPS1600 power supply to the IO controller S7
●Configuring the SITOP UPS1600 uninterruptible power supply
●Protecting a computer or a computer network using the uninterruptible power supply
●Defining the battery maintenance intervals
Device integration
SITOP UPS Management supports the following devices:
●SITOP UPS1600
●SITOP UPS1100
The UPS1600 can be used with STEP 7 V5 as of version 5.4.
After the UPS1600 has been saved in the hardware catalog of STEP 7 V5 by installing the
generic station description (GSD), it can be integrated into projects, parameterized and
diagnosed.
Languages
German, English
French, Italian, Spanish and Chinese being prepared.

SITOP UPS1600 under STEP 7 V5
Getting Started, 11
Assigning the IP address
4
Just like all devices connected to PROFINET, SITOP UPS1600 requires an IP address. This
is defined by the person responsible for the system. In this Getting Started, the configuration
of the SITOP UPS1600 interface is described using the Primary Setup Tool.
General information
The Primary Setup Tool is a Siemens product that is free of charge and which is used to
identify and configure network-conform devices. You can download the Primary Setup Tool
under (http://support.automation.siemens.com/WW/View/en/19440762).
Note
Additional information
Additional information is contained in the Primary Setup Tool manual.
This manual and
further links can be found under
(
http://support.automation.siemens.com/WW/View/en/19440762).
Preconditions
●The SITOP UPS1600 is connected with the client (PG/PC) via the Ethernet interface.
●The Primary Setup Tool is installed on the client.

Assigning the IP address
SITOP UPS1600 under STEP 7 V5
12 Getting Started,
Procedure
1. Called the Primary Setup Tool.

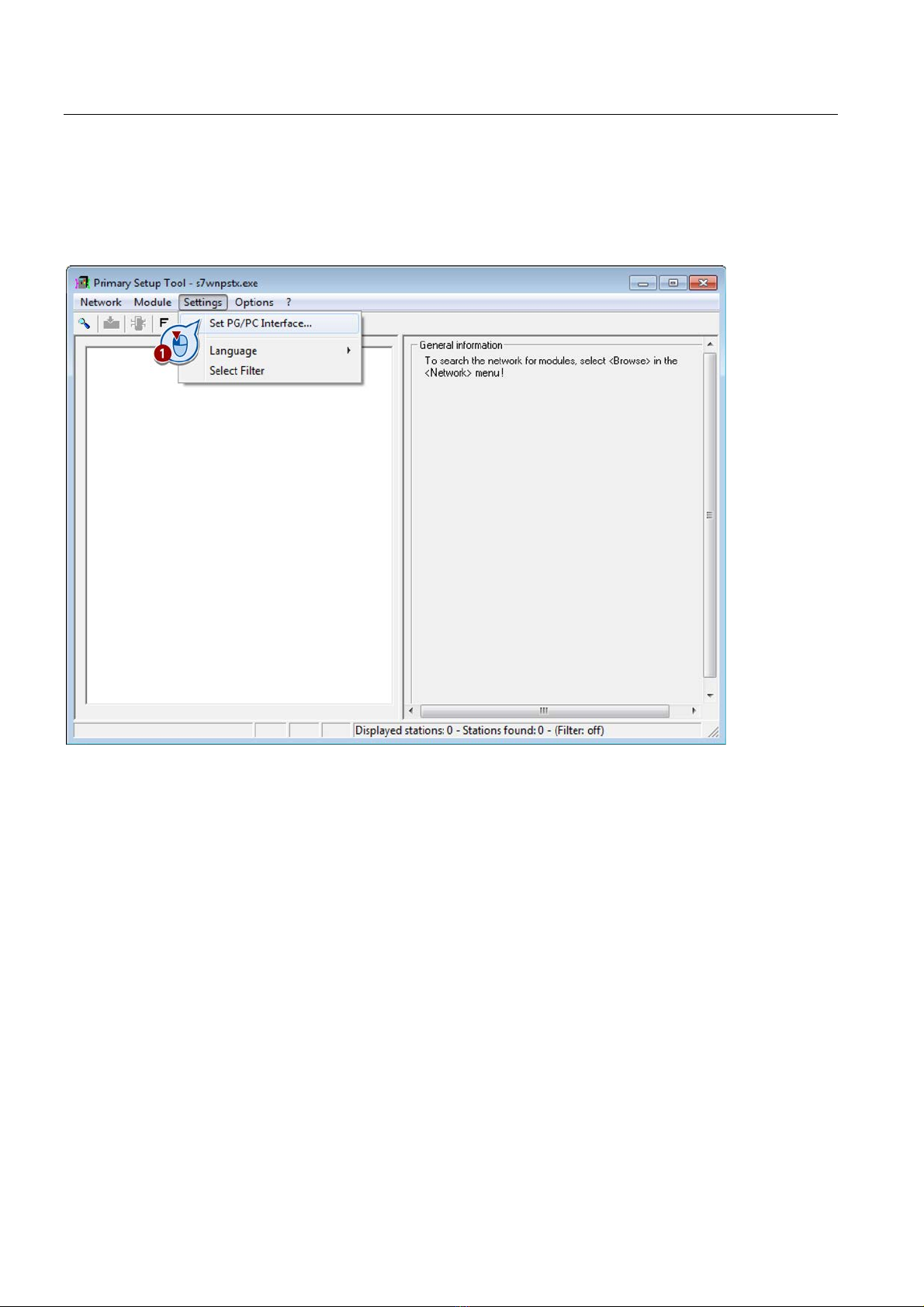

2. In the Primary Setup Tool select the menu command "Settings > Set PG/PC Interface...".
3. In the dialog box "Set PG/PC Interface", select the "Access Path" tab.

Assigning the IP address
SITOP UPS1600 under STEP 7 V5
Getting Started, 13
4. From the interfaces listed, select the Ethernet interface with which SITOP UPS1600 is
connected, and confirm with "OK".

Assigning the IP address
SITOP UPS1600 under STEP 7 V5
14 Getting Started,

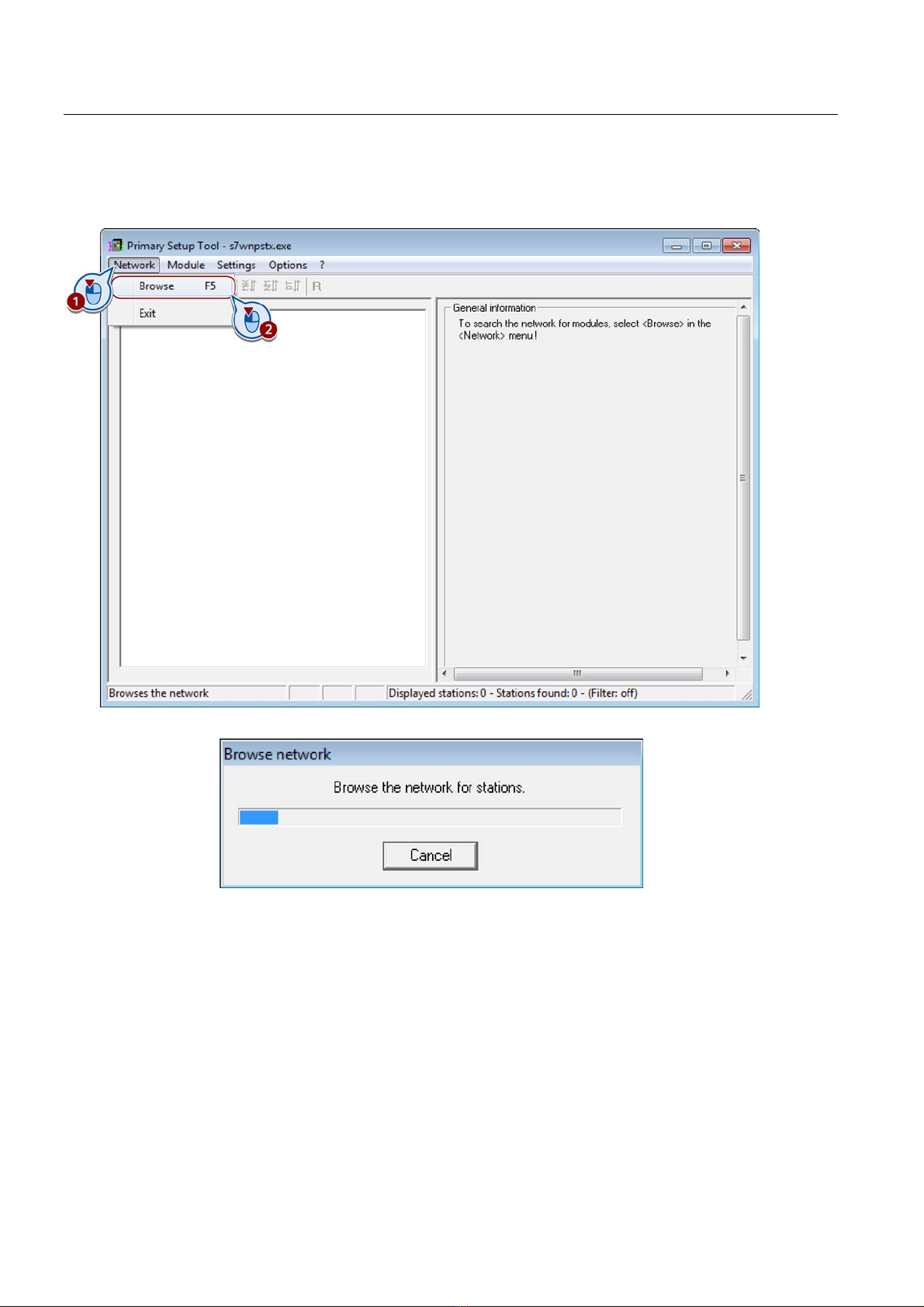

5. Select the menu command "Network > Browse", to view the network stations connected
at the interface.
The "Browse network" window shows the progress of the search
6. From the search results, select the SITOP UPS1600.
The SITOP UPS1600 is displayed as "DC-UPS:" with its MAC address and IP address.

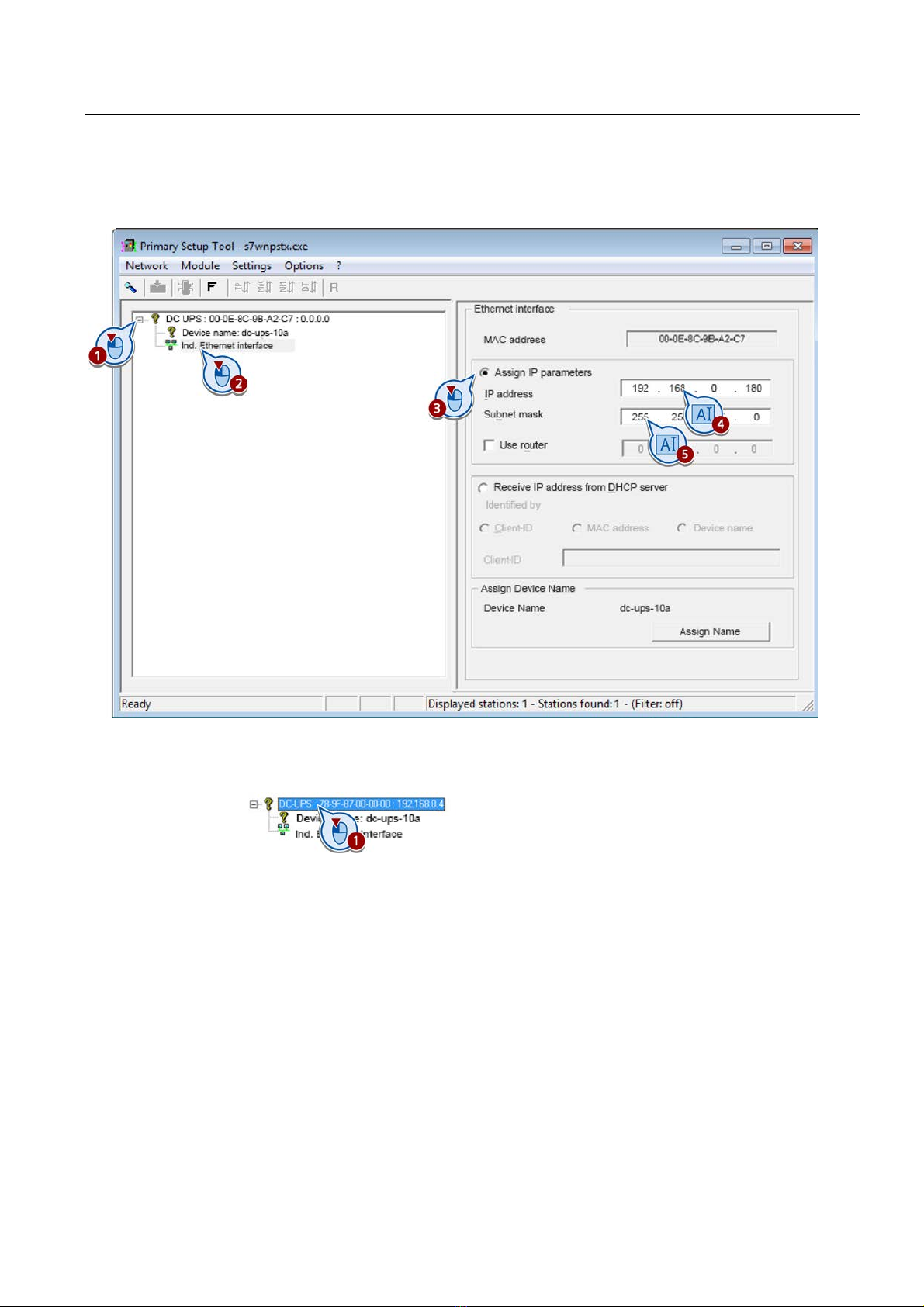

7. Open the menu of the SITOP UPS1600 in the tree view and select "Incl. Ethernet
interface".
8. Select the "Assign IP parameters" checkbox.

Assigning the IP address
SITOP UPS1600 under STEP 7 V5
Getting Started, 15
9. Specify the IP address and subnet mask.
If required, select the checkbox "Use router" and enter the IP address of the router.
10.Select the SITOP UPS1600 in the tree view.
The configuration can only be loaded to the device if the SITOP UPS1600 has been
selected at the upper level.

Assigning the IP address
SITOP UPS1600 under STEP 7 V5
16 Getting Started,

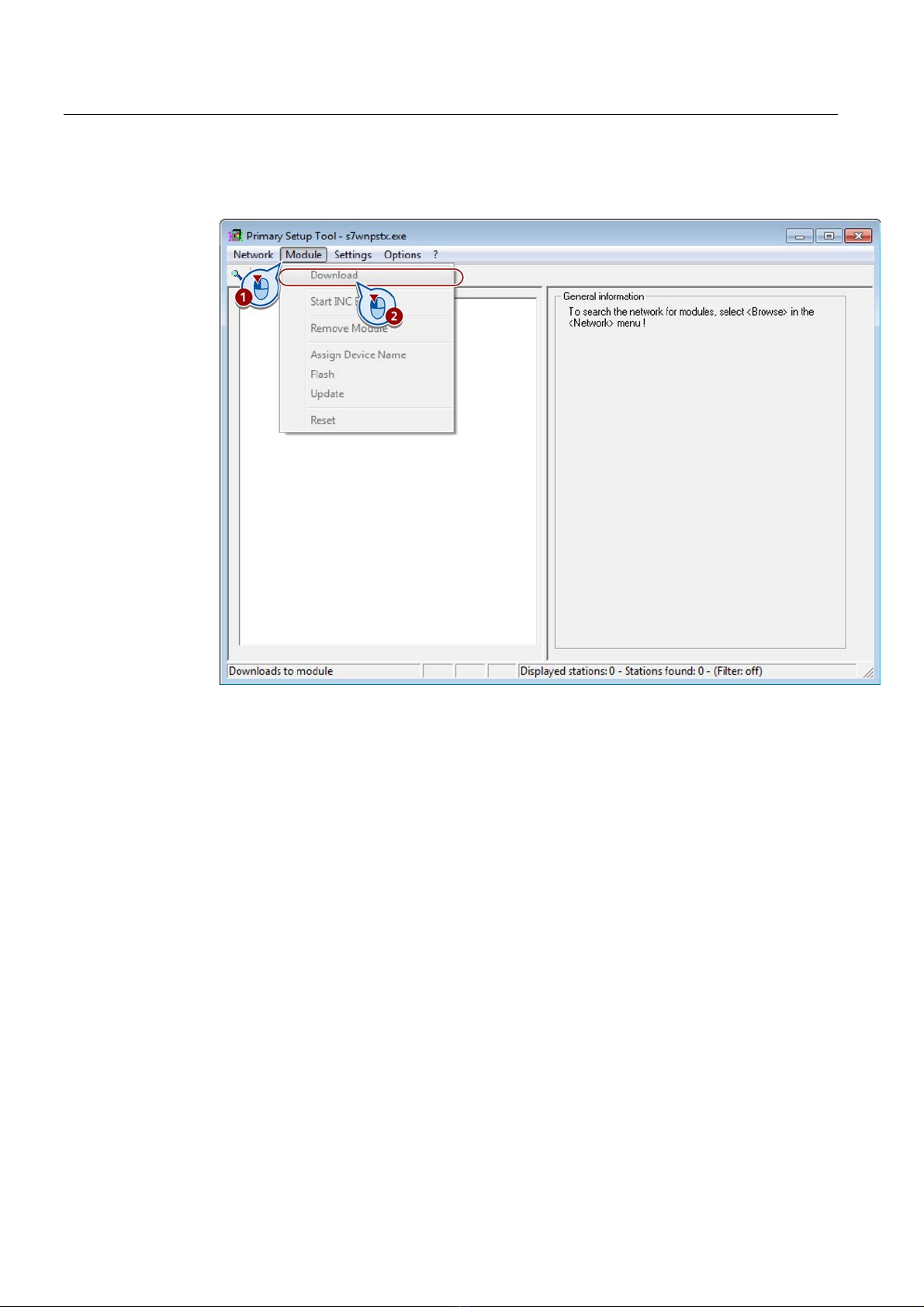

11.In the Primary Setup Tool, select the menu command "Module > Download", to load the
configuration to the SITOP UPS1600.
You have assigned an IP address to the SITOP UPS1600, and you can now communicate
with the SITOP UPS1600.

SITOP UPS1600 under STEP 7 V5
Getting Started, 17
Installing and configuring the SITOP UPS1600 in
STEP 7 V5
5
Preconditions
●STEP 7 V5 is open and a project with an S7 IO controller has been created.
●The DDF of the UPS1600 is installed correctly.
●The UPS1600 is assigned to an S7 IO controller as IO device.
Placing SITOP UPS1600
1. Open the "HW Config" window.

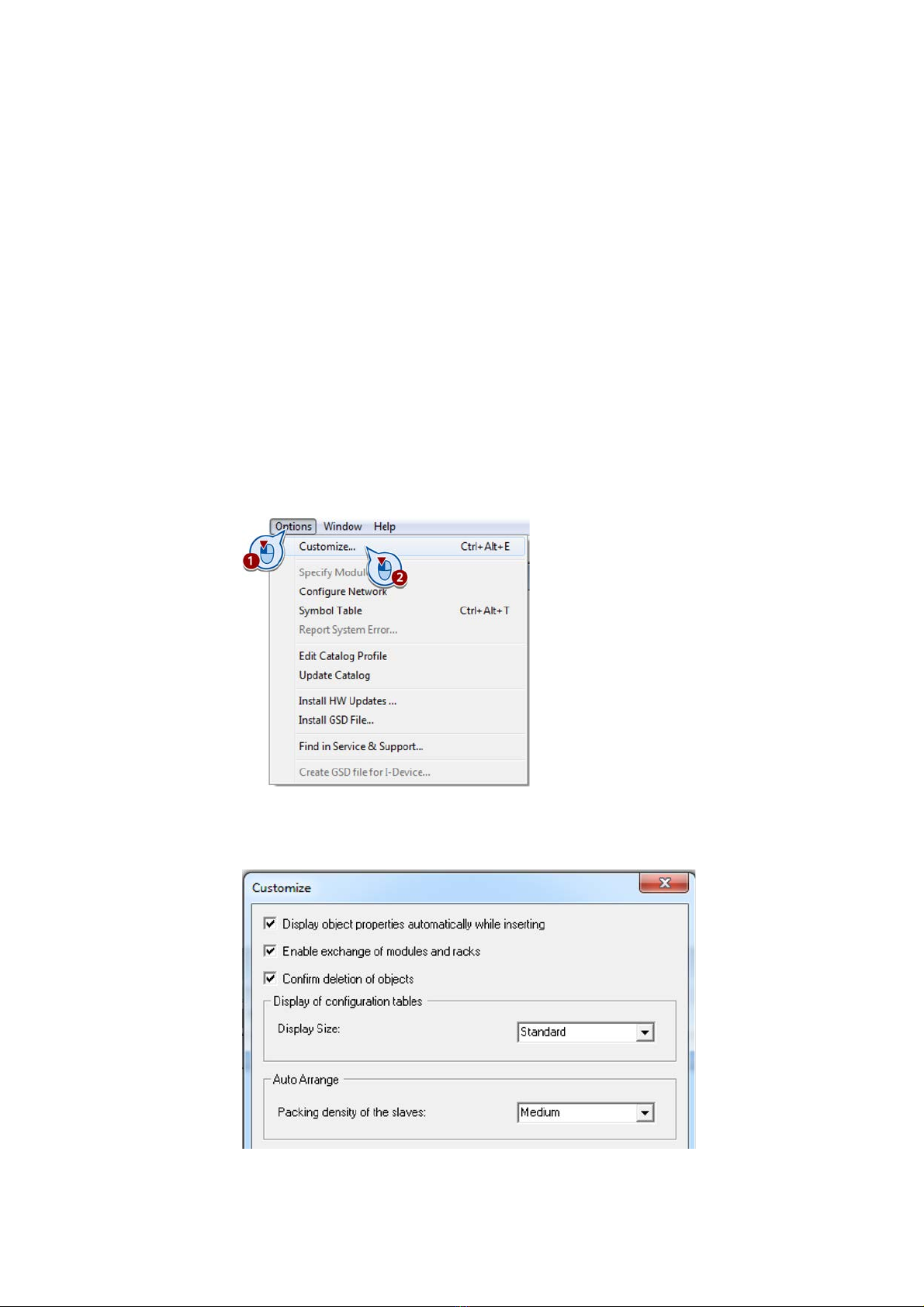

2. Select the "Options > Customize..." menu command.
The "Customize" dialog box opens.
3. Check whether the option "Display object properties automatically while inserting" is
active. If necessary, select the checkbox.

Installing and configuring the SITOP UPS1600 in STEP 7 V5
SITOP UPS1600 under STEP 7 V5
18 Getting Started,
4. Close the "Customize" dialog box.
5. Under "PROFINET IO > I/O > UPS1600", select the version of the SITOP UPS1600 being
used.

Installing and configuring the SITOP UPS1600 in STEP 7 V5
SITOP UPS1600 under STEP 7 V5
Getting Started, 19
6. Drag and drop the UPS1600 onto the line of the subnet.
The "Properties" dialog box opens.
7. Click on the "Ethernet" button.
The "Properties" subdialog box opens.

Installing and configuring the SITOP UPS1600 in STEP 7 V5
SITOP UPS1600 under STEP 7 V5
20 Getting Started,

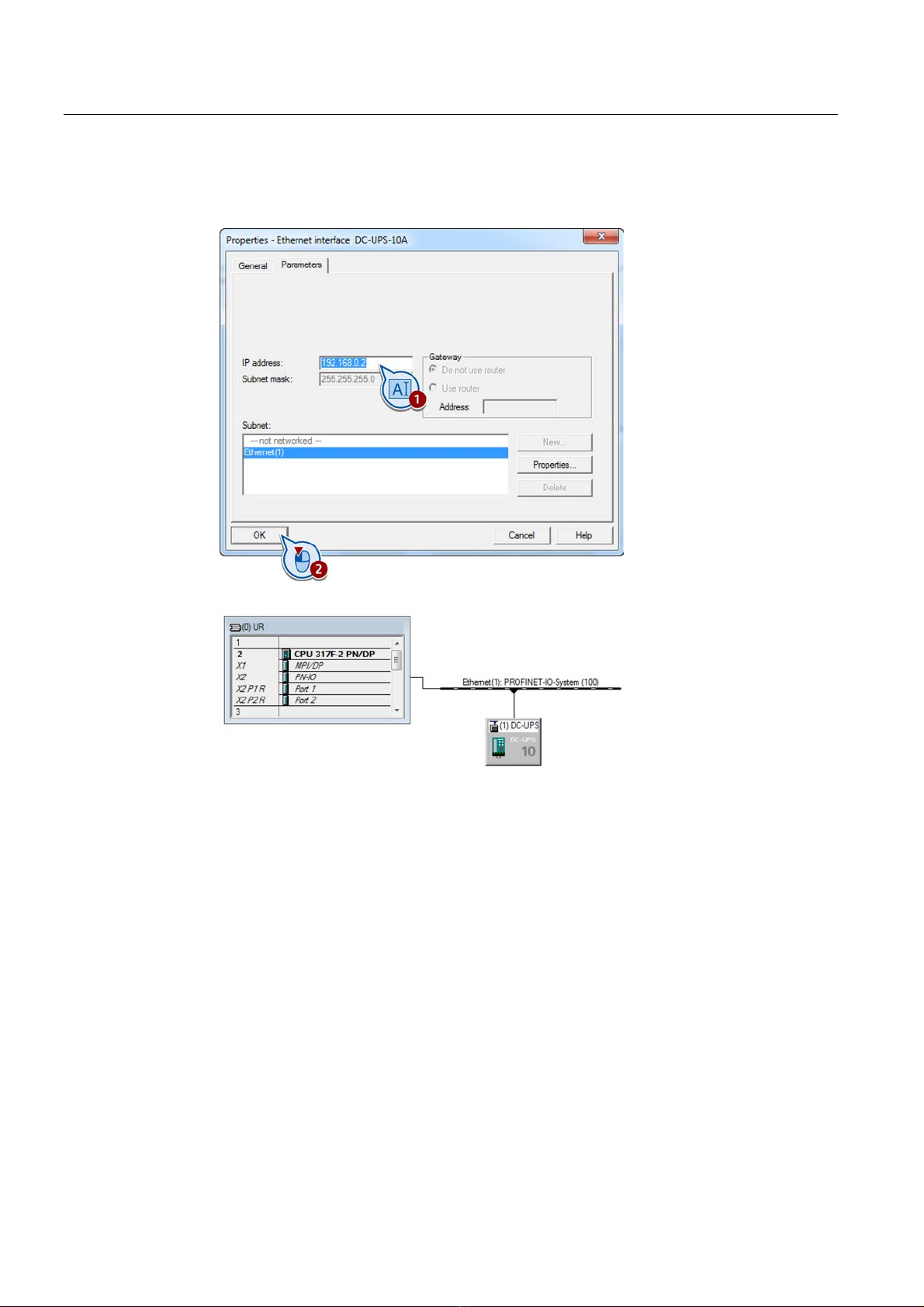

8. Enter an IP address for the UPS1600 at the subnet.
9. Close the two dialog boxes.
The UPS1600 is connected with the subnet.
10.Save your project.
You have placed the UPS1600 and integrated it into the actual project.
