Siemens 505-2571 User manual

SIMA TIC 505-2571
Program Port Expander
User Manual
Order Number: PPX:505–8131–1
Manual Assembly Number: 2806135–0001
Original Edition

!DANGER
DANGER indicates an imminently hazardous situation that, if not avoided, will
result in death or serious injury
.
DANGER is limited to the most extreme situations.
!WARNING
W ARNING indicates a potentially hazardous situation that, if not avoided, could
result in death or serious injury, and/or property damage.
!CAUTION
CAUTION indicates a potentially hazardous situation that, if not avoided, could
result in minor or moderate injury, and/or damage to property
.
CAUTION is also used for property-damage-only accidents.
Copyright 1996 by Siemens Energy & Automation, Inc.
All Rights Reserved — Printed in USA
Reproduction, transmission, or use of this document or contents is not permitted without express consent of
Siemens Energy & Automation, Inc. All rights, including rights created by patent grant or registration of a utility model or design, are
reserved.
Since Siemens Energy & Automation, Inc., does not possess full access to data concerning all of the uses and applications of
customer’ s products, we do not assume responsibility either for customer product design or for any infringements of patents or rights
of others which may result from our assistance.

MANUAL PUBLICA TION HISTOR Y
SIMATIC 505-2571 Pr ogram Port Expander User Manual
Or der Manual Number: PPX:505-8131-1
Refer to this history in all correspondence and/or discussion about this manual.
Event Date Description
Original Issue 04/96 Original Issue 2806135–0001)

LIST OF EFFECTIVE P AGES
Pages Description Pages Description
Cover/Copyright Original
History/Effective Pages Original
iii — vii Original
1-1 — 1-5 Original
2-1 — 2-6 Original
3-1 — 3-3 Original
4-1 — 4-4 Original
A-1 — A-1 Original
Registration Original

Contents iii
Contents
Chapter 1PPX:505-2571 Module Description
Module Featur es 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 2 Installing the Module
2.1 Getting Started 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation Planning 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unpacking the Module 2-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuring the Module 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inserting the Module into the I/O Base 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connecting Operator Inter face Devices 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Powering Up the Module 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking PLC Login 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 3 Module Operation
Effect of Controller Scan T ime 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chapter 4 Troubleshooting
Module Malfunction 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Communications Signal Pr oblems 4-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Module Response Pr oblems 4-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Baud Rate Mismatch 4-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hardware Handshaking Err or 4-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Protocol Pr oblems 4-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendix A Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1

iv Contents
List of Figures
1-1 PPX:505-2571 Pr ogram Port Expander Module 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

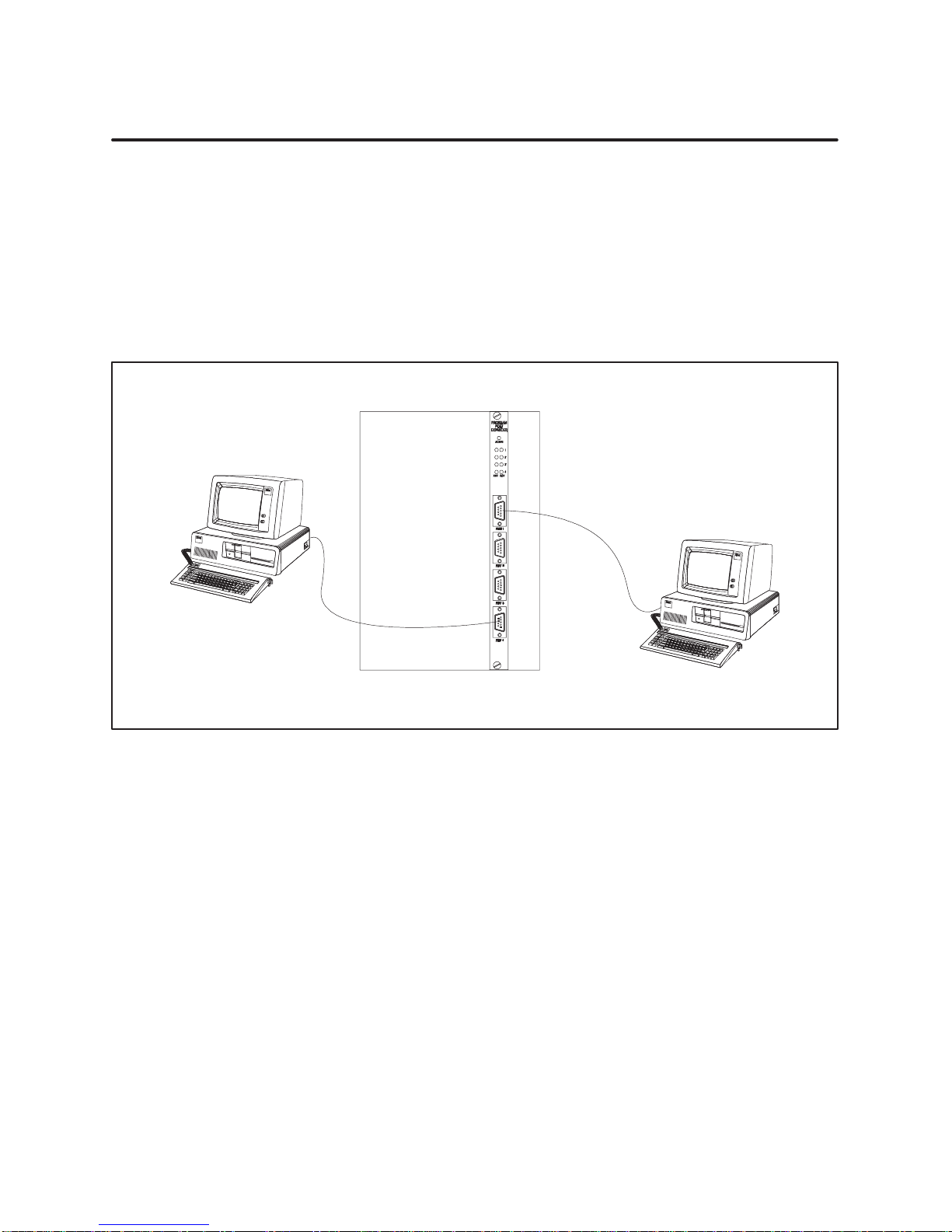

1-2 Process Monitoring Application Using PCs 1-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

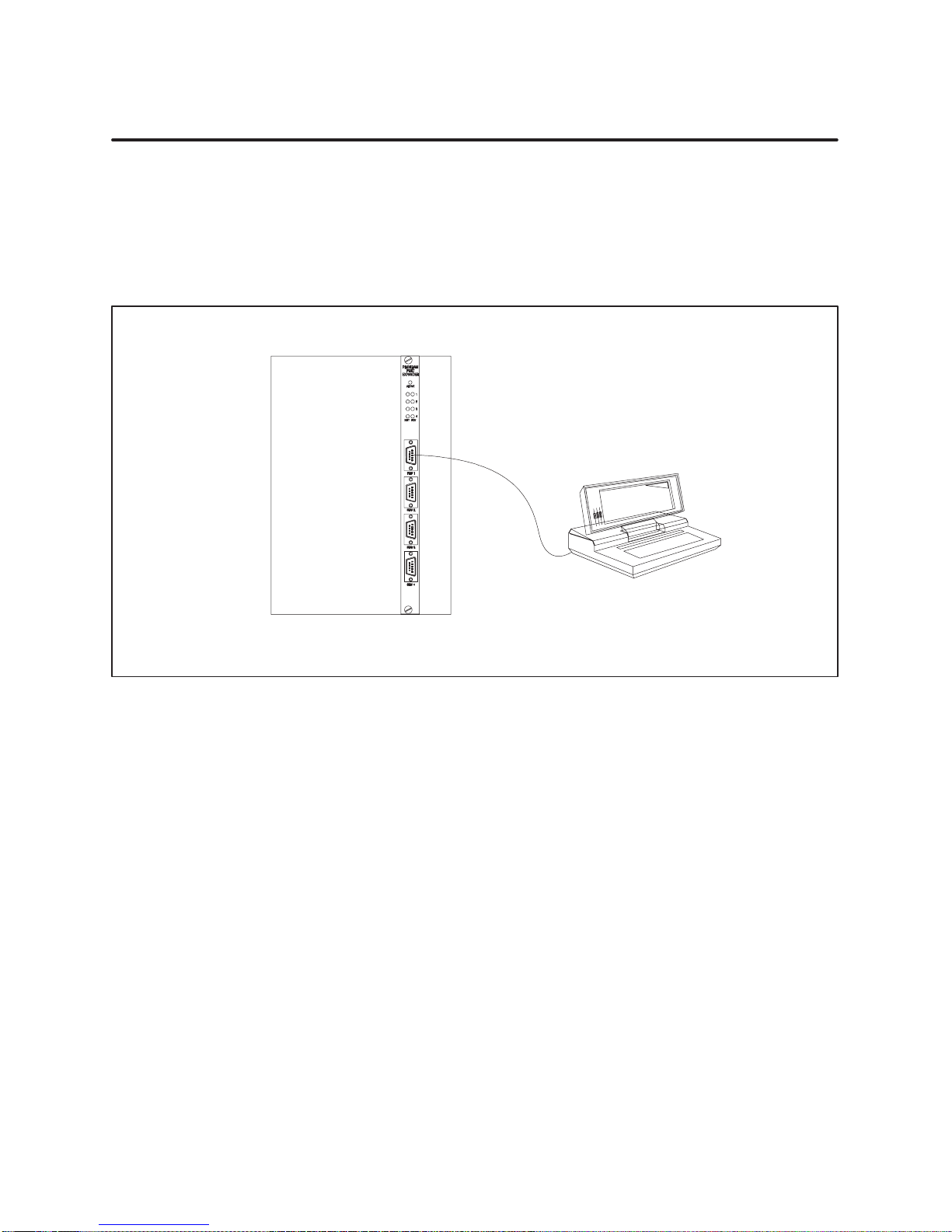

1-3 Attaching a Lap T op PC 1-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-1 Location of Baud Rate Switches 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

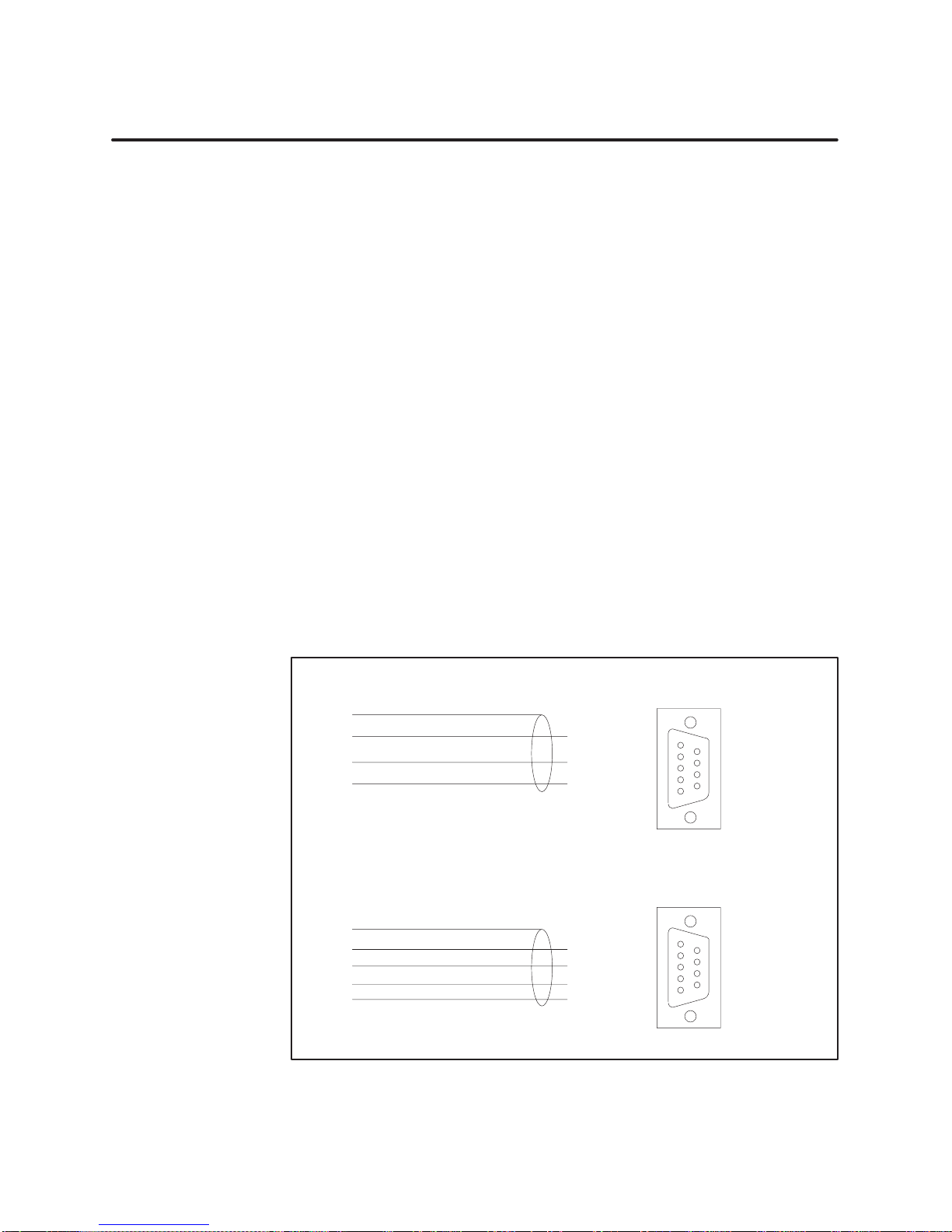

2-2 Connector Pin-Out Description 2-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-3 Sample I/O Configuration Chart 2-5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Contents v
List of T ables
2-1 Baud Rate Switch Settings 2-3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4-1 Troubleshooting Matrix 4-4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
A-1 Physical and Envir onmental Specifications A-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preface vii Manual Title
Preface
This user manual provides installation and operation instructions for the
SIMATIC 505-2571 Program Port Expander Module for Series 505 
programmable controllers. W e assume you are familiar with the operation of
Series 505 programmable controllers. Refer to the appropriate SIMA TIC
user documentation for specific information on the controllers and I/O
modules.
This user manual is organized as follows:
• Chapter 1 provides a description of the module.
• Chapter 2 covers installation and checkout.
• Chapter 3 describes operation of the module.
• Chapter 4 discusses troubleshooting.

505–2571 Module Description 1-1 SIMATIC 505-2571 Program Port Expander Manual
Chapter 1
PPX:505-2571 Module Description
Module Featur es 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

505–2571 Module Description
1-2 SIMATIC 505-2571 Program Port Expander Manual
The PPX:505-2571 Program Port Expander Module is a member of the
communication family of I/O modules for the Series 505 programmable
controllers. The PPX:505-2571 is a single-wide, Special Function module
that provides four additional communications ports that function like the
program port provided on the CPU front panel.
Ports 1 and 2 have an electrical interface that is a subset of RS–232C using
a male DB9 connector
. Ports 3 and 4 provide an RS–422 electrical interface
using a female DB9 connector. Both interfaces have been chosen to match
the programming ports provided on the SIMATIC 545 programmable
controller . Thus, commonly used cables can be used with the PPX:505-2571.
The ports may be configured to support baud rates of 1200, 2400, 9600, and
19,200. All four ports may be used simultaneously with a combined
aggregate baud rate of 38,400 baud (for example, all four ports at 9600
baud). The PPX:505-2571 has two communication indicators for each port,
one for transmit and one for receive. These indicators light when
communications activity is taking place.
The red ”Active” indicator is used to indicate module status. The indicator is
illuminated when the module is functioning properly . See the
troubleshooting section for additional details.

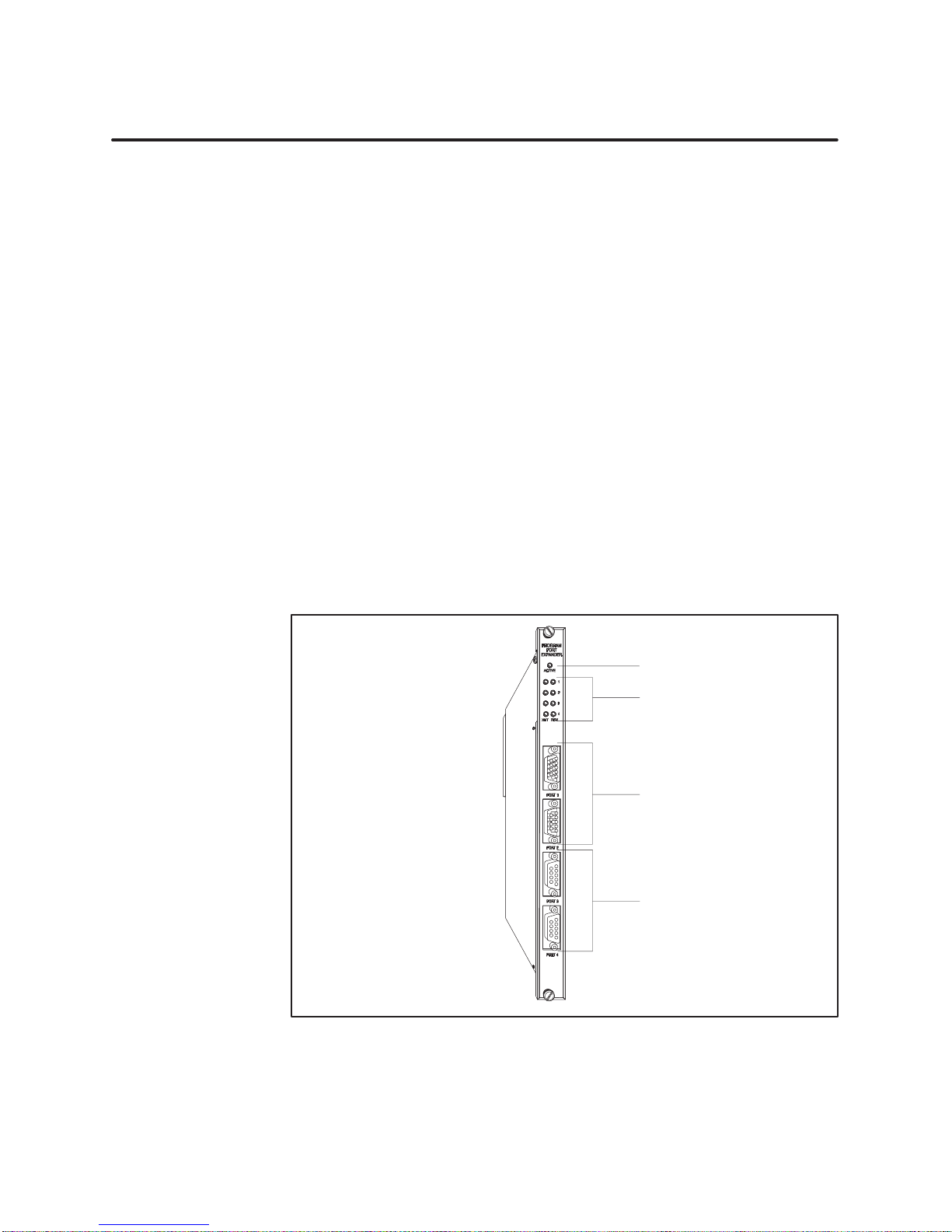

505-2571
Active Indicator
Port Activity
Indicators
RS-232 Ports
(Male DB9)
RS-422 Ports
Female DB9)
Figure 1-1 PPX:505-2571 Pr ogram Port Expander Module
Module Featur
es
