Siemens LITHOSTAR Multiline Setup guide

LITHOSTAR Multiline
Register 5 English
Print No.: RXL2-120.091.08.04.02 Doc. Gen. Date: 10.00
Replaces: RXL2-120.091.08.03.02
© Siemens AG 1998
The reproduction, transmission or
use of this document or its contents
is not permitted without express
written authority. Offenders will be
liable for damages. All rights,
including rights created by patent
grant or registration of a utility
model _or_design,_are_reserved.
SP
System Manual
Replacement of Operating PC
Repair Instructions

LITHOSTAR Multiline Register 5 RXL2-120.091.08 Page 2 of 4 Siemens AG
System Manual Rev. 04 10.00 TD PS 24 Medical Engineering
0 - 2 Revision
Chapter Page Revision
0all04
1all04
2all04
3all04
4all04
5all04

Contents 0 - 3
Siemens AG Register 5 RXL2-120.091.08 Page 3 of 4 LITHOSTAR Multiline
Medical Engineering Rev. 04 10.00 TD PS 24 System Manual
1 _______Software generation ____________________________________________1 - 1
Rear view of the operating PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
2 _______Operating PC SCENIC Pro C5/ Pro C6______________________________2 - 1
Mechanical changes in the control console . . . . . . . . . . . . . . . . . . . . . . .2 - 1
Opening the operating PC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 2
Installing board D51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 3
Closing the operating PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 4
3 _______Operating PC LM Control Unit ____________________________________3 - 1
Open operating PC and install board D51. . . . . . . . . . . . . . . . . . . . . . . . 3 - 3
Close the operating PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 - 3
4 _______Changes to previous version_____________________________________4 - 1
Page

0 - 4 Contents
LITHOSTAR Multiline Register 5 RXL2-120.091.08 Page 4 of 4 Siemens AG
System Manual Rev. 04 10.00 TD PS 24 Medical Engineering
This page intentionally left blank.
Page

1 - 1
Siemens AG Register 5 RXL2-120.091.08 Page 1 of 4 LITHOSTAR Multiline
Medical Engineering Rev. 04 10.00 TD PS 24 System Manual

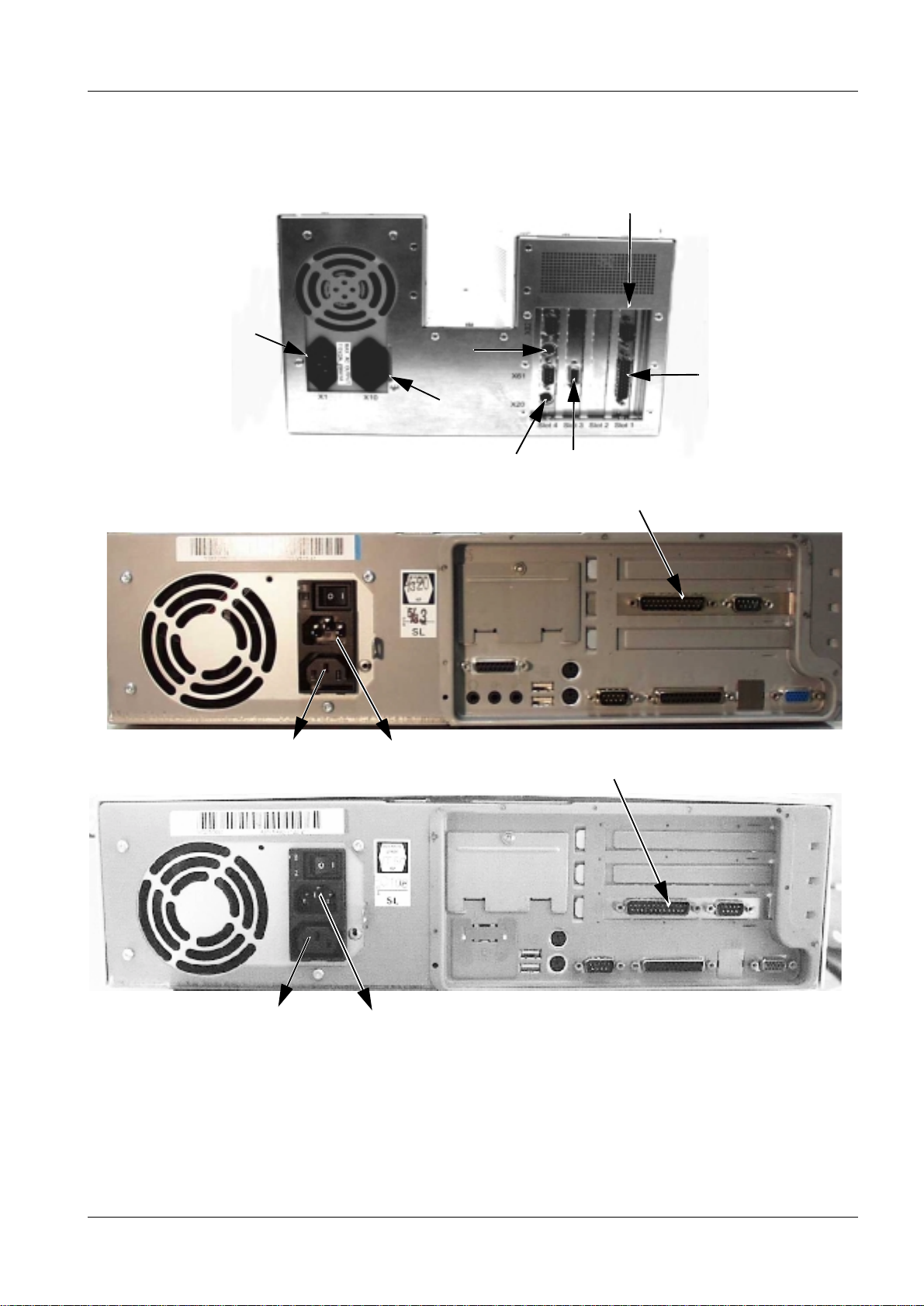

Rear view of the operating PC 1
1 Keyboard port 5 Parallel interface X50 Respirator-ECG signal interface
2 Moouse port 6 Monitor port X51 DUEP port
3 Serial interface COM 1 7 Power line connector
4 Monitor power line connector
6
SCENIC Pro C6
Position D51
X50 X51
1
2356
7
4Position D51
LM - Control Unit
X50 X51
5
3
1
2
SCENIC Pro C5 7
X51
6
1
2
4
7
7
X50
4
Software generation 1

LITHOSTAR Multiline Register 5 RXL2-120.091.08 Page 2 of 4 Siemens AG
System Manual Rev. 04 10.00 TD PS 24 Medical Engineering
1 - 2 Software generation
•SwitchthesystemOFF.
•Placethenew operatingPCinthedrawerof thesystemcontrolconsole.
•Connectthe followingcablestotheoperatingPC:
- linevoltagecableforoperatingPC
- linevoltagecableformonitor
- signalcableformonitor
- signalcableformouse
- signalcableforkeyboard
•SwitchthesystemON.
The greenLED onthe operatingPC mustlightup.
•On the operatingPC.
•SwitchthesystemOFF.
•InsertthebootdiskindriveA of theoperatingPC.
•SwitchthesystemON.
•Ifthekeyboardisreplaced,theUserTerminalsoftwaremustbe reinstalled.
Answeraccordingly.
SCENIC Pro C5 / C6
Ïthe following message appears:
"MS-DOS 6.2 Startup Menü"
•usethedown arrowkey"↓" to select
"2.PCneu startenodermanuell
ausschalten"
German texts will appear during the installation of the software
→This is due to the German operating system.
NOTICE
User-Terminal-Software Installation?
No: Press [ Ctrl ]+ [ C ]
YES: Press any key, to continue
Eine beliebige Taste drücken, um fortzusetzen.

Software generation 1 - 3
Siemens AG Register 5 RXL2-120.091.08 Page 3 of 4 LITHOSTAR Multiline
Medical Engineering Rev. 04 10.00 TD PS 24 System Manual
•Afterafew moments,thefollowingcommandappears:
•Pressthe"J" key and then"Enter/Entrée".
•Thecommand to enterthe type of keyboardappears:
•Selecteither"E"or"F",dependingon the type ofkeyboard,andpress"ENTER"/Entrée".
•Afterafew moments,thefollowingcommandappears:
•Removethe boot disk from driveA.
•Insertthebackupdisk01 in drive A.
•Pressanykey.
•When the system finishesloadingbackupdisk01,the followingcommand appears:
•Remove backup disk 01from drive A.
•Insertbackupdisk02 in driveA.
•Repeatthesame procedurefortheremainingbackupdisks.
•Onceallthe backup diskshavebeen loaded,the followingmessageappears:
•Remove backup disk 05from drive A.
•InserttheUserInterfaceSWdisk in drive A.
Hard-Disk will be formatted!
Please wait 5 sec. for next message and press "J" and [ENTER ] !
WARNUNG! Alle Daten auf der Festplatte in Laufwerk C:
werden gelöscht!
Formatieren durchführen (J/N)?
Enter keyboard type:
E: englisch (international) keyboard
F: french keyboard
Press "E" or "F" according to keyboard type and press [ENTER ]:
Please insert "Backup-Disk 01... 05" (Sicherungdiskette 01... 05)!
Press any key, to continue!
Sicherungsdiskette 01 in Laufwerk A: einlegen
Eine beliebige Taste drücken, um fortzusetzen
Sicherungsdiskette 02 in Laufwerk A: einlegen
Eine beliebige Taste drücken, um fortzusetzen
Please insert disk: "User-Interface-SW"!
Press any key, to continue!
Eine beliebige Taste drücken, um fortzusetzen

LITHOSTAR Multiline Register 5 RXL2-120.091.08 Page 4 of 4 Siemens AG
System Manual Rev. 04 10.00 TD PS 24 Medical Engineering
1 - 4 Software generation
•Afterafew moments,thefollowingcommandappears:
•Remove the User Interface SW disk from drive A.
•InserttheStatusdiskindriveA.
•Afterafew moments,thefollowingcommandappears:
•Removethe Status disk from drive A.
•InsertthebootdiskindriveA.
•Afterafew moments,thefollowingcommandappears:
•SwitchthesystemOFF.
•Removethe boot disk fromdriveA.
•Fortheadditionalstepsrequired,refertothechapterwhichcorrespondsto theoperating
PC being used.
Do not activate the write protection on the diskette, since data
must be written onto it.
Please insert "Status-Disk"!
Press any key, to continue!
Eine beliebige Taste drücken, um fortzusetzen
CAUTION
Please insert "BOOT-Disk" again!
Press any key, to continue!
Eine beliebige Taste drücken, um fortzusetzen
*******A T T E N T I O N: I M P O R T A N T N O T E! *********
Modify CMOS-SETUP according to service-manual!
- CMOS-Setup-Lock by Password
- Disable Disk-Controller
See instructions!
Please remove disk!
Now, switch off the PC and turn it on again for CMOS-Setup-Modify!
Thank you!

2 - 1
Siemens AG Register 5 RXL2-120.091.08 Page 1 of 4 LITHOSTAR Multiline
Medical Engineering Rev. 04 10.00 TD PS 24 System Manual
Mechanical changes in the control console 2
•Especially in thecase oftheSCENIC ProC5: operating PC
- Replacetheexistingground conductorin the controlconsolebythelongerone from
theconversionkit4783 416.
- Connectthecablefor the DUEP connectionX51and fastenfirmlyon thetopof the
connectorbracketusingtheclipfrom the conversion kit.
- Placethewoodenconsolefrom the conversionkit4783 416 onthe drawer.
- PlacetheoperatingPCon thewooden console.
•When the message "PressF2to enterSETUP" appears,pressthe"F2"key.
TheCMOS setupmenu appears.
•Selectthe"Main"menu usingthe← →cursorkeys.
•Inthe "Main" menu, use the ↑ ↓ cursorkeystoselectthe submenu "Boot Option".
•Pressthe "ENTER"key; use "Entrée"onthe French keyboard.
•Setthe"Post Errors"menu to "No Halt on Any Errors"usingthe +/- keys
(numerickeypad).
•Selectthe"FastBoot"menu using the↑ ↓cursorkeys.
•Setthe"Fast Boot" menu to"Enabled"usingthe +/- keys (numeric keypad).
•Selectthe"QuietBoot"menu usingthe↑ ↓cursor keys.
•Setthe"Quiet Boot" menu to"Enabled"usingthe+/-keys(numerickeypad).
•Selectthe"BootSequence:1."menu using the ↑ ↓cursorkeys.
•Setthe"Boot Sequence: 1." menu tothe harddiskusingthe "-" key (numeric keypad.
(theharddiskis1; the disketteis2).
•Pressthe "Esc" key; use the "Echap"keyon the Frenchkeyboard.
•Selectthe"Advanced"menu using the ← → cursorkeys.
•Inthe"Advanced"menu, use the↑ ↓ cursorkeys toselectthesubmenu"Peripheral
Configuration".
•Pressthe "ENTER"key; use "Entrée"onthe French keyboard.
•Selectthe"DisketteController" menu using the ↑ ↓cursorkeys.
•Setthe"DisketteController"menuto"Disabled"usingthe+/-keys(numerickeypad)
•Pressthe"Esc" key; use "Echap" on theFrenchkeyboard.
•Selectthe"Security"menuusingthe← → cursor keys.
•Inthe"Security"menu, use the ↑ ↓ cursorkeystoselect"SetSetup Password".
•Pressthe "ENTER"key; use "Entrée"onthe French keyboard.
•Enterthepassword"TDRX".
•Pressthe "ENTER" key twice;use"Entrée"onthe French keyboard.
•Enterthe password"TDRX" again.
Operating PC SCENIC Pro C5/ Pro C6 2

LITHOSTAR Multiline Register 5 RXL2-120.091.08 Page 2 of 4 Siemens AG
System Manual Rev. 04 10.00 TD PS 24 Medical Engineering
2 - 2 Operating PC SCENIC Pro C5/ Pro C6
•Pressthe"ENTER" key; use "Entrée"on the French keyboard.
•Usethe↑ ↓ cursor keys to selectthesubmenu "FlashWrite".
•Setthe"Flash Write"menu to"Disabled"usingthe+/-keys(numerickeypad).
•Pressthe"Esc"key;use "Echap" on theFrenchkeyboard.
•Usethe← → cursorkeystoselectthe"Power"menu.
•Usethe↑ ↓ cursor keys to select the"APM"menu.
•Setthe"APM" menuto "Disabled"usingthe +/- keys (numerickeypad).
•If"PowerManagementMode" is notsetto "Disabled",usethe↑ ↓cursorkeys to select
"PowerManagementMode".
•Pressthe"Esc"key;use "Echap" on theFrenchkeyboard.
•Selectthe"Power"menu using the ← → cursorkeys.
•Inthe "Power" menu, use the↑ ↓ cursorkeys toselectthesubmenu"PowerManage-
mentMode".
•Setthe"Power Management Mode"menu to "Disabled" usingthe +/- keys (numeric
keypad).
•Pressthe"Esc"key;use "Echap" on theFrenchkeyboard.
•Pressthe"ENTER" key twice;use"Entrée"onthe French keyboard.
•Afteramoment, the Multiline operatingsoftwarewilldisplaythe start-upmessage:
"NoHost Communication".
•SwitchthesystemOFF.

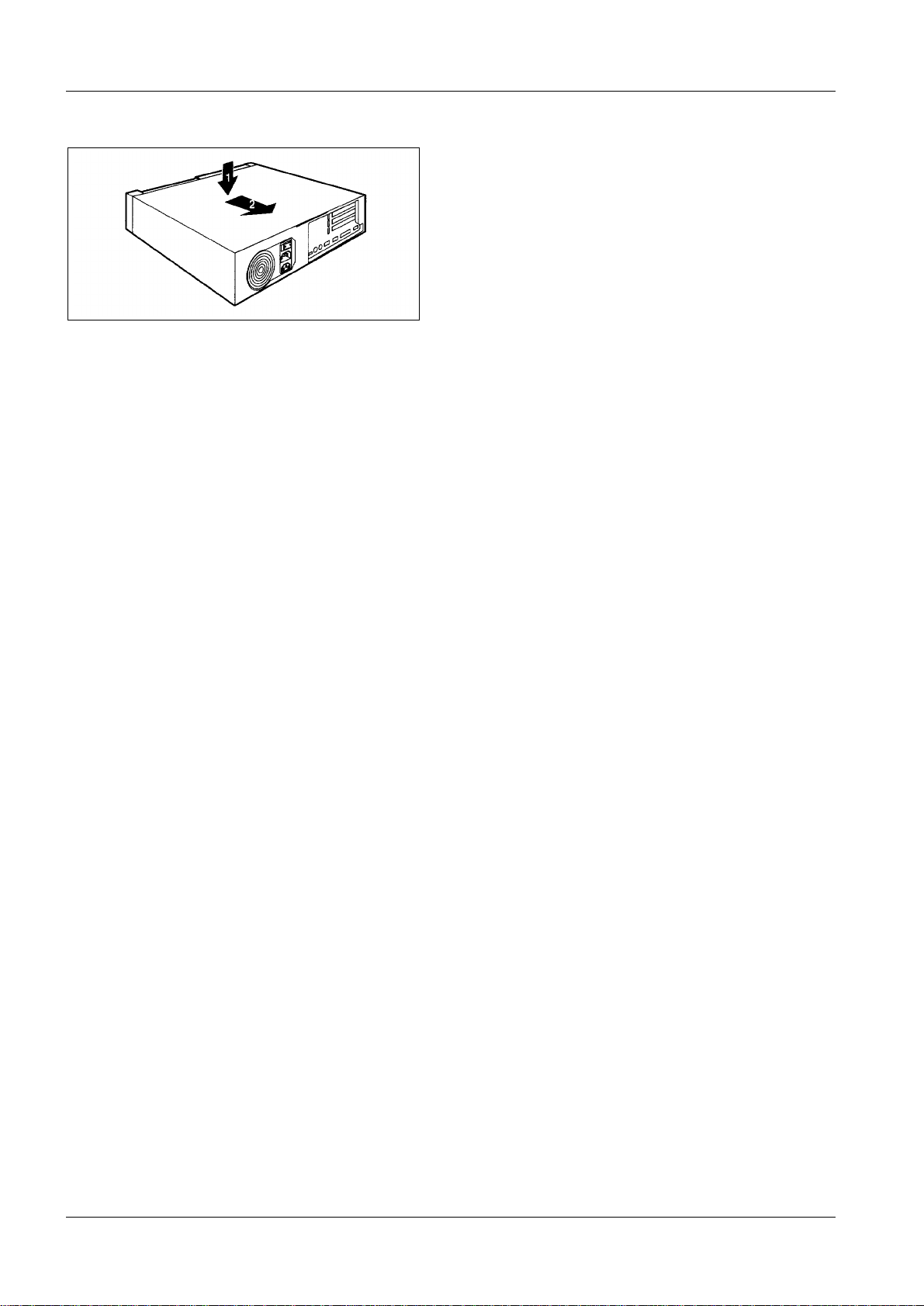

Opening the operating PC 2
•Removeallexternalcables.
•Openthe operatingPC (1/Fig.1).
•Slidethedrivecovertothe left (2/Fig.1).
•Forthe upper part of the housing
- slightly lifttherearedge (1/Fig.2).
- slidetowardsthefront(2/Fig.2).
- liftitupwards(3/Fig. 2).

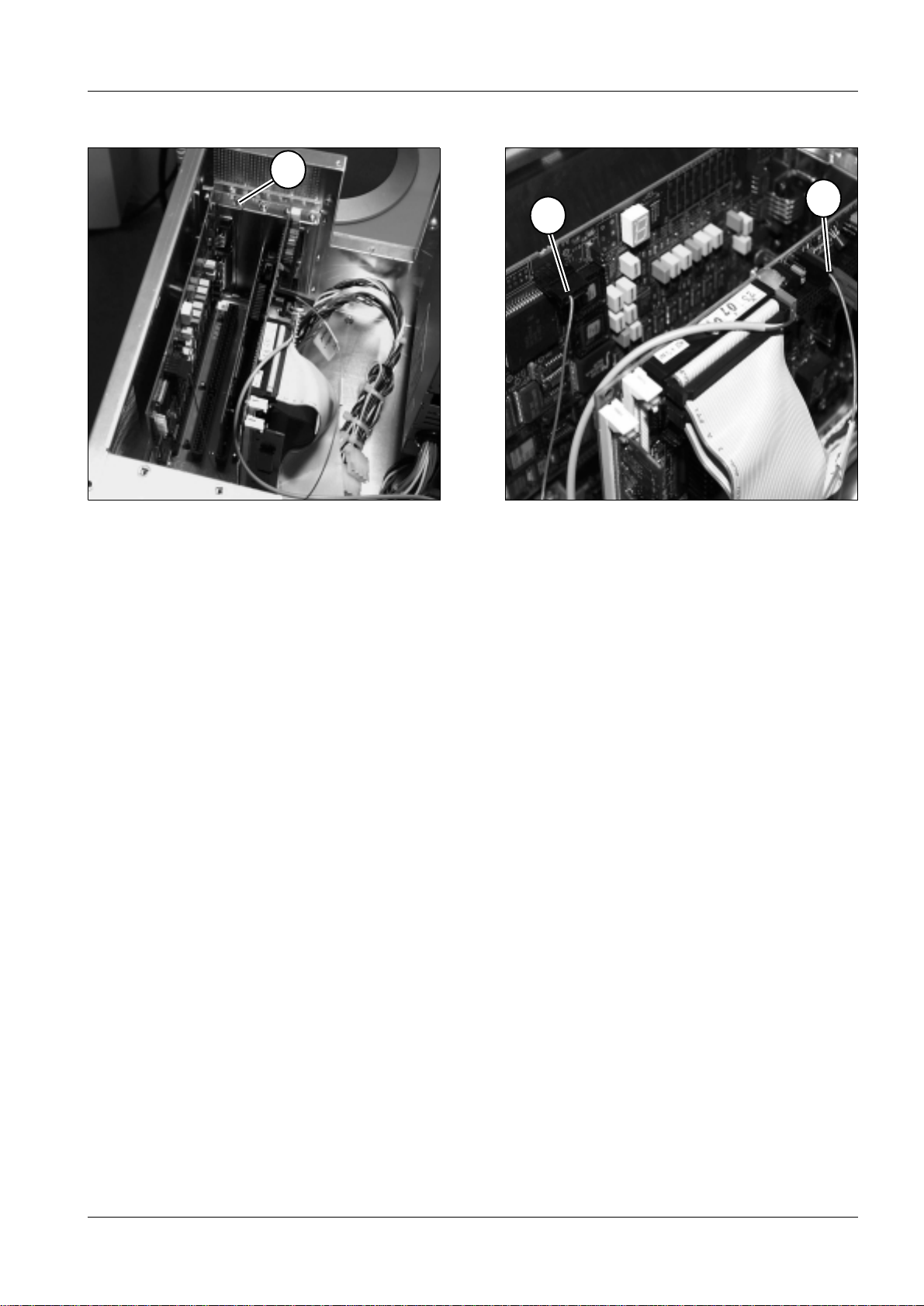

Fig. 1 Fig. 2

Operating PC SCENIC Pro C5/ Pro C6 2 - 3
Siemens AG Register 5 RXL2-120.091.08 Page 3 of 4 LITHOSTAR Multiline
Medical Engineering Rev. 04 10.00 TD PS 24 System Manual
Installing board D51 2
•Press onthe clamp in the direction ofthe arrow (1/Fig. 3)andremove it (2/Fig.3).
•Pro C5: Remove the lower rear cover (3/Fig. 3).
•Pro C6: Removethe center rear cover (3/Fig. 3).
•Removethe board from thepackaging.
•Slidetheboard horizontallyinthedirection ofthe arrow (1/Fig.4).
Ensurethatthe tipof the anglebracketlocksintotheguide(a/Fig.4).
•Press the board into thecardslot until it locks into place.
•Lockthebracket in the directionofthearrowinorderto securetheboard(2/Fig.4).
•Pro C5: PlugthesuppliedcableintoboardD51.X3.
•Releasethe upper supportby turning the screw onequarter turn (1/Fig.5).
•Liftup the support(2/Fig.5),pullitout in the directionof the arrow (3/Fig.5)andsetit
aside.
•Connectthecableaccordingtothediagram(Fig.6).
•Reinsertthesupportandsecureit.
•Pro C6: Plug the wire marked with "D51 X3" at X3 on the boardD5.
•ReconnectallcablesexcepttheDUEP X51 atPC.
•SwitchthesystemOFF.

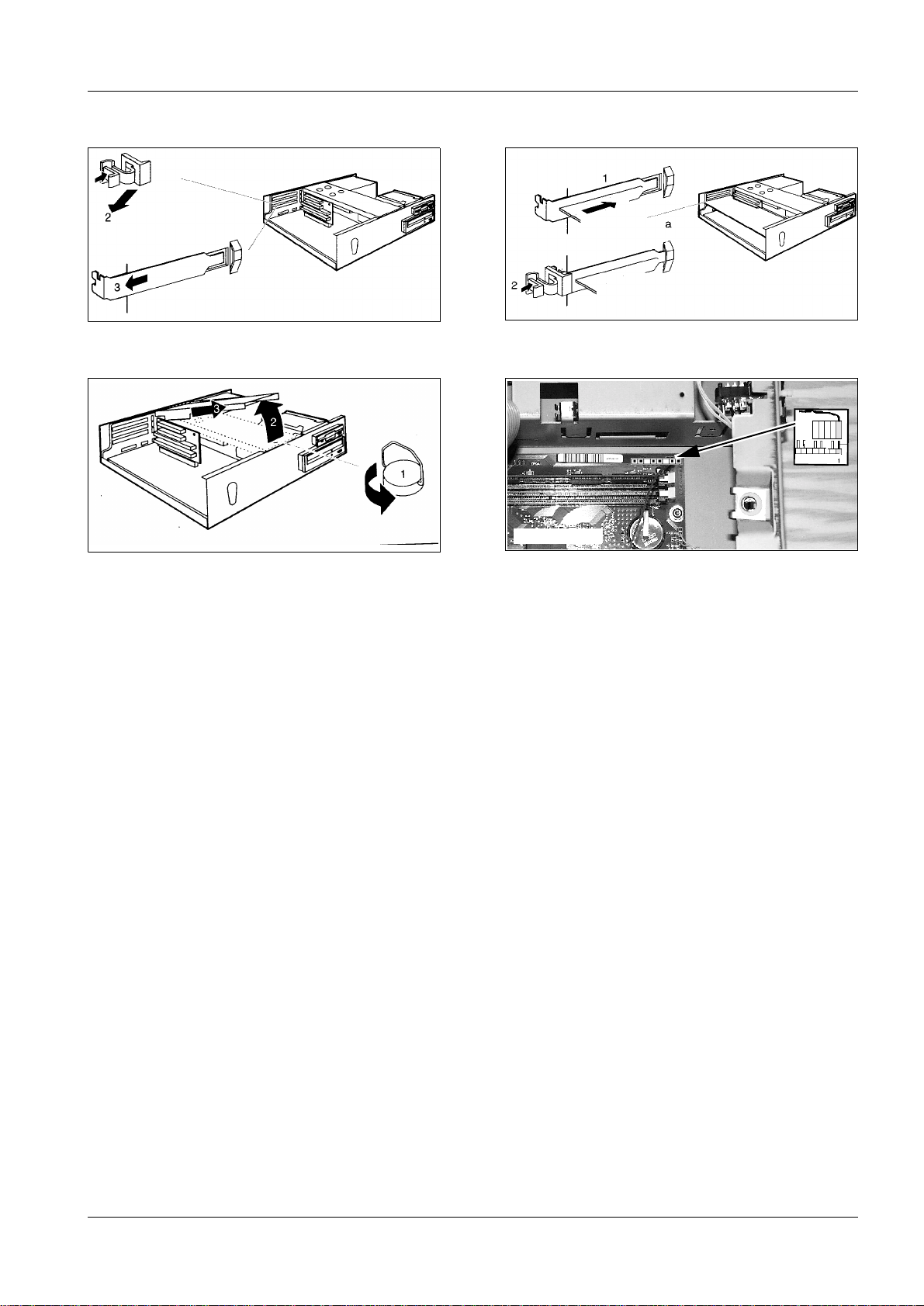

Fig. 3 Fig. 4
Fig. 5 Fig. 6
Motherboard

LITHOSTAR Multiline Register 5 RXL2-120.091.08 Page 4 of 4 Siemens AG
System Manual Rev. 04 10.00 TD PS 24 Medical Engineering
2 - 4 Operating PC SCENIC Pro C5/ Pro C6
•Checkwhetherthe displayon boardD51 runs backwards from "9"to"1".
- Thedisplaystopstemporarilyat"3"
-"0"=OK
- "1" = no DUEP
•SwitchthesystemOFF.
•Connectthe DUEP cableX51.
Closing the operating PC 2
•Forthe upper part of the housing:
- placeiton the operatingPCin the directionofthe arrow(1/Fig.7).
Ensurethattheanchorpinson the innersideof the upperpartof the housing lock into
the correspondingguides.
- press inthe direction ofthe arrow (2/Fig. 7),until it noticeably locksintoplace.
•Pushin the drawer;becarefulofthe cable layoutinthe operatingconsole.
•Pushthe operatingPC to theback andrightinthe operatingconsole,so that the ventila-
tionductsarenot blocked.
Fig. 7

3 - 1
Siemens AG Register 5 RXL2-120.091.08 Page 1 of 4 LITHOSTAR Multiline
Medical Engineering Rev. 04 10.00 TD PS 24 System Manual
Mechanical changes in the control console
•The LM control unit mustbescrewedfirmlyontothe drawer.IfaSCENIC ProC5/ProC6
isinstalled, then remove theexistingwoodenconsole.
•Measuretheheightin the controlconsole(1/Fig.1).Ifthedimensionisgreaterthanor
equalto 21 cm,settingthedrawerlowerisnot required.
•Drill 2 holes(4.2 mmdia.) each 15 mm from the upper edge on both sides of the PC
drawer(1/Fig.2).
Fig. 1 Fig. 2
Fig. 3 Fig. 4
11
1
1
1
1
Operating PC LM Control Unit 3

LITHOSTAR Multiline Register 5 RXL2-120.091.08 Page 2 of 4 Siemens AG
System Manual Rev. 04 10.00 TD PS 24 Medical Engineering
3 - 2 Operating PC LM Control Unit
•Fastenthedrawer to the newlydrilledholes(1/Fig.2).ObtaintheM4nutslocally.
•To be able to reach the rear screws,the drawer must be withdrawn sofar until it can be
liftedoutfromtheguideroller(1/Fig.3).
•Drill4holes of 5.5 mm diameter in the drawer(1/Fig.4).
The horizontal spacing oftheholesis277+ 0.2 mm.Drillthe first row ofholes100 mm
fromthefrontedge.The distancebetweenthefirstandsecondrow of holes is 259mm,
i.e. the secondrow is 359 mm from the front edgeof thedrawer.
•SystemON.
•Duringthedisplay"PressF2toenterSETUP" pressthe"F2"key.
•Enterthepassword"TDRX".
•Pressthe"ENTER"or "Entrée"key.TheCMOS setupmenu appears.
•Selectthe"Main"menu with the cursorkeys"← →".
•Inthe"Main" menu selectwiththecursorkeys"↑ ↓" the "Boot Option" submenu.
•Selectthe"BootSequence"menu with the cursorkeys"↑ ↓".
•Change"BootSequence1."with the"-" key inthenumeric keypad to diskette
(diskette is 1; hard disk is 2).
•Pressthe"Esc"or"Echap" key.
•Selectthe"Advanced"menuwiththecursorkeys"← →".
•Inthe"Advanced"menuselect with the cursor keys "↑ ↓"the"PeripheralConfiguration".
submenu.
•Pressthe"ENTER"or "Entrée"key.
•In the "Peripheral Configuration" menu select withthe cursor keys "↑ ↓" the
"DisketteController" menu.
•Set the "Diskette Controller" with the "+/-" keys to "DISABLED".
•Pressthe"Esc"or "Echap" key twice.
•Pressthe"ENTER"or "Entrée"keytwice.
•Afterashorttimethe Multilineoperatingsoftwarestartup messageappears:
NoHost Communication.
•SystemOFF.
If "Auto-detect Harddisk" is selected unintentionally in the Bios,
then the setting values are lost without any query and the hard
disk is no longer detected. The values for the hard disk must then
be entered manually.
NOTICE

Operating PC LM Control Unit 3 - 3
Siemens AG Register 5 RXL2-120.091.08 Page 3 of 4 LITHOSTAR Multiline
Medical Engineering Rev. 04 10.00 TD PS 24 System Manual
Open operating PC and install board D51 3
•Removeallexternalcables.
•Removethe uppercontrolunitcover.
•Removethe Slot 1coverplate.
•InstallandfastenboardD51in Slot1(1/Fig.5).
•Plugresetcableon board D51.X3Pin 4 (1/Fig.6)and on themotherboardatCN4 Pin 1
(2/Fig. 6).
•Reconnect all cables exceptforDUEP X51to the PC.
•System ON.
•Checkthatthe displayon the boardD51 runsbackfrom"9"to "1".
- Thedisplayremainsfora shorttime at "3"
- "0"= everythingOK
- "1"= no DUEP comes
•System OFF.
•ConnecttheDUEP cableX51.
Close the operating PC 3
•Fastentheuppercontrolunitcoveragain.
•Fasten the control unit to the drawer.
•Pushin the drawerpayingattentiontothecableruninthe console.
Fig. 5 Fig. 6
12
1

LITHOSTAR Multiline Register 5 RXL2-120.091.08 Page 4 of 4 Siemens AG
System Manual Rev. 04 10.00 TD PS 24 Medical Engineering
3 - 4 Operating PC LM Control Unit
This page intentionally left blank.

4 - 1
Siemens AG Register 5 RXL2-120.091.08 Page 1 of 2 LITHOSTAR Multiline
Medical Engineering Rev. 04 10.00 TD PS 24 System Manual
Chap. 0 Cover page, contents and Rev. status newly created
Chap. 1 - Chap. 3 Completely revised
Changes to previous version 4

LITHOSTAR Multiline Register 5 RXL2-120.091.08 Page 2 of 2 Siemens AG
System Manual Rev. 04 10.00 TD PS 24 Medical Engineering
4 - 2 Changes to previous version
This page intentionally left blank.
