Siemens MOBILETT Plus User manual

Mobilett Plus/ E/ M/ HP
English
Print No.: SPR8-220.031.02.02.02 Doc. Gen. Date: 11.02
Replaces: SPR8-220.031.02.01.02 66 47 007
© Siemens AG 2002
The reproduction, transmission or
use of this document or its contents
is not permitted without express
written authority. Offenders will be
liable for damages. All rights,
including rights created by patent
grant or registration of a utility
model _or_design,_are_reserved.
Service
Installation of remote exposure switch system
Installation Instructions

Mobilett Plus/ E/ M/ HP SPR8-220.031.02 Page 2 of 4 Siemens-Elema AB
Service Rev. 02 11.02 SPS-UD Solna, Sweden
0 - 2 Revision
Document revision level
The document corresponds to the version/revision level effective at the time of system delivery. Revi-
sions to hardcopy documentation are not automatically distributed.
Please contact your local Siemens office to order current revision levels.
Disclaimer
The installation and service of equipment described herein is to be performed by qualified personnel
who are employed by Siemens or one of its affiliates or who are otherwise authorized by Siemens or
one of its affiliates to provide such services.
Assemblers and other persons who are not employed by or otherwise directly affiliated with or autho-
rized by Siemens or one of its affiliates are directed to contact one of the local offices of Siemens or
one of its affiliates before attempting installation or service procedures.
Chapter Page Revision
All All 02

Contents 0 - 3
Siemens-Elema AB SPR8-220.031.02 Page 3 of 4 Mobilett Plus/ E/ M/ HP
Solna, Sweden Rev. 02 11.02 SPS-UD Service
1 _______Prerequisites __________________________________________________1 - 1
Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 1
Important note. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 1
Parts required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 1
Tools required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 1
Time required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 2
2 _______Installation ____________________________________________________2 - 1
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Functional check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 5
Final procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 - 7
3 _______Changes to previous version_____________________________________3 - 1
4 _______Supplement to the Instructions for Use ____________________________4 - 1
Design and function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1
Parts and controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 1
Remote control (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 2
Protective Measures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 2
Radiation protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 2
Both for the patient and the operation personnel: . . . . . . . . . . . . . . . . . . 4 - 2
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3
Remote control (Option) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3
Remote control (Option) features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 4
Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5
Remote control, TechSwitch (Option) . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5
Page

0 - 4 Contents
Mobilett Plus/ E/ M/ HP SPR8-220.031.02 Page 4 of 4 Siemens-Elema AB
Service Rev. 02 11.02 SPS-UD Solna, Sweden
This page intentionally left blank.

1 - 1
Siemens-Elema AB SPR8-220.031.02 Page 1 of 2 Mobilett Plus/ E/ M/ HP
Solna, Sweden Rev. 02 11.02 SPS-UD Service
Prerequisites 1
Purpose 1
This document describes how to install a remote exposure switch system on a
Mobilett Plus/ Plus E/ Plus M/ Plus HP.
Important note 1
After the installation is done, separate the last chapter, "the Supplement to the Instruc-
tions for Use", from the document. It is important to insert this chapter into the Instructions
for Use for the Mobilett product affected, unless the remote exposure switch system
already is described in the Instructions for use. This shall be done to help the user how to
use the remote switch system after the installation.
Parts required 1
Remote exposure switch system kit, including:
•Tworemotecontrols (onespare)
•IRsensorwith modular cable
•PCB electronicspackagewithflat cable
•Ferrite core
•Washers
•Groundconnector cable
•Tie-mounts
•Cableties
•Thisinstruction
Tools required 1
•Standardinstallationtools
•Maskingtape
•Electricdrill with 13 and 4,8 mm drill bits
Time required 1
•Approximatelyonehourforone person

Mobilett Plus/ E/ M/ HP SPR8-220.031.02 Page 2 of 2 Siemens-Elema AB
Service Rev. 02 11.02 SPS-UD Solna, Sweden
1 - 2 Prerequisites
Safety information 1
Be sure to unplug the unit from the mains or turn off
the main circuit breaker before performing any service.
Remove or install boards only when the generator is
switched OFF. Adhere to the ESD guidelines.
Checks and adjustments performed with radiation ON
are identified by the radiation warning symbol .
During these types of adjustments, radiation protective
clothing must be worn.
Observe all MOBILETT safety guidelines.
CAUTION

2 - 1
Siemens-Elema AB SPR8-220.031.02 Page 1 of 8 Mobilett Plus/ E/ M/ HP
Solna, Sweden Rev. 02 11.02 SPS-UD Service
Installation 2
Assembly 2

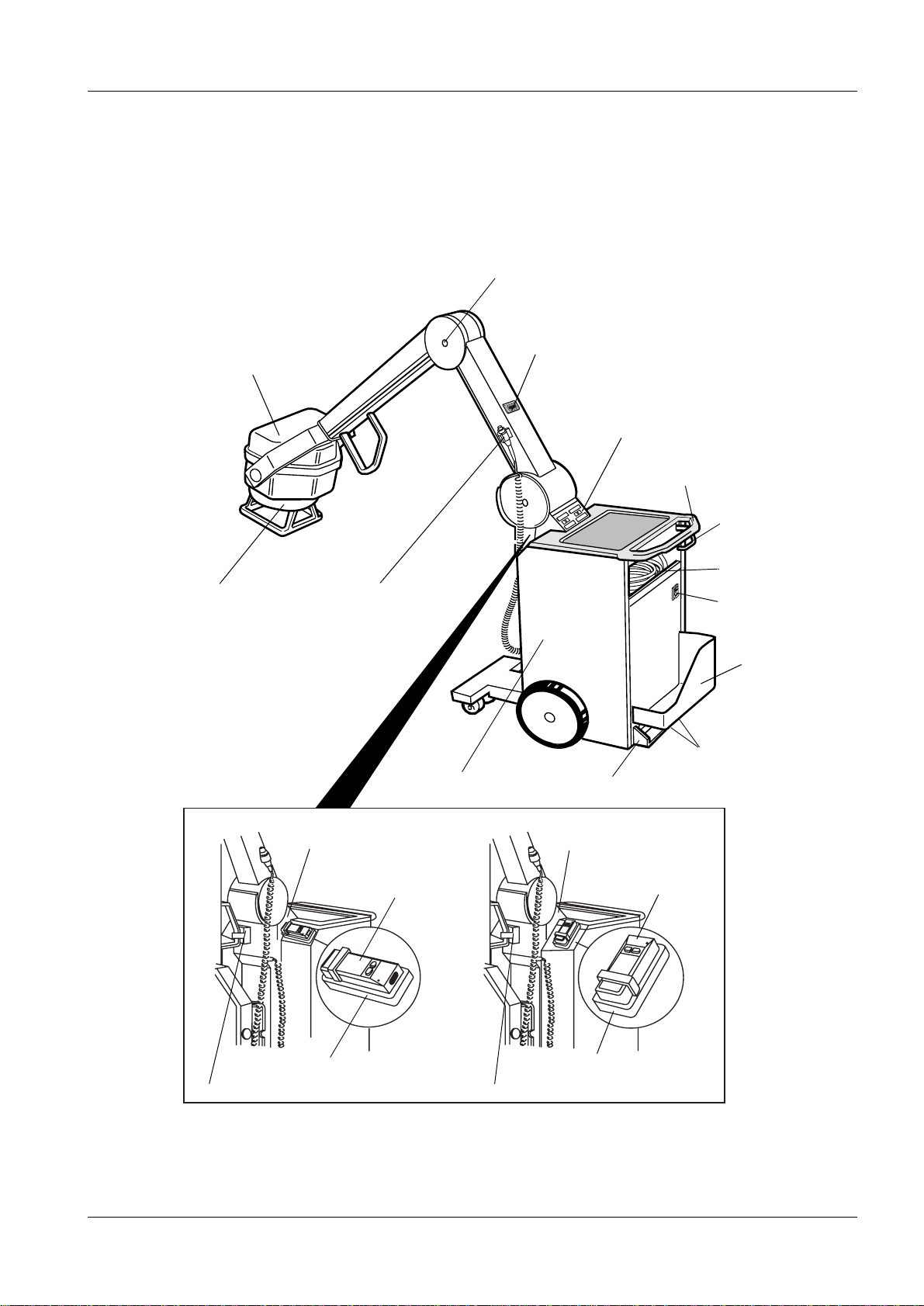

Fig. 1 Removal of Mobilett covers
1. RemovetheMobiletttopcover plate(pos1 / Fig.1),and theprotectionplateof the
CPU board below, toexpose the main CPU D1, see Fig. 6.
2. RemovethecoveroftheMobilettarticulatedarm(pos2 / Fig.1),the rightand left
sidecovers(pos 3/Fig.1),boththeright andleftcircularcovers (pos4/Fig.1),
therearcoverofthearticulatedshaft(pos5/Fig.1) and thefrontcover with
cassetteholder(pos7 / Fig.1).
3. SwitchS10 to dischargeposition.Afterapproximately5minutesthe capacitors
willbe discharged.Measurethe dischargeprocedure betweenmeasuring points
CAPPOS and CAPNEG ontheD7board(pos 6/Fig.1) withadigitalmultimeter.
For MOBILETT Plus HP only:
Remove the cover in front of the batteries. Disconnect
one of the blue battery connector pairs.
B
M
C
MOB00273
MOBILETT Plus
1
2
3
5
6
7
4
8
NOTICE

Mobilett Plus/ E/ M/ HP SPR8-220.031.02 Page 2 of 8 Siemens-Elema AB
Service Rev. 02 11.02 SPS-UD Solna, Sweden
2 - 2 Installation
Ifthe Mobilettis equipped withcoversofthearticulatingarm withoutholes(pos2/
Fig.1)followtheprocedure describedin step 4 to6.
Otherwiseremove theplasticplugsandcontinuewithstep7.
4. Placemasking tapeonthedisassembledcover (pos 2 /Fig.1) overthepositions
forthe threeholes,see Fig.2,in ordertoprotect thepainting ofthecovers.
5. Drill thethree holes on the cover with the dimensions and positioning accordingto
Fig.2.
6. Smoothenthesharp edgesofthenewlydrilledholes witha file.

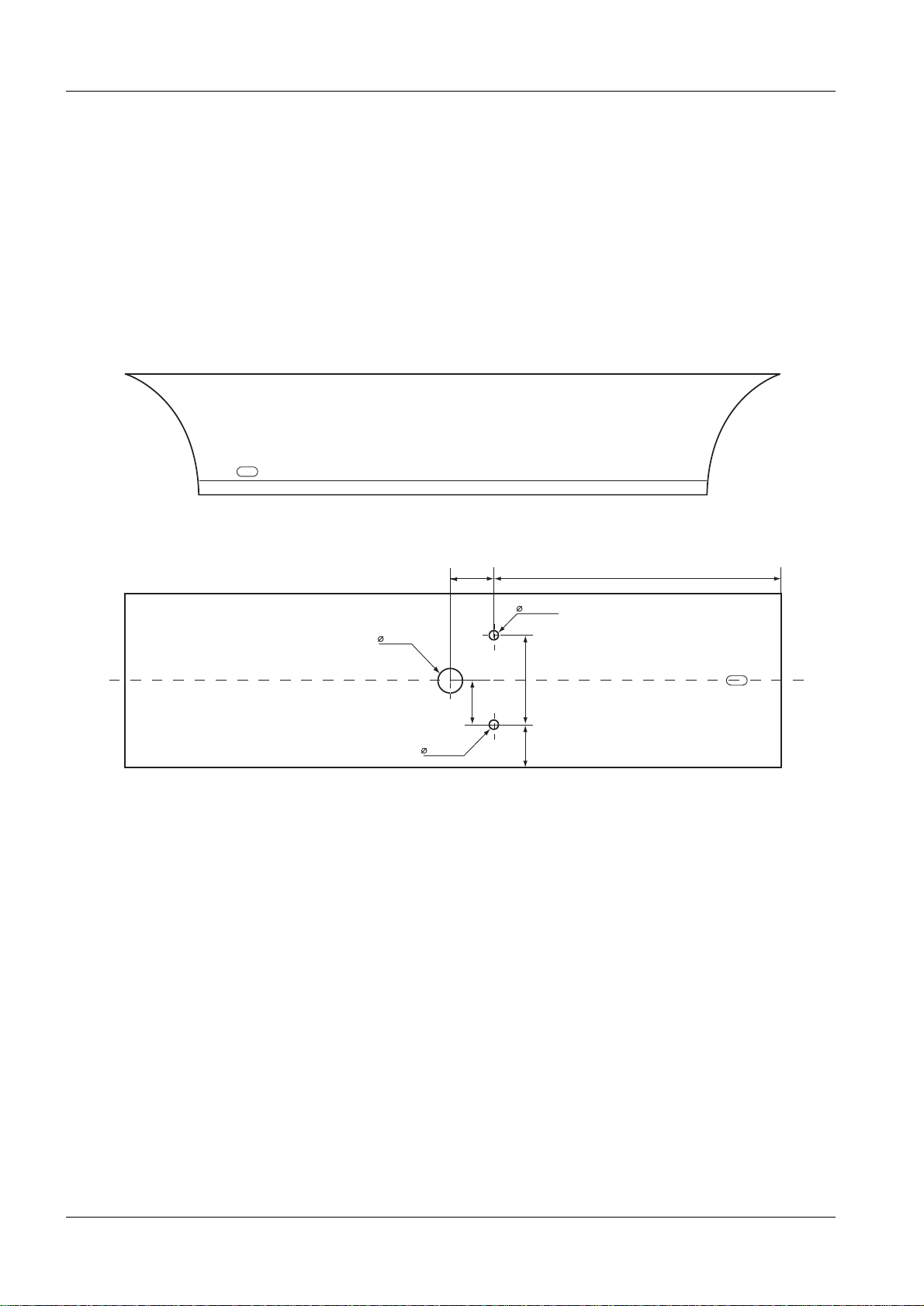

Fig. 2 Positioning of holes
SIDE VIEW
TOP VIEW
13±1
4,8±0,2
4,8±0,2
32,5±155±0,2
27,5±1
237±2
12±1
MOB00225

Installation 2 - 3
Siemens-Elema AB SPR8-220.031.02 Page 3 of 8 Mobilett Plus/ E/ M/ HP
Solna, Sweden Rev. 02 11.02 SPS-UD Service
7. Refer toFig. 3 andFig. 4 and mountthe remotesensor to the Mobilett arm cover
withthe hardwaresupplied.Make surethatthe cableissecured abovetheIR-
sensorto avoidthesharpedges ofthethin metalcoverbelow (pos8/Fig. 1).
8. Leaveaverticalloopin the remotesensorcableanduse cable tiesto wrap the
cable tothe existing cable harness inthe Mobilettarticulated arm makingcertain
the cable will not become cut or crimped, see Fig. 4 and Fig. 5. Assure that the
cablewill not beincontact withtheaxisofthearticulatedarm(pos1/Fig.5).
MOB0023
3
MOB00234
Fig. 3 Mounting of remote sensor Fig. 4 Leaving a vertical loop of the cable
MOB0023
5
Fig. 5
Remote sensor
Module connector 1

Mobilett Plus/ E/ M/ HP SPR8-220.031.02 Page 4 of 8 Siemens-Elema AB
Service Rev. 02 11.02 SPS-UD Solna, Sweden
2 - 4 Installation
9. Feedthefree end ofthecablewiththemoduleconnectorfromaround the back
andintothe rightsideof the machine.
10. Mountthe electronicspackage (pos1/ Fig. 6) alongsidethe mainMobilettCPU
boardwith the double-sidedtape. Makesurethat thedistancebetween theright
side metal wall (pos 2 / Fig. 6) and the electronics package is atleast 15mm. Plug
themoduleconnectorfromthe remotesensor intothepackage (pos 3 /Fig.6)
11. Unplugthe existing connectorfrom D1K1.
12. Usingthe IDCconnectorsupplied,route thePCBflatcable behindthe control
panelandconnect ittoD1K1 (pos 4 /Fig.6).
13. Foldthe flatcableand fastentheferritecorearound it(pos9 / Fig.6)asclose to
theK1connectoraspossible.
14. Reconnect theunpluggedconnectorto the extraIDC connector.
15. Fastenthegroundconnectorcable(pos 10 /Fig.6). Make surethe washersare
orientedas describedinFig. 6.
16. Position theprovidedtie-mountstotheareasindicatedinFig. 6 atpos5, 6 and 7.
kV
mAs
MOB00665

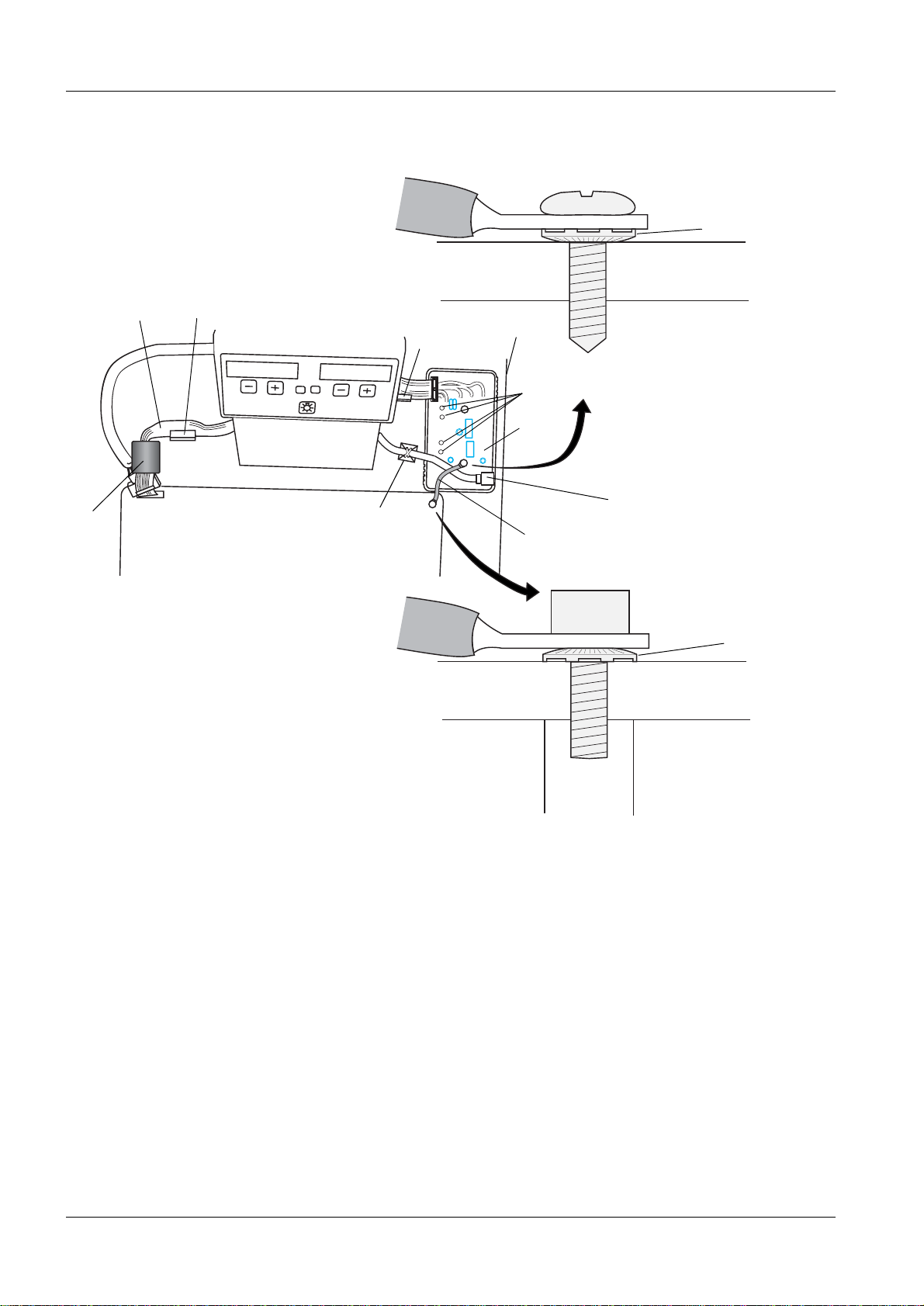

Fig. 6
3
1
D1
K1
456
8
7
2
910
circuit board
aluminum cover
washer
washer

Installation 2 - 5
Siemens-Elema AB SPR8-220.031.02 Page 5 of 8 Mobilett Plus/ E/ M/ HP
Solna, Sweden Rev. 02 11.02 SPS-UD Service
Functional check 2
The system should now be tested prior to securing the covers. All testing is done by
observing the LEDs (pos 8 / Fig. 6) on the PCB electronics package. The PCB electronics
package has an infrared detector. Make sure that S10 is in charge position.
1. ’ON’ LED (Green, LED4)
Description: IlluminateswhentheX-rayunitis turnedon.
Test: Turnthe X-rayuniton as iftomake an exposure.
Error: LEDdoes not illuminate.
Faultelimination: CheckthattheX-rayunitworksproperlywith theoriginal
handswitch.ChecktheTechSwitch PCB wiringtothe
machine.
2. ’REC’LED(Red,LED3)
Description: Illuminateswhen theinfraredbeamisbeingdetected.
Test: Pointthe remotecontroltowardsthe infrareddetectoron
theTechSwitch PCB and pressthecollimatorlightbutton.
Error: LEDdoes not illuminate.
Fault elimination: Check that ’ON’LED is illuminated.Test withanother
TechSwitchremote control.Possibledeadbatteryorfaulty
remotecontrol.Replace remotecontrolbattery(9-volt
alkalineonly)andrepeattest.
Error: Lightdoes notcomeonwith any TechSwitchremote
control.
Faultelimination: Checkthe wiringto the remotesensorpriorto
replacingtheTechSwitch.
3. ’ROT’LED(Red, LED2)
Description: Illuminateswhen theprepcommand is activated.
Test: Pointtransmitterof theremotecontroltowardtheremote
sensor,and momentarilypressand releasetheexposure
releaseswitch.
Error: LEDdoes not illuminate.
Faultelimination: Checkthat’ON’LEDis illuminatedandthat ’REC’LED lights
withremotecontrolactivated.Otherwise replacethe
TechSwitchPCB.
Error: ’ROT’LED lights withno beam directed towardit.
Faultelimination: ReplacetheTechSwitch.
When testing this system please be certain to observe
all necessary guidelines for radiation safety and
protection. When setting the exposure parameters use
the lowest possible values for kV and mAs.
For MOBILETT Plus HP only:
Reconnect the loose battery connector pair.
NOTICE
NOTICE

Mobilett Plus/ E/ M/ HP SPR8-220.031.02 Page 6 of 8 Siemens-Elema AB
Service Rev. 02 11.02 SPS-UD Solna, Sweden
2 - 6 Installation
4. ’EXP’LED(Red,LED1)
Description: Illuminateswhentheexposurecommand isactivated. Must
belitfor thefullperiodofsustained remotecontrol
activation.
Test: Pointthe remotecontroltowardsthe remotesensor.Press
andholddown the exposurerelease switchuntil exposure
light is lit.
Error: ’EXP’LEDdoes notilluminate,staysilluminated,or.
illuminatesforno apparent reason.
Faultelimination: Checkthatallother LEDs areilluminating.Otherwise
replacethe TechSwitch.
5. Remotefindertest (transmitter):
Description: Repeatsaseries ofbeepsif leftoutofthe holder.
Test: Removethe remotecontrolfrom itsholderon the X-ray
machineandset ittothe side forthree(3) minutes.
Faultelimination:Checkthatthetransmittercontinuouslysoundsthree (3)
consecutivebeepseveryfive(5)seconds.
Test: Pushthe collimatorlight buttonon the remote control
andthebeeping willdiscontinue.Waitanotherthree(3)
minutesand notice thebeepingresumes.Pressnobuttons
andplacethe remotecontrol backin itsholder.The series
ofbeeps should end.
Faultelimination:Ifno beep,replacethe remotecontrol.
6. Makeaseriesof exposuresto be certainthe remote systemis functioning
properly.Set thekVto 90 and125(133if possible)and maximum mAs forthe
exposures.
Make certain there are no other mobile units with a
TechSwitch remote system in line-of sight. This
includes any units behind a window or lead glass. If
there are other mobiles in line-of-sight, power down
those mobiles while operating the other.
The exposure control function of this system is a
"dead-man" type switch. If the exposure command is
interrupted during an exposure, the exposure is
automatically discontinued.
All four LEDs on the TechSwitch PCB must be lit for an
exposure to occur.
CAUTION
NOTICE
NOTICE

Installation 2 - 7
Siemens-Elema AB SPR8-220.031.02 Page 7 of 8 Mobilett Plus/ E/ M/ HP
Solna, Sweden Rev. 02 11.02 SPS-UD Service
Final procedures 2
1. SwitchS10 to dischargeposition.Afterapproximately5minutesthe capacitors
willbe discharged.Measurethe dischargeprocedure betweenmeasuring points
CAPPOS and CAPNEG ontheD7board(pos 6/Fig.1) withadigitalmultimeter.
2. Reassembleall the coversexcept thetopcover plateandthefrontcoverwith
cassetteholder.
3. SwitchS10to chargeposition.
4. Reassemblethe frontcoverwith cassetteholderandthetop coverplate.
5. Tapetheremote holdertothe Mobilettas suggested inFig.7. Placethe remote
(withtheremotefinderfeatureand low batteryindicator)inthe holder,and store
thesecondspare (includedin thedelivery)ina safe placeinthe Radiology
Department.
When testing this system please be certain to observe
all necessary guidelines for radiation safety and
protection.
For MOBILETT Plus HP only:
Disconnect one of the blue battery connector pairs.
For MOBILETT Plus HP only:
Make sure that battery connector pair is reconnected
and the battery cover is reassembled.
NOTICE
NOTICE
NOTICE
Mobilett Plus/ Plus E/ Plus M Mobilett Plus HP
MOB0023
6
Fig. 7 Placing of remote holder on Mobilett

Mobilett Plus/ E/ M/ HP SPR8-220.031.02 Page 8 of 8 Siemens-Elema AB
Service Rev. 02 11.02 SPS-UD Solna, Sweden
2 - 8 Installation
This page intentionally left blank.

3 - 1
Siemens-Elema AB SPR8-220.031.02 Page 1 of 2 Mobilett Plus/ E/ M/ HP
Solna, Sweden Rev. 02 11.02 SPS-UD Service
Changes to previous version 3
New components added for installation; ferrite core and ground connector cable.
Image on page 2-4 updated.
Safety notes revised.

Mobilett Plus/ E/ M/ HP SPR8-220.031.02 Page 2 of 2 Siemens-Elema AB
Service Rev. 02 11.02 SPS-UD Solna, Sweden
3 - 2 Changes to previous version
This page intentionally left blank.

4 - 1
Siemens-Elema AB SPR8-220.031.02 Page 1 of 6 Mobilett Plus/ E/ M/ HP
Solna, Sweden Rev. 02 11.02 SPS-UD Service
Supplement to the Instructions for Use 4
Design and function 4
Overview 4
Parts and controls 4
Mobilett Plus/ Plus E/ Plus M Mobilett Plus HP
MOB00237
Arm system
Tube assembly
Exposure release switch
Collimator
Transport safeguard
Carriage unit
Vertical column
Tilt bar
Support wheels
Cassette
Mains switch
Power cord
Hand/parking
Transport handle
Control and display panel
brake handle
compartment
Remote sensor (Option)
Remote control (Option)
Remote holder (Option)
Vertical column
Transport safeguard
Remote holder (Option)
Remote control (Option)

Mobilett Plus/ E/ M/ HP SPR8-220.031.02 Page 2 of 6 Siemens-Elema AB
Service Rev. 02 11.02 SPS-UD Solna, Sweden
4 - 2 Supplement to the Instructions for Use
Remote control (Option) 4
Protective Measures 4
Radiation protection 4
Both for the patient and the operation personnel: 4
•Makecertainthereareno other mobileunits withaTechSwitch remote
system(option) inline-ofsight.This includesany units behinda window orleadglass.If
thereare other mobilesinline-of-sight,powerdownthosemobiles whileoperating the
other.

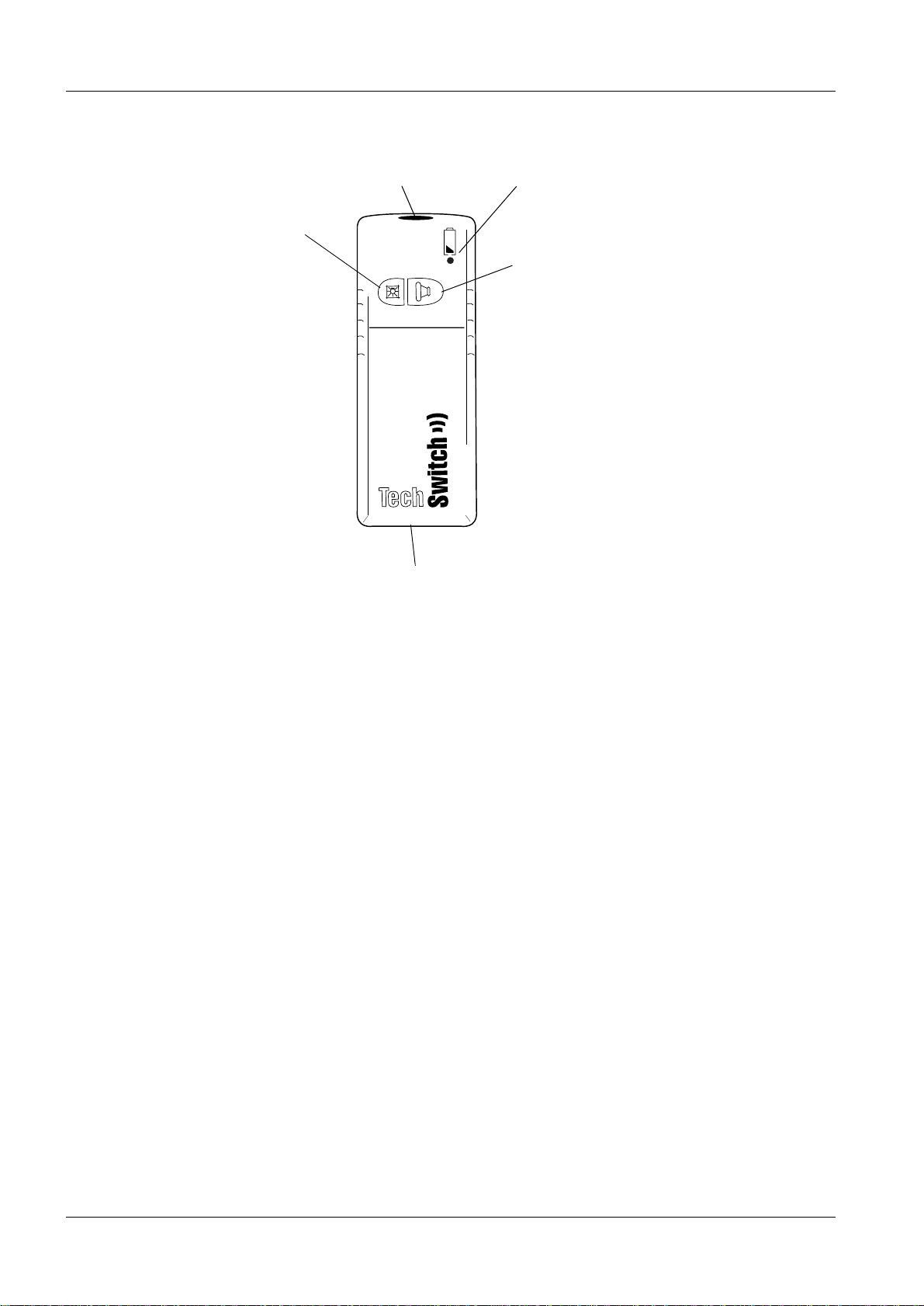

MOB0021
2
Collimator light
button ON/OFF
Exposure release switch
Infrared window Low battery indicator
Battery compartment

Supplement to the Instructions for Use 4 - 3
Siemens-Elema AB SPR8-220.031.02 Page 3 of 6 Mobilett Plus/ E/ M/ HP
Solna, Sweden Rev. 02 11.02 SPS-UD Service
Operation 4
Remote control (Option) 4
Take the remote control out of its remote holder. Step back from the X-ray unit
(up to 36+ feet / 10,9 m), and aim the remote control at the remote sensor on the front arm
of the X-ray machine.
The remote control is used in two-step. When pressing the exposure release switch once,
the preparation cycle is activated. The green "Ready" lamp goes out and does not light up
again until anode rotation has reached full speed (after approx. 2.5 s). This is indicated by
three short "beeps". The generator is now ready for exposure release.
To release the exposure, press the exposure release switch asecond time,and hold it down
until the exposure is terminated. The amber exposure indicator lights during the exposure.
The indication lasts somewhat longer than the actual exposure, in order to make the oper-
ator aware of very short exposures. A longer beep indicates the end of the exposure.
After the exposure is completed, both the X-ray unit and remote control will automatically
return to stand-by mode.
Return the remote control back to its remote holder on the X-ray unit.
Make certain there are no other mobile units with a
TechSwitch remote system in line-of sight. This
includes any units behind a window or lead glass. If
there are other mobiles in line-of-sight, power down
those mobiles while operating the other.
It is possible to wait a maximum of 15 s in the prepara-
tion position before releasing the exposure, otherwise
the preparation will automatically be switched off.
If the remote control is not returned to its holder within
three minutes after use, the Remote finder feature will
activate causing the remote control to beep. The beeps
will continue indefinitely until the remote control is
located and put back in the remote holder.
CAUTION
NOTICE
NOTICE

Mobilett Plus/ E/ M/ HP SPR8-220.031.02 Page 4 of 6 Siemens-Elema AB
Service Rev. 02 11.02 SPS-UD Solna, Sweden
4 - 4 Supplement to the Instructions for Use

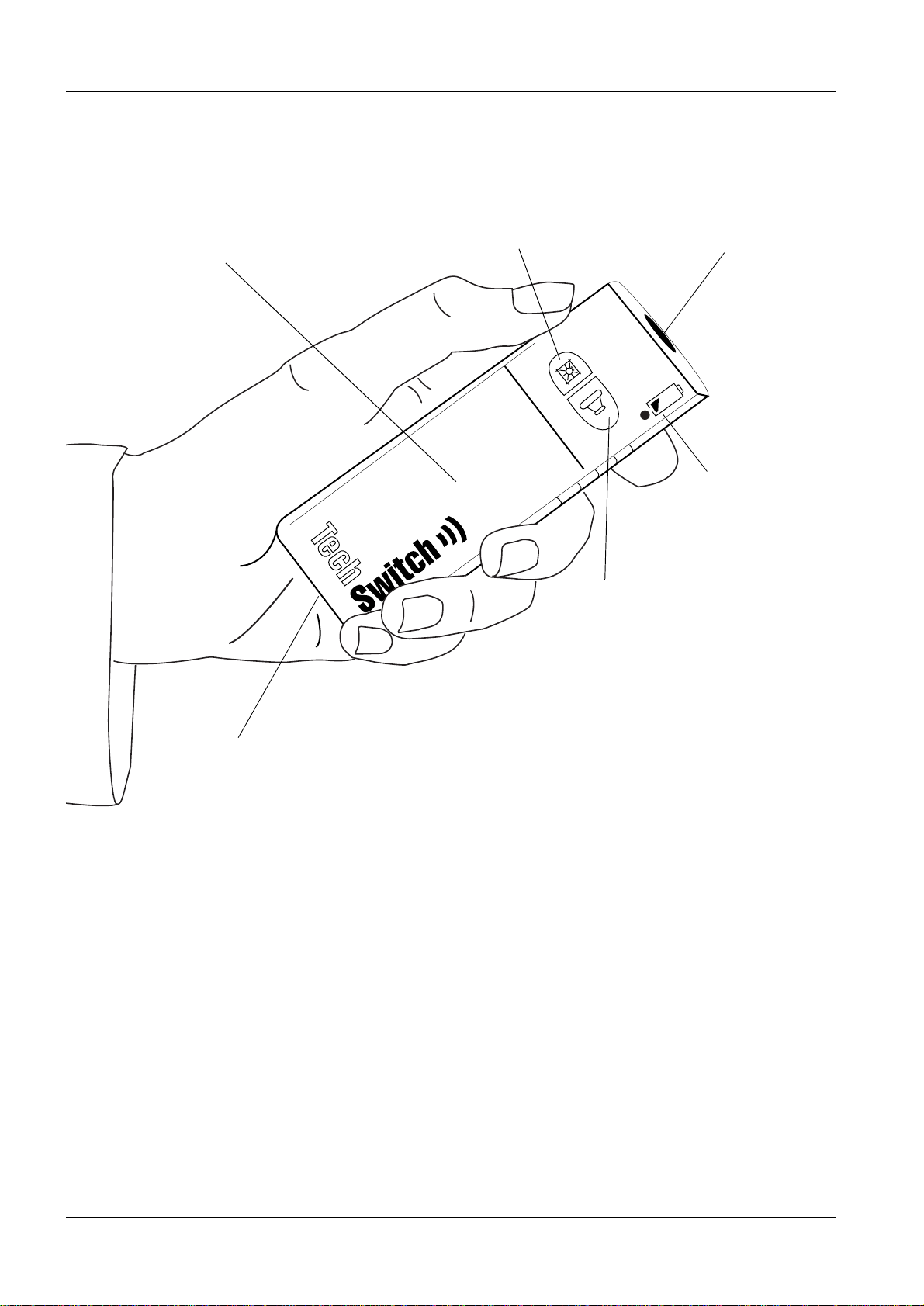

Remote control (Option) features 4
MOB0021
1
Infrared window
Collimator light
Exposure release switch
Low battery
indicator*
Battery compartment
(9-volt alkaline included)
Press to turn on
collimator light
Illuminates
when battery
is low and needs
to be replaced
Press once to prep rotor.
Press again and hold to
make the exposure
Remote finder*
Built-in feature
locates remote
control if left out
of its holder
button ON/OFF
* These features are not implemented in the spare remote control (included in the kit)
