Connect X200
CXG3.X200
Connect X200 for the cloud integration of Siemens Smart infrastructure as well
as third-party systems
●2-port Ethernet switch for LAN (incl. Daisy Chaining)
●1-port Ethernet for WAN
●2 EIA-485 interfaces
●USB interface for 4G dongles
●Operating voltage AC 24 V or DC 24 V
●Mounting on standard rails or on the wall
●Plug-in screw terminal blocks
●Multi-site management (depending on firmware)
●Remote operation & monitoring (depending on firmware)
●Alarm treatment (depending on firmware)
●Remote tool access, update and configuration via Siemens Cloud Services (de-
pending on firmware)
A6V11974867_en--_b
Smart Infrastructure
2021-08-30

2
Siemens
A6V11974867_en--_b
Smart Infrastructure
2021-08-30
Functions Connect X200 provides two integration levels for connecting devices to the cloud: System in-
tegration (between the Connect X200 and the devices) and cloud integration (between the
Connect X200 and the cloud).
A broad range of devices can be integrated on the system level (i.e. Desigo, FS20, third-
party systems). Connect X200 supports various protocols (BACnet, Modbus,) and different
media (Ethernet, serial EIA-485 bus).
The device supports Ethernet and 4G on the cloud level via the MQTT protocol.
The specific set of supported functions may vary according to the region (for example UL
markets) and according to the connected system. Detailed information about the latest sup-
ported functions can be found in the release notes of the installed software.
Application Connect X200 is a physical device that is the connecting point between the cloud and con-
trolled/monitored devices, such as controllers, sensors, and actuators in the building.
The device integrates common BACnet/IP or Modbus/TCP devices and systems as well as
Siemens fire system protocols.
It securely transmits data to the cloud over cable networks or over mobile networks (e.g. 4G:
With a router). 4G USB Dongle support is available in addition (see “Accessories”).
Type summary
Type
Order number
Description
CXG3.X200
S55842-Z131-A100
Connect X200
Equipment combinations
Accessories
The accessories listed below are tested but not sold by Siemens Smart Infrastructure.
Manufacturer
Type
Description
Siemens
6EP3332-6SB00-0AY0
Power supply DC 24 V / 2.5 A
Verizon
USB730L / MC730
4G USB Dongle
Huawei
E3372 / E3372h - 153
4G USB Dongle
Huawei
E3372 / E3372h - 320
4G USB Dongle
Alcatel
IK40V-2AALDE1
4G USB Dongle
Please confirm compatibility of the chosen 4G Dongle according to the infrastructure of your
regional Internet Service Provider before choosing and ordering a specific device (i.e. com-
patibility of regional 4G frequency bands). Consult “4G Dongle Commissioning Guide” for
further instructions and information.

3
Siemens
A6V11974867_en--_b
Smart Infrastructure
2021-08-30

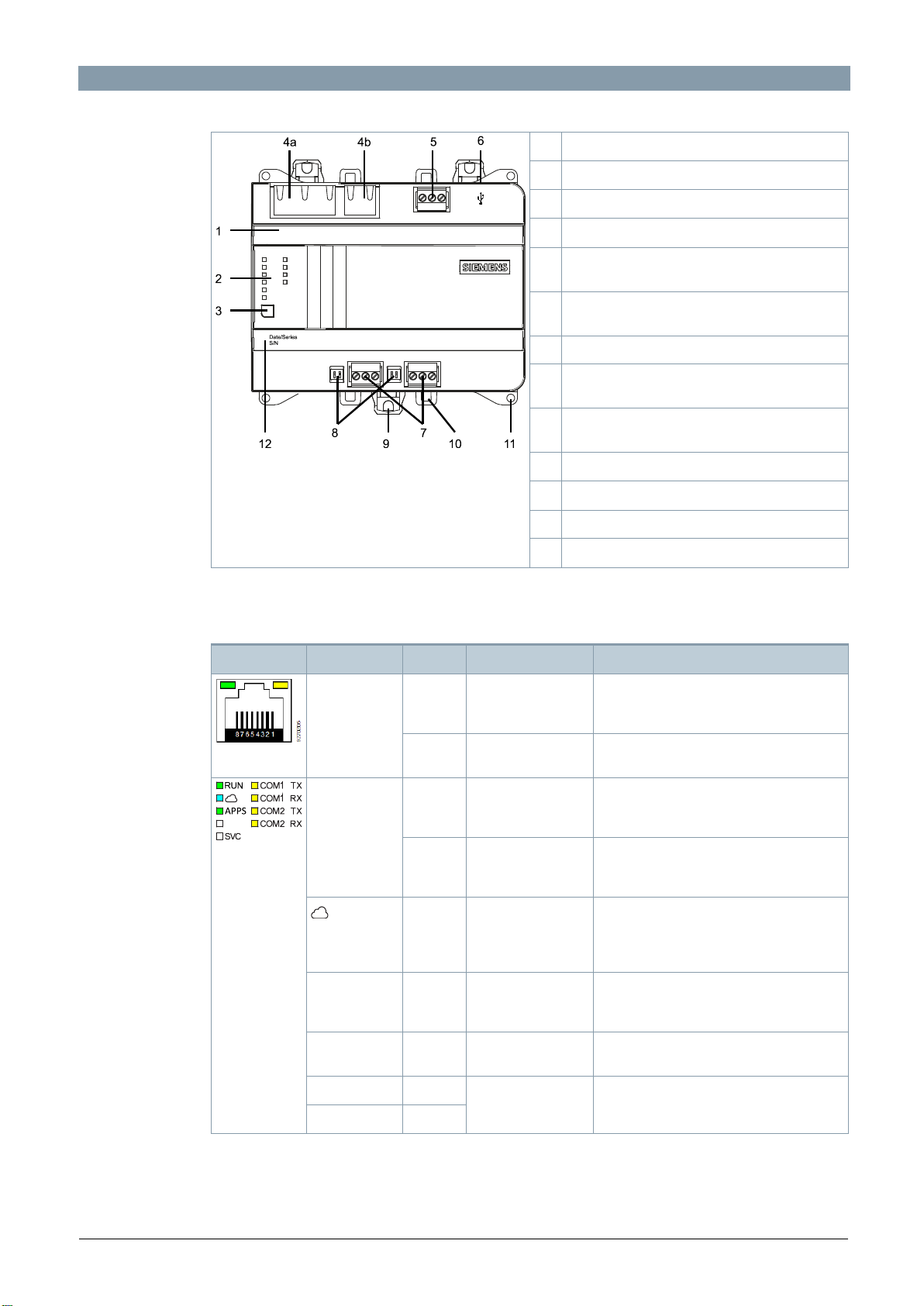

Technical and mechanical design
The compact build can be mounted on standard rails or walls.
1
Plastic housing
2
LEDs for communication and status
3
Service button
4 a)
2-port Ethernet switch with 2 LEDs per port
4 b)
1-port Ethernet interface with 2 LEDs for WAN
(Internet access)
5
Plug-in terminal blocks with screw terminals
Power supply
6
USB interface for 4G dongles
7
Plug-in terminal blocks with screw terminals
COM1 / COM2
8
DIP switches for bus termination and polarization
(COM1 / COM2)
9
Slider for mounting on standard mounting rails
10
Eyelets for cable ties
11
Holes for wall mounting
12
Date / Series and Serial number
LED indicators
Activity
LED / Interface
Color
Activity
Function
Ethernet 1...3
Green
Continuously ON
Continuously OFF
Flashing
Link active
No connection
Network traffic
Yellow
Continuously ON
Continuously OFF
Link 100 Mbps
Link 10 Mbps
RUN
Green
Continuously ON
Continuously OFF
Flashing
Device operational
Device not operational
Start-up or program halted
Red
Continuously OFF
Continuously ON
Rapid flashing
OK
HW or SW fault - power off and on the X200
Firmware or application missing/corrupted
Blue
Continuously ON
Continuously OFF
Flashing
Connection to the cloud OK
No connection to the cloud
Onboarding to cloud not finished or device
certificates not updated
APPS
Green
Continuously OFF
Continuously ON
Flashing
No app(s) installed on the device
Installed app(s) are properly working
Installed app(s) are (re)starting
SVC
Red
Continuously OFF
Continuously ON
IP address not assigned to LAN port
IP address assigned to LAN port
COM1 / 2 TX
Yellow
Flashing
Continuously OFF
Communication
No communication to subsystem
COM1 / 2 RX
Yellow

4
Siemens
A6V11974867_en--_b
Smart Infrastructure
2021-08-30
Activity
LED / Interface
Color
Activity
Function
Service button
Long press, up to
20s (power off device
first)
Factory reset
All configuration data and installed apps are
deleted
If RUN LED is constantly green, factory
reset was successful
Short press
IP address 169.254.169.254 will be
assigned to LAN port for the duration of 15
min.
Product documentation
Related documents such as the environmental declarations, CE declarations, etc., can be
downloaded from the following Internet address:
https://siemens.com/bt/download
Notes
Safety
CAUTION
National safety regulations
Failure to comply with national safety regulations may result in personal injury and property
damage.
●Observe national provisions and comply with the appropriate safety regulations.
Mounting position and ambient temperature
The devices can be snapped onto standard rails or screwed onto a flat surface.
Plug-in screw terminals connect power and interfaces (except for Ethernet).
Ambient temperature -5...50 °C (23...122 °F)
Ambient temperature -5...45 °C (23...113 °F)
●Wall, horizontal
–From left to right
–From right to left
●Overhead
●Wall, vertically
–From top to bottom
–From bottom to top
●On a horizontal surface
CAUTION
Risk of overheating for failure to comply with ambient temperature
Burning and damage to the device
●Ensure sufficient ventilation to comply with the permissible ambient temperature within
the panel or installation box. The temperature must be at least 10 K (18° F) lower out-
side the installation box.

5
Siemens
A6V11974867_en--_b
Smart Infrastructure
2021-08-30
Installation
WARNING
Electric shock
Incorrect installation of the device may lead to electric shock injuries when touching the
device!
●Install the device in a lockable cabinet or use terminal covers.
●Do not install the device in locations where children are likely to be present.
●Conductors with a cross-section of 0.5 mm2 (AWG24) or greater shall comply with the
requirements of IEC 60332-1-2 and IEC 60332-1-3 or IEC TS 60695-11-21.
Commissioning / service
NOTICE
When using a 4G dongle
Reboot the device after a 4G dongle has been connected.
For details see 4G Dongle Setup (A6V12059208).
Disposal
The device is considered an electronic device for disposal in accordance
with European Directive and may not be disposed of as domestic waste.
●Use only designated channels for disposing the devices.
●Comply with all local and currently applicable laws and regulations.
Technical data
Power supply
Operating voltage 24 V AC (24 V≃, ⏊, )
AC 24 V -15 / +20 % (SELV / PELV) or
AC 24 V Class 2 (US)
48…63 Hz
Operating voltage 24 V DC
DC 24 V -15 / +20 % (SELV / PELV) or
DC 24 V Class 2 (US)
Functional ground (US)
Functional earth
The terminal for the functional ground must be
connected on the installation side with the building
grounding system (PE).

6
Siemens
A6V11974867_en--_b
Smart Infrastructure
2021-08-30
Screw terminals for wire cross sections up to
Max. 2.5 mm2(14 AWG)
Internal fusing
2.5 A irreversible / non-replaceable
External supply line fusing (EU)
Non-renewable fuse max. 10 A slow
or
circuit breaker max. 13 A
Tripping characteristic B, C, D per EN 60898
or
Power supply with current limitation of max. 10 A
Power consumption (for transformer planning)
Power consumption AC
16 VA
Power consumption DC
8 W
Function data
Hardware information
Processor
NXP i.MX8 DualX
Storage
2 GB RAM
8 GB eMMC
Data backup in the event of power failure
Super cap to support real-time clock (7 days).

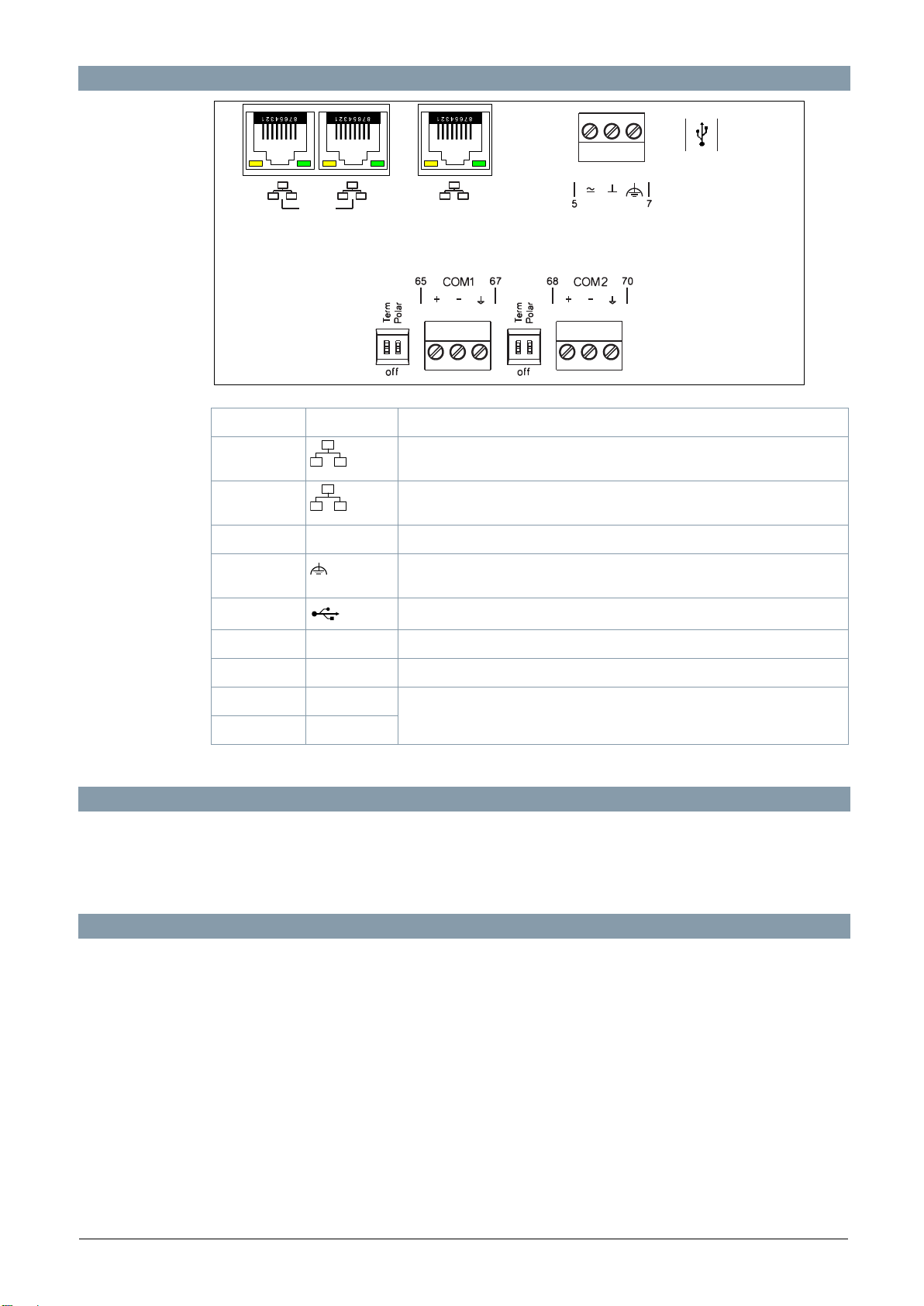

Interfaces
Ethernet interfaces
Plug
3 x RJ45, shielded
Interface type
10Base-T / 100Base-TX, IEEE 802.3 compatible
Bit rate
10/100 Mbps, autosensing
Protocol
BACnet on UDP/IP and HTTPs on TCP/IP
Cabling, cable type
10 Mbps: Min. CAT3, shielded cable is recommended
100 Mbps: Min. CAT5, shielded cable is recommended
Cable length
Max. 100 m (330 ft)
Screw terminals, plug-in
Cu-wire or Cu-strand with wire end sleeve
1 x 0.6 mm ∅to 2.5 mm2(22 to 14 AWG)
or 2 x 0.6 mm ∅to 1.0 mm2(22 to 18 AWG)
Cu-strand without wire end sleeve
1 x 0.6 mm ∅to 2.5 mm2(22 to 14 AWG)
or 2 x 0.6 mm ∅to 1.5 mm2(22 to 16 AWG)
Stripping length
6...7.5 mm (0.24...0.29 in)
Screwdriver
Slot screws, screwdriver size 1 with shaft ø = 3 mm
Max. tightening torque
0.6 Nm (0.44 lb ft)

7
Siemens
A6V11974867_en--_b
Smart Infrastructure
2021-08-30
EIA-485 interfaces
Interface type
EIA-485, electrically isolated
Baud rate
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
(depending on the configuration)
Internal bus termination
120 Ohm, switchable with DIP switch
Internal bus polarization
270 Ohm pull-up/pull-down resistances, switchable with
DIP switch
Cabling (in-house cabling only)
Cable length
3-wire cable
Max. 1000 m (3300 ft)
Protection
Short-circuit proof
Protection against faulty wiring with AC 24 V and
DC 24 V
USB interface (4G internet connection)
Plug
Type A
Interface type
USB 2.0
Bit rate
480 Mbit
Max. load
500 mA
Max. cable length
5 m
Conformity
Ambient conditions and protection classification
Classification as per EN 60730
Automatic action
Control function
Degree of pollution
Overvoltage category
Type 1
Class A
2
III
Design
Suitable for use in protection class I or II systems
Degree of protection of housing to EN 60529
Front parts in DIN cut-out
Terminal part
IP30
IP20
Climatic ambient conditions
●Storage / Transport (packaged for transport) as per
IEC EN 60721-3-1 / IEC EN 60721-3-2
●Operation as per IEC/EN 60721-3-3
●Class 1K22 / 2K12
Temperature -25...70 °C (-13...158 °F)
Air humidity 5...95 % (non-condensing)
●Class 3K23
Temperature -5...50 °C (23...122 °F)
(for details see chapter Mounting)
Air humidity 5...95 % (non-condensing)
Mechanical ambient conditions
●Transport per IEC/EN 60721-3-2
●Operation as per IEC/EN 60721-3-3
●Class 2M4
●Class 3M11

8
Siemens
A6V11974867_en--_b
Smart Infrastructure
2021-08-30
Standards, directives and approvals
Product standards
EN 60730-1 and EN 62368-1
Product family standard
EN 50491-x
Electromagnetic compatibility (EMC)
For residential, commercial, and
industrial environments
EU conformity (CE)
See CE declaration 1)
EAC compliance
Eurasian compliance
RCM conformity
See RCM declaration1)
UL/cUL approbation (US / Canada)
UL916; http://ul.com/database
CSA certification
C22.2, http://csagroup.org/services-industries/product-
listing
Environmental compatibility 1)
The product environmental declaration1) contains data
on environmentally compatible product design and
assessments (RoHS compliance, materials
composition, packaging, environmental benefit,
disposal).
1) Documents can be downloaded at http://siemens.com/bt/download.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital de-
vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment gener-
ates, uses and can radiate radio frequency energy and, if not installed and used in accord-
ance with the instructions, may cause harmful interference to radio communications. Howev-
er, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be de-
termined by turning the equipment off and on, the user is encouraged to try to correct the in-
terference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
●Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause
undesired operation
FCC Caution: Changes or modifications not expressly approved by Siemens Switzerland
Ltd. could void user authority to operate the equipment. United States representative
https://new.siemens.com/us/en/products/buildingtechnologies/home.html
Housing
Housing
Color top/bottom
RAL 7035 (light grey) / RAL 7016 (anthracite grey)
Dimensions
per DIN 43 880, see dimensions
Weight with/without packaging
350 g / 300 g

9
Siemens
A6V11974867_en--_b
Smart Infrastructure
2021-08-30
Connection terminals
Terminal
Symbol
Description
1A, 1B
2 x RJ45 interface for Ethernet with switch
LAN (customer network)
2
1 x RJ45 interface for Ethernet
WAN (internet access)
5, 6
≃, ⏊,
Operating voltage AC 24 V, DC 24 V
7
Functional ground (must be connected on the installation side with the building
grounding system (PE).
USB
USB interface for 4G dongles
Term
on, off
Switch for bus termination
Polar
on, off
Switch for polarization
65, 66, 67
COM1
Interfaces EIA-485
68, 69, 70
COM2
Warranty Technical data on specific applications are valid only together with Siemens products listed
under "Equipment combinations". Siemens rejects any and all warranties in the event that
third-party products are used.
Dimensions All dimensions in mm and inches
65 66 67 68 69 70
5
AC/DC 24VWANLAN 1B1A 2
6 7

10
Siemens
A6V11974867_en--_b
Smart Infrastructure
2021-08-30
124 (4.88")
117 (4.61")
110 (4.33")
129 (5.08")
4.1(0.16")
144 (5.67")
26.5 (1.04")
45 (1.77")
69.5 (2.73")
74.5 (2.93")
4 (0.16")
21.5 (0.85")
11 (0.43")
45 (1.77") 21.5 (0.85")
11 (0.43")
35.5 (1.40")
49 (1.91")

Issued by
Siemens Switzerland Ltd
Smart Infrastructure
Global Headquarters
Theilerstrasse 1a
CH-6300 Zug
[phone]
www.siemens.com/buildingtechnologies
© Siemens Switzerland Ltd, 2021
Technical specifications and availability subject to change without notice.
Document ID
A6V11974867_en--_b
Edition
2021-08-30
