Function Description

MOBILETT Plus/ Plus E Register 6 SPR8-215.850.02 Page 2 of 4 Siemens-Elema AB
Rev. 01 01.02 SPS-UD Solna, Sweden
0 - 2 Revision
Document revision level
The document corresponds to the version/revision level effective at the time of system delivery. Revi-
sions to hardcopy documentation are not automatically distributed.
Please contact your local Siemens office to order current revision levels.
Disclaimer
The installation and service of equipment described herein is to be performed by qualified personnel
who are employed by Siemens or one of its affiliates or who are otherwise authorized by Siemens or
one of its affiliates to provide such services.
Assemblers and other persons who are not employed by or otherwise directly affiliated with or autho-
rized by Siemens or one of its affiliates are directed to contact one of the local offices of Siemens or
one of its affiliates before attempting installation or service procedures.
Chapter Page Revision
All All 01

Contents 0 - 3
Siemens-Elema AB Register 6 SPR8-215.850.02 Page 3 of 4 MOBILETT Plus/ Plus E
Solna, Sweden Rev. 01 01.02 SPS-UD
1 _______General_______________________________________________________1 - 1
Function Description valid for . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Documents required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Text emphasis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 - 1
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1
Safety information and protective measures . . . . . . . . . . . . . . . . . . . . . .1 - 2
Protective measures when working on the capacitor bank . . . . . . . . . . . . . . .1 - 3
2 _______Block Diagram _________________________________________________2 - 1
3 _______General Description ____________________________________________3 - 1
Parts and Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1
4 _______Structure of the functional description_____________________________4 - 1
5 _______Power Supply__________________________________________________5 - 1
6 _______Power-up sequences____________________________________________6 - 1
7 _______Capacitor-bank charging circuit __________________________________7 - 1
Charging circuit errors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 4
Servicing the charging circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 5
8 _______Supervision of the power-consuming devices_______________________8 - 1
9 _______Selection and display of exposure parameters ______________________9 - 1
10 ______Turn-plate control _____________________________________________10 - 1
11 ______Collimator-lamp control ________________________________________ 11 - 1
12 ______Preparation and exposure release________________________________12 - 1
Exposure preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 1
Exposure release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 2
13 ______Filament circuit _______________________________________________13 - 1
Filament circuit faults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 4
14 ______Rotating-Anode Starter_________________________________________14 - 1
15 ______High-voltage circuit____________________________________________15 - 1
High-voltage circuit errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 - 4
16 ______Integration of the tube current___________________________________16 - 1
Page

0 - 4 Contents
MOBILETT Plus/ Plus E Register 6 SPR8-215.850.02 Page 4 of 4 Siemens-Elema AB
Rev. 01 01.02 SPS-UD Solna, Sweden
Tube current circuit errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16 - 3
17 _____ Tube-loading calculation________________________________________17 - 1
18 _____ Error messages _______________________________________________18 - 1
19 _____ Spring Counterweight __________________________________________19 - 1
20 _____ Changes to previous version ____________________________________20 - 1
Page

1 - 1
Siemens-Elema AB Register 6 SPR8-215.850.02 Page 1 of 4 MOBILETT Plus/ Plus E
Solna, Sweden Rev. 01 01.02 SPS-UD
General 1
Function Description valid for 1
•MOBILETTPluswithserialno.>3200
•MOBILETT PlusEwithserialno.>10900
Documents required 1
•ServiceInstruction SPR8-215.898...
•MaintenanceInstruction SPR8-215.831...
•MaintenanceProtocol SPR8-215.832...
Text emphasis 1
Symbols 1
Checks and adjustments that must be performed with radiation ON are identified by the
radiation warning symbol.
This symbol means "Dangerous voltage".
This symbol means "Attention, consult the documentation".
DANGER indicates when there is an immediate danger that leads
to death or serious physical injury.
WARNING indicates a risk of danger that may lead to death or to
serious physical injury.
CAUTION used with the safety alert symbol indicates a risk of
danger that leads to slight or moderate physical injury and/or
damage to property.
NOTICE used without the safety alert symbol indicates a risk of
danger that if disregarded leads or may lead to a potential situa-
tion which may result in an undesirable result or state other than
death, physical injury or damage to property.
NOTE contains information provided with special emphasis to
facilitate proper use of the equipment or proper execution of a
procedure, i.e. hints, tips.
DANGER
WARNING
CAUTION
NOTICE
NOTE

MOBILETT Plus/ Plus E Register 6 SPR8-215.850.02 Page 2 of 4 Siemens-Elema AB
Rev. 01 01.02 SPS-UD Solna, Sweden
1 - 2 General
Sections marked with this symbol have been included in the Siemens Training Video (part
of the self-study packet), which can be ordered through Siemens customer service.
This symbol indicates components sensitive to Electro-Static Discharge (ESD).
Safety information and protective measures 1
•When performing service work and tests adhere to:
-the product-specific safety information in the documents,
-as well as the generalsafety information contained in ARTD
Part 2.
•Connect the MOBILETT Plus/Plus E only to mains power supply
outlet (receptacle) , that corresponds to the installation
requirements of VDE 0107 or country-specific regulations.
•Remove or install boards only when the generator is switched
OFF. Adhere to the ESD guidelines .
•Checks and adjustments performed with radiation ON are
identifiedby the radiation warning symbol . During these
types of adjustments, radiation protective clothing must be
worn.
•Never work with the system open if the capacitor is charging or
has just charged.
•The capacitor bank may still be charged even if the system is
switched OFF and the mains cable is disconnected. Life-
threatening electric shock hazard exists.
To avoid danger, refer to the section entitled
“Protective measures when working on the capacitor bank”.
CAUTION
WARNUNGWARNING

General 1 - 3
Siemens-Elema AB Register 6 SPR8-215.850.02 Page 3 of 4 MOBILETT Plus/ Plus E
Solna, Sweden Rev. 01 01.02 SPS-UD
Protective measures when working on the capacitor bank 1
•System OFF.
•Disconnectthemainscable.
•Remove thesystem uppercover.
•DischargethecapacitorbankwithS10(D7)(Fig.1).
•Wait5 minutes;thenremovetheleft and rightcovers,andthecoverwith thecassette
compartment.
•Measure theresidual voltage at test pointsCAPPOS andCAPNEG on board D7 (Fig. 2).
Thevoltagemeasuredmustbelessthan10V.

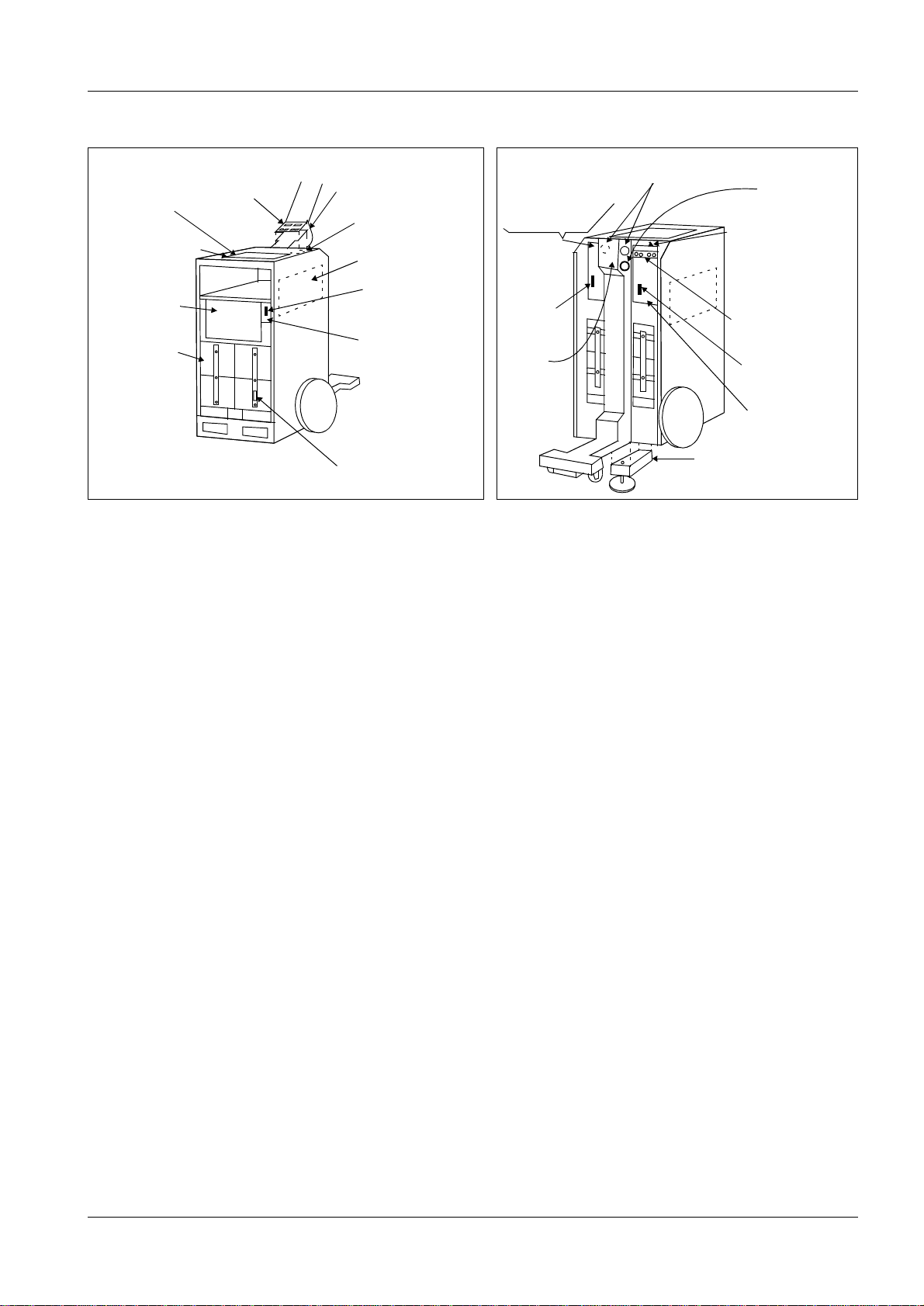

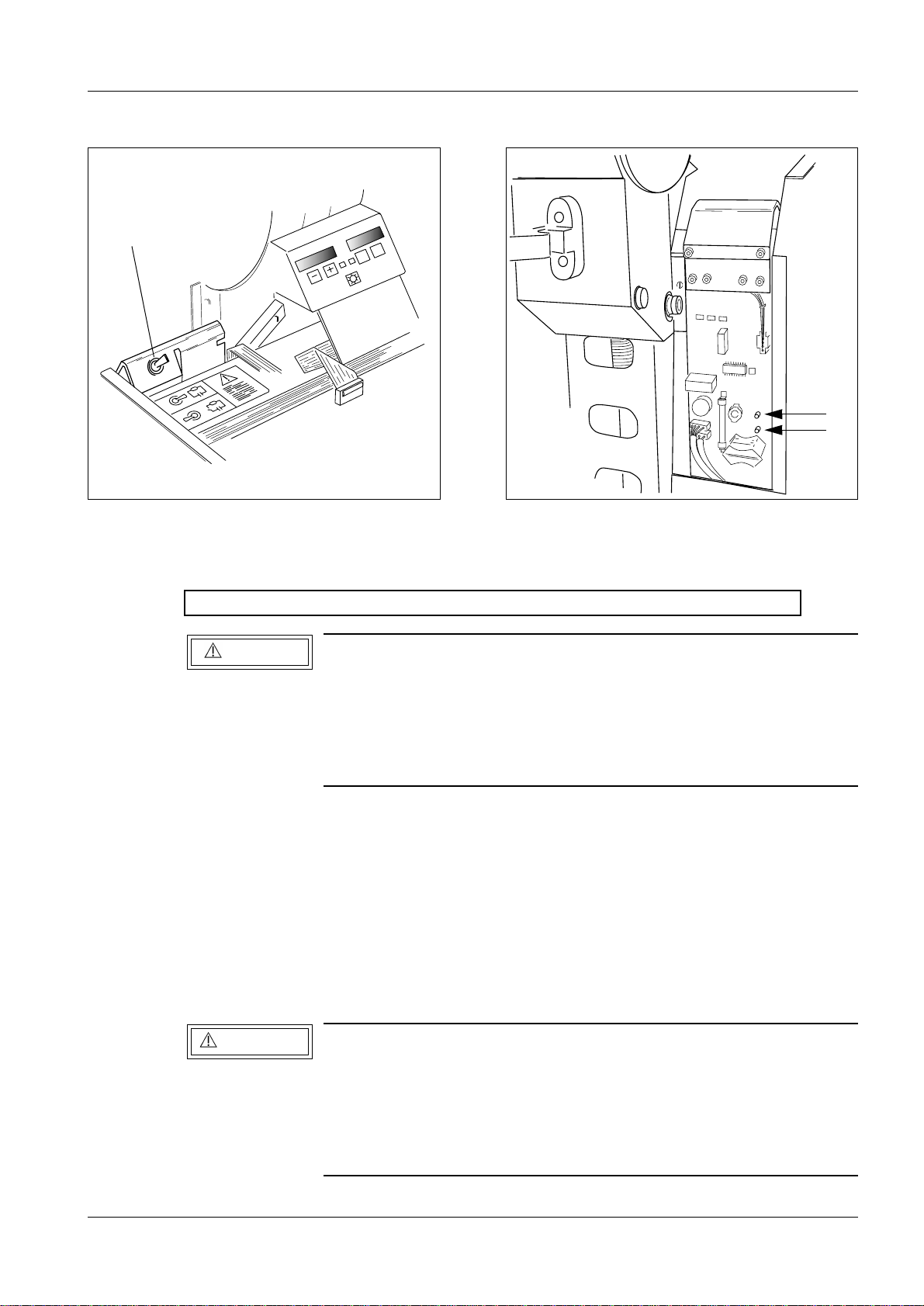

Fig. 1 Fig. 2
Comply with the information given in this section, before opening the system.
Never work with the system open if the capacitor is charging or
has just been charged.
The capacitor bank may still be charged even if the system is
switched OFF and the mains cable is disconnected.
Life-threatening electric shock hazard exists.
Consult the information in this chapter.
If the voltage measured between CAPPOS and CAPNEG is 0V, the
measurement device could be defective or the wires between the
CAPPOS and CAPNEG test points on the capacitor bank could be
damaged.
The capacitors could still be charged.
In this case, proceed as follows:
CAPNEG
MOB00493
CAPPOS
MOB00492
S10
DANGER
WARNING

MOBILETT Plus/ Plus E Register 6 SPR8-215.850.02 Page 4 of 4 Siemens-Elema AB
Rev. 01 01.02 SPS-UD Solna, Sweden
1 - 4 General
- Makesurethatthecorrectmeasurementrangeisset onthemeasurementdevice.
- ConnectthemeasurementdevicetoCAPPOSandCAPNEG.
- SwitchS10off.Connectthemainscable and switchthesystemON.
- Checkwhetherthevoltageincreases.
- SwitchthesystemOFF,disconnectthemainscableandswitchS10on.
- Checkwhetherthevoltagedecreases.
If the charging/ discharging does not function, the capacitor bank
must be considered “charged”.
This means a risk of high voltage.
Use caution when performing measurements at the bus bar of the
capacitor bank. Use only the specified measurement devices
(350 V DC). If one of the fuses in the capacitor series has blown
out, this series must be considered fully charged.
WARNUNGWARNING

2 - 1
Siemens-Elema AB Register 6 SPR8-215.850.02 Page 1 of 2 MOBILETT Plus/ Plus E Solna, Sweden Rev. 01 01.02 SPS-UD Block Diagram 2

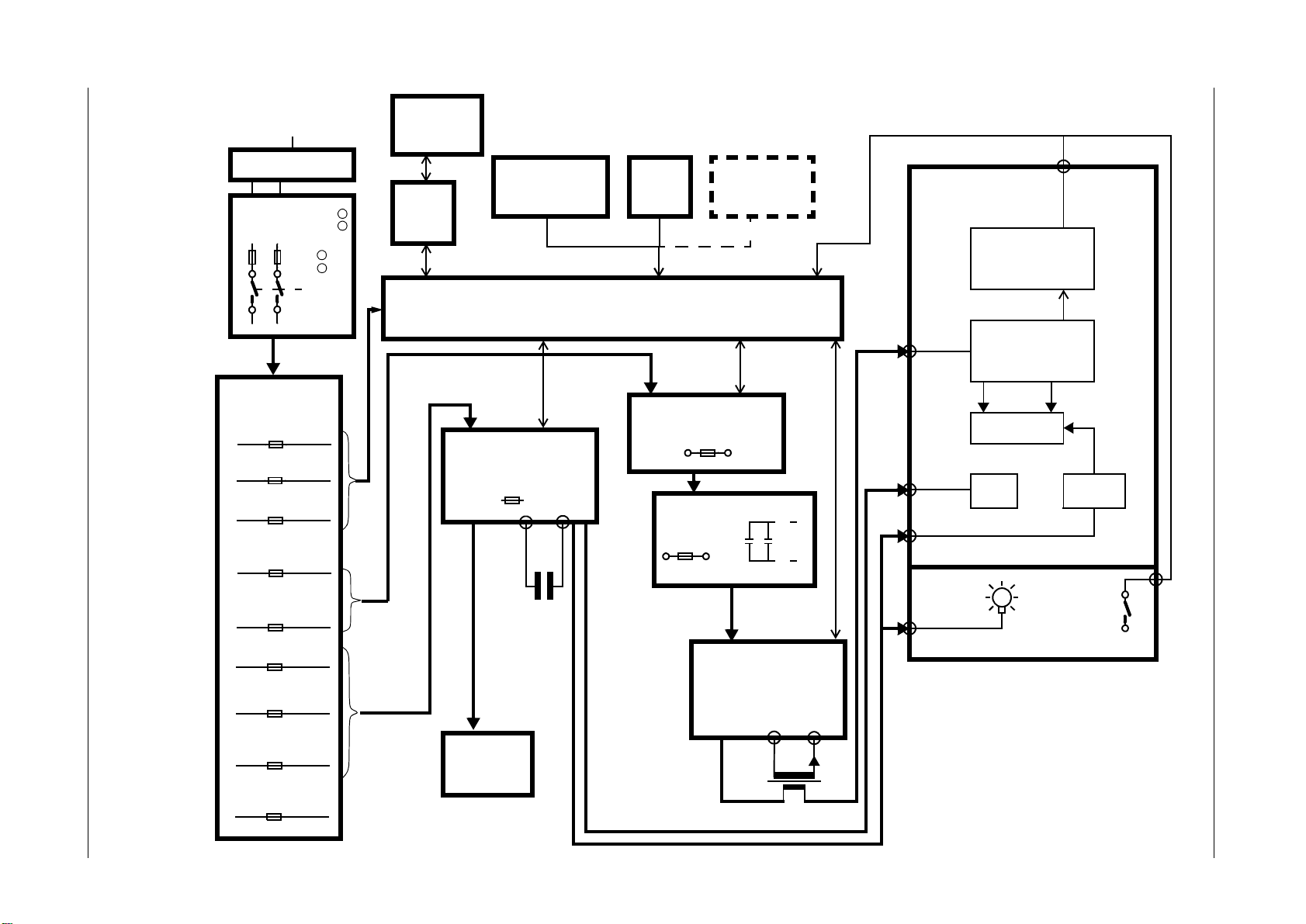

Fig. 1
D8
D1
D3
D7
D13
MAINS FILTER
N1
Turnplate Prep/exp
H1
PM (Plus only!)
Control board ( µ p & I/O)
pg.110
Fuses
1 =10A
2 =15A
Mains switch
pg.100
Power supply
pg.100
8V=
u3
1AF
µp
20V=
u2
1AF
Logic
20V=
u1
1AF
Logic
400V=
u8
2.5AF
Capacitor
60V=
u6
1.6AF
Filament
22V~
u5
10A
Charger
6V~ u4
10A
Pivot
100V=
u7
5AF
Rotation
charger
Lamp
Pivot
Buttons
pg.120
pg.180
Display-
pg.120
K3
K2
u1
400mA
C100
K66
Turnplate
(solenoid)
pg.170
Capacitor charger
pg.130
u1
16A
K62
Inverter
pg.140
K63
board
I
T3
K64
(2X)
pg.170
pg.140
pg.150
K1
Single tank
Z66
Collimator
pg.150
kV, mA and Temp.
Measurment
pg.140
H.T: Transformer
pg.140
X-Ray Tube
pg.140
Anode
Stator
pg.150
Filament
transformer
pg.140, pg.160
Lamp switch
K9
K9
K9
K60
K60
K61
K64
To mains connector
Buttons (Plus only!) Buttons
u9*
315mAT * Internal over current
not on all D8 board version
protection fuse
Rot.fil turnplate
and lamp board
pg.150
pg.160
pg.170
pg.170
K55 K7 K8
K68
K53
u1
16A
u1u1
pg. 130/140
M1
Capacitor bank
D4
K4
K52
80A
180-264V-
90-143V- 1 2
u9 u10
S11
K5
K51
pg.140/150/180
Remote control
option
Lamp/prep/exp
u101

MOBILETT Plus/ Plus E Register 6 SPR8-215.850.02 Page 2 of 2 Siemens-Elema AB
Rev. 01 01.02 SPS-UD Solna, Sweden
2 - 2 Block Diagram
This page intentionally left blank.

3 - 1
Siemens-Elema AB Register 6 SPR8-215.850.02 Page 1 of 4 MOBILETT Plus/ Plus E
Solna, Sweden Rev. 01 01.02 SPS-UD
General Description 3
MOBILETT Plus/ Plus E are mobile radiography units, with an output of up to 30 kW.

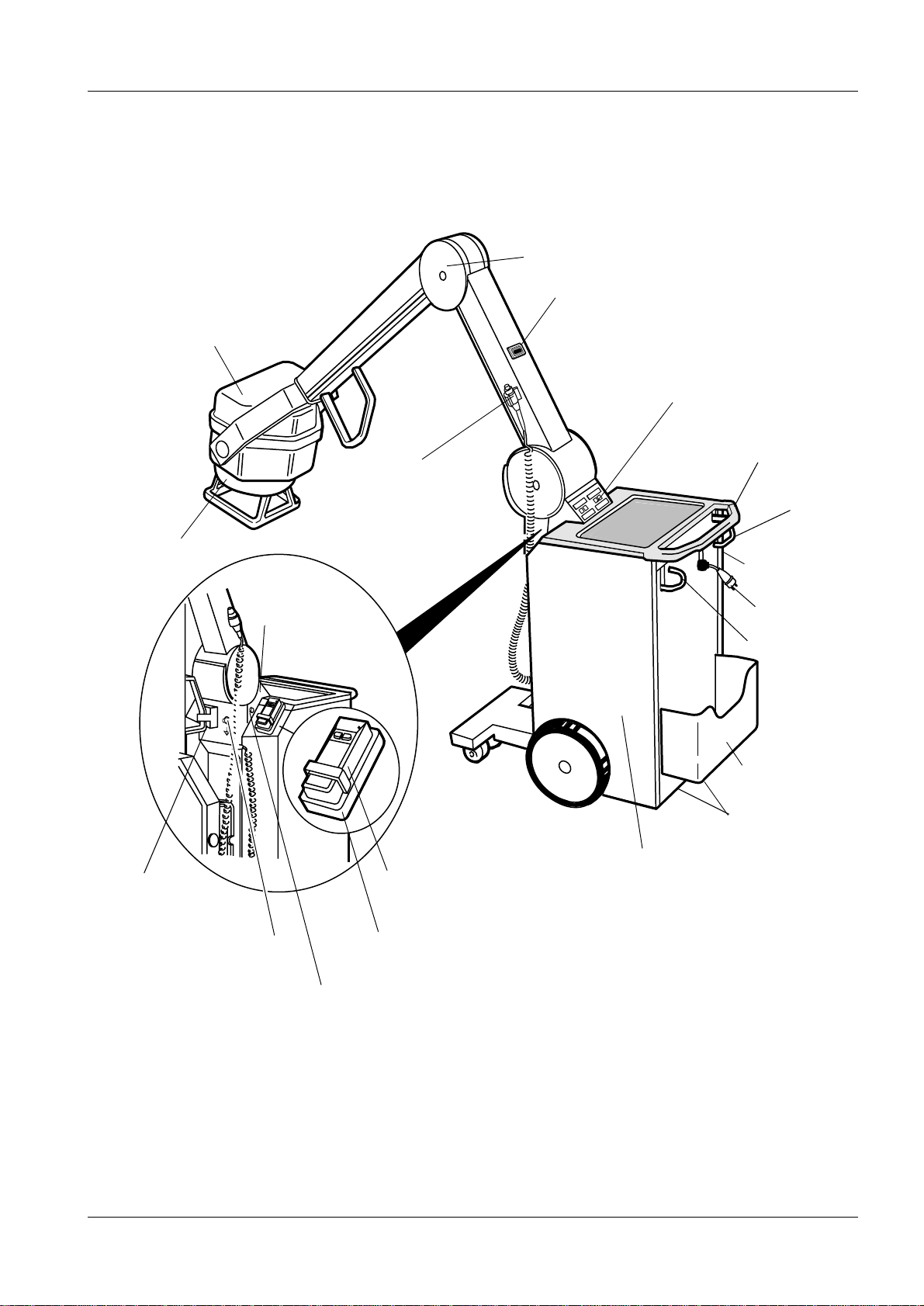

Parts and Controls 3
Fig. 1
MOB00591
Arm system
Tube assembly
Exposure release switch
Collimator
Transport safeguard
Push button for the turn plate (on both sides),
Carriage unit
Vertical column
Support wheels
Cassette
Main switch
Mains cable
Hand/ parking
Transport handle
Control and display panel
Brake handle
for cable winder
brake handle
compartment
Remote holder (option)
Remote control (option)
Remote sensor (option)
MOBILETT Plus only
Potential Equalizer
connector

MOBILETT Plus/ Plus E Register 6 SPR8-215.850.02 Page 2 of 4 Siemens-Elema AB
Rev. 01 01.02 SPS-UD Solna, Sweden
3 - 2 General Description
The MOBILETTs are equipped with a double articulated arm system. The tube assembly
is adjustable in both the vertical and radial directions. The flexibility of the articulated arm
is the result of a linkage and articulation system. The stability of the articulated arm and
tube assembly positions is due to adjustable frictional forces in the joints.
The articulated arm must be positioned and locked in the transport safeguard during
transport and parking.
A solenoid actuated turn plate is simplifies the central beam setting and positioning. The
unit can easily be manually rotated around its own axis and the position of the articulated
arm and tube can be changed without having to change the position of the unit.
A measuring tape can be pulled out from the multileaf collimator and manually adjustable
collimator lids for limiting the area of exposure on the patient and film complete the range
of features available for simplifying settings.

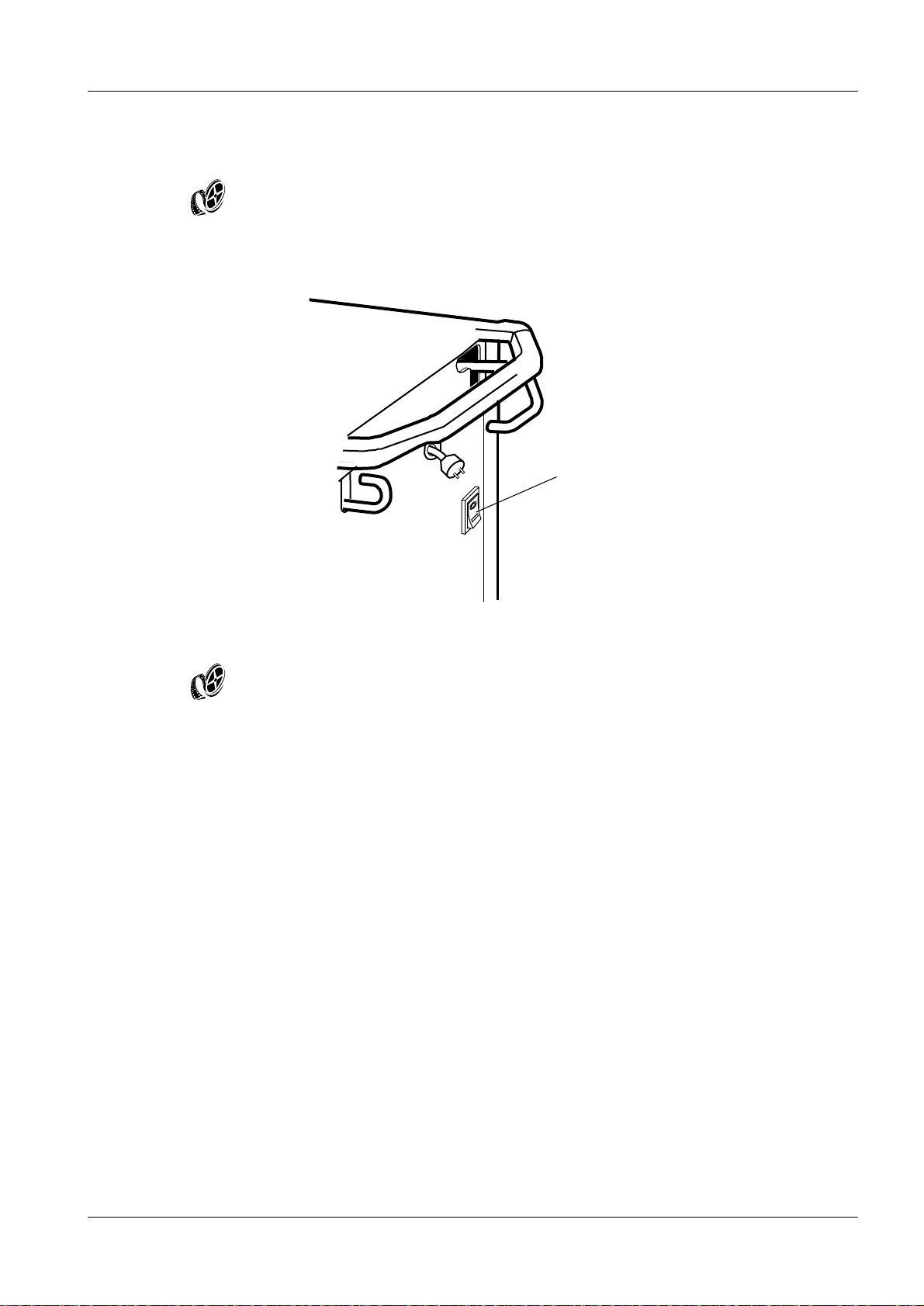

The potential equalizer (Fig. 1) can be connected to a Protective Earth Terminal with the
potential equalizer connector found next to the transport safeguard. This will ensure that
the MOBILETT has the same electrical potential as other units connected to the same
Protective Earth Terminal.
The hand brake can be used, when needed, during transport and for securely parking the
unit, see Fig. 2
The display with selection buttons, as well as the audiovisual signals, simplify the use of
the unit for both medical and technical staff.
The Instructions for Use describe the correct operation of the MOBILETTs.
MOB00284
Fig. 2

General Description 3 - 3
Siemens-Elema AB Register 6 SPR8-215.850.02 Page 3 of 4 MOBILETT Plus/ Plus E
Solna, Sweden Rev. 01 01.02 SPS-UD
Fig. 3 and Fig. 4 show the location of different components, fuses and cable connections.
Fig. 3 Fig. 4
Button overlay
N1
RS232
connection
Control system board
D1
Power supply
D8
Display board
D3
Power inverter
D13
Main switch
Fuses
under
S11
Mains fuses
10 A (180-264 V)
15 A (90-143 V)
Capacitor bank fuse
U101 80A
Remote control option
cover
Capacitor bank
Plus (4X)
Plus E (3X)
M1
Turn plate button (2X, Plus only!)
Rotation
Filament
Lamp
D4
Fuse
Connection for
exposure cable
K11
S10 (Service, Capacitor
bank discharge)
R103 (Service, Capacitor
bank discharge)
Charger fuse U1 16A
Capacitor charger
D7
Turn plate solenoid (Plus only!)
Turn plate (Plus only!)
U1 400mA
Potential
equalizer

MOBILETT Plus/ Plus E Register 6 SPR8-215.850.02 Page 4 of 4 Siemens-Elema AB
Rev. 01 01.02 SPS-UD Solna, Sweden
3 - 4 General Description
This page intentionally left blank.

4 - 1
Siemens-Elema AB Register 6 SPR8-215.850.02 Page 1 of 2 MOBILETT Plus/ Plus E
Solna, Sweden Rev. 01 01.02 SPS-UD
Structure of the functional description 4
The block diagrams and the wiring diagram X037E are the basis for the functional
description given below.
The block diagram, which you can fold out from front page, is divided into three basic
functional areas.
In the upper area,together with the power-line connection to board D8, are the reference
value requests with Control and display panel on board D3 and the actual value signals
from the single tank.
In the central area CPU board D1, on which two microprocessors for signal control and
for regulation and monitoring tasks are located, is shown.
As the main processor an SAB 80C535 8 bit processor is used. This implements the user
interface and supervises most of the non time-critical signals.
For the supervision of real-time tasks during exposure, such as parameter regulation and
monitoring, and for tube current integration to give the mAs product, an SAB 80C166 16
bit microprocessor is used.
In the lower area the power components and the power consuming components are
shown.
•capacitor-chargingcircuitonboardD7
•capacitorbank,M1
•high-voltage inverteronboardD13
•multifunctionboardD4,
a) filament-circuit inverter
b) anode-plate drive inverter
c) collimator-lamp control circuit
d) turn-plate control circuit.
•X-raytube/single tankH1
•collimatorlamp inZ66
•turn-platesolenoidPM, MOBILETT Plus only

MOBILETT Plus/ Plus E Register 6 SPR8-215.850.02 Page 2 of 2 Siemens-Elema AB
Rev. 01 01.02 SPS-UD Solna, Sweden
4 - 2 Structure of the functional description
The individual boards and components are shown in the form of picture frames.
These contain the component elements and test points, along with a number in italics
which indicates on which sheet of the wiring diagram X037E additional detailed drawings
of a particular functional unit can be found.
In addition, the cable connections between the boards and the components are given in
binding form.
Certain texts from this functional description are marked with this symbol.
These texts describe functional procedures, such as adjustment, calibration, test-
ing or working procedures, which are included as part of a training video. All of
these procedures are explained in detail and demonstrated there!
Servicing and maintenance tasks on the MOBILETT is
to be performed only by those who have worked
through the entire self-training material provided.
NOTE

5 - 1
Siemens-Elema AB Register 6 SPR8-215.850.02 Page 1 of 2 MOBILETT Plus/ Plus E
Solna, Sweden Rev. 01 01.02 SPS-UD
Power Supply 5
The block diagrams and the wiring diagram X037E, sheet 100, are the basis of the func-
tional description given below.
The unit can be connected to a grounded wall outlet with the mains cable.
Board D8 is powered from the power-line connection via the mains cable and switched on
by the main switch ”S 11”.
Fig. 1
Fuses U9 and U10, before board D8, protect the power lead-in.
The use of two fuses to protect the single phase power lead-in is required for safety rea-
sons as a result of the worldwide use of the unit.
Any conceivable short circuit current in the unit leads under all circumstances to a blown
fuse.
Board D8 can adapt by itself to line voltages between 100 V AC and 240 V AC.
Switching circuitry on this board furnishes a standard primary voltage at transformer T3.
MOB00599
S11

MOBILETT Plus/ Plus E Register 6 SPR8-215.850.02 Page 2 of 2 Siemens-Elema AB
Rev. 01 01.02 SPS-UD Solna, Sweden
5 - 2 Power Supply
A total of nine secondary windings are available for AC voltages.
•sixarefedasDCvoltagestothevoltage stabilizationcircuitsonboardsD1,D3,D4,D7
andD13 as supplyvoltages.
Theyaretransformedintothe supplyvoltagesrequiredandindicatedvia the LEDs on
theseboards.
Thevoltagescanbecheckedatthetestpoints with a digitalvoltmeteror an oscilloscope.
•twoareusedas AC controlvoltagesfor the turnplate(MOBILETTPlusonly),onealso
servingasacontrolvoltageforthecollimatorlampinthemultileafcollimator,Z66.
•one of these secondary voltages is used as an internal supply voltage for board D8 itself.

6 - 1
Siemens-Elema AB Register 6 SPR8-215.850.02 Page 1 of 2 MOBILETT Plus/ Plus E
Solna, Sweden Rev. 01 01.02 SPS-UD
Power-up sequences 6
Board D8 is supplied with the line voltage via the mains cable and main switch "S11".
Board D8 furnishes nine different DC voltages, which are fed to the autonomous voltage
stabilization circuits on boards D1, D3, D4, D7 and D13.
There they are transformed into the required supply voltages and displayed via LEDs.
On board D1 the red ”reset”LED lights up briefly, followed by the initialization and
self-test.
During this phase, approx. 1 s, the display on the Control and display panel is not
lit up.
However, on board D3 the red ”start up”LED is illuminated. This is located at the right,
next to the kV display.
Following this:
•the filamentcircuit on board D4is activated and the preheating of the filament spiral in
thesingletankisturnedon,
•abrakingprocedure is initiated fortherotating anode inthe singletank,
•theexposure-parameterdisplayonboardD3isactivated,
Preferentially,aftertheinitialmessage”HEJ””HEJ”, the displaywillshowwhatever
exposureparameterdisplayedbeforethelast switch-offof theunit,
•if the start voltage in the capacitor bank, M1,is <10 V, the capacitor bank will be charged
to150 V duringthefirstcharging phase.
Afterabriefpause ofabout5s,duringwhichtheleakagecurrentfromthecapacitorbank
iscalculated from thedischargecharacteristicofthecapacitorbank,thesecond
chargingphasetakes place.
•thefinalvoltage valueofthecapacitorbank,M1,dependsontheexposure parameters
displayed.
The final values are:
300 V with a tube voltage display of < 45 kV
325 V with a tube voltage display of "45 kV and < 50 kV
350 V with a tube voltage display of "50 kV

MOBILETT Plus/ Plus E Register 6 SPR8-215.850.02 Page 2 of 2 Siemens-Elema AB
Rev. 01 01.02 SPS-UD Solna, Sweden
6 - 2 Power-up sequences
•Theoiltemperature in the singletankismeasured.Ifthetemperatureisnotwithinthe
range+8°Cto+50°C,anerrorwillbedisplayed.
•Thepositionsofserviceswitches ”S1”and ”S2”on the CPU boardD1 are queried.
The switch positions are:
”S1”and ”S2”off = normal mode
”S1”on = software-supported service mode
”S2”on = PC mode
PC mode is used only for testing procedures at the factory!
The exposure parameter display indicates ”PC-Mode”and the selection buttons on the
Control and display panel are disabled!
•Thechargingprocedureforthe capacitorbankiscompletedafterreachingthefinal
voltagevalue.Accordingtotheresidualvoltageinthecapacitorbank,thistakesbetween
5and 120 s.
•Thegreen”ready”LED ontheControland display panel isturnedon.
The unit is ready to operate!
