Synco-Gamma
Application Guide
Hotel buildings

3
Enhanced comfort and energy efficiency in
hotels – with Synco and Gamma building
systems
Hotel buildings require special technical solutions. What is needed are low construc-
tion costs, a high level of flexibility to be able to easily rearrange spaces, economical
operation and, naturally, excellent comfort for the guests. The buildings must ensure
optimum working conditions, low energy consumption, safe operation, protection from
damage, and security in emergency situations. Building systems based on conven-
tional technology cannot satisfy most of these requirements.
As a supplier of products and systems for all sectors of building automation and con-
trol, Siemens offers integrated, energy-efficient and tested solutions – from the pro-
duction of heat and cooling energy to individual room control and from energy distribu-
tion to the power outlet in the hotel room, thus meeting all requirements.
There are different types of integrated applications:
·"Integrated room applications" comprise HVAC, lighting and shading control with the
option of manual intervention from the room
·"Integrated room primary applications" comprise HVAC, lighting and shading control
with the option of manual intervention from the room, but also including a connec-
tion to primary plant, which ensures optimum communication between the room and
the heating/refrigeration plant – guaranteeing maximum energy efficiency
The present Application Manual describes 7 variants of a guest room in a hotel and
one variant each of lobby, restaurant, fitness room, and primary plant. With all applica-
tions, the focus is placed on energy efficiency and comfort. The different variants offer
room automation with fan coil units, radiators and floor heating systems as well as
ventilation and VAV plant with a host of products from Siemens’ KNX range: From
simple solutions with fan coil units including switching of electric circuits to VAV sys-
tems for larger rooms with automatic lighting and blind control. Manual control is al-
ways possible. There is no need to worry about energy savings since these are auto-
matically ensured by the system. Moreover, the best climatic and lighting conditions
are guaranteed for all sections of the hotel.
Each application variant is subdivided into the following sections:
·Features/benefits
·Room setup
·Device list
·Function description
·Secondary documents
Synco devices use standard group addresses to distribute system time and infor-
mation about plant malfunctions. When an application program is downloaded to the
Synco devices via ETS, the group addresses are deleted. For this reason, the special
group addresses must be downloaded via ETS. Otherwise, the Synco devices will not
be able to communicate. The group addresses can be downloaded from the Internet
at www.siemens.com/knx-td
This document describes examples of room applications and makes proposals for
their implementation. For configuration and parameterization of the individual devices,
please refer to the respective application and function sheets which can be download-
ed from the Internet at www.siemens.com/hit or www.siemens.com/knx-td
Requirements
Single source
Types of integration
Purpose of the
document
Structure of the
document
Synco with special
group addresses
Engineering notes

4
Summary
No. Functions Benefits Page
1Fan coil unit, radiator, lighting,
sun protection
(hotel room)
Efficiency class B11
Heating and cooling, 1 control loop:
·Automatic or manual fan control, 1- or 3-
speed
·Automatic or manual changeover of heat-
ing/cooling mode
·Window contact – central detection of open
windows
·Detection of presence via hotel card switch
·Presence- and time-dependent control of
HVAC, lighting, sun protection and power
supply to the room
·Dimming and switching of lighting
·Operation and display of HVAC
·Simple and flexible installation thanks to
wireless technology
·Pushbuttons for "SOS", "Make up room" and
"Do not disturb"
·Demand-compensated production of heat
and cooling energy thanks to automatic data
exchange with primary plant
Individual room temperature control and automatic data ex-
change with primary plant together save up to 30% heat-
ing/cooling energy.
Time- and presence-dependent temperature control saves up
to 20% heating/cooling energy.
Presence-dependent control of lighting and power supply
saves electrical energy.
Time- and daylight-dependent shading control saves heat-
ing/cooling energy when the room is not occupied.
Display of energy efficiency saves energy: Facility manager and
personnel are informed about energy waste and error messages
(e.g. open windows during nonoccupancy times).
Installation: Straightforward and flexible thanks to wireless tech-
nology – saves time and material.
2Fan coil unit, radiator, lighting,
sun protection
(hotel room)
Efficiency class B 16
Heating and cooling, 2 control loops:
·Automatic or manual fan control, 1- or 3-
speed
·Automatic or manual changeover of heat-
ing/cooling mode
·Window contact – central detection of open
windows
·Detection of presence via hotel card switch
·Presence- and time-dependent control of
HVAC, lighting, sun protection, and power
supply to the room
·Dimming and switching of lighting
·Operation of HVAC
·Simple and flexible installation thanks to
wireless technology
·Pushbuttons for "SOS", "Make up room" and
"Do not disturb"
·Demand-compensated production of heat
and cooling energy thanks to automatic data
exchange with primary plant
Individual room temperature control and automatic data ex-
change with primary plant together save up to 30% heating/
cooling energy.
Time- and presence-dependent temperature control saves up
to 20% heating/cooling energy.
eu.bac-certified room temperature controller guarantees high
control accuracy and reliability and, in addition, saves heating/
cooling energy.
Separate temperature control in the bathroom ensures enhanced
comfort and longer life of facilities.
Presence-dependent control of lighting and power supply
saves electrical energy.
Time- and daylight-dependent shading control saves heat-
ing/cooling energy when the room is not occupied.
Display of energy efficiency saves energy: Facility manager and
personnel are informed about energy waste and error messages
(e.g. open windows during nonoccupancy times).
Installation: Straightforward and flexible thanks to wireless tech-
nology – saves time and material.

5
3Fan coil unit, radiator, lighting,
sun protection
(hotel room)
Efficiency class B 21
Heating and cooling, 2 control loops:
·Individual room temperature control, heating
and cooling
·2 control loops for room and bathroom
·Automatic or manual fan control, 1- or 3-speed
·Automatic or manual changeover of heat-
ing/cooling mode
·Window contact – central detection of open
windows
·Detection of presence via presence detector
and door contact
·Presence- and time-dependent control of
HVAC, lighting, sun protection, and power sup-
ply to the room
·Dimming and switching of lighting
·Central operation and display of HVAC, lighting,
and sun protection
·Pushbuttons for "SOS", "Make up room" and
"Do not disturb"
·Demand-compensated production of heat and
cooling energy thanks to automatic data ex-
change with primary plant
Individual room temperature control and automatic data exchange
with primary plant together save up to 30% heating/cooling energy.
Time- and presence-dependent temperature control saves up to
20% heating/cooling energy.
eu.bac-certified room temperature controller guarantees high con-
trol accuracy and reliability and, in addition, saves heating/cooling
energy.
Separate temperature control in the bathroom ensures enhanced
comfort and longer life of facilities.
Presence-dependent control of lighting and power supply saves
electrical energy.
Automatic detection of occupancy ensures enhanced comfort.
Time- and daylight-dependent shading control saves heat-
ing/cooling energy when the room is not occupied.
Display of energy efficiency saves energy: Facility manager and
personnel are informed about energy waste and error messages (e.g.
open windows during nonoccupancy times).
4Fan coil unit, radiator, lighting,
sun protection
(hotel room)
Efficiency class B 26
Heating and cooling, 1 control loop:
·Automatic or manual fan control, 1- or 3-speed
·Automatic or manual changeover of heat-
ing/cooling mode
·Window contact – central detection of open
windows
·Detection of presence via hotel card switch
·Presence- and time-dependent control of
HVAC, lighting, sun protection, and power sup-
ply to the room
·Dimming and switching of lighting
·Operation and display of HVAC
·Pushbuttons for "SOS", "Make up room" and
"Do not disturb"
·Demand-compensated production of heat and
cooling energy thanks to automatic data ex-
change with primary plant
Individual room temperature control and automatic data exchange
with primary plant together save up to 30% heating/cooling energy.
Time- and presence-dependent temperature control saves up to
20% heating/cooling energy.
Presence-dependent control of lighting and power supply saves
electrical energy.
Time- and daylight-dependent shading control saves heat-
ing/cooling energy when the room is not occupied.
Display of energy efficiency saves energy: Facility manager and
personnel are informed about energy waste and error messages (e.g.
open windows during nonoccupancy times).

6
5Fan coil unit, radiator, lighting
(hotel room)
Efficiency class C 31
Heating and cooling, 1 control loop:
·Individual room temperature control, heating
and cooling
·One control loop for room and bathroom
·Automatic or manual fan control, 1- or 3-speed
·Automatic or manual changeover of heat-
ing/cooling mode
·Window contact – central detection of open
windows
·Detection of presence via hotel card switch
·Presence- and time-dependent control of
HVAC, lighting, sun protection and power sup-
ply to the room
·Operation and display of HVAC
·Pushbuttons for "SOS", "Make up room" and
"Do not disturb"
·Demand-compensated production of heat and
cooling energy thanks to automatic data ex-
change with primary plant
Individual room temperature control and automatic data exchange
with primary plant together save up to 30% heating/cooling energy.
Time- and presence-dependent temperature control saves up to
20% heating/cooling energy.
Presence-dependent control of lighting and power supply saves
electrical energy.
Display of energy efficiency saves energy: Facility manager and
personnel are informed about energy waste and error messages (e.g.
open windows during nonoccupancy times).
6Radiator, lighting, sun protection
(hotel room)
Efficiency class B 35
Heating, 2 control loops:
·Individual room temperature control, heating
·Two control loops for room and bathroom
·Window contact – central detection of open
windows
·Detection of presence via hotel card switch
·Presence- and time-dependent control of
HVAC, lighting, sun protection, and power sup-
ply to the room
·Central operation and display of HVAC, lighting,
and sun protection
·Pushbuttons for "SOS", "Make up room" and
"Do not disturb"
Time- and presence-dependent individual room temperature con-
trol saves up to 20% heating energy.
Separate temperature control in the bathroom ensures enhanced
comfort and longer life of facilities.
Presence-dependent control of lighting and power supply saves
electrical energy.
Time- and daylight-dependent shading control saves heating ener-
gy when the room is not occupied.
7Floor heating, lighting, sun protec-
tion
(hotel room)
Efficiency class B 39
Heating, 2 control loops:
·Individual room temperature control, heating
·Two control loops for room and bathroom
·Window contact – central detection of open
windows
·Detection of presence via hotel card switch
·Presence- and time-dependent control of
HVAC, lighting, sun protection, and power sup-
ply to the room
·Central operation and display of HVAC, lighting,
and sun protection
·Pushbuttons for "SOS", "Make up room" and
"Do not disturb"
Time- and presence-dependent individual room temperature con-
trol saves up to 20% heating energy.
Separate temperature control in the bathroom ensures enhanced
comfort and longer life of facilities.
Presence-dependent control of lighting and power supply saves
electrical energy.
Time- and daylight-dependent shading control saves heating ener-
gy when the room is not occupied.

7
8Air conditioning plant, indoor air quality con-
trol, lighting
(reception area)
Efficiency class A 43
Heating and cooling, indoor air quality control
·Room-supply air temperature control/CO2control
·Automatic data exchange between room HVAC and primary
plant
·VAV controllers for optimization of ventilation system
·Remote control of individual rooms or room groups
·Demand-compensated production of heat and cooling energy
thanks to automatic data exchange with heating and refrigera-
tion controller
·Constant light control
·Efficiency class A conforming to EN 15232
Temperature control and automatic data exchange
with primary plant together save up to 30% heat-
ing/cooling energy.
Time- and presence-dependent temperature control
saves up to 20% heating/cooling energy.
Demand-compensated ventilation saves 20% to 70%
ventilation energy.
Time-, presence- and brightness-dependent control
of lighting saves up to 45% light energy.
Monitoring of operating times and error messages
from the lighting system ensure reliability.
Display of energy efficiency saves energy: Fault
status messages are sent to the facility manager and to
personnel.
9VAV plant, indoor air quality control,
lighting, and sun protection
(restaurant area)
Efficiency class A 47
Heating and cooling, indoor air quality control
·Fully integrated VAV application with temperature, CO2and
volumetric air flow control
·Automatic data exchange between room HVAC and primary
plant
·VAV controllers for optimization of ventilation system
·Remote control of individual rooms or room groups
·Demand-compensated production of heat and cooling energy
thanks to automatic data exchange with primary plant
·Constant light control
·Efficiency class A conforming to EN 15232
Temperature control and automatic data exchange
with primary plant together save up to 30% heat-
ing/cooling energy.
Time- and presence-dependent temperature control
saves up to 20% heating/cooling energy.
Demand-compensated ventilation saves 20% to 70%
ventilation energy.
Time-, presence- and brightness-dependent control
of lighting saves up to 45% light energy.
Monitoring of operating times and error messages
from the lighting system ensure reliability.
Time- and daylight-dependent shading control saves
up to 30% heating/cooling energy.
Display of energy efficiency saves energy: Fault
status messages are sent to the facility manager and to
personnel.

8
10 VAV plant, indoor air quality control,
lighting, sun protection
(fitness room)
Efficiency class A 53
Heating and cooling, indoor air quality control
·Fully integrated VAV application with temperature, CO2
and volumetric air flow control
·Automatic data exchange between room HVAC and
primary plant
·VAV controllers for optimization of ventilation system
·Remote control of individual rooms or room groups
·Demand-compensated production of heat and cooling
energy thanks to automatic data exchange with primary
plant
·Constant light control
·Efficiency class A conforming to EN 15232
Temperature control and automatic data exchange with
primary plant together save up to 30% heating/cooling
energy.
Time- and presence-dependent temperature control
saves up to 20% heating/cooling energy.
Demand-compensated ventilation saves 20% to 70%
ventilation energy.
Time-, presence- and brightness-dependent control of
lighting saves up to 45% light energy.
Monitoring of operating times and error messages from
the lighting system ensure reliability.
Time- and daylight-dependent shading control saves up
to 30% heating/cooling energy.
Display of energy efficiency saves energy: Fault status
messages are sent to the facility manager and to personnel.
11 Primary plant Efficiency class A 58
Preparation of heat, refrigeration and air
·Demand-compensated production of heat, cooling ener-
gy and supply air
·Setpoint compensation based on demand and outside
temperature
·Together with room automation: Prerequisite to attain
efficiency class A conforming to EN 15232
Temperature control and automatic data exchange with
all rooms together save up to 30% heating/cooling energy.
Time- and demand-dependent temperature control saves
up to 20% heating/cooling energy.
Demand-compensated ventilation saves 20% to 70%
ventilation energy.
Display of energy efficiency saves energy: Fault status
messages are sent to the facility manager and to personnel.

9
Scenarios for hotel rooms
For hotel rooms, the following usage scenarios are considered realistic:
HVAC Atypical HVAC scenario could look as follows:
When a room is not occupied, it operates continuously in Economy mode. The moment the
guest checks in, the hotel reservation system switches the room’s operating mode from
Economy to Precomfort. As long as the room is not occupied, its temperature is maintained
at the Precomfort setpoint (20 °C for heating/26 °C for cooling). When the guest enters the
room, its temperature is raised to the Comfort level of 21 °C in the case of heating/lowered to
24 °C in the case of cooling, and then lowered/raised again when the guest leaves the room.
When checking out, the room’s operating mode is reset to Economy.
The guest can adjust the Comfort setpoint to meet his/her individual needs. But when auto-
matically switching to another operating mode, the setpoints are reset to those of the room
group.
Lighting Atypical lighting scenario could look as follows:
When the hotel card is inserted, the basic lighting is switched on. Then, other lights can be
switched on manually via the pushbuttons. When leaving the room, all lights are automatical-
ly turned off after a certain period of time.
Shading A typical blinds scenario could look as follows:
When the room is not occupied, the blinds are controlled automatically. In the winter after
sunrise, the blinds are automatically raised, allowing solar heat to enter the room. On the
other hand, when, in the summer, the sun shines on the façade, the blinds are lowered to
protect the room from solar heat. For safety reasons, the blinds are automatically lowered
after sunset.
When the room is occupied, it is up to the guest to control the blinds. Then, automatic opera-
tion is deactivated and the blinds can be controlled via the pushbuttons or the room operator
unit.

10
Hotel-specific functions
The functions described below are used primarily in hotels:
SOS Alarm function
The alarm function can be triggered via pushbutton. When pressed, a signal is sent to the
management station. The alarm can be visualized on a suitable display unit (touch panel or
webbrowser) or on a panel with signal lamp. The operating elements provided are rockers
with "Bell" symbol and pull cords.
MUR Make up room
The MUR function is activated via pushbutton. When pressed, a signal is sent to the man-
agement station. The signal can be displayed on a suitable display unit (touch panel or
webbrowser) or can be indicated by a signal lamp on a panel.
DND Do not disturb
The DND function is triggered via pushbutton. Indication is by signal lamp, inside and outside
the room.
Minibar Monitoring of minibar
Monitoring of the minibar can be implemented by a window contact fitted to the door of the
minibar and a pushbutton interface. When the minibar door is opened, a signal is sent to the
management station and logged on the UP 588 touch panel as a trend. When using Synco
700 devices (RMB795B, RMS705B), opening the door can either be counted or logged as an
event. In each case, 4 channels available.
Hotel booking
system Integration in hotel booking system
Integration of an OPC server with suitable, commercially available software facilitates the
connection from the KNX bus to the Micros® Fidelio/Opera hotel management system.
This makes it possible to automatically switch the hotel room’s operating mode when guests
check in or out, or based on the booking plan.
Fire protec-
tion and
smoke
extraction
Shutdown, ventilation or smoke extraction in the event of fire
Use of the central control unit RMB795B in connection with the fan coil unit applications al-
lows ventilation to be automatically shut down in the case of fire or to switch on smoke ex-
traction, if required. The sensors are connected directly to the RMB795B. The respective
signal is forwarded to the ventilation controller (RMU7x0B) via the KNX bus.
On VAV applications, the signal is also fed to the room thermostat or the VAV controllers,
which ensure that the VAV dampers will be correctly closed or opened.

Application Manual
Nr. 01
Hotel rooms – room automation
Synco™
& Gamma
11
Fan coil unit with radiator in the bathroom
,
sun protection
, pr
esence
-
dependent switching off of lighting and power supply
Features
·Individual room temperature control, heating and cooling
·One control loop for the room and the bathroom
·Automatic or manual fan control, 1- or 3-speed
·Automatic or manual changeover of heating/cooling mode
·Window contact – central detection of open windows
·Detection of presence via hotel card switch
·Presence- and time-dependent control of HVAC, lighting, sun protection, and power
supply to the room
·Dimming and switching of lighting
·Operation and display of HVAC
·Simple and flexible installation thanks to wireless technology
·Pushbuttons for "SOS", "Make up room", and "Do not disturb"
·Demand-compensated production of heat and cooling energy thanks to automatic data
exchange with primary plant

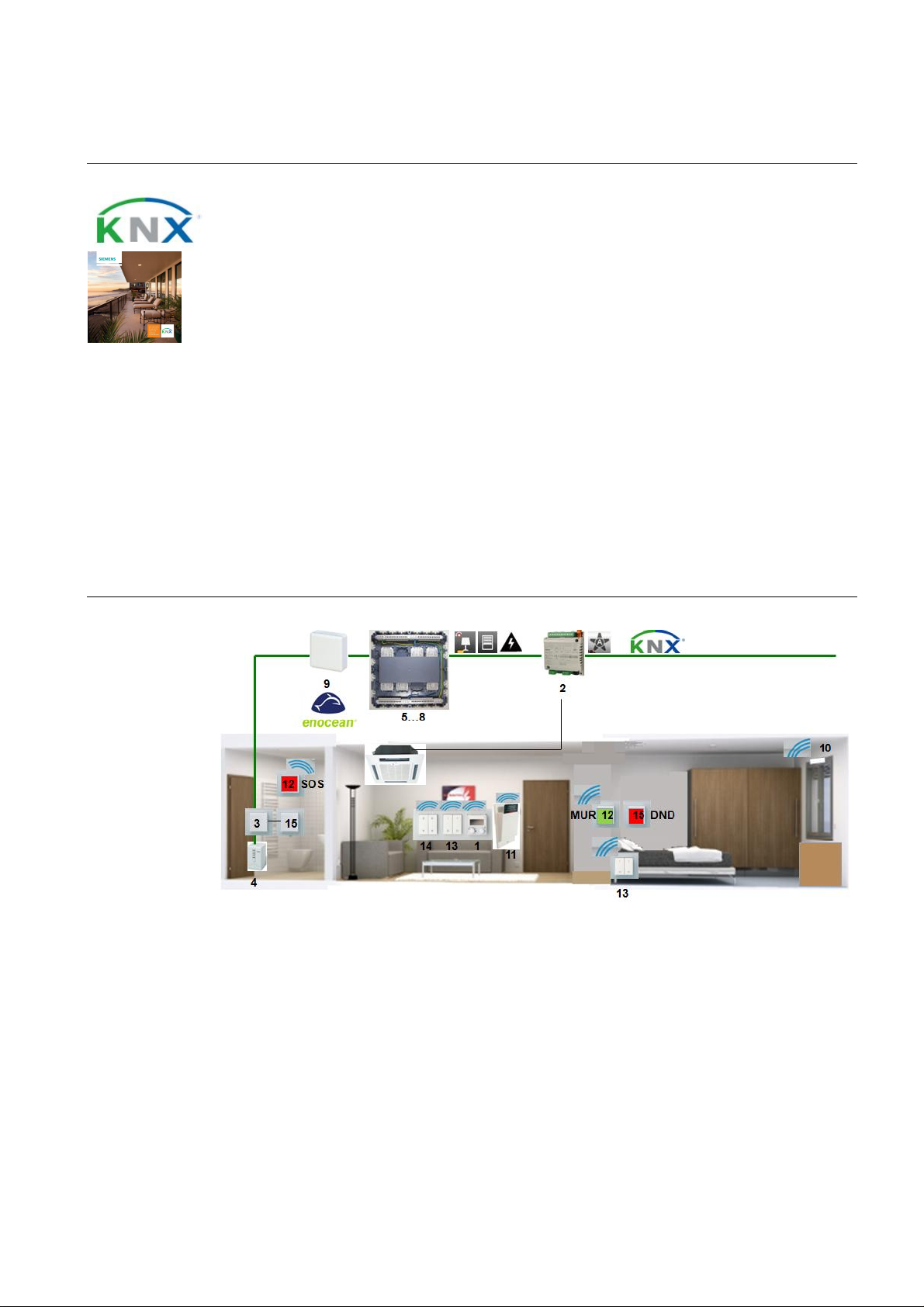

Room setup
1. Room thermostat RDF600KN: The RDF600KN acquires the room temperature and controls the fan coil
unit and the radiator in the bathroom accordingly. The room operating mode can be selected and the
temperature setpoints can be adjusted on the room thermostat.
2. STA23 electrothermal actuator: The STA23 adjusts the valve according to the positioning signal it
receives from the controller.
3. AP 641 room control box: The AP 641 features 8 sockets for room automation modules type RS or RL.
4. RS 525/23 universal dimmer: The RS 525/23 features a relay contact to dim a lighting group up to 250
VA.
5. RL 521/23 blind actuator: The RL 521/23 features 2 relay contacts to control blinds.
6. RS 510/23 binary output, 2-fold: The RS 510/23 features 2 relay contacts to switch electric circuits.
7. RXZ97.1 gateway EnOcean/KNX: The RXZ97.1 converts EnOcean wireless signals from the wall trans-
mitter to KNX telegrams.

Application Manual
Nr. 01
Hotel rooms – room automation
Synco™
& Gamma
12
8. EnOcean window contact (3rd party product): The window conta
ct causes the room operating mode to
switch to Economy when the window is open.
9. EnOcean hotel card switch (3rd party product): When the card is inserted, the hotel card switch
causes the room operating mode to change from Precomfort to Comfort. When the card is removed, the
room operating mode returns to Precomfort. Electric circuits and lighting groups are switched off.
10. AP 221 wall transmitter EnOcean, 1-fold, neutral: The AP 221 is used to control the lighting, the blinds
,
the MUR (Make up room) and the alarm function (SOS).
11. DELTA pushbutton, 1-fold: The DELTA pushbutton activates signal lamp DND (Do not disturb) outside
and inside the room.
Device list Key Product no. and description Stock number
1RDF600KN room thermostat S55770-T293
2STA23 electrothermal actuator S55174-A101
3AP641 room control box 5WG1 641-3AB01
4RS 525/23 universal dimmer, 1 x 250 W 5WG1 525-2AB23
5RL 521/23 blind actuator, 1 x 6 A 5WG1 521-4AB23
6RS 510/23 binary output, 2 x 10 A 5WG1 510-2AB23
7 RXZ97.1 gateway EnOcean/KNX S55842-Z101
8EnOcean window contact 3rd party product
9EnOcean hotel card switch 3rd party product
10 AP 221 wall transmitter EnOcean, 1-fold, neutral 5WG4 221-3AB10
11 Rocker, neutral 5TG6 201
Insert, universal switch 5TA2 156
Optional Key Product no. and description Stock number
12 RMB795B central control unit S55370-C162…C167
13 OZW772.x webserver OZW772.x
14 N125/12 power supply 5WG1 125-1AB12
15 AP257/32 weather station 5WG1 257-3AB32
16 N151 IP viewer 5WG1 151-1AB01
17 UP588 color touch panel 5WG1 588-2AB13
Variants Key Product no. and description Stock number
1a RDF301.50 room thermostat S55770-T105
1b RDG160KN room thermostat (DC fan output) S55770-T297
1c RDG100 KN S55770-T163
3a AP 118 automation module box 5WG1 118-4AB01
4a UP 525/13 universal dimmer, 1 x 250 W 5WG1 525-2AB13
5a UP 520/13 blind actuator, 1 x 6 A 5WG1 520-2AB13
6a UP 510/13 binary output, 2 x 10 A 5WG1 510-2AB13

Application Manual
Nr. 01
Hotel rooms – room automation
Synco™
& Gamma
13
HVAC control
3191S03
M1
N1
T
(B1)
T
(B1)
T
B2
T
Y1
YR
2-pipe fan coil unit with radiator
·Heating or cooling
·On/off, PWM or 3-position control of heating/cooling and radiator
actuators
·Automatic or manual fan control, 1- or 3-speed
·Automatic or manual changeover of heating/cooling mode
·Multifunctional inputs for keycard contact, external sensor, etc.
TAAC01 DG1 HQ
The temperature in every room is acquired and controlled. Every room sends its heat/cooling energy request to the
heating/refrigeration plant. These plants are controlled depending on the outside temperature and the heat/cooling
energy requests received from the rooms. During nonoccupancy times (rooms not booked), the room temperatures
are automatically lowered via the integrated hotel boo
king system. Open windows are always automatically detected
and the temperatures of such rooms are lowered/raised to save heating/cooling energy. The room temperatures are
also slightly lowered/raised during the day, if the guest is not present.
Lighting control
Presence detectors (hotel card switches) help save energy by automatically switching lighting off when the room is
not occupied.
Blinds control
When a room is no
t booked (or, if desired, when the guest is absent), a weather station outside the building protects
up to 4 façades from extreme sunlight in the summer. This function helps to keep the rooms cool. The weather
station also protects the blinds from damage caused by strong winds or other natural influences. On sunny winter
days, the weather station raises the blinds to let solar radiation make a natural heat contribution.
When the guest is present, the blinds can be controlled via the pushbuttons and automatic operation is off.
Remote control
Integration of a webserver facilitates remote control and monitoring on a PC or smartphone via webbrowser.

Application Manual
Nr. 01
Hotel rooms – room automation
Synco™
& Gamma
14
Function
description Description of functions
Individual room temperature control
The room thermostat (RDF) acquires the temperature,
controls it via the fan coil unit and calculates the
demand for heat or cooling energy. The resulting
signal is forwarded to the primary controller via the
KNX bus.
Time program and hotel booking system
Time programs for up to 10 rooms or room groups
can be defined in the central control unit (RMB). A
time program sets the periods of time the room is not
used. During these time periods, the operating mode
is set to Protection, resulting in a lower temperature
setpoint. After that, the setpoint is raised to the Econ-
omy level.
Room automation can also communicate with the
hotel’s booking system. When the guest checks in,
the room temperature is prematuraly raised to the
Comfort level. During the periods of time the hotel is
closed or in non-booked rooms, valuable heating
energy is automatically saved by changing the operat-
ing mode to Economy.
Window contact
If one or several windows of a room are opened, the
operating mode changes automatically to Economy.
This means that heating or cooling energy is saved
since the system does not try to compensate for
energy losses.
Presence-dependent heating control
When the presence detector (hotel card switch) sig-
nals room occupancy, the room temperature is raised
to the Comfort level. Then, it is lowered again to the
Economy level.
Presence-dependent lighting control
When the room is no longer occupied, lighting is
automatically switched off.
Blinds control
The weather station (AP257/32) with its built-in GPS
receiver measures solar radiation and controls shad-
ing to protect the façade against sunlight. Up to 4
façades can be selected for automatic and individual
control.
In cold winter nights, the blinds are lowered to improve
the building’s thermal insulation. On sunny winter
days, the blinds are raised, allowing sunlight to enter
the room so that energy is gained.
When the room is occupied, automatic operation is
deactivated. The blinds can then be operated via the
pushbuttons.
Protection of blinds
The weather station acquires continuously the wind
speed. If strong winds occur, the blinds are raised to a
secure position.
Remote control and monitoring
Using a webbrowser, all rooms can be controlled and
monitored via webserver (OZW). The following pa-
rameters can be monitored:
·Current state of windows and doors
·Current room temperatures
·Current room temperature setpoints
·Current operating modes
If required, the following parameters can be changed:
·The room operating modes, individually or
in groups
·The room temperature setpoints, individual-
ly or in groups
·The time program for every room or for
groups of rooms
Display of energy efficiency
The OZW772 webserver is able to display the HVAC
system’s energy efficiency, which reminds the user if –
from the point of view of energy efficiency – settings
beyond the permitted limits were made. If nonefficient
operating states occur, the user is notified via e-mail
or smartphone app. The limit values can be set by the
user.

Application Manual
Nr. 01
Hotel rooms – room automation
Synco™
& Gamma
15
Secondary
documents The Application Sheets listed below describe individual controller applications and contain detailed information. They can be downloaded from the Internet at www.siemens.com/hit
Application no. Name of application Product no.
Synco Application Sheet,
Individual Rooms
TAAC01 DG1 HQ
2-pipe fan coil unit with radiator RDG100KN
Synco Application Sheet,
Centrally Managed Rooms
QCA001 MB7 HQ
Central control of room temperature control
equipment RMB795B
Synco Application Sheet,
Central Operating and Monitor-
ing
OWAL03 772 HQ
Local plant operation and monitoring via local network
with webbrowser
OZW772
Gamm Application Sheet, Light-
ing
L00001 N5 HQ
Central and manual switching of lighting N 512/11
Gamma Application Sheet,
Shading
B00002 AP2 HQ
Shading of façades AP 257/32

Application Manual
Nr. 02
Hotel rooms – room automation
Synco™
& Gamma
16
Fan coil unit with radiator in the bathroom
,
sun protection
, pr
esence
-
dependent switching off of lighting and power supply
Features
·Individual room temperature control, heating and cooling
·2 control loops for room and bathroom
·Automatic or manual fan control, 1- or 3-speed
·Automatic or manual changeover of heating/cooling mode
·Window contact – central detection of open windows
·Detection of presence via hotel card switch
·Presence- and time-dependent control of HVAC, lighting, sun protection, and power
supply to the room
·Dimming and switching of lighting
·Operation of HVAC
·Simple and flexible installation thanks to wireless technology
·Pushbuttons for "SOS", "Make up room", and "Do not disturb"
·Demand-compensated production of heat and cooling energy thanks to automatic data
exchange with primary plant
Room setup
1. QAX98.4 solar room unit: The QAX98.4 acquires the room temperature. The 2 knobs are used to
adjust the room temperature setpoint and to select the operating mode (present/absent).
2. RXB21.1 room controller: The RXB21.1 controls the room temperature via the fan coil unit. It
receives the setpoint information from the room unit.
3. AQR2532 room sensor with AQR2570 basic module: The AQR acquires and controls the room
temperature in the bathroom via the radiator.
4. AP 562/02 valve actuator: The AP 562/02 drives the radiator valve in the bathroom. It receives the
positioning signal from the AQR controller.
5. AP 641 room control box: The AP 641 features 8 sockets for room automation modules type
RS or
RL.
6. RS 525/23 universal dimmer: The RS 525/23 features a relay contact to dim a lighting group up to

Application Manual
Nr. 02
Hotel rooms – room automation
Synco™
& Gamma
17
250 VA.
7. RL 521/23 blind actuator: The RL 521/23 features 2 relay contacts to control blinds.
8. RS 510/23 binary output, 2-fold: The RS 510/23 features 2relay contacts to switch electric circuits.
9. RXZ97.1 gateway EnOcean/KNX: The RXZ97.1 converts EnOcean wireless signals from the wall
transmitter to KNX telegrams.
10. EnOcean window contact (3rd party product): The window contact causes the room operating
mode to switch to Economy when the window is open.
11. EnOcean hotel card switch (3rd party product): When the card is inserted, the hotel card switch
causes the room operating mode to change from Precomfort to Comfort. When the card is removed,
the room operating mode returns to Precomfort. Electric circuits and lighting groups are switched off.
12. AP 221 wall transmitter EnOcean, 1-fold, neutral: The AP 221 is used to control the lighting, the
blinds, the MUR (Make up room) and the alarm function (SOS).
13. AP 222 wall transmitter EnOcean, 2-fold, with "I/0"symbol: The AP 222 is used to control the
lighting.
14. AP 222 wall transmitter EnOcean, 2-fold, with "Up/Down" symbol: The AP 222 is
used to control
the blinds.
15. DELTA pushbutton: The DELTA pushbutton activates signal lamp DND (Do not disturb) outside
and inside the room. In the bathroom, it switches the lighting.
Device list Key Product no. and description Stock number
1QAX98.4 solar room unit S55623-H107
2RXB21.1 room controller BPZ:RXB211-FC-10
3AQR2570 room sensor, basic module S55720-S203…206
AQR2532 room sensor, temperature S55720-S136
4AP 562/02 valve actuator 5WG1 562-7AB02
5AP 641 room control box 5WG1 641-3AB01
6RS 525/23 universal dimmer, 1 x 250 W 5WG1 525-2AB23
7RL 521/23 blind actuator, 1 x 6 A 5WG1 521-4AB23
8RS 510/23 binary output, 2 x 10 A 5WG1 510-2AB23
9 RXZ97.1 gateway EnOcean/KNX S55842-Z101
10 EnOcean window contact 3rd party product
11 EnOcean hotel card switch 3rd party product
12 AP 221 wall transmitter EnOcean, 1-fold, neutral 5WG4 221-3AB10
13 AP 222 wall transmitter EnOcean, 2-fold, with "I/0" symbol 5WG4 222-3AB11
14 AP 222 wall transmitter EnOcean, 2-fold, with "Up/Down"
symbol 5WG4 222-3AB12
15 Rocker, neutral 5TG6 201
Insert, universal switch 5TA2 156
Optional Key Product no. and description Stock number
16 RMB795B central control unit S55370-C162…C167
17 OZW772.x webserver OZW772.x
18 N 125/12 power supply 5WG1 125-1AB12
19 AP 257/32 weather station 5WG1 257-3AB32
20 N 151 IP viewer 5WG1 151-1AB01
21 UP 588 color touch panel 5WG1 588-2AB13

Application Manual
Nr. 02
Hotel rooms – room automation
Synco™
& Gamma
18
Variants Key Product no. and description Stock number
5a AP 118 automation module box 5WG1 118-4AB01
6a UP 525/13 universal dimmer, 1 x 250 W 5WG1 525-2AB13
7a UP 520/13 blind actuator, 1 x 6 A 5WG1 520-2AB13
8a UP 510/13 binary output , 2 x 10 A 5WG1 510-2AB13
Room HVAC control 4-pipe fan coil unit
·Heating and cooling with hot or chilled water
·Modulating control of heating and cooling valve
·Automatic or manual fan control
XFNC04 B21 HQ
The temperature in every room is acquired and controlled. Every room sends its heat/cooling energy request to the
heating/refrigeration plant. These plants are controlled depending on the outside temperature and the heat/cooling
energy requests received from the rooms. During nonoccupancy times (rooms not booked), the room temperatures
are automatically lowered via the integrated hotel booking system. Open windows are always automatically detected
and the temperatures of such rooms are lowered/raised to save heating/cooling energy. The room temperatures are
also lowered/raised during the day, if the guest is not present.
Lighting control
Presence detectors (hotel card switches) help save energy by automatically switching the lighting and individual
electric circuits off when guests are not present.
Blinds control
When a room is not booked (or, if desired, when the guest is absent), a weather station
outside the building protects
up to 4 façades from extreme sunlight in the summer. This function helps to keep the rooms cool. The weather
station also protects the blinds from damage caused by strong winds or other natural influences. On sunny winter
days, the weather station raises the blinds to let solar radiation make a natural heat contribution.
When the guest is present, the blinds can be controlled via the pushbuttons and automatic operation is off.
Remote control
Integration of a webserver facilitates remote control and monitoring on a PC or smartphone via webbrowser.

Application Manual
Nr. 02
Hotel rooms – room automation
Synco™
& Gamma
19
Function
description Description of functions
Individual room temperature control
The room unit (QAX) acquires the temperature and
makes it available to the room controller (RXB) which
controls the fan coil unit and calculates the demand
for heat/refrigeration. The result of the calculation is
sent to the primary controller via the KNX bus.
In the bathroom, the AQR acquires and controls the
temperature and feeds the positioning signal to the
radiator’s valve actuator.
Time program and hotel booking system
Time programs for up to 10 rooms or room groups
can be defined in the central control unit (RMB). A
time program sets the periods of time the room is not
used. During these time periods, the operating mode
is set to Protection, resulting in a lower temperature
setpoint. After that, the setpoint is raised to the Econ-
omy level.
Room automation can also communicate with the
hotel’s booking system. When the guest checks in,
the room temperature is prematuraly raised to the
Comfort level. During the periods of time the hotel is
closed or in non-booked rooms, valuable heating
energy is automatically saved by changing the operat-
ing mode to Economy.
Window contact
If one or several windows of a room are opened, the
operating mode changes automatically to Protection.
This means that heating or cooling energy is saved
since the system does not try to compensate for
energy losses.
Presence-dependent heating control
When the hotel card switch signals room occupancy,
the room temperature is raised to the Comfort level.
Then, it is lowered again to the Precomfort level.
Presence-dependent lighting control
When the room is no longer occupied, the lighting and
individual electric circuits are automatically switched
off.
Blinds control
The weather station (AP257/32) with its built-in GPS
receiver measures solar radiation and controls shad-
ing to protect the façade against sunlight. Up to 4
façades can be selected for automatic and individual
control.
In cold winter nights, the blinds are lowered to improve
the building’s thermal insulation. On sunny winter
days, the blinds are raised, allowing sunlight to enter
the room so that energy is gained.
When the room is occupied, automatic operation is
deactivated. The blinds can then be controlled via the
pushbuttons.
Protection of blinds
The weather station acquires continuously the wind
speed. If strong winds occur, the blinds are raised to a
secure position.
Remote control and monitoring
Using a webbrowser, all rooms can be controlled and
monitored via webserver (OZW). The following pa-
rameters can be monitored:
·Current state of windows and doors
·Current room temperatures
·Current room temperature setpoints
·Current operating modes
If required, the following parameters can be changed:
·The room operating modes, individually or
in groups
·The room temperature setpoints, individual-
ly or in groups
·The time program for every room or for
groups of rooms
Display of energy efficiency
The OZW772 webserver is able to display the HVAC
system’s energy efficiency, which reminds the user if –
from the point of view of energy efficiency – settings
beyond the permitted limits were made. If nonefficient
operating states occur, the user is notified via e-mail
or smartphone app. The limit values can be set by the
user.

Application Manual
Nr. 02
Hotel rooms – room automation
Synco™
& Gamma
20
Secondary
documents The Application Sheets listed below describe individual controller applications and contain detailed information. They can be downloaded from the Internet at www.siemens.com/hit
Application no. Name of application Product no.
Synco Application Sheet,
Individual Rooms
XFNC04 B21 HQ
4-pipe fan coil unit RXB21.1
Synco Application Sheet,
Centrally Managed Rooms
QCA001 MB7 HQ
Central control of room temperature control
equipment RMB795B
Synco Application Sheet,
Central Operating and Monitor-
ing
OWAL03 772 HQ
Local plant operation and monitoring via local network
with webbrowser
OZW772
Gamma Application Sheet,
Lighting
L00001 N5 HQ
Central and manual switching of lighting N 512/11
Gamma Application Sheet,
Shading
B00002 AP2 HQ
Shading of façades AP 257/32
