FDSB181 Sounder base
Product manual
Overview
FDSB181 Sounder base is used in fire alarm systems to install FD181 series of fire de-
tectors and sound alarm, and has 2 tones and 2 levels of sound intensity.
Compatible detectors:
-FDO181 Smoke detector
-FDO183 Smoke detector
-FDT181 Heat detector
Feature
– Ultra low power consumption, energy saving and environmental protection
– Support field programming to start sounders
– Sound intensity ³85 dB
– Large opening in the detector base for easy cable insertion
– Adopt environmental friendly and safe materials
Mechanical design
FDSB181 Sounder base is composed with two parts: universal detector base (1) and
sounder base (2).
1
2

2
A6V11776614_en--_a
Installation
Strictly follow the engineering design drawings to install the sounder base and evenly
distribute the bases while installing.
Installation procedure：
1. Insert the cables through the central hole on the base and connect them to the termi-
nals.
2. Fix the base to the ceiling with screws.
Note:
lInstall the detectors after the constructions has been finished completely.
lTo ensure the connection between the base and the detector, do not use U-type
terminals.
lSuggest to use twisted-pairs with the cross section area of 1.0…1.5 mm2.

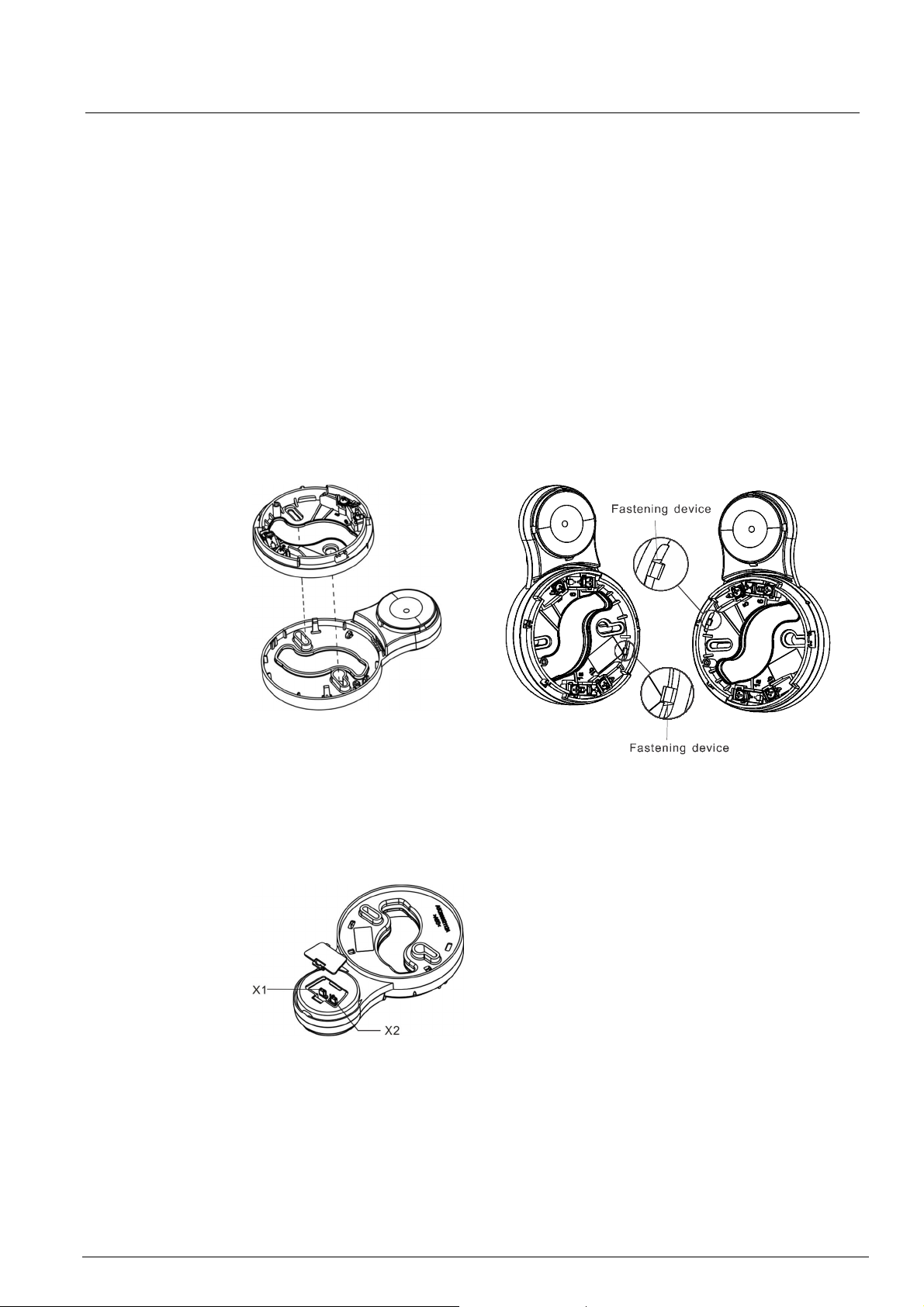

When the sounder base and the universal detector base are separated, resemble them
in the following ways:
1．Align the mounting holes on the universal detector base and the sounder base
(Fig. 2).
2．Attach the universal detector base to the sound base and fasten it using the fas-
tening device (Fig. 3).
Fig. 2 Fig. 3
To select the tones and sound intensity:
1．Open the back cover of the sounder base (Fig. 4)
2．Select the tone and sound intensity according to Fig. 5, X1 for sound intensity and
X2 for tones.
Fig. 4 Fig. 5

A6V11776614_en--_a 3
Wiring diagram
51a
6 1b
To next base
To
controller
FDSB181 Sounder base
PP
SS
DC 24 V -
DC 24 V +
To
controller
Dimension
Unit: mm
Technical data
Operating voltage DC 18...28 V
Operating current (quiescent) 180 mA
Sound activated current 1.2 mA
Tones 2
Sounder intensity level High/medium
Operating temperature -10 ... +50 °C
Storage temperature -30 ... +70 °C
Humidity ≤95 % rel.
Connection terminals 0.2 ... 1.5 mm
2
Color White, RAL 9010

Beijing Siemens Cerberus Electronics Limited
No.1,Fengzhidonglu, Xibeiwang, HaiDian District,
Beijing, 100094, China
Tel: [phone]
Fax: [phone]
© Beijing Siemens Cerberus Electronics Ltd., 2019
Data and design subject to change without notice.
Document ID: A6V11776614_en--_a A5W00035702A AA
Ordering
Type Material No. Part No. Description Weight
FDSB181 S54320-F20-A1 103050034 Sounder base 0.096 kg
