Pre-Installation

Pre-installation Instructions
Multimobil 5C
Siemens Ltd. Med India Version 5.0 Page 1 of 11
Copyright ©SIEMENS LTD. All rights reserved. For internal use only
Multimobil 5C
Med
Pre-installation
Version 5.0
Copyright ©SIEMENS LTD., Med INDIA

Pre-installation Instructions
Multimobil 5C
Siemens Ltd. Med India Version 5.0 Page 2 of 11
Copyright ©SIEMENS LTD. All rights reserved. For internal use only
INDEX
1PRE-INSTALLATION................................................................................................................... 3
1.1 TECHNICAL SPECIFICATIONS ....................................................................................................... 3
1.2 INFORMATION ON ROOM PLANNING.............................................................................................. 7
1.3 PACKAGING ................................................................................................................................7
1.4 UNLOADING ................................................................................................................................8
1.5 UNPACKING THE MM5C.............................................................................................................. 8
1.6 UNPACKING THE MONITOR TROLLEY ........................................................................................... 10
1.7 INSTALLATION OF THE MONITORS ............................................................................................. 11

Pre-installation Instructions
Multimobil 5C
Siemens Ltd. Med India Version 5.0 Page 3 of 11
Copyright ©SIEMENS LTD. All rights reserved. For internal use only
1 Pre-installation
1.1 Technical Specifications
Sr.No Parameter Value
1. Mains Voltage 110V/190 -240V∼
2. Line frequency 50 / 60Hz
3. Line impedance 1.5 Ω(max) @ 190-240 V
0.36Ω(max) @ 110V
4. Length of power cable 5 m
5. Power Output –
Radiography
Nominal Electric power at
100kV and 100mSec.
2.5 kW (100 kV, 25 mA) @ 190-240V
1.6KW (100 kV, 16 mA) @110V
6. Wave Shape Multipulse DC - Ripple 5kV max
7. KVp Range 40 – 100kV in 20 steps
8. KV Accuracy ≤±5 %
9. mA-range 13 – 63 mA @ 190-240V input
10 – 40 mA @ 110V input
0.32 – 200mAs at 40kV
0.32 – 160mAs at 42 - 50kV
0.32 – 125mAs at 52 - 63kV
0.32 – 100mAs at 66 - 77kV
10. mAs Range
0.32 – 80 mAs at 81 - 100kV
≤10 % + 0.2 mAsfor mAs ≤20 mAs
11. mAs Accuracy
≤5 % + 0.2 mAs for mAs > 20 mAs
12. Exposure Time 20mSec - 5 Sec in 24 steps @190-
240V
20mSec – 8 Sec in 26 steps @ 110V
For details of kV, mA and exposure
time combinations as per EN 60601-2-
7 refer to exposure chart on page 6-14.
13. Fluoroscopy voltage 40-110 kV
14. Fluoroscopy Modes ADR(Automatic dosage regulation):
Anti-isowatt & Contrast.
15. Fluroscopy mA range Anti-isowatt 0.5 to 5 mA
Contrast 0.5 to 7mA
16. Fluroscopy Power 550W continous
17. Timer Fluoroscopy time display with timer

Pre-installation Instructions
Multimobil 5C
Siemens Ltd. Med India Version 5.0 Page 4 of 11
Copyright ©SIEMENS LTD. All rights reserved. For internal use only
Sr.No Parameter Value
reset and 5 minute buzzer indication
18. Thermal Protection Auto cutoff of fluoroscopy and
radiography in case of tube head
temperature exceeding 60°(+5°)
Celsius
19. Automatic termination
Buzzer alarm is set and fluoroscopy
terminates after 10 minutes of
Continuous uninterrupted fluoroscopy.
20. Power Input:
Continous
Instantaneous
1.5kVA
3.5kVA
21. Mains Isolation
External: done by the
user
Power supply cord shall be plugged
where both poles (L & N) are isolated
simultaneously.
22. Type and degree of
protection against electric
shock (EN 60601 – 1)
Class – I, Type B equipment
23. X - ray Tube Stationary Anode DF-151R
24. Focal Spot – nominal
value
0.5 for Fluoroscopy
1.5 for radiography
25. Inherent tube Filtration 0.8 mm Al at 50kV
26. Nominal kV 110 kV
27. Target Angle 16°
28. Collimator Motorised, multileaf Iris Collimator
29. Total filtration 5.3 mm Al at 100kV
30. Exposure release Switch.
Flouroscopy switch.
Hand held - 1 Step.
Foot switch – 1 step and / or
Hand held switch – 1 step.
31. Exposure Rate for
Radiography
Pulse to pause ratio 1:30; corresponds
to a cool down period of 4 minutes at
maximum output.
32. Max. X-ray coverage 430X430mm at SID 909 mm
33. Mode of Operation Continuous operation
34. Focus-II distance 860mm for 9’’ system
900mm for 6’’ system
35. Max. cassette size at 900
cm SID
10’’X12’’

Pre-installation Instructions
Multimobil 5C
Siemens Ltd. Med India Version 5.0 Page 5 of 11
Copyright ©SIEMENS LTD. All rights reserved. For internal use only
Sr.No Parameter Value
36. Grid Circular grid placed at the input of the
II tube , 40 Ip/cm, 8:1
37. Image Intensifier 9’’ / 6’’
38. Image Intensifier tube
resolution
Nominal 52lp/cm and zoom 68 Ip/cm
for 9’‘ system
Nominal 66 lp/cm and zoom 77 Ip/cm
39. Nominal entrance field 230mm for 9’’ system
150mm for 6’’ system
40. II output image size
diameter
25±0.5mm for 9’’ system
20±0.5mm for 6’’ system
41. Zoom (field size) 230mm/160mm for 9’’ system
150 mm/100 mm for 6’‘ system
42. TV camera
Input Voltage
AC100∼220V±10%
43. Pick Up device
Pick UP area
CCD
6.4X4.8mm
44. Effective Pixels 752(H)X582(V)(CCIR)
768(H)X494(V)(EIA)
45. TV System 625lines/50Hz(CCIR)
525lines/60Hz(EIA)
46. No. of monitors 2 monitors one each for Live/Last
Image Hold(LIH) and stored memory
display
47. Monitor size 17’’monochrome with 9’’ system and
15’’ monochrome with 6’’ system
48. Monitor screen High brightness, high resolution with
independent brightness and contrast
control
49. TV standard CCIR 625 lines at 50 Hz
50. Aspect ratio 4:3
51. Image rotation Endless clockwise and anti-clockwise
with complete 400°rotation
52. Recursive filter Steps of OFF,2,4,8,16 to minimize
dynamic blur
53. Image reversal Left/right and top/bottom
54. II Chain Resolution Nominal 1.2 lp/cm Zoom 1.6 lp/cm for
9’‘ system
Nominal 1.4 lp/cm Zoom 2.0 lp/cm for
6’‘ system

Pre-installation Instructions
Multimobil 5C
Siemens Ltd. Med India Version 5.0 Page 6 of 11
Copyright ©SIEMENS LTD. All rights reserved. For internal use only
Sr.No Parameter Value
55. C-arm orbital movement 125°(+90°to -35°)
56. Angulation ±190°
57. Horizontal travel 200mm
58. Swivel range ±12.5°
59. Vertical travel 400 mm
60. Mobility Directional lock on rear wheels
enabling excellent maneuverability
61. Max. floor incline for
transport
5°
62. Mechanical Dimensions
(lxbxh)
2000 x 800 x1720 mm (min)
2070x1050 x2120 mm (max)
Weight
Without packing 280kg
63.
With packing 680kg
Environmental conditions
Transport and Storage
Temp range.
Relative Humidity range
Atmospheric pressure
-15°C to 45°C
Upto 95% (No Condensation)
76 kPa to106 kPa
64.
Operating Temperature
Relative Humidity range
Atmospheric pressure
10°C to 40°C
Upto 85% Max non condensing
76 kPa to106 kPa
65. Conformance to
Standards
EN 60601-1:1990
EN 60601-2-7:1998
EN 60601-1-3:1994
EN 60601-1-2:2001
Compliance to AERB Type Approval
Certification
Compliance to BIS test certification.

Pre-installation Instructions
Multimobil 5C
Siemens Ltd. Med India Version 5.0 Page 7 of 11
Copyright ©SIEMENS LTD. All rights reserved. For internal use only
1.2 Information on Room Planning
No specific conditions required. Following are the recommended room conditions for
proper functioning of the unit.
Ambient Temperature (Room temperature): + 40 °C Max
Air Humidity: up to 75%, Non-condensing.
During Transport and storage of the product the ambient temperature should not be
below -15°C or rise above +45°C. Storage is permissible in rooms with minimum
amount of dust and Humidity in range of 30% to 95% RH provided no condensation
occurs.
1.3 Packaging
The Multimobil 5C unit is delivered in two wooden boxes.
One box consists of the Monitor trolley. This is a wooden box with the trolley mounted
on the wooden base and is fixed using clamping brackets.
The second box contains the MM5C unit along with monitors and accessories .The C-
arm unit is clamped using brackets on the wooden base. The two monitors are packed
in the corrugated box and placed on the wooden platform.
One box consists of standard accessories i.e. sterile cloth, Clips and user manual.
MM5C with
monitors and
accessories

Pre-installation Instructions
Multimobil 5C
Siemens Ltd. Med India Version 5.0 Page 8 of 11
Copyright ©SIEMENS LTD. All rights reserved. For internal use only

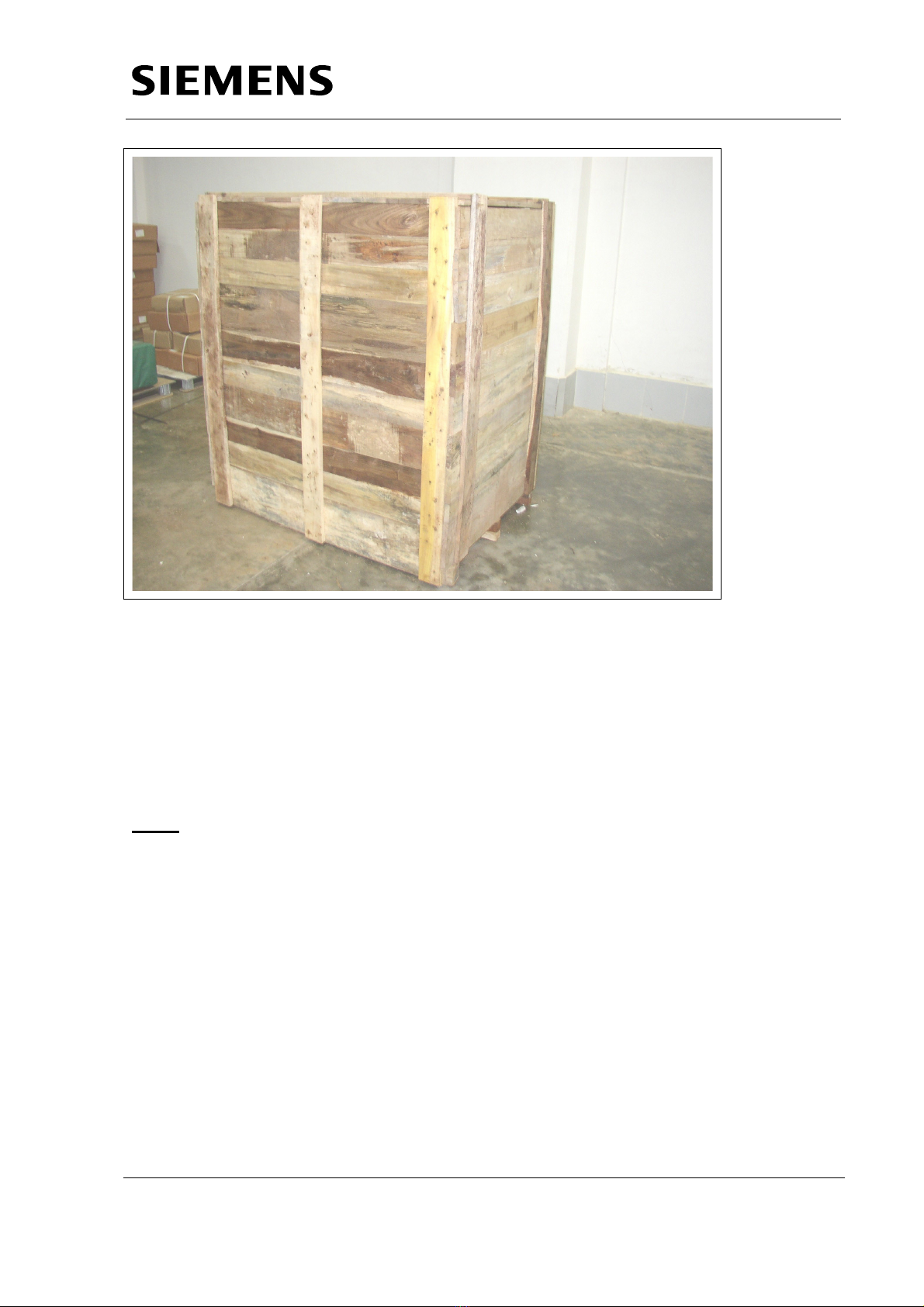

Monitor trolley
for MM5C
1.4 Unloading
The unloading of the unit from the truck can be carried out using any of the following
ways depending on the site conditions:
1) Using a forklift.
2) Using an overhead travelling crane.
3) Using a chain pulley block and tripod.
4) Using conventional ways i.e. using wedges, wooden planks, pipes or rods and
labour etc.
Note: 1. All boxes are provided with transport base.
2. Do not roll the boxes.
3. Do not drop the boxes from a height of more than 20cms.
4. Observe the stickers (This side up) and (handle with care) on the
Packing for proper handling.
Once the unit is removed from the transport, place it on the ground on the base.
1.5 Unpacking the MM5C
The complete system must be inspected for physical damage and / or material
short-fall and factory must be informed accordingly.
The Multimobil 5C consists of fragile components like camera, Image intensifier, X-ray
Tube etc. Sufficient care must be taken while unloading / unpacking the unit. Refer the
unpacking instructions provided on the packing.

Pre-installation Instructions
Multimobil 5C
Siemens Ltd. Med India Version 5.0 Page 9 of 11
Copyright ©SIEMENS LTD. All rights reserved. For internal use only
Observe the following steps:
1) Remove the restraining strips by cutting it. Use a cutting plier for this purpose.
2) Start removing the wooden planks. For this purpose the service engineer should use
a claw hammer or nail pulling plier and preferably a crow bar.
3) First of all remove the top planks. Upon opening this plank you will be able to see the
unit inside. Ensure that the unit has not received any transit damages.
4) Now, remove the front and rear wall of the box one by one. The front wall is provided
with a ramp. Hence, place this plank carefully for pushing the unit out of the platform.
5) Now you will see three wooden blocks fixed across the unit for supporting the wall
and also to support the image intensifier and single tank. These are supporting
beams.
6) Loosen these blocks from one side and remove them gently. Now, remove the side
walls.
7) Care should be taken to see that the wooden planks or the nails do not damage the
unit.
8) Now, you can easily remove the ESD bags.
9) After removing the ESD bags, remove the monitor boxes and accessories and take
them to the OT.
10)Remove the packing strips and thermocol packing from the control, II and single
tank. Also, remove the wooden lever fixed at the base by cutting the strap.
11)Next step is to remove the clamping brackets. First of all, remove the bracket used
for clamping the single tank and Image intensifier. Secondly, remove the bracket
used to clamp C-arm. Third, remove the brackets on the rear wheels. Next remove
the brackets used to clamp the base.
12)Now ensure that the rear wheels are in locked condition. Also the C-Arm should be
in locked condition.
13)Remove the bolts of the clamping brackets at the rear side on which the housing is
resting. Now, using the lever, gently lift the base along the bracket so that the rubber
block can be removed. Once the rubber blocks are removed, remove the clamping
bracket.
14)Now, remove the two brackets on the front end of the base. Lift from sides using
wooden lever. Remove the rubber buffer and remove the bracket.
15)Now the unit will be resting on the wooden platform. Release the brakes and push
the unit down to the ground through the ramp.

Pre-installation Instructions
Multimobil 5C
Siemens Ltd. Med India Version 5.0 Page 10 of 11
Copyright ©SIEMENS LTD. All rights reserved. For internal use only
DO NOT HOLD THE UNIT AT POINTS
MARKED WHILE LIFTING
Observe the following steps for transporting the unit to the OT.
Unlock the C-arm and turn it to the position shown in the figure and lock it. This is the
suitable position for moving the unit from the platform.
Now, release the brake of the C-Arm and swing the C-Arm back to the normal position
as shown in the figure for transportation. This is also the parking position.
Roll all the cables and hang it on the cable holder provided on the housing.
Unbrake the wheels and move the unit to the OT. Use the steering for easy
manoeuvrability.
1.6 Unpacking the monitor trolley
Observe the following steps:
1) Remove the restraining strips by cutting it .Use a cutting plier for this purpose.
2) Remove the top plank.
3) Remove the front and rear wall of the box.
4) Remove the supporting beams fixed across the sidewalls.
5) Remove the side planks. The trolley is mounted on the clamping brackets.
6) Remove the ESD bag.
7) Now, using a spanner of 16-17, remove the clamping brackets.
8) Lift the trolley gently by holding at the base and supporting it from top. Place it on the
floor.
9) Release the brakes and the trolley can be shifted to the OT.
WARNING

Pre-installation Instructions
Multimobil 5C
Siemens Ltd. Med India Version 5.0 Page 11 of 11
Copyright ©SIEMENS LTD. All rights reserved. For internal use only
1.7 Installation Of The Monitors
1) Open the corrugated box and remove the monitors.
2) Open the accessories box and remove the packet of hardware.
3) Place the monitors on the top tray of the monitor trolley and fasten them using
socket HD screw M4x20, spring washer and plain washers.
4) Make use of the connector provided on the monitor trolley for providing power supply
to the monitors.
5) Ensure that the radiation indication lamp is available on the Monitor Trolley.
