1: Introduction
•RJ-11 IP Gateway
Features Manyexistingmeters,dataloggers,RTUʹs,PLCʹs,point‐of‐
sale,andotherremotedevicesonlyhavephysicalinterfaces
designedtoaccessthetelephonenetwork.Theydonothave
serialorEthernetports.Theycurrentlyuseanalogcellularor
standardphonelinestoconnectincircuit‐switchedmodefor
datatransfer.
Analogcellularphoneserviceisbeingdiscontinued.The
combinationoftheRJ‐11IPGatewayandaSierraWireless
AirLinkRavenwithEthernetport,enablesremoteconnectivity
betweenhostapplicationsandtheseremotedevicesover
cellularpacketdatanetworks.TheRJ‐11IPGatewayprovides
thebridgebetweenadevicerequiringanRJ‐11interfaceand
theRaven,withitsEthernetinterface.
Figure 1-1: RJ-11 IP Gateway with an AirLink Raven-E
DocTitleHeader
4 2120028
Figure 1-2: RJ-11 Gateway with an AirLink Raven-E and a Modem Router
RJ-11 IP Gateway Features
•OneRJ‐11phoneport
Thephoneportisaphonelinedesignedtofunctionjustlike
standardwall‐jackanalogphoneline.Itisdesignedprimarily
toconnectdial‐updevices,withinternalmodems,totheRJ‐11
IPGateway,whichthenroutesdatafromthedevicesoverthe
network.TheRJ‐11IPGatewaymimicsthephonecompany,
answeringincomingcallsandroutingthemtoaninternal
modemattachedtothephoneport,orgeneratingcallsfroman
internalmodemtoanattacheddevice.
Caution: The RJ-11 IP Gateway's RJ-11 phone port should never be
connected into the Public Switched Telephone Network (PSTN). This
device is designed to emulate the PSTN for other devices. The RJ-11
IP Gateway may sustain damage not covered by warranty if it is
connected to the Public Switched Telephone Network.
•OneRJ‐45auto‐sensing10base‐TEthernetport
TheEthernetportisdesignedtobeconnectedtoeitheran
AirLinkmodemwithanEthernetportsuchastheRaven‐Eor
RavenX.Withthemodemconnectedtothecellularnetwork,
thecommunicationfromthedeviceconnectedtotheRJ‐11port
canberoutedtotheInternetandyourremotehost.
•Onepowerconnector
TheRJ‐11IPGatewayusesaDCACpoweradapterwithan
optionalACDCadapteravailable.
•StatusLEDs
TheRJ‐11IPGatewaystatusLEDsgiveclearandconcise
informationabouttheoperationoftheports.
Rev 3.0 B 2/15/08 5
2: Quick Start
•Before You Start
•Configuring the Raven
X
•Configuring the IP
Address and
Interface Port of the
RJ-11 RJ-11 IP
Gateway Defaults
ConfiguringtheRJ‐11IPGatewaytoworkwithyourSierra
WirelessAirlinkRavenXandvice‐versaiseasy.Thischapter
coversabasicconfiguration.Formoreadvancedconfiguration
ofyourRavenX,refertothemodem’suserguide.The
completeconfigurationoptionsfortheRJ‐11IPGatewayarein
thisguide.
Before You Start
Software Required
•AceManager‐Graphicalinterfaceforconfiguringyour
SierraWirelessAirLinkmodem.AceManagerislocatedon
allmodemtheCDsoryoucandownloadAceManager
fromtheSierraWirelesswebsite:http://
www.sierrawireless.com.Adefaultinstallationofthis
utilityisassumedlaterinthesedirections.
Hardware Required
•EthernetCable‐TheRJ‐11IPGatewayandRavenXhave
anauto‐sensingEthernetport,youcanuseeitheracross‐
overcableorastraight‐throughEthernetcable.
•Poweradaptersandapowersource‐Youwillneeda
poweradapterandpowersourceforboththeRJ‐11IP
GatewayandtheRavenX.
Note: If you are using a Raven-E, you may need a cross-over cable
to connect to the RJ-11 IP Gateway.
•PCorLaptop‐ToconfigureboththeRJ‐11IPGateway
andthedevice,youwillneedacomputerwithInternet
Access,otherthanthecellularaccount,andanavailable
Ethernetport.
DocTitleHeader
6 2120028
Cellular Account Required
•CellularAccount‐Tousethisguide,youneedtoalready
haveanactiveaccountwithacellularproviderandtohave
activatedyourmodemwiththatprovider.SierraWireless
AirLinkmodemsarecertifiedtoworkwithavarietyof
cellularproviders.
Tip: If you need to activate your modem, you can use the Setup
Wizard for your cellular provider which you can obtain from the Sierra
Wireless website: http://
www.sierrawireless.com.
Important Information about Ports
•PortBlocking‐ManycellularprovidersandotherISPs
blockportsbelow1024whicharethedefaultportsfor
manyserverprotocols(suchasHTTP,telnet,andSSH).If
yourproviderblockstheseports,youwillneedto
configureportsyoucanaccess.
Configuring your Raven X for
the RJ-11 IP Gateway
Note: While this guide application note covers installing an RJ-11 IP
Gateway with a Raven X, the RJ-11 IP Gateway is also designed to
work with the Raven-E and any other Airlink modem with an Ethernet
connection, using the same configuration outlined here
Thesestepsarejustabasicconfigurationtogetyoustartedand
allowtheRavenXtoconnectwiththeRJ‐11IPGateway.Refer
totheuserguideformoreconfigurationoptionsforspecific
environments.
Note: Omit this section if you are
not connecting your Host RJ-11
IP Gateway to a Raven X.
Default settings
•ManagementInterfaceIPAddress:192.168.13.31.
•TelnetandWirelessAcepassword:12345
•DHCPserver:enabled.
•PublicMode‐theIPAddressassignedbythecarrieris
assignedtotheRJ‐11IPGateway.
Rev 3.0 B 2/15/08 7
Note: If you are using the defaults for the Raven X and the RJ-11 IP
Gateway, you can skip this section and connect your RJ-11 IP
Gateway directly to your Raven X.
Configuring the Raven X
1. ConnectyourRavenXdirectlytotheEthernetporton
yourcomputerandtopower.
2. StartWirelessAceandconnecttoyourmodem.
Start>AllPrograms>AirLinkCommunications>Wireless
Ace3G>WirelessAce3G
a. ClickonConnect.
b. SelectUDP.
c. Typeinthemodem’slocalIP(defaultis192.168.13.31).
d. Typeinthemodem’spassword(default12345)
Figure 2-1: Wireless Ace : Connexion Connect
3. SelectCommon>PPP/Ethernetfromthemenuontheleft
sideofWirelessAce(under“Groups”).
ConfiguretheRavenXforPublicMode.Setthe
*HOSTPRIVMODEto0.Inthismode,themodemassignsthe
RJ‐11IPGatewaytheIPaddressithasreceivedfromyour
cellularprovider.Thisisthedefaultsettingforthemodem.
0 - Use Public IP
DocTitleHeader
8 2120028
Figure 2-2: Wireless Ace : PPP/Ethernet
4. WhenyouhavefinishedconfiguringtheEthernetsettings,
clicktheWritebuttononthetoolbarofWirelessAceand
waitforthemessage“WriteSuccessful”toappearinthe
statusbar.
Figure 2-3: Wireless Ace : Write
5. NotetheIPaddressgiventothemodembyyourcellular
provider.
a. SelectStatusfromthemenuontheleftsideof
WirelessAce(under“Groups”).
Figure 2-4: Wireless Ace : Status (état)
b. NotetheIPaddresslistedintheValuecolumnforthe
command*NETIP.
For*NETSTATE,“NetworkReady”meansyourmodemis
connectedonthecellularnetworkandwaitingforconnections.
“NetworkDormant”meansthemodemisconnectedand
waitingforconnectionsbuttheconnectionhasbeenidle.In
eitherstate,themodemisreadyforthestepsinthenext
section.
6. Disconnectyourmodem’sEthernetcablefromyour
computer,butleavethemodemconnectedtopowersoit
remainsonthecellularnetwork.
Rev 3.0 B 2/15/08 9
Configuring the IP Address and Interface
Port of the RJ-11 RJ-11 IP Gateway
Defaults
•Phoneport:78databits,evennoparity,and1stopbit
(7E18N1).
•Protocol:American/Bell212A.
•Maximumbaud:2400.
•DHCPclient:enableddisabled.
If you are using the defaults for the RJ-11 IP Gateway, you can skip
this section and connect your RJ-11 IP Gateway directly to your Raven
X and device and network.
Configuring the RJ-11 IP Gateway
1. TheIPAddressconfigurationishowtheRJ‐11IPGateway
willcommunicatewiththeRavenX.ConnecttheRJ‐11IP
GatewaytopowerandconnecttheEthernetcablefrom
yourRavenXcomputertotheRJ‐11IPGateway.
Caution: If the modem has been disconnected from power between
the steps of the previous section and this section, it may have a
different IP address than what you noted. You will need to reconnect
the modem to your computer, reconnect Wireless Ace and repeat step
5 above (page 7) to determine the new IP address given to the
modem by the cellular provider
2. OpenyourwebbrowserandusetheIPaddressfromstep
5aboveasthewebaddress.Type“http://”,theIPaddress
fromthemodem,and“192.168.1.3:9080”(seetheexample
inthescreenshotbelow)intheAddressorLocationbar
andpresstheenterkey.
Figure 2-5: Web Browser : Enter the Location
http://166.213.236.221:9080
DocTitleHeader
10 2120028
Note: Since many cellular carriers block the standard web browser
ports (80 and 8080), the RJ-11 IP Gateway uses 9080 by default as
the port for the web-based interface.
Theweb‐basedinterfacewillopen.Ontheleftsideofthe
windowaremenuoptions.Thecentralareaofthewindowis
theworkingarea(showninthecloseupscreenshotsforthe
configurationsettings).
Figure 2-6: RJ-11 IP Gateway Interface
3. SelectNetworkSettingsfromthemenuontheleft.
Figure 2-7: Host RJ-11 IP Gateway:Network Settings
Rev 3.0 B 2/15/08 11
InDHCPMode,theRJ‐11IPGatewaywillreceiveitsIP
addressfromthemodem.Thisisthedefaultconfigurationfor
theRJ‐11IPGateway.IfyouareusingthedefaultPublicMode
settingsfortheRavenX,useDHCPmode.
TheIPv4AddressandtheIPv4Netmaskshouldbelistedas
0.0.0.0.(ThecurrentIPaddressandcurrentnetmasklisted
abovetheentryboxesisreceivedfromthemodeminDHCP
mode.Itisfordisplayonly.)
Figure 2-8: RJ-11 IP Gateway: Network Interface Settings )
Figure 2-9: Host RJ-11 IP Gateway: Network Interface Settings
192.168.1.3
255.255.255.0
DocTitleHeader
12 2120028
a.
4. SelectSerialSettingsfromthemenuontheleft.
TheSerialSettingspageallowsyoutospecifythebaudrate,
protocol,charactersize,parity,stopbits,andflowcontrol
behaviorfortheRJ‐11port(Phone).
Figure 2-10: RJ-11 IP Gateway: Serial Settings
Formoreinformationontheserialandothersettings,referto
page17.
Note: For most configurations, the defaults for the other settings are
best. Change these parameters only if you know the device you will
be connecting to the RJ-11 IP Gateway requires special settings.
5. ClickontheReset/RebootmenuoptionfortheIPAddress
configurationandanychangestotheserialportsettingsto
takeeffect.
Rev 3.0 B 2/15/08 13

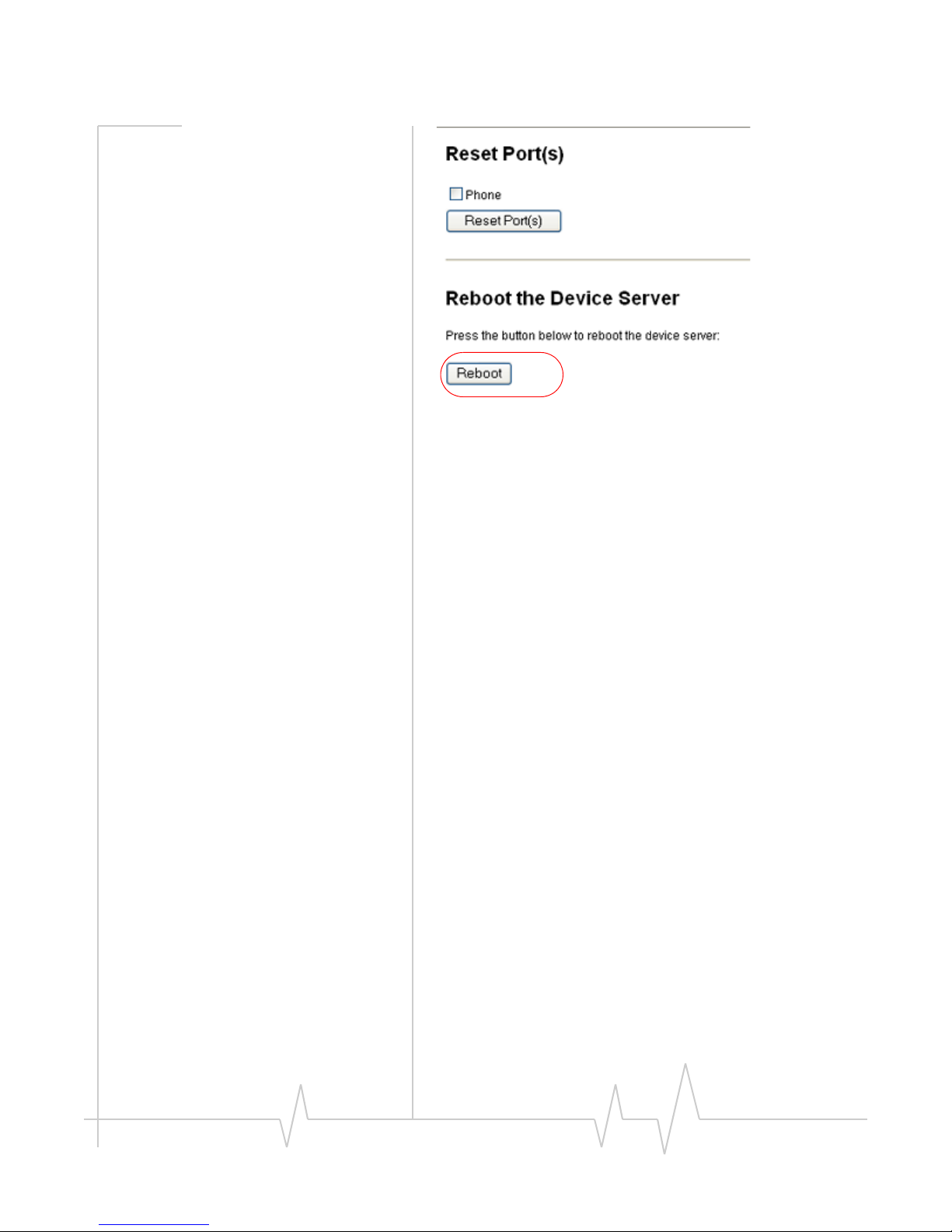

Figure 2-11: RJ-11 IP Gateway: Reset/Reboot
ClicktheRebootbuttontorestarttheRJ‐11IPGatewaywith
theconfiguredsettings.
DocTitleHeader
14 2120028
Rev 3.0 B 2/15/08 15
3: Hardware Setup
•Connectors and Reset
button
•Status LEDs Designedforsimplicity,theRJ‐11IPGatewayhardwarehas
fewcomplicatedparts.
Connectors and Reset button
TheResetbuttonisrecessed.Toresettheconnection,usingan
unbentpapercliporothernarrow,blunttip,pressandquickly
releasetheresetbutton.Toresettheconfigurationtothe
factorydefault,pressandholdtheresetbuttonuntilyousee
theappropriatealternatinglightsequence.
Figure 3-1: Right side: RJ-45 connector, Power connector, and Reset button
(not to scale)
Figure 3-2: Left side: RJ-11(phone) connector (not to scale)
Warning: The RJ-11 IP Gateway's RJ-11 phone
port should never be connected into the Public
Switched Telephone Network (PSTN). This device is
designed to emulate the PSTN for other devices.
Reset
RJ‐45Ethernet
Power
RJ‐11
Table of contents
Other Sierra Wireless Gateway manuals
Sierra Wireless
Sierra Wireless Raven XT User manual
Sierra Wireless
Sierra Wireless AirLink GX400 User manual
Sierra Wireless
Sierra Wireless LS300 User manual
Sierra Wireless
Sierra Wireless FX30 User manual
Sierra Wireless
Sierra Wireless LS300 Installation manual
Sierra Wireless
Sierra Wireless LS300 User manual
Sierra Wireless
Sierra Wireless LS300 User manual
Sierra Wireless
Sierra Wireless oMG 500 User manual
Sierra Wireless
Sierra Wireless AirLink GX440 User manual
Sierra Wireless
Sierra Wireless AirLink GX Series User manual
Sierra Wireless
Sierra Wireless Raven XE User manual
Sierra Wireless
Sierra Wireless FX30S User manual
Sierra Wireless
Sierra Wireless oMG 2000 User manual
Sierra Wireless
Sierra Wireless airlink es440 User manual
Sierra Wireless
Sierra Wireless AirLink GX440 User manual
Sierra Wireless
Sierra Wireless AirLink Raven-E 1 series User manual
Sierra Wireless
Sierra Wireless LS300 User manual
Sierra Wireless
Sierra Wireless LS300 User manual
Sierra Wireless
Sierra Wireless AirLink GX Series Installation manual
Sierra Wireless
Sierra Wireless AirLink Raven XE User manual
Popular Gateway manuals by other brands
Grandstream Networks
Grandstream Networks HT814 quick start guide
AAMP of America
AAMP of America iSimple owner's manual
Honeywell
Honeywell ESSER IQ8Wireless Gateway Installation instruction
Cisco
Cisco TelePresence ISDN GW MSE 8321 Getting started
ZyXEL Communications
ZyXEL Communications ZyWALL USG 100 Series quick start guide
ViewSonic
ViewSonic WPG-150 - Wireless Video Extender user guide
nedis
nedis WIFIZB10CWT quick start guide
Actisense
Actisense USG-1-B-422 user manual
DEUTSCHMANN AUTOMATION
DEUTSCHMANN AUTOMATION UNIGATE CM - PROFINET 2Port instruction manual
ZyXEL Communications
ZyXEL Communications P-2302HWL-P1 Specifications
AudioCodes
AudioCodes MP-5 Series Configuration guide
Cisco
Cisco DPC2325 datasheet
