Sierra Wireless Airlink GX450 Installation manual

AirLink GX450
Hardware User Guide
4114008
Rev 11

AirLink GX450 Hardware User Guide
Rev. 11 July 2019 2 4114008
Important
Notice
Due to the nature of wireless communications, transmission and reception of data can
never be guaranteed. Data may be delayed, corrupted (i.e., have errors) or be totally lost.
Although significant delays or losses of data are rare when wireless devices such as the
Sierra Wireless product are used in a normal manner with a well-constructed network, the
Sierra Wireless product should not be used in situations where failure to transmit or
receive data could result in damage of any kind to the user or any other party, including
but not limited to personal injury, death, or loss of property. Sierra Wireless accepts no
responsibility for damages of any kind resulting from delays or errors in data transmitted
or received using the Sierra Wireless product, or for failure of the Sierra Wireless product
to transmit or receive such data.
Safety and
Hazards
Do not operate the Sierra Wireless product in areas where blasting is in progress, near
medical equipment, near life support equipment, or any equipment which may be
susceptible to any form of radio interference. In such areas, the Sierra Wireless product
MUST BE POWERED OFF. The Sierra Wireless product can transmit signals that could
interfere with this equipment.
The driver or operator of any vehicle should not operate the Sierra Wireless product while
in control of a vehicle. Doing so will detract from the driver or operator’s control and
operation of that vehicle. In some states and provinces, operating such communications
devices while in control of a vehicle is an offence.
The GX450 is classified to ANSI/ISA 12.12.01-2013 and CSA C22.2 No 213-
M(1987)(R2013) and are suitable for use in Class 1, Division 2, Groups A, B, C and D
classified Hazardous Locations.
The following warnings and instructions apply to all GX platforms:
Warning: EXPLOSION HAZARD–SUBSTITUTION OF COMPONENTS MAY IMPAIR
SUITABILITY FOR CLASS I, DIVISION 2.
Avertrissement: RISQUE D’EXPLOSION-LA SUBSTITUTION DE COMPOSANTS PEUT
RENDRE CE MATERIEL INACCEPTABLE POUR LES EMPLACEMENTS DE CLASSE I, DIVSION
2.
Warning: EXPLOSION HAZARD–DO NOT DISCONNECT WHILE CIRCUIT IS LIVE UNLESS
THE AREA IS KNOWN TO BE NON-HAZARDOUS.
Avertrissement: RISQUE D’EXPLOSION-NE PAS DEBRANCHER TANT QUE LE CIRCUIT
EST SOURS TENSION, A MOINES QU’IL NE S’AGISSE D’UN EMPLACEMENT NON
DANGEREUX.
Warning: DO NOT USE THE USB CONNECTOR IN A HAZARDOUS AREA.
Avertrissement: NE PAS UTILISER DE CONNECTEUR USB DANS LES ENVIRONNEMENTS
DANGEREUX.

Preface
Rev. 11 July 2019 3 4114008
Warning: DO NOT USE THE RESET BUTTON IN A HAZARDOUS AREA.
Avertrissement: NE PAS UTILISER LE BOUTON DE RESET DANS UN ENVIRONNEMENT
DANGEREUX.
Limitation of
Liability
The information in this manual is subject to change without notice and does not represent
a commitment on the part of Sierra Wireless. SIERRA WIRELESS AND ITS AFFILIATES
SPECIFICALLY DISCLAIM LIABILITY FOR ANY AND ALL DIRECT, INDIRECT,
SPECIAL, GENERAL, INCIDENTAL, CONSEQUENTIAL, PUNITIVE OR EXEMPLARY
DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PROFITS OR REVENUE OR
ANTICIPATED PROFITS OR REVENUE ARISING OUT OF THE USE OR INABILITY TO
USE ANY SIERRA WIRELESS PRODUCT, EVEN IF SIERRA WIRELESS AND/OR ITS
AFFILIATES HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR
THEY ARE FORESEEABLE OR FOR CLAIMS BY ANY THIRD PARTY.
Notwithstanding the foregoing, in no event shall Sierra Wireless and/or its affiliates
aggregate liability arising under or in connection with the Sierra Wireless product,
regardless of the number of events, occurrences, or claims giving rise to liability, be in
excess of the price paid by the purchaser for the Sierra Wireless product.
Patents This product may contain technology developed by or for Sierra Wireless Inc. This product
includes technology licensed from QUALCOMM®. This product is manufactured or sold by
Sierra Wireless Inc. or its affiliates under one or more patents licensed from MMP
Portfolio Licensing.
Copyright © 2019 Sierra Wireless. All rights reserved.
Trademarks Sierra Wireless®, AirPrime®, AirLink®, ALEOS®and the Sierra Wireless logo are
registered trademarks of Sierra Wireless.
Windows®and Windows Vista®are registered trademarks of Microsoft Corporation.
Macintosh®and Mac OS X®are registered trademarks of Apple Inc., registered in the
U.S. and other countries.
QUALCOMM®is a registered trademark of QUALCOMM Incorporated. Used under
license.
Other trademarks are the property of their respective owners.
Contact
Information
Sales information and technical
support, including warranty and returns
Web: sierrawireless.com/company/contact-us/
Global toll-free number: 1-877-687-7795
6:00 am to 5:00 pm PST
Corporate and product information Web: sierrawireless.com

Rev. 11 July 2019 4 4114008
Contents
Introduction to the AirLink GX450 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Gateway Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
X-Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ALEOS Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
ACEmanager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
AirLink Management Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Ordering Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Installation and Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Tools and Materials Required. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Installing the SIM Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installing the SIM Card—No X-Card present . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Installing the SIM Card—Wi-Fi X-Card present . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Installing the SIM Card—I/O X-Card present . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Installing the SIM Card—Dual Ethernet X-Card present . . . . . . . . . . . . . . . . . . . . .22
Mounting the GX450. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Vehicle Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Antenna Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Antenna Separation Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Antenna Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Mounting the GPS Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Connecting the GX450 Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
LED Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Connecting a DC Power Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Fusing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Power Supply Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Power Connector on the GX450 Gateway . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Contents
Rev. 11 July 2019 5 4114008
Serial Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
X-Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Wi-Fi X-Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
I/O X-Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Dual Ethernet X-Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Configuring AirLink GX450 Gateways . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Connection Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Configuring with ACEmanager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Configuring with AirLink Management Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Configuring with AMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Configuring with AT Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Reset to Factory Default Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Recovery Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
AirLink GX450 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
RF Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Radio Frequency Bands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Radio Module Conducted Transmit Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Host Interfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Federal Communications Commission Notice (FCC United States) . . . . . . . . . . . . . . 60
Notice for Canadian Users. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Important Information for North American Users on Radiation Exposure . . . . . . . . . . 61
EU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Notice for Brazilian Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
DC Power Cable (Black Connector) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

AirLink GX450 Hardware User Guide
Rev. 11 July 2019 6 4114008
AC Power Adapter (Black Connector) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
AC Power Adapter Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
AC Power Adapter Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
AC Power Adapter Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 66
AC Power Adapter Reliability and Quality Control . . . . . . . . . . . . . . . . . . . . . . . . . . 66
AC Power Adapter Safety Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
AC Power Adapter EMC Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Hazardous Substances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Energy Efficiency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Rev. 11 July 2019 7 4114008
1
1: Introduction to the AirLink GX450
This chapter describes the Sierra Wireless AirLink®GX450 gateway, including a
description of ALEOS®embedded software and the AirLink Management Service (ALMS)
gateway management platform.
Introduction
The AirLink GX450 gateway is a compact, intelligent and fully-featured cellular (4G LTE)
gateway that provides real-time wireless capabilities for fixed and mobile applications
such as:
•Public safety vehicle deployments
•Public transit systems
•Energy and utilities
•Remote asset monitoring
•Backup broadband connectivity
The AirLink GX450 gateway has multiple communication ports including serial, Ethernet,
and USB ports. The power connector has one digital I/O pin for remote monitoring and
control and one ignition sense pin to turn the gateway on and off.
The AirLink GX450 gateway has several expansion options to add more capability. The
following options are available:
•Wi-Fi (802.11 b/g/n)
•Input/Output (I/O) 15-pin connector which adds:
·One additional RS-232 port
·Four additional digital I/O pins
·Four analog voltage sensing pins
The AirLink GX450 gateway, when coupled with the rich embedded intelligence provided
by the embedded ALEOS software, is the perfect choice for a broad set of machine-to-
machine solutions.

AirLink GX450 Hardware User Guide
Rev. 11 July 2019 8 4114008
Gateway Description
Front Panel
The front panel has the following indicators and controls:

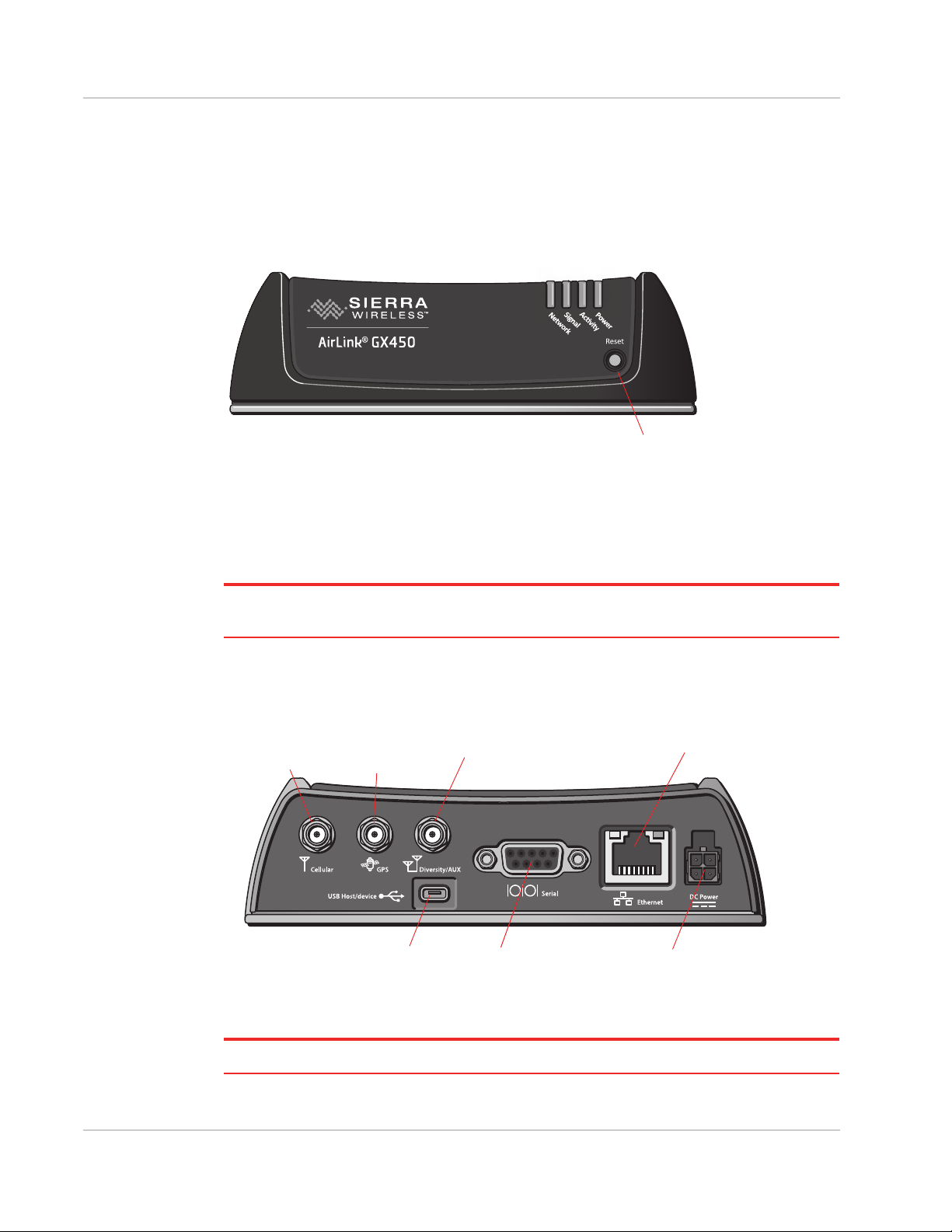

Figure 1-1: GX450 Front Panel
•LEDs– These show the gateway’s operating status. The LEDs are described in detail
in LED Operation on page 30.
• Reset Button – Momentarily pressing and releasing this button reboots the GX450
gateway.
Note: Holding the Reset button down for 7–10 seconds resets the GX450 gateway to its factory
default settings.
Rear Panel
The rear panel has the following connectors and controls:
Figure 1-2: GX450 Rear Panel
• Antenna Connector – This is the radio’s receive and transmit port (SMA connector).
Note: For more information on antenna connection and use, see Antenna Installation on page 27.
LEDs
Reset Button
Antenna
Connector
Diversity/AUX
Antenna Connector
GPS Antenna
Connector
Power Connector
USB Port Serial Port
Ethernet
Connector

Introduction to the AirLink GX450
Rev. 11 July 2019 9 4114008
• GPS Antenna Connector – This connects an optional GPS antenna to the gateway.
(SMA connector)
Note: The GPS antenna connector has a bias output and Sierra Wireless recommends that you use
an active antenna for better sensitivity.
• Diversity/AUX Antenna Connector –This connects an auxiliary antenna to the
gateway for backup reception capability. (SMA connector)
Note: For 3G networks, the second antenna operates as a diversity antenna, providing a second
receive path. For 4G networks, the second antenna operates as a MIMO antenna, providing a
second receive path and a second transmit path.
• Ethernet Connector – This RJ-45 connector connects a standard Ethernet cable to
the gateway. This is used to connect a Windows PC to the gateway for configuration
and diagnostic purposes or attaching Ethernet equipment to the gateway.
• Power Connector – This connects power to the gateway and provides additional
inputs and outputs for the control and monitoring of external devices as well as
triggering the low power mode. For more information on its operation and use, see
Connecting a DC Power Cable on page 32.
There are two types of optional power cables available from Sierra Wireless:
·An AC adapter (usually used for indoor, fixed applications where the gateway runs
off line power)
·DC cables (usually used in vehicles or other installations where the gateway runs
off battery power)
The gateway automatically starts when it senses qualified power on the power con-
nector.
• Serial Port – This 9-pin connector provides standard RS-232 communication with a
standard straight-through serial cable. It is used to communicate with industrial
machines like motors, computers or controllers or for connection to a computer to
configure the gateway with AT commands. It also supports features like TCP PAD
and UDP PAD. For more information, see Serial Port on page 36.
• USB Port – This Micro AB connector accepts Micro A and Micro B plugs. You can
use a connected Windows PC to monitor and configure the gateway.
When connected to a PC, the USB port becomes either a:
·Virtual Ethernet port (default)
·Virtual serial port
For information on configuring the USB port, refer to the ALEOS Software Configura-
tion User Guide. The ALEOS Software Configuration User Guide and Windows drivers
for this port are available at
source.sierrawireless.com/resources/airlink/software_downloads/airlink_usb_driver/
When using the USB port:
·Use a USB 2.0 cable
·Connect directly to your computer for best throughput

AirLink GX450 Hardware User Guide
Rev. 11 July 2019 10 4114008
X-Cards
The AirLink GX450 gateway has several optional, factory-installed, expansion cards (X-
Cards) available to add more functions to the basic gateway. They are configurable with
the ALEOS ACEmanager software. (See the ALEOS Software Configuration User Guide
for more information.)
The options are:
•Wi-Fi—Adds Wi-Fi capability to the gateway using the 802.11b/g/n standard
• I/O—Has a 15-pin connector which adds to the gateway:
·One 4-wire RS-232 port
·Four analog inputs
·Four high-voltage/high-power digital I/Os with analog readout
• Dual Ethernet—Adds two 10/100 baseT Ethernet ports
For a more complete description of each option, see X-Cards on page 37.
ALEOS Software
Note: For detailed information on all of the features in ALEOS, refer to the ALEOS Software Config-
uration User Guide, available from source.sierrawireless.com.
ALEOS, the embedded core technology of the AirLink product line, provides:
•Simplified installation, operation and maintenance of any wireless solution
•An always-on, always-aware, intelligent two-way connection for mission-critical appli-
cations
ALEOS enables:
•Reverse Telnet
•Reliable Static Routing
•SNMP
•Persistent Network Connectivity
•Over-The-Air (OTA) Upgrades
•Wireless Optimized TCP/IP
•Real-Time Notification
•Real-Time GPS Reporting
•GPS Store and Forward
•Packet Level Diagnostics
•Gateway Management & Control
Sierra Wireless has two tools for monitoring and configuring AirLink GX450 gateways:
• ACEmanager—A web-based configuration tool for configuring a single AirLink
gateway
• AirLink Management Service (ALMS)—A cloud-based gateway management
service for monitoring and configuring fleets of AirLink gateways
GX450 gateways also accept AT Commands.

Introduction to the AirLink GX450
Rev. 11 July 2019 11 4114008
ACEmanager
ACEmanager is a web-based application used to configure and monitor GX450 gateways.
ACEmanager:
•Simplifies deployment
•Provides extensive monitoring, control and management capabilities
•Enables you to configure your gateway to meet your needs
•Monitors and controls your AirLink gateway remotely and in real-time
•Is accessed through a web browser connected to the gateway
See Configuring with ACEmanager on page 44 to learn how to access ACEmanager.
AirLink Management Service
AirLink Management Service (ALMS) is a cloud-based application, accessible from your
web browser. It provides remote monitoring and configuration for multiple AirLink ALEOS
gateways from a single computer.
ALMS features include:
•Gateway management as a service
•Advanced monitoring dashboards and alert notifications ensuring you always know
the status of your GX450 gateways
•Detailed configuration of all ALEOS parameters, including templates providing batch
updates of pre-set configurations across multiple gateways
•Over-the-air (OTA) firmware upgrades for all of your AirLink gateways with a single
operation
To connect with ALMS, see Configuring with AirLink Management Service on page 46.
For more information on ALMS, call your Sierra Wireless Partner or visit:
www.sierrawireless.com/ALMS.
Accessories
Included with AirLink GX450
•DC power cable
•Mounting screws
•Quick Start Guide
Order separately
•Ethernet cable
•DB-9 serial cable (6 foot and 25 foot lengths)
•USB cable
•Null modem cable
•LTE antenna
Ordering Information
For more information or to place an order, contact: [email protected].

AirLink GX450 Hardware User Guide
Rev. 11 July 2019 12 4114008
Warranty
The GX450 has a 3 year standard warranty, with an optional 2 year warranty extension.

Installation and Startup
Rev. 11 July 2019 13 4114008
2: Installation and Startup
This chapter shows you how to connect, install and start the Sierra Wireless AirLink
GX450 gateway. It also describes the front panel LEDs. Also described are the optional
X-Cards available from Sierra Wireless that add more functions to the basic gateway.
Tools and Materials Required
•If needed, a SIM card for your gateway as provided by your mobile network operator
If you are installing a SIM card, see Installing the SIM Card on page 14 for a list of
required tools.
•Laptop computer with Ethernet cable
•SMA cellular antenna
•If used, a GPS antenna
•If used, a second SMA cellular antenna
•If used, a straight-through 9-pin connection cable for the RS-232 port
•Power cable, either the DC cable or AC cable ordered from Sierra Wireless or your
own custom-made cable
Note: Custom-made cables must incorporate strain relief and use the correct type of power
connector to prevent intermittent connection to the gateway.
Note: The gateway has a hardened case for use in industrial and extreme environments. If you are
installing it in these types of environments, use cables designed and specified for use in these types
of environments to avoid cable failure.

AirLink GX450 Hardware User Guide
Rev. 11 July 2019 14 4114008
Installing the SIM Card
The GX450 gateway requires a SIM card. If the SIM card has not already been installed
by your Mobile Network Operator, install the SIM card before installing or connecting any
external equipment or power to the AirLink gateway.
To install a SIM card, you need:
•SIM card for your account (provided by your Mobile Network Operator)
•2 mm Allen (hex) wrench or a Phillips #1 screwdriver, depending on the screw type
used on the black decorative cover
•If your GX450 gateway has a Serial I/O X-Card installed:
·Small adjustable torque wrench
·4 mm nut driver or socket that works with the torque wrench
•If your gateway has a Wi-Fi X-Card installed:
·Small adjustable torque wrench
·8 mm socket—long enough to fit over the SMA antenna connector
The procedure for installing a SIM card varies depending on whether or not the gateway
has an X-Card installed, and if so, the type of X-Card present. Follow the appropriate
instructions for your gateway:
•Installing the SIM Card—No X-Card present on page 15
•Installing the SIM Card—Wi-Fi X-Card present on page 16
•Installing the SIM Card—I/O X-Card present on page 19
•Installing the SIM Card—Dual Ethernet X-Card present on page 22

Installation and Startup
Rev. 11 July 2019 15 4114008
Installing the SIM Card—No X-Card present
Figure 2-1: SIM Card Installation, with no X-Card present
1) Remove the four screws attaching the cover.
2) Remove the cover.
3) Slide the SIM card
into the SIM card holder.
Note the direction of notched
4) Use the screws you saved in step 1 to reattach the cover. Torque the screws to 5 in-lb. (0.6 N-m).
corner of SIM card for
proper alignment.
Save the screws for reinstallation.

AirLink GX450 Hardware User Guide
Rev. 11 July 2019 16 4114008
Installing the SIM Card—Wi-Fi X-Card present
Important: Failure to follow these instructions carefully may damage the X-Card and void the
warranty agreement.
To install a SIM card in a GX450 gateway with a Wi-Fi X-Card installed:
1. Unscrew the 8 mm hexagonal nut on the Wi-Fi SMA antenna connector at the front of
the gateway, using the socket and wrench. Then slide off the nut and lock washer.
Save the nut and washer. These are used again.
2. Remove the four screws used to secure the black decorative cover. Use a 2 mm Allen
(hex) wrench or a Phillips #1 screwdriver, depending on the screw type used on the
black decorative cover. Save the screws for reinstallation.

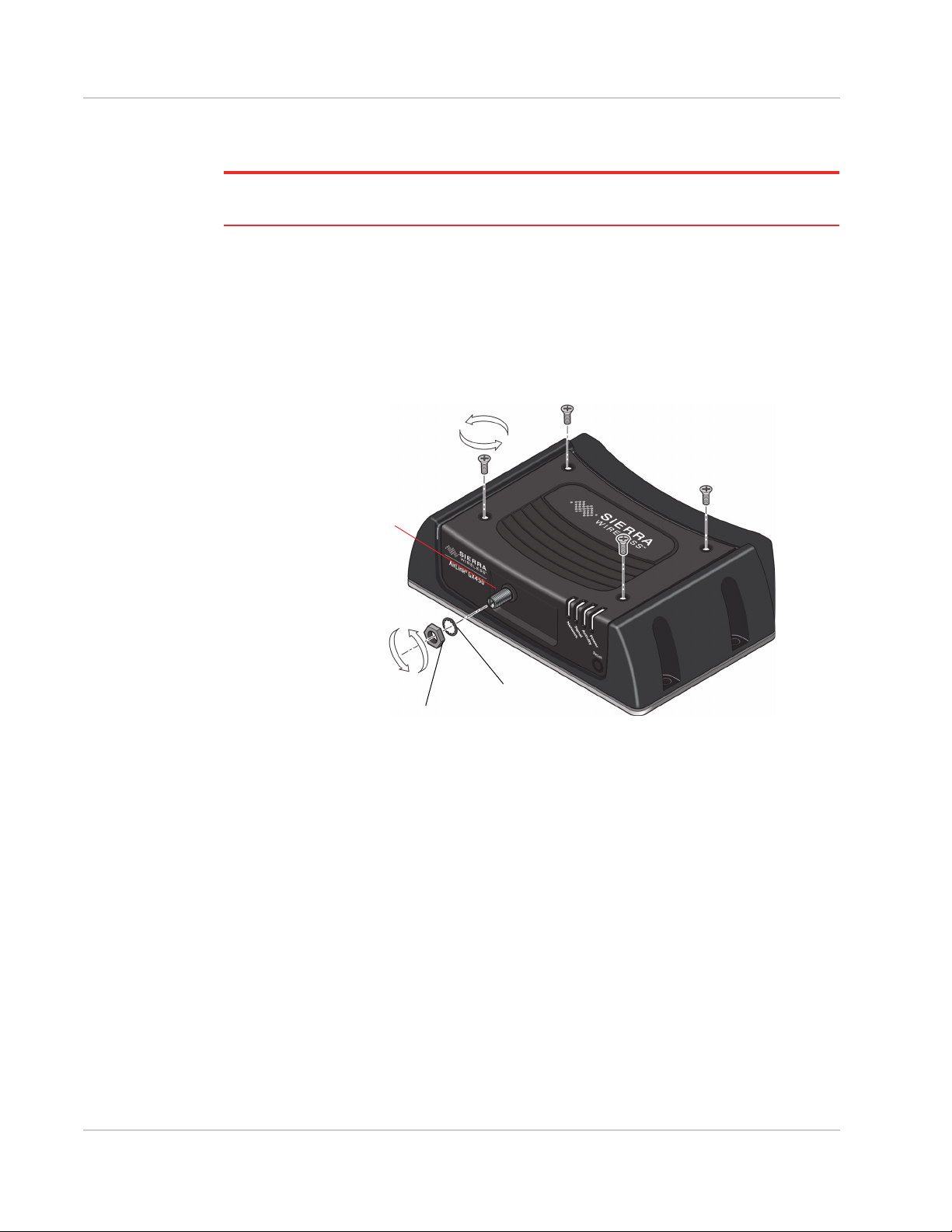

Figure 2-2: Removing the screws, nut and washer (Wi-Fi X-Card installed)
3. Gently tilt up the back of the decorative black cover and then move the cover forward
so that it slides over the Wi-Fi SMA antenna connector.
lock washer
hexagonal nut
SMA antenna connector

Installation and Startup
Rev. 11 July 2019 17 4114008
Figure 2-3: Tilting the cover (Wi-Fi X-Card installed)
4. Continue to slide the cover horizontally until it clears the SMA antenna connector.
Figure 2-4: Removing the cover (Wi-Fi X-Card installed)
5. Lift the cover to remove it completely. Save the cover. It is used later.
6. Insert the SIM card, with the gold contacts facing down and the notch on the right
side, as shown in the following illustration.
Wi-Fi SMA antenna

AirLink GX450 Hardware User Guide
Rev. 11 July 2019 18 4114008
Figure 2-5: Inserting the SIM card (Wi-Fi X-Card installed)
7. Ensure the black gasket is in place at the base of the SMA antenna connector.
8. Re-install the decorative black cover:
a. Line up the SMA antenna connector with the hole in the cover.
b. Tilt the rear of the cover slightly to make sure the front bottom of the cover seats
in the front ridge. Slide the cover into place, and then push the top of the cover
down.
It may require some force to make sure the four holes in the cover line up with the
threaded holes on the top of the gateway. You may need to push from the front as
well to ensure that the holes line up properly.
9. Use the four screws saved in step 2 to re-attach the decorative black cover. Torque
the screws to 5 in-lb. (0.6 N-m). Ensure that the screws are tight so that the seal
underneath the decorative black cover is tight against the gateway.
Figure 2-6: Replacing the screws, nut, and washer (Wi-Fi X-Card installed)
Note the direction of notched
corner of SIM card for
proper alignment.
black gasket
lock washer
hexagonal nut
SMA antenna connector

Installation and Startup
Rev. 11 July 2019 19 4114008
10. Place the lock washer onto the SMA antenna connector and move it to the back of the
connector, so it is touching the decorative black cover.
11. Install, then tighten the nut with a 5/16" or 8 mm socket torque wrench to a torque
specification of 8in-lbs (0.9 N-m).
Installing the SIM Card—I/O X-Card present
Important: Failure to follow these instructions carefully may damage the X-Card and void the
warranty agreement.
To install a SIM card in a GX450 gateway with an I/O X-Card installed:
1. Unscrew the two 4-40 male to female hexagonal threaded standoffs (jack screws) on
either side of the serial port at the front of the gateway, using the socket and wrench.
Keep the hexagonal threaded standoffs for reinstallation.
2. Remove the four screws used to secure the black decorative cover. Use a 2 mm Allen
(hex) wrench or a Phillips #1 screwdriver, depending on the screw type used on the
decorative black cover. Save the screws for reinstallation.
Figure 2-7: Removing the screws and threaded standoffs (I/O X-Card installed)
3. Gently tilt up the back of the decorative black cover and then move the cover forward
so that it slides over the serial port.
hexagonal threaded standoffs (jack screws)

AirLink GX450 Hardware User Guide
Rev. 11 July 2019 20 4114008
Figure 2-8: Tilting the cover (I/O X-Card installed)
4. Continue to slide the cover horizontally until it clears the serial port.
Figure 2-9: Removing the cover (I/O X-Card installed)
5. Lift the cover to remove it completely. Save the cover. It is used again.
6. Insert the SIM card, with the gold contacts facing down and the notch on the right
side, as shown in the following illustration.
