Sigma BC 16.12 User manual

BC 16.12 /BC 16.12
BIKE COMPUTER TOPLINE
FUNCTIONS
VIDEO
TUTORIAL:
INSTALLATION
VIDEO:
SIBGRUSEDKFINO SK GB

2
Contents
1. Introduction to the BC 16.12 / BC 16.12 STS 02
1.1 Initial use 02
1.2 Navigation principle 03
1.3 Set-up 04
2. Functions / Properties 04
2.1 General 04
2.2 Special functions 06
2.3 STS features 06
3. Settings / Deletion 08
3.1 Settings 08
3.2 Determining the wheel size 08
3.3 Deleting the functions 08
4. Important Notes / Troubleshooting 09
4.1 Technical data 09
5. Warranty Conditions 11
GB
1. Introduction to the BC 16.12 / BC 16.12 STSENGLISH
You can find the CE declaration under:
www.sigmasport.com

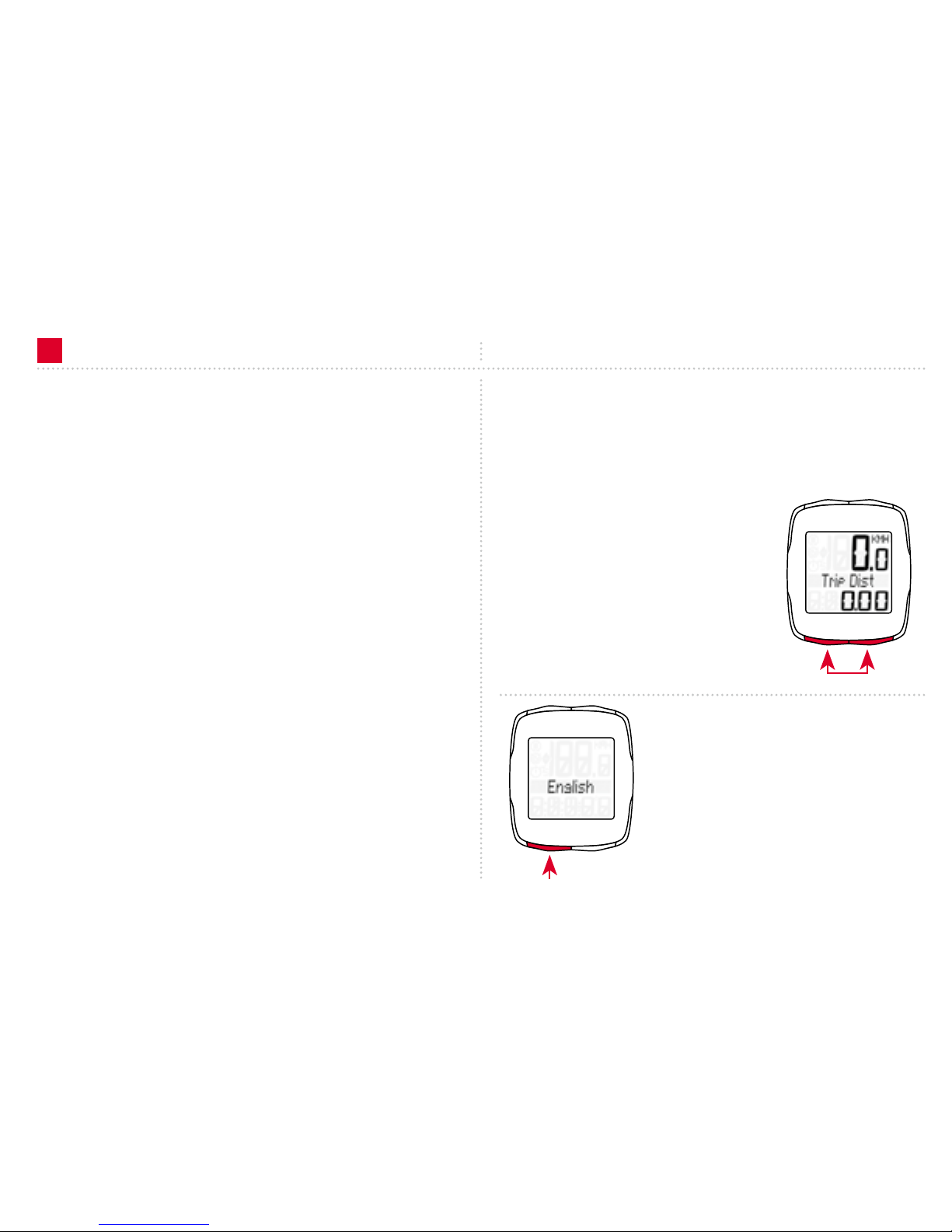

1.1 Initial use
The bike computer comes in “deep sleep mode”.
To exit this mode, press and hold the MODE 1 and
SET buttons for five seconds.
On waking up, the bike computer
will be in active mode.
To access the settings,
press the SET button.

3
GB
1.2.1 Button functions 1.2.2 Assigning the functions
1.2 Navigation principle
RESET button for
– Deleting the
current values
– Scrolling backward
You can access the following
functions by pressing the
MODE 2 button:
cadence / Ø cadence / time /
stopwatch / countdown timer /
TS distance / TS time /
temperature / total distance 1* /
total distance 2* / total distance /
total time 1* / total time 2* /
total time
You can access the following
functions by pressing the
MODE 1 button:
trip distance / trip time /
Ø speed / max. speed
* The distinction between bike 1 and
bike 2 is only displayed once a second
bike has been detected.
MODE 2 button for
– Switching between
several functions
– Scrolling forward
MODE 1 button for
– Switching between
the bike functions
– Scrolling forward
SET button for
– Switching to / from
the setting mode
– Scrolling backward

4
2.1 General
– Current / average speed comparison 
If you are traveling at approximately
your average speed, nothing is
displayed. If you are traveling
quicker than your average speed,
( ) is displayed; if you are
traveling slower ( ) is displayed.
This information is displayed in
almost all functions, except the
basic settings.
– Automatic detection of the second bike 
The switchover between bike 1 and bike 2 occurs
automatically. You simply need to carry the
necessary accessories with you. For the wired
device, the universal bracket with appropriate
cabling should be purchased as an extra. For the
wireless device, a second speed transmitter should
be purchased and set to bike 2 (see set-up
instructions for further details).
1.3 Set-up
Please see the leaflet provided for the set-up
diagrams!

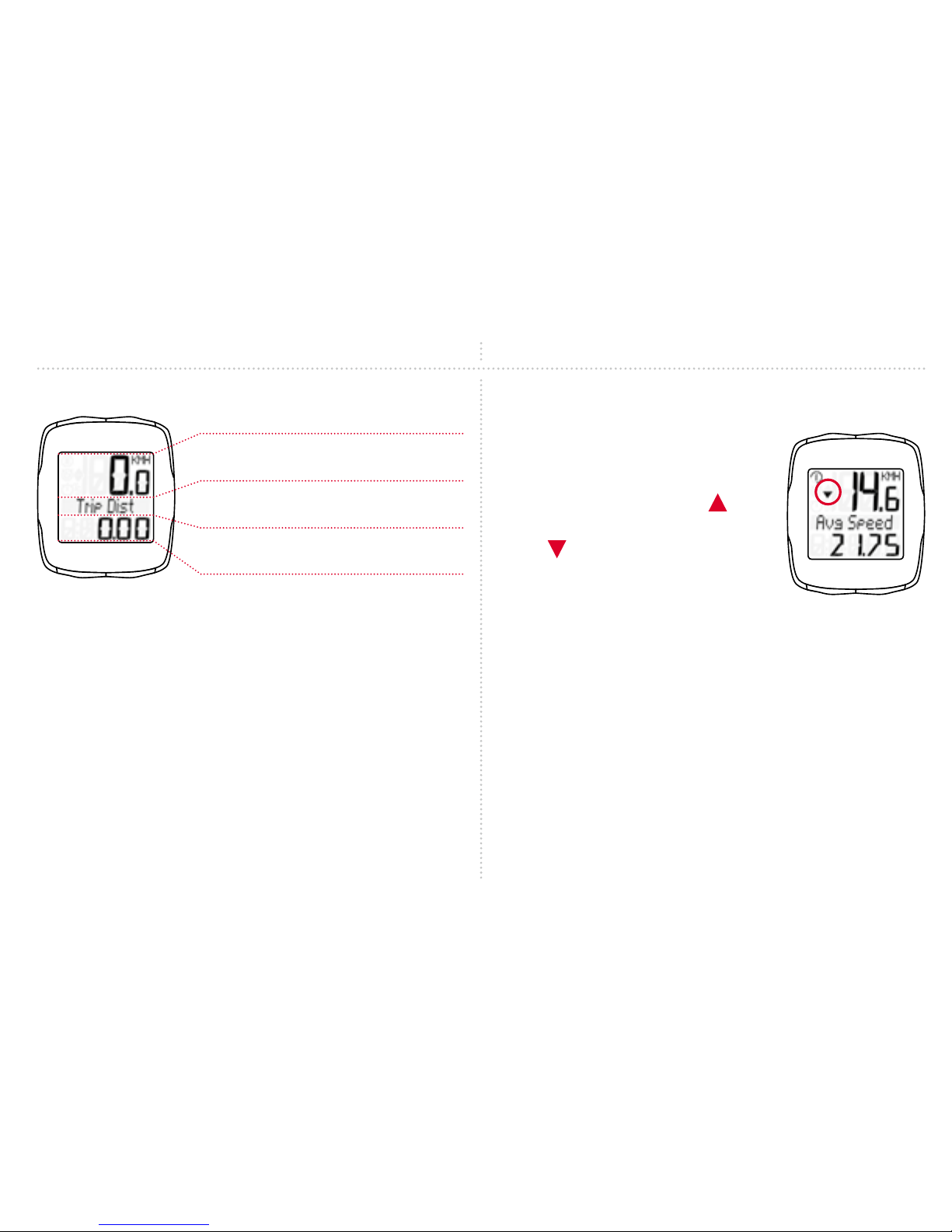

1.2.3 Display layout
2. Functions / Properties
Top field:
Speed
Middle field:
Description of the functions
Bottom field:
Current value
1.2 Navigation principle

5
GB
2. Functions / Properties
The total values are only separately displayed for
bike 1, bike 2 and bike 1+2 once a second bike has
been added. If only one bike is used, only the total
values for the first bike are displayed.
– Light manager Simultaneously press the SET and
RESET buttons to switch the light function on/off.
The display lights up by pressing any button; the bike
computer changes to the respective function when the
button is pressed again. On STS devices, the light
function is disabled during synchronization (max.
5 minutes). Avoid using the backlight unnecessarily
to save the battery!
– Service interval The service interval informs
you when you have cycled a specified number of
kilometers and a bike inspection is due. This
service interval can only be enabled/disabled
and pre-configured by your specialist retailer.
The device comes with the service interval disabled.
– Battery status The battery status of the
computer head unit is displayed shortly before
the battery runs out. “low/computer” appears
on the display. After changing the battery, only the
time needs to be re-set.
– Memory chip Thanks to an inbuilt memory chip,
all total values and settings are permanently stored
in the bike computer. This means that you do not
need to reconfigure any settings (except for the
time) after changing the battery.
– PC compatibility The bike computer is
PC-compatible. After purchasing the SIGMA
DATA CENTER software and docking station,
you can simply and effortlessly log your total
and current values on your PC. You can also
configure your bike computer’s settings on the PC.
www.sigma-data-center.com

6
2.3 STS features

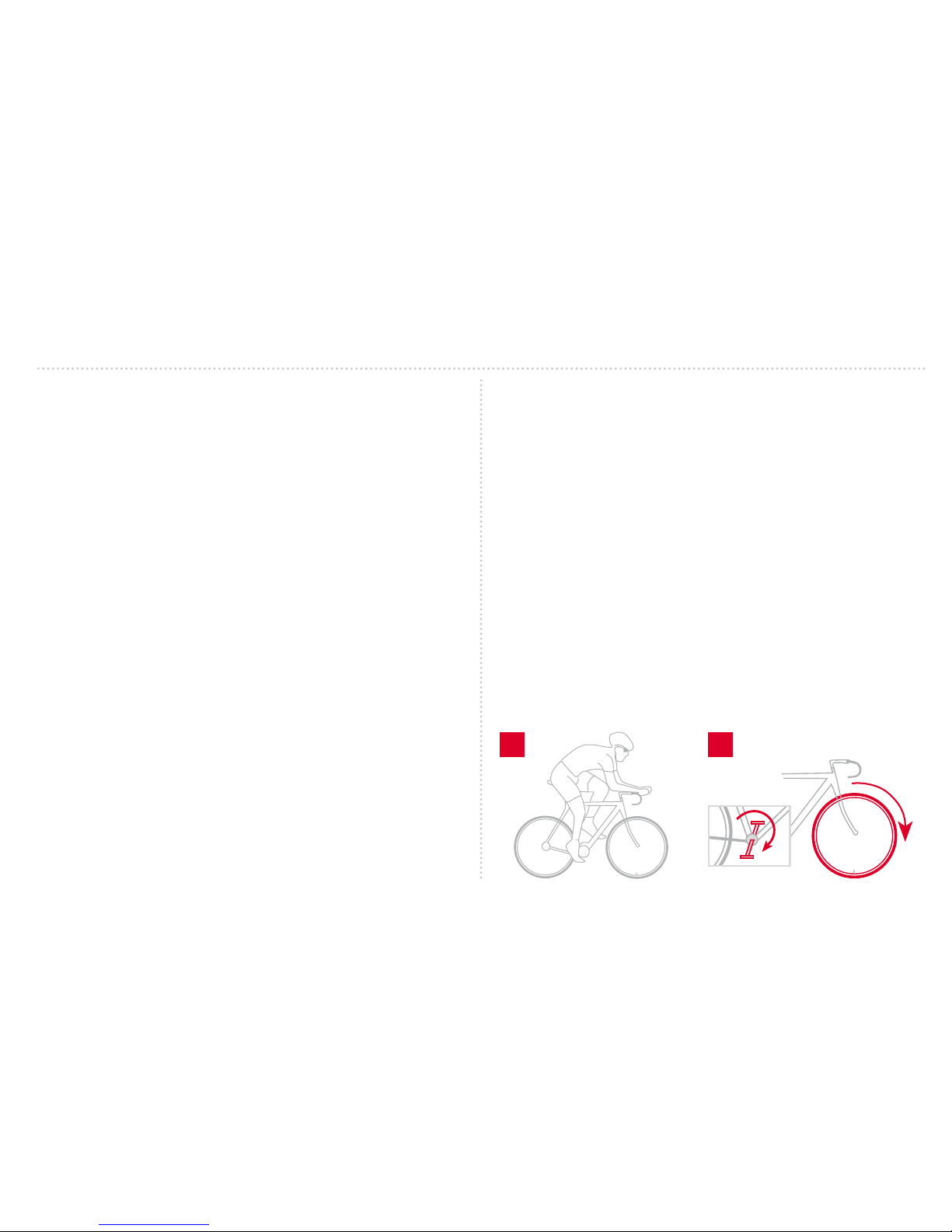

– Synchronization Attach the BC 16.12 STS to the
bracket – zeros flash for the speed and cadence.
There are two ways of synchronizing the speed /
cadence:
– 1. Start cycling – the receiver usually
synchronizes with the transmitters after 3-4 wheel /
pedal rotations.
– 2. Spin the front wheel or turn the pedals until
the speed / cadence values stop flashing.
Removing the BC 16.12 STS from the bracket
severs the connection.
2.2 Special functions
– Hiding total values during the trip If the BC 16.12/
BC 16.12 STS receives speed signals, all the total
functions (distance, time) are hidden on the display.
If no speed values are received, the functions are
once again displayed.
– Showing and hiding cadence functions If the
BC 16.12 / BC 16.12 STS are used without the
cadence transmitter, all the cadence functions
(cadence / Ø cadence) are hidden for this trip after
five minutes.
– Trip section (TS) counter This is a separate
distance / time counter that is manually started and
stopped. The trip section counter makes it possible
to evaluate a trip section or interval training session
without influencing the total values for the trip.
2. Functions / Properties
1 2

7
GB
– Message “Too Many Signals” Increase your
distance from other cyclists (transmitters) and
press any button. Synchronization re-starts. (If the
transmission connection is lost during your trip and
no longer functions, press and hold the MODE 1
button for more than three seconds to start manual
synchronization. “Sync. RESET” flashes on the display)
2. Functions / Properties
– Transport mode When transported on a bike
rack or in the car (if clicked into the bracket),
the BC 16.12 STS switches to “transport mode”
via an integrated movement sensor. “Transport”
appears on the display. Press any button to exit
this mode.
> 3 sec.

8
3.3 Deleting the functions
Please see the diagrams for how to delete the
functions.
Please note that the trip section (TS) counter,
stopwatch, and countdown timer are not deleted
with the current trip values.
3. Settings / Deletion
3.1 Settings
The following settings can be configured: language /
unit / wheel size 1 / wheel size 2 / time /
total distance 1 / total distance 2 / total time 1 /
total time 2 / contrast. Clear diagrams of how to set
each of these functions can be found in the enclosed
leaflet.
3.2 Determining the wheel size
To measure your speed precisely, the wheel size must
be set on the basis of your tire size. To do this, you
can:
A– Calculate the wheel size using the formula provided
in the wheel size chart.
B– Determine the value from the drawings in the
wheel size chart.
C– Take the value that corresponds to your tire size
from the wheel size chart.

9
GB
4.1 Technical data
4.1.1 Battery indicator / replacement
Please see the enclosed diagrams for how to insert or
remove the battery. After changing the battery in the
computer head unit, only the time needs to be re-set.
BC 16.12 Type CR 2032 /
computer head unit: 1.5-year service life*
BC 16.12 STS Type CR 2032 /
computer head unit: 1-year service life*
Speed transmitter: Type CR 2032 /
1-year service life*
Cadence transmitter: Type CR 2032 /
1-year service life*
* when used for one hour per day
4. Important Notes / Troubleshooting
4.1.2 Troubleshooting
No speed:
– Is the computer correctly fastened into the
bracket?
– Check the distance between the magnet and the
sensor (max. 5 mm) (with STS, max. 12 mm).
– Is the magnet correctly positioned?
Incorrect speed:
– Are two magnets attached to the bike?
– Is the wheel size correctly set?
Further troubleshooting solutions can be found in our
FAQs at www.sigmasport.com
1. CAUTION:
RISK EXPLOSIVE IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
2. CAUTION:
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTION.

10
4.1.3 Min. / max. / factory settings
Standard Min. Max. Unit
Current speed 0.0 0 199.8 kmh / mph
Trip Dist 0.00 0.00 9,999.9 km / mi
Ride Time 0:00:00 0:00:00 999:59:59 h:mm:ss hhh:mm:ss
Avg Speed 0.00 0.00 199.8 kmh / mph
Max. Speed 0.00 0.00 199.8 kmh / mph
Cadence 0 0 180 rpm
Ø cadence 0 0 180 rpm
Clock 00:00 00:00 23:59 hh:mm
Stopwatch 00:00.0 00:00.0 9:59:59 mm:ss,1/10 h:mm:ss
Countdown 0:00:00 0:00:00 9:59:59 h:mm:ss
TS Distance 0.00 0.00 9,999.9 km / mi
TS Time 0:00:00 0:00:00 999:59:59 h:mm:ss hhh:mm:ss
Temperature 0.0 -10 / 14 70 / 158 °C / °F
Tot Dist 1 + 2 0 0 99,999 km / mi
Tot Distance 0 0 999,99 km / mi
Total Time 1 + 2 0:00 0:00 9999:59 h:mm h.hhh:mm
Total Time 0:00 0:00 19,999 h:mm hh.hhh
Wheelsize 1 + 2 2,155 500 3,999 mm
4. Important Notes / Troubleshooting

11
GB
We are liable to our contracting partners for defects
in line with legal provisions. In the event of a warranty
claim, please contact the retailer from whom you
purchased your bike computer. You can also send
your bike computer, together with your receipt and all
accessories, to the address below. Please ensure you
pay sufficient postage.
Warranty claims can be made in the event of material
and workmanship errors. The warranty does not cover
batteries, wear and tear parts, or wear caused by
commercial use or accidents. Warranty claims shall
only be valid if the SIGMA product has not been opened
without authorization and the purchase receipt is
provided.
SIGMA-ELEKTRO GmbH hereby declares that the
wireless bike computers comply with the fundamental
requirements and other relevant regulations of Directive
1999/5/EC.
5. Warranty Conditions
SIGMA-ELEKTRO GmbH
Dr.-Julius-Leber-Strasse 15
D-67433 Neustadt an der Weinstrasse
Tel.: [phone]
Fax.: [phone]
E-mail: [email protected]
In the event of justified warranty claims, you will
receive a replacement device. You will only be entitled
to the model available at the time of replacement.
The manufacturer retains the right to make technical
modifications.
Batteries must not be disposed of in household waste
(European Battery Law)! Please take the batteries to
an official collection point for disposal.
Electronic devices must not be
disposed of in household waste.
Please take the device to an
official waste collection point.
LI=Lithium
LI

12
Kazalo
1. Spoznajte BC 16.12 / BC 16.12 STS 12
1.1 Zagon 12
1.2 Princip navigacije 13
1.3 Montaža 14
2. Funkcije / lastnosti 14
2.1 Splošno 14
2.2 Posebne funkcije 16
2.3 Posebnosti STS 16
3. Nastavitve / brisanje 18
3.1 Nastavitve 18
3.2 Ugotavljanje obsega kolesa 18
3.3 Brisanje funkcij 18
4. Pomembna opozorila / odprava napak 19
4.1 Tehnični podatki 19
5. Garancijska določila 21
SI
1. Spoznajte BC 16.12 / BC 16.12 STSSLOVENŠČINA
Izjavo CE najdete na www.sigmasport.com
1.1 Zagon
Ob dobavi je kolesarski računalnik v tako imenovanem
načinu globokega mirovanja.
Da zapustite ta način, pritisnite
tipko MODE 1 in tipko SET in
ju zadržite 5 sekund.
Ko se kolesarski računalnik zbudi,
je v aktivnem načinu.
V nastavitve se pomaknete
s pritiskom na tipko SET.

13
SI
1.2.1 Pomen tipk 1.2.2 Dodelitev funkcij
1.2 Princip navigacije
Tipka RESET za
– brisanje trenutnih
vrednosti
– listanje nazaj
S tipko MODE 2 lahko prikličete
naslednje funkcije:
Kadenca / Ø kadenca / Ura /
Štoparica / Odštevanje / TS pot /
TS čas / Temperatura /
Skupna pot 1* / Skupna pot 2* /
Skupna pot / Skupni čas 1* /
Skupni čas 2* / Skupni čas
S tipko MODE 1 lahko prikličete
naslednje funkcije:
Prevožena pot / Čas vožnje /
Ø hitrost / Maks. hitrost
* Razlikovanje med kolesom 1 in
kolesom 2 se prikazuje šele po zaznavi
drugega kolesa.
Tipka MODE 2 za
– menjavo raznih
funkcij
– listanje naprej
Tipka MODE 1 za
– menjavo kolesarskih
funkcij
– listanje naprej
Tipka SET za
– menjavo v / iz
nastavitvenega načina
– listanje nazaj

14
2.1 Splošno
– Primerjava trenutne / povprečne hitrosti 
Če vozite s hitrostjo, ki je približno
enaka povprečni, se ne prikazuje
nič. Če vozite s hitrostjo, višjo od
povprečne, se prikazuje ( ), če
pa s hitrostjo, nižjo od povprečne,
pa ( ). Prikaz je aktiven pri vseh
funkcijah, razen pri osnovnih
nastavitvah.
– Samodejna razpoznava drugega kolesa Menjava
med kolesom 1 in kolesom 2 je samodejna. S seboj
je treba imeti le ustrezno opremo. Če gre za napravo
s kablom, je treba dodatno kupiti univerzalno držalo
z ustreznim kablom. Če gre za brezžično napravo, je
treba kupiti dodatni oddajnik za hitrost in ga nastaviti
na kolo 2 (za podrobnosti glejte navodilo za
montažo). Skupne vrednosti se prikazujejo ločeno za
kolo 1, kolo 2 in kolo 1+2, ko se pojavi drugo kolo.
Če uporabljate samo eno kolo, so prikazane zgolj
skupne vrednosti prvega kolesa.
1.3 Montaža
Slike za montažo so razvidne iz priložene zgibanke!
1.2.3 Zgradba zaslona
2. Funkcije / lastnosti
Zgornje segmentno polje:
prikaz hitrosti
Srednje segmentno polje:
opis funkcij
Spodnje segmentno polje:
trenutna vrednost
1.2 Princip navigacije

15
SI
2. Funkcije / lastnosti
– Upravljanje svetlobe Z istočasnim pritiskom na
tipki SET in RESET lahko vklopite/izklopite osvetlitev
zaslona. S pritiskom na poljubno tipko se vklopi
osvetlitev zaslona, z naslednjim pritiskom na določeno
tipko pa se vklopi naslednja funkcija kolesarskega
računalnika. Pri napravah STS je med sinhronizacijo
(maks. 5 minut) funkcija osvetlitve izklopljena. Ne
vklapljajte osvetlitve po nepotrebnem, da se baterija
ne izprazni prehitro!
– Servisni interval Servisni interval vas obvesti,
ko dosežete kilometrino za naslednji pregled kolesa.
Servisni interval se lahko vklopi/izklopi oz. predpro-
gramira samo v pooblaščeni trgovini. Ob dobavi je
servisni interval izklopljen.
– Stanje baterije Stanje baterije računalniškega dela
se prikaže, tik preden je baterija prazna. Prikaže se:
„ prazna/ računalnik“ na zaslonu. Po menjavi
baterije je treba na novo programirati le uro.
– Pomnilniški čip S pomočjo vgrajenega
pomnilniškega čipa se skupne in nastavljene
vrednosti v kolesarskem računalniku trajno shranijo.
Zato vam po menjavi baterije ni treba opraviti
nastavitev (razen ure).
– Kompatibilnost z osebnim računalnikom 
Kolesarski računalnik lahko priključite na osebni
računalnik. Če kupite programsko opremo SIGMA
DATA CENTER in priklopno postajo, lahko skupne in
dnevne vrednosti enostavno in hitro shranite na
osebni računalnik. Poleg tega lahko na osebnem
računalniku opravite tudi nastavitve kolesarskega
računalnika.
www.sigma-data-center.com

16
2.3 Posebnosti STS
– Sinhronizacija BC 16.12 STS vstavite v držalo –
Ničle prikaza hitrosti in kadence utripajo. Hitrost /
kadenco lahko sinhronizirate na dva načina:
– 1. Speljite in sprejemnik se praviloma po
3-4 obratih kolesa / pedala sinhronizira z
oddajnikom.
– 2. Obračajte sprednje kolo oz. pedale tako dolgo,
da prikaz hitrosti / kadence preneha utripati.
Če BC 16.12 STS odstranite iz držala, se povezava
prekine.
2.2 Posebne funkcije
– Izklop prikaza skupnih vrednosti med vožnjo 
Ko BC 16.12 / BC 16.12 STS sprejema signale
hitrosti, so vse skupne funkcije (pot, čas) nevidne.
Ko ni več sprejema vrednosti hitrosti, se funkcije
spet pojavijo na prikazu.
– Vklop in izklop prikaza funkcij kadence Pri uporabi
BC 16.12 / BC 16.12 STS brez oddajnika signala za
kadenco se prikaz vseh funkcij kadence (kadenca /
Ø kadenca) po 5 minutah za to vožnjo izklopi.
– Trip Section Counter (TS) To je poseben števec
poti / časa, ki ga zaženete oz. ustavite ročno.
Trip Section Counter omogoča vrednotenje delne
proge oz. določenega intervala vadbe brez vpliva
na skupne vrednosti ture.
2. Funkcije / lastnosti
1 2

17
SI
– Prikaz „preveč signalov“ Povečajte razdaljo do
drugih voznikov (oddajnikov) in pritisnite poljubno
tipko. Sinhronizacija se bo na novo zagnala. (Če pride
med vožnjo do izpada prenosa in prenosa ni več,
pritisnite tipko MODE 1 za dlje kot 3 sek., da zaženete
ročno sinhronizacijo. Na zaslonu utripa „Sync. RESET“.)
2. Funkcije / lastnosti
– Transportni način V primeru prevoza kolesa na
nosilcu ali v avtomobilu (če ga pričvrstite na
nosilec) se računalnik BC 16.12 STS z vgrajenim
senzorjem premikanja preklopi na transportni način.
Na zaslonu se prikaže „Transport“. Če želite
zapustiti ta način, morate na kratko pritisniti
poljubno tipko.
> 3 sek.

18
3.3 Brisanje funkcij
Kako se funkcije brišejo, je razvidno iz risb.
Prosimo upoštevajte, da se Trip Section Counter (TS),
štoparica in odštevanje ne izbrišejo s trenutnimi
vrednostmi ture.
3. Nastavitve / brisanje
3.1 Nastavitve
Opravite lahko naslednje nastavitve: Jezik /
Merska enota / Obseg kolesa 1 / Obseg kolesa 2 /
Ura / Skupna pot 1 / Skupna pot 2 / Skupni čas 1 /
Skupni čas 2 / Kontrast. Nastavitve posameznih funkcij
so nazorno prikazane na risbah na priloženem listu.
3.2 Ugotavljanje obsega kolesa
Za natančno merjenje hitrosti morate nastaviti obseg
kolesa skladno z velikostjo vaše zračnice. To lahko
storite tako:
A– Obseg kolesa izračunate s pomočjo formule iz
tabele „Wheel Size Chart“.
B– Vrednost ugotovite skladno z risbami iz
„Wheel Size Chart“.
C– Iz tabele „Wheel Size Chart“ prevzamete vrednost,
ki ustreza vaši velikosti zračnice.

19
SI
4.1 Tehnični podatki
4.1.1 Navodila v zvezi z baterijo / menjava baterije
Vstavljanje oz. odstranjevanje baterije je prikazano na
priloženih risbah. Po menjavi baterije v računalniškem
delu je treba na novo nastaviti le uro.
Računalniški del tip CR 2032 /
BC 16.12: življenjska doba 1,5 leta*
Računalniški del tip CR 2032 /
BC 16.12 STS: življenjska doba 1 leto*
Oddajnik hitrosti: tip CR 2032 /
življenjska doba 1 leto*
Oddajnik kadence: tip CR 2032 /
življenjska doba 1 leto*
* pri enourni uporabi dnevno
4. Pomembna opozorila / odprava napak
4.1.2 Odprava napak
Ni prikaza hitrosti:
– Je računalnik pravilno vstavljen v držalo?
– Preverite razdaljo od magneta do senzorja
(maks. 5 mm) (pri STS maks. 12 mm).
– Je magnet v pravilnem položaju?
Napačen prikaz hitrosti:
– Sta na kolesu montirana 2 magneta?
– Je obseg kolesa pravilno nastavljen?
Rešitve nadaljnjih težav lahko najdete med pogosto
zastavljenimi vprašanji (FAQ) na www.sigmasport.com.

20
4.1.3 Min / maks / tovarniške nastavitve
Standard Min. Maks. Enota
Tren. hitrost 0,0 0 199,8 kmh / mph
Prevožena pot 0,00 0,00 9.999,9 km / mi
Čas vožnje 0:00:00 0:00:00 999:59:59 h:mm:ss hhh:mm:ss
Ø hitrost 0,00 0,00 199,8 kmh / mph
Maks. hitrost 0,00 0,00 199,8 kmh / mph
Kadenca 0 0 180 rpm
Ø kadenca 0 0 180 rpm
Ura 00:00 00:00 23:59 hh:mm
Štoparica 00:00,0 00:00,0 9:59:59 mm:ss,1/10 h:mm:ss
Odštevanje 0:00:00 0:00:00 9:59:59 h:mm:ss
TS pot 0,00 0,00 9.999,9 km / mi
TS čas 0:00:00 0:00:00 999:59:59 h:mm:ss hhh:mm:ss
Temperatura 0,0 -10 / 14 70 / 158 °C / °F
Skupna pot 1 + 2 0 0 99.999 km / mi
Skupna pot 0 0 999.99 km / mi
Skupni čas 1 + 2 0:00 0:00 9999:59 h:mm h.hhh:mm
Skupni čas 0:00 0:00 19.999 h:mm hh.hhh
Obseg kolesa 1 + 2 2.155 500 3.999 mm
4. Pomembna opozorila / odprava napak
