Sigma Rox 6.0 User manual

BIKE COMPUTER WITH ALTITUDE
6.O
DIGITAL
WIRELESS
DIGITAL
WIRELESS
READY
COUNT
LOG
SPORT
BAROMETRIC
DIGITAL
WIRELESS
US
Page 1

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 3
Contents
Contents
1 Functions and packaging contents ...................................................................................................................... 7
1.1 Foreword....................................................................................................................................................... 7
1.2 Contents........................................................................................................................................................ 7
1.2.1 Optional accessories.............................................................................................................. 8
1.3 ROX 6.0 functions..................................................................................................................................... 9
1.3.1 PC interface ............................................................................................................................... 9
2 Attaching the ROX 6.0 and initial use................................................................................................................. 10
2.1 Attaching the bracket.............................................................................................................................. 10
2.2 Attaching the transmitter – speed and cadence ........................................................................ 10
2.3 Attaching the magnets – speed and cadence.............................................................................. 10
2.4 Putting on the chest belt........................................................................................................................ 10
2.5 Setting up BIKE 2 ...................................................................................................................................... 10
2.6 Attaching the SIGMA ROX 6.0 to the bracket.............................................................................. 10
2.7 Initial use........................................................................................................................................................ 11
2.8 Synchronizing the sensors .................................................................................................................... 11
2.8.1 Synchronizing the speed....................................................................................................... 11
2.8.2 Synchronizing the cadence.................................................................................................. 11
2.8.3 Synchronizing the chest belt............................................................................................... 11
2.8.4 Resetting the synchronization............................................................................................ 12
3 Operating concept...................................................................................................................................................... 13
3.1 Button functions......................................................................................................................................... 13
3.1.1 Button functions in bike mode............................................................................................ 14
3.1.2 Button functions in hiking mode........................................................................................ 14
3.2 Display structure ....................................................................................................................................... 15
3.2.1 Top display segment............................................................................................................... 15
3.2.2 Middle display segment......................................................................................................... 15
3.2.3 Bottom display segment....................................................................................................... 15
4 Basic settings ............................................................................................................................................................... 16
4.1 Setting the language ................................................................................................................................ 16
4.2 Setting the unit of measure .................................................................................................................. 16
4.3 Setting the air pressure at sea level................................................................................................. 16
4.4 Setting the actual altitude...................................................................................................................... 17
4.5 Setting the home altitude....................................................................................................................... 17
4.6 Setting the wheel size for bike 1 or bike 2 ..................................................................................... 17
4.6.1 Calculating the wheel size.................................................................................................... 17
4.7 Setting the clock ........................................................................................................................................ 18
4.8 Setting the date.......................................................................................................................................... 19
4.9 Setting your age......................................................................................................................................... 19

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 4
Contents
4.10 Setting your weight................................................................................................................................... 19
4.11 Setting your gender.................................................................................................................................. 20
4.12 Setting the maximum heart rate ........................................................................................................ 20
4.13 Setting the training zone ........................................................................................................................ 20
4.13.1 Displaying the training zone in normal mode............................................................... 21
4.14 Setting the intensity zones 1, 2, 3, and 4 ....................................................................................... 21
4.14.1 Displaying the intensity zones in normal mode........................................................... 22
4.15 Setting the total distance for bike 1 or bike 2 .............................................................................. 22
4.16 Setting the total trip time for bike 1 or bike 2 .............................................................................. 22
4.17 Setting the total hiking time.................................................................................................................. 23
4.18 Setting the total altitude for bike 1 or bike 2................................................................................. 23
4.19 Setting the total hiking altitude............................................................................................................ 24
4.20 Setting the total calories for bike 1 or bike 2................................................................................ 24
4.21 Setting the total hiking calories........................................................................................................... 24
4.22 Activating the zone alarm ...................................................................................................................... 25
4.23 Setting the contrast ................................................................................................................................. 25
4.24 Exiting the basic settings........................................................................................................................ 25
5 General ROX 6.0 functions ..................................................................................................................................... 26
5.1 Display backlight......................................................................................................................................... 26
5.2 Speed comparison .................................................................................................................................... 26
5.3 Lap counter.................................................................................................................................................. 26
5.4 Opening the lap view ................................................................................................................................ 27
5.5 Calibrating the start altitude................................................................................................................. 27
5.6 Stopwatch..................................................................................................................................................... 27
5.7 Countdown ................................................................................................................................................... 27
5.8 Setting the trip climb or descent........................................................................................................ 28
5.9 Resetting trip data .................................................................................................................................... 28
5.10 Total values for bike 1 and bike 2....................................................................................................... 28
5.11 Service interval ........................................................................................................................................... 28
5.12 Transport more.......................................................................................................................................... 29
5.13 PC interface/Downloadable................................................................................................................. 29
5.14 Wired speed transmission .................................................................................................................... 29
6 Hiking with the ROX 6.0 ........................................................................................................................................... 30
6.1 Synchronizing the chest belt................................................................................................................. 30
6.2 Starting the hiking time........................................................................................................................... 30
6.3 Setting the target time............................................................................................................................ 30
6.4 Resetting hiking trip data....................................................................................................................... 31
7 Altitude measurement (IAC)................................................................................................................................... 32
7.1 Calibrating the altitude............................................................................................................................ 32

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 5
Contents
8 Important information, troubleshooting, FAQ ................................................................................................. 33
8.1 Important information ............................................................................................................................. 33
8.1.1 ROX 6.0 water resistance................................................................................................... 33
8.1.2 Water resistance of the transmitter (optional accessory) ................................... 33
8.1.3 Chest belt care (optional accessory)............................................................................... 33
8.1.4 Training advice .......................................................................................................................... 33
8.2 Troubleshooting ......................................................................................................................................... 34
8.3 Frequently asked questions (FAQ)...................................................................................................... 35
9 Technical data............................................................................................................................................................... 36
9.1 Max, min, and default values................................................................................................................. 36
9.2 Changing the batteries............................................................................................................................ 38
9.3 Temperature, batteries........................................................................................................................... 38
10 Warranty and guarantee ......................................................................................................................................... 39
11 Index.................................................................................................................................................................................. 41

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 6

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 7
Foreword
Functions and packaging contents
1 Functions and packaging contents
1.1 Foreword
Thank you for choosing a SIGMA SPORT bike computer. Your new ROX 6.0 will
be a reliable companion for your rides for years to come. To familiarize yourself
with and learn how to use the many functions of your new bike computer, please
read these operating instructions carefully.
Enjoy the ride with your new ROX 6.0!
The ROX 6.0 is a multi-functional bike computer that provides you with broad
information both during and after your rides:
− Speed, time, distance, altitude, heart rate, and intensity zones.
− Download ride date to your PC or Mac for detailed evaluation
1.2 Contents

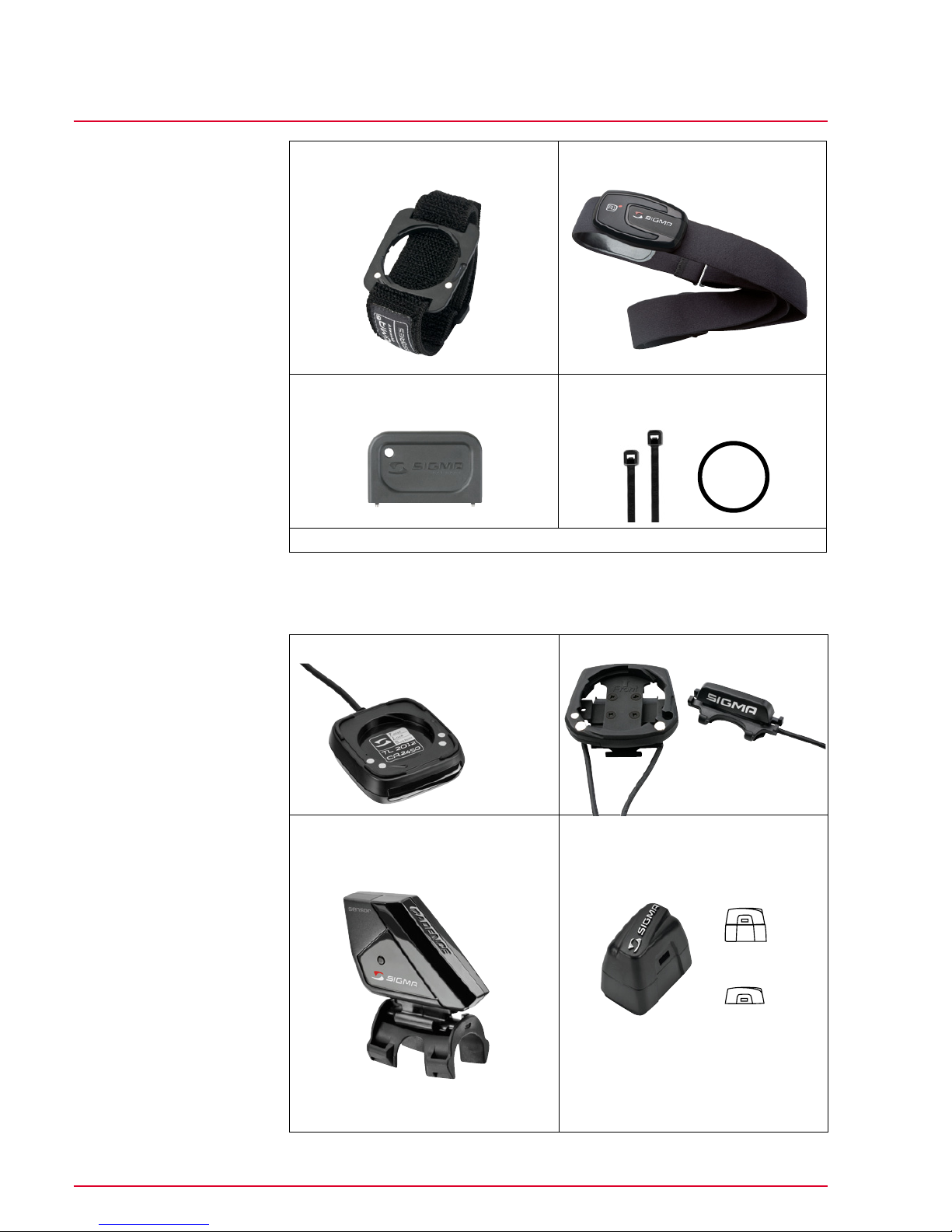

ROX 6.0 bike computer Bracket
STS speed transmitter Spoke magnet

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 8
Foreword
Functions and packaging contents
Wristband R1 STS Comfortex+ chest strap
Battery compartment key Attachment materials
(cable ties, O-ring)
ROX 6.0 quick start guide
1.2.1 Optional accessories
Docking station Wired bracket
STS cadence transmitter
(incl. with ROX 6.0 CAD only)
Cadence magnet
(incl. with ROX 6.0 CAD only)
or
The cadence magnet can also be used
without the bottom spacer.

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 9
ROX 6.0 functions
Functions and packaging contents
1.3 ROX 6.0 functions
The ROX 6.0 is a versatile bike computer that can measure your altitude, speed,
cadence, and heart rate.
(Cadence - ROX 6.0 CAD only, or with purchase of optional cadence kit)
All current values – current speed, current altitude, current heart rate, current
cadence, and current lap – can be easily viewed on the large display.
The ROX 6.0 has classic bike computer features such 2 programmable wheel
sizes (automatically detected with the STS speed transmitter), an automatic
start/stop function, and several altitude calibration options.
The separate wrist strap also enables you to use your ROX 6.0 for hiking and
running.
1.3.1 PC interface
The ROX 6.0 can be connected to a PC or Mac. The optional docking station
enables you to transmit data between your PC and the ROX 6.0.
You can also set up the ROX 6.0 on the PC and then transmit the settings to the
bike computer.

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 10
Attaching the bracket
Attaching the ROX 6.0 and initial use
2 Attaching the ROX 6.0 and initial use
Note
See the quick start guide for detailed mounting instructions.
2.1 Attaching the bracket
− Attach to the handlebars or stem
− Remove the yellow foil from the bracket (permanent attachment)
− The bracket can be attached using either cable ties (permanent attachment)
or the O-rings.
See attachment figures 1.1 1.2 1.3 1.4
2.2 Attaching the transmitter – speed and cadence
− Both transmitters can be attached using either cable ties (permanent
attachment) or the O-rings.
See attachment figures 2.1 3.1
2.3 Attaching the magnets – speed and cadence
See attachment figures 2.3 3.2
2.4 Putting on the chest belt
− Slightly moisten electrodes with water or cardio gel.
See attachment figures 4.1 4.2 4.3 4.4
2.5 Setting up BIKE 2
− CAUTION:
To switch the STS speed transmitter to “bike 2”, use a ballpoint pen to press
and hold the small button on the back of the transmitter until a red LED
flashes. (5 sec) (red LED: bike 2; green LED: bike 1).
See attachment figure 6.1
2.6 Attaching the SIGMA ROX 6.0 to the bracket
See attachment figure 6.2

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 11
Initial use
Attaching the ROX 6.0 and initial use
2.7 Initial use
To preserve battery life, the ROX 6.0 comes in “deep sleep mode”.
Simultaneously press and hold the MODE 1 + SET buttons for five seconds to
awaken the ROX 6.0 from deep sleep mode.
The ROX 6.0 jumps to the setting mode (Section 4, pg 16).
2.8 Synchronizing the transmitters
To synchronize the transmitters, the ROX 6.0 must be clicked into the handlebar
or hiking wristband bracket.
The zeros of the speed, cadence, and heart rate values flash while the respective
transmitters are being synchronized.
Once synchronization is complete, the respective values appear on the ROX 6.0’s
display.

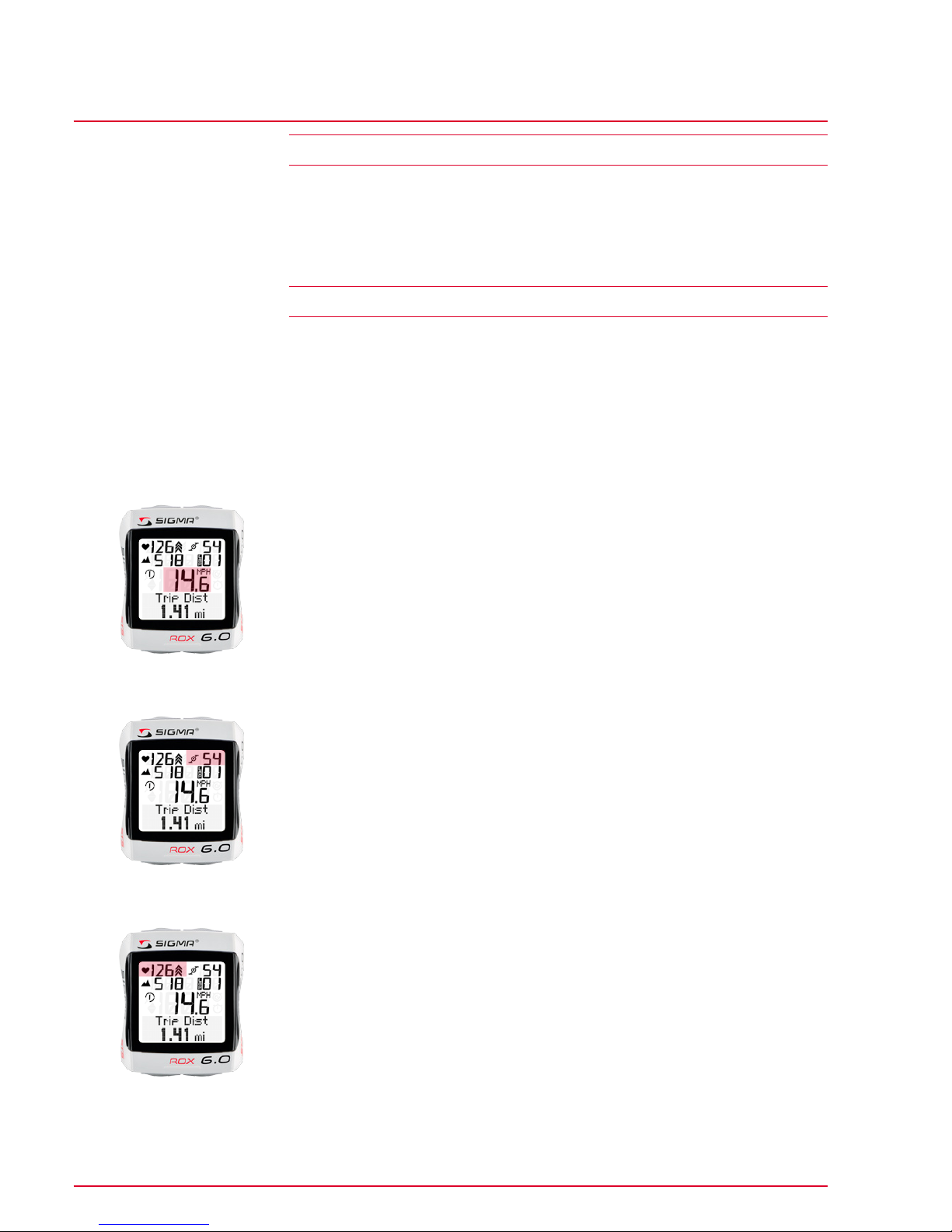

2.8.1 Synchronizing the speed
There are two options for synchronizing the speed:
− Start cycling – the receiver usually synchronizes with the transmitter after
five wheel rotations.
− Spin the front wheel until the mph information appears on the display.
2.8.2 Synchronizing the cadence
There are two options for synchronizing the cadence:
− Start cycling – the receiver usually synchronizes with the transmitter after
five pedal rotations.
− Turn the pedals until the current cadence appears on the display.
2.8.3 Synchronizing the chest belt
Moisten the electrodes on the chest belt and put it on.
Move within 100 cm (approx 36 inches) the ROX 6.0 or get onto your bike.
The ROX 6.0 usually synchronizes with the chest belt in less than 10 seconds.
The current heart rate then appears on the display.

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 12
Attaching the bracket
Attaching the ROX 6.0 and initial use
2.8.4 Resetting the synchronization
If a transmitter does not display any values or the wrong transmitter is
synchronized, the synchronization can be reset.
1 Press and hold the Mode 1 button for three seconds.
“Sync. RESET” flashes on the display.
2 The zeros of the speed, cadence, and heart rate values flash again while the
respective transmitters are being synchronized.
Mode 1

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 13
Button functions
Operating concept
3 Operating concept
3.1 Button functions
Reset button
Use this button to scroll backward
in a menu level.
Press and hold the button to zero
all the data for the current trip.
Mode 2 button
Press this button to scroll through
the Mode 2 functions (heart rate
functions etc.) or forward in a
menu level.
Lap button
Press this button to start a new
lap.
Press and hold the button to open
the lap view.
Mode 1 button
Press this button to scroll through
the Mode 1 functions (bike and
altitude functions).
Press and hold the button to re-
synchronize the transmitters.
Set button
Press this button to store the
values entered.
Press and hold the button to open
the basic settings.

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 14
Attaching the bracket
Attaching the ROX 6.0 and initial use
3.1.1 Button functions in bike mode
Mode 1 functions Mode 2 functions
Trip distance Target zone/% max. heart rate
Ride time Intensity zones
∅ speed ∅ heart rate
Max. speed Max. heart rate
∅ cadence Calories
Altitude +/- Clock
Altitude profile Stopwatch
Max. altitude Countdown
Lap distance Temperature
Lap time Total distance
(Bike 1, Bike 2 and Bike 1+ Bike 2)
Total time
(Bike 1, Bike 2 and Bike 1+ Bike 2)
Total altitude
(Bike 1, Bike 2 and Bike 1+ Bike 2)
Total calories
3.1.2 Button functions in hiking mode
Mode 1 functions Mode 2 functions
Hiking time Training zone/% max. heart rate
Target time Intensity zones
Trip altitude +/- ∅ heart rate
Max. altitude Max. heart rate
Calories
Clock
Countdown
Temperature
Total hiking time
Total hiking altitude
Total calories

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 15
Display structure
Attaching the ROX 6.0 and initial use
3.2 Display structure

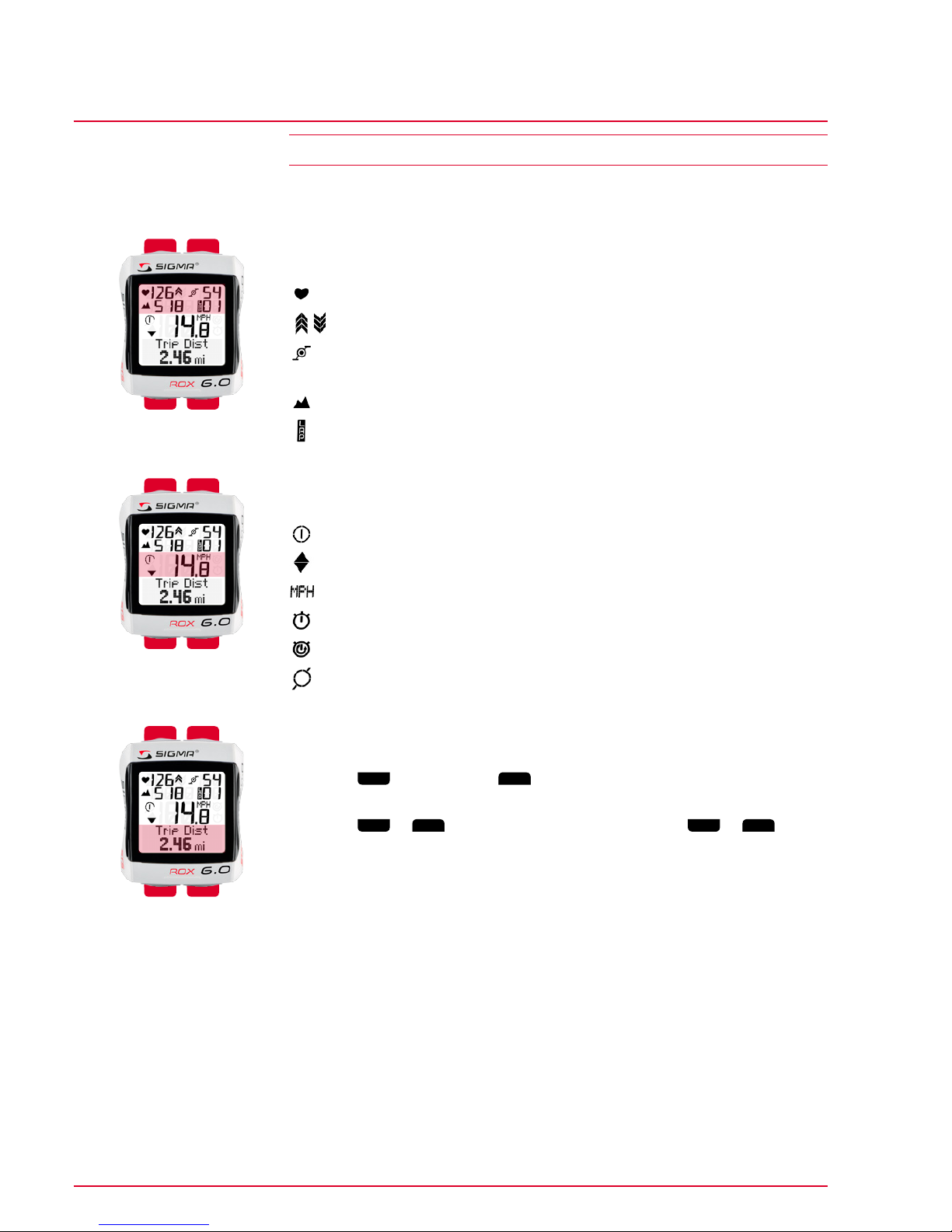

The ROX 6.0’s display is divided into three main areas:
3.2.1 Top display segment
This displays four current values.
Current heart rate (only if you are wearing the chest belt)
Heart rate above or below the target zone
Current cadence (only if the cadence transmitter has been attached,
optional accessory)
Current altitude (permanent)
Current lap number (permanent)
3.2.2 Middle display segment
This displays your current speed plus other icons:
Bike I - bike II icon
Speed compared to average
Unit of measure (km/h or mph)
Stopwatch active
Countdown active
Average speed (only in lap view)
3.2.3 Bottom display segment
This displays your currently selected function.
Press the Mode 1 (see 3.1.1) and Mode 2 (see 3.1.2) buttons to select the individual
functions.
Press the Mode 1 or Mode 2 buttons to scroll forward. Press the Set or Reset
buttons to scroll backward.
Mode 2Reset
Mode 1Set
Mode 2Reset
Mode 1Set
Mode 2Reset
Mode 1Set

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 16
Setting the language
Basic settings
4 Basic settings

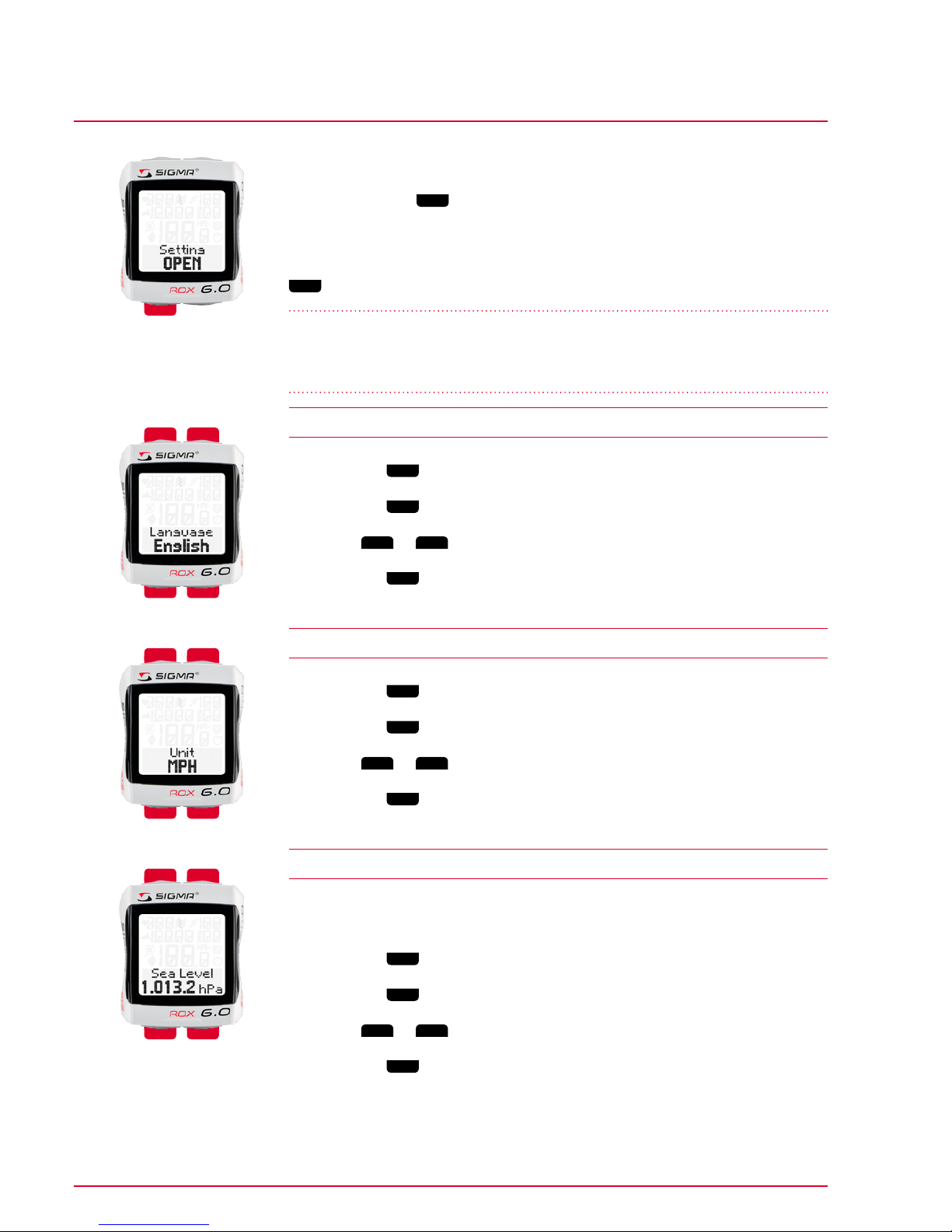

Press and hold the Set button for three seconds. “Setting OPEN” flashes on the
display. The preset language then appears.
If you are using the ROX 6.0 for the first time and awakening it from deep sleep
mode, it will automatically jump to setting mode without pressing and holding the
Set button.
Caution
The ROX 6.0 can also be set during a ride. Not advised and please do so with
caution.
4.1 Setting the language
1 Press the Mode 1 button to switch to the preset language.
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to select the desired language.
4 Press the Set button to save your setting.
“Set OK” appears on the display.
4.2 Setting the unit of measure
1 Press the Mode 1 button to switch to the preset unit.
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to switch between km/h and mph.
4 Press the Set button to save your setting.
“Set OK” appears on the display.
4.3 Setting the air pressure at sea level
Explanations about this function can be found in section “7 Altitude measurement
(IAC)”.
1 Press the Mode 1 button to switch to the preset air pressure.
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to increase or decrease the value respectively.
4 Press the Set button to save your setting.
“Set OK” appears on the display.
Set
Mode 2Reset
Mode 1Set
Mode 2Reset
Mode 1Set
Mode 2Reset
Mode 1Set

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 17
Setting the actual altitude
Basic settings

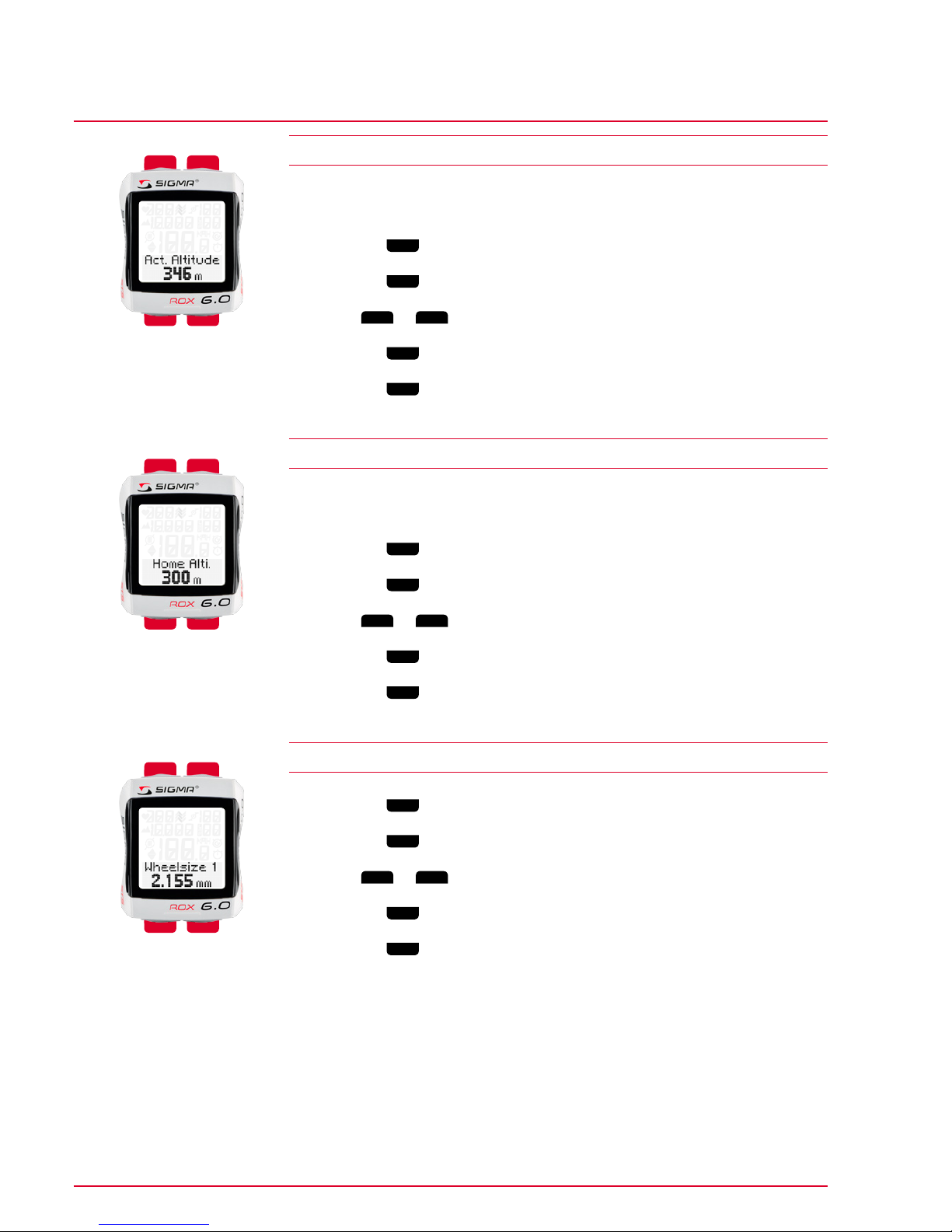

4.4 Setting the actual altitude
Explanations about this function can be found in section “7 Altitude measurement
(IAC)”.
1 Press the Mode 1 button to switch to the preset altitude.
2 Press the Set button. The first digit for entry flashes.
3 Press Mode 2 or Reset to increase or decrease the value respectively.
4 Press the Mode 1 button to switch to the next digit.
5 Press the Set button to save your setting.
“Set OK” appears on the display.
4.5 Setting the home altitude
Explanations about this function can be found in section “7 Altitude measurement
(IAC)”.
1 Press the Mode 1 button to switch to the preset start altitude.
2 Press the Set button. The first digit for entry flashes.
3 Press Mode 2 or Reset to increase or decrease the value respectively.
4 Press the Mode 1 button to switch to the next digit.
5 Press the Set button to save your setting.
“Set OK” appears on the display.
4.6 Setting the wheel size for bike 1 or bike 2
1 Press the Mode 1 button to switch to the preset wheel size 1 or wheel size 2.
2 Press the Set button. The first digit for entry flashes.
3 Press Mode 2 or Reset to increase or decrease the value respectively.
4 Press the Mode 1 button to switch to the next digit.
5 Press the Set button to save your setting.
“Set OK” appears on the display.

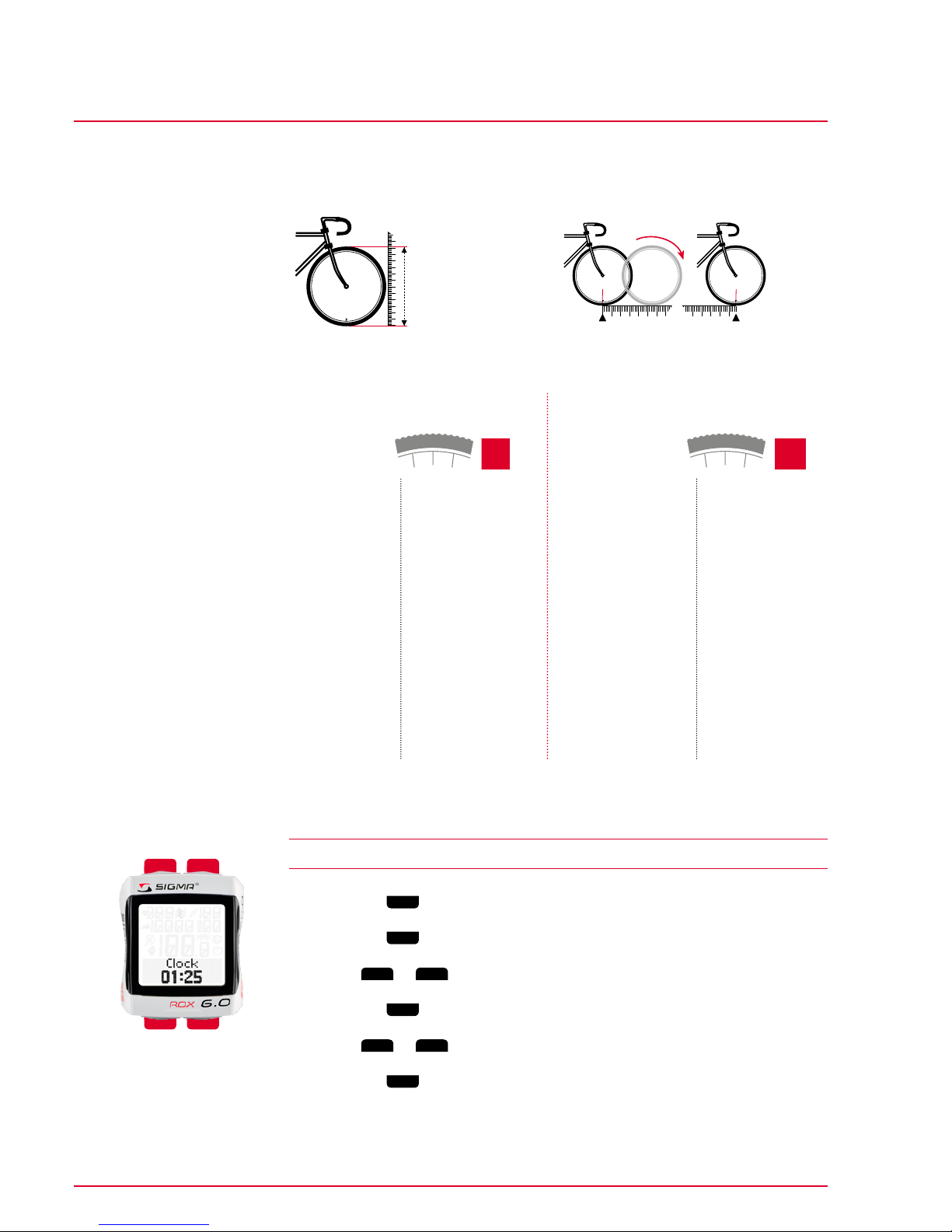

4.6.1 Calculating the wheel size
There are three ways to determine the wheel size:
− Follow instructions in Figure A or B
− Find in the table (Figure C) based on tire size.
Mode 2Reset
Mode 1Set
Mode 2Reset
Mode 1Set
Mode 2Reset
Mode 1Set

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 18
Setting the clock
Basic settings
mm x 3.14
km/h:
WS = mm x 3.14
mph:
WS = mm x 3.14
Figure A
1x
= WS (mm)
km/h:
WS = mm
mph:
WS = mm
Figure B
Figure C
4.7 Setting the clock
1 Press the Mode 1 button to switch to the preset time.
2 Press the Set button. The hours digit flashes.
3 Press Mode 2 or Reset to increase or decrease the value respectively.
4 Press the Mode 1 button to move to the minutes.
5 Press Mode 2 or Reset to increase or decrease the value respectively.
6 Press the Set button to save your setting.
“Set OK” appears on the display.
Mode 2Reset
Mode 1Set
27.5 x 2.0
27.5 x 2.1
27.5 x 2.2
27.5 x 2.25
28 x 1.5
28 x 1.75
28 x 1 1/2
28 x 1 3/8 x 1 5/8
29 x 2.0
700 x 18C
700 x 20C
700 x 23C
700 x 25C
700 x 28C
700 x 32C
700 x 35C
700 x 38C
700 x 40C
16 x 1.75 x 2
20 x 1.75 x 2
24 x 1 3/8A
24 x 1.75 x 2
26 x 1
26 x 1.5
26 x 1.6
26 x 1.75 x 2
26 x 1.9
26 x 1.95
26 x 2
26 x 2.1
26 x 2.125
26 x 1 3/8
26 x 1 3/8 x 1 1/2
26 x 3/4
27 x 1 1/4
27 x 1 1/4 Fifty
47-305
47-406
37-540
47-507
23-571
40-559
44-559
47-559
50-559
52-559
54-559
56-559
57-559
37-590
37-584
20-571
32-630
28-630
54-584
56-584
58-584
60-584
40-622
47-622
40-635
37-622
54-622
18-622
20-622
23-622
25-622
28-622
32-622
37-622
38-622
40-622
1272
1590
1948
1907
1973
2026
2051
2070
2089
2105
2114
2128
2133
2105
2086
1954
2199
2174
2154
2170
2186
2194
2224
2268
2265
2205
2290
2102
2114
2133
2146
2159
2174
2205
2217
2224
WS
mph
WS
mph
ETRTO
1
2
1
/
2
x
1
.
7
5
Tire SizeTire Size
ETRTO
1
2
1
/
2
x
1
.
7
5

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 19
Setting the date
Basic settings

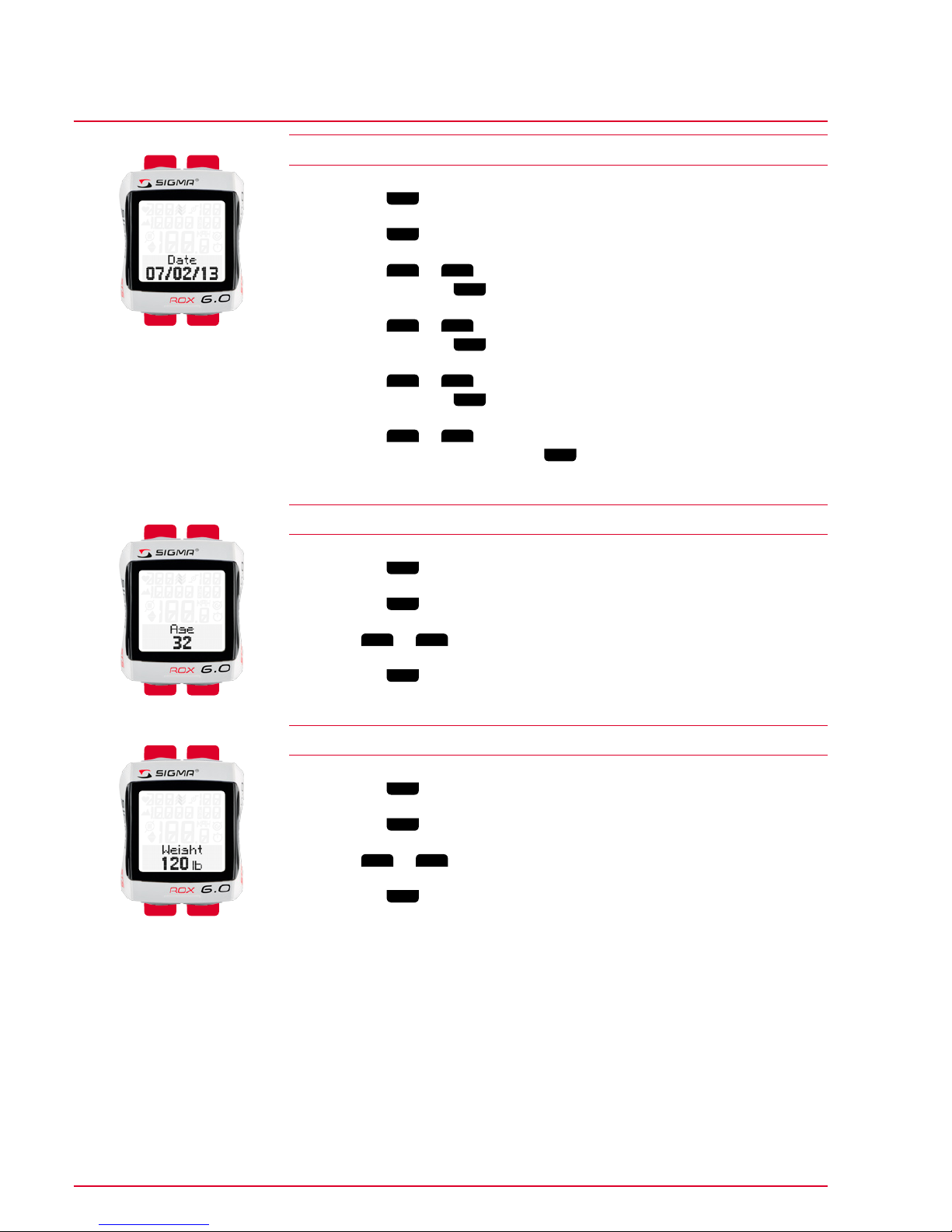

4.8 Setting the date
1 Press the Mode 1 button to switch to the preset date.
2 Press the Set button. The year flashes.
3 Press the Mode 2 or Reset button to increase or decrease the year value
respectively and the Set button to save your entry.
4 Press the Mode 2 or Reset button to increase or decrease the month value
respectively and the Set button to save your entry.
5 Press the Mode 2 or Reset button to increase or decrease the day value
respectively and the Set button to save your entry.
6 Press the Mode 2 or Reset button to set the date format
(dd.mm.yy or mm/dd/yy) and the Set button to save your entry.
“Set OK” appears on the display.
4.9 Setting your age
1 Press the Mode 1 button to switch to the preset age.
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to increase or decrease the value respectively.
4 Press the Set button to save your setting.
“Set OK” appears on the display.
4.10 Setting your weight
1 Press the Mode 1 button to switch to the preset weight.
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to increase or decrease the value respectively.
4 Press the Set button to save your setting.
“Set OK” appears on the display.
Mode 2Reset
Mode 1Set
Mode 2Reset
Mode 1Set
Mode 2Reset
Mode 1Set

ROX 6.0
www.sigmasport.com
ROX 6.0 Page 20
Setting your gender
Basic settings
4.11 Setting your gender
1 Press the Mode 1 button to switch to the preset gender. (The ROX 6.0 is
preset to “male” by default)
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to set your gender.
4 Press the Set button to save your setting.
“Set OK” appears on the display.
4.12 Setting the maximum heart rate
1 Press the Mode 1 button to switch to the preset maximum heart rate.
2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to increase or decrease the value respectively.
4 Press the Set button to save your setting.
“Set OK” appears on the display.
4.13 Setting the training zone
The ROX 6.0 has three target zones. The target zones “Fitness” and “Fat burn”
are automatically calculated based on your maximum heart rate. The “Individual”
target zone, can be customized based on your own heart rate values.
1 Press the Mode 1 button to switch to the preset training zone.

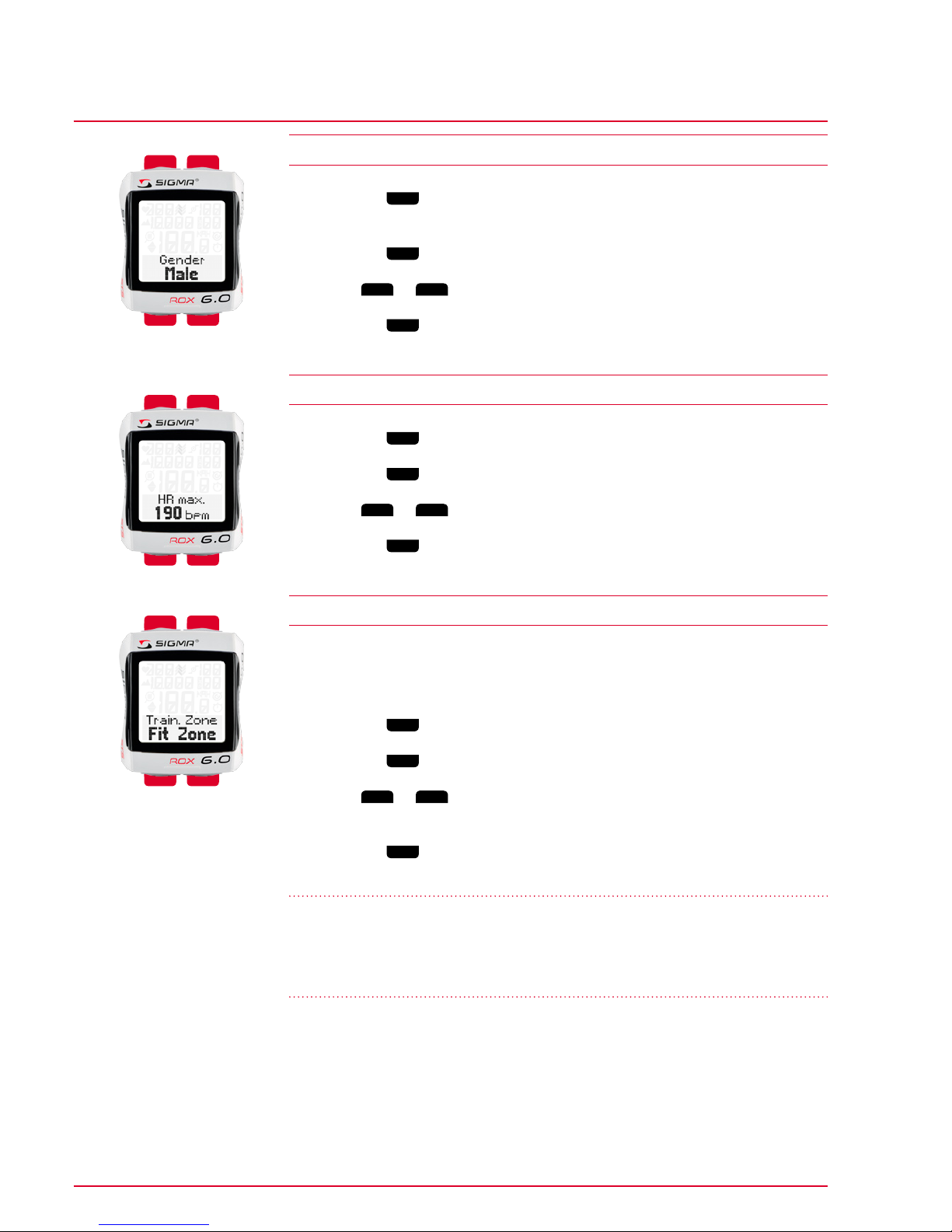

2 Press the Set button. The display flashes.
3 Press Mode 2 or Reset to increase or decrease the desired training zone limits
respectively.
4 Press the Set button to save your setting.
“Set OK” appears on the display.
Note
During a ride, you will be notified if you go above or below the target zone limits.
A zone indicator arrow appears on the display next to the heart rate and an
optional beeping sound is emitted.
Mode 2Reset
Mode 1Set
Mode 2Reset
Mode 1Set
Mode 2Reset
Mode 1Set
