Contents
1. Introduction to the BC 12.12 / BC 12.12 STS 02
1.1 Initial use 02
1.2 Navigation principle 03
1.3 Set-up 04
2. Functions / Properties 04
2.1 General 04
2.2 Special functions 05
2.3 STS features 06
3. Settings / Deletion 08
3.1 Settings 08
3.2 Determining the wheel size 08
3.3 Deleting the functions 08
4. Important Notes / Troubleshooting 09
4.1 Technical data 09
5. Warranty Conditions 11
GB
1. Introduction to the BC 12.12 / BC 12.12 STSENGLISH
You can find the CE declaration under:
www.sigmasport.com
1.1 Initial use
The bike computer comes in “deep sleep mode”.
To exit this mode, press and hold the MODE 1 and
SET buttons for five seconds.
On waking up, the bike computer
will be in active mode.
To access the settings,
press the SET button.

3
GB

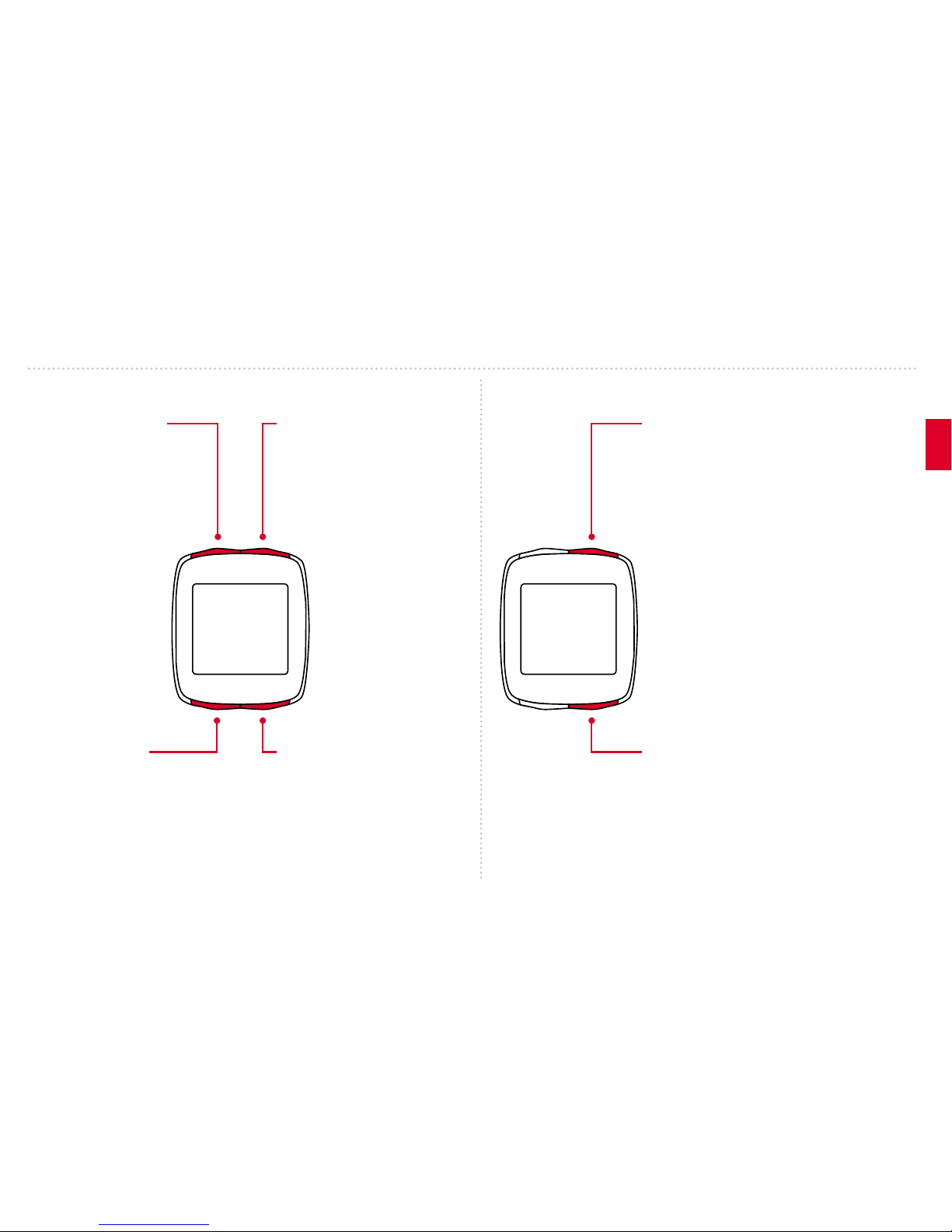

1.2.1 Button functions 1.2.2 Assigning the functions
1.2 Navigation principle
RESET button for
– Deleting the current
values
– Scrolling backward
You can access the following
functions by pressing the
MODE 2 button:
fuel (liters) / time / TS distance /
TS time / temperature /
total distance / total time /
total fuel (liters)
You can access the following
functions by pressing the
MODE 1 button:
trip distance / trip time /
Ø speed / max. speed
MODE 2 button for
– Switching between
several functions
– Scrolling forward
MODE 1 button for
– Switching between
the bike functions
– Scrolling forward
SET button for
– Switching to / from the
setting mode
– Scrolling backward

4
2.1 General
– Current / average speed comparison 
If you are traveling at approximately
your average speed, nothing is
displayed. If you are traveling
quicker than your average speed,
( ) is displayed; if you are
traveling slower ( ) is displayed.
This information is displayed in
almost all functions, except the
basic settings.
– Service interval The service interval informs
you when you have cycled a specified number of
kilometers and a bike inspection is due. This
service interval can only be enabled/disabled and
pre-configured by your specialist retailer. The
device comes with the service interval disabled.
1.3 Set-up
Please see the leaflet provided for the set-up
diagrams!

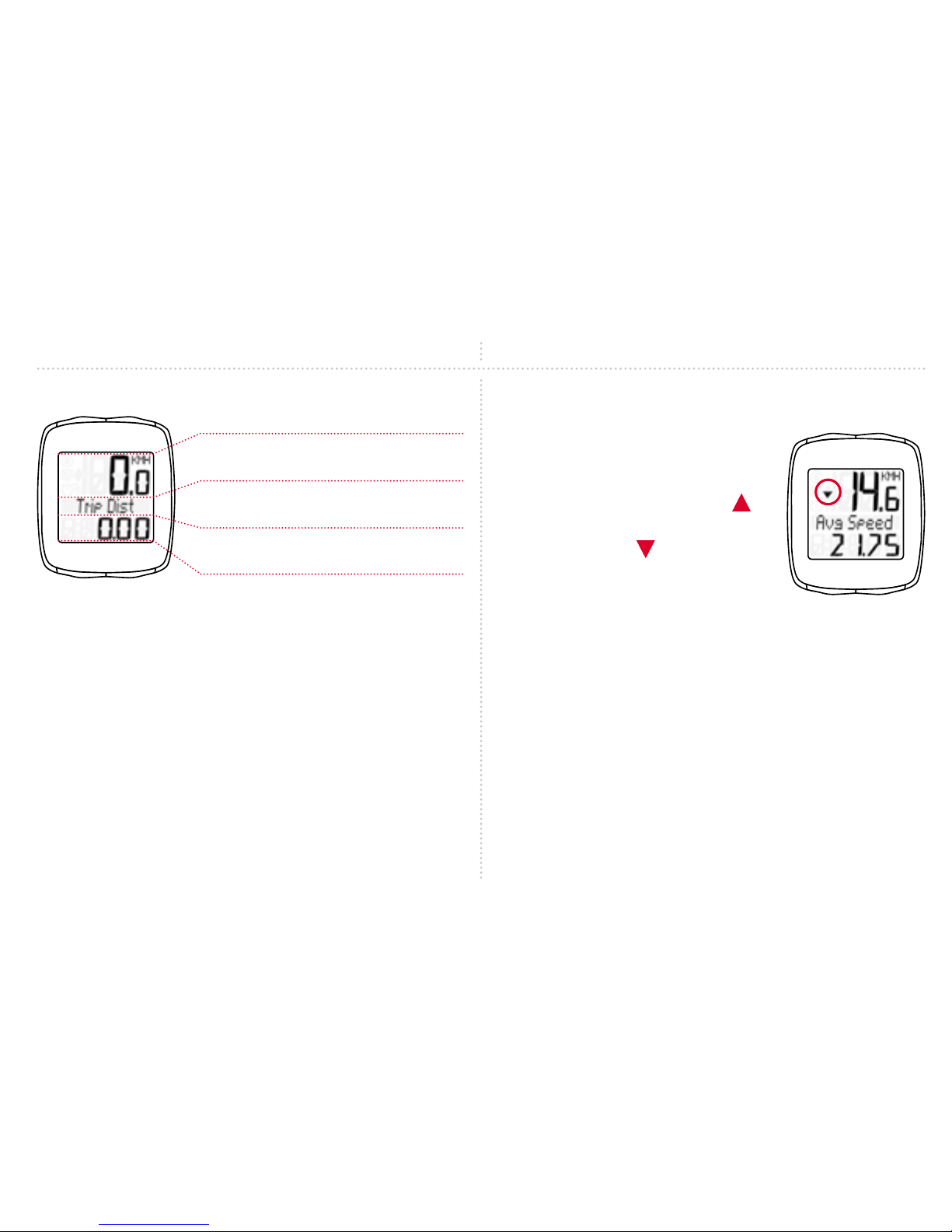

1.2.3 Display layout
2. Functions / Properties
Top field:
Speed
Middle field:
Description of the functions
Bottom field:
Current value
1.2 Navigation principle

5
GB
2. Functions / Properties
2.2 Special functions
– Fuel saving The BC 12.12 / BC 12.12 STS
calculates the fuel saving you have made on your
bike on the basis of your automobile’s average
fuel consumption. You therefore quickly and easily
discover the savings that you have clocked up on
your bike. The bike computer calculates how many
liters of fuel you have saved.
– Hiding total values during the trip If the
BC 12.12 / BC 12.12 STS receives speed signals,
all the total functions (distance, time, and fuel
consumption) are hidden on the display. If no speed
values are received, the functions are once again
displayed.
www.sigma-data-center.com
– Battery status The battery status of the computer
head unit is displayed shortly before the battery
runs out. “ low / computer” appears on the display.
After changing the battery, only the time needs to be
re-set.
– Memory chip Thanks to an inbuilt memory chip,
all total values and settings are permanently stored
in the bike computer. This means that you do not
need to reconfigure any settings (except for the time)
after changing the battery.
– PC compatibility The bike computer is PC-
compatible. After purchasing the SIGMA DATA
CENTER software and docking station, you can simply
and effortlessly log your total and current values on
your PC. You can also configure your bike computer’s
settings on the PC.

6
2.3 STS features
– Synchronization Attach the BC 12.12 STS to the
bracket – zeros flash for the speed.
There are two ways of synchronizing the speed:
– 1. Start cycling – the receiver usually
synchronizes with the transmitter after 3-4 wheel
rotations.
– 2. Spin the front wheel until the speed values
stop flashing.
Removing the BC 12.12 STS from the bracket
severs the connection.
– Trip Section Counter (TS) This is a separate
distance / time counter that is manually started and
stopped. The trip section counter makes it possible
to evaluate a trip section or interval training session
without influencing the total values for the trip.
2. Functions / Properties
1 2

7
GB
– Message “Too Many Signals” Increase your
distance from other cyclists (transmitters) and
press any button. Synchronization re-starts. (If the
transmission connection is lost during your trip and
no longer functions, press and hold the MODE 1
button for more than three seconds to start manual
synchronization. “Sync. RESET” flashes on the display)
2. Functions / Properties
– Transport mode When transported on a bike
rack or in the car (if clicked into the bracket),
the BC 12.12 STS switches to “transport mode”
via an integrated movement sensor. “Transport”
appears on the display. Press any button to exit
this mode.
> 3 sec.

8
3.3 Deleting the functions
Please see the diagrams for how to delete the
functions.
Please note that the trip section (TS) counter,
stopwatch, and countdown timer are not deleted
with the current trip values.
3. Settings / Deletion
3.1 Settings
The following settings can be configured: language /
unit / wheel size / time / fuel l /100 km / total distance /
total time / total fuel (liters) / contrast. Clear diagrams
of how to set each of these functions can be found in
the enclosed leaflet.
3.2 Determining the wheel size
To measure your speed precisely, the wheel size must
be set on the basis of your tire size. To do this, you
can:
A– Calculate the wheel size using the formula provided
in the wheel size chart.
B– Determine the value from the drawings in the
wheel size chart.
C– Take the value that corresponds to your tire size
from the wheel size chart.

9
GB
4.1 Technical data
4.1.1 Battery indicator / replacement
Please see the enclosed diagrams for how to insert or
remove the battery. After changing the battery in the
computer head unit, only the time needs to be re-set.
BC 12.12 Type CR 2032 /
computer head unit: 1.5-year service life*
BC 12.12 STS Type CR 2032 /
computer head unit: 1-year service life*
Speed transmitter: Type CR 2032 /
1-year service life*
* when used for one hour per day
4. Important Notes / Troubleshooting
4.1.2 Troubleshooting
No speed:
– Is the computer correctly fastened into the
bracket?
– Check the distance between the magnet and the
sensor (max. 5mm) (with STS, max. 12 mm).
– Is the magnet correctly positioned?
Incorrect speed:
– Are two magnets attached to the bike?
– Is the wheel size correctly set?
Further troubleshooting solutions can be found in our
FAQs at www.sigmasport.com
1. CAUTION:
RISK EXPLOSIVE IF BATTERY IS REPLACED
BY AN INCORRECT TYPE.
2. CAUTION:
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTION.

10
4.1.3 Min. / max. / factory settings
Standard Min. Max. Unit
Current speed 0.0 0 199.8 kmh / mph
Trip Dist 0.00 0.00 9,999.9 km / mi
Ride Time 0:00:00 0:00:00 999:59:59 h:mm:ss hhh:mm:ss
Avg Speed 0.00 0.00 199.8 kmh / mph
Max. Speed 0.00 0.00 199.8 kmh / mph
Fuel (liters) 0.00 0.00 9,999.9 Liters / gallons
Clock 00:00 00:00 23:59 hh:mm
TS Distance 0.00 0.00 9,999.9 km / mi
TS Time 0:00:00 0:00:00 999:59:59 h:mm:ss hhh:mm:ss
Temperature 0.0 -10 / 14 70 / 158 °C / °F
Tot Distance 0 0 999,99 km / mi
Total Time 0:00 0:00 19,999 h:mm hh.hhh
Total fuel (Ltr) 0.0 0.0 9,999.9 Liters / gallons
Wheelsize 2,155 500 3,999 mm
4. Important Notes / Troubleshooting

11
GB
We are liable to our contracting partners for defects
in line with legal provisions. In the event of a warranty
claim, please contact the retailer from whom you
purchased your bike computer. You can also send
your bike computer, together with your receipt and all
accessories, to the address below. Please ensure you
pay sufficient postage.
Warranty claims can be made in the event of material
and workmanship errors. The warranty does not cover
batteries, wear and tear parts, or wear caused by
commercial use or accidents. Warranty claims shall
only be valid if the SIGMA product has not been opened
without authorization and the purchase receipt is
provided.
SIGMA-ELEKTRO GmbH hereby declares that the
wireless bike computers comply with the fundamental
requirements and other relevant regulations of Directive
1999/5/EC.
5. Warranty Conditions
SIGMA-ELEKTRO GmbH
Dr.-Julius-Leber-Strasse 15
D-67433 Neustadt an der Weinstrasse
Tel.: [phone]
Fax.: [phone]
E-mail: [email protected]
In the event of justified warranty claims, you will
receive a replacement device. You will only be entitled
to the model available at the time of replacement.
The manufacturer retains the right to make technical
modifications.
Batteries must not be disposed of in household waste
(European Battery Law)! Please take the batteries to
an official collection point for disposal.
Electronic devices must not be
disposed of in household waste.
Please take the device to an official
waste collection point.
LI=Lithium
LI

12
Kazalo
1. Spoznajte BC 12.12 / BC 12.12 STS 12
1.1 Zagon 12
1.2 Princip navigacije 13
1.3 Montaža 14
2. Funkcije / lastnosti 14
2.1 Splošno 14
2.2 Posebne funkcije 15
2.3 Posebnosti STS 16
3. Nastavitve / brisanje 18
3.1 Nastavitve 18
3.2 Ugotavljanje obsega kolesa 18
3.3 Brisanje funkcij 18
4. Pomembna opozorila / odprava napak 19
4.1 Tehnični podatki 19
5. Garancijska določila 21
SI
1. Spoznajte BC 12.12 / BC 12.12 STSSLOVENŠČINA
Izjavo CE najdete na www.sigmasport.com
1.1 Zagon
Ob dobavi je kolesarski računalnik v tako imenovanem
načinu globokega mirovanja.
Da zapustite ta način, pritisnite
tipko MODE 1 in tipko SET in
ju zadržite 5 sekund.
Ko se kolesarski računalnik zbudi,
je v aktivnem načinu.
V nastavitve se pomaknete
s pritiskom na tipko SET.

13
SI
1.2.1 Pomen tipk 1.2.2 Dodelitev funkcij
1.2 Princip navigacije
Tipka RESET za
– brisanje trenutnih
vrednosti
– listanje nazaj
S tipko MODE 2 lahko prikličete
naslednje funkcije:
Gorivo (litri) / Ura / TS pot /
TS čas / Temperatura /
Skupna pot / Skupni čas /
Skupno gorivo (litri)
S tipko MODE 1 lahko prikličete
naslednje funkcije:
Prevožena pot / Čas vožnje /
Ø hitrost / Maks. hitrost
Tipka MODE 2 za
– menjavo raznih
funkcij
– listanje naprej
Tipka MODE 1 za
– menjavo kolesarskih
funkcij
– listanje naprej
Tipka SET za
– menjavo v / iz
nastavitvenega načina
– listanje nazaj

14
2.1 Splošno
– Primerjava trenutne / povprečne hitrosti 
Če vozite s hitrostjo, ki je približno
enaka povprečni, se ne prikazuje
nič. Če vozite s hitrostjo, višjo
od povprečne, se prikazuje ( ),
če pa s hitrostjo, nižjo od
povprečne, pa ( ). Prikaz
je aktiven pri vseh funkcijah,
razen pri osnovnih nastavitvah.
– Servisni interval Servisni interval vas obvesti,
ko dosežete kilometrino za naslednji pregled
kolesa. Servisni interval se lahko vklopi/izklopi
oz. predprogramira samo v pooblaščeni trgovini.
Ob dobavi je servisni interval izklopljen.
1.3 Montaža
Slike za montažo so razvidne iz priložene zgibanke!
1.2.3 Zgradba zaslona
2. Funkcije / lastnosti
Zgornje segmentno polje:
prikaz hitrosti
Srednje segmentno polje:
opis funkcij
Spodnje segmentno polje:
trenutna vrednost
1.2 Princip navigacije

15
SI
2. Funkcije / lastnosti
2.2 Posebne funkcije
– Prihranek goriva BC 12.12 / BC 12.12 STS na
osnovi povprečne porabe vašega vozila izračuna,
koliko goriva prihranite z eno vožnjo s kolesom.
Tako na enostaven in hiter način izveste, koliko ste
prihranili z uporabo vašega kolesa. Kolesarski
računalnik izračuna število litrov, ki ste jih prihranili.
– Izklop prikaza skupnih vrednosti med vožnjo 
Ko BC 12.12 / BC 12.12 STS sprejema signale
hitrosti, so vse skupne funkcije (pot, čas in poraba
goriva) nevidne. Ko ni več sprejema vrednosti
hitrosti, se funkcije spet pojavijo na prikazu.
www.sigma-data-center.com
– Stanje baterije Stanje baterije računalniškega dela
se prikaže, tik preden je baterija prazna. Prikaže se:
„ prazna / računalnik“ na zaslonu. Po menjavi
baterije je treba na novo programirati le uro.
– Pomnilniški čip S pomočjo vgrajenega
pomnilniškega čipa se skupne in nastavljene vrednosti
v kolesarskem računalniku trajno shranijo. Zato vam
po menjavi baterije ni treba opraviti nastavitev
(razen ure).
– Kompatibilnost z osebnim računalnikom Kolesarski
računalnik lahko priključite na osebni računalnik. Če
kupite programsko opremo SIGMA DATA CENTER in
priklopno postajo, lahko skupne in dnevne vrednosti
enostavno in hitro shranite na osebni računalnik.
Poleg tega lahko na osebnem računalniku opravite
tudi nastavitve kolesarskega računalnika.

16
2.3 Posebnosti STS
– Sinhronizacija BC 12.12 STS vstavite v držalo –
Ničle prikaza hitrosti utripajo.
Hitrost lahko sinhronizirate na dva načina:
– 1. Speljite in sprejemnik se praviloma po
3-4 obratih kolesa sinhronizira z oddajnikom.
– 2. Obračajte sprednje kolo tako dolgo, da prikaz
hitrosti preneha utripati.
Če BC 12.12 STS odstranite iz držala, se povezava
prekine.
– Trip Section Counter (TS) To je poseben števec
poti / časa, ki ga zaženete oz. ustavite ročno.
Trip Section Counter omogoča vrednotenje delne
proge oz. določenega intervala vadbe brez vpliva
na skupne vrednosti ture.
2. Funkcije / lastnosti
1 2

17
SI
– Prikaz „preveč signalov“ Povečajte razdaljo do
drugih voznikov (oddajnikov) in pritisnite poljubno
tipko. Sinhronizacija se bo na novo zagnala. (Če pride
med vožnjo do izpada prenosa in prenosa ni več,
pritisnite tipko MODE 1 za dlje kot 3 sek., da
zaženete ročno sinhronizacijo. Na zaslonu utripa
„Sync. RESET“.)
2. Funkcije / lastnosti
– Transportni način V primeru prevoza kolesa
na nosilcu ali v avtomobilu (če ga pričvrstite na
nosilec) se računalnik BC 12.12 STS z vgrajenim
senzorjem premikanja preklopi na transportni način.
Na zaslonu se prikaže „Transport“. Če želite
zapustiti ta način, morate na kratko pritisniti
poljubno tipko.
> 3 sek.

18
3.3 Brisanje funkcij
Kako se funkcije brišejo, je razvidno iz risb.
Prosimo upoštevajte, da se Trip Section Counter (TS),
štoparica in odštevanje ne izbrišejo s trenutnimi
vrednostmi ture.
3. Nastavitve / brisanje
3.1 Nastavitve
Opravite lahko naslednje nastavitve: Jezik /
Merska enota / Obseg kolesa / Ura / Gorivo l/100km /
Skupna pot / Skupni čas / Skupno gorivo (litri) / Kontrast.
Nastavitve posameznih funkcij so nazorno prikazane na
risbah na priloženem listu.
3.2 Ugotavljanje obsega kolesa
Za natančno merjenje hitrosti morate nastaviti obseg
kolesa skladno z velikostjo vaše zračnice. To lahko
storite tako:
A– Obseg kolesa izračunate s pomočjo formule iz
tabele „Wheel Size Chart“.
B– Vrednost ugotovite skladno z risbami iz
„Wheel Size Chart“.
C– Iz tabele „Wheel Size Chart“ prevzamete vrednost,
ki ustreza vaši velikosti zračnice.

19
SI
4.1 Tehnični podatki
4.1.1 Navodila v zvezi z baterijo / menjava baterije
Vstavljanje oz. odstranjevanje baterije je prikazano na
priloženih risbah. Po menjavi baterije v računalniškem
delu je treba na novo nastaviti le uro.
Računalniški del BC 12.12: tip CR 2032 /
življenjska doba 1,5 leta*
Računalniški del BC 12.12 STS: tip CR 2032 /
življenjska doba 1 leto*
Oddajnik hitrosti: tip CR 2032 /
življenjska doba 1 leto*
* pri enourni uporabi dnevno
4. Pomembna opozorila / odprava napak
4.1.2 Odprava napak
Ni prikaza hitrosti:
– Je računalnik pravilno vstavljen v držalo?
– Preverite razdaljo od magneta do senzorja
(maks. 5 mm) (pri STS maks. 12 mm).
– Je magnet v pravilnem položaju?
Napačen prikaz hitrosti:
– Sta na kolesu montirana 2 magneta?
– Je obseg kolesa pravilno nastavljen?
Rešitve nadaljnjih težav lahko najdete med pogosto
zastavljenimi vprašanji (FAQ) na www.sigmasport.com.

20
4.1.3 Min / maks / tovarniške nastavitve
Standard Min. Maks. Enota
Tren. hitrost 0,0 0 199,8 kmh / mph
Prevožena pot 0,00 0,00 9.999,9 km / mi
Čas vožnje 0:00:00 0:00:00 999:59:59 h:mm:ss hhh:mm:ss
Ø hitrost 0,00 0,00 199,8 kmh / mph
Maks. hitrost 0,00 0,00 199,8 kmh / mph
Gorivo (litri) 0,00 0,00 9.999,9 Litri / galone
Ura 00:00 00:00 23:59 hh:mm
TS pot 0,00 0,00 9.999,9 km / mi
TS čas 0:00:00 0:00:00 999:59:59 h:mm:ss hhh:mm:ss
Temperatura 0,0 -10 / 14 70 / 158 °C / °F
Skupna pot 0 0 999.99 km / mi
Skupni čas 0:00 0:00 19.999 h:mm hh.hhh
Skupno gorivo (litri) 0,0 0,0 9.999,9 Litri / galone
Obseg kolesa 2.155 500 3.999 mm
4. Pomembna opozorila / odprava napak
