Signamax Connectivity Systems
16-Port 10/100 Dual Speed Ethernet Full
Duplex Switch Model 065-7530
24-Port 10/100 Dual Speed Ethernet Full
Duplex Switch Model 065-7540
U SER ’ S
G UIDE

Signamax Connectivity Systems
16-Port 10/100 Dual Speed Ethernet Full
Duplex Switch Model 065-7530
24-Port 10/100 Dual Speed Ethernet Full
Duplex Switch Model 065-7540
User’s Guide

FCC Warning
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when
the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in
accordance with this user’s guide, may cause harmful
interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful
interference in which case the user will be required to
correct the interference at his own expense.
CE Mark Warning
This is a Class A product. In a domestic environment,
this product may cause radio interference in which case
the user may be required to take adequate measures.
Signamax Connectivity Systems from Advanced
Electronic Supports Products Inc. All rights reserved.
All brand names are registered trademarks of their
relative holders.

Trademarks
Product names mentioned in this manual may be
trademarks or registered trademarks of those products
and are hereby acknowledged.
•Ethernet is a trademark of Xerox Corporation.
•Microsoft Windows is a trademark of Microsoft
Corporation.
•VT100 is a trademark of Digital Equipment Corporation.
•Signamax is a trademark of Advanced Electronic
Support Products, Inc.

TABLE OF CONTENTS
ABOUT THIS GUIDE .................................................. 1
CHAPTER 1: INTRODUCTION.................................... 3
BENEFITS OF SWITCHING.............................................. 3
SIGNAMAX SWITCHES................................................... 4
PRODUCT FEATURES ................................................... 5
PACKING LIST............................................................. 6
FRONT PANEL ............................................................. 6
PORTS....................................................................... 8
EXPANSION MODULES .................................................. 9
LED INDICATOR.........................................................11
CHAPTER 2: INSTALLATION....................................14
SELECTING A SITE FOR Switches..................................14
CONNECTING TO POWER.............................................15
CONNECTING TO YOUR NETWORK .................................15
OPTIONAL MODULE INSTALLATION.................................17
JUMPER SETTINGS......................................................18
CHAPTER 3: SWITCH CONFIGURATION..................19
SETTING UP THE CONSLE PORT CONNECTION.................20
VLAN.......................................................................23

CONFIGURE VLAN GROUPS ........................................25
PORT SETTING...........................................................28
MAC-BASED TRUNKING (16-PORT)...............................31
PORT-BASED TRUNKING (24-PORT)...............................33
NETWORKING EXAMPLES.............................................37
CHAPTER 4: SPECIFICATIONS ................................41
APPENDIX A: CONNECTOR PINOUTS .....................43
APPENDIX B: CONTACT INFORMATION..................44

Signamax 065-7530/065-7540 Full-Duplex Switches
About This Guide 1
ABOUT THIS GUIDE
This manual describes how to install and use Signamax
16-port (model 065-7530) and 24-port (model 065-7540)
10/100 Dual Speed Ethernet Full Duplex Switches. They
feature either sixteen or twenty-four RJ-45 ports that auto
negotiate the presence of 100/10Mbps and full or half-
duplex mode. An optional 100BaseFX multi-mode or
single-mode fiber optic module enables long-distance
connection.
To get the most out of this manual, you should have an
understanding of networking concepts such as bridging,
IEEE 802.3 Ethernet and 100BaseTX Fast Ethernet, and
local area networks (LAN).
For more information about these topics, please refer to
the Appendices.
In this manual, you will find:
•Benefits of Ethernet switches
•Model 065-7530 and 065-7540 and their features
•LED functions illustration
•Installation instructions
•Configuration instructions for VLAN, Trunking and port
speed
•Specifications

Signamax 065-7530/065-7540 Full-Duplex Switches
2About This Guide
•Ethernet technology, LAN, VLAN and Trunking tutorial
information
•Definitions of terms used in this manual

Signamax 065-7530/065-7540 Full-Duplex Switches
Introduction 3
1
INTRODUCTION
Benefits of Switching
Ethernet switching technology has dramatically boosted
the total bandwidth of a network. It puts configuration
flexibility and bandwidth adaptability into the local
workgroups, where the majority of work is generated.
It further eliminates congestion problems inherent to the
CSMA/CD protocol, and improves predictable response
time under heavy network loads. Expensive routing
equipment was used in the past to reduce the congestion
under heavy loads.
The new wave of object-oriented client and server
applications demands higher bandwidth and tighter
integration of client workstations with servers. The old
shared-access (hub/repeater) Ethernet technology
provides neither enough bandwidth nor sufficiently
predictable response time for this new wave of
workgroup computing.
Fast Ethernet switching not only satisfies both technical
and business requirements, but also preserves the user’s
existing investment in the huge 10BaseT Ethernet
installed base.

Signamax 065-7530/065-7540 Full-Duplex Switches
4Introduction
This compatibility ensures a path for users to add,
change, and migrate to Fast Ethernet as demands
emerge. It also provides a low cost and flexible
bandwidth solution directly to local workgroups where the
majority of work is generated, reducing the need for
expensive network equipment.
Signamax Switches
As a Fast Ethernet switch, Signamax 16-port (model 065-
7530) and 24-port (model 065-7540) 10/100 Dual Speed
Ethernet Full Duplex Switches have 16 and 24
10/100Mbps ports with an optional fiber-optic module,
flexibly meeting fiber-optic needs. The straightforward
design enables ease of operation while providing
superior performance.
Addressing the demand for fiber, Signamax provides an
optional multi-mode or single-mode fiber module for the 065-
7530 and 065-7540 as an optimum solution for long-distance
connectivity. The module supports one SC, ST, MT-RJ, or VF-
45 port.
Signamax Switches represent the newest generation in
Ethernet switching technology by supporting both
10Mbps and 100Mbps speed and half or full duplex
transmission modes on the same port. By using standard
auto-negotiation, Signamax provides both a cost-effective
way of integrating legacy 10Mbps segments with
100Mbps Fast Ethernet networks, and an ideal solution
for extending the distance between two 100Mbps
network segments.

Signamax 065-7530/065-7540 Full-Duplex Switches
Introduction 5
Signamax 065-7530/065-7540 switches support port-
based Virtual Local Area Networking (VLAN). This
advanced feature gives the network administrator a
powerful, yet easy-to-use tool to reduce unnecessary
broadcast traffic, flexibly segment the network, and
enhance network security. The Signamax 065-7530/065-
7540 switches fully comply with IEEE 802.3u,
100BaseTX/FX, and IEEE 802.3, 10BaseT standards.
Product Features
•16 ports (065-7530) or 24 ports (065-7540) with NWay
auto-negotiation of 10/100Mbps speed and duplex
mode
•Optional 1-port ST, SC, MT-RJ, or VF-45 module
•Plug-and-play
•True non-blocking architecture
•Full wire speed forwarding
•Store-and-forward mechanism
•Back pressure and IEEE 802.3x compliant flow control
•Supports 8K MAC addresses for 065-7530
•Supports 2K MAC addresses for 065-7540
•Port based VLAN & MAC based Trunking for 065-7530
•Port based VLAN & port based Trunking for 065-7540
•Programmable re-configuration for fixed speed and
duplex modes
•One uplink port activated by the push of a button
•Front panel reset button

Signamax 065-7530/065-7540 Full-Duplex Switches
6Introduction
•Front panel status LEDs
•Standard 19" rack-mount size
Packing List
When you unpack this product, you should find the items
listed below. Please inspect the contents, and report any
apparent damage or missing items immediately to your
authorized reseller.
* Signamax 065-7530 or 065-7540 switch
* User’s Manual
* AC power cord
* Rackmount Ears with screws
* Serial Cable
Front Panel
The front panel of the Signamax 065-7530 and 065-7540
switches has 16 or 24 ports, one slot for an optional fiber
module, and an array of LED indicators to provide you
with instant feedback on the status of the switch.

Signamax 065-7530/065-7540 Full-Duplex Switches
Introduction 7

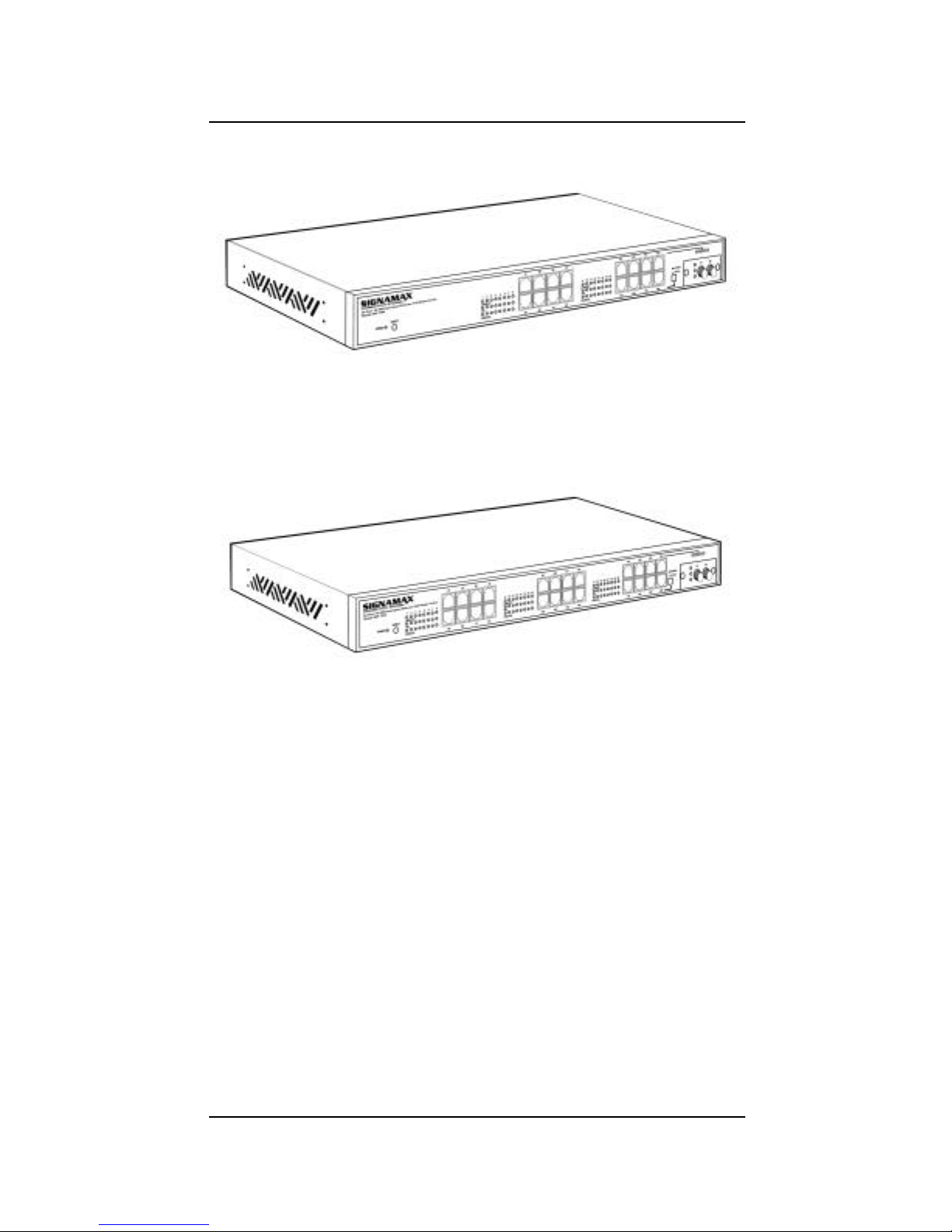

Figure 1: Front panel of 065-7530
Figure 2: Front panel of 065-7540

Signamax 065-7530/065-7540 Full-Duplex Switches
8Introduction
Ports
The Signamax 065-7530/065-7540 switches contain
16/24 RJ-45 10/100 Ethernet ports and one slot for the
optional module for fiber connection.
The auto-negotiation feature of the 065-7530/065-7540
switches allows communication between 10BaseT
(Ethernet) and 100BaseTX (Fast Ethernet) at full or half-
duplex mode. If it is desirable to operate at a fixed, rather
than auto-negotiated media setting, please refer to the
Port Settings section on page 28.
The optional module of the 065-7530/065-7540 switches
provides an additional port for fiber ST, SC, MT-RJ, or
VF-45. The latter are fiber-optic small-form-factor
connectors that are smaller and easier to use. The
optional module port also allows the use of single-mode
fiber for distances up to 75 km. For information on
module installation, please refer to page 17.
The maximum range of a 100BaseTX network connected
to the switch is 100 meters with Category 5 unshielded
twisted-pair (UTP) cable. A 10BaseT network may range
up to 100 meters with Category 3, 4, or 5 UTP cable. As
for the length of fiber link between a switch and a Data
Terminal Equipment, it is capable to span up to 2
kilometers (1.24 Mile) using 50/125 or 62.5/125-micron
multi-mode fiber-optic cable or up to 15/40/75 kilometers
using 9/125 or 10/125 micron single-mode fiber optic
cable in full-duplex mode.

Signamax 065-7530/065-7540 Full-Duplex Switches
Introduction 9
Expansion Modules
The following is a list of model numbers for the various
modules. All TX ports use RJ-45 connectors.
Table 1: Module Model Number
Model Ports FX Connector
FO-065-75ST 100BaseFX ST
FO-065-75SC 100BaseFX SC
FO-065-75MT 100BaseFX MT-RJ
FO-065-75VF 100BaseFX VF-45
FO-065-75SM 100BaseFX SC(Single
Mode, 15Km)
FO-065-75SMED 100BaseFX SC(Single
Mode, 40Km)

Signamax 065-7530/065-7540 Full-Duplex Switches
10 Introduction
Table 2: Module Type and Specification
Speed Connector Port
Speed
Half/Full
Duplex
Cable Distance
10BaseT RJ-45 10/20
Mbps Category 3, 4, or 5
UTP
100
meters
100BaseTX RJ-45 100/200
Mbps Category 5 UTP 100 meters
100BaseFX
(Multi mode) ST, SC,
MT-RJ,
VF-45
100/200
Mbps 50/125 or 62.5/125
micron
multi-
mode
fiber
2 km
100BaseFX
(Single
mode)
SC 100/200
Mbps 9/125 or 10/125
micron
single-
mode
fiber
15/40/75
km

Signamax 065-7530/065-7540 Full-Duplex Switches
Introduction 11
LED Indicator
The array of LED indicators on the front panel conveys
status and configuration information to help you monitor
and trouble-shoot the switch.
Figure 3: 065-7530/065-7540 Front Panel and LED
Indicators

Signamax 065-7530/065-7540 Full-Duplex Switches
12 Introduction
Œ
Power
This LED comes on when the switch is connected to a
power supply and turned on.
• Reset Button
If the Signamax 065-7530/065-7540 switches should
become unresponsive, you may perform a reset of the
switch by pressing this button.
ŽPort Status
The front panel of Signamax 065-7530 has two segments
of eight ports numbered from 1X to 16X and 065-7540
has three segments of eight ports numbered from 1X to
24X. The LEDs are located at the left side of each
segment, display status for each respective port. Consult
the following chart for clarification.
•Uplink Button
Depress to connect to another switch or hub. Affects port
16X for 065-7530 or port 24X for 065-7540 only.
•Optional Module LEDs Status
A set of three LEDs displays the status of the optional
modular port. Consult the following chart for clarification.
