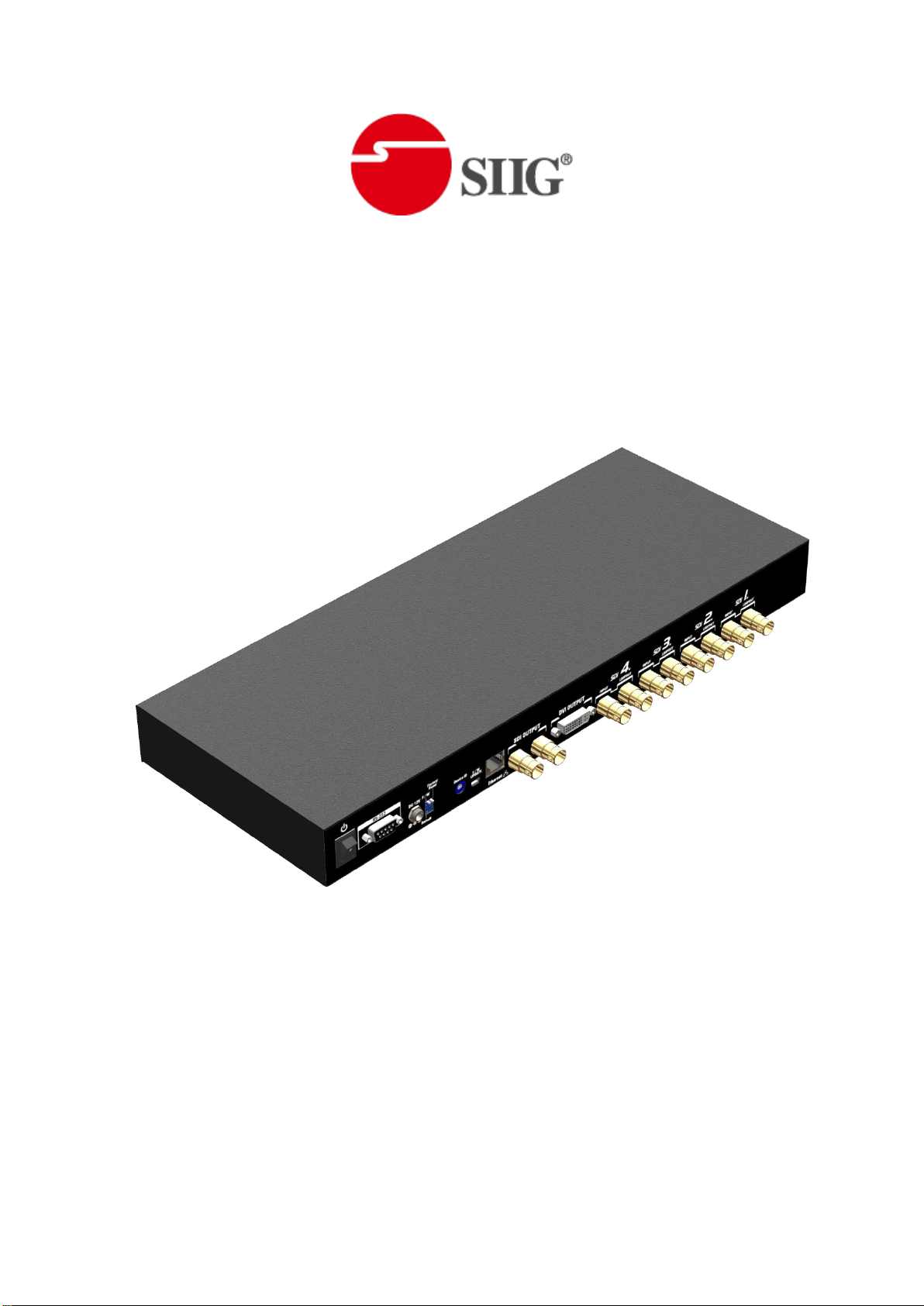

SIIG AV-GM08V3-S1 User manual

3G/HD/SD-SDI Quad-view Video Processor
P/N: AV-GM08V3-S1

Safety and Notice
The AV-GM08V3-S1 3G/HD/SD-SDI Quad-view Video Processor has been tested for
conformance to safety regulations and requirements, and has been certified for international
use. However, like all electronic equipments, the AV-GM08V3-S1 should be used with care.
Please read and follow the safety instructions to protect yourself from possible injury and to
minimize the risk of damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
TABLE OF CONTENTS
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS ......................................................................................................1
SPECIFICATIONS ..............................................................................................................2
PANEL DESCRIPTIONS.....................................................................................................3
HARDWARE INSTALLATION.............................................................................................5
CONNECTION DIAGRAM...................................................................................................6
OPERATION SOFTWARE..................................................................................................7
WARRANTY......................................................................................................................15
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS ......................................................................................................1

1
INTRODUCTION
The AV-GM08V3-S1 3G/HD/SD-SDI Quad-view Video Processor is an advanced video processor
for multimedia presentations. It is an ideal solution for some application such as broadcasting,
where up to four SDI video signals must be displayed on a single display. It supports up to 4 SDI
video inputs, of which four can be outputted simultaneously with the desired display layout
through software control, IR remote or front panel. The advanced video processor allows you to
manipulate output images, wherever positions and whatever sizes you want for viewing four
computers or four video signals or a combination.
The embedded processor converts signals from input sources to match the native resolution of
monitors, flat panel displays, projectors as well as user-selectable output settings up to WUXGA
(1920x1200). Dual outputs are provided in both digital (SDI) and digital (DVI) format, one is
connected to remote display and other is connected to on-site display for real time monitoring.
FEATURES
●Supports 3G/HD/SD-SDI video formats
●Input resolutions support interlaced or progressive video under SMPTE
●Dual outputs DVI (640x480 to 1920x1200) / SDI (720P, 1080P)
●Each SDI input channel has 1 re-clocked SDI loop-outs
●Adjustable size & position through software, IR remote and front panel
●Image parameters and layouts are automatically saved in flash memory and can be recalled for
later use
●User-selectable output settings, up to 1920x1200 (Only for DVI)
●Perfect as a video screen splitter, a video converter and a video switcher
●Firmware upgradable for support of new features and technology enhancements
●Software control through RS-232 or IP port.
●Control protocol available for customer proprietary design
●1U size
PACKAGE CONTENTS
●1x AV-GM08V3-S1
●2x 1U rack mounting-ear
●1x Installation software CD
●1x UL 12V 5A power adapter
●1x UL AC power cord
●1x User Manual
●1x IR remote control (28 keys)

2
SPECIFICATIONS
Model Name
AV-GM08V3-S1
Technical
Role of usage
Multiplexer / video processor
Dual output support
Yes [DVI &SDI]
Background video
input
No
Video bandwidth
DVI/HDMI [165MHz]
SDI 3G/HD/SD
Video input support
480i / 576i / 720p / 1080i / 1080p
Input TMDS signal
1.2 Volts [peak-to-peak]
ESD protection
Human body model —±12kV [air-gap discharge] & ±8kV [contact discharge]
PCB stack-up
4-layer board [impedance control —differential 100Ω; single 50Ω]
Input
4x SDI
Output
2x SDI + 1x DVI/HDMI
RS-232 connector
DE-9 [9-pin D-sub female]
DVI connector
DVI-I [29-pin female]
RJ-45 connector
WE/SS 8P8C
Rotary switch
Yes
DIP switch
Yes (for factory reset and firmware update)
Mechanical
Housing
Metal enclosure
Dimension
s
[L x W x H]
Model
440 x 235 x 44mm [1'4” x 9.3” x 1.7”]
Package
526 x 318 x 156mm [1'7" x 12.5" x 6.1"]
Carton
543 x 335 x 344mm [1'8" x 13.2" x 1'1"]
Weight
Model
2.6kg [5.8 lbs]
Package
3.7kg [ 8.2lbs]
Fixedness
1U rack-mounting case with ears
Power supply
12V 5A DC
Power consumption
35 Watts (max)
Operation
temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]

3
PANEL DESCRIPTIONS
Front Panel
1. Output Resolution Button: Select output resolution
2. Label Button: Window’s label ON/OFF
3. Custom Layout 1-8: Save custom layout button
4. IR Sensor: IR sensor for receiving the IR commands from IR remote
5. Default Layout mode A: Select default layout ( ) or custom layout
6. Default Layout mode B: Select default layout ( , , , )
7. Input 1-4 Select Button: Select input source
Rear Panel
8. Power Switch: Power On/Off
9. RS-232: RS-232 control port
10. +12V DC: Connect to the +12VDC power supply unit.
11. Dip Switch: Switch the firmware update mode or factory reset mode (Switch ON)
12. Device ID: To identify between units
13. Mini-USB: For firmware update
14. Ethernet: Ethernet control port.
15. Outputs: 2 SDI outputs
16. Outputs: DVI output

4
17. Input 1-4: SDI inputs 1-4
18. SDI local loop out

5
HARDWARE INSTALLATION
Safety Precautions
1. To prevent fire or shock hazards, do not expose this device to rain or moisture.
2. The product should be placed more than one foot away from heat sources such as radiators,
heat registers, stoves, and other products (including amplifiers) that produce heat. In addition,
do not cover any material or devices on the top of the device.
3. Do not use immediately after moving from a low temperature to high temperature, as this
causes condensation.
4. Do not place this product on an unstable cart, stand, or table. The product may fall, causing
serious injury to a child or adult and serious damage to the product.
5. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6. Do not allow the same still picture to be projected for a long time or an abnormally bright video
picture to be projected. The video image could be burned in to the display device.
Installation Procedures
Unpacking
Remove the AV-GM08V3-S1 from the shipping container and examine it for any signs of
shipping damage or missing items (check with package contents above). All shipping items should
be saved if the product is to be moved or returned for service. Shipping unit back to dealers for
service not in the original box may result in voiding warranty or additional cost.
Placement
The unit uses convection to cool. A fan is not needed, so do not block the sides of this device
or stack another device on the top or bottom of the AV-GM08V3-S1.
Connections
We recommend the highest quality cables for both input and output connections.
1. Switch off the AV-GM08V3-S1 and all devices that you want to connect.
2. Connect a monitor, a projector or other displays that comes with DVI / SDI inputs
3. Connect a device equipped with SDI output including SD/HD/3G to the BNC input connector of
AV-GM08V3-S1.
4. Connect your computer with the AV-GM08V3-S1 by a 9-pin RS-232 cable or Cat.5e cable, and
then install the software.
5. Plug in AD power cord into AC power socket.
6. Execute the control software and establish the connection between PC/Laptop and
AV-GM08V3-S1.
7. For detailed software control operation, please refer to the software instruction section.

6

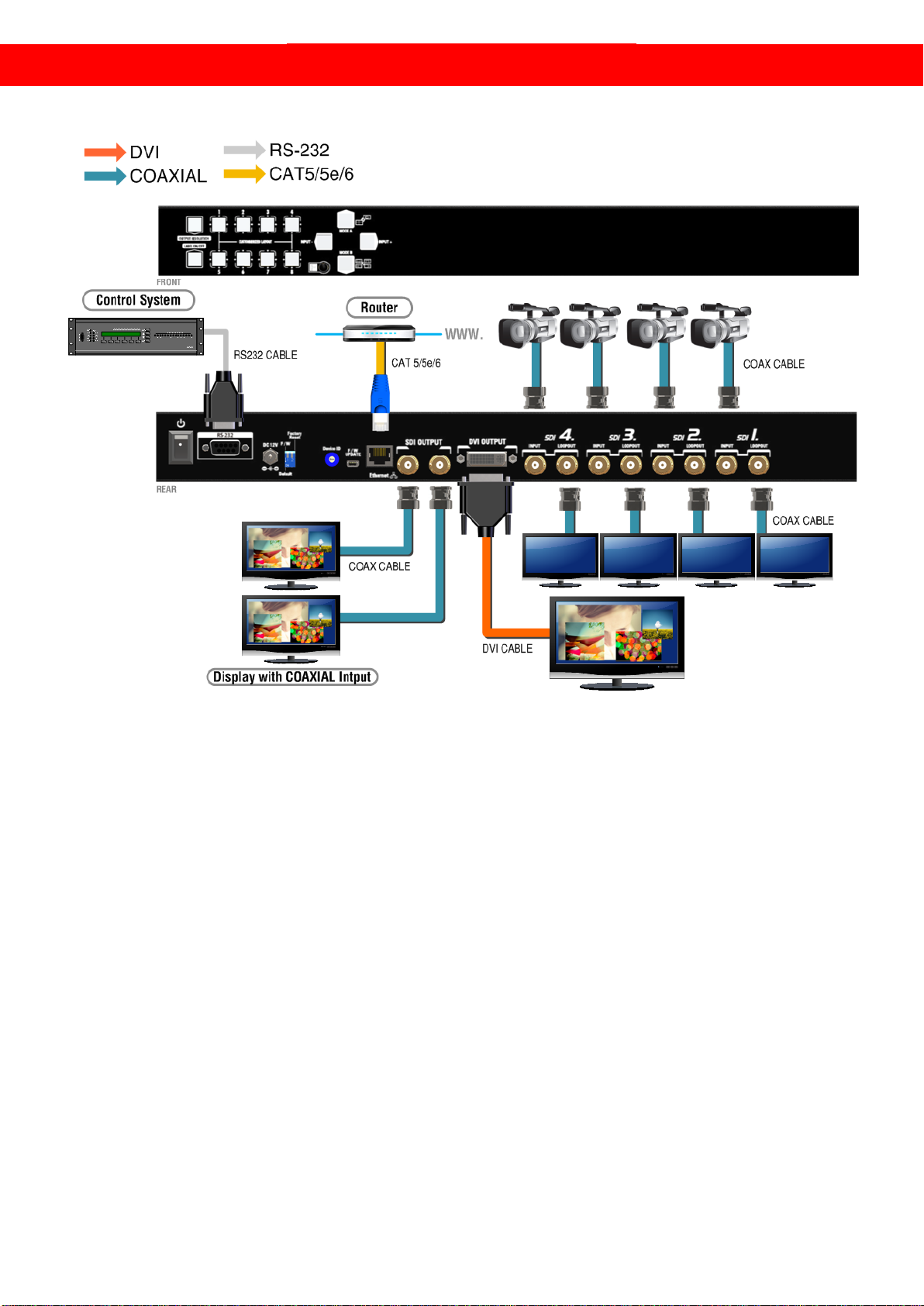

CONNECTION DIAGRAM

7
OPERATION SOFTWARE
Method A: IR Remote Control
Button
Function
Label
Border & Label on/off
Analog Clock
Analog Clock on/off
Digital Clock
Digital Clock on/off
Power on/off the device
Custom layout 1
Custom layout 1
Custom layout 2
Custom layout 2
Custom layout 3
Custom layout 3
Custom layout 4
Custom layout 4
Custom layout 5
Custom layout 5
Custom layout 6
Custom layout 6
Custom layout 7
Custom layout 7
Custom layout 8
Custom layout 8
PAP 1
Default layout PAP
PAP 2
Default layout PAP
PAP 3
Default layout PAP
PAP 4
Default layout PAP
Full Screen layout 1
Full Screen –Window 1
Full screen layout 2
Full Screen - Window 2
Full screen layout 3
Full Screen - Window 3
Full screen layout 4
Full Screen - Window 4

8
Method B: Software Control through RS-232 port / Ethernet port
System Requirement and Precautions
1. The device provides a software control program, Quartet, which runs under Microsoft
Windows 98, 2000, XP, Vista or 7 through the interface of RS-232 serial control.
2. Before you click the icon of the software, make sure you have secured the connection
between your computer COM port and the device and switched on the device with
green LED light.
Start the Operation Software

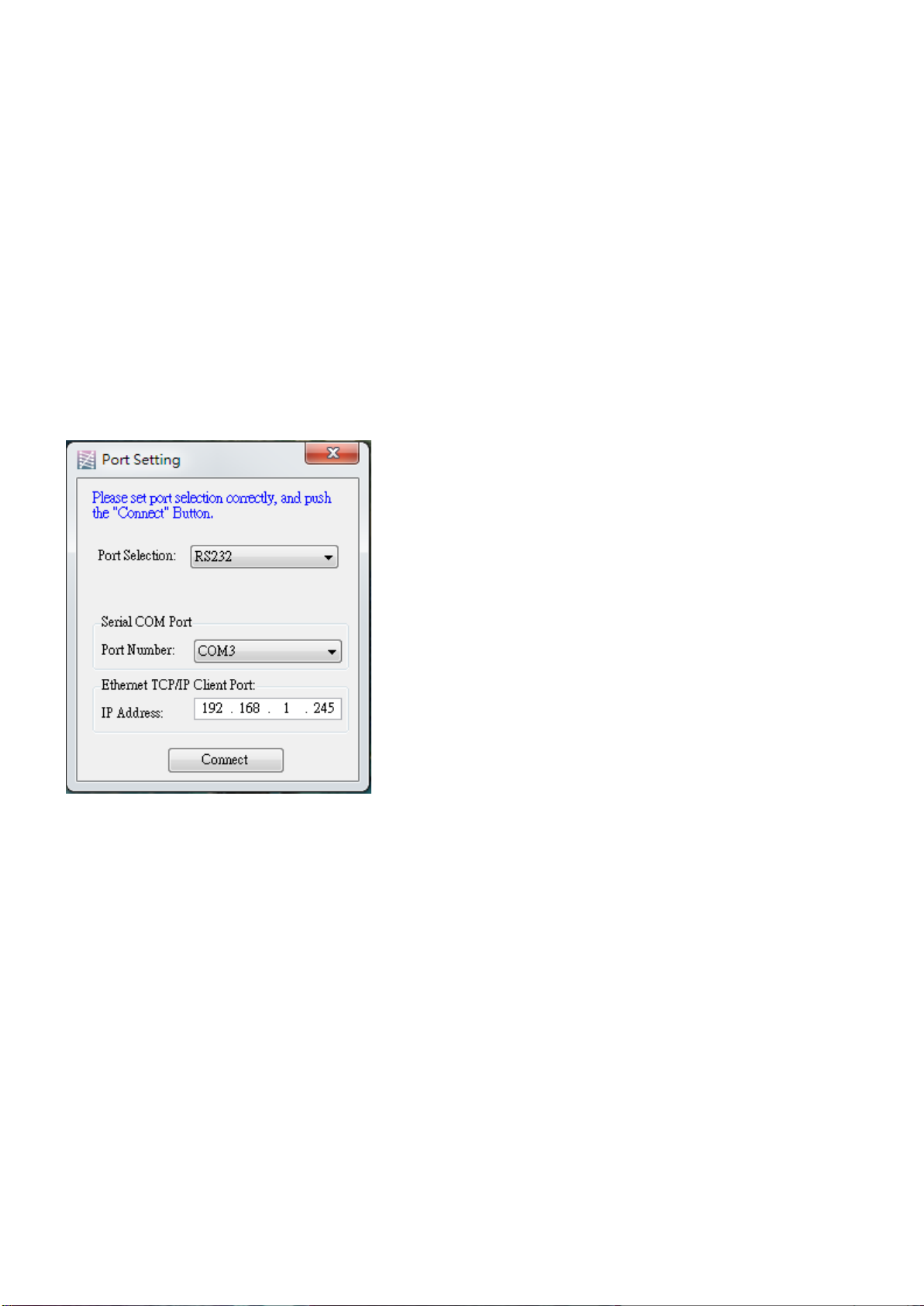

When you double-click the .exe file, the below dialog will pop-up. Connect the software via
RS-232 or TCP/IP.
*under Microsoft Windows 7, please right click the program icon to start up as an
administrator
RS-232 mode: Use RS-232 to connect the port on device and computer. Select correct serial
COM port (Port Number) and click the Connect button.
Ethernet (TCP/IP) mode: Enter the device IP address and click the Connect button.
After the software control setting is completed, it will enter directly to control interface.
