SIIG AV-GM0A43-S1 User manual

4-Display Video Wall Processor
P/N: AV-GM0A43-S1

Safety and Notice
The AV-GM0A43-S1 4-Display Video Wall Processor has been tested for conformance to safety
regulations and requirements, and has been certified for international use. However, like all
electronic equipments, the AV-GM0A43-S1 should be used with care. Please read and follow
the safety instructions to protect yourself from possible injury and to minimize the risk of
damage to the unit.
●Follow all instructions and warnings marked on this unit.
●Do not attempt to service this unit yourself, except where explained in this manual.
●Provide proper ventilation and air circulation and do not use near water.
●Keep objects that might damage the device and assure that the placement of this unit is on a
stable surface.
●Use only the power adapter and power cords and connection cables designed for this unit.
●Do not use liquid or aerosol cleaners to clean this unit. Always unplug the power to the
device before cleaning.
TABLE OF CONTENTS
INTRODUCTION.................................................................................................................1
FEATURES.........................................................................................................................1
PACKAGE CONTENTS......................................................................................................1
SPECIFICATIONS..............................................................................................................3
HARDWARE INSTALLATION.............................................................................................4
CONNECTION DIAGRAM ..................................................................................................4
PANEL DESCRIPTIONS.....................................................................................................5
SUPPORTED RESOLUTION..............................................................................................6
OPERATION APPROACH..................................................................................................7
EDID LEARNING..............................................................................................................17
WARRANTY .....................................................................................................................18

1
INTRODUCTION
The AV-GM0A43-S1 4-Display Video Wall Processor is a powerful, cost effective, and fully real time
data/video processor for multiple flat panel displays or projectors. Thru digital transmission, the
quality of the outcome videos is guaranteed. The output display is grained up to 255 by 255
squares. Virtually any setups for the display layout can be possible by the provided software. The
AV-GM0A43-S1 allows you to input DVI/HDMI, wherever positions and whatever sizes you want for
viewing. The embedded scaler converts signals from either DVI/HDMI source to match the native
resolution of monitors, flat panel displays, projectors as well as user-selectable output settings up
to WUXGA (1920x1200). The AV-GM0A43-S1 sends the resulting processed video thru DVI/HDMI
interface to the connected monitors/projectors based on the display layout. The layout can be
readily modified to fit your applications and optimize visual effects. Typical applications include
digital signage, and broadcasting/education/ surveillance systems etc.
FEATURES
Four DVI/HDMI outputs from 640x480 to 1920x1200 with a local loop out for monitoring
Supports HDMI/DVI input, from 640x480 to 1920x1200@60, interlaced or progressive
Supports 1080p/WUXGA
HDCP compliant
Image parameters and layouts are automatically saved in flash memory of the device and can
be recalled for later use
Several image parameters and layouts can be saved in computers and can be loaded for later
use
Firmware upgradable for new features and technology enhancements
Supports IR remote control
Software control through USB and Ethernet
Resize, position, zoom output video
User-selectable output settings, up to 1920x1200
Each DVI/HDMI output has an independent controllable display area
Supports remote control to switch 1x1, 2x2, 1x3 rotate, and 1x4 rotate mode
Each output can support OSD control to do edge correction
Compact size
Supports input rotation
PACKAGE CONTENTS
1x AV-GM0A43-S1
1x User Manual
1x 1U rack-mounting ear set
1x 12V 5A power supply

2
1x Installation software CD
1x IR Remote control (15 keys)

3
SPECIFICATIONS
Model Name
AV-GM0A43-S1
Technical
Role of usage
Video Wall Processor
HDCP compliance
Yes
Video bandwidth
DVI [Single-link 4.95Gbps] HDMI[2.25G to 6.75Gbps]
Video support
Up to 1920x1200@60 / 1600x1200@60
Video Format Support
HDMI/DVI
Video loop-out
No
Audio support
Yes
ESD protection
Human body model —±19kV [air-gap discharge] & ±12kV [contact discharge]
PCB stack-up
8-layer board [impedance control —differential 100Ω; single 50Ω]
Input
1x DVI-D + 1x USB + 1xRJ45
Output
4x DVI-D + 1x Stereo
Control
IR remote control / Ethernet / USB (virtual com) / Front Panel
Input TMDS signal
1.2 Volts [peak-to-peak]
DVI connector
DVI-D [29-pin female, digital only]
USB connector
Type A
RJ-45 connector
WE/SS 8P8C
Mechanical
AV-GM0A43-S1
Enclosure
Metal case
Dimensions
(L x W x H)
Model
288 x 180 x 42mm [11.3" x 7" x 1.7"]
Package
494 x 225 x 70mm [1'6" x 8.9" x 2.8"]
Carton
510 x 380 x 252mm [1'7" x 1'2" x 10"]
Weight
Model
1450g [ 3.2lbs]
Package
2.6kg [ 5.733lbs]
Fixedness
1U rack-mount with ears and Wall hanging holes
Power supply
12V 5A DC
Power Consumption
7.6W

4
Operation
temperature
0~40°C [32~104°F]
Storage temperature
-20~60°C [-4~140°F]
Relative humidity
20~90% RH [no condensation]
HARDWARE INSTALLATION
AV-GM0A43-S1 as master
1. Connect all sources to DVI/HDMI Inputs on the AV-GM0A43-S1.
2. Connect all display to DVI/HDMI Outputs on the AV-GM0A43-S1.
3. Connect the +12V 5A DC power supply to the AV-GM0A43-S1
CONNECTION DIAGRAM

5
PANEL DESCRIPTIONS
Front Panel
1. IR SENSOR: IR sensor for receiving the IR commands from IR remote
2. Power Status: Power indicator LED
3. Control buttons
Rear Panel
4. Power Switch: Power ON/OFF switch
5. +12V DC: 12V DC power jack
6. USB virtual com
7. Ethernet: Ethernet control port
8. Stereo audio output –L
9. Stereo audio output -R
10. INPUT: DVI/HDMI input
11. Output 1-4: DVI/HDMI outputs

6
SUPPORTED RESOLUTION
Input resolution
Output resolution
640x480
720x480
720x576
800x600
1024x768
1152x864
1280x720
1280x768
1280x800
1280x960
1280x1024
1360x768
1366x768
1400x1050
1440x240
1440x288(576i)
1440x900
1600x900
1600x1200
1680x1050
1920x540(1080i)
1920x1080
1920x1200
640x480@60Hz
720x480@60Hz
720x576@60Hz
800x600@60Hz
1024x768@60Hz
1280x720@60Hz
1280x768@60Hz
1280x960@60Hz
1280x1024@60Hz
1366x768@60Hz
1440x900@60Hz
1680x1050@60Hz
1920x1080@60Hz
1920x1200@60Hz
1600x1200@60Hz

7
OPERATION APPROACH
Method A: IR Remote Control
Button
Function
POWER
Power On/Off the video wall processor
FREEZE
Pause the output’s video and audio
MUTE
Turn off the output’s audio
Fast switch to VW1x1
Fast switch to VW3x1 (+90°)
Fast switch to VW3x1 (-90°)
Fast switch to VW2x2
Fast switch to VW4x1 (+90°)
Fast switch to VW4x1 (-90°)
UP
Up key
DOWN
Down key
MENU
Call OSD menu and confirm
F1
Reserved
F2
Reserved
F3
Reserved

8
Method B: Software Operation
System Requirement and Precautions
1. Whenever power off AV-GM0A43-S1, please stay unpowered at least 5 to 10 seconds to allow
power capacitors to discharge.
2. The AV-GM0A43-S1 provides software control program which runs under Microsoft Windows 98,
2000, XP, 7 through the interface of USB virtual com control.
3. Before you click on the icon of the software, make sure you have secured the connection
between your computer USB port and the AV-GM0A43-S1.
Start the software control program
When clicking on the executable file, the following dialog will pop-up. It has two ways to control the
AV-GM0A43-S1 device (under Microsoft Windows 7, please run as administrator).
USB Mode: Use USB to connect the port on device and computer. Select correct virtual Com port
and click the OK button.
Ethernet Mode: Enter the device IP address and click the OK button.
After the software control setting is accomplished, it will enter directly to control interface.

9
Control Interface
1. Connection Status:
Show the connect information and status. If you use USB control Mode to connect device, the
graph is . In contrast, the graph of Ethernet is .
2. Quick Selection:
In this part, you can set up the screen resolution, screen coordinate and split screen. At first,
you should select the TV picture and you can set up the corresponding function. The different
color of frame represents the different output TV. The information of coordinate shows the
position of output TV.

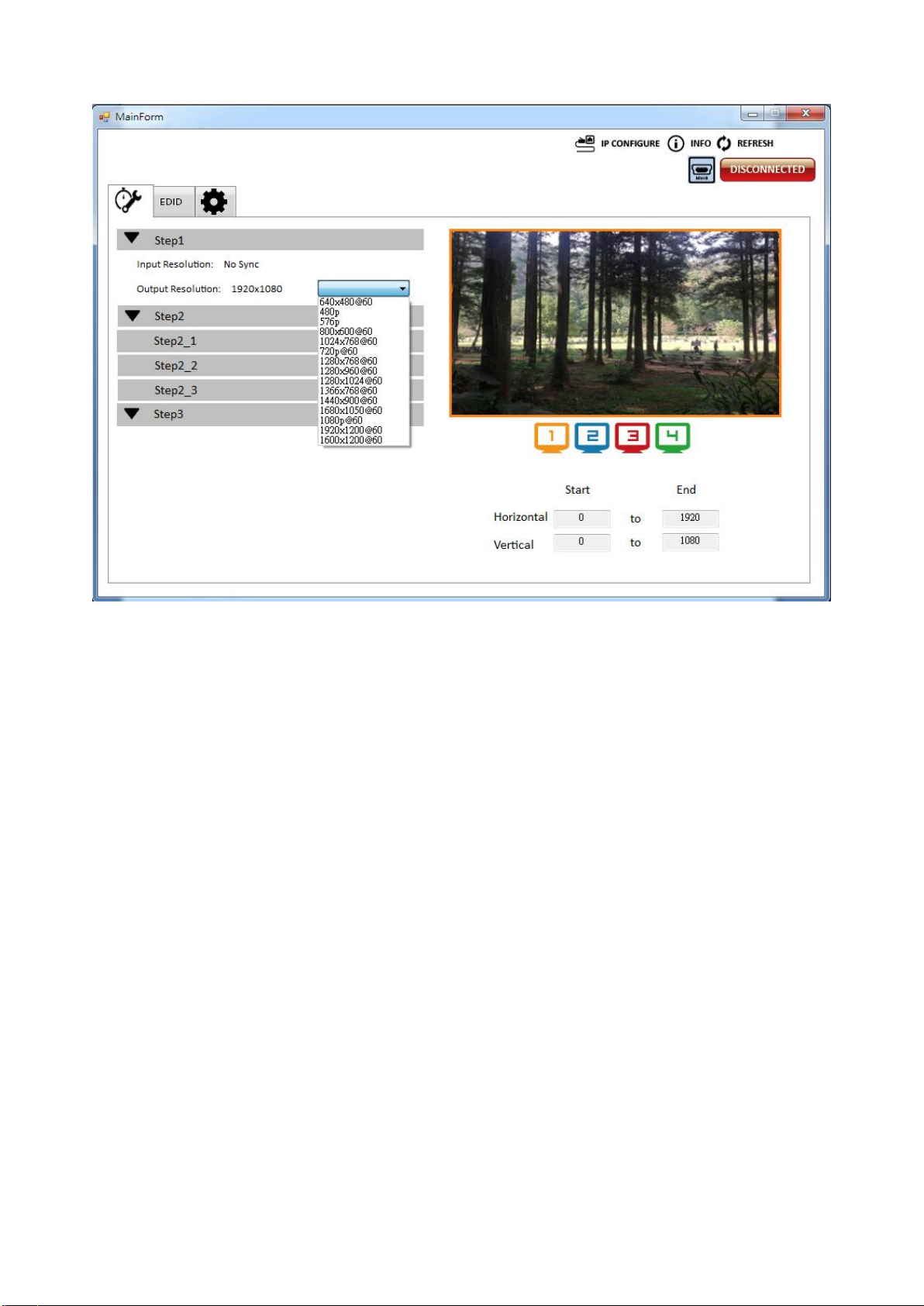

(1) Step 1
1
2
3
4
5
6
7

10
Set the output resolution. You can choose the design display icon to select the output port
and setup resolution. When setting the different resolution, the coordinate of output will
also be changed.
(2) Step 2
In here, it has three modes can set up the output TV resolution, position, size and split
screen. The details of different mode are described in step 2-1, 2-2 and 2-3.
* Notice that when you want to change another mode, you need to back to the step 2 to
change.
Quick Selection
From file
Custom define
(3) Step 2-1
If you choose the Quick Selection mode in step 2, this window will automatically pop-up. In
this mode, you can select default screen split and rotate screen (rotate screen only
supports of 720p or 1080p resolution).
3x1: This mode will divide the screen into 3 parts and rotate the figure. The remains
part shows the full screen.
4x1: The mode will divide the screen into 4 parts and rotate the figure.
When select the 3x1 or 4x1 mode, the picture in the right part of control interface will show
a white circle. You can slide this white circle to resize the output screen. In addition, you
also can input the number to adjust the coordinate.

11
(4) Step 2-2
You can load and read configuration from the existing file.
(5) Step 2-3
In Custom define mode, you can define how to cut in both directions and the part you want
to show on output TV. If you want to understand or estimate which part you may select,
then you can select the Grid button to show grid on the graph. After the setting, please click
the button. Besides, you also can click the button to save the
configuration for future usage. You can adjust the output position by setting coordinates.

12
(6) Step 3
Zoom In/Out: You can increase/decrease a pixel from the edge of image by clicking
button (the edge of image has four directions). After adjusting the image,
the rest of this image will be auto-scaled to fulfill the screen.
Horizontal shift/ Vertical shift: You can arbitrarily move the image on each screen in
horizontal direction or vertical direction. Move one pixel at a time.
3. EDID (Extended display identification data)
(1) Learn EDID From Default
Select Default EDID (1-6 default EDID).
Click button to learn default EDID.

13
(2) Learn EDID From Display
Select the Output.
Click button to learn display EDID.
(3) Learn EDID From File
Click button to select the EDID file and write it into input.
(4) View EDID content
Select the EDID input source (Input, Output or From File).
Click button to read the EDID description and analysis.
Click button to save the EDID as a file in the connected computer.
4. Advanced Setting
(1) Firmware Update
Make sure your USB is connecting and the connecting status is
Click button to select the firmware file which you want to update.
Click button.

14
Recycle power.
Click button and the firmware will start to update.
(2) Machine Name
You can set up your machine name in here. Please take a closer look at the length of string
(Max Length: 8).
(3) Change Graph
You can change the default graph on this machine.
Click button to select the graph.
After loading the graph step, please click button to write this graph into device.
(4) Factory Reset
Click button to do factory default reset.
This default reset process will take about 10 seconds.
After pop-up a dialog indicates complete, please restart this machine.

15
5. IP Configure
You also can use the Ethernet to control software program. First, you should click the
button to setup network set. Next, you can read the Ethernet setting from
device or manually set to device. After the step of IP configuration, please restart the machine.

16
6. Info
Read the software and firmware version.
7. Refresh
This function not only can refresh the information of setting but also can reconnect this device.
You can click button to update the control connection. After you click this button,
pop-up a “ReConnectForm” window, shows you can select the approach to connect this device.

17
EDID LEARNING
The EDID learning function is only necessary whenever you encounter any display on the HDMI
output port that cannot play audio and video properly. Because the HDMI sources and displays
may have various level of capability in playing audio and video, the general principle is that the
source will output the lowest standards in terms of audio format and video resolutions to be
commonly acceptable among all HDMI displays. In this case, a 720p stereo HDMI signal output
would be probably the safest choice. Nevertheless, the user can force the matrix to learn the EDID
of the lowest capable HDMI display among others to make sure all displays are capable to play the
HDMI signals normally.
There is a method to do EDID Learning as below:
Software Control: Please refer to the Operation Approach\ Method B: Software Control
through RS-232 port (Page 7~15.)
There are six embedded default EDIDs as below,
1. Full-HD(1080p@60)-24bit 2D & 2ch
2. Full-HD(1080p@60)-24bit 2D & 7.1ch
3. HD(1080i@60)(720p@60)-24bit 2D & 2ch
4. HD(1080i@60)(720p@60)-24bit 2D & 7.1ch
5. Full-HD(1080p@60)-30bit 2D & 2ch
6. Full-HD(1080p@60)-30bit 2D & 7.1ch

18
WARRANTY
The SELLER warrants the AV-GM0A43-S1 4-Display Video Wall Processor free from defects in
the material and workmanship for 3 years from the date of purchase from the SELLER or an
authorized dealer. Should this product fail to be in good working order within 3 years warranty
period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been
subjected to accident, disaster, abuse or any unauthorized modifications including static discharge
and power surge. This warranty is offered by the SELLER for its BUYER with direct transaction only.
This warranty is void if the warranty seal on the metal housing is broken.
Unit that fails under conditions other than those covered will be repaired at the current price of
parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day
of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or
assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted
without a return authorization number.
The warranty is in lieu of all other warranties expressed or implied, including without
limitations, any other implied warranty or fitness or merchantability for any particular purpose, all
of which are expressly disclaimed.
Proof of sale may be required in order to claim warranty. Customers outside Taiwan are
responsible for shipping charges to and from the SELLER. Cables and power adapters are limited to
a 30 day warranty and must be free from any markings, scratches, and neatly coiled.
The content of this manual has been carefully checked and is believed to be accurate. However,
The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual.
The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages
resulting from any defect or omission in this manual, even if advised of the possibility of such
damages. Also, the technical information contained herein regarding the AV-GM0A43-S1 features
and specifications is subject to change without further notice.
April, 2018
Support
For more info or tech support
http://www.siig.com/support
