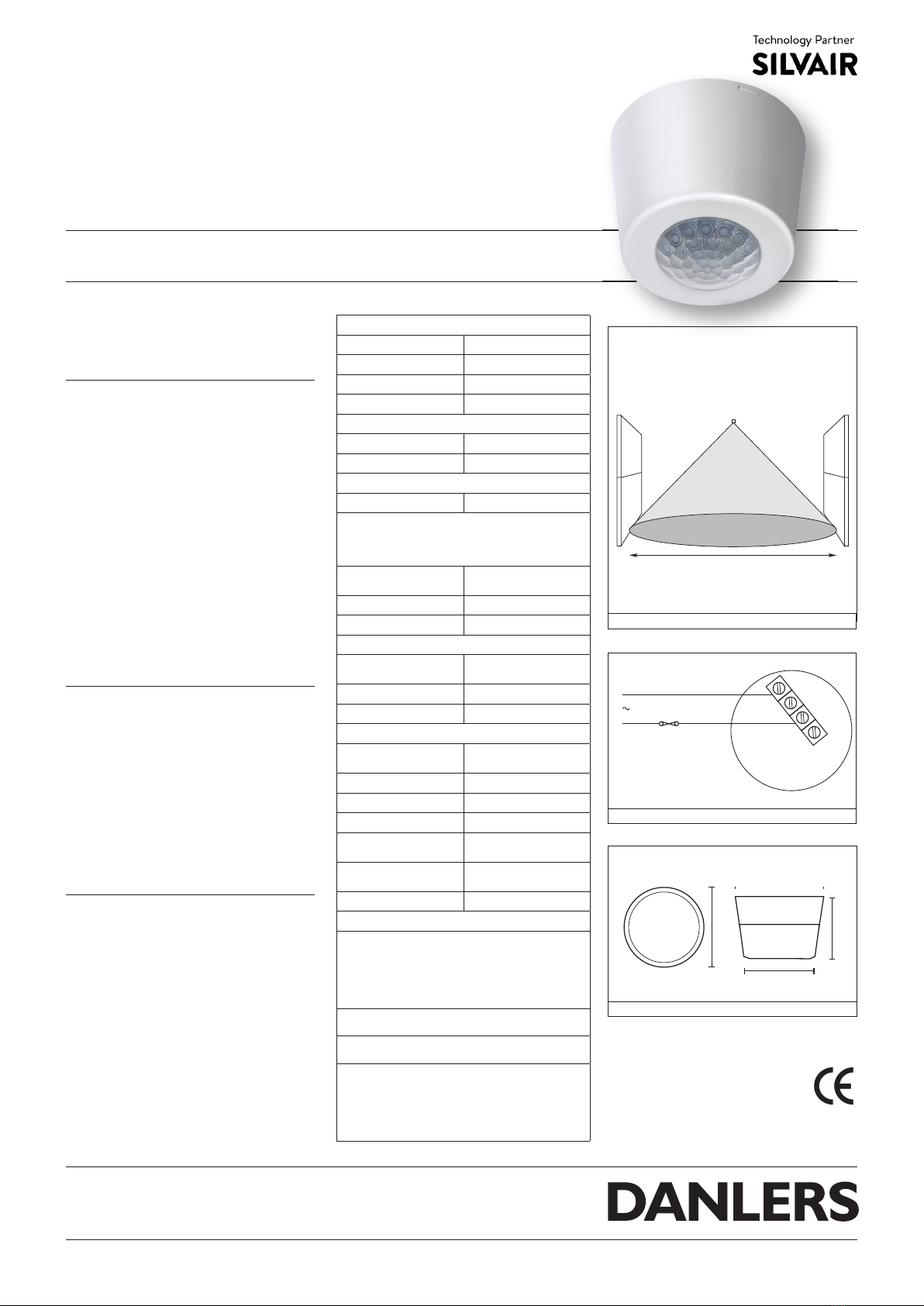

11/10/19 INS378 MESH-HBWD (Issue 03)
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING THE PRODUCT
NOTE: MESH-
HBWD is compatible with any qualified Bluetooth mesh components and commissioning tools.
We recommend Silvair Commissioning as a reliable solution.
MESH-HBWD
Ceiling High Bay (Wide) Passive Infra Red
(PIR) Occupancy Detector & Photocell
Input: 100-240 Vac 50/60Hz
This MESH-HBWD High Bay (Wide Detection)
Lighting Control can be mounted directly onto
solid ceilings or onto a range of different mounting
boxes. Configurable for any room occupancy
style, via the Silvair Platform (App and Web).
INSTALLATION
To be installed by a competent person with
reference to BS 7671 or equivalent local
standards. If in doubt consult a qualified
electrician.
• Plan where the MESH-HBWD is to be located
(see diagram 1). Switch off supply and check
for hidden cables and pipes.
• The MESH-HBWD should be connected as
shown in diagram 2:
L - Live in. N - Neutral in.
•
Knockout or drill the appropriate holes on the
mounting plate for attaching the plate to the
ceiling or back box (if applicable). Feed cables
through the appropriate (side or rear) entry hole.
Screw the back mounting plate to the ceiling or
back box via the mounting holes. Wire the cables
into the sensor head block terminal. Push the
sensor head onto the mounting plate and align
the side clips with the slots on the sensor heads.
OPERATION
To check the operation of the MESH-HBWD:
• Turn on the supply then after 20 seconds if the
sensor has recognised movement of a person
within its zone of detection the integral red LED
on MESH-HBWD will stay illuminated for 4
seconds before the red LED turns off.
• Thereafter, every time movement is detected
by MESH-HBWD the integral red LED will stay
illuminated for 4 seconds.
The control also features adjustable time out (time
lag) control and daylight threshold control which
are configured by the Silvair APP.
PRECAUTIONS
• Do not place the MESH-HBWD near heat
sources, fans or in ventilated ceiling voids.
• MESH-HBWD can be wired in parallel (sharing
the same Live and Neutral).
• Do not place close to, or positioned such
that, any light source points directly into the
MESH-HBWD.
• Ensure wires and cables are securely held
within the connection terminals.
• The MESH-HBWD should be protected by a 5
or 6 Ampere mcb or fuse.
• Disconnect the MESH-HBWD from the
circuit before performing insulation testing
of the wiring circuit.
DIAGRAM 1
TECHNICAL DETAILS
INPUT
Voltage: 100 - 240Vac
Frequency: 50/60Hz
Max. mains current: 20mA
Standby current: 14mA
RADIO TRANSCEIVER
Operating frequencies: 2.4... 2,483 GHz
Max. output power: +4 dBm
LUX PARAMETERS
Range: 5 - 2000 lux
OPERATING CONDITIONS
Note: The temperature difference between the
detection target and the background must be
at least 4 °C.
Ambient temperature: -20... +40 °C (lout
20mA)
Storage temperature: -25... +75 °C
Max. relative humidity: 0... 80%, non cond.
CONNECTORS
Terminal block
Wire size:
0.5mm2- 2.5mm2
solid or stranded
Wire strip length: 6-7mm
Tightening torque: 0,4 Nm/4 Kgf.cm
MECHANICAL DATA
Dimensions: 63mm x 91mm x
91mm
Weight: 105g (unpacked)
Degree of protection: IP20
Protection class: Built-in Class 2
Material (casing) Flame-retardant
polycarbonate
Finish / Colour Matt /White (RAL
9003)
Protection class: Built-in Class 2
CONFORMITY AND STANDARDS
EMC emission:
EN 301 489-1 V2.2.0,
EN 301 489-17 V3.1.1,
EN 55032: 2015,
EN61000-3-2: 2014,
EN61000-3-3: 2013
EMC immunity:
EN 301 489-1 V2.2.0, EN 301 489-17 V3.1.1
Environment:
Complies with WEEE and RoHS directives
CB scheme:
IEC60669-1:1998,
IEC60669-1:1998/AMD1:1999,
IEC60669-1:1998/AMD2:2006,
IEC60669-2:2002,
IEC60669-2-1:2002/AMD1:2008,
Suggested typical wiring
N
L
230 Vac
5A or 6A MCB
or fuse
L
N
N
L
L - Live in. N - Neutral in.
Two neutral and two live terminals
are available for easy ‘loop in’ and
‘loop out’ connection.
DIAGRAM 2
DIAGRAM 3
plan side
63
90
90
76
Up to
28m diameter
Mounting height
up to 14m
Perspective view -
ceiling mounted
5 YEAR WARRANTY
MESH-HBWD comes with a 5 year
warranty from the date of manufacture
and is CE marked.

DANLERS Limited, Vincients Road, CHIPPENHAM, Wiltshire, SN14 6NQ, UK.
Telephone: [phone] Fax: [phone] E-mail: [email protected]
www.danlers.co.uk
Company Registered Number 2570169 VAT Registration Number 543 5491 38
11/10/19 INS378 MESH-HBWD (Issue 03)
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING THE PRODUCT
NOTE: MESH-
HBWD is compatible with any qualified Bluetooth mesh components and commissioning tools.
We recommend Silvair Commissioning as a reliable solution.
MESH-HBWD
Ceiling High Bay (Wide) Passive Infra Red
(PIR) Occupancy Detector & Photocell
Input: 100-240 Vac 50/60Hz
STATUS LED BLINKING SEQUENCE:
MESH-HBWD Unprovisioned: 30ms ON 300ms OFF
MESH-HBWD Provisioned: 15ms ON 2000ms OFF
Factory Reset: 500ms ON 1000ms OFF
Factory Reset (initial burst): 100ms ON 1000ms OFF
MESH package received: 30ms ON 50ms OFF
Attention (from network): 500ms ON 500ms OFF
HALL EFFECT / FACTORY RESET:
This function allows a reset to be carried out in order to restore the default
factory settings.
A factory reset will change the state of MESH-HBWD from ‘provisioned’
to ‘unprovisioned’, i.e. all network settings will be lost. This functionality is
required to allow reprovisioning MESH-HBWD where control over the device
is not functioning correctly.
TO REPROVISION:
Place a small magnet on the site of the Reset / Hall effect sensor (see
diagram 4 below). To trigger the reset the magnet must be held in position
for 5 seconds.
DIMENSIONS
DIAGRAM 3
plan side
63
90
90
76
RESET ZONE
(behind moulding). Magnet
to be placed over the Reset
Sticker for reprovisioning.
RESET ZONE GUIDE
Small black circle ( • )
indicates reset
zone position
STATUS LED.
Flashes rapidly
when unprovisioned.
Flashes slowly
when provisioned.
DIAGRAM 4
