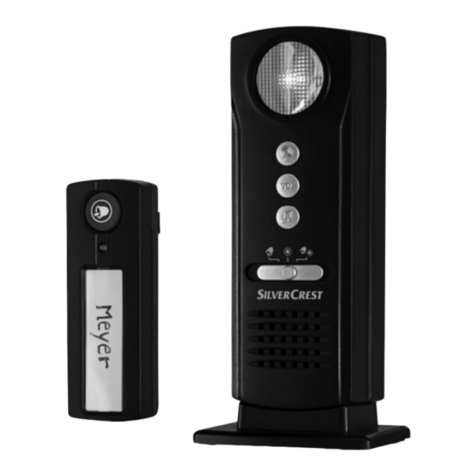

Silvercrest Z31370A User manual

Wireless Doorbell
Operation and Safety Notes
bezDrátový zvonek
Pokyny pro obsluhu a bezpečnostní pokyny
Funktürklingel
Bedienungs- und Sicherheitshinweise
DzWonek Do DrzWi
steroWany raDioWo
Wskazówki dotyczące obsługi i bezpieczeństwa
brezžični zvonec
Navodila za upravljanje in varnostna opozorila
zvonček na Dvere
Pokyny pre obsluhu a bezpečnostné pokyny
Z31370A
Z31370B

GB Operation and Safety Notes Page 7
PL Wskazówki dotyczące obsługi i bezpieczeństwa Strona 20
SI Navodila za upravljanje in varnostna opozorila Stran 32
CZ Pokyny pro obsluhu a bezpečnostní pokyny Strana 46
SK Pokyny pre obsluhu a bezpečnostné pokyny Strana 58
DE/AT / CH Bedienungs- und Sicherheitshinweise Seite 70

3
Z31370A Z31370B
A
1
6
2
3
ø 6mm
4
8
7
5
You need
Potrzebujecie
Potrebujete
Potřebujete
Budete potrebovať
Sie benötigen:

4
B
910

5
D
C
15
13 11 12
14

6
E
16 17
F
18
16
17

GB 7
Introduction
Intended use........................................................................................... Page 8
Technical data........................................................................................ Page 8
Included items ........................................................................................ Page 9
Parts and features.................................................................................. Page 9
Safety.................................................................................................... Page 10
General safety information................................................................... Pa ge 11
Safety instructions for batteries ............................................................ Page 12
Assembly............................................................................................ Page 13
Preparing for use
Inserting/replacing the batteries......................................................... Page 13
Operation
Synchronising transmitter/ receiver ..................................................... Page 15
Setting the signal type........................................................................... Page 15
Setting the volume ................................................................................. Page 16
Selecting the chime................................................................................ Page 16
Troubleshooting...................................................................................... Page 16
Cleaning and maintenance............................................... Page 17
Disposal............................................................................................... Page 17
Information
Declaration of conformity..................................................................... Page 19
Table of Contents

GB8
Introduction
Wireless Doorbell
Introduction
Keep these instructions in a safe place. If you pass the product
on to anyone else, please ensure that you also pass on all
the documentation.
Intended use
This product is intended for the wireless transmission of the doorbell
chime. The product is not intended for commercial use.
Technical data
Range: 100m (unobstructed area)
Transmission frequency: 433 MHz
Battery types: Receiver: 2x 1.5 V (type AA/ LR6),
Transmitter: 1x 3V (type CR2032)
Receiver: Audible signal volume (at maximum volume
setting): min. 73dB (at a distance of 1 m
from the device)
Transmitter: IP rating: IP44

GB 9
Introduction
Included items
1 Transmitter
1 Receiver
2 Batteries 1.5V , type AA (receiver)
1 Batteries 3V , type CR2032 (transmitter)
4 Screws (for transmitter and for mounting the receiver on a wall)
3 Dowels
5 Exchangeable name plates (for the doorbell)
1 Doorbell cover
1 Operating instructions
Parts and features
Receiver (Figs. A /B):
1Signal indicator
2Synchronisation button
3Volume button
4Melody selection button
5Signal type selector button (optical, acoustic, optical and acoustic
signal)
6Speaker
7Stand
8Hanger
9Battery compartment cover
10 Battery compartment

GB10
Introduction/Safety
Transmitter (Figs. C/D):
11 Signal indicator
12 Name plate
13 Chime button
14 Battery compartment
15 Holder (for wall mounting)
Mounting (Figs. E/ F):
16 Screw
17 Dowel
18 Screw (for transmitter)
Safety
Read all safety information and instructions. Failure
to comply with the safety information and instructions may cause fire
and/ or serious injury.
YOU SHOULD STORE ALL SAFETY INFORMATION AND INSTRUC-
TIONS IN A SAFE PLACE IN CASE YOU NEED TO REFER TO THEM
AGAIN IN THE FUTURE!

GB 11
Safety
General safety information
Children often underestimate risks.
Always keep children away from the product. This is not
a toy.
Children or persons who lack the knowledge or experience to use
the device or whose physical, sensory or intellectual capacities are
limited must never be allowed to use the device without supervision
or instruction by a person responsible for their safety. Children must
never be allowed to play with the device.
Check that all parts are in sound condition. If you use damaged
parts when assembling the device, you risk injury.
Check that all parts have been assembled correctly. There is a risk
of injury if the device is not properly assembled.
Keep the device away from open flames or sources of heat (e.g.
burning candles).

GB12
Safety
Safety instructions for batteries
DANGER TO LIFE! Batteries can be swallowed,
which can prove fatal. Consult a doctor immediately if anyone
swallows a battery.
EXPLOSION HAZARD! Never recharge nonrecharge-
able batteries, short-circuit and/or open batteries. This can
cause them to overheat, burn or burst.
Never throw batteries into fire or water. The batteries may explode.
Immediately remove depleted batteries from the device; otherwise
there will be an increased risk of leakage!
Always replace all the batteries at the same time and insert batteries
of the same type.
Do not use different types of batteries or mix used and new batter-
ies together.
Batteries do not belong in household refuse. Dispose of used batteries
in an environmentally friendly manner.
Consumers are under a legal obligation to dispose of batteries in
the proper way.
Keep the battery out of the reach of children, do not dispose of the
battery in fire, do not short-circuit it, and do not take it apart.
Failure to observe these instructions may result in the battery discharging
beyond its end voltage, which poses a risk of leakage. If the battery
in your instrument has leaked, have it removed immediately to prevent
damage to the instrument.

GB 13
Safety/Assembly/Preparing for use
Avoid contact with skin, eyes and mucous membrane. In the event of
contact with battery acid, rinse the affected area with plenty of water
and/ or consult a doctor.
Never use rechargeable batteries.
The supply terminals are not to be short-circuited.
Do not mix old batteries with new ones.
Remove the batteries from the device if they have not been used for
a long period.
Make sure you insert the batteries the right way round (polarity).
Assembly
Note: You will need a screwdriver and a drill to assemble the doorbell.
Note: Only use the screws and dowels supplied for the assembly of
the device.
Mount the receiver (see Fig. E)
Mount the transmitter (see Fig. F)
Preparing for use
Inserting/replacing the batteries
Insert the batteries to provide power to the device before preparing
it for use.

GB14
Preparing for use
CAUTION! Use the above-indicated battery types only. Failure to
observe this advice may result in damage to the product.
Receiver:
Remove the battery compartment cover 9from the back of the
device.
Remove the used batteries, if present.
Insert 2 batteries (1.5 V , type AA).
Note: Ensure correct polarity. This is indicated in the battery
compartment 10 .
Close the battery compartment 10 .
Transmitter:
Remove the holder 15 from the back of the transmitter.
Remove the used batteries, if present.
Insert a battery (3 V , type CR 2032). The side marked “+” must
face upwards.
Fasten the holder 15 of the receiver back on to the back of the device.

GB 15
Operation
Operation
Synchronising transmitter/receiver
Synchronise the transmitter and receiver as follows:
As soon as the batteries are installed, the receiver enters synchronis-
ing mode.
You can also manually enter synchronising mode by holding the
synchronising button 2for approx. 3 seconds.
The signal indicator 1on the receiver will light on.
Press the chime button 13 , the signal indicator 11 on the transmitter
will illuminate once.
The signal indicator 1on the receiver will then blink. This is to indi-
cate the synchronisation is successful.
NOTE: The synchronisation mode can only last for approx. 2 minute. If
you cannot synchronise your transmitter and receiver, please enter syn-
chronising mode again.
Setting the signal type
The receiver can indicate the reception of a door signal either optically
or acoustically or both optically and acoustically.

GB16
Operation
Using the signal type selector button 5, select whether the signal
is to be indicated optically or acoustically or both optically and
acoustically.
Setting the volume
Press the volume button 3until the desired volume is reached. There
are a total of 4 possible volume settings: very loud, loud, medium,
soft.
Selecting the chime
Note: The doorbell has 36 different chimes.
Press the melody selection button 4. The first audible signal sounds.
Press the melody selection button 4again to move on to the next
audible signal.
Repeat this process until you have selected your desired audible signal.
The last-selected audible signal is automatically stored.
Troubleshooting
After the influence of extraordinary environmental conditions (e.g. a strong
electromagnetical field) the function of the item may be affected. In this
case, please take off the batteries of both appliances for approximately

GB 17
Operation/Cleaning and maintenance/Disposal
2 minutes. Then proceed again as described in the section “Synchronising
the transmitter/ receiver”.
Electrostatic discharges may lead to malfunctions. If such malfunctions
do occur, remove the battery for a short time and then replace it again.
Then proceed again as described in the section “Synchronising the
transmitter/ receiver”.
Cleaning and maintenance
Under no circumstances should you use liquids or detergents, as
these will damage the device.
The device should only be cleaned on the outside with a soft dry cloth.
Disposal
The packaging is made entirely of recyclable materials,
which you may dispose of at local recycling facilities.
Contact your local refuse disposal authority for more details of how to
dispose of your worn-out product.

GB18
Disposal
To help protect the environment, please dispose of the product
properly when it has reached the end of its useful life and not
in the household waste. Information on collection points and
their opening hours can be obtained from your local authority.
Faulty or used batteries must be recycled in accordance with Directive
2006/ 66 /EC. Please return the batteries and/or the device to the
available collection points.
Pb
Environmental damage through
incorrect disposal of the batteries!
Batteries may not be disposed of with the usual domestic waste. They
may contain toxic heavy metals and are subject to hazardous waste
treatment rules and regulations. The chemical symbols for heavy metals
are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why
you should dispose of used batteries at a local collection point.

GB 19
Information
Information
Declaration of conformity
We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, D-74167 Neckarsulm,
hereby declare under our sole responsibility that the product: Wireless
Doorbell, Model No.: Z31370A/Z31370B, Version: 01/2013, to
which this declaration refers, complies with the standards/normative
documents of 1999/ 5 /EC.
The complete declaration of conformity can be viewed at:
www.owim.com.
EMC

PL20
Wstęp
Zastosowanie zgodne z przeznaczeniem .......................................Strona 21
Parametry techniczne.........................................................................Strona 21
Zakres dostawy...................................................................................Strona 22
Przegląd części...................................................................................Strona 22
Bezpieczeństwo........................................................................Strona 23
Wskazówki ogólne dotyczące bezpieczeństwa.............................Strona 24
Wskazówki bezpieczeństwa dotyczące baterii..............................Strona 24
Montaż ..............................................................................................Strona 26
Uruchomienie
Zakładanie /wymiana baterii ...........................................................Strona 26
Obsługa
Synchronizacja nadajnika/odbiornika............................................Strona 27
Ustawianie rodzaju sygnału.............................................................. Strona 28
Ustawianie głośności.......................................................................... Strona 28
Wybór dźwięku dzwonka .................................................................Strona 28
Usuwanie błędów............................................................................... Strona 29
Czyszczenie oraz pielęgnacja.....................................Strona 29
Usuwanie........................................................................................Strona 30
Informacje
Deklaracja zgodności ........................................................................ Strona 31
Spis zawartości
