Introduction
Intended use........................................................................................... Page 6
Technical data........................................................................................ Page 6
Included items ........................................................................................ Page 7
Parts and features.................................................................................. Page 7
Safety.................................................................................................... Page 8
General safety information................................................................... Page 9
Safety instructions for batteries ............................................................ Page 9
Assembly............................................................................................ P ag e 11
Preparing for use
Inserting/replacing the batteries......................................................... Pa g e 11
Operation
Synchronising transmitter/ receiver ..................................................... Page 12
Setting the signal type........................................................................... Page 13
Setting the volume ................................................................................. Page 13
Selecting the chime................................................................................ Page 14
Troubleshooting...................................................................................... Page 14
Cleaning and maintenance............................................... Page 14
Disposal............................................................................................... Page 15
Information
Declaration of conformity..................................................................... Page 16
Warranty............................................................................................ Page 16
Table of contents

GB6
Introduction
Wireless Doorbell
Introduction
Keep these instructions in a safe place. If you pass the product
on to anyone else, please ensure that you also pass on all
the documentation.
Intended use
This product is intended for the wireless transmission of the doorbell
chime. The product is not intended for commercial use.
Technical data
Range: 100m (unobstructed area)
Transmission frequency: 433MHz
Battery types: Receiver: 2x 1.5V (type AA/ LR6),
Transmitter: 1x 3 V (type CR2032)
Receiver: Audible signal volume (at maximum volume
setting): min. 73dB (at a distance of 1 m
from the device)
Transmitter: IP rating: IP44

GB 7
Introduction
Included items
1 Transmitter
1 Receiver
2 Batteries 1.5V , type AA (receiver)
1 Batteries 3V , type CR2032 (transmitter)
4 Screws (for transmitter and for mounting the receiver on a wall)
3 Dowels
5 Exchangeable name plates (for the doorbell)
1 Doorbell cover
1 Operating instructions
Parts and features

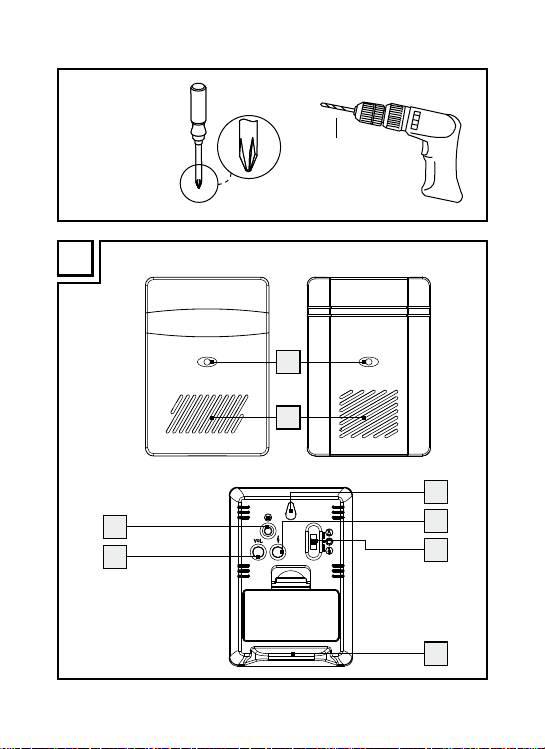

Receiver (Figs. A/B):
1Signal indicator
2Synchronisation button
3Volume button
4Melody selection button
5Signal type selector button (optical, acoustic, optical and acoustic
signal)
6Speaker
7Stand
8Hanger

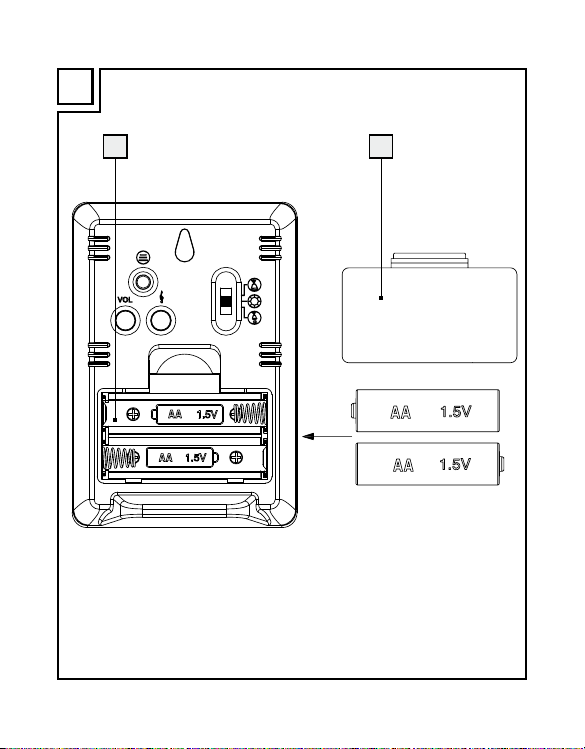

9Battery compartment cover
10 Battery compartment

GB8
Introduction/Safety
Transmitter (Figs. C/D):
11 Signal indicator
12 Name plate
13 Chime button
14 Battery compartment
15 Holder (for wall mounting)
Mounting (Figs. E/ F):
16 Screw
17 Dowel
18 Screw (for transmitter)
Safety
Read all safety information and instructions. Failure
to comply with the safety information and instructions may cause fire
and/ or serious injury.
YOU SHOULD STORE ALL SAFETY INFORMATION AND INSTRUC-
TIONS IN A SAFE PLACE IN CASE YOU NEED TO REFER TO THEM
AGAIN IN THE FUTURE!

GB 9
Safety
General safety information
Children often underestimate risks.
Always keep children away from the product. This is not
a toy.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental capa-
bilities or lack of experience and knowledge if they have been giv-
en supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not
be made by children without supervision.
Check that all parts are in sound condition. If you use damaged
parts when assembling the device, you risk injury.
Check that all parts have been assembled correctly. There is a risk
of injury if the device is not properly assembled.
Keep the device away from open flames or sources of heat (e.g.
burning candles).
Safety instructions for batteries
DANGER TO LIFE! Batteries can be swallowed,
which can prove fatal. Consult a doctor immediately if anyone
swallows a battery.

GB10
Safety
EXPLOSION HAZARD! Never recharge nonrecharge-
able batteries, short-circuit and/or open batteries. This can
cause them to overheat, burn or burst.
Never throw batteries into fire or water. The batteries may explode.
Immediately remove depleted batteries from the device; otherwise
there will be an increased risk of leakage!
Always replace all the batteries at the same time and insert batteries
of the same type.
Do not use different types of batteries or mix used and new batteries
together.
Batteries do not belong in household refuse. Dispose of used batteries
in an environmentally friendly manner.
Consumers are under a legal obligation to dispose of batteries in
the proper way.
Keep the battery out of the reach of children, do not dispose of the
battery in fire, do not short-circuit it, and do not take it apart.
Failure to observe these instructions may result in the battery discharging
beyond its end voltage, which poses a risk of leakage. If the battery
in your instrument has leaked, have it removed immediately to prevent
damage to the instrument.
Avoid contact with skin, eyes and mucous membrane. In the event of
contact with battery acid, rinse the affected area with plenty of water
and/ or consult a doctor.
Never use rechargeable batteries.
The supply terminals are not to be short-circuited.
Do not mix old batteries with new ones.

GB 11
Safety/Assembly/Preparing for use
Remove the batteries from the device if they have not been used for
a long period.
Make sure you insert the batteries the right way round (polarity).
Assembly
Note: You will need a screwdriver and a drill to assemble the doorbell.
Note: Only use the screws and dowels supplied for the assembly of
the device.
Mount the receiver (see Fig. E)
Mount the transmitter (see Fig. F)
Preparing for use
For first time use, please remove the protective foil from the name
plate 12 of the transmitter.
Inserting/replacing the batteries
Insert the batteries to provide power to the device before preparing
it for use.
CAUTION! Use the above-indicated battery types only. Failure to
observe this advice may result in damage to the product.

GB12
Preparing for use/Operation
Receiver:
Remove the battery compartment cover 9from the back of the
device.
Remove the used batteries, if present.
Insert 2 batteries (1.5V , type AA).
Note: Ensure correct polarity. This is indicated in the battery
compartment 10 .
Close the battery compartment 10 .
Transmitter:
Remove the holder 15 from the back of the transmitter.
Remove the used batteries, if present.
Insert a battery (3 V , type CR 2032). The side marked “+” must
face upwards.
Fasten the holder 15 of the receiver back on to the back of the device.
Operation
Synchronising transmitter/receiver
Synchronise the transmitter and receiver as follows:
As soon as the batteries are installed, the receiver enters synchronis-
ing mode.
You can also manually enter synchronising mode by holding the
synchronising button 2for approx. 3 seconds.
The signal indicator 1on the receiver will light on.
Press the chime button 13 , the signal indicator 11 on the transmitter
will illuminate once.

GB 13
Operation
The signal indicator 1on the receiver will then blink. This is to indi-
cate the synchronisation is successful.
NOTE: The synchronisation mode can only last for approx. 2 minute. If
you cannot synchronise your transmitter and receiver, please enter syn-
chronising mode again.
NOTE: Wait for approx. 2 Minutes after the transmitter and receiver
have been successfully synchronized until the signal indicator 1on the
receiver goes out.
Setting the signal type
The receiver can indicate the reception of a door signal either optically
or acoustically or both optically and acoustically.
Using the signal type selector button 5, select whether the signal
is to be indicated optically or acoustically or both optically and
acoustically.
Setting the volume
Press the volume button 3until the desired volume is reached. There
are a total of 4 possible volume settings: very loud, loud, medium, sof t.

GB14
Operation/Cleaning and maintenance
Selecting the chime
Note: The doorbell has 36 different chimes.
Press the melody selection button 4. The first audible signal sounds.
Press the melody selection button 4again to move on to the next
audible signal.
Repeat this process until you have selected your desired audible signal.
The last-selected audible signal is automatically stored.
Troubleshooting
After the influence of extraordinary environmental conditions (e.g. a strong
electromagnetical field) the function of the item may be affected. In this
case, please take off the batteries of both appliances for approximately
2 minutes. Then proceed again as described in the section “Synchronising
the transmitter/ receiver”.
Electrostatic discharges may lead to malfunctions. If such malfunctions
do occur, remove the battery for a short time and then replace it again.
Then proceed again as described in the section “Synchronising the
transmitter/ receiver”.
Cleaning and maintenance
Under no circumstances should you use liquids or detergents, as
these will damage the device.
The device should only be cleaned on the outside with a soft dry cloth.

GB 15
Disposal
Disposal
The packaging is made entirely of recyclable materials,
which you may dispose of at local recycling facilities.
Contact your local refuse disposal authority for more details of how to
dispose of your worn-out product.
To help protect the environment, please dispose of the product
properly when it has reached the end of its useful life and not
in the household waste. Information on collection points and
their opening hours can be obtained from your local authority.
Faulty or used batteries must be recycled in accordance with Directive
2006/ 66 / EC and its amendments. Please return the batteries and / or
the device to the available collection points.
Environmental damage through
incorrect disposal of the batteries!
Batteries may not be disposed of with the usual domestic waste. They
may contain toxic heavy metals and are subject to hazardous waste
treatment rules and regulations. The chemical symbols for heavy metals
are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why
you should dispose of used batteries at a local collection point.

GB16
Information
Declaration of conformity
We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, D-74167 Neckarsulm,
hereby declare under our sole responsibility that the product: Wireless
Doorbell, Model No.: Z31370A/Z31370B, Version: 12/ 2015, to
which this declaration refers, complies with the standards/ normative
documents of 1999/5 / EC.
The complete declaration of conformity can be viewed at:
www.owim.com.
Warranty
The device has been manufactured to strict quality guidelines and meticu-
lously examined before delivery. In the event of product defects you have
legal rights against the retailer of this product. Your legal rights are not
limited in any way by our warranty detailed below.
Information/Warranty

GB 17
The warranty for this device is 3 years from the date of purchase. Should
this device show any fault in materials or manufacture within 3 years from
the
date of purchase, we will repair or replace it – at our choice – free of
charge to you.
The warranty period begins on the date of pur chase. Please keep the origi-
nal sales receipt in a safe location. This document is required as your proof
of purchase. This warranty becomes void if the device has been damaged
or improperly used or maintained.
The warranty applies to faults in material or manufacture. This warranty
does not cover product parts subject to normal wear, thus possibly con-
sidered consumables (e.g. batteries) or for damage to fragile parts, e.g.
switches, rechargeable batteries or glass parts.
Warranty

HU18
Bevezető
Rendeltetésszerű használat .................................................................Oldal 19
Műszaki adatok....................................................................................Oldal 19
A szállítmány tartalma..........................................................................Oldal 20
Alkatrészek áttekintése.........................................................................Oldal 20
Biztonság ..........................................................................................Oldal 21
Általános biztonsági utasítások...........................................................Oldal 22
Biztonsági tudnivalók az elemekkel kapcsolatban ...........................Oldal 22
Szerelés...............................................................................................Oldal 24
Üzembe helyezés
Elemek behelyezése/cserélése..........................................................Oldal 24
Kezelés
Az adó/ vevő szinkronizálása ............................................................Oldal 25
A jelzési mód beállítása.......................................................................Oldal 26
A hangerő beállítása............................................................................Oldal 26
A jelzési hang beállítása......................................................................Oldal 27
Hiba megszüntetése.............................................................................Oldal 27
Tisztítás és ápolás.....................................................................Oldal 28
Megsemmisítés............................................................................Oldal 28
Információ
Megfelelőségi nyilatkozat ...................................................................Oldal 29
Garancia............................................................................................Oldal 30
Kazalo
