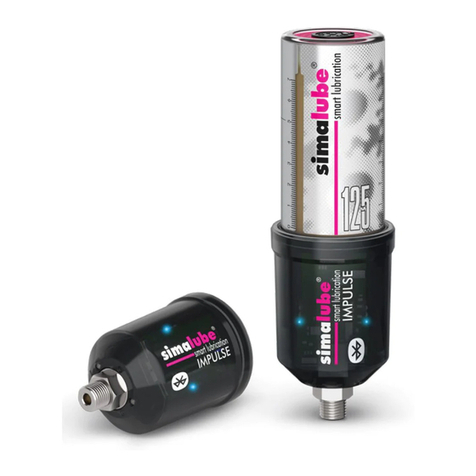

simalube IMPULSE Mounting instructions

simatec ag
Stadthof 2
CH-3380 Wangen a. Aare
Tel.: [phone]
Fax.: [phone]
[email protected]
www.simatec.com
Screw on lubricator, device will be activated,
green LED will blink 2x. The rst pump
cycle will begin within 30 seconds
device will be activated,
green LED will blink 2x. The rst pump
Clean lubrication point
Insert the battery pack

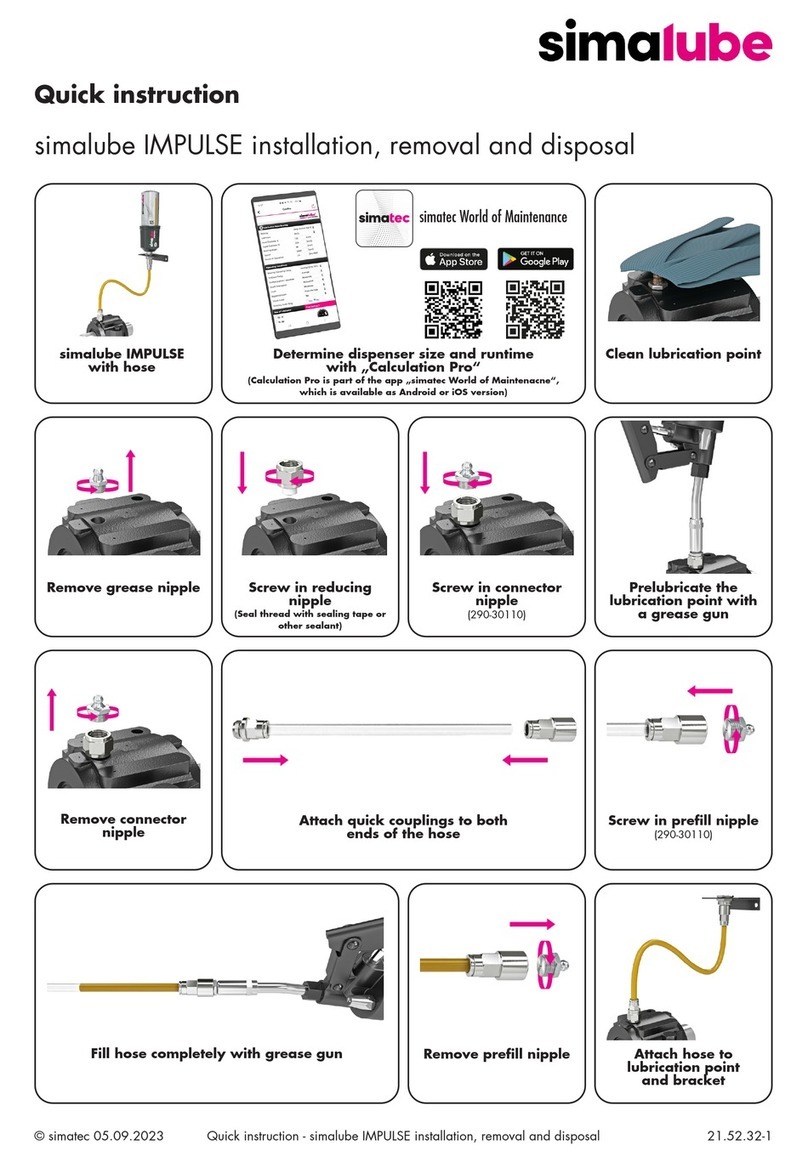

simalube IMPULSE quick instruction guide for installation, removal,
rell and disposal
Calculation and preparation of lubrication point
Install and activate simalube and IMPULSE
Remove connector nipple and
screw in quick connection
coupling
Connect hose and prell
with a grease gun
(ll tubes completely)
Cut off plug from lubricator or
remove green plug
Activate calculated dispensing
time with 3 mm Allen key
Write in activation date
Use „Calculation Pro“ to choose correct dispensing
time and lubricator size.
(“Calculation Pro” is available at www.simatec.com, in the App Store, and
in the Android Market.)
Check simalube and
IMPULSE regularly
Seal IMPULSE and screw onto
lubrication point
IMPULSE logo must face the front
Connect hose to
mounting bracket
All manuals and user guides at all-guides.com
all-guides.com

simatec ag
Stadthof 2
CH-3380 Wangen a. Aare
Tel.: [phone]
Fax.: [phone]
[email protected]
www.simatec.com
a)
b)
Put IMPULSE with new lubricator into operation
Dispose of intact gas generator in
battery recycling and empty housing
in plastic recycling.
(Warning: dispose of leftover grease
separately)
a)
b)
a)
b)
a) Remove cover disk
b) Remove gas generator with
a socket wrench (SW21 mm)
Replace and recycle the lubricator
Replace or rell the
empty lubricator
Remove the used battery pack and replace it
with a new one
Screw relled or new lubricator
onto the lubrication point
10x simalube
dispensing cycles
3 years from
the production date
or
Period of use of the
simalube IMPULSE:
Check and clean the gasket
IMPULSE remains on lubrication
point
