Simrad S3009 User manual

ENGLISH
S3009 Navigation Echo Sounder
User Manual
www.navico-commercial.com

Preface
Disclaimer
As Navico is continuously improving this product, we retain the right to make changes to the
product at any time which may not be reflected in this version of the manual. Please contact
your nearest distributor if you require any further assistance.
It is the owner’s sole responsibility to install and use the equipment in a manner that will not
cause accidents, personal injury or property damage. The user of this product is solely
responsible for observing maritime safety practices.
NAVICO HOLDING AS AND ITS SUBSIDIARIES, BRANCHES AND AFFILIATES DISCLAIM ALL
LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE
OR THAT MAY VIOLATE THE LAW.
This manual represents the product as at the time of printing. Navico Holding AS and its
subsidiaries, branches and affiliates reserve the right to make changes to specifications
without notice.
Governing language
This statement, any instruction manuals, user guides and other information relating to the
product (Documentation) may be translated to, or has been translated from, another
language (Translation). In the event of any conflict between any Translation of the
Documentation, the English language version of the Documentation will be the official
version of the Documentation.
Copyright
Copyright © 2018 Navico Holding AS.
Warranty
The warranty card is supplied as a separate document. In case of any queries, refer to the
brand website of your unit or system: www.navico.com/commercial.
Compliance statements
Regulatory compliance
Navico declare under our sole responsibility that the S3009 conforms with the requirements
of:
•the requirements of level 2 devices of the Radio communications (Electromagnetic
Compatibility) standard 2008 - RCM
•the European Council Directive 2014/90/EU on Marine Equipment modified by
Commissioning Directive (EU) 2017/306 - Wheelmark
All compliance documents are available on the product's section on the following website:
www.navico.com/commercial.
Technical compliance
The S3009 meets the requirements of the following standards:
•NMEA 0183/IEC61162-1 ed.5
•NMEA 2000/IEC61162-3
•ISO 9875:2000/Cor 1:2006
•IEC62288 ed.2
•IEC60945 ed.4
Preface | S3009 Echo Sounder User Manual 3

About this manual
Important text conventions
Important text that requires special attention from the reader is emphasized as follows:
ÚNote: Used to draw the reader’s attention to a comment or some important information.
Warning: Used when it is necessary to warn personnel that they should
proceed carefully to prevent risk of injury and/or damage to equipment/
personnel.
Intended audience
This manual is written for system operators and installers. It assumes that the user has basic
knowledge of echosounders, and assumes some knowledge and skills relevant to installation
of transducers and echosounder equipment.
Software versions

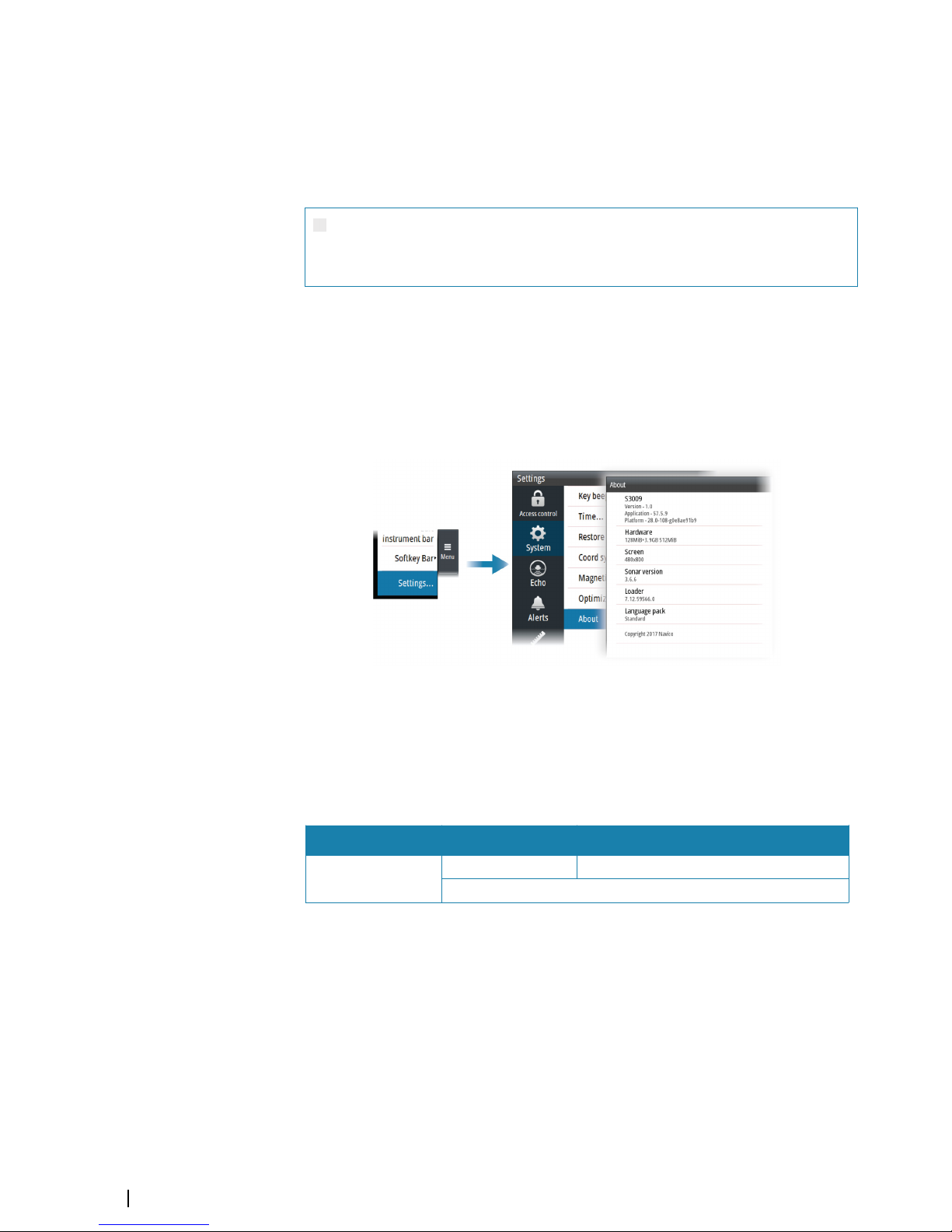

You can view the software version from the About dialog:
ÚNote: The image above is an example only.
The manual will continuously be updated to match new software releases. The latest
available manual version can be downloaded from the product website on:
www.navico.com/commercial.
Change log
Part no Date Approved by
988-12043-001 4. Jan 2018 Jarl Gaute Vartdal
First version
4Preface | S3009 Echo Sounder User Manual

Viewing the manual on the screen
The PDF viewer included in the unit makes it possible to read the manuals and other PDF
files on the screen. The manuals can be read from a card inserted in the card reader or copied
to the unit’s internal memory.
Use the keys to maneuver in the PDF file as described below:
•Scroll pages
Use the rotary knob.
•Zoom in/out
Use the +and -keys.
•Maneuver on a page that is larger than the display area
Use the arrow keys.
•Exit the PDF viewer
Use the Exit key.
Trademarks
Navico®is a registered trademark of Navico.
Simrad®is used by license from Kongsberg.
NMEA®and NMEA 2000®are registered trademarks of the National Marine Electronics
Association.
SD™and microSD™are trademarks or registered trademarks of SD-3C, LLC in the United
States, other countries or both.
Preface | S3009 Echo Sounder User Manual 5

Contents
8 Introduction
8The S3009 Navigation Echo Sounder system
8 System components
8 System examples
9 The user interface
9 Front panel and keys
10 The main panel
10 Softkeys
11 The menu system
11 On-screen keyboard
12 Basic operation
12 Turning the system on and off
12 Adjusting display brilliance
12 Acknowledging alerts

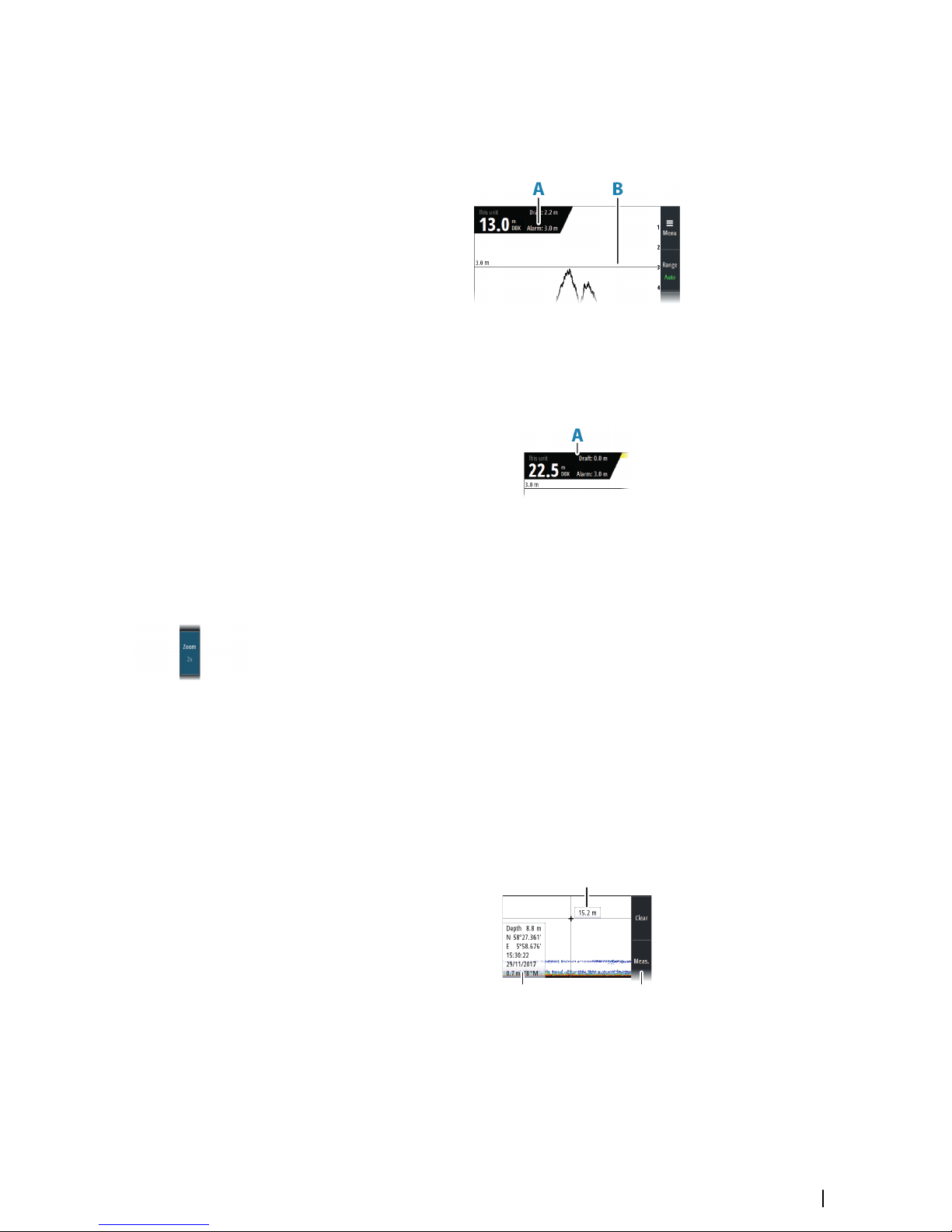

12 Adjusting depth settings
13 Zooming the image
13 Using the cursor on the image
14 Viewing the depth history
15 Setting up the echosounder image
15 Setting the range
15 Adjusting color and gain settings

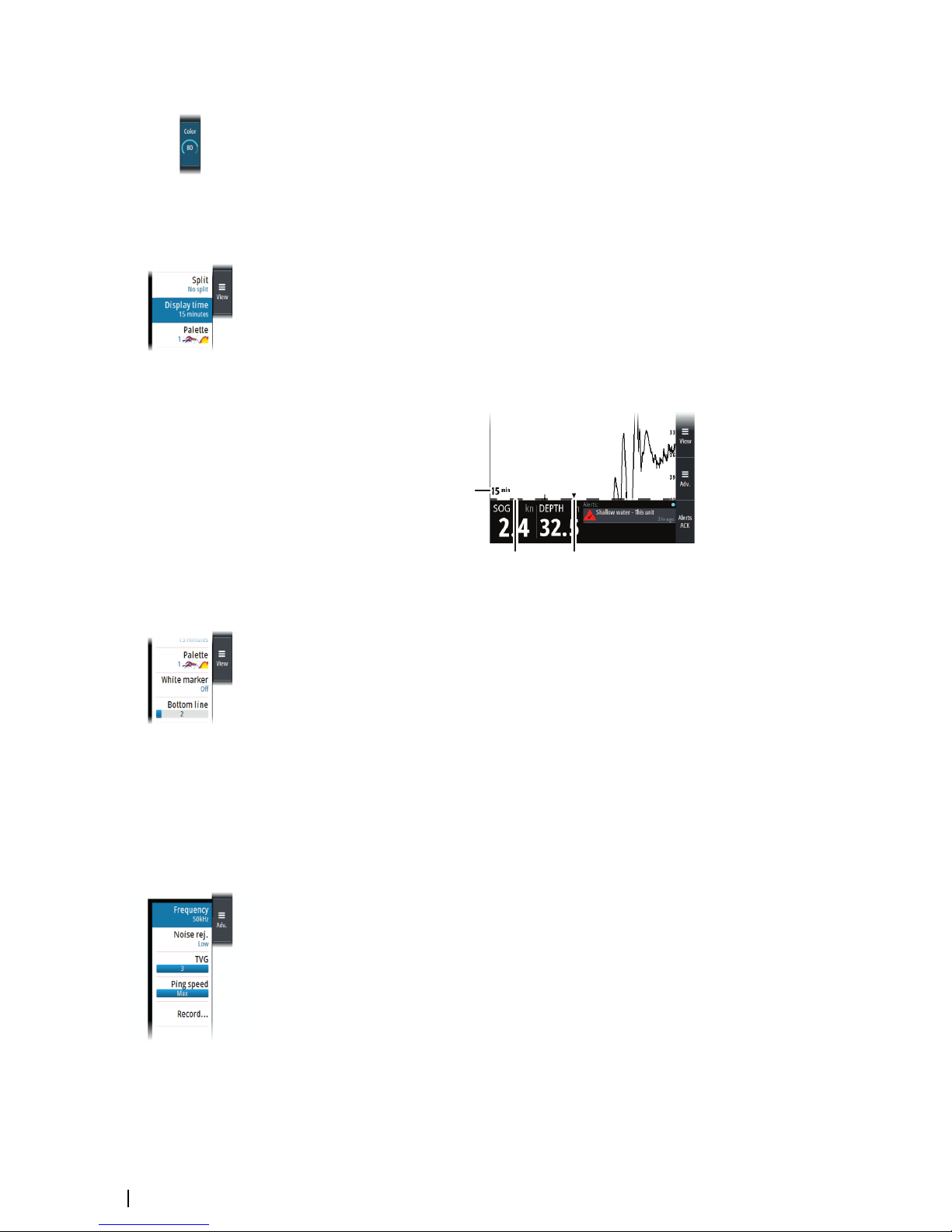

16 Display time
16 Optional image items
16 Advanced options
18 Panel setup
18 Selecting transducer source
18 Split screen options
19 Show or hide the softkey bar
19 Edit the content of the Instrument bar
20 Advanced options
20 Recording depth data
20 Managing files
20 Simulator
21 Data logging
21 Depth log
21 Alert log
21 NMEA 0183 data log
21 Exporting the log files
22 The alert system
22 Type of alerts
22 Alert notifications
23 The Alerts dialog
23 Alphabetic alert list
24 Mounting
24 S3009 Control unit
25 Transducers
25 S5100 echosounder module
6Contents | S3009 Echo Sounder User Manual

26 Wiring
26 Guidelines
26 System examples
27 Transducer wiring
32 Power wiring
34 Ethernet wiring
34 NMEA 0183 wiring
35 NMEA 2000 wiring
36 External alarm wiring
38 Software setup
38 Software setup sequence
38 Accessing the settings dialog
38 Access control
38 System settings
39 Echo settings
41 Units settings
41 Network settings
45 Maintenance
45 Preventive maintenance
45 Cleaning the display unit
45 Cleaning the media port door
45 Checking the keys
45 Checking the connectors
45 Software upgrades
46 Backing up your system data
47 Appendix
47 Menu overview
49 Dimensional drawings
51 Supported data
54 Technical specifications
Contents | S3009 Echo Sounder User Manual 7

Introduction
The S3009 Navigation Echo Sounder system
The S3009 Navigation Echo Sounder system is a type approved echosounder system
conforming to the International Maritime Organization (IMO) requirements for equipment
installed on vessels that are subject to SOLAS regulations. The system is type approved only
in the configuration specified in the certificate.
The type approval certificate is available at the product web site: www.navico.com/
commercial.
System components
S3009 Control unit
The S3009 is a dedicated echosounder control unit with a 9-inch portrait display. The unit is
fitted with a high brightness screen, suited for pilothouse installation.
Transducers
The system is certified with the following transducers:
•TGM50-200-xxL (200 kHz)
•TGM60-50-xxL (50 kHz)
S5100 Echosounder module
The S5100 is a networked echosounder module with 3 independent echosounder channels.
System examples
For system wiring examples refer to "Systemexamples" on page 26.
1
8Introduction | S3009 Echo Sounder User Manual

The user interface
Front panel and keys
1
2
3
4
5
6
7
8
8 9
1 Softkeys
Press a key once to access the corresponding function shown on the display.
2 ENT (Enter) key
With no menu or no cursor active: no function.
Menu operation: press to select or deselect an option.
3 Arrow keys
With no menu active: press to activate the cursor and to move the cursor on the
image.
Menu operation: press to navigate through menu items and to adjust a value.
4 EXIT key
With no menu or no cursor active: no function.
With cursor active: press to remove cursor.
Menu operation: press to return to previous menu level or to exit a dialog.
5 Rotary knob
With no menu active: behavior depending on operational mode.
Menu operation: rotate to scroll through menu items and to adjust values. Press to
select or to save settings.
On dual split panel: press to switch focus between the panels.
6 RANGE key
Press the +or the -indication to increase or decrease the range.
7 Power key
Press once to turn the system on.
When the system is running: press once to display the Brilliance pop-up.
Press and hold to display the Power off pop-up.
8 Card reader door
9 SD card reader
2
The user interface | S3009 Echo Sounder User Manual 9

The main panel
The main panel is divided into predefined areas.
The panel can be set up as a single panel or as different split panels. Refer to "Panelsetup" on
page 18.
A Echosounder information panel
Current depth, source name, draft setting and alarm limit for active transducer
B Depth scale
Depth scale indication
C Depth alarm line
Visual indication of depth alarm setting
D Softkey bar
Indication of softkey function
E Data time scale
Time of depth history shown on the display
F Instrument bar
Two configurable data gauges
G Alerts panel
List of active alerts
Softkeys
When a softkey is pressed, the function for the selected softkey becomes available.
By default, the softkey bar is displayed on the panel. You can hide the softkey bar so that
more of the image is displayed. Refer to "Showorhidethesoftkeybar" on page 19.
More details about the softkey functionality are available in the separate sections describing
the functions later in this manual.
Softkey pop-ups

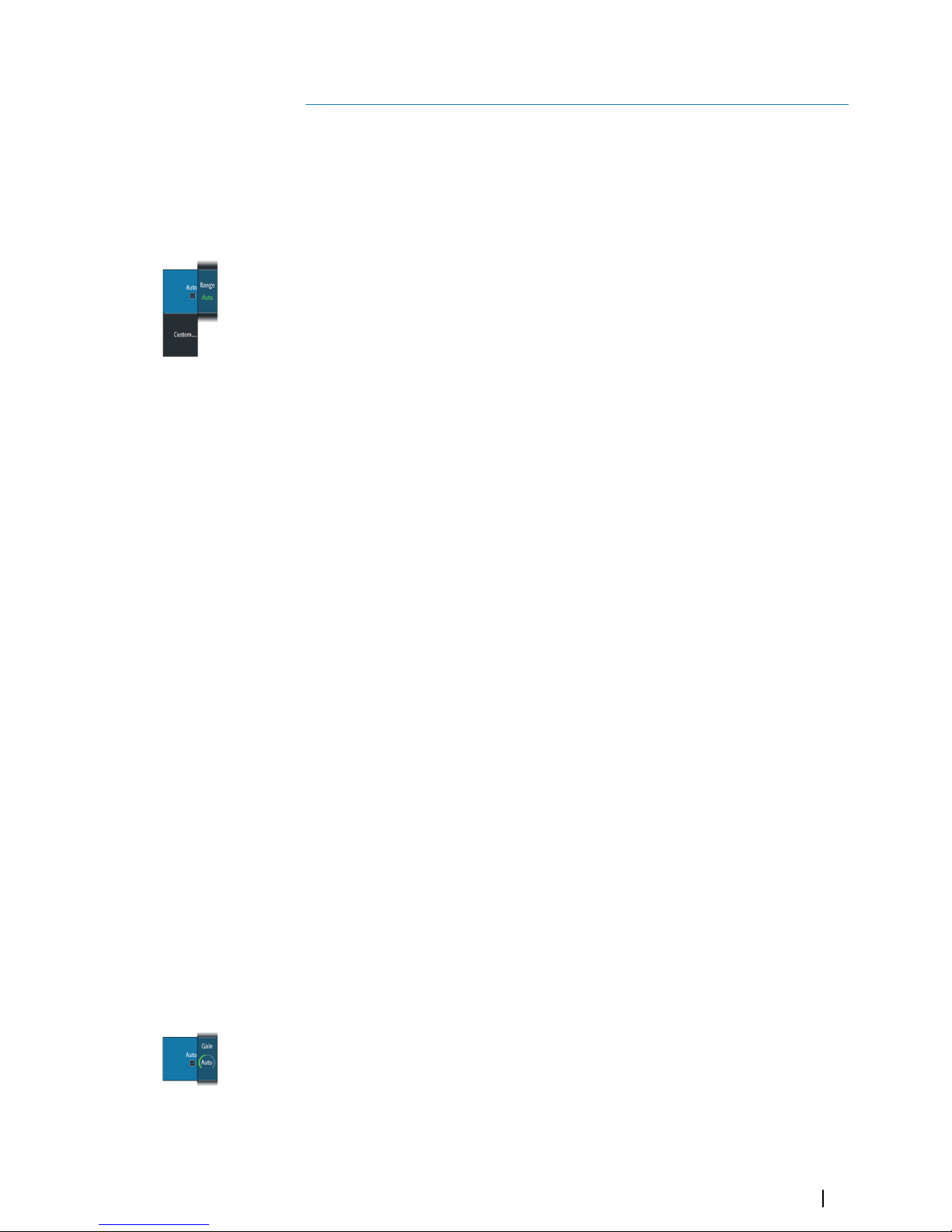

If you press the Range or Gain softkey twice, their corresponding pop-up is displayed.
10 The user interface | S3009 Echo Sounder User Manual

If a pop-up has more than one option, you select the options by using the arrow keys.
You close the pop-up by re-pressing the softkey or by pressing the Exit key.
The menu system
The Menu, View and Advanced softkeys display menus.
•Use the up and down arrow keys or turn the rotary knob to move up and down in a menu
•Press the Enter key, the right arrow key or the rotary knob to access a sub menu, to toggle
options or to confirm a selection
•Press the Exit key or the left arrow key to return to previous menu level and then exit the
menu system
Main menu and sub menus
You access the Main menu by pressing the Menu softkey.
A selected menu item is indicated with a blue background. If a sub-menu is available, this is
indicated with a right arrow after the text.
Some options display a slider. Turn the rotary knob or press the up/down arrow keys to
adjust the value.
Settings dialogs
The various Settings dialogs provide access to system settings.
You access the Settings dialogs from the Main menu.
ÚNote: Some of the parameters in the Settings dialogs are intended for system setup and
service engineers. These parameters are protected, and they are only available by
entering the password QWERTY in the Access control dialog.
There is no time-out for the Settings dialogs. A dialog remains open until it is manually
closed.
For more information about the Settings dialogs, refer to "Softwaresetup" on page 38.
On-screen keyboard
A numeric or alphanumeric virtual keyboard is displayed when required to enter user
information in dialogs.
•Select a virtual key by using the arrow keys followed by the Enter key to confirm the
selection
•Complete the entry and close the dialog by selecting the Enter virtual key
You remove the virtual keyboard without entering information by pressing the Exit key.
The user interface | S3009 Echo Sounder User Manual 11

Basic operation
Turning the system on and off
The unit is turned on by pressing the Standby/Brilliance key.
Press and hold the Standby/Brilliance key to turn the unit off.
Adjusting display brilliance
The brilliance is adjusted from the Brilliance pop-up.
•Display the pop-up by pressing the Standby/Brilliance key, then adjust the display
brilliance by turning the rotary knob.
At first start-up, the display brilliance is set to 100%. When the unit is restarted, the brilliance
is automatically set to the level it was prior to switching the unit off.
The system includes a Day and a Night color palette. When the brilliance is set to 40% or
lower, the system switches to use the night palette.
•With the pop-up open, you switch between Day and Night palette by pressing the left
(40%) or right (100%) arrow keys.
You close the pop-up by pressing the Exit key.
Acknowledging alerts
The Alerts softkey is labelled Alerts Acknowledge (Alerts Ack on smaller screens) if there is an
unacknowledged alarm or warning in the system.
Acknowledge the most recent alert by pressing the Alerts softkey.
•Repeat pressing this softkey to continue to acknowledge alerts from the top of the Alerts
panel.
•Press the Exit key to exit the Alerts panel.
When an alert is acknowledged, the alert icon stops flashing and changes to the
acknowledged icon. The siren continues to sound if there are remaining unacknowledged
alerts, otherwise it is muted.
The acknowledged alert is not moved to its new position in the sort order until there has
been 2 seconds without any alerts being acknowledged.
For more details, refer to "Thealertsystem" on page 22.
Adjusting depth settings
The depth reference
You can show the depth referenced to the surface, the keel or to the transducer.
The depth reference is indicated in the echosounder information panel (A) as either DBS
(Depth Below Surface), DBK (Depth Below Keel) or as DBT (Depth Below Transducer).
3
12 Basic operation | S3009 Echo Sounder User Manual

Alarm depth
An alarm is generated if the measured depth becomes shallower than the set alarm limit.
The depth alarm limit is indicated in the echosounder information panel (A), and a horizontal
line (B) indicates the depth settings on the image.
The alarm depth is always shown with the same reference as the measured depth.
Draft
The draft setting can be adjusted for different sailing and load conditions.
The draft value is indicated in the echosounder information panel (A).
ÚNote: If dual panels are used, the draft value can be set individually for each panel.
Zooming the image
You zoom the image by pressing the Zoom softkey and then turning the rotary knob. You
can pan the zoomed area with the arrow keys.
The zoom level is shown in the Zoom softkey.
You can also zoom the image by using the Split Zoom option. Refer to "Splitscreenoptions" on
page 18.
Using the cursor on the image
You activate the cursor by pressing any arrow key. Use the arrow keys to move the cursor on
the image.
When the cursor is active, the depth at the cursor position is displayed (A), and the cursor
information window (B) is activated. The two upper softkeys (C) change to show cursor
relevant options.
To remove the cursor and cursor elements from the panel, press the Clear softkey or the Exit
key.
A
B C
Basic operation | S3009 Echo Sounder User Manual 13

Measuring distance
The cursor can be used to measure the distance between the position of two observations
on the image.
1. Position the cursor on the point from where you want to measure the distance
2. Start the measuring function by pressing the Meas. softkey
3. Position the cursor on the second measuring point
-A line (A) is drawn between the measuring points, and the distance (B) listed in the
Cursor Information window
4. Press the Enter key to switch reference point to cursor position
5. Continue selecting new measuring points if required
Press the Fin softkey to exit the measurement feature.
A
B
Viewing the depth history
Whenever the cursor is active, the history scroll bar is shown at the bottom of the image (A).
The history bar shows the image you are currently viewing in relation to the total depth
history stored.
A
•Use the arrow keys to pan the image to show image history.
To resume normal scrolling, press the Clear softkey or the Exit key.
14 Basic operation | S3009 Echo Sounder User Manual

Setting up the echosounder image
Setting the range
The system includes a manual and an automatic range mode.
•In manual mode, the depth range can be set independent of the depth of the water. You
can select a preset range level or define a custom range
•In auto mode, the system automatically displays the whole range from the water surface
to the bottom
ÚNote: Setting a deep manual range in shallow water may cause the system to lose track
of the depth.
Preset range levels
Select a preset range level manually by:
•using the + and - icons on the Range key
•pressing the Range softkey once, and then turning the rotary knob
Auto range
In auto range, the system automatically displays the whole range from the water surface to
the bottom.
Select Auto range by:
•pressing the Range softkey twice to display the pop-up, and then selecting the Auto
option
•pressing and holding the Range softkey to toggle the Auto option on/off
Custom range
This option allows you to manually set both upper and lower range limits.
Set a custom range by:
•pressing the Range softkey twice to display the pop-up, and then selecting the Custom
option.
ÚNote: Setting a custom range puts the system in manual range mode.
Adjusting color and gain settings
Gain
The gain controls the sensitivity. The more you increase the gain, the more details are shown
on the image. However, a higher gain setting may introduce more background clutter. If the
gain is set too low, weak echoes might not be displayed.
A manual and an automatic gain mode are available. By default, the gain is set to Auto.
Adjust the gain manually by:
•pressing the Gain softkey once, and then turning the rotary knob
Auto gain
The Auto gain option keeps the sensitivity at a level that works well under most conditions.
With the gain in auto mode, you can set a positive or negative offset that gets applied to the
auto gain.
Select Auto gain by:
•pressing the Gain softkey twice to display the pop-up, and then selecting the Auto option
•pressing and holding the Gain softkey to toggle the Auto gain option on/off
In Auto mode, the gain offset can be manually fine-tuned by turning the rotary knob. The
text within the control icon will then change from AUTO to A ± XX indicating that the auto
setting is manually adjusted.
4
Setting up the echosounder image | S3009 Echo Sounder User Manual 15

Color
Strong and weak signals have different colors to indicate the different signal strengths. The
colors used depend on which palette you select. The more you increase the Color setting,
the more echoes are displayed in the color at the strong return end of the scale.
To set the Color:
•press the Color softkey once, then turn the rotary knob to adjust the value.
Display time
You can change the length of the depth history shown on the display. This does not affect
already collected data, so the length of depth history shown will gradually change from the
old to the new value when changing display time.
The numeric value (A) in the lower-left corner of the panel always shows the age of the
leftmost column on the screen.
A zebra scale (B) is shown at the bottom of the image, and each stripe equals one minute.
If there is a discontinuity in the depth signal, this is indicated with a triangle (C).
A
B C
16
Optional image items
Palettes
You can select between several display palettes.
White marker
Use this option to change a specific color on the image to white. This effectively highlights
(or hides) the selected color.
Bottom line
The bottom line option makes it easier to distinguish the bottom from other objects. You can
specify the thickness of the line.
Advanced options
Frequency
The unit supports several transducer frequencies. Available frequencies depend on the
transducer model that is configured for use.
Noise rejection
Signal interference from bilge pumps, engine vibration and air bubbles can clutter the
image.
The noise rejection option filters the signal interference and reduces the on-screen clutter.
TVG
Wave action and boat wakes can cause onscreen clutter near the surface. The TVG (Time
Variable Gain) option reduces surface clutter by decreasing the sensitivity of the receiver near
the surface.
Setting up the echosounder image | S3009 Echo Sounder User Manual

Ping speed
Ping speed controls the rate the transducer transmits the signal into the water. By default,
the ping speed is set to max. It may be necessary to adjust the ping speed to limit
interference.
Setting up the echosounder image | S3009 Echo Sounder User Manual 17

Panel setup
Selecting transducer source
Depth data can be obtained from more than one transducer connected to the system. Refer
to "Systemexamples" on page 26.
Select the transducer to be shown in a panel from the View menu.
Split screen options
Dual
The dual split option allows for viewing signals from two transducers at the same time.
When the function is selected, use the orientation option (A) to select if the panels shall be
arranged on top of each other or side-by-side.
Gain and color icons (B) are displayed on dual panels.
Press the rotary knob to switch focus between the panels. Active panel is indicated with a
border.
Zoom
The split Zoom mode presents a magnified view of the sounder image on the left side of the
panel.
By default, the zoom level is set to 2x, and you can increase this up to 8x.
Change the zoom level by pressing the Zoom softkey and then turning the rotary knob.
Zoom bars (A) are available from the View menu. The bars indicate the range that is
magnified and displayed on the left side.
5
18 Panel setup | S3009 Echo Sounder User Manual

Bottom lock
The bottom lock mode is useful when you want to view echoes close to the bottom. In this
mode, the left side of the panel shows an image where the bottom is flattened. The range
scale is changed to measure from the seabed (0) and upwards. The bottom and the zero line
are always shown on the left image, independent of the range scale. The scaling factor for
the image on the left side of the panel is adjusted as described for the Zoom option.
Show or hide the softkey bar
By default, the softkey bar is displayed on the panel.
Select the hide menu option to immediately hide the softkey bar. Pressing any softkey re-
displays the softkey bar.
Auto hide the softkey bar
Selecting the auto hide option will hide the softkey bar after a few seconds of no softkey
activity. Pressing any softkey re-displays the softkey bar.
Edit the content of the Instrument bar
The data types shown in the instrument bar gauges can be changed.
To select a gauge for editing:
•Select the Edit instrument bar in the main menu to enter edit mode, then use the arrow
keys to select the gauge
-Active gauge is indicated with a border
•Press the Enter key to select preferred data
•Select the finish editing option in the menu to confirm the changes and leave edit mode
Panel setup | S3009 Echo Sounder User Manual 19

Advanced options
Recording depth data
You can record depth data. The file can be saved internally in the unit or onto a card inserted
into the unit’s card reader.
When the data is being recorded, a message appears periodically at the bottom of the
screen.
You specify the log details in the log dialog.
Managing files
Select the files option in the Main menu to open the Files dialog.
You can copy, rename, and delete files. You can transfer files from the unit to a memory card
in the card reader and vice-versa using the copy option.
Simulator
The simulation feature lets you see how the unit works without being connected to sensors
or other devices.
Simulator source files
You can select which data files that are used by the simulator. It can be either pre-recorded
data files included in your device, your own recorded log files, or files on a card inserted in
the unit's card reader.
6
20 Advanced options | S3009 Echo Sounder User Manual
