Sioux Tools 5978 Specifications

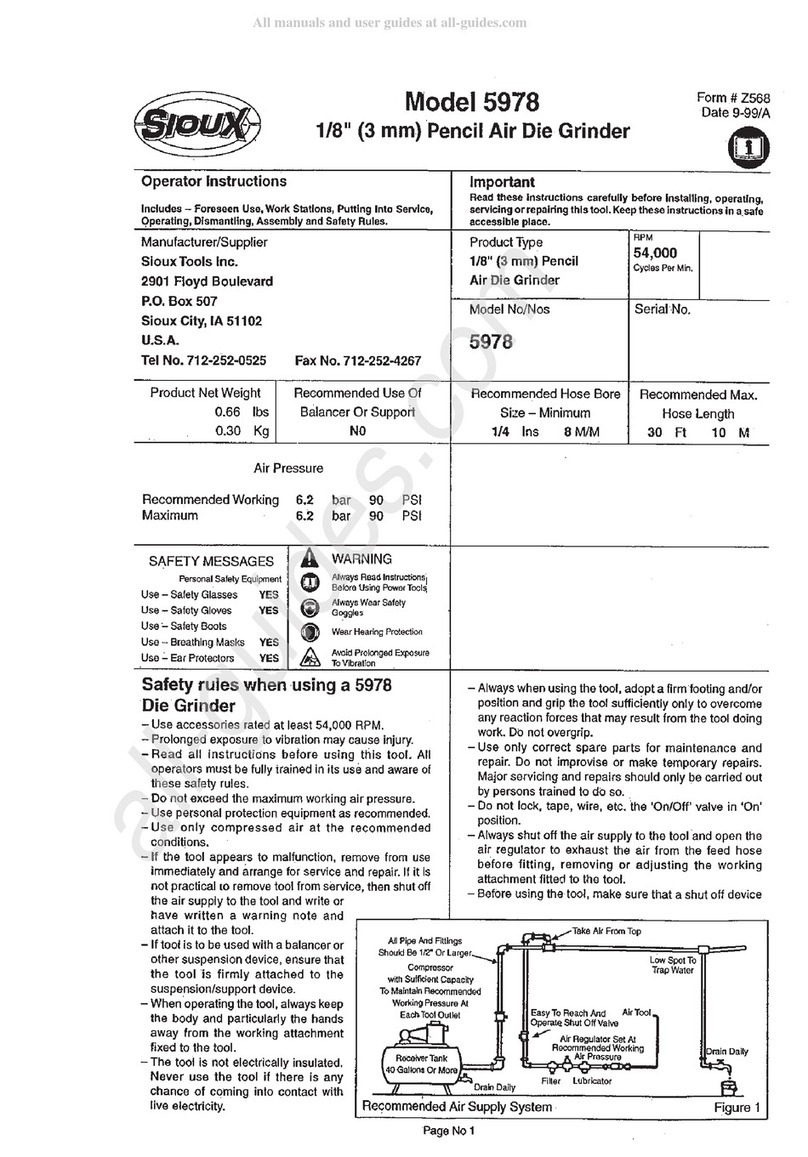

Model 5978
Operator Instructions
Includes - ForeseenUse,Work Stations, PuttingInto Service,
Operating,Dismantling,Assemblyand Safety Rules.
ManufacturerlSupplier
SiouxTools Inc.
2901 Floyd Boulevard
P.O. Box 507
Sioux City, IA 51 102
U.S.A.
Tel No. 71 2-252-0525
Fax No. 712-252-4267
Air Pressure
RecommendedWorking 6.2 bar
90 PSI
Maximum 6.2 bar
90 PSI
Use - Safely lasses YES
Always Wear Safety
Use '- Safety Boots
@ Wear Hearing Protection
Use - Breathing Masks
YES
Use - Ear Protectors YES A Ep E3tposure
Safety rules when using a 5978
Die Grinder
- Useaccessories rated at least 54,000 RPM.
- Prolongedexposureto vibrationmay cause injury.
-Read all instructions before using this tool. All
operators mustbe fully trained inits use andaware of
thesesafety rules.
- Donotexceedthe maximumworkingair pressure.
- Usepersonalprotectionequipmentas recommended.
-Use only compressed air at the recommended
conditions.
-If the tool appears to malfunction, remove from use
immediatelyand arrange for service and repair. It itIs
notpractical 10 removetoolfrom service, thenshut off
theair supplyto the tooland write or
have written a warning note and
,
attachittothe tool.
- Iftoolisto beusedwithabalanceror
other suspensiondevice, ensurethat
the tool isfirmly attached to the
suspension/supportdevice.
-When operatingthetool, alwayskeep
the body and particularlythe hands
away from the working attachment
fixedto
the tool.
-The tool is not electrically insulated.
Never use the tool if there is any
chance of coming into contact with
liveelectricity.
Form
# Z568
Date 9-59/A
Important
Read these instructionscarefully before Installing, operating,
servicingorrepairingthistool. KeeptheseInstructionsinasafe
.. . .
accessibleplace.
ProductType
118" (3 rnrn) Pencil
Air Die Grinder
Model No/Nos
RecommendedHoseBore
Size - Minimum
114 Ins 8MfM
54,000
Sycles Per Min.
-
Serial No.
Recommended Max.
Hose Length
30 Ft 10 M
- Alwayswhenusingthetool,adopta firmfooting and/or
positionandgrip thetoolsufficiently only toovercome
any reactionforcesthat may result from thetool doing
work. Do notovergrip.
-Use only correct spare parts for maintenance and
repair. Do not improvise or make temporary repairs.
Majorservicingand repairs shouldonly
be carriedout
by personstrainedto do so.
- Do not lock, tape, wire, etc. the 'OnIOff' valve in 'On'
position.
-Always shutoff the air supplyto the toolandopen the
air regulator to exhaust the air from the feed hose
before fitting, removing or adjusting the working
attachment
fitted to the tool.
- Beforeusingthetool, makesure that a shut off device
Take Air From Top
-
*
L& Spot To
Trap Water
with Suffichl Capacity
To Maintain ~ecomhended
Working Pressure A>
EachToolOutlet
Easy To Reach And
Air Toot
Filter Lubricator
~ecommendedAir Supply System
Figure 1
PageNo 1
