Sirius Range Hoods SU900 User manual

INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
CARE AND USE MANUAL FOR:
NOTICE D’UTILISATION ET D’ENTRETIEN POUR:
BUILT-IN RANGE HOODS
HOTTES ÎLOT
Models covered by this instructions:
Notice d’instruction pour les modèles:
SU900, SUT900, SUE900, SU901, SU902, SU903, SU908
*** BEFORE INSTALLATION ***
ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAINED DURING SHIPPING
*** AVANT L’INSTALLATION ***
S’ASSURER QUE LES PRODUITS N’ONT SUBI AUCUN DOMMAGE PENDANT LE TRANSPORT
*** SHIPPING DAMAGE ***
MUST BE REPORTED WITHIN 5 DAYS OF RECEIPT
*** DOMMAGES DE TRANSPORT ***
DOIVENT ÊTRE NOTIFIÉS DANS LES 5 JOURS SUIVANT LA RÉCEPTION

WARNING
Thank you for purchasing a Sirius Range Hood.
Please read all the instructions in this manual before
installing the appliance.
Save these instructions for future reference.
Only use this appliance as an exhaust ventilation system for the removal of
cooking vapors. DO NOT use to expel ammable substances or any other
materials or vapors.
The installation procedures in this manual are intended for qualied instal-
lers, service technicians or persons with similar qualied background.
DO NOT attempt to install this appliance yourself.
Ensure that electrical power is turned o at source before commencing in-
stallation. All electrical wiring must be properly installed, insulated and
grounded and conform to all applicable codes and standards.
Make sure all existing duct work is clean of grease build up, or duct work
should be replaced, if necessary, to avoid the possibility of a grease re.
Check all joints on ductwork to ensure proper connection and all joints
should be properly taped. Be careful when cutting through ceilings or walls
not to damage any hidden pipes or electrical wiring. Ensure your kitchen has
sucient air return vents to replace the exhausted air.
Fan ducts should always be vented to the outside of your home and never
into spaces within walls, ceilings, lofts or attics. Only use rigid, smooth steel
for ducting. The exhaust point of the blower requires a 6” round connec-
tion.
2

TABLE OF CONTENTS
3
BEFORE YOU BEGIN 4
DUCTING 4
External venting Requirements 4
Duct Run Calculation 5
ELECTRICAL 5
Electrical Supply 5
INSTALLATION 6
Applications 6
Connecting Electricity and Ducting 8
Re-Circulating Requirements 9
OPERATING PROCEDURES 10
General Advice 10

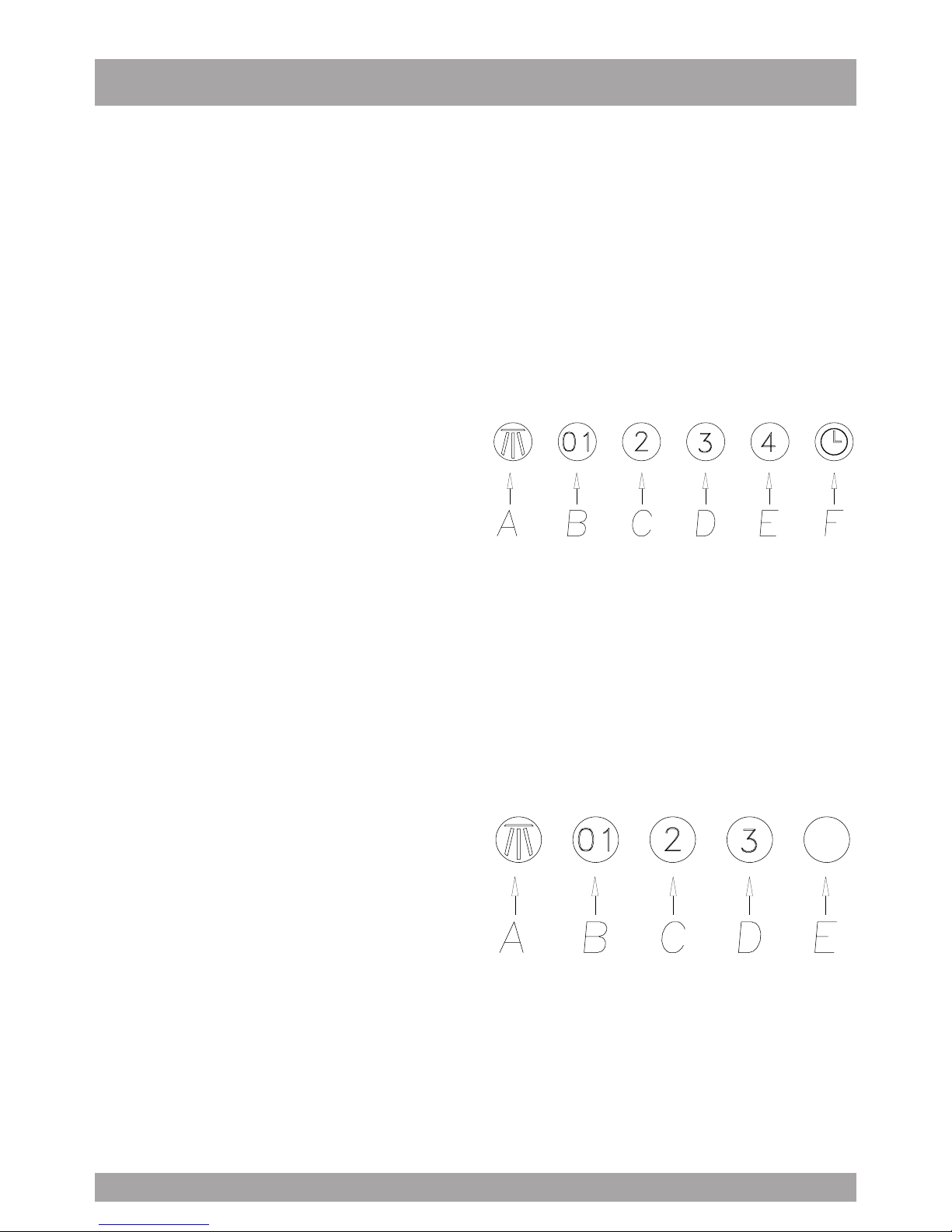

Functions 10
MAINTENANCE 12
Cleaning the Filter 12
Cleaning the Hood 12
Light Bulb Replacement 13
WARRANTY 14

4
BEFORE YOU BEGIN: It is advisable to test
run the range hood before installation.
BEFORE STARTING – please read this en-
tire document and ensure you are fully
conversant with the require-ments and
limitations. These units weigh approxi-
mately 125lbs and therefore require a
minimum of two people to install.
BEFORE YOU BEGIN
The manufacturer declines all responsi-
bility in the event of failure to observe the
instructions given here for installation,
maintenance and suitable operation of
the product. The manufacturer further
declines all responsibility for injury due
to negligence and the warranty of the
unit automatically expires due to impro-
per maintenance and/or installation.
Always fasten connections with sheet
metal screws and tape all joints with
certied Silver Tape or Duct Tape. Do
not use screws to fasten ductwork to the
hood, only use tape as the screws will
stop the dampers from opening and your
hood will not work. This hood re-quires
a 6” round duct outlet. You can increase
the duct size of the duct run but never
decrease it. Use the shortest and most
direct route possible. Always, wherever
possible, reduce the number of transi-
tions and turns with as few sharp angles
as possible. Two staggered 45 degree
angles are better than one 90 degree.
Make these turns as far away from the
motor exhaust as possible, with as much
space between each bend.
DUCTING
(Not applicable if the range hood is used
in re-circulating mode).
WARNING: Do not vent this appliance
into any other ductwork, spaces between
walls, ceilings, attics, garages or any
other conned space.

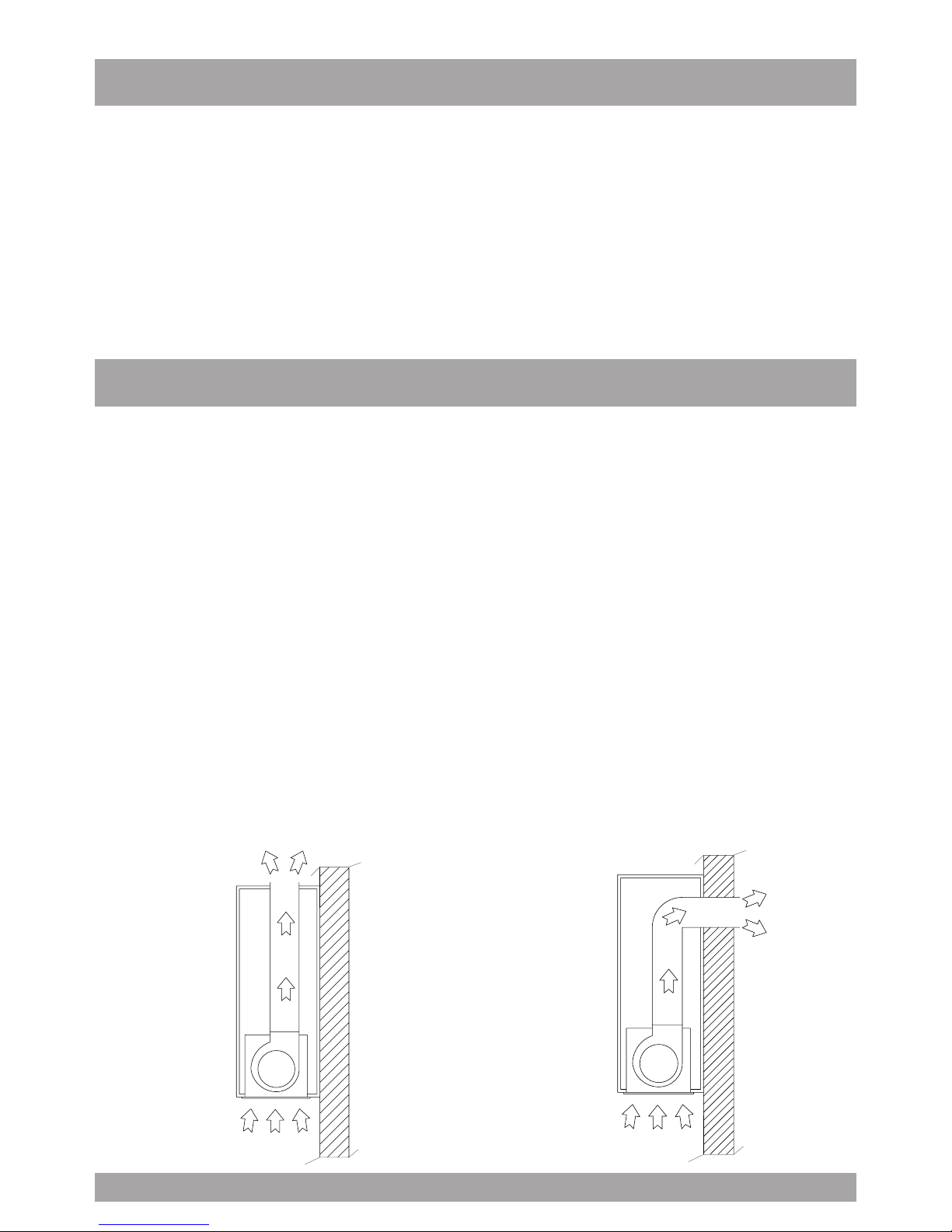

External Venting Requirements.
When planning new ductwork, always
look for the most direct route to the ou-
tside. Venting can be done through the
roof or directly through the back outside
wall. (See Figure 1 and 2) Only use ri-
gid type metal ducting (plastic ducting is
generally not permitted by code). Flexi-
ble ducting could restrict airow by up
to 50%.
g. 1 g. 2

Duct Run Calculation.
The maximum duct run before eecting
the performance of the hood is 100’. Cal-
culate your duct run by measuring linear
feet and adding the elbows, transitions
and caps based on the table below.
5
Maximum Run
6” or 3 1/4 x 10” duct 100 FT
Deduct
Each 90 elbow used 15FT
Each 45 elbow used 9FT
Each 6” or 3 1/4 x 10” duct
Transition used 1FT
Each 3’1/4 x 10” to 6”
Transition used 5FT
Side Wall with damper 30FT
Roof Cap 30FT
Electrical Supply.
This appliance requires 120V/60Hz,
3amp electrical supply – ensure an ap-
propriately qualied person completes
the electrical hook-up. The connection
point for the electrical supply is at the top
of the unit, therefore the electrical supply
must be run down from the ceiling alon-
gside the ductwork.
All electrical and venting hook-ups must
be in place before commencing installa-
tion of the hood-fan.
ELECTRICAL
WARNING: All electrical work must be
performed by a qualied electrician.
Please ensure that the appropriate electri-
cal codes or prevailing local building co-
des and ordinances are adhered to.
Ensure that the electricity supply is di-
sconnected at source. Do not use an ex-
tension cord or adapter plug with this
appliance.
This appliance must be grounded. Con-
nect to a properly grounded branch
circuit, protected by a 15 amp circuit
breaker.
The ducting connection to the hood
must be in line with the central verti-
cal axis of the range hood 1” away from
the back wall on which the hood is to be
mounted.
Range hoods may interrupt the proper
ow of combustion gases from repla-
ces, gas furnaces and gas water heaters.
To minimize the risk of drawing these
lethal gases back into the home, please
follow the heating equipment manufac-
turers safety standards and guidelines
carefully.
Refer to NFPA and ASHRAE for additional
information.

6
SU902 10” 25/64 X 26” ½
SU903 27” 9/16 9” 15/16 X 25” 9/16
SU903 35” 7/16 9” 15/16 X 33” 7/16
SU908 12” 5/8 X 26” 2/2
If Sch31A or a Pro Liner are being used,
they can be held up under the cabinet
and used as a template.
If Sch31A or a Pro Liner are to be used
for under cabinet application, they
should be installed now.
Installing a SCH31A with SU900 -
SUT900 – SUE900. Hold the Sch31A un-
der the cabinet and Screw it to the 4 hole
locations. Make sure it lines up with the
cut out in your cabinet. The power pack
has pressure springs (to be adjusted) on
the front and back that will “hook” onto
the top surface of the underside of the
hood when it is pushed up into the hole
that has been cut out (refer to gure 3).
Installing SU900 - SUT900 – SUE900
without a SCH31A. The power pack has
pressure springs (to be adjusted) on the
front and back that will “hook” onto the
top surface of the underside of the hood
when it is pushed up into the hole that
has been cut out (refer to gure 3).
INSTALLATION
Applications
The SU900 - SUT900 – SUE900 can
either be installed inside a wall cabinet
(provided the inside depth is greater than
11”) or used in a custom designed woo-
den hood. Where installed directly into a
wall cabinet, there are two options:
Directly into the cabinet without any
form of hood. Directly into the cabinet
together with Sch31A where the Sch31A
acts as a liner hood and is attached to ei-
ther the underside of the cabinet or into
the sides of the cabinets alongside.
The SU901 can either be installed inside
a wall cabinet or used in a custom de-
signed wooden hood. Where installed
directly into a wall cabinet, there are two
options:
Directly into the cabinet or directly into
the cabinet together with the adjustable
Pro liners where the adjustable Pro li-
ners act as a cabinet protection against
the heat. The depth of the adjustable pro
liners can vary from 23.5” to 25.9” )
The SU902 and SU903 can either be in-
stalled inside a wall cabinet or used in a
custom designed wooden hood.
Depending on which model is used, pre-
pare a cut-out in the underside of the
wooden hood to allow the powerpack to
t up into the hood using the following
dimensions:
SU900 - SUT900 – SUE900 20”
10” 3/8 X 19” 19/32
SU900 - SUT900 – SUE900 27”
10” 3/8 X 26” 11/16
SU901 32” 13/32 X 16” 3/16 g. 3

There are four holes on the inside of the
SUT900 to x the unit into the edge of
the base of the wooden hood (refer to
gure 4).
7
Install the front part of the liner adjusting
it to the depth of the cabinet. (refer to -
gure 6).
g. 4
Installing a Adjustable Pro Liner with
SU901. Once the cut out has been done
install the Adjustable Pro Liner and make
sure it lines up with the cut out in your
cabinet. Screw it to the 4 hole locations
(refer to gure 5).
g. 5
lunedì 16 aprile 2007
SPESSORE:
MATERIALE:
RAGGIO PIEGA
Il presente disegno, o parte di esso non puo' essere riprodotto in nessuna forma, con
Descrizione:
n° disegno:
nessun mezzo e per nessuno scopo, senza autorizzazione della proprieta'.
Disegnato da: Data creazione:
lunedì 16 aprile 2007
SPESSORE:
MATERIALE:
RAGGIO PIEGA
Il presente disegno, o parte di esso non puo' essere riprodotto in nessuna forma, con
nessun mezzo e per nessuno scopo, senza autorizzazione della proprieta'.
Disegnato da:
Descrizione:
n° disegno:
Data creazione:
g. 6
Screw it to the 3 hole locations.
Attention: be sure the cabinet has a mi-
nimum thickness of 0.75” on the 4 sides.
lunedì 16 aprile 2007
SPESSORE:
MATERIALE:
RAGGIO PIEGA
Il presente disegno, o parte di esso non puo' essere riprodotto in nessuna forma, con
nessun mezzo e per nessuno scopo, senza autorizzazione della proprieta'.
Disegnato da:
Descrizione:
n° disegno:
Data creazione:

The power pack has pressure springs (to
be adjusted) on the front and back that
will “hook” onto the top surface of the
underside of the hood when it is pushed
up into the hole that has been cut out
(refer to gure 3).
Installing SU902. The power pack has
pressure springs (to be adjusted) on the
front and back that will “hook” onto the
top surface of the underside of the hood
when it is pushed up into the hole that
has been cut out (refer to gure 3).
Installing SU903. The power pack has
pressure springs (to be adjusted) on the
front and back that will “hook” onto the
top surface of the underside of the hood
when it is pushed up into the hole that
has been cut out (refer to gure 7-8).
8
g. 10
g. 7-8

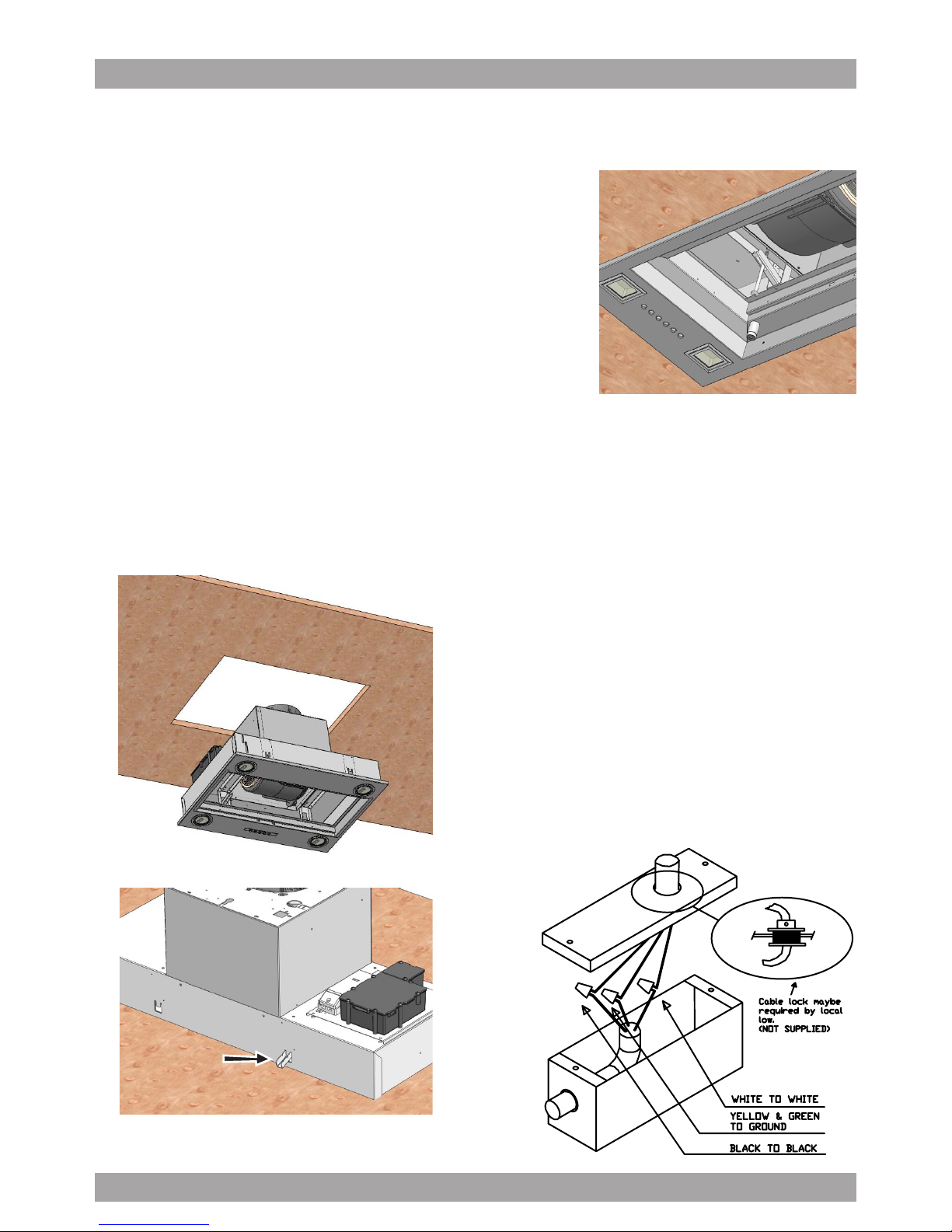

Insert and Fix the 4 clamping levers as
described in the pictures 9.
g. 9
Screw carefully in order to keep the pro-
duct straight.
INSTALLING SU908
There are four holes on the inside of the
SU908 to x the unit intothe edge of the
base of the wooden hood (refer to gure 4).
Connecting Electricity and Ducting.
Please refer to the Electrical Supply sec-
tion on page 2 for the required location
of the electrical supply.
CAUTION: Make sure the power is tur-
ned o at source. Make electrical con-
nections (refer to Figure 10). Ensure that
the plastic aps at the exhaust outlet for
the fan move freely and have not become
jammed or stuck.

9
Connect the appropriate length of duc-
ting to the fan exhaust point and join up
with the ducting to the exterior.
Do not x the ducting to the range
hood exhaust outlet with screws-use
duct tape. Use duct tape on all joints.

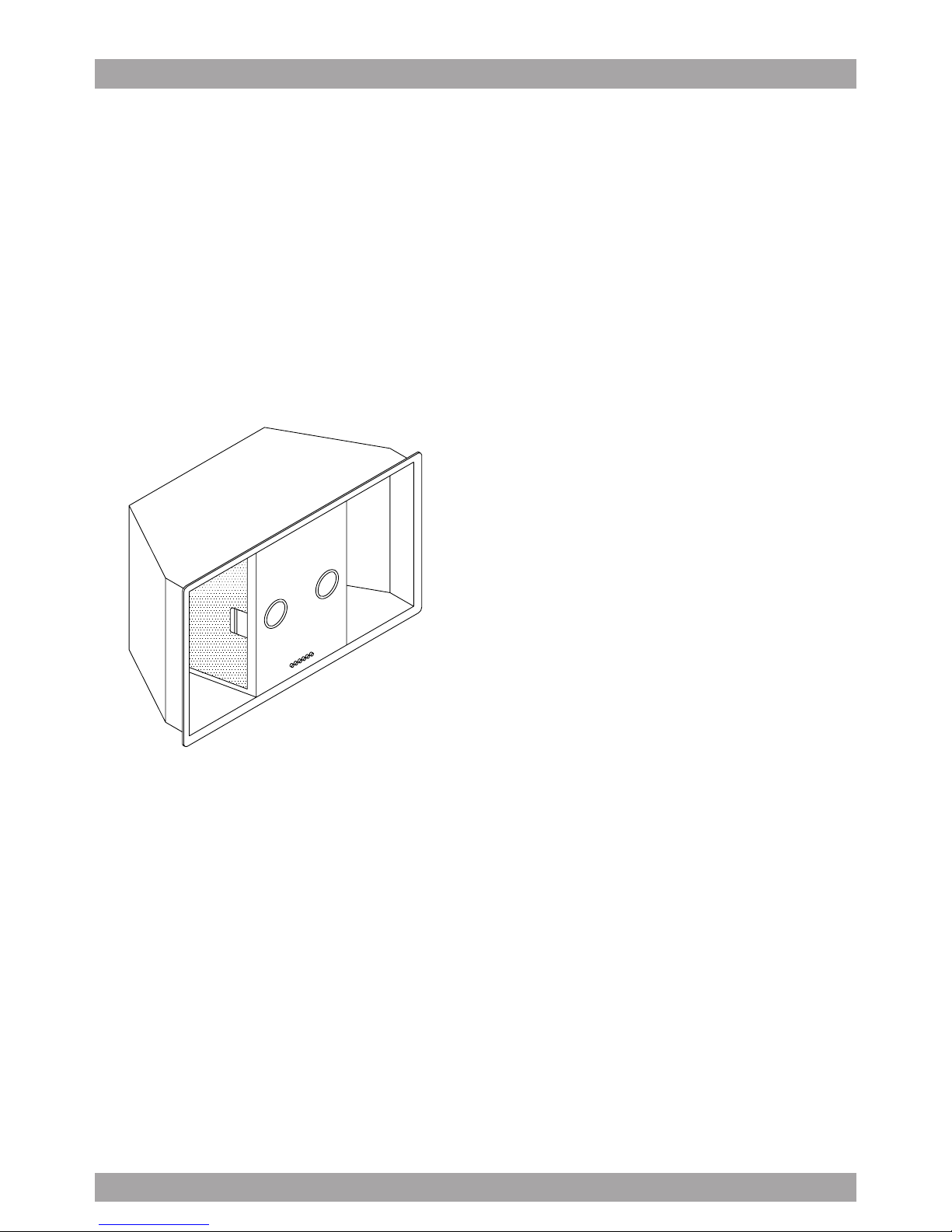

Re-Circulating Requirements.
If the unit is to be used in the recircula-
ting mode, t the carbon lters after the
installation is complete (refer to Figure
11).
g. 11
The carbon lter ts in behind the alu-
minium grease lter. Ensure that the pla-
stic tabs on the carbon lter are facing
outwards otherwise it will be dicult to
remove it later for replacement.
A short length of ductwork must be
connected from the exhaust outlet on
the fan to wherever the air is to be
exhausted.
Allow sucient space to connect the
ductwork to the top of the exhaust ou-
tlet on the fan housing. Do not x the
ducting to the range hood exhaust ou-
tlet with screws, use duct tape. Duct tape
should be used on all joints.

10
FUNCTION
SU900–SU901–SU902–SU903-SU908
(Fig. 12).
A: Light ON/OFF button
B: Blower Speed 1 (low) or OFF
C: Blower Speed 2 (medium)
D: Blower Speed 3 (high)
E: Blower Speed 4 (intensive)
F: 10 Minute Timer
OPERATING PROCEDURES
Read all the instructions before opera-
ting the appliance. Save these instruc-
tions for future reference.
General Advice.
Ensure that the grease lters are in place.
Without these components, operating
blowers could catch on to hair, ngers
and loose clothing. Keep fan, lters and
surfaces clean of grease and fat. Always
turn hood fan ON when cooking. NEVER
leave cooking unattended.
NEVER dispose cigarette ashes, ignitable
substances or any foreign objects into
blowers.
Cooking that generates ame is not re-
commended as this hood is equipped
with a thermal overload that will shut
down the motor if it senses excessive
heat. When frying, oil in the pan can ea-
sily overheat and ignite. Heat oil slowly
in an appropriately sized pot (covering
the entire burner) to reduce the risk of
boiling over and burning.
In the event of a range top grease re,
observe the following:
Switch OFF the range hood. Turn o
the cook top then smother ames with
a close tting lid, cookie sheet or other
metal tray. If the ames do not go out
immediately.
EVACUATE AND CALL THE FIRE DEPART-
MENT.
Never pick up a aming pan – you may
be burned. DO NOT USE WATER inclu-
ding wet dishcloths or towels, as a vio-
lent steam explosion may occur.
g. 12
SUE900 (Fig. 13)
A: Light ON/OFF button
B: Blower Speed 1 (low) or OFF
C: Blower Speed 2 (medium)
D: Blower Speed 3 (high)
E: Hood in operation light
g. 13

11
SUT900 (Fig. 14)
Remote control
A: At every selected function, the led li
ghts on accordingly.
B: To increase the speed.
C: To switch on the lights or to switch
them o.
D: ON/OFF To go from a higher speed
back to rst one press twice the but
ton: To switch the hood on or o
press once this button.
E: To reduce the speed.
F: To set the timer.
g. 14
The led on the right side will start (eve-
ry 5 seconds), the hood will work for 10
minutes at the selected speed and then
it lights automatically o. If the client in-
creases or reduced the speed while the ti-
mer is on, this is automatically stopped.
TECHNICAL DATA:
Alkaline battery powered: 12v mod. 23A
Operating frequency: 433.92 Mhz
Combinations: 4096
Max. consumption: 25Ma
Operating temperature: -20° : +55°C
Standard conguration.
If two cooker hoods-radio control system
are installed in the same room or in the
immediate vicinity, each system may af-
fect the operation of the other, due to the
fact that they have the same code. The-
refore it will be necessary to change the
code of one of the radio controls.
Generating a new transmission code.
The radio control is supplied by the ma-
nufacturer with default codes stored. If
you want to create a new set of codes,
proceed as follows: press and hold the
UP, STOP and DOWN buttons simulta-
neously for 2 seconds. After the LEDS li-
ght up, press the UP and DOWN buttons
within 5 seconds. The LEDS will ash 3
times to indicate that the process is com-
pleted. WARNING: This procedure dele-
tes all previously-stored codes.
Learning the new transmission code.
After changing the transmission code
on the radio control, the cooker hood
electronic control unit must be made
to set the new code as follows: press
the main Power O button on the coo-
ker hood and then restore power to the
electronic control unit. Within the next 15
seconds, press the Light button. This will
ensure the control unit is synchronized
with the new code.

12
Warning The battery should be repla-
ced every year to guarantee the optimal
range of the transmitter. To replace the
exhausted battery, take the plastic lid
o, remove the battery and replace it
with a new one, observing the cor-
rect battery polarities. Used batteries
should be discarded in special collec-
tion bins.
Cleaning the Hood.
Cleaning of the internal parts should be
done with a clean damp (not excessively
wet) cloth together with regular household
detergent. The external stainless steel ele-
ments should be cleaned with a good qua-
lity foaming stainless steel cleaner. Read
the manufacturers directions. Generally
they recommend that the foam be sprayed
onto a clean dry cloth and then applied to
the stainless steel. Allow the foam to react
on the surface for a few minutes and then
wipe with a clean dry cloth.
On the surfaces that are exposed directly
to heat from the cook-top, it is advisable
to clean these on a regular basis to avoid
the marks from becoming baked on.
Do not under any circumstances use an
abrasive type cleaner as this will scratch
and damage the stainless steel nish.
Glass components should be cleaned with
a product such as Windex.
MAINTENANCE
The hood-fan should provide many
years of trouble free service provided it
is maintained properly.
Cleaning the Filter.
Clean the grease lter either by careful-
ly hand washing, (so as not to dama-
ge the lter design) or, preferably in a
dishwasher. Depending on use, the l-
ters should be cleaned at least every two
weeks in a dishwasher.
If a carbon lter has been tted this
must be replaced at least every 6 mon-
ths as a minimum. Depending on coo-
king style and nature of cooking (greasy
foods, fry’s, curries etc) would probably
require more frequent replacement – if
odors start to manifest themselves when
cooking it is time to replace the carbon
lter . We suggest you retain a spare set.
These can be ordered from the supplier
of your range hood.
Filter requires washing indicator: after
30 hours of use, all the buttons will li-
ght up to remind you that the grease lter
should be cleaned. Follow the instruc-
tions for cleaning lters in this booklet.
Once the grease lters have been cleaned
and replaced, reset by pressing the timer
button (F). Do not rely solely on this indi-
cator. Generally, the grease lter should
be washed on a regular basis to avoid
grease lter res.
The blower should be turned on for ap-
proximately 5 minutes before cooking
in order to establish air currents upward
through the hood. Use the low speeds
for normal use and the higher speeds for
strong odors and fumes.

13
Light Bulb Replacement.
(if in doubt, call 877-474-8770)
Turn blower and lights o. Make sure the
lights are cool.
Do not remove the entire xture (socket)
as this is very dicult to reinstall.
Visually inspect the light xture and esta-
blish whether the unit has a smooth or
“toothed” metal ring.
If smooth remove the glass blocking
ring by prying out with a sharp, soft in-
strument such as a toothpick (refer to -
gure 15).
g. 15
Steel instruments will scratch the surface.
Be careful that the lens does not fall out.
If “toothed”, place the tip of your nger
between the lens and the ring. Making
your way around the ring, gently pull
outwards until a point is found where the
ring pulls o .
Replace the appropriate bulb. Check par-
ts brochure or specication sheets on
our website. Wipe both sides of the glass
whilst it is out.

Three Year Limited Warranty
YOU MUST REGISTER THE PURCHASE OF YOUR PRODUCT ON LINE AT www.siriuscappe.
com/usa/warranty.htm TO CONVALIDATE YOUR WARRANTY.
YOU CAN FIND THE DATA OF YOUR HOODS ON A LABEL INSIDE THE HOOD. JUST REMOVE
THE GREASE FILTER TO READ IT.
WARRANTY SERVICE
To qualify for warranty service, you must notify Sirius After sale service at the email ad-
dress stated below or call toll free USA 1-877-474-8770 and provide the model number,
description of the fault or defect and original date of purchase. Sirius reserves the right
to request proof of original purchase. Sirius will at its sole option and discretion replace
products that arrive damaged through shipping, provided shipping damage is reported as
stated above WITHIN 5 BUSINESS DAYS OF RECEIPT of the shipped product or products.
ONE YEAR SERVICE REPAIR WARRANTY:
During the rst year from date of original purchase, Sirius will, at its option, repair or repla-
ce, without charge, any product or part which is found to be defective under normal use and
service.
THREE YEAR PARTS WARRANTY:
For three years from date of purchase, Sirius will provide free of charge, non-consumable repla-
cement parts which are found to be defective under normal use and service.
WHO IS COVERED:
Sirius warrants to the original consumer purchaser of its products that such products will be
free from defects in materials and workmanship for a period of three years from the original
date of purchase. There are no other warranties, express or implied, including, but not limited
to, implied warranties of merchantability or tness for a particular purpose or application.
WHAT IS NOT COVERED:
This warranty does not extend to lters, lamps, batteries, ducts and ductwork components. This
warranty does not cover normal maintenance and service or products or parts which have been
subject to misuse, negligence, accident, improper maintenance or repair, faulty installation or
installation contrary to recommended installation instructions. The warranty on glass screens
is limited to manufacturing defects only and expressly excludes cracks and breakages as a
result of faulty installation. Labor and associated costs associated directly with removal and re-
installation are expressly excluded.
The duration of any implied warranty is limited to the three year period as specied for the
express warranty. Some states and provinces do not allow limitation on how long an implied
warranty lasts, so the above limitation may not apply to you.
Sirius S.P.A.
Zona industriale Berbentina 6/A
60041 SASSOFERRATO (AN) - ITALY
Register Online! www.siriuscappe.com/usa/warranty.htm
14

INSTRUCTIONS IMPORTANTES POUR
LA SÉCURITÉ
Merci d’avoir choisi une Hotte de Cuisine Sirius.
Veuillez lire attentivement toutes les instructions
avant l’installation et l’utilisation de l’appareil.
Conservez ces instructions afin de pouvoir les
consulter au besoin.
Cet appareil est destiné à la ventilation générale seulement. NE L’UTILISEZ
PAS pour évacuer des vapeurs ou des substances dangereuses ou explosi-
ves.
Conez l’installation et les réparations uniquement à un professionnel, con-
formément aux normes de sécurité en vigueur.
N’ESSAYEZ PAS d’installer cet appareil par vous-même.
Avant l’installation veillez que l’appareil soit hors tension.
Tout le câblage électrique doit être correctement installé, isolé de mise à la
terre conformément aux codes et aux normes applicables.
Assurez-vous que les conduits d’évacuation sont propres et libres d’accu-
mulation de graisses ou remplacez les conduits pour éviter de provoquer un
incendie.
Vériez que tous les joints du conduit sont bien xés et scellés. Faites atten-
tion lors des travaux de maçonnerie de ne pas endommager des tuyaux ou
câbles électriques. Assurez-vous que votre cuisine est équipée de bouches
de ventilation qui évacuent l’air vicié.
Le conduit de ventilation doit toujours terminer à l’extérieur et jamais dans
des espaces clos, plafonds ou greniers. Pour le conduit utilisez seulement
des éléments rigides en acier lisse.
La sortie de la souante nécessite d’un conduit rond de 6”.
15

TABLE DES MATIÈRES
16
AVANT DE COMMENCER 17
CONDUIT 17
Mode Évacuation Extérieure 17
Calcul Longueur Conduit 18
ÉLECTRICITÉ 18
Alimentation Électrique 18
INSTALLATION 19
Montage 19
Branchements Électriques et Conduit 21
Mode Recyclage 22
PROCÉDURES D’UTILISATION 23
Recommandations Générales 23
Fonctions 23
ENTRETIEN 25
Nettoyage des Filtres 25
Nettoyage de la Hotte 25
Remplacement des Ampoules 26
GARANTIE 28

17
AVANT DE COMMENCER : On conseille
de vérier le fonctionnement de la hotte
avant son installation.
AVANT DE COMMENCER – Lisez attentive-
ment cette notice an d’avoir les connais-
sances requises pour utiliser ce produit. Ce
produit pèse env. 125lbs et nécessite donc
un minimum de deux personnes pour son
installation.
AVANT DE COMMENCER
Le fabricant décline toute responsabilité
en cas de dommages causés par un non
respect des instructions d’installation,
d’utilisation et d’entretien contenues
dans cette notice.
Le fabricant décline toute responsabilité
causée par négligence et la garantie ces-
se automatiquement en cas de mauvais
entretien et/ou installation du produit.
Fixez toujours les raccords avec des vis en
tôle et isolez tous les joints avec du ruban
adhésif métallique (ou pour conduit). N’uti-
lisez jamais des vis pour xer le conduit
à la hotte ; utilisez uniquement du ruban
adhésif, du moment que les vis peuvent
empêcher l’ouverture des clapets anti re-
tour et en ce cas la hotte ne fonctionne-
ra pas. Cette hotte nécessite d’un conduit
d’évacuation de 6”. Il est possible d’utiliser
un conduit plus grand, mais pas un plus
petit. Optez pour la voie la plus courte et la
plus directe. Evitez, si possible, le nombre
des raccords et des coudes. Il est préféra-
ble d’utiliser deux coudes de 45° plutôt
qu’un coude de 90°. Positionnez les cou-
des loin de l’échappement du moteur et
évitez de les positionner trop prêt les uns
des autres.
CONDUIT
(Ne s’applique pas si la hotte est utilisée
en mode Recyclage).
REMARQUE: Ne branchez jamais ce pro-
duit à un autre conduit d’évacuation, des
espaces entre deux parois, plafonds,
greniers, garages ou espaces clos.
Version évacuation extérieure.
Lors du montage du conduit d’évacua-
tion, cherchez la voie la plus directe vers
l’extérieur. Le conduit peut évacuer l’air
par le toit ou directement par le mur ex-
térieur. (Voir g. 1 et 2). Utilisez seule-
ment des tuyaux rigides en métal (les
tuyaux en plastiques sont interdits par le
code). Les conduits exibles limitent le
ux d’air du 50%.
g. 1 g. 2

Calcul Longueur Conduit
La longueur maximale du conduit qui n’in-
ue pas sur le rendement de la hotte est de
100”. Calculez la longueur du conduit en
mesurant les pieds linéaires et en ajoutant
les coudes, les raccords et les bouchons
selon le schéma suivant.
18
Longueur maximale
6” ou 3 1/4 x 10” conduit 100 FT
Deduct
Chaque coude 90 nécessite 15FT
Chaque coude 45 nécessite 9FT
Chaque 6” ou 3 1/4 x 10” conduit
Raccord nécessite 1FT
Chaque 3’1/4 x 10” à 6”
Raccord nécessite 5FT
Paroi latérale avec clapet anti retour 30FT
Sortie toit 30FT
Alimentation Électrique.
Cet appareil nécessite 120V/60Hz, une
alimentation de 3amp – faites eectuer le
branchement électrique par une person-
ne qualiée. La connexion pour l’alimen-
tation électrique se trouve au sommet de
l’appareil, par conséquent, le courant doit
descendre le long du conduit.
Avant d’installer la hotte, tous les travaux
de branchement électrique et d’évacua-
tion des fumées doivent être eectués.
ÉLECTRICITÉ
ATTENTION : Tous les travaux électri-
ques doivent être eectués par un
électricien qualié.
An d’assurer la qualité des travaux de
construction et d’électricité observez les
normes en vigueur.
Assurez-vous que l’alimentation électri-
que est coupée. Evitez d’utilisez une ral-
longe ou un adaptateur pendant cette
opération.
Cet appareil doit être mis à la terre et le
circuit doit être protégé par un disjon-
cteur de 15 amp.
Le raccordement du conduit à la hotte
doit être en ligne avec l’axe centrale ver-
ticale de la hotte de 1” et loin de la pa-
roi postérieure sur laquelle la hotte sera
positionnée.
Les hottes peuvent empêcher la bonne
évacuation des fumées des cheminées,
des fours et des chaue-bains à gaz.
An de minimiser le risque que ces gaz
mortels peuvent retourner dans la mai-
son, observez les normes de sécurité et
les directives en vigueur.
Consultez les normes NFPA et ASHRAE
pour plus d’informations.

19
SU902 10” 25/64 X 26” ½
SU903 27” 9/16 9” 15/16 X 25” 9/16
SU903 35” 7/16 9” 15/16 X 33” 7/16
SU908 12” 5/8 X 26” 2/2
Si vous utilisez un Sch31A ou un Pro Liner,
ceux-ci doivent être tenus sous le meuble su-
spendu et être utilisés comme un gabarit de
perçage.
Si vous utilisez un Sch31A ou un Pro Liner
pour une application sous le meuble suspen-
du, ceux-ci doivent être installés maintenant.
Installation d’un SCH31A avec SU900 -
SUT900 – SUE900. Placez le Sch31A sous
le meuble suspendu et xez-le avec 4 vis.
Assurez-vous qu’il est aligné. Sur la partie
antérieure et postérieure du groupe d’ali-
mentation il y a des ressorts de pression (à
régler) qui doivent être « accrochées » au côté
supérieur dessous la hotte au moment de son
positionnement dans la découpe (voir Fig. 3).
Installation SU900 - SUT900 – SUE900 sans
SCH31A. Sur la partie antérieure et postérieu-
re du groupe d’alimentation il y a des ressorts
de pression (à régler) qui doivent être « ac-
crochées » au côté supérieur du dessous de la
hotte au moment de son positionnement dans
la découpe (voir Fig. 3).
INSTALLATION
Montage
Les modèles SU900 - SUT900 – SUE900
peuvent être placés dans un élément mural (à
condition que la profondeur soit supérieure
à 11”) ou dans un élément en bois conçu sur
mesure. Pour le placement dans un élément
mural, vous avez deux possibilité :
directement dans l’élément mural sans aucu-
ne forme de hotte ou directement dans l’élé-
ment avec Sch31A, où Sch31A est une hotte
linéaire qui peut être xée sur le dessous ou à
côté du meuble suspendu.
Le modèle SU901 peut être installé dans un
élément mural ou dans un élément en bois
conçu sur mesure. Pour le placement dans un
élément mural, vous avez deux options : di-
rectement dans l’élément mural sans aucune
forme de hotte ou directement dans l’élément
avec des ‘Pro liners’ réglables qui protègent
le meuble suspendu contre la chaleur. La pro-
fondeur des ‘Pro liners’ réglables peut varier
entre 23.5” et 25.9”.
Les modèles SU902 et SU903 peuvent être
installés dans un élément mural ou dans un
élément en bois conçu sur mesure. Selon le
modèle utilisé, eectuez une « découpe »
dans la partie inférieure de la hotte en bois
pour permettre le positionnement du groupe
d’alimentation dans la hotte en suivant les di-
mensions suivantes.
SU900 - SUT900 – SUE900 20”
10” 3/8 X 19” 19/32
SU900 - SUT900 – SUE900 27”
10” 3/8 X 26” 11/16
SU901 32” 13/32 X 16” 3/16
g. 3

Il y a 4 trous dans le SUT900 pour xer l’ap-
pareil à l’élément en bois (voir Fig. 4).
20
Installez la partie antérieure du Liner selon la
profondeur du meuble suspendu (voir Fig. 6).
g. 4
Installation Pro Liner Réglable avec SU901.
Après que vous avez eectué la découpe, in-
stallez le Pro Liner réglable et assurez-vous
qu’il est aligné avec la découpe du meuble
suspendu. Fixez-le avec 4 vis (voir Fig. 5).
g. 5
lunedì 16 aprile 2007
SPESSORE:
MATERIALE:
RAGGIO PIEGA
Il presente disegno, o parte di esso non puo' essere riprodotto in nessuna forma, con
Descrizione:
n° disegno:
nessun mezzo e per nessuno scopo, senza autorizzazione della proprieta'.
Disegnato da: Data creazione:
lunedì 16 aprile 2007
SPESSORE:
MATERIALE:
RAGGIO PIEGA
Il presente disegno, o parte di esso non puo' essere riprodotto in nessuna forma, con
nessun mezzo e per nessuno scopo, senza autorizzazione della proprieta'.
Disegnato da:
Descrizione:
n° disegno:
Data creazione:
g. 6
Fixez avec les 3 vis.
Attention: assurez-vous que le meuble à une
épaisseur minimale de 0.75” sur les 4 côtés.
lunedì 16 aprile 2007
SPESSORE:
MATERIALE:
RAGGIO PIEGA
Il presente disegno, o parte di esso non puo' essere riprodotto in nessuna forma, con
nessun mezzo e per nessuno scopo, senza autorizzazione della proprieta'.
Disegnato da:
Descrizione:
n° disegno:
Data creazione:
