Sirius Satellite Radio Connect Tuner
Installation and User Guide

Congratulations on the purchase of your new SIRIUS Connect
SCH2P Satellite Radio Tuner
Your new SCH2P SIRIUS®Connect Tuner is designed to work with SIRIUS-ready receivers.
Consult the SIRIUS website at http://www.sirius.com for model compatibility.
What is Sirius Satellite Radio?
Over 120 channels of the best entertainment and completely commercial-free music for
your car, home or office.
Only SIRIUS has more than 65 original music channels, from today’s hits to R&B oldies to
classical masterpieces. From authentic country and real bluegrass to cool jazz, hot latin, reg-
gae, rock, and many more. Best of all, it’s all completely commercial-free.
SIRIUS also has more than 55 channels of world-class sports, news, and entertainment.
Included as part of your subscription, you get up to 16 NFL games a week, up to 40 NBA
games a week, and up to 40 NHL games a week. (Games are broadcast during their respec-
tive seasons.) Coupled with great sports news from ESPN, the SIRIUS sports offering is
unrivaled. And don’t forget a host of other great news and entertainment, like NPR, CNBC,
Fox News, Radio Disney, and E! Entertainment Radio. For more information, visit the SIRIUS
website at http://www.sirius.com.

[Table of Contents ] 3
Table of Contents
TABLE OF CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
WARNING AND SAFETY INFORMATION. . . . . . . . . . . . . . . . . . . . . . 4
Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
FCC Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Equipment Warning Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
PACKAGE CONTENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CONTROLS AND CONNECTORS . . . . . . . . . . . . . . . . . . . . . . . . . 8
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mounting the Tuner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connecting the AC Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . 11
Installing the Outdoor Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connecting the Tuner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Subscribing to the SIRIUS Service . . . . . . . . . . . . . . . . . . . . . . . . 24
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
COPYRIGHTS & TRADEMARKS . . . . . . . . . . . . . . . . . . . . . . . . 29
SIRIUS ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

[Warning and Safety Information ]
4
Warning and Safety Information
Important Safety Instructions
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with a dry cloth.
Do not block any of the ventilation openings. Install in accordance with the manufacturer’s
instructions.
Do not install near any heat sources such as radiators, heat registers, stoves, or other ap-
paratus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
Only use the attachments specified by the manufacturer.
Use only with the cart, stand, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combina-
tion to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when unused for long periods of time.
Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
The apparatus should not be exposed to dripping or splashing liquids. Containers filled
with liquids, such as vases, cups, soda cans, etc., should be not placed on the apparatus.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

[Warning and Safety Information ] 5
DISCONNECTING POWER FROM THE DEVICE — The AC power cord provided with the
device is used to disconnect the power from the device. Access to the power cord should
remain easily accessible.
FCC Warning
This equipment may generate or use radio frequency energy. Changes or modifications to this
equipment may cause harmful interference unless the modifications are expressly approved in
this installation and user guide. The user could lose the authority to operate this equipment if
an unauthorized change or modification is made.
Note: This equipment has been tested and found to comply with Part 15 of the FCC Rules.
These rules are designed to provide reasonable protection against harmful interference. This
equipment may cause harmful interference to radio communications if it is not installed and used
in accordance with these instructions. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of more of the following measures:
Relocate the receiving antenna.
Consult the dealer or an experienced technician for help.
Equipment Warning Labels
This symbol found on apparatus indicates hazards arising
from dangerous voltages.
This symbol found on apparatus indicates the user should
read all safety statements found in the user manual.
This symbol found on apparatus indicates double insula-
tion.
Warning! To reduce the risk of fire or electrical shock, do
not expose this apparatus to rain or moisture.
•
•
•

[Package Contents ]
6
Package Contents

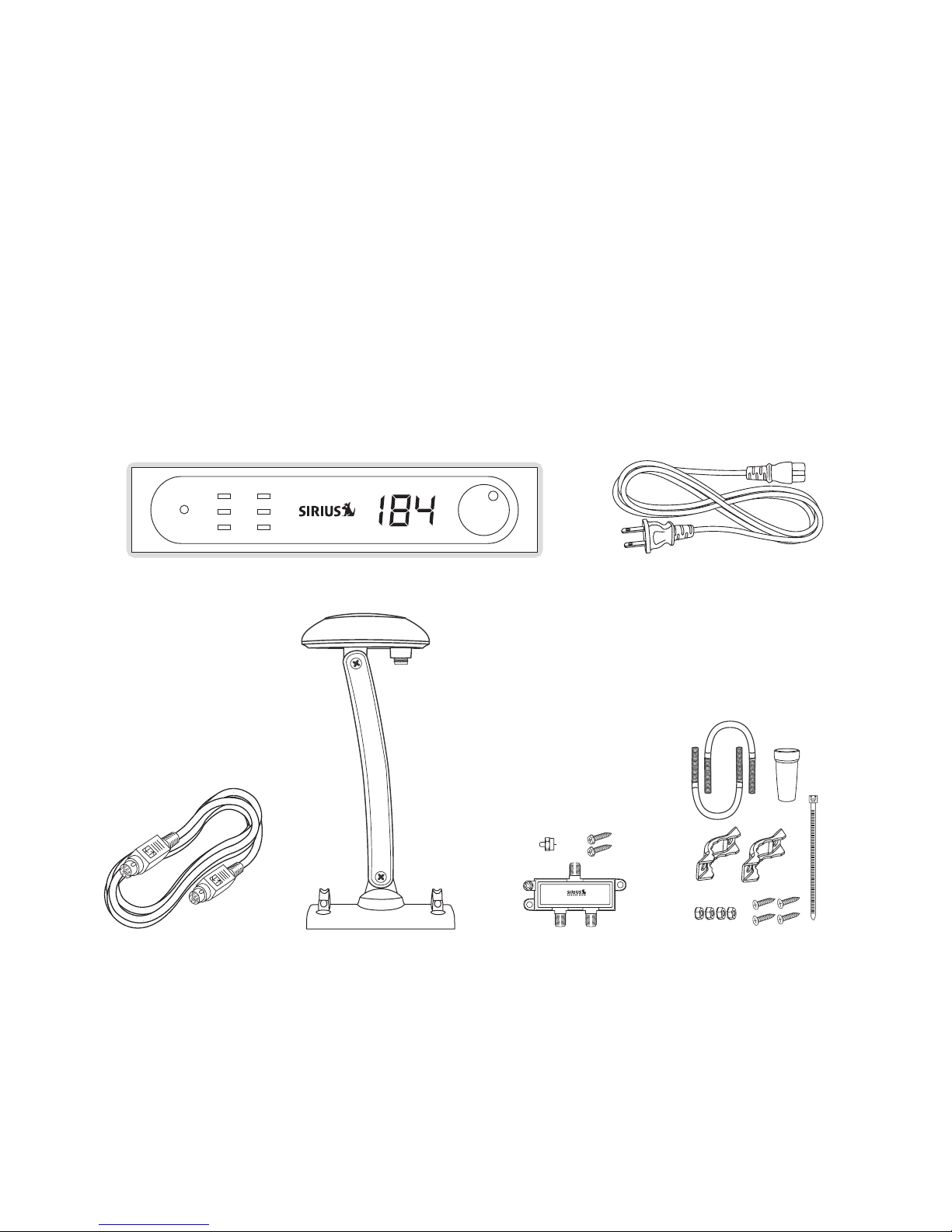

The following items are included with your purchase of the SCH2P SIRIUS Connect Tuner.
Unpack the kit carefully and make sure that everything shown is present. If anything is missing
or damaged, or if the kit fails to operate properly, notify your dealer immediately. It is recom-
mended that you retain the original carton and packing materials in case you need to ship your
kit in the future.
standby sat ter channel
SIRIUS Connect TunerSIRIUS Connect Tuner AC Power CordAC Power Cord
DIN CableDIN Cable Outdoor AntennaOutdoor Antenna Splitter, Mounting
Screws, Terminator
Outdoor Antenna
Mounting Hardware

[Package Contents ] 7
Rack Mounting HardwareRack Mounting Hardware
Audio CableAudio Cable

[Controls and Connectors ]
8
Controls and Connectors
Figure 1 and the table following identify and describe the displays, controls, and connectors
of the SCH2P SIRIUS Connect Tuner.
standby sat ter channel
STANDBY
INDICATOR
TERRESTRIAL
SIGNAL STRENGTH
INDICATOR
SATELLITE
SIGNAL STRENGTH
INDICATOR
CHANNEL
DISPLAY
CHANNEL
TUNING
KNOB
ANTENNA OPTICAL
AUDIO OUTPUT
8-PIN
DIN PORT
CONTROL
SWITCH
1 2 3
AC POWER
CONNECTOR
LEFT/RIGHT
AUDIO
OUTPUT
RS232
PORT
INFRARED
CONNECTOR
ON/OFF
SWITCH
Figure 1Figure 1

[Controls and Connectors ] 9
Description of Tuner Display, Controls, and Connectors
Display/
Control/Connector Description
Standby Standby indicator light is lit when power is connected to the
tuner and the On/Off Switch is On
Sat Satellite signal strength
indicator lights
All Off: No Signal
One Light: Weak Signal Level
Two Lights: Good Signal Level
Three Lights: Excellent Signal Level
All Flashing: Antenna not detected
Ter Terrestrial signal strength
indicator lights
Channel Displays the currently tuned channel
Channel Tuning Knob Used to tune the satellite radio channel
Antenna Connects to the satellite antenna
L - Audio - R Left/Right RCA-type analog audio output connectors
Opt. Audio Toslink optical digital audio output connector
RS232 RS232 interface connector for tuner control
8-PIN 8-PIN DIN interface connector for tuner control and audio output
IR Infrared connector
Control Switch
1 - 2 - 3
Switches control between
the RS232, 8-PIN DIN, or
Infrared connector
1. Left-most position: RS232
2. Center position: 8-PIN DIN
3. Right-most position: Infrared
On/Off Switch Turns the power to the tuner on and off
AC Power Connector Connection for AC power cord

[Installation ]
10
Installation
It is recommended that prior to starting the installation, you read this installation section com-
pletely and then follow the instructions. In addition, consult the manual of the audio device or
A/V system to which you will be connecting the tuner to determine the required installation
configuration.
Mounting the Tuner
When considering a mounting location be sure that you avoid any location where the tuner
is exposed to moisture or extreme heat. The tuner can be placed on a flat surface or rack
mounted using the provided rack mounts.

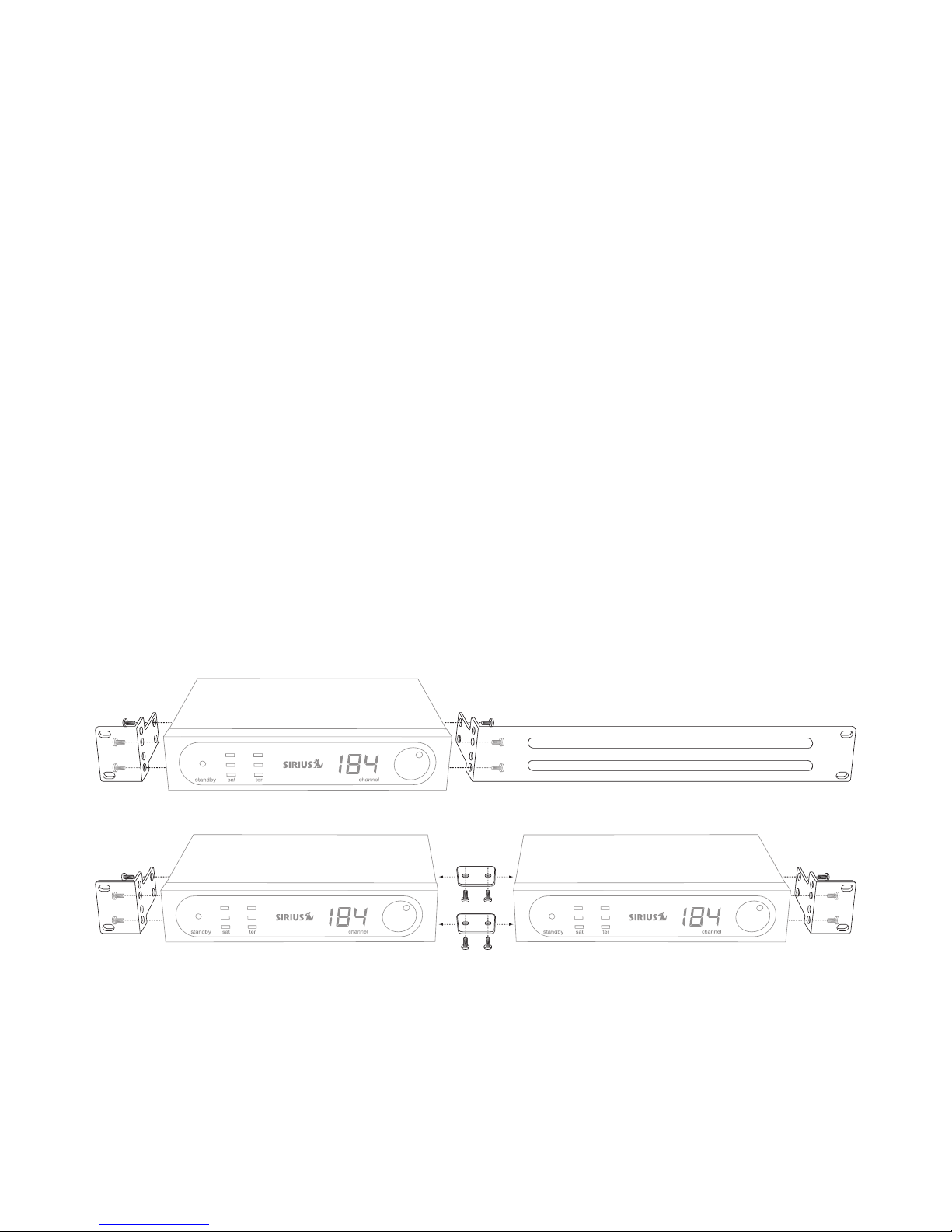

If you will be rack mounting the tuner, attach the rack mounting hardware to the tuner as
shown in Figure 2. If you have purchased two tuners and are rack mounting both tuners, at-
tach the rack mount hardware as shown in Figure 3.
Figure 2Figure 2
Figure 3Figure 3

[Installation ] 11
Connecting the AC Power Cord
Connect the AC power cord to the AC power connector at the rear of the tuner, and plug it
into a wall outlet. (Refer to Figure 1 on page 8.)
Installing the Outdoor Antenna
Before installing the outdoor antenna, read this entire section.
A successful antenna installation consists of three steps: First, determining a location for the
antenna; Second, choosing a mounting option; and Third, adjusting and aiming the antenna.
Please read the following three sections before beginning the antenna installation so that you
understand the entire installation process.
You will need to purchase two RG-6 cables to complete the installation of the antenna. These
cables are the same as the cables used for cable TV installations, and may be purchased from
your local hardware store, home center, or electronics retailer. RG-6 cable is typically sold in
lengths of 25, 50, or 100 ft., all with “F” type connectors on each end.
Figure 3 shows the two cables you will need to purchase. The length of cable 2cannot
exceed 50 ft., and the overall length of both cables cannot exceed 150 ft.
RG-6 Cable
Outdoor
Antenna Splitter
50’ MAX.
150’ MAX.
Terminator
1
RG-6 Cable
2
Figure 3Figure 3

[Installation ]
12
Determining a Location for the antenna

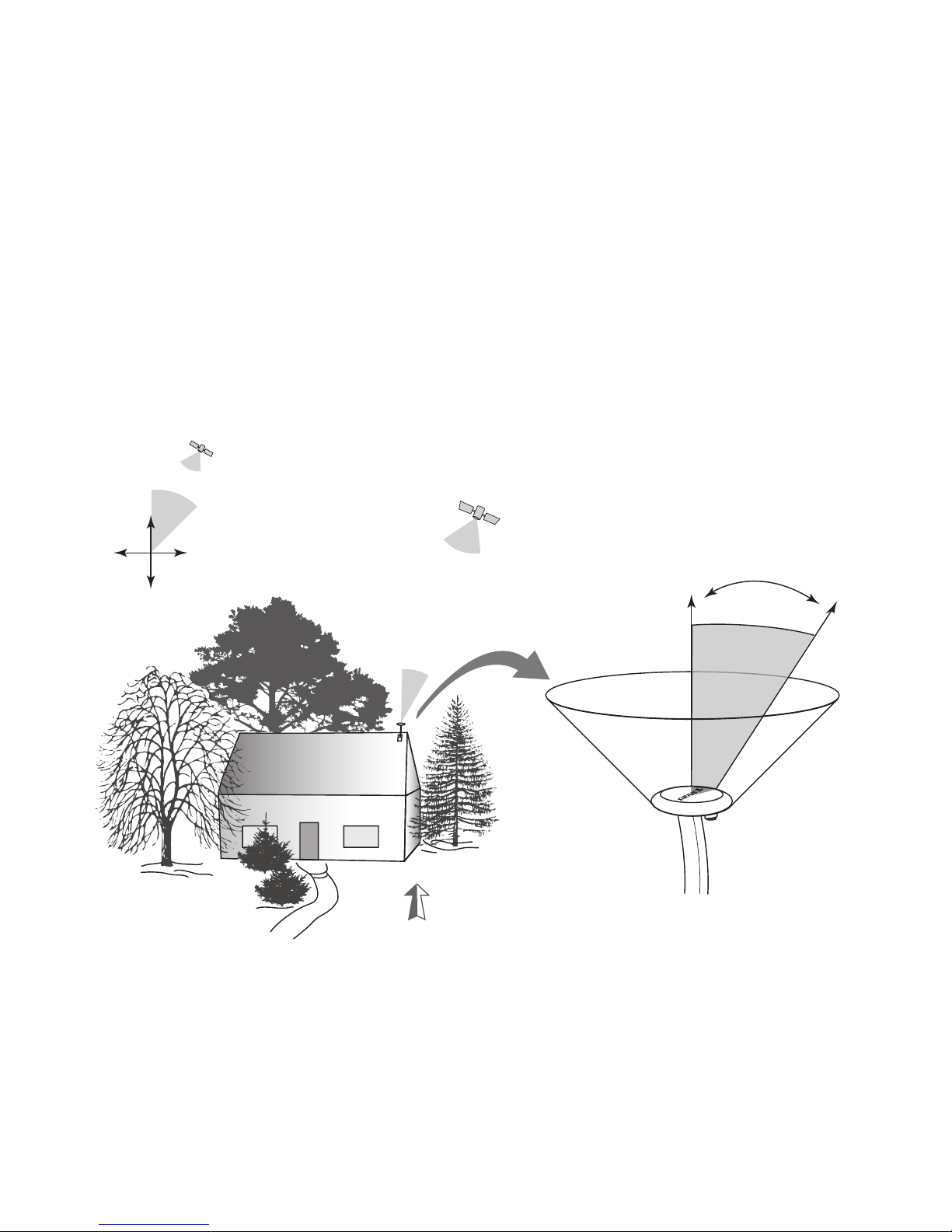

For correct operation and best reception of the SIRIUS signal, it is important that the outdoor
antenna is located in a place where it will have a clear view of the SIRIUS satellites in the sky.
Obstructions such as bushes, trees, other homes or buildings, overhangs, soffits, chimneys,
gables, dormers, etc., will impair or prevent the antenna from receiving a signal.
The best reception is obtained if the pod portion of the antenna (where the SIRIUS logo is print-
ed) has a clear 360 degree view of the sky within the cone-shaped area as shown in Figure 4.

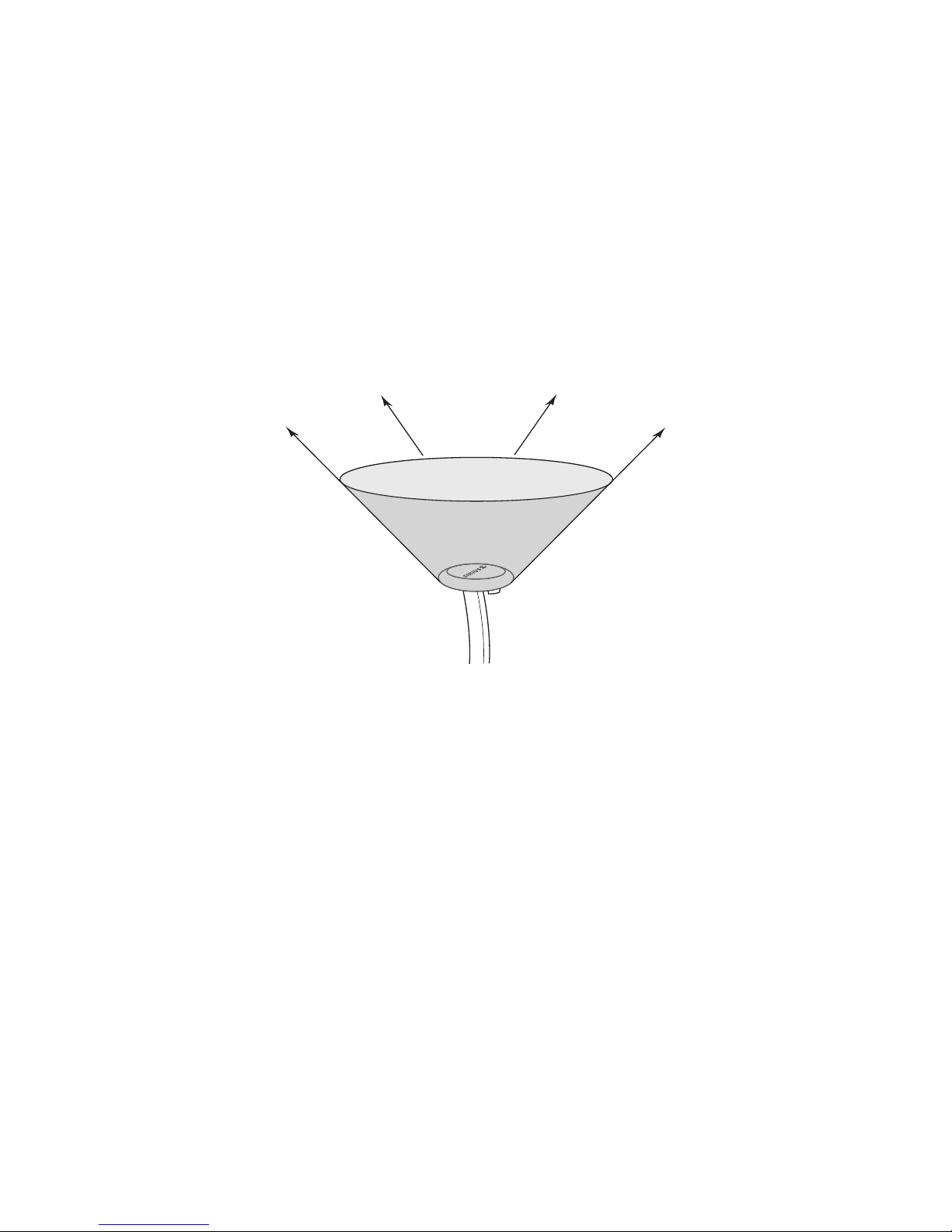

No obstructions to the
sky within this area
Figure 4Figure 4

[Installation ] 13
If you cannot obtain a clear 360 degree view of the sky, then you must at least have a clear
view of the sky in the direction of the SIRIUS satellites, as shown in the map in Figure 5.
1
23
4
5
HORIZON
SKY
SOUTH
WEST EAST
NORTH
Use the above map and find the area you are located in (1to 5). Then find the direction in
which you need to have a clear view of the sky:
Area 1: You will need a location with a clear view of the sky facing EAST or NORTHEAST
or SOUTHEAST
Area 2: You will need a location with a clear view of the sky facing NORTH or NORTH-
EAST
Area 3: You will need a location with a clear view of the sky facing NORTH or NORTH-
WEST
Area 4: You will need a location with a clear view of the sky facing WEST or
NORTHWEST or SOUTHWEST
Area 5: You will need a clear view of the sky facing STRAIGHT UP
Figure 5Figure 5

[Installation ]
14
Choose a mounting location for the antenna which has an unobstructed view of the sky in the
direction for your area.
For example, suppose you live in Area 2. You determined that your antenna will need to have
a clear view of the sky facing North or Northeast. The exact direction is determined by your
specific location in Area 2 relative to the Xon the map: If you live in Texas, you will need a
more North facing clear view of the sky whereas if you live in southern California, you will
need a more Northeast facing clear view of the sky.
Figure 6 shows a correct antenna installation for Area 2, with a clear view of the sky in the
North to Northeast direction.
No obstructions to the
sky within the area facing
North to Northeast
N
W E
S
NORTH
Figure 6Figure 6

[Installation ] 15
Once you have determined a possible mounting location for your area, it is recommended
that you put the antenna in place temporarily and connect the antenna to your the tuner and
verify that your antenna is receiving a good SIRIUS signal. If a good SIRIUS signal is being
received, 2 or 3 of the signal strength lights will be lit on the front of the tuner, either SAT or
TER, or both.
antenna mounting options
There are three possible mounting options for the outdoor antenna, and the antenna mounting
location you have chosen may determine which mounting method you can use:
Wall Mount: Mounting the antenna directly on the side of a home or building.
Roof Mount: Mounting the antenna on the roof of a home or building.
Mast Mount: Mounting the antenna on a mast or pole, such as an existing satellite TV
dish mast, an existing TV antenna mast, or other mast or pole, not exceeding 2 inches in
diameter.
Wall Mount

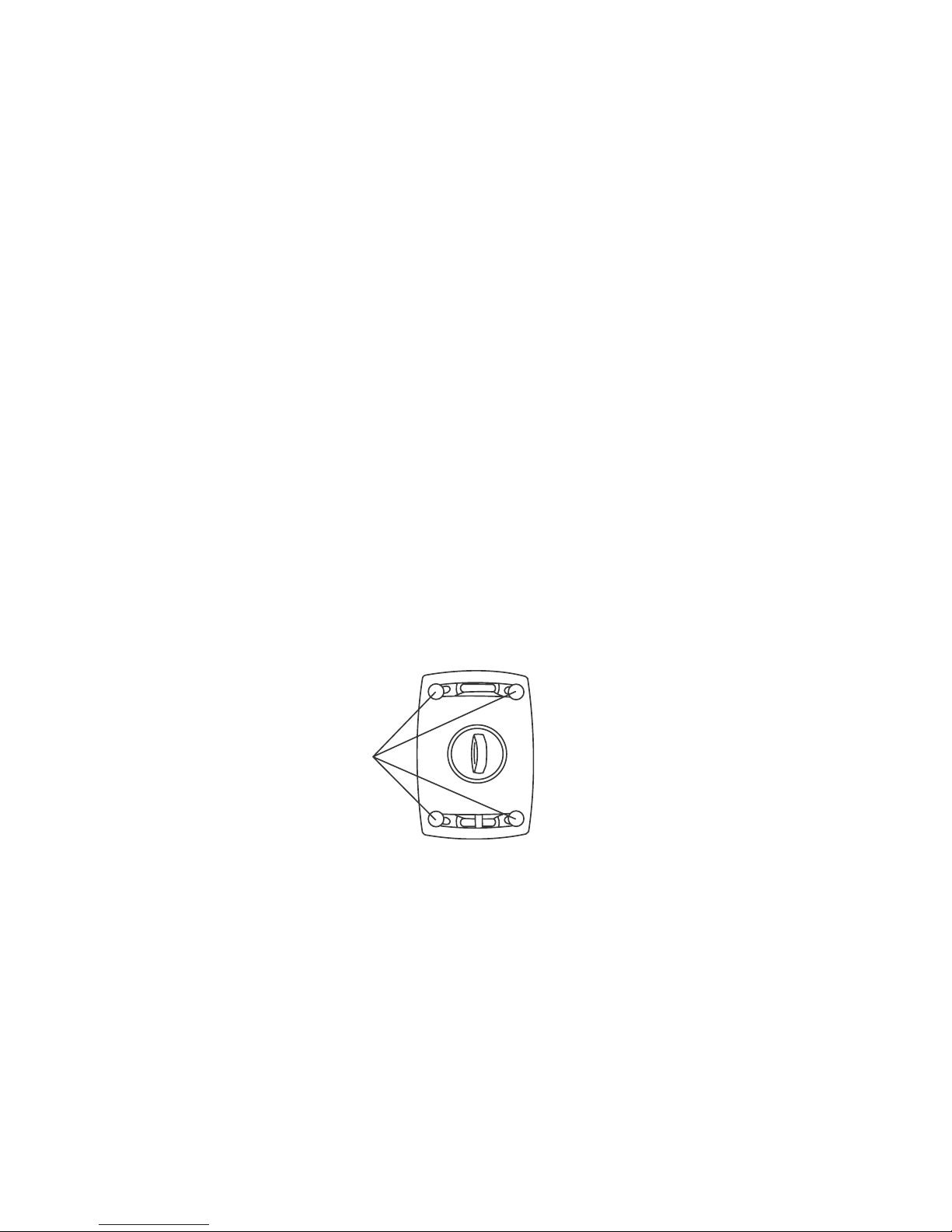

The antenna mounting bracket should be oriented in a vertical position (as shown in Figure 7)
and mounted directly to the wall of the building or home using the provided #10 screws.
MOUNTING
HOLES
Figure 7Figure 7

[Installation ]
16
Remember to avoid blocking the antenna’s view of the sky as described in the previous section
by locating the antenna too high under the eaves or soffit of the home or building. (Figure 8)
INCORRECT
VIEW OF THE SKY
IS OBSTRUCTED
BY THE SOFFIT
AND GUTTER
CORRECT
UNOBSTRUCTED
VIEW OF THE SKY
CORRECT
UNOBSTRUCTED
VIEW OF THE SKY
Once you have determined a suitable mounting location, use the mounting bracket as a tem-
plate and mark the wall with the location of the four screw holes in the bracket. Then, using a
3/32 in. drill bit, drill pilot holes in the wall for the screws and then screw the bracket to the
wall.
Figure 8Figure 8

[Installation ] 17
Roof Mount

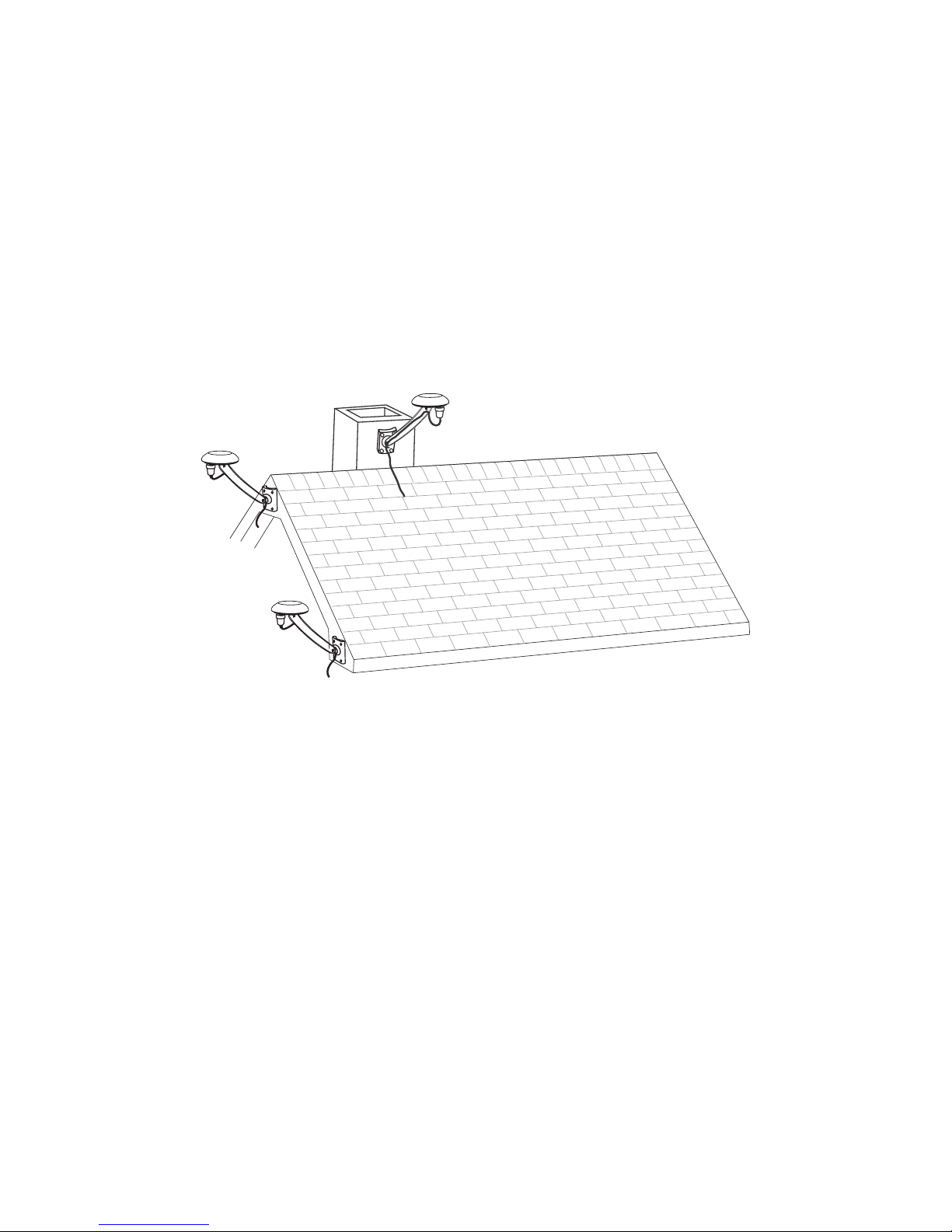

When mounting the antenna on the roof of a home or building, mount the antenna as close to
the peak of the roof as possible. Remember to avoid blocking the antenna’s view of the sky by
locating it where a chimney, dormer, gable, etc., may obstruct the sky view. (Figure 9)
The antenna mounting bracket should be oriented in a vertical position as shown in Figure 5,
and mounted directly to the soffit or chimney of the building or home using the provided #10
screws.
Once you have determined a suitable mounting location, use the mounting bracket as a
template and mark the mounting area with the location of the four screw holes in the bracket.
Then, using a 3/32 in. drill bit, drill pilot holes for the screws. It may be necessary to fill the
holes with a small amount of caulk to insure a watertight installation. Screw the bracket to the
mounting location using the provided #10 screws.
Figure 9Figure 9

[Installation ]
18
Mast Mount
The outdoor antenna can be mounted on most any mast or pole which does not exceed 2
inches in diameter using the provided U-bolts and mounting brackets. If you have a satellite
TV dish, the outdoor antenna may be mounted on the same mast as the satellite dish, but
remember that the dish cannot obstruct the antenna’s view of the sky in the direction which
you determined from the map in the previous section. (Figure 10)
To mount the antenna to the mast, you will need to use the two provided U-bolts, the two
mounting brackets, and the four hex nuts. Keep in mind that the antenna cable is routed under
the lower U-bolt, in the slot provided in the antenna base as shown in Figure 11.
Figure 10Figure 10

[Installation ] 19
Slide one of the U-bolts through the holes at the top of the mounting bracket. Then slide one
of the mounting brackets over the two legs of the U-bolt. (Figure 12)
Next, screw the hex nuts on each leg until they are snug. Do not yet tighten the hex nuts be-
Figure 11Figure 11
Figure 12Figure 12

[Installation ]
20
yond finger tight. Repeat this procedure with the other U-bolt. When all the hex nuts are snug,
verify that the antenna is facing the correct direction and begin tightening each hex nut with a
3/8” wrench. Turn each hex nut one-half turn and then move to the next hex nut repeating this
one-half turn pattern until all the hex nuts are equally tight. Tighten the hex nuts enough so
that the antenna is secured to the mast or pole, but do not overtighten them.
aDjusting anD aiming the antenna
The pod portion of the antenna (where the SIRIUS logo is printed) needs to be adjusted and
aimed so that it is level and horizontal to the sky. There are two possible adjustments that may
be made on the antenna to accomplish this: tilting the antenna pod itself (1), and adjusting
the antenna support arm (2), as shown in Figure 13.
1
Antenna Pod
HORIZONTAL LEVEL
SKY
Adjustment
Screw
Adjustment
Screw
2
Slightly loosen the adjustment screws and position the antenna so that the top of the antenna
pod is level, with the top of the pod horizontal to the sky as shown. When the antenna is
adjusted correctly, tighten the adjustment screws but be careful not to overtighten them.
Figure 13Figure 13
