INSTALLATION INSTRUCTIONS
Models covered by this instructions:
SU107 - SU82
*** BEFORE INSTALLATION ***
ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAINED DURING SHIPPING
*** SHIPPING DAMAGE ***
MUST BE REPORTED WITHIN 5 DAYS OF RECEIPT
WALL RANGE HOODS
CARE AND USE MANUAL FOR:

12
6
4
5
2
3

7
11
3
9
8
10
12

13 14
18
16
4
15
17

19 20
5

WARNING
Thank you for purchasing a Sirius Range Hood.
Please read all the instructions in this manual before
installing the appliance.
Save these instructions for future reference.
Only use this appliance as an exhaust ventilation system for the removal of coo-
king vapors. DO NOT use to expel ammable substances or any other materials
or vapors.
The installation procedures in this manual are intended for qualied installers, ser-
vice technicians or persons with similar qualied background.
DO NOT attempt to install this appliance yourself.
Ensure that electrical power is turned off at source before commencing installation.
All electrical wiring must be properly installed, insulated and grounded and conform
to all applicable codes and standards.
Make sure all existing duct work is clean of grease build up, or duct work should be
replaced, if necessary, to avoid the possibility of a grease re. Check all joints on
ductwork to ensure proper connection and all joints should be properly taped. Be
careful when cutting through ceilings or walls not to damage any hidden pipes or
electrical wiring. Ensure your kitchen has sufcient air return vents to replace the
exhausted air.
The minimum distance between the cooker surface and the inferior part of the co-
oker hood must be of 650 mm.
Fan ducts should always be vented to the outside of your home and never into
spaces within walls, ceilings, lofts or attics. Only use rigid, smooth steel for ducting.
The exhaust point of the blower requires a 6” round or 8” connection.
6

TABLE OF CONTENTS
BEFORE YOU BEGIN 8
DUCTING
External venting Requirements 8
ELECTRICAL
Electrical Supply 9
INSTALLATION
Positioning the Range Hood 10
Marking the Fixing Holes for the Range Hood 10
Fixing the Main Support Bracket 10
Hanging the Range Hood 10
Connecting Electricity and Ducting 11
Connecting Chimneys 11
Re-Circulating Requirements 11
OPERATING PROCEDURES
General Advice 12
Functions 12
MAINTENANCE
Cleaning the Filter 13
Cleaning the Hood 13
Substitution of the LED bar 13
Replace the LED lamps 13
WARRANTY SERVICE 14
7

BEFORE YOU BEGIN: It is advisable to
test run the range hood before installa-
tion.
BEFORE STARTING – please read this
entire document and ensure you are fully
conversant with the require-ments and li-
mitations. These units weigh approximately
125lbs and therefore require a minimum of
two people to install.
BEFORE YOU BEGIN
The manufacturer declines all responsibility
in the event of failure to observe the instruc-
tions given here for installation, maintenan-
ce and suitable operation of the product. The
manufacturer further declines all responsibi-
lity for injury due to negligence and the war-
ranty of the unit automatically expires due
to improper maintenance and/or installation.
Use the shortest and most direct route pos-
sible. Always, wherever reduce the number
of transitions and turns with as few sharp
angles as possible.
Two staggered 45 degree angles are better
than one 90 degree. Make these turns as far
away from the motor exhaust as possible,
with as much space between each bend as
possible.
* Gas range or gas cook top recommanded 8”.
The ducting connection to the hood must
be in line with the central vertical axis of the
range hood 1” away from the back wall on
which the hood is to be mounted. The 1” is
important to enable the ceiling bracket (as
shown in Figure 2) to pass behind the duct-
work servicing the range hood.
Range hoods may interrupt the proper ow of
combustion gases from replaces, gas furna-
ces and gas water heaters.
To minimize the risk of drawing these lethal
gases back into the home, please follow the
heating equipment manufacturers safety
standards and guidelines carefully.
Refer to NFPA and ASHRAE for additional
information.
DUCTING
(Not applicable if the range hood is used in
re-circulating mode).
WARNING: Do not vent this appliance into
any other ductwork, spaces between walls,
ceilings, attics, garages or any other con-
ned space.
External Venting Requirements.
When planning new ductwork, always look
for the most direct route to the outside. Ven-
ting can be done through the roof or directly

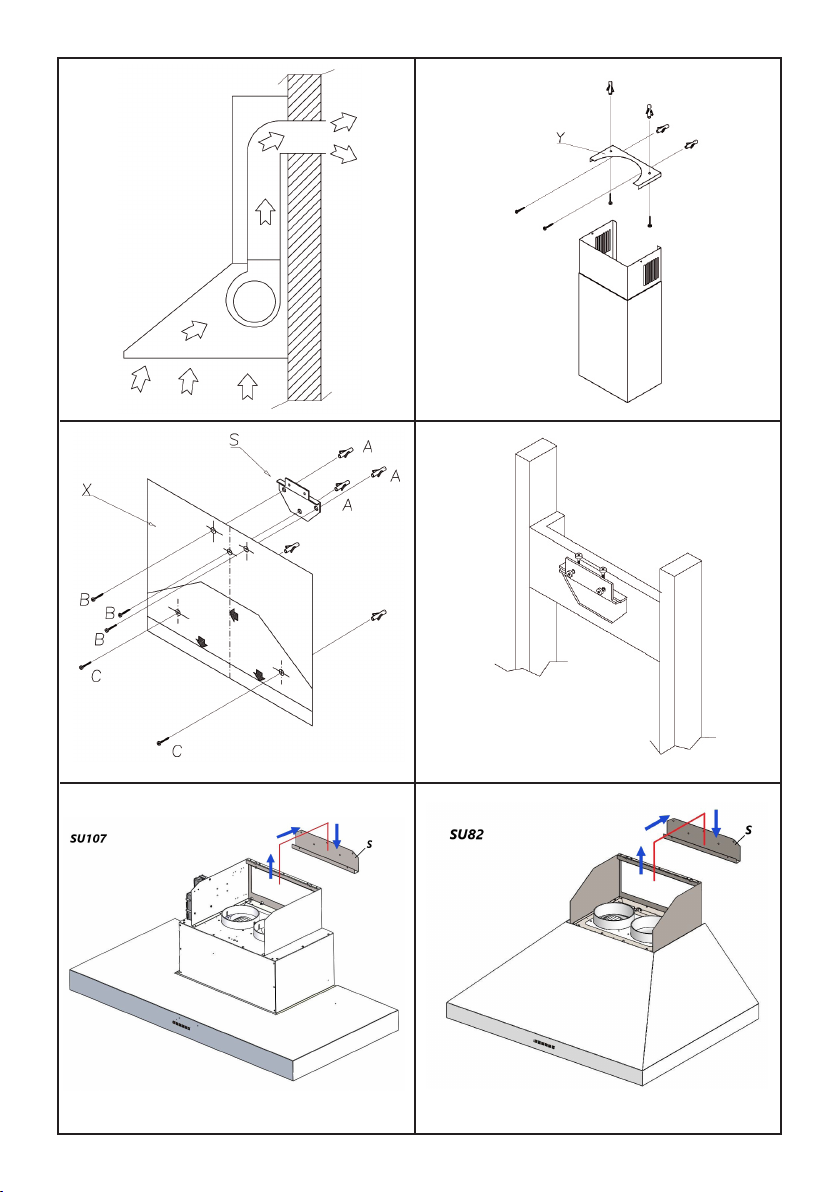

through the back outside wall. (See Figure
1). Recommanded 18” from the top of the
hood to the rst elbow.
Only use rigid type metal ducting (plastic
ducting is generally not permit-ted by code).
Flexible ducting could restrict airow by up
to 50%. Always fasten connections with she-
et metal screws and tape all joints with certi-
ed Silver Tape or Duct Tape.
Do not use screws to fasten ductwork to
the hood, only use tape as the screws will
stop the dampers from opening and your
hood will not work. This hood requires 8’’ for
the models with 2 motors. You can increase
the duct size of the duct run but never de-
crease it.
8

ELECTRICAL
WARNING: All electrical work must be
performed by a qualied electrician.
Please ensure that the appropriate electrical
codes or prevailing local building codes and
ordinances are adhered to.
Ensure that the electricity supply is discon-
nected at source. Do not use an extension
cord or adapter plug with this appliance.
This appliance must be grounded. Connect
to a properly grounded branch circuit, pro-
tected by a 15 amp circuit breaker.
Electrical Supply.
This range hood requires a 120V, 60Hz sup-
ply and draws a maximum of 3 amps. The
electrical supply to the range hood should be
at least 17” from the underside of the instal-
led range hood.
The cooking surface and the lower part of the
cooker hood must be at a minimum distance
of 65 cm from one another.
The instructions given in the user manual of
the hob are to be taken into full consideration.
9

Positioning the Range Hood.
Determine the center point of the range hood.
This is generally the center of the range. Make
a mark on the wall a minimum of 25” above
the top of an electric range. If the range is gas,
the ideal minimum should be 30”.Using a spirit
level, draw a perfectly vertical line, starting at
the center mark, right up to the ceiling or the
highest point to where the hood will extend.
This is the central axis for the range hood.
Draw a horizontal line fractionally above whe-
re the bottom of the range hood will be positio-
ned. This is the underside of the range hood.
Marking the Fixing Holes for the Range
Hood.
Find the marking template provided called
the “Assembly Scheme”. Place the template
against the wall. Align the horizontal line on
the wall with the horizontal line on the tem-
plate (indicated by two heavy arrows). Now
align the vertical line on the wall with the
“Central Axis” line on the template.
Gently tape the template to the wall making
sure it has no creases or folds (use a tape
that will not damage the wall nish). There
are three hole positions shown for the wall
bracket.
Using a sharp object, mark the wall through
the template at the center point of the three
holes. Lower down on the template, you will
see three sets of two holes. Only two of these
holes refer to your model. Check which mo-
del you have and, using a sharp object, mark
the two correct holes. These holes are used
to anchor the range hood horizontally from in-
side the hood once it has been hung from the
main bracket. Remove the template.
Fixing the Main Support Bracket
(CAUTION: Do not drill through any utili-
ties inside the wall).
INSTALLATION
If the range hood will be xed to drywall we
strongly recommend that you discard the wall
plugs and screws supplied. These anchors are
only suitable for brick/masonry applications. We
suggest the use of a more appropriate anchor
system specically designed for drywall applica-
tions. Wherever possible, it is advisable to place
blocking between the studs, behind the drywall,
to attach the support bracket to, (refer to Figure 4).
Drill the appropriate size holes at the marks
made earlier and x the Support Bracket (“S”)
securely to the wall. Ensure that any wall an-
chors have been tted into the lower two ho-
les, as the range hood will cover these holes
once hung on the Support Bracket (“S”).
Hanging the Range Hood.
Prepare the range hood for installation.
Remove all lters to ensure they do not get
damaged during the installation process.
Hang the range hood on the bracket “S” (re-
fer to Figure 5 - 6).
The bracket xed onto the back of the range
hood will drop into the channel on the top
of bracket “S” on the wall. Ensure the hood
is securely engaged into the support brackt
the range hood must clip in behind the ex-
tended lip on the Support Bracket (“S”).
“Lock” the range hood onto the “S” bracket
using the four machine screws supplied (re-
fer to Figure 7).
These screws are also used to make minor
adjustments to the levelling of the range
hood. Ensure the hood is level. Locate the
two holes “C” inside the housing of the ran-
ge hood and secure the range hood to the
wall once the range hood is perfectly level
and vertical. (refer to Figure 3).
10

Connecting Electricity and Ducting.
Please refer to the Electrical Supply section
on page 3 for the required location of the
electrical supply.
CAUTION: Make sure the power is turned
off at source. Make electrical connections

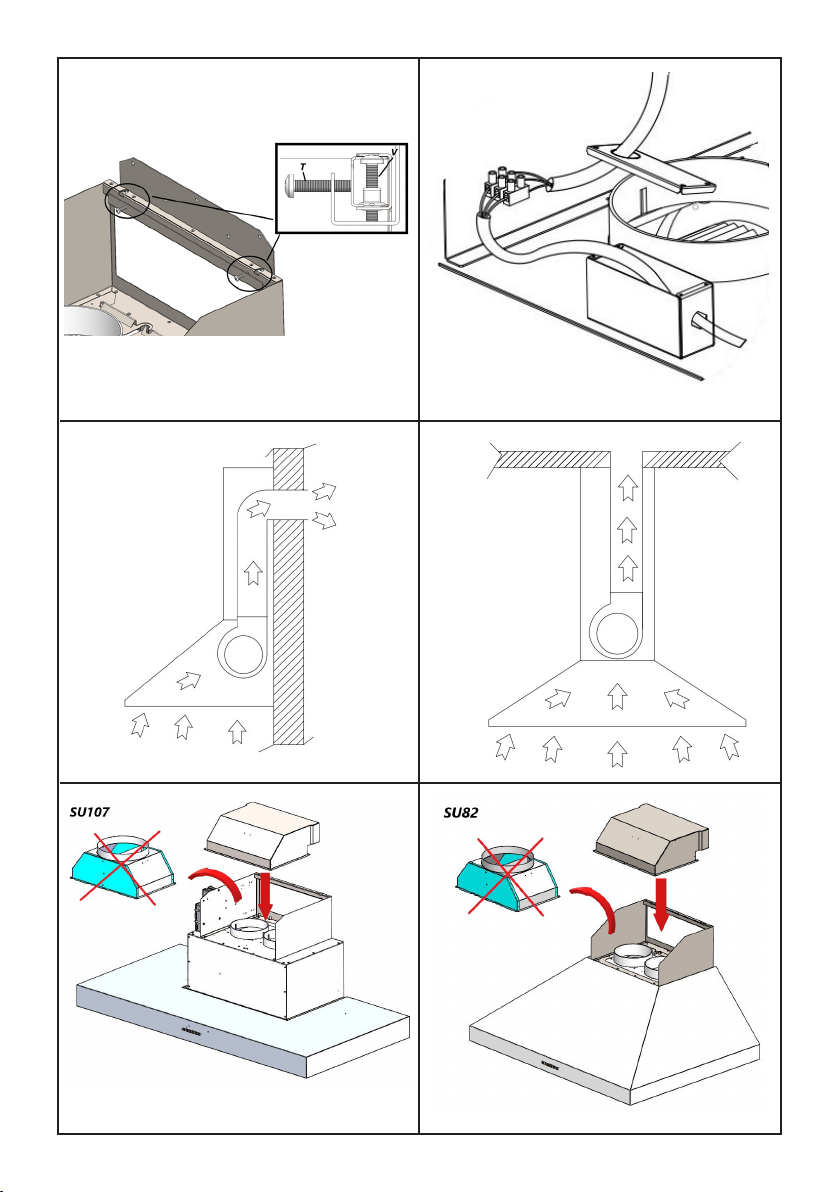

(refer to Figure 8).
Ensure that the plastic aps at the exhaust
outlet for the fan move freely and have not
become jammed or stuck.
Connect the appropriate length of ducting to
the fan exhaust point and join up with the
ducting to the exte-rior.
Figure 9 - 10 shows venting directly through
the wall. Venting up and through the ceiling
to the exte-rior is also possible racommen-
ded to have 18” from the top of the hood to
the rst elbow.
Do not x the ducting to the range hood
exhaust outlet with screws-use duct
tape. Use duct tape on all joints.
The air outlet of the product is oriented up-
wards: in the case that one prefers the air
outlet towards the rear side of the appliance,
it is only necessary to replace the air release
piece with the other one supplied with the
appliance Figure 11 - 12.
Connecting Chimneys
Remove the protective covering from the
decorative chimney and carefully slide the
sections together. Do not remove the tape
strips from inside the chimney as this pro-
tects the telescoping chimney-piece from
scratching. Holding the two chimney sec-
tions together carefully position them over
the ductwork and wiring. Position the upper
chimney so that it can be xed via the holes
on the side of the ‘Y” bracket on the ceiling
(refer to Figure 13).
Re-Circulating Requirements.
If the unit is to be used in the re-circulating
mode, t the carbon lter after (g. 14) the
installation is complete t the deector with
the screws supplied to the upper telescope
chimney. There are holes in the back upper
edge of (g. 15) the decorative chimney for
this purpose. A short length of ducting is
connected between the exhaust outlet on
the fan and the deector to direct the air
back into the kitchen through the vents at
the top of the upper decorative chimney.
The carbon lter (supplied separately) that
absorbs odors is installed behind the alumi-
nium grease lter (refer to Fig 16 - 17).
11

FUNCTION
“Manual touch buttons Fig. 18”.
A: Light ON/OFF button
B: Blower Speed 1 (low) or OFF
C: Blower Speed 2 (medium)
D: Blower Speed 3 (high)
E: Blower Speed 4 (intensive)
F: 10 Minute Timer
The products are endowed with an electronic
device which allows the automatic switching
off after 4 hours working from the last ope-
ration.
SU Models only: Filter requires washing in-
dicator After 30 hours of use, all the buttons
will light up to remind you that the grease l-
ter should be cleaned. Follow the instructions
for cleaning lters in this booklet. Once the
grease lters have been cleaned and repla-
ced, reset by pressing the timer button (F).
Do not rely solely on this indicator - generally,
the grease lter should be washed on a regu-
lar basis to avoid grease lter res.
The blower should be turned on for appro-
ximately 5 minutes before cooking in order
to establish air currents upward through the
hood.
Use the low speeds for normal use and the
higher speeds for strong odors and fumes.
OPERATING PROCEDURES
Read all the instructions before operating
the appliance. Save these instructions for
future reference.
General Advice.
Ensure that the grease lters are in place.
Without these components, operating blo-
wers could catch on to hair, ngers and lo-
ose clothing. Keep fan, lters and surfaces
clean of grease and fat. Always turn hood
fan ON when cooking. NEVER leave coo-
king unattended.
NEVER dispose cigarette ashes, ignitable
substances or any foreign objects into blo-
wers.
Cooking that generates ame is not recom-
mended as this hood is equipped with a
thermal overload that will shut down the mo-
tor if it senses excessive heat. When frying,
oil in the pan can easily overheat and igni-
te. Heat oil slowly in an appropriately sized
pot (covering the entire burner) to reduce
the risk of boiling over and burning.
In the event of a range top grease re, ob-
serve the following:
Switch OFF the range hood. Turn off the
cook top then smother ames with a close
tting lid, cookie sheet or other metal tray. If
the ames do not go out immediately.
EVACUATE AND CALL THE FIRE DE-
PARTMENT.
Never pick up a aming pan – you may be
burned. DO NOT USE WATER including
wet dishcloths or towels, as a violent steam
explosion may occur.
12

MAINTENANCE
The range hood should provide many ye-
ars of trouble free use provided it is properly
maintained. Be sure the lights are cool before
cleaning the hood - they are halogen and be-
come extremely hot.
Cleaning the Filter.
The aluminium mesh lters should be wa-
shed by hand or in the dishwasher as requi-
red. Damaged and worn lters must be re-
placed immediately. (Do not operate blower
when lters have been removed). Allow lters
to dry before replacing them, otherwise water
will be drawn into the blower.
If a carbon lter has been tted, this must be
replaced every 6 months as a minimum, de-
pending on usage and type of cooking that is
performed.
It is suggested that a spare set of carbon l-
ters is kept on hand. These can be ordered
from the supplier of your range hood.
Cleaning the Hood
The outside and interior of your hood should
be wiped regularly with a clean, damp cloth
and mild household dish detergent or degre-
aser.
Use a good quality non-abrasive foaming
type stainless steel cleaner for exterior sur-
faces.
Follow the manufacturers directions. Gene-
rally the foam is sprayed onto a clean dry
cloth and then applied to the stainless steel.
Allow the foam to react on the surface for a
few minutes and then wipe with a clean dry
cloth.
On the surfaces that are exposed directly to
heat from the cook-top, it is advisable to cle-
an these regularly to avoid the deposits from
becoming baked on.
Do not use abrasive cleaning agents as the-
se will destroy the brushed nish.
Substitution of the LED bar SU107 :
Using an appropriate tool, remove the LED
bar from its seat (refer to Fig. 19), disconnect
it electronically using the appropriate con-
nector then substitute it with a LED bar with
same characteristics.
Replace the LED lamps SU82 :
To replace the round LED lamps (g. 20) you
have to check rst if it is possible to access
the back side of the lamp with your hand.
If it is possible to access the back side of the
lamp, you have to: insert your hand , push at
the same time both support wings of the
lamp, push to remove the lamp.
If it is not possible to access the back side of
the lamp, you have to: provide yourself with
a sharp utensil, insert the utensil between the
lamp and the stainless steel frame (on
the side where the little support wings are
placed), push to remove the lamp from the
cooker hood.
13

14

15

Three Year Limited Warranty
YOU MUST REGISTER THE PURCHASE OF YOUR PRODUCT ON LINE AT www.siriuscappe.com/
usa/warranty.htm TO CONVALIDATE YOUR WARRANTY.
YOU CAN FIND THE DATA OF YOUR HOODS ON A LABEL INSIDE THE HOOD. JUST REMOVE
THE GREASE FILTER TO READ IT.
WARRANTY SERVICE
To qualify for warranty service, you must notify Sirius After sale service at the email address
stated below or call toll free USA 1-877-474-8770 and provide the model number, description of
the fault or defect and original date of purchase. Sirius reserves the right to request proof of ori-
ginal purchase. Sirius will at its sole option and discretion replace products that arrive damaged
through shipping, provided shipping damage is reported as stated above WITHIN 5 BUSINESS
DAYS OF RECEIPT of the shipped product or products.
ONE YEAR SERVICE REPAIR WARRANTY:
During the rst year from date of original purchase, Sirius will, at its option, repair or replace, without
charge, any product or part which is found to be defective under normal use and service.
THREE YEAR PARTS WARRANTY:
For three years from date of purchase, Sirius will provide free of charge, non-consumable replacement
parts which are found to be defective under normal use and service.
WHO IS COVERED:
Sirius warrants to the original consumer purchaser of its products that such products will be free from
defects in materials and workmanship for a period of three years from the original date of purchase.
There are no other warranties, express or implied, including, but not limited to, implied warranties of
merchantability or tness for a particular purpose or application.
WHAT IS NOT COVERED:
This warranty does not extend to lters, lamps, batteries, ducts and ductwork components. This war-
ranty does not cover normal maintenance and service or products or parts which have been subject to
misuse, negligence, accident, improper maintenance or repair, faulty installation or installation contrary
to recommended installation instructions. The warranty on glass screens is limited to manufacturing
defects only and expressly excludes cracks and breakages as a result of faulty installation. Labor and
associated costs associated directly with removal and re-installation are expressly excluded.
The duration of any implied warranty is limited to the three year period as specied for the express
warranty. Some states and provinces do not allow limitation on how long an implied warranty lasts, so
the above limitation may not apply to you.
Sirius S.P.A.
Zona industriale Berbentina 6/A
60041 SASSOFERRATO (AN)
ITALY
Sirius after sale service
Telephone (toll free): 1-877-474-8770
Email: [e-mail]
Register Online! www.siriuscappe.com/usa/warranty.htm
90001070070 - MM 03/20
