INSTALLATION INSTRUCTIONS
Models covered by this instructions:
SU35 TC - SU109
*** BEFORE INSTALLATION ***
ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAINED DURING SHIPPING
*** SHIPPING DAMAGE ***
MUST BE REPORTED WITHIN 5 DAYS OF RECEIPT
WALL RANGE HOODS
CARE AND USE MANUAL FOR:

WARNING

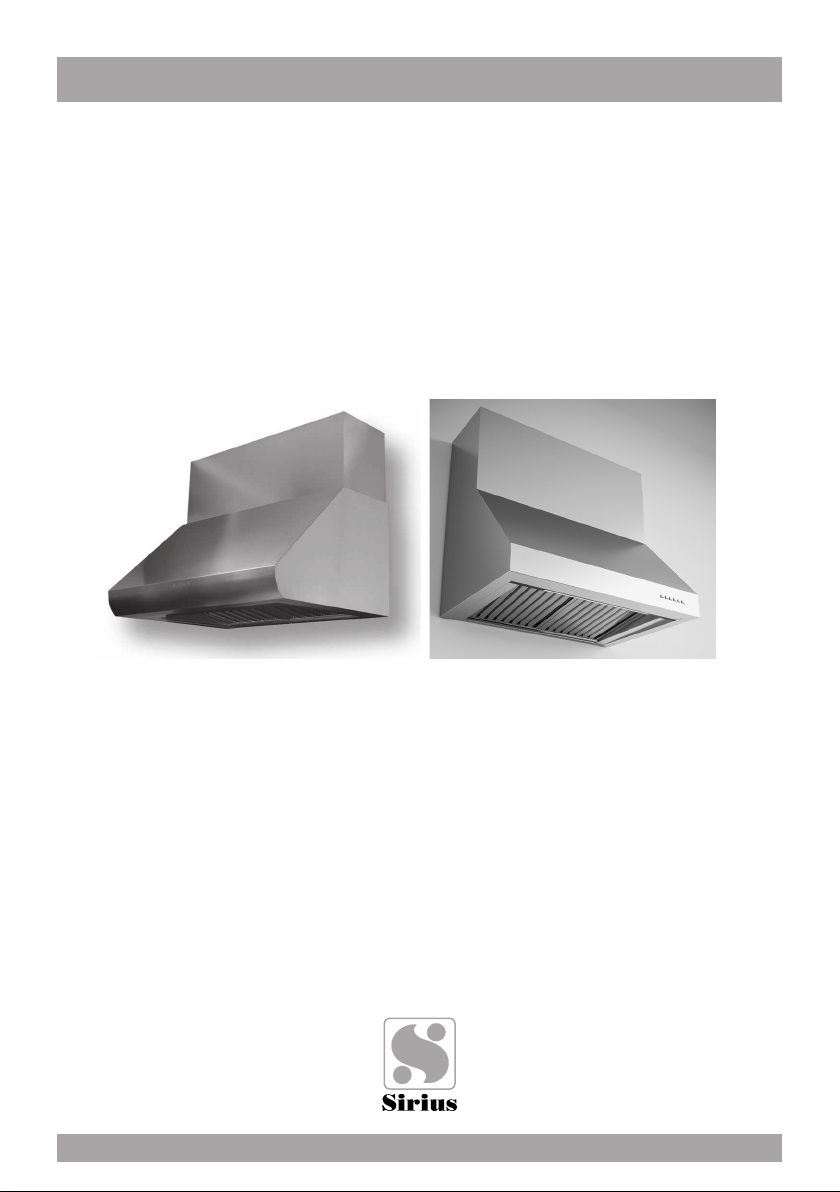

Thank you for purchasing a Sirius Range Hood.
Please read all the instructions in this manual before
installing the appliance.
Save these instructions for future reference.
Only use this appliance as an exhaust ventilation system for the removal of coo-
king vapors. DO NOT use to expel ammable substances or any other materials
or vapors.
The installation procedures in this manual are intended for qualied installers, ser-
vice technicians or persons with similar qualied background.
DO NOT attempt to install this appliance yourself.
Ensure that electrical power is turned off at source before commencing installation.
All electrical wiring must be properly installed, insulated and grounded and conform
to all applicable codes and standards.
Make sure all existing duct work is clean of grease build up, or duct work should be
replaced, if necessary, to avoid the possibility of a grease re. Check all joints on
ductwork to ensure proper connection and all joints should be properly taped. Be
careful when cutting through ceilings or walls not to damage any hidden pipes or
electrical wiring. Ensure your kitchen has sufcient air return vents to replace the
exhausted air.
The minimum distance between en the cooker surface and the inferior part of the
cooker hood must be of 650 mm.
Fan ducts should always be vented to the outside of your home and never into
spaces within walls, ceilings, lofts or attics. Only use rigid, smooth steel for ducting.
The exhaust point of the blower requires a 6” round or 8” connection.
2

TABLE OF CONTENTS
3
BEFORE YOU BEGIN 4
DUCTING 4
External Venting Requirements 4
Duct Run Calculation 4
ELECTRICAL 5
Electrical Supply 5
USES 6
INSTALLATION 7
OPERATING PROCEDURES 9
Working 10
MAINTENANCE 11
Light Bulb Replacement 11
Substitution of the LED bar 12
WARRANTY 13

BEFORE YOU BEGIN: It is advisable to
test run the range hood before installa-
tion.
BEFORE STARTING – please read this
entire document and ensure you are fully
conversant with the require-ments and li-
mitations. These units weigh approximately
125lbs and therefore require a minimum of
two people to install.
BEFORE YOU BEGIN
The manufacturer declines all responsibility
in the event of failure to observe the instruc-
tions given here for installation, maintenan-
ce and suitable operation of the product. The
manufacturer further declines all responsibi-
lity for injury due to negligence and the war-
ranty of the unit automatically expires due
to improper maintenance and/or installation.
Only use rigid type metal ducting (plastic
ducting is generally not permit-ted by code).
Flexible ducting could restrict airow by up
to 50%. Always fasten connections with she-
et metal screws and tape all joints with certi-
ed Silver Tape or Duct Tape.
Do not use screws to fasten ductwork to
the hood, only use tape as the screws will
stop the dampers from opening and your
hood will not work. This hood requires 8’’ for
the models with 2 motors. You can increase
the duct size of the duct run but never de-
crease it.
Use the shortest and most direct route pos-
sible. Always, wherever reduce the number
of transitions and turns with as few sharp
angles as possible.
Two staggered 45 degree angles are better
than one 90 degree. Make these turns as far
away from the motor exhaust as possible,
with as much space between each bend as
possible.
Duct Run Calculation
The maximum duct run before effecting the
performance of the hood is 100’. Calculate
your duct run by measuring linear feet and
adding the elbows, transitions and caps ba-
sed on the table alongside.
DUCTING
(Not applicable if the range hood is used in
re-circulating mode).
WARNING: Do not vent this appliance into
any other ductwork, spaces between walls,
ceilings, attics, garages or any other con-
ned space.
External Venting Requirements.
When planning new ductwork, always look
for the most direct route to the outside. Ven-
ting can be done through the roof or directly
through the back outside wall.
4

5
Electrical Supply.
This range hood requires a 120V, 60Hz sup-
ply and draws a maximum of 3 amps. The
electrical supply to the range hood should be
at least 17” from the underside of the instal-
led range hood.
For a typical installation, where the undersi-
de of the range hood will be 30” above the
counter top and the counter top is 36” above
the oor level, the electrical supply should be
76” above oor level and no further than 3” to
the right (as you face the wall) of the central
axis of the range hood.
ELECTRICAL
WARNING: All electrical work must be
performed by a qualied electrician.
Please ensure that the appropriate electrical
codes or prevailing local building codes and
ordinances are adhered to.
Ensure that the electricity supply is discon-
nected at source. Do not use an extension
cord or adapter plug with this appliance.
This appliance must be grounded. Connect
to a properly grounded branch circuit, pro-
tected by a 15 amp circuit breaker.
The ducting connection to the hood must
be in line with the central vertical axis of the
range hood 1” away from the back wall on
which the hood is to be mounted. The 1” is
important to enable the ceiling bracket to
pass behind the ductwork servicing the ran-
ge hood.
Range hoods may interrupt the proper ow
of combustion gases from replaces, gas
furnaces and gas water heaters.
To minimize the risk of drawing these lethal
gases back into the home, please follow the
heating equipment manufacturers safety
standards and guidelines carefully.
Refer to NFPA and ASHRAE for additional
information.
Maximum Run
6” or 3 1/4 x 10” duct * 100 FT
Deduct
Each 90 elbow used 15FT
Each 45 elbow used 9FT
Each 6” or 3 1/4 x 10” duct
Transition used 1FT
Each 3” 1/4 x 10” to 6”
Transition used 5FT
Side Wall with damper 30FT
Roof Cap 30FT

The appliance can be used both in ltering
and sucking versions.
In the ltering version, air and fumes conve-
yed by the appliance are puried by both a
grease lter and an active charcoal lter and
are then released and re-circulated into the
environment.
USES
6
In the sucking version, fumes are conveyed
directly outside, through an evacuating duct.
The use of a charcoal lter is not needed.

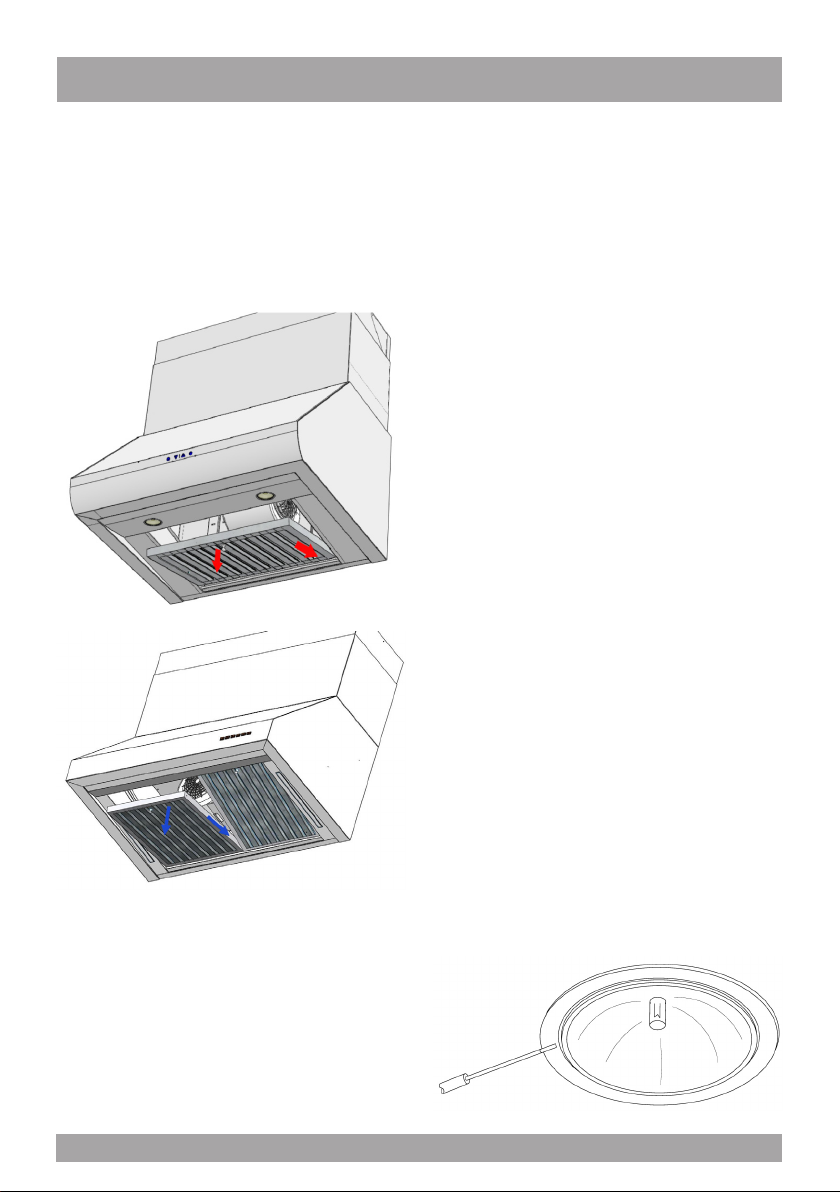

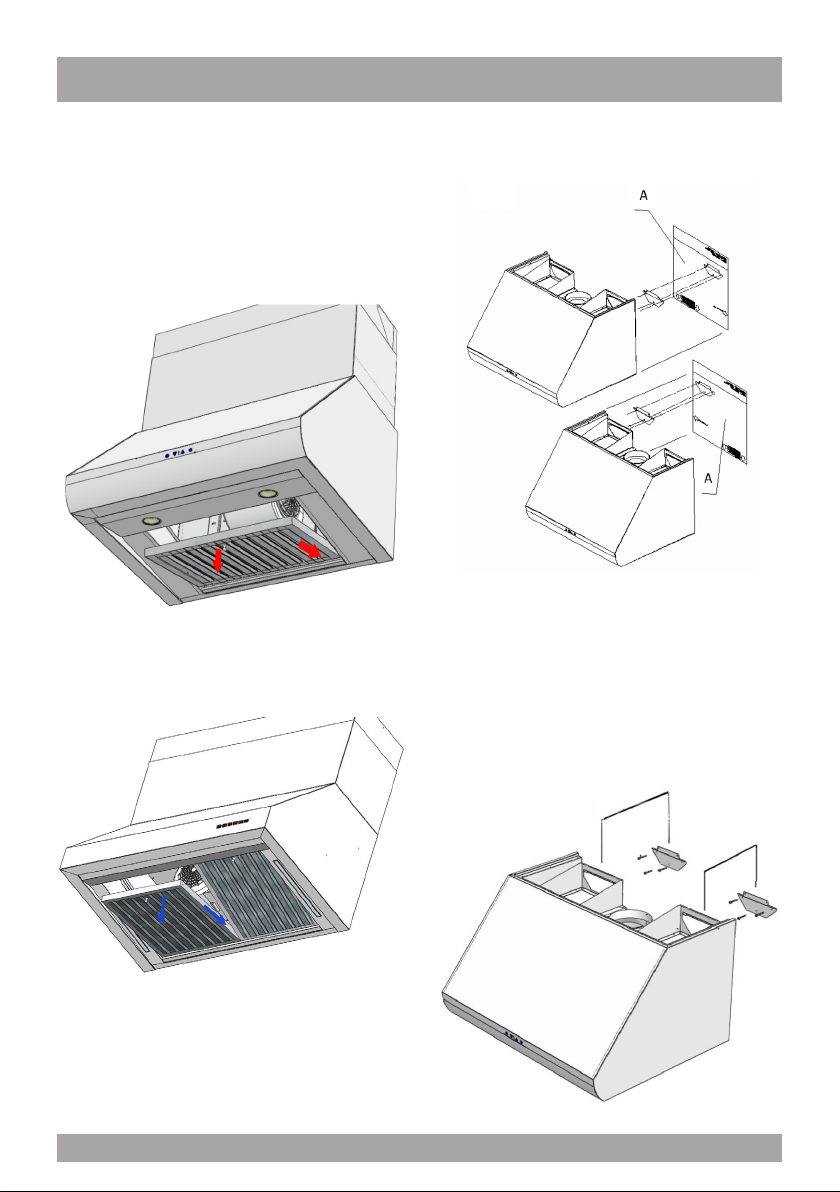

Before installation, in order to avoid damage
to the appliance, remove the grease lter.
The removal of the of the metal grease-lter
is done by pushing the special lter handle
towards the rear side of the cooker hood,
making it rotate downwards.
INSTALLATION
7
perforate the wall according to the pattern
indicated by the jig itself, being careful not to
damage water pipes or electrical wires. The
wall should be perforated using a Ø 8 mm
wall drill. Insert the proper plastic reinforce-
ments into the holes that have been created.
The hood-bearing stirrups are applied using
the screws included with the equipment.
Using the special drilling jig,

8
The air outlet of the product is oriented up-
wards: in the case that one prefers the air
outlet towards the rear side of the appliance
, it is only necessary to replace the air rele-
ase piece with the other one supplied with
the appliance.
In the 30” version, it is possible to orient the
air outlet towards the rear side of the cooker
hood by rotating the sucking unit.
Remove the xing screws shown,
take the sucking unit out, rotate and reinsert it
into the desired position, and then place again
the screws that had been removed. To comple-
te installation, insert the two xing screws into
the rear side of the cooker hood, into the two
holes that were created beforehand. Before -
xing the chimney in place, place the electrical
feeding equipment into the decorative pipe as
well as the related electrical connection.
Hook the cooker hood into the bearings,
then adjust vertically and horizontally the
position of the appliance, acting on the spe-
cial regulating metric screws.

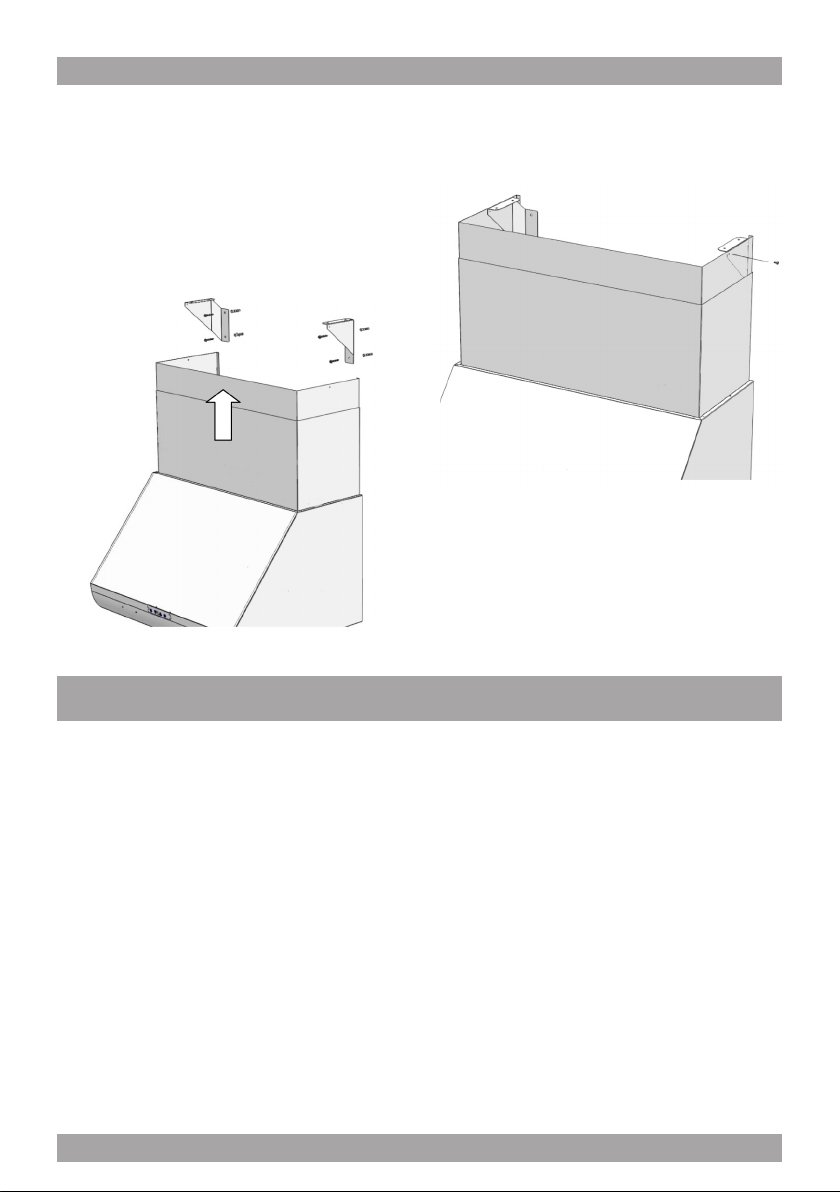

After having xed the hood-bearing stirrup of
the upper chimney, raise and block it with the
two side screws.
9
In the case of the sucking version, connect the
ange of the cooker hood to the air outlet hole,
which is already prepared, through a suitable
pipe. Position the two chimneys on the coo-
ker hood in their proper seat, raising the upper
chimney to the desired height and x the appro-
priate bearings using the included screws and
reinforcements.
OPERATING PROCEDURES
it senses excessive heat. When frying, oil in
the pan can easily overheat and ignite. Heat
oil slowly in an appropriately sized pot (co-
vering the entire burner) to reduce the risk of
boiling over and burning.
In the event of a range top grease re, ob
serve the following: Switch OFF the range
hood. Turn off the cook top then smother a-
mes with a close tting lid, cookie sheet or
other metal tray. If the ames do not go out
immediately.
EVACUATE AND CALL THE FIRE DE PART-
MENT.
Never pick up a aming pan – you may be
burned. DO NOT USE WATER including wet
dishcloths or towels, as a violent steam ex-
plosion may occur.
Read all the instructions before operating the
appliance. Save these instructions for future
reference.
General Advice.
Ensure that the grease lters are in place.
Without these components, operating blo
wers could catch on to hair, ngers and lo
ose clothing.
Keep fan, lters and surfaces clean of gre
ase and fat. Always turn hood fan ON when
cooking. NEVER leave cooking unattended.
NEVER dispose cigarette ashes, ignitable
substances or any foreign objects into blo
wers.
Cooking that generates ame is not recom
mended as this hood is equipped with a ther-
mal overload that will shut down the mo tor if

For the Touch Control “ROSSO” (RED) ver-
sion, it is possible to set the shut off of the
lighting function of the keypad by pressing
the light key (A) for 6 seconds (this opera-
tion must be done with both lights and motor
switched off). This function permits for the au-
tomatic shutoff of the keypad after 10 secon-
ds from shutoff of the lights and the motor. To
re-activate the keypad it is sufcient to set a
function. To keep the lighting of the keypad
always on, press the light key for 6 seconds
(this operation must be done with both light
and motor switched off).
FUNCTION SU35 TC
The functions of the keys of the Touch Con-
trol keypad (push button control panel) are
described below:
A: LIGHT SWITCH ON/OFF
B: SPEED REDUCTION / OFF MOTOR
C: SPEED INDICATORS
D: ON MOTOR / SPEED INCREASE
E: TIMER 10 min.
10
FUNCTION SU109
“Manual touch buttons”
A: Light ON/OFF button
B: Blower Speed 1 (low) or OFF
C: Blower Speed 2 (medium)
D: Blower Speed 3 (high)
E: Blower Speed 4 (intensive)
F: 10 Minute Timer

MAINTENANCE
Careful and accurate maintenance guaran-
tees good functioning and long lasting per-
formance. Particular care must be taken for
the grease lter panel the removal of the
metal grease-lter is done by pushing the
special lter handle towards the rear side
of the cooker hood, making it rotate down-
wards.
FOR SU35 TC
Light Bulb Replacement
(If in doubt, call 866.528.4987)
Turn blower and lights off. Make sure the
lights are cool.
If new lights do not operate, check fuses and
be sure globes and breakers are inserted
correctly.
Do not remove the entire xture (socket) as
this is very difcult to reinstall. Gently pry the
bulb from the xture using a soft instrument
such as a toothpick. Steel instruments will
scratch the surface.
Replace the appropriate bulb. Check par-ts
brochure or specication sheets on our web-
site. Wipe both sides of the glass whilst it is
out. Reinsert the glass blocking ring and fa-
sten it.
How often it is cleaned depends on usage,
however, generally at least once every two
months. Tepid water and a mild detergent
are recommended for cleaning the applian-
ce; the use of abrasive products should be
avoided. To clean steel appliances the use
of special products is recommended, while
carefully following the instructions shown
on the product itself. To replace the dichroic
lamp, remove the lamp by inserting a small
screwdriver (or any sharp utensil) between
the lamp and the steel and replace it with
a lamp of the same kind. The supply cord
should be replaced by qualied and authori-
zed personnel only.
The lter is inserted by inversely repeating
this operation. After 30 hours of cooker hood
functioning, the keypad will signal the lter
saturation , by the ashing of the speed in-
dicators. In order to reset, please press the
timer key. The grease lter may be washed
by hand or in the dishwasher.
11

FOR SU109
Substitution of the LED bar:
Using an appropriate tool, remove the LED
bar from its seat, disconnect it electronically
using the appropriate connector then substi-
tute it with a LED bar with same characte-
ristics.
12

Three Year Limited Warranty
YOU MUST REGISTER THE PURCHASE OF YOUR PRODUCT ON LINE AT
www.siriuscappe.com/usa/warranty.htm TO CONVALIDATE YOUR WARRANTY.
YOU CAN FIND THE DATA OF YOUR HOODS ON A LABEL INSIDE THE HOOD. JUST REMOVE
THE GREASE FILTER TO READ IT.
Sirius S.P.A.
Zona industriale Berbentina 6/A
60041 SASSOFERRATO (AN)
ITALY
Sirius after sale service
Telephone (toll free): 1-877-474-8770
Email: [e-mail]
Register Online! www.siriuscappe.com/usa/warranty.htm
WARRANTY SERVICE
To qualify for warranty service, you must notify Sirius After sale service at the email address
stated below or call toll free USA 1-877-474-8770 and provide the model number, description
of the fault or defect and original date of purchase. Sirius reserves the right to request proof
of original purchase. Sirius will at its sole option and discretion replace products that arrive
damaged through shipping, provided shipping damage is reported as stated above WITHIN 5
BUSINESS DAYS OF RECEIPT of the shipped product or products.
ONE YEAR SERVICE REPAIR WARRANTY:
During the rst year from date of original purchase, Sirius will, at its option, repair or replace, without
charge, any product or part which is found to be defective under normal use and service.
THREE YEAR PARTS WARRANTY:
For three years from date of purchase, Sirius will provide free of charge, non-consumable replacement
parts which are found to be defective under normal use and service.
WHO IS COVERED:
Sirius warrants to the original consumer purchaser of its products that such products will be free from
defects in materials and workmanship for a period of three years from the original date of purchase.
There are no other warranties, express or implied, including, but not limited to, implied warranties of
merchantability or tness for a particular purpose or application.
WHAT IS NOT COVERED:
This warranty does not extend to lters, lamps, batteries, ducts and ductwork components. This war-
ranty does not cover normal maintenance and service or products or parts which have been subject to
misuse, negligence, accident, improper maintenance or repair, faulty installation or installation contrary
to recommended installation instructions. The warranty on glass screens is limited to manufacturing
defects only and expressly excludes cracks and breakages as a result of faulty installation. Labor and
associated costs associated directly with removal and re-installation are expressly excluded.
The duration of any implied warranty is limited to the three year period as specied for the express
warranty. Some states and provinces do not allow limitation on how long an implied warranty lasts, so
the above limitation may not apply to you.
90007011909 - MM 06/19
