USER GUIDE
Dock & Play Home Kit

2
Table of Contents
Compatibility................................................ 3
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety and Care Information............................................... 5
What’s in the Box? ....................................................... 6
Home Dock Color-Coded Connections ..................................... 7
Remote Control Functions ................................................ 8
Remote Control Battery Replacement ...................................... 9
Home Installation ............................................10
Step 1: Insert the Radio Dock Adapter Into the Dock .........................10
Step 2: Connect the Home Dock and Dock the Radio.........................13
Step 3: Place and Aim the Indoor/Outdoor Home Antenna....................15
Step 4: Connect the Home Dock to a Stereo System or Powered Speakers .....19
Troubleshooting ............................................ 22
Product Specifications ....................................... 25
Patent Information ......................................................26
Environmental Information ...............................................26
Patent and Environmental Information ......................... 26
FCC Statement ............................................. 27
Copyrights and Trademarks................................... 28
Indoor/Outdoor Home Antenna Template ....................... 29

3
Compatibility
This Home Kit is compatible with the following Dock & Play Radios:
SiriusXM:
•Onyx Plus
•Edge
XM:
•Onyx
•Onyx EZ
•XpressRCi
•XpressRC
•XpressR
Sirius:
•Sportster 5
•Starmate 8, 5, 4, 3
•Stratus 7, 6, 5
•Stratus

4
Introduction
Thank you for purchasing the SiriusXM Dock & Play Home Kit!
The Home Kit lets you play your compatible XM or SiriusXM Dock & Play
Radio through your home stereo system or powered speakers.
•There is no need for a second subscription. Just connect this Home Kit
to a stereo system or set of powered speakers - and then simply move
your Radio from any location to your home or office.
•This Home Kit works with a set of powered speakers or any stereo
system with audio input jacks.
And for the latest information about this and other SiriusXM products and
accessories, visit www.siriusxm.com or your favorite retailer.
Please read the entire User Guide before installing your Home Kit!

5
Safety and Care Information
IMPORTANT! Self installation instructions and tips are provided for your
convenience. It is your responsibility to determine if you have the knowledge,
skills, and physical ability required to properly perform an installation.
SiriusXM shall have no liability for damage or injury resulting from the
installation or use of any SiriusXM or third party products. SiriusXM product
warranties do not cover the installation, removal or reinstallation of any
product.
•Do not expose to extreme temperatures (above 140°F or below -4°F, or
above 60°C or below -20°C).
•Do not expose to moisture. Do not use device near or in water. Do not
touch the device with wet hands.
•Do not let any foreign matter spill into device.
•Do not store in dusty areas.
•Do not expose to chemicals such as benzene and thinners. Do not use
liquid or aerosol cleaners. Clean with a soft damp cloth only.
•Do not expose to direct sunlight for a prolonged period of time, and do
not expose to fire, flame, or other heat sources.
•Do not try to disassemble and/or repair the device yourself.
•Do not drop your device or subject it to severe impact.
•Do not place heavy objects on device.
•Do not subject device to excessive pressure.
WARNING!
•Opening the case may result in electric shock.
•Make sure that you insert the Home Power Adapter’s plug all the way
into the outlet.
•This product contains chemicals known to the State of California to
cause cancer and birth defects or other reproductive harm.
Introduction

6
Introduction
What’s in the Box?
Indoor/Outdoor
Home Antenna Stereo Audio
Cable
Home Power
Adapter
Remote Control
8
5
2
7
4
1
9
6
3
mute
t-mix
memo
t-scn
fm
jump
menu
0bank
direct
display
IR
PULL
Home Dock
Sirius Radio Dock Adapter
XM & SiriusXM Radio
Dock Adapter

7
AUDIOANT PWR
Introduction
Home Dock Color-Coded Connections
The color-coded Home Dock makes it simple to connect the cables to the
appropriate connectors at the rear of the dock.
ANT (Silver)
Connection for
the Indoor/
Outdoor Home
Antenna.
AUDIO (Green)
Connection for
stereo system or
powered speakers.
POWER (Red)
Connection for
Home Power
Adapter.
Rear View

8
Introduction
Remote Control Functions
8
5
2
7
4
1
9
6
3
mute
t-mix
memo
t-scn
fm
jump
menu
0bank
direct
display
IR
PULL
Pause and Replay Buttons
For Radios which have these features, pause,
rewind, and replay live radio and smart
favorite channels.
Power Button
Press to turn Radio on and off. Arrow Buttons Up/Down
Press to preview and tune to channels through
the channel lineup; also press to scroll through
lists and highlight menu items.
Arrow Buttons Left/Right
Press to search for channels by category.
Menu Button
Press to access advanced features and
configuration options.
Select Button
When in a menu or list, press to confirm
selection of highlighted item; for SiriusXM
Radios which have these features, when in
TuneMix or TuneScan, press to end TuneMix/
Scan and continue playing the currently
tuned channel; for some Sirius Radios, press
to directly enter a channel number.
Bank Button
For Radios which have this feature, press to
switch between favorite channel banks or bands.
Jump Button
For Radios which have these features,
directly access traffic and weather of the
chosen city; access the previous channel or a
favorite channel.
TuneMix/Memo Button
For SiriusXM Radios which have this feature,
press to begin TuneMix; for Sirius Radios
which have this feature, press to save
artists or songs.
Number Buttons
Press to tune to a stored favorite channel;
for Radios which have this feature, also used
to enter a channel number and directly tune
to that channel.
FM Button
For Radios which have this feature, press to
access and cycle through FM presets. (Vehicle
Dock only).
Direct/Display Button
For XM and SiriusXM Radios which have this
feature, press to directly enter a channel number;
for Sirius Radios which have this feature, press
to customize the way you view content on the
display.
Mute Button
Press to silence the audio. Press again to hear
to the audio.
TuneScan Button
For SiriusXM Radios which have this feature, press
to begin TuneScan.
IMPORTANT!
Pull tab and remove
before using Remote
Control.

9
Introduction

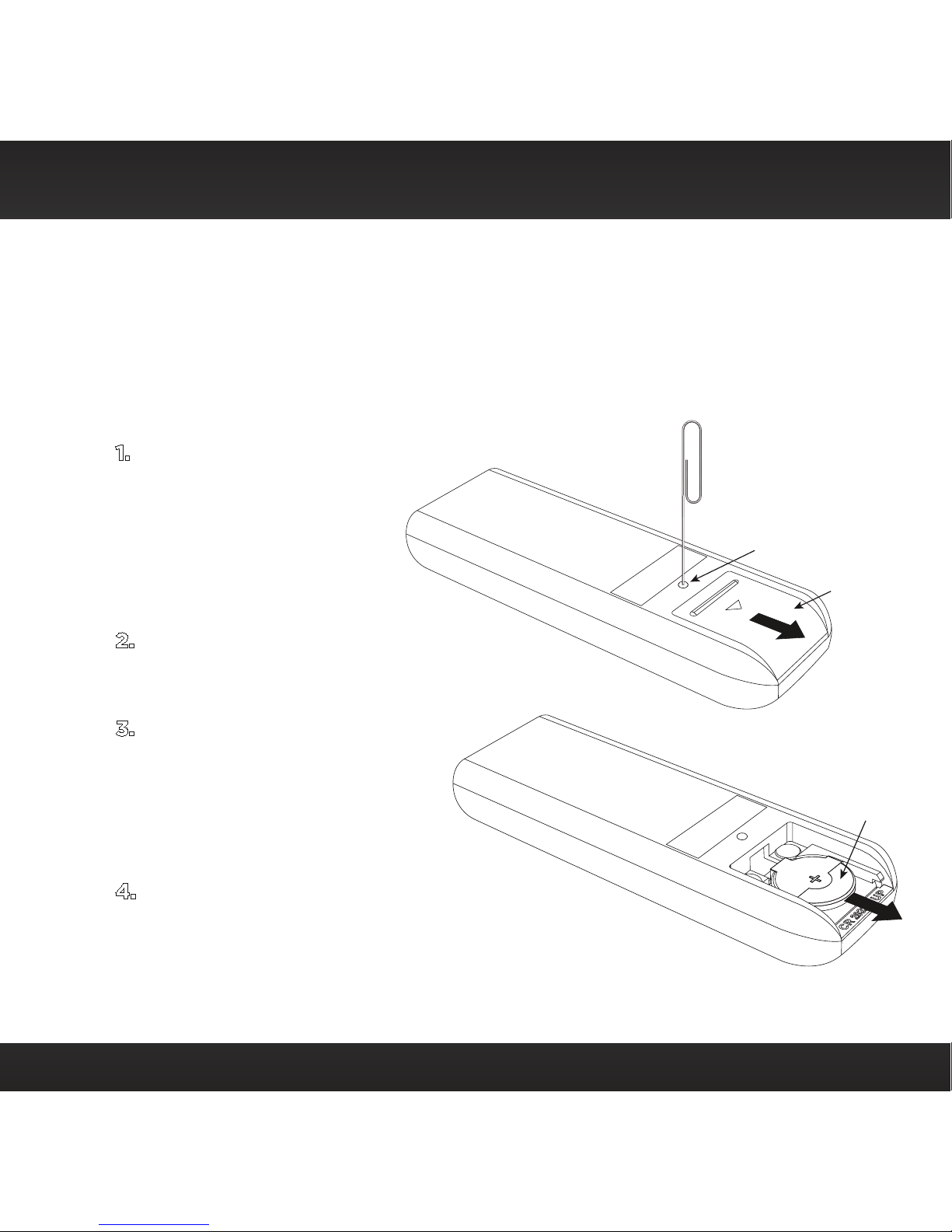

Remote Control Battery Replacement
The Remote Control has a child resistant battery compartment which
requires a pointed object to open the battery compartment. A paper clip is
recommended, as shown.
To Replace the Battery:
1. Press the paper clip or
other object into the
lock release opening
on the Remote Control,
and slide the battery
compartment cover off
of the Remote Control.
2. Slide the battery
out of the battery
compartment.
3. Replace with a new
battery. Observe the
correct orientation of the
battery; the + positive side
of the battery should be
facing up.
4. Replace the battery
compartment cover.
Paper Clip
Lock Release
Battery
Compartment
Cover
Battery

10
Home Installation
There are several steps to setting up your Home Kit. Follow these steps for
an easy installation.
Step 1: Insert the Radio Dock Adapter Into the Dock
You’ll need to insert the Radio Dock Adapter that is compatible with your
Radio into the Home Dock.
1. Locate the Radio Dock Adapter that is compatible with your Radio.
If you have an XM or SiriusXM Radio: If your Radio is branded as XM*
or SiriusXM*, select the Radio Dock Adapter marked XM & SIRIUSXM
on the back of the adapter.
If you have a Sirius Radio: If your Radio is branded as Sirius*, select
the Radio Dock Adapter that is marked SIRIUS on the back of the
adapter.
XM & SIRIUSXM
Front View Correct OrientationBack View
SIRIUS
Front View Correct OrientationBack View
*If you are unsure whether your Radio is an XM, SiriusXM, or Sirius Radio, check the label
on the back of the Radio. If the label on your Radio says XM Radio ID or Radio ID, and
has an 8-digit alphanumeric number, it is an XM or SiriusXM Radio. If the label on your
Radio says Sirius ID, SID, or ESN, and has a 12-digit numeric number, it is a Sirius Radio.

11
Home Installation
2. Orient and place the Radio Dock Adapter that you selected into the
Home Dock. Be sure the adapter is centered, and is seated all the way
down into the dock.
3. Once the adapter is seated correctly in the Home Dock, gently press
the top of the adapter against the dock with your finger until it clicks
into place. The Radio Dock Adapter is now installed.

12

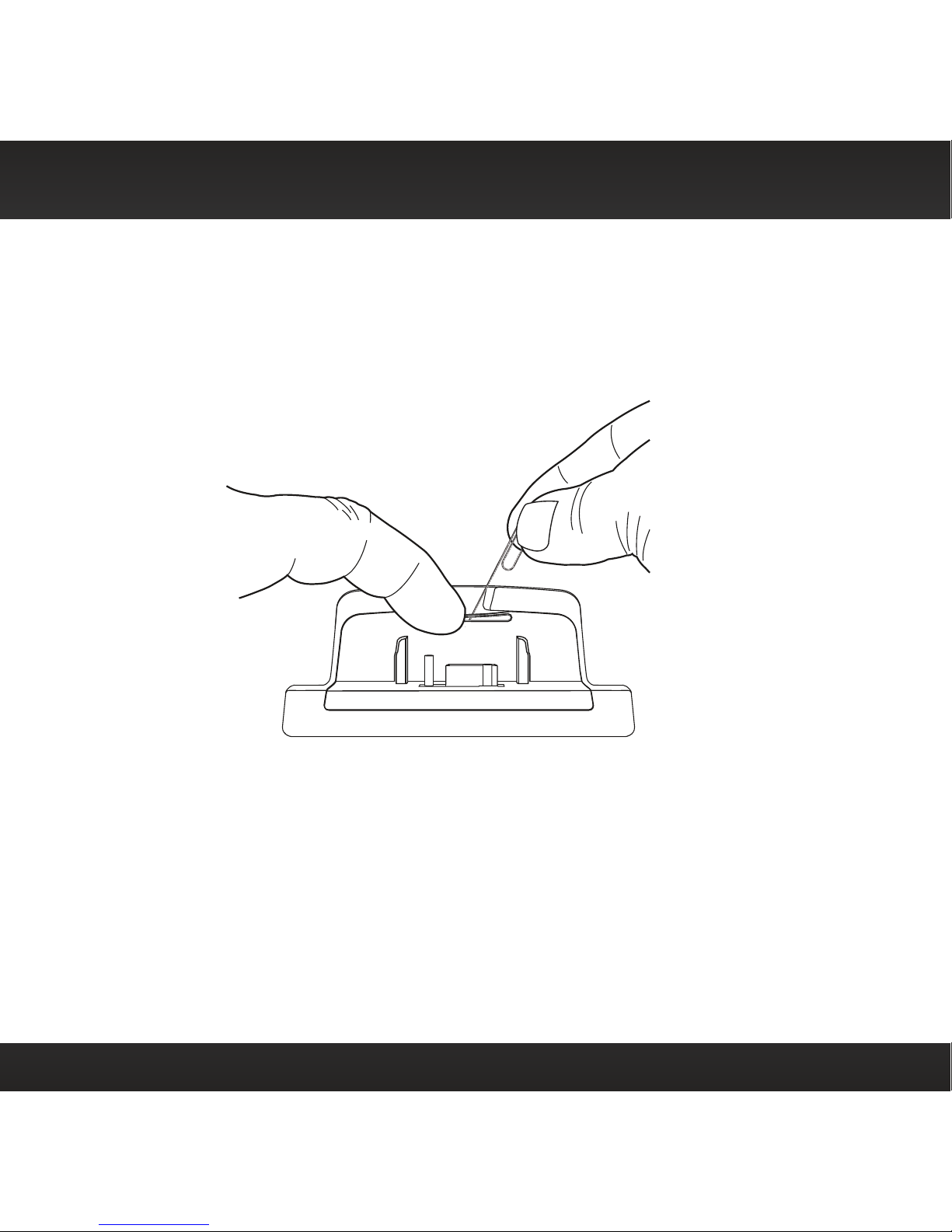

Should it become necessary to remove the Radio Dock Adapter from the
Home Dock, use your fingernail to gently press down on the top of the
adapter, and then use a long thin object such as a paper clip, a screw driver
or something similar to pry the adapter away until it releases from the dock.
Then lift the adapter up and out of the dock.
Home Installation

13
Step 2: Connect the Home Dock and Dock the Radio
When installing the Home Dock in your home, choose a location in close
proximity to your stereo system or powered speakers, and also where the
cable from the Indoor/Outdoor Home Antenna can reach the Home Dock.
The location should be easily accessible and provide good visibility of the
display, but should not be located where it will be in direct sunlight, which
will affect the visibility of the display screen.
A. Connect the Indoor/Outdoor Home Antenna
Once you have selected a location for the dock, connect the antenna to the
silver ANT connector at the rear of the Home Dock.
We will work on the location and aiming of the antenna in the next step.
AUDIOANT PWR
Home Installation

14

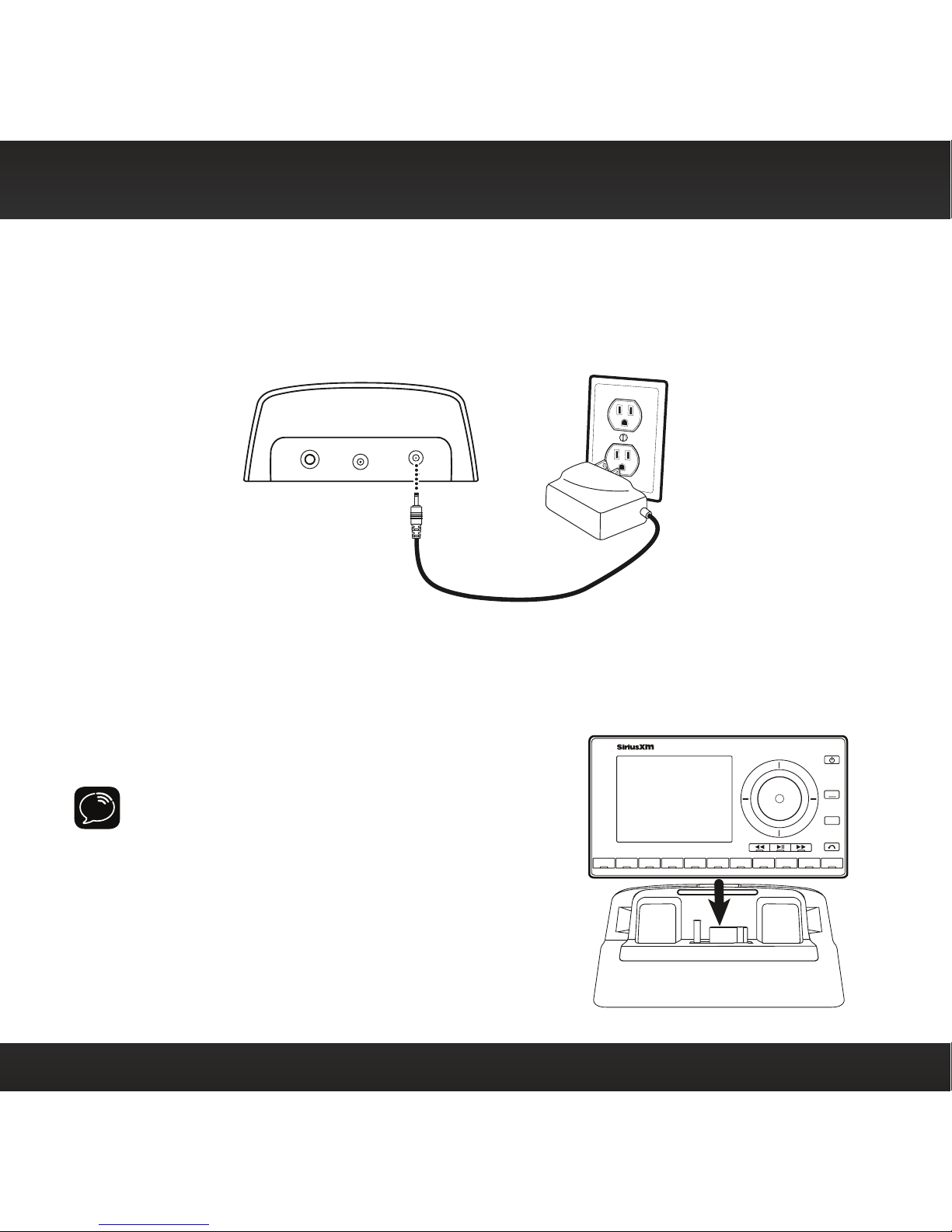

B. Connect the Home Power Adapter
Connect the Home Power Adapter to the red Power connector at the rear
of the Home Dock, and plug it into a wall outlet.
C. Dock Your Radio
Insert your Radio into the Home Dock as shown, and turn the Radio On by
pressing the Power button.
NOTE: Your Radio may be a different model
than the Radio shown here.
AUDIOANT PWR
234567890
b / #
alerts
twx
FM
menu
t-mix
t-scn
1
PLUS
Home Installation

15
Home Installation

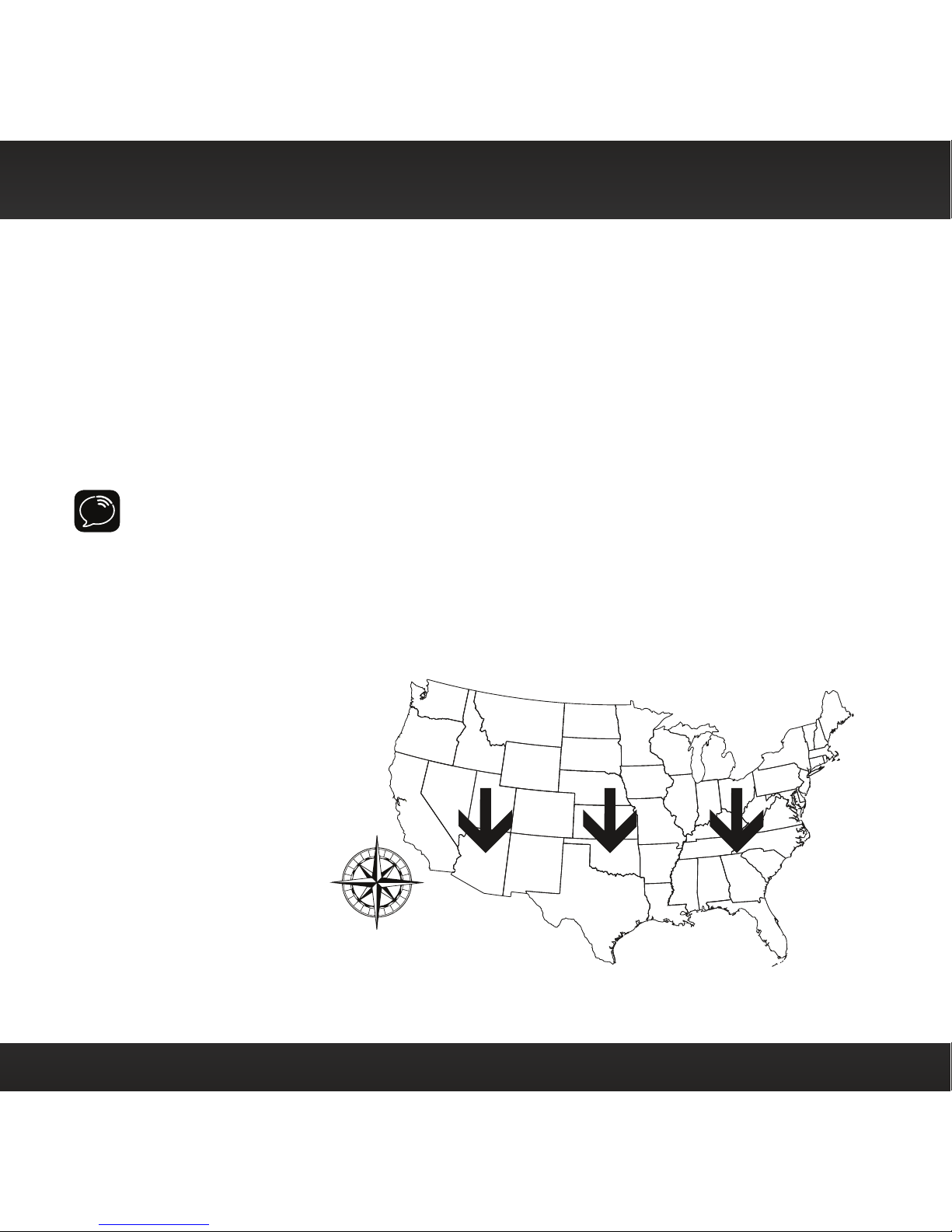

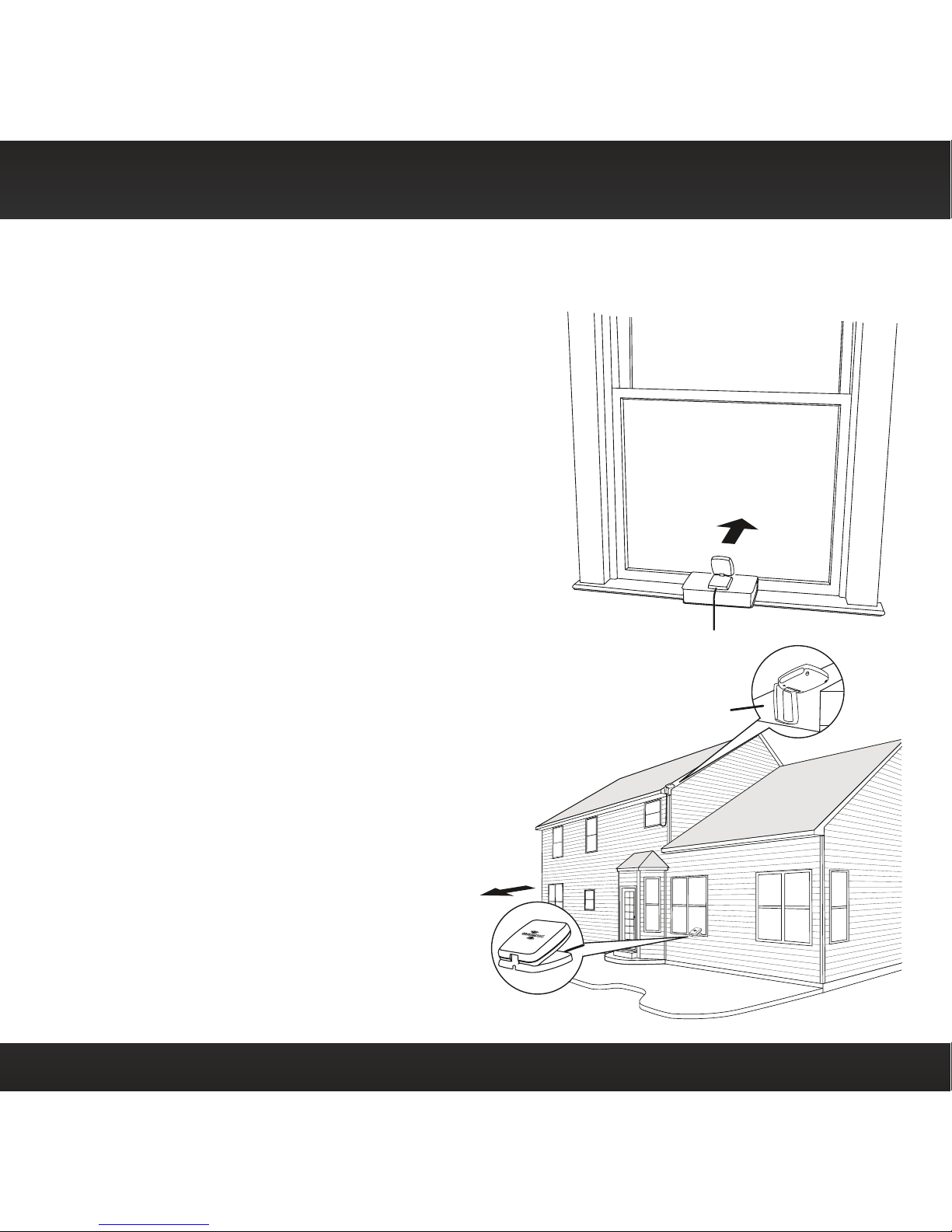

Step 3: Place and Aim the Indoor/Outdoor Home Antenna
To begin, try experimenting with the Indoor/
Outdoor Home Antenna to get a feel for
the reception in your location. In major
metropolitan areas, you might find that you
get great reception in several locations without
worrying too much about aim and placement. If
2 or 3 vertical bars of signal strength are being
displayed, continue with step 4 on page 19.
If there is not at least two bars of signal
strength displayed, refer to your Radio’s User
Guide (go to www.siriusxm.com/guides) for
instructions on accessing the Signal Indicator,
Signal, or Antenna Aiming screen of your
Radio, to see a visual indication of signal
strength. Move the antenna around the room
or from room to room. Aim it from different
windows. If you find a location where you are
receiving good Satellite or Terrestrial signal
strength (or both), exit the Signal Indicator,
Signal, or Antenna Aiming screen. Continue
with step 4 on page 19.
If you are unable to find a location where you are receiving good Satellite or
Terrestrial signal strength, try some of the suggestions which follow.
*The screens shown above are
representative and may differ
from the screens displayed on
your Radio.
Signal Indicator
S
ATELLIT
E
TERRESTRIA
L
Press menu to exit
866-635-2349
siriusxm.com
1
b
A

16
Other Indoor/Outdoor Home Antenna Installation Suggestions
Try moving the Indoor/Outdoor Home Antenna closer to a window, ideally
one that is facing due south.
Not sure which way is south? Think about where the sun rises (in the east) and
sets (in the west). Then stand so that east is to your left and you’ll be facing
south. Is there a window in the direction you’re facing? Move the antenna
closer to the window.
TIP! Still not sure which way is south or where to place your Indoor/Outdoor
Home Antenna? Look up your location on an online mapping website that
offers satellite views of street addresses where you can easily see which way
is south, and what window may offer an unobstructed view of the sky.
Another easy method is to start at any window, then work from window
to window in a simple pattern to find the window that gives the best
signal strength. Note that the antenna must also have an unobstructed
view, with no trees or
buildings blocking its
aim. If the antenna is
aimed through a window,
be aware that blinds,
screens, or any other
non-glass elements such
as thermal insulation
can sometimes cause
reception issues. If this is
the case, you may want
to use another window
or place the antenna
outside of the window.
S
Home Installation

17
If you find a window that gives you good signal strength, you can place the
antenna on the windowsill. The antenna may need to be placed on something
to raise it above the level of the window
frame.
If you don’t have a window where you
receive a consistent signal, or placing the
antenna in a window is not a practical
solution for you, BETTER reception can be
achieved by placing the antenna outside
on a window ledge, porch, table, or patio.
The location you choose should provide
the antenna with a clear view of the
southern sky.
If none of the previous solutions
work for you, then the BEST
reception can be achieved by
mounting the antenna outdoors,
with a clear view of the southern
sky.
Note that you will want to consider
any potential hazards when you
choose the mounting location,
and possibly consider professional
installation. Sirius XM Radio Inc. is
not liable for any damages.
To mount the antenna, you will
need four screws (not included)
SOFFIT
SOUTH
SOUTH
Home Installation

18
with a 1/4” head (e.g., an M3
screw), and that are suitable
for the material onto which
you are affixing the antenna,
(e.g., wood, metal, etc.). The
screws should be spaced
1-3/8” apart horizontally
and 1-1/8” vertically. Refer
to the template on “Indoor/
Outdoor Home Antenna
Template” on page 29.
Once you have found a suitable location
for the antenna, route the antenna cable
to the Home Dock. Be sure you avoid any
obstructions that could crimp, kink, or
twist the cable. Use protective grommets
wherever rough openings are encountered.
If the antenna is installed outdoors, route
the cable from the antenna location to the
interior of the home, working the cable
through the basement, under a window sill,
etc., and make adjustments to take up cable
slack as necessary.
TIP! If your Indoor/Outdoor Home Antenna’s cable isn’t long enough, visit
www.siriusxm.com/accessories, or your favorite retailer, and consider a 50 ft.
Home Antenna Extension Cable or a Wireless Home Signal Repeater.
Verify that the antenna is pointed south, and that the antenna’s view of the
sky is not blocked by a tree, a building, a bridge, or anything else. Try various
1-3/8 in
1-1/8 in
OUTDOORS
SOUTH
Home Installation

19
locations until you find one where you are receiving a good signal.
The Indoor/Outdoor Home Antenna’s reception can also be tweaked by
opening or closing the antenna clamshell, and turning the antenna. While
observing the signal strength, make small adjustments to the angle of tilt
of the clamshell until the highest possible signal strength is achieved. If you
have not wall-mounted the antenna, turn the antenna slightly to the right or
left and observe if the signal strength increases. For each tweak, allow a few
seconds in each position to determine if the signal strength increases.
Step 4: Connect the Home Dock to a Stereo System
or Powered Speakers
The Home Dock can be connected to your stereo system, or to a set
of powered speakers. If you are connecting to a stereo system, see the
following section. If you are connecting to a set of powered speakers, see
“To Connect the Home Dock to Your Powered Speakers” on page 21.
To Connect the Home Dock to Your Stereo System
The Home Dock can be connected to your stereo system through the Aux
SOUTH
Home Installation

20
In or Line In connection of your stereo system, using the provided Stereo
Audio Cable.
1. Take the provided Stereo Audio Cable and connect the single 1/8” (3.5
mm) connector to the green AUDIO connector at the rear of the Home
Dock.
2. Connect the white left and red right Stereo Audio Cable connectors (“L”
and “R” are also on each respective tip) to any available input other than
PHONO on your stereo system. (If your stereo’s inputs are marked red
and black, simply connect the white plug to the black input.)
3. Turn the stereo system On, and make sure you select the correct input
on your stereo system for the Aux In or Line In connection.
4. If you have connected everything correctly, and you are receiving
signal, you should hear the SiriusXM audio.
5. The audio level of your Radio can also be adjusted, if necessary.
Refer to your Radio’s User Guide (go to www.siriusxm.com/guides)
for instructions on how to adjust the audio level. The installation is
complete.
Home Installation
AUDIOANT PWR
