Sirona C5+ Turn User manual

kÉï=~ë=çÑW NMKOMNQ
båÖäáëÜ
`RHI=`RHqìêå
fåëí~ää~íáçå=oÉèìáêÉãÉåíë= =

kÉï=~ë=çÑW NMKOMNQ
General information Sirona Dental Systems GmbH
Installation Requirements
60 27 978 D3415
2D3415.021.03.08.02
Changes since the last version 06.2013:
Chapter or section, page
1.2 Connection to the public drinking water supply ....... 7
1.3 Media quality ........................................................... 8
2.4 Standards/Approvals ............................................. 30
About this document
This document describes the installation requirements for
the C5+, C5+Turn dental treatment centers.
The following sets of Installation Instructions describe the
subsequent installation procedure:
• REF 59 57 472 (C5+)
• REF 59 74 675 (C5+Tu r n )
You will also need the following drilling template in order to
fasten the treatment center securely to the floor:
• REF 58 71 673
General information

Sirona Dental Systems GmbH List of Contents
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
D3415.021.03.08.02 3
båÖäáëÜ
1Preparations.......................................................................................................................... 5
1.1 Safety........................................................................................................... 6
1.2 Connection to the public drinking water supply ........................................... 7
1.3 Media quality................................................................................................ 8
1.4 Supply lines in the termination panel........................................................... 9
1.5 Underfloor installation of SIVISION connections ......................................... 12

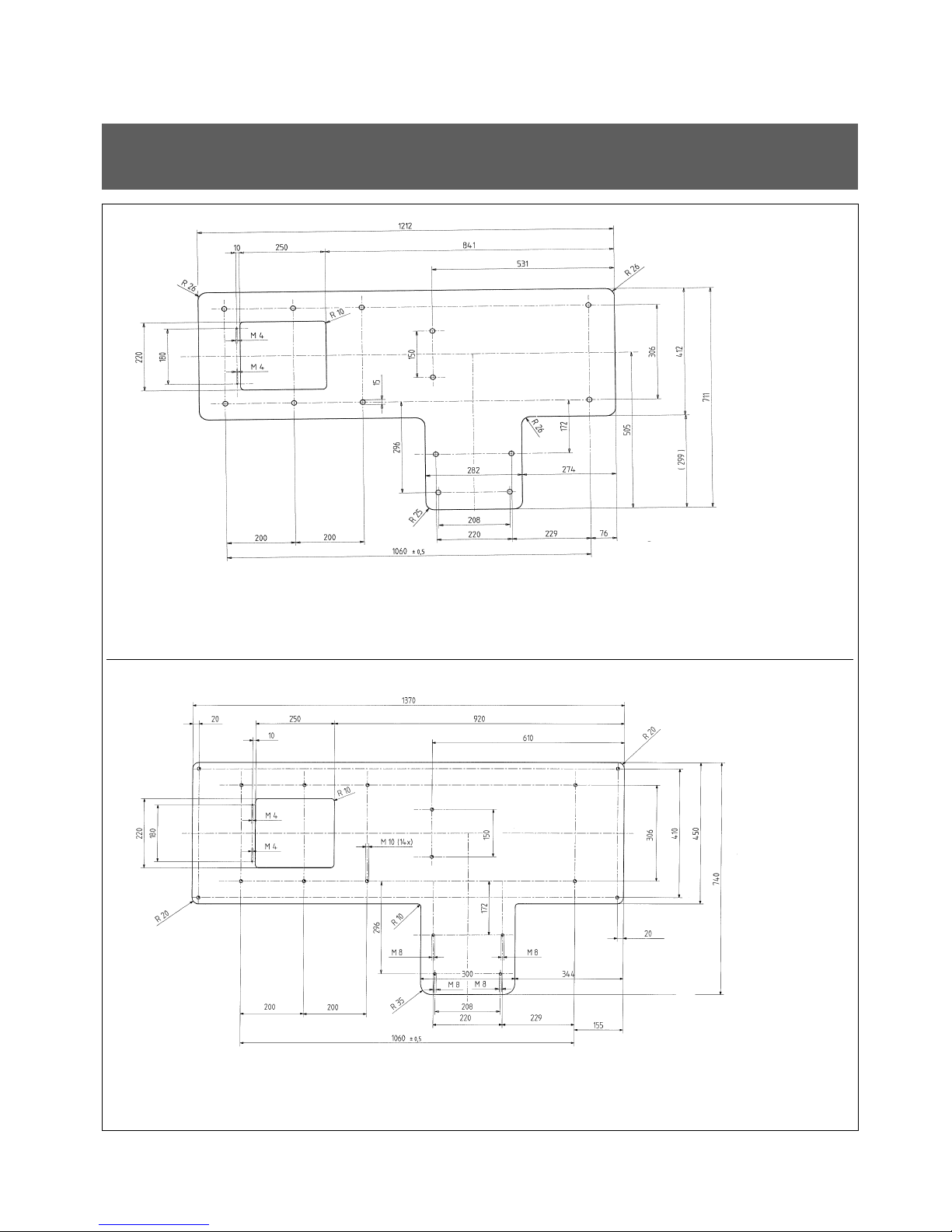

1.6 Mounting plates for equipment with fixed cuspidor
(not for C5+Turn) ....................................................................................... 13

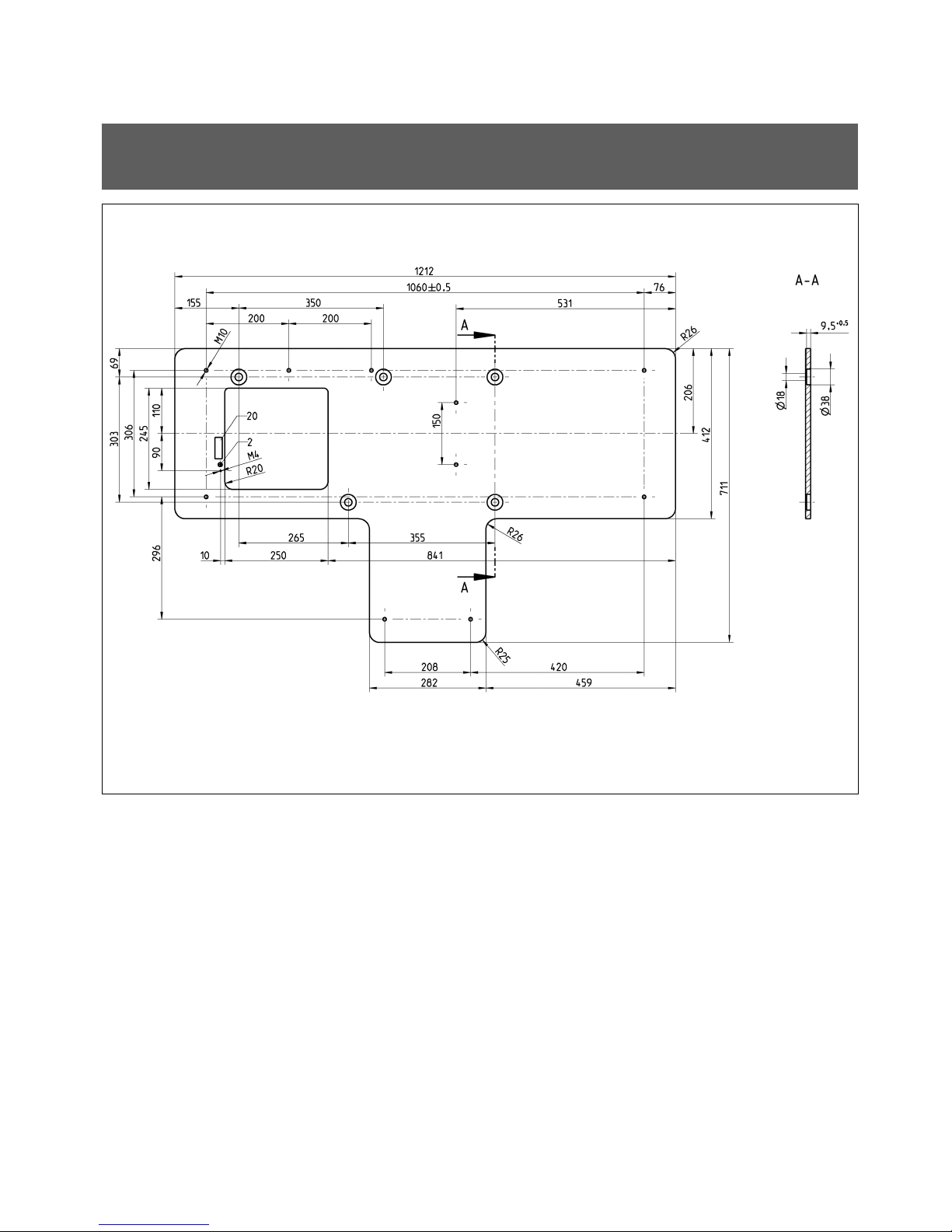

1.7 Mounting plates for equipment with swiveling cuspidor
(not for C5+Turn) ....................................................................................... 14
1.8 M1 adapter plate for equipment with swiveling cuspidor
(not for C5+Turn) ....................................................................................... 15

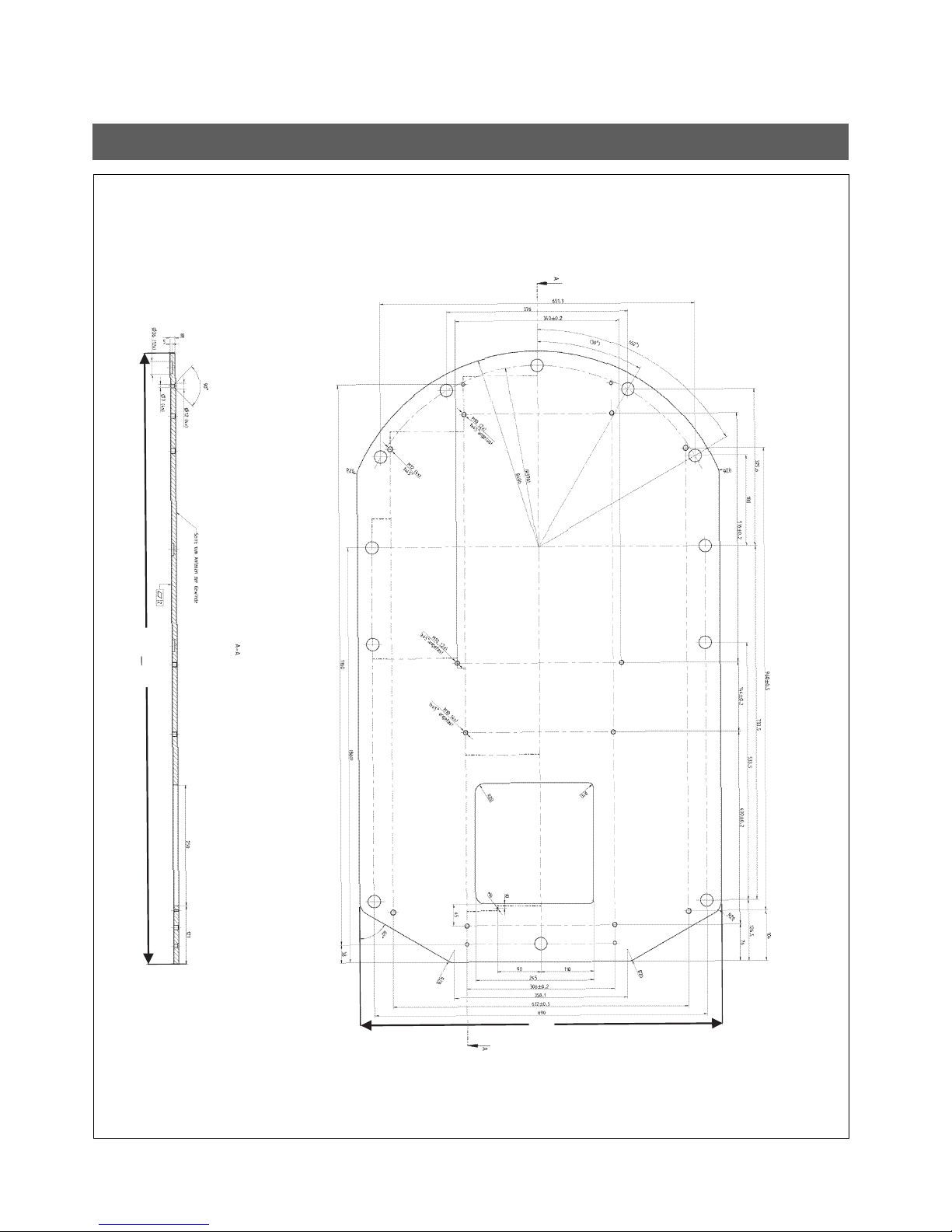

1.9 Demonstration chair plate C5+Turn ............................................................. 16
2Dimensions, technical data ................................................................................................. 17

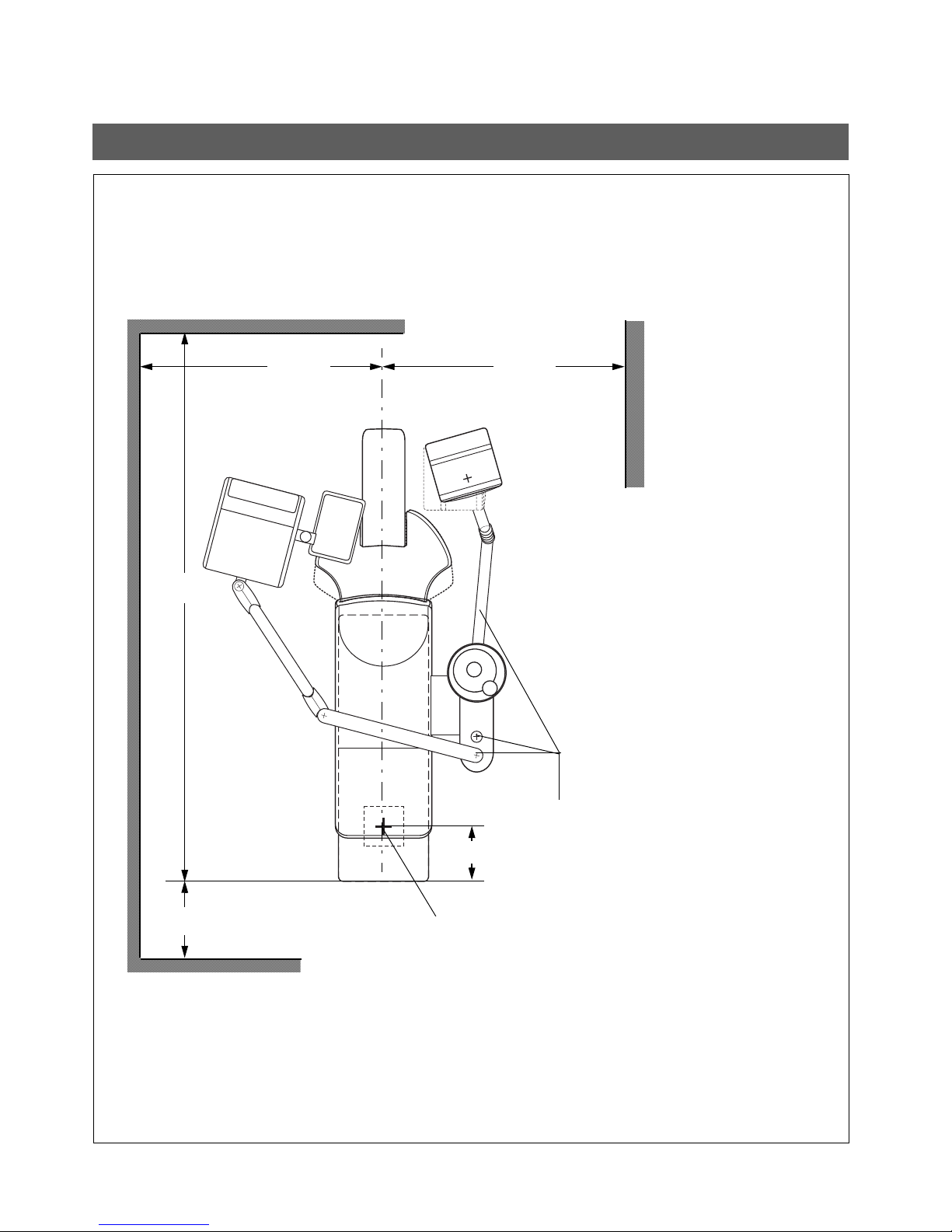

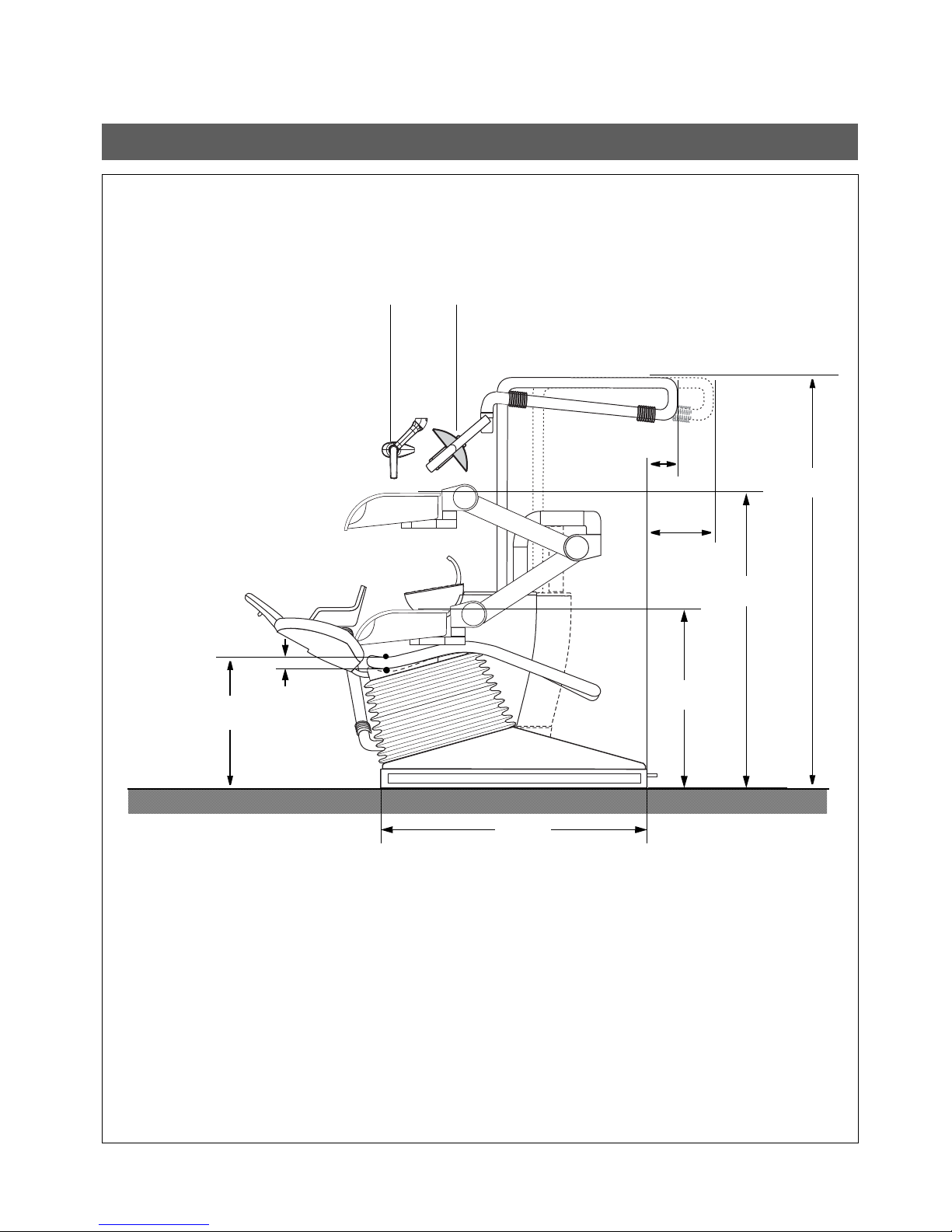

2.1 Dimensions of the C5+ 1:20 ......................................................................... 18

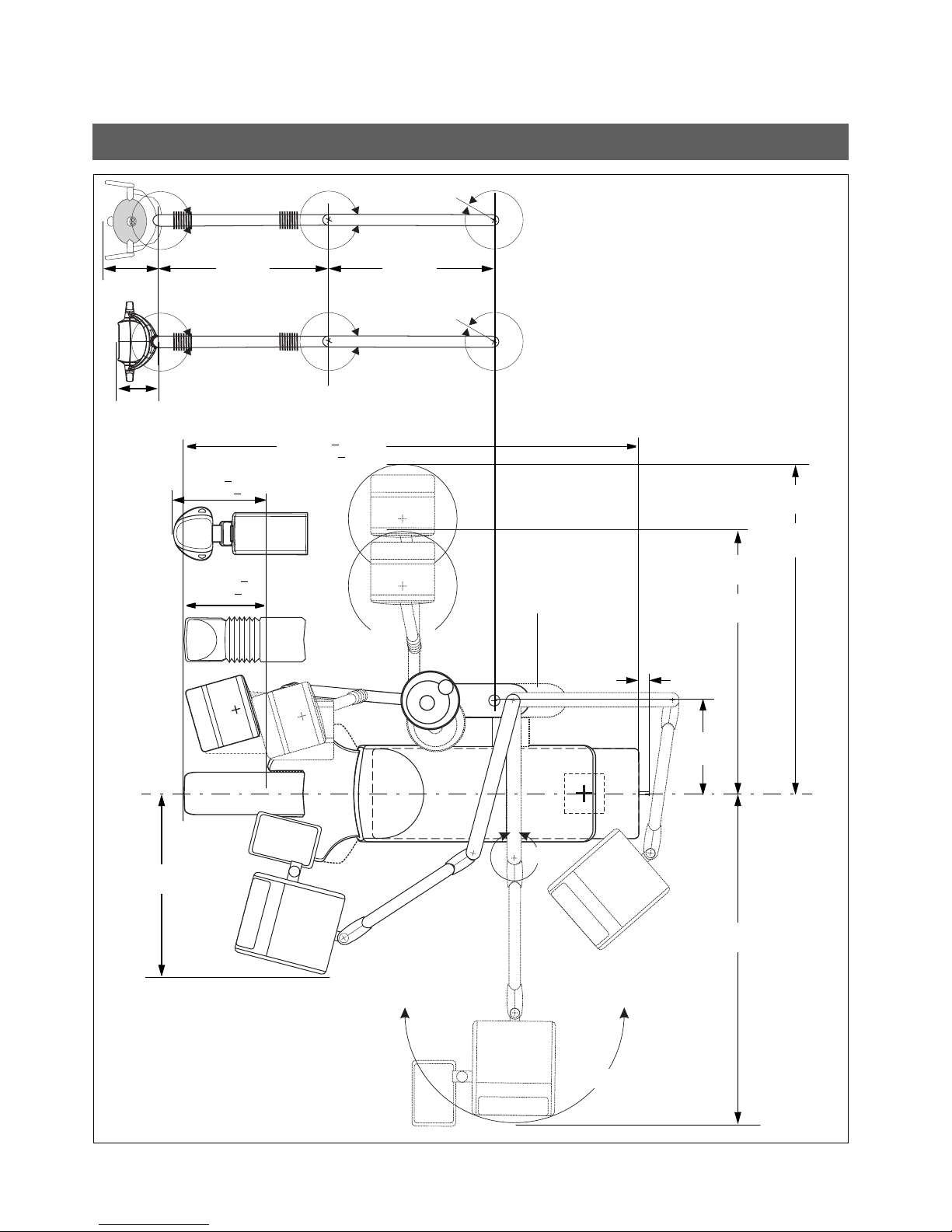

2.2 Dimensions of the C5+ Turn 1:20................................................................. 21
2.3 Technical data ............................................................................................. 28
2.4 Standards/Approvals ................................................................................... 30
3Electromagnetic compatibility ............................................................................................ 33
3.1 Accessories ................................................................................................. 34
3.2 Electromagnetic emission............................................................................ 35
3.3 Immunity to interference .............................................................................. 36
3.4 Working clearances ..................................................................................... 38
3.5 Foot control wireless interface..................................................................... 39
List of Contents

List of Contents Sirona Dental Systems GmbH
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
4D3415.021.03.08.02

C5+, C5+Turn
60 27 978 D3415
D3415.021.03.08.02 5
1 Preparations
1.1 Safety .................................................................................................................................... 6
1.2 Connection to the public drinking water supply ..................................................................... 7
1.3 Media quality ......................................................................................................................... 8
1.4 Supply lines in the termination panel ..................................................................................... 9
1.5 Underfloor installation of SIVISION connections ................................................................... 12
1.6 Mounting plates for equipment with fixed cuspidor (not for C5+Turn) .................................. 13
1.7 Mounting plates for equipment with swiveling cuspidor (not for C5+Turn) ........................... 14
1.8 M1 adapter plate for equipment with swiveling cuspidor (not for C5+Turn) .......................... 15
1.9 Demonstration chair plate C5+Turn ....................................................................................... 16

1 Preparations Sirona Dental Systems GmbH
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
6D3415.021.03.08.02
Identification of the danger levels
To prevent personal injury and material damage, please
observe the warning and safety information provided in the
present Operating Instructions. Such information is high-
lighted as follows:
DANGER
An imminent danger that could result in serious bodily injury
or death.
WARNING
A possibly dangerous situation that could result in serious
bodily injury or death.
CAUTION
A possibly dangerous situation that could result in slight
bodily injury.
NOTICE
A possibly harmful situation which could lead to damage of
the product or an object in its environment.
IMPORTANT
Application instructions and other important information.
Tip: Information on making work easier.
General safety information
WARNING
The installation must be carried out in accordance with the
requirements stated in our Installationsvoraussetzungen.
WARNING
Installation may be carried out only by personnel specifical-
ly authorized by Sirona.
WARNING
For reasons of product safety, this product may be
operated only with original Sirona accessories or
third-party accessories expressly approved by
Sirona. The user is responsible for any damage re-
sulting from the use of non-approved accessories.
If any equipment not approved by Sirona is con-
nected, it must comply with the applicable stan-
dards, e.g.:
• IEC 60950-1 for information technology equip-
ment and
• IEC 60601-1 for medical electrical equipment.
In case of doubt, contact the manufacturer of the
system components.
WARNING
Any person who assembles or modifies a medical
electrical system complying with the standard
IEC 60 601-1 Chapter 16 by combining it with other
equipment (e.g. by connecting a PC) is responsible
for ensuring that the requirements of this regula-
tion are met to their full extent for the safety of the
patients, the operators and the environment.
NOTICE
The floor must be flat and level (DIN 18 202). A mounting
plate must be used for uneven floors (see Section 1.6,
"Mounting plates for equipment with fixed cuspidor (not for
C5+Turn)" on page 13).
CAUTION
The floor must have a minimum loading capacity of 0.5N/
cm².
CAUTION
Interference of electromedical devices caused by radio tele-
phones:
To ensure the operational readiness of electromedical de-
vices, the use of mobile radio telephones in the practice or
hospital area is prohibited.
CAUTION
Electromagnetic compatibility: The unit should not be op-
erated in the immediate vicinity of other devices. If this
proves to be unavoidable, the unit should be monitored to
ensure that it is operating properly.
1.1 Safety

Sirona Dental Systems GmbH 1 Preparations
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
D3415.021.03.08.02 7
,
Treatment center with isolation from public drinking
water supply
Provided it is equipped with a disinfection system, the treat-
ment center fulfills the requirements of EN 1717 (free outlet
with sections ≥20 mm and the German Gas and Water
Association (DVGW). It is intrinsically safe in accordance
with worksheet W540 and therefore also fulfills the W270
requirements as well as the requirements for plastics used
in the transport of drinking water. It can be connected
directly to the public drinking water supply.
The treatment center therefore also bears the symbol for
the German Gas and Water Association (DVGW) along with
the rating plate.
Treatment center without isolation from public
drinking water supply
If compliance with EN 1717 is stipulated nationally, appro-
priate equipment must be installed beyond the treatment
center to protect the public drinking water system.
This applies to device versions without a disinfection sys-
tem.
The treatment center then does not bear the DVGW icon.
Please always adhere to the national requirements with
regard to connecting treatment centers to the public drink-
ing water supply.
1.2 Connection to the public drinking water supply

1 Preparations Sirona Dental Systems GmbH
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
8D3415.021.03.08.02
Water quality
Lime deposits and corrosion residues in tap water can lead
to the following malfunctions:
• Premature clogging of the filters in the unit
• Rapid clogging of the fine water paths and jets in the
treatment instruments
For these reasons, the following points must be observed:
• Permitted water pressure: 2.5 bar (36.25 psi) to 6 bar
(87 psi)
• Permitted minimum flow volume: 3 l/min
• For water hardness (total hardness) of 2.2 mmol/l
(= 12 °dH), install water softeners.
Set the blend hardness to 1.4 mmol/l (= 8 °dH).
• Install a conventional fine filter; fineness:
> 80 µm (0.08 mm).
• Installation must be performed in compliance with the
recommendations of the national installation require-
ments (e.g. EN 1717).
• The water quality must comply with the national re-
quirements for drinking water.
• The connection must be made to cold water.
• When laying the water pipe to the treatment center,
comply with the following instructions to reduce the
quantity of micro-organisms in the feed pipe:
– Avoid long stub lines to the treatment center.
– Carry out the installation so that, where possible,
other main consumers (such as the sink) are fed
from the same line downstream of the treatment
center connection.
– Avoid laying the supply line parallel to hot water
pipes.
• Observe EN 1717 concerning protection of the public
drinking water supply. For details please refer to chap-
ter „Connection to the public drinking water supply” on
page 7.
Air quality
The air for driving the turbines, for cooling the drives and for
the cooling spray must be free from oil, dry and hygienically
faultless.
Suction pipe
Install steam trap K.
With a vacuum of pu >0.18 bar back pressure on the bottom
connection, the treatment center must be retrofitted with the
"Vacuum limiter" retrofit kit (REF 59 68 826).

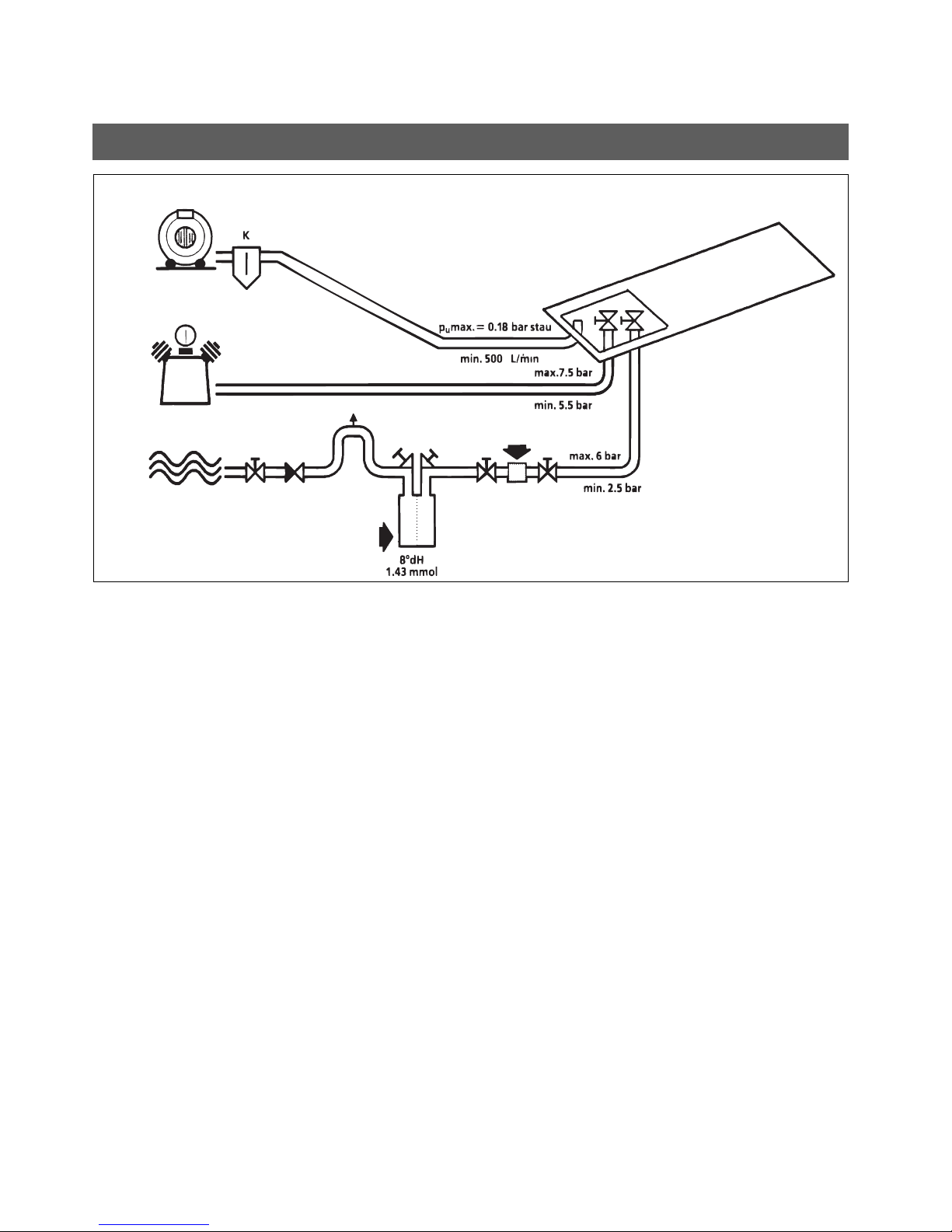

1.3 Media quality
N
>80 µm
Air
Suction machine
oil-free
Cold water
Dilution hardness
(drinking water quality)
1 bar = 100 kPa = 14.5 psi

Sirona Dental Systems GmbH 1 Preparations
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
D3415.021.03.08.02 9

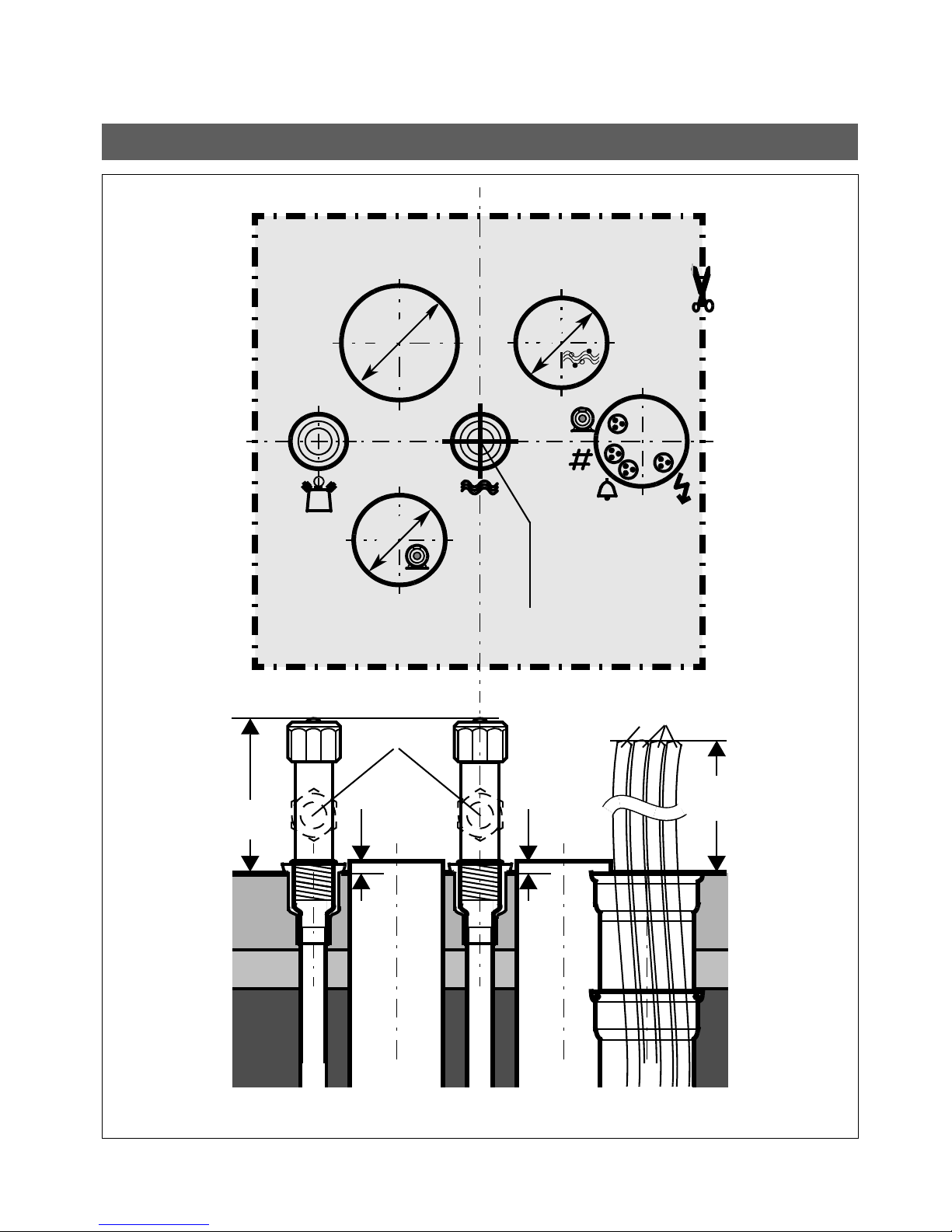

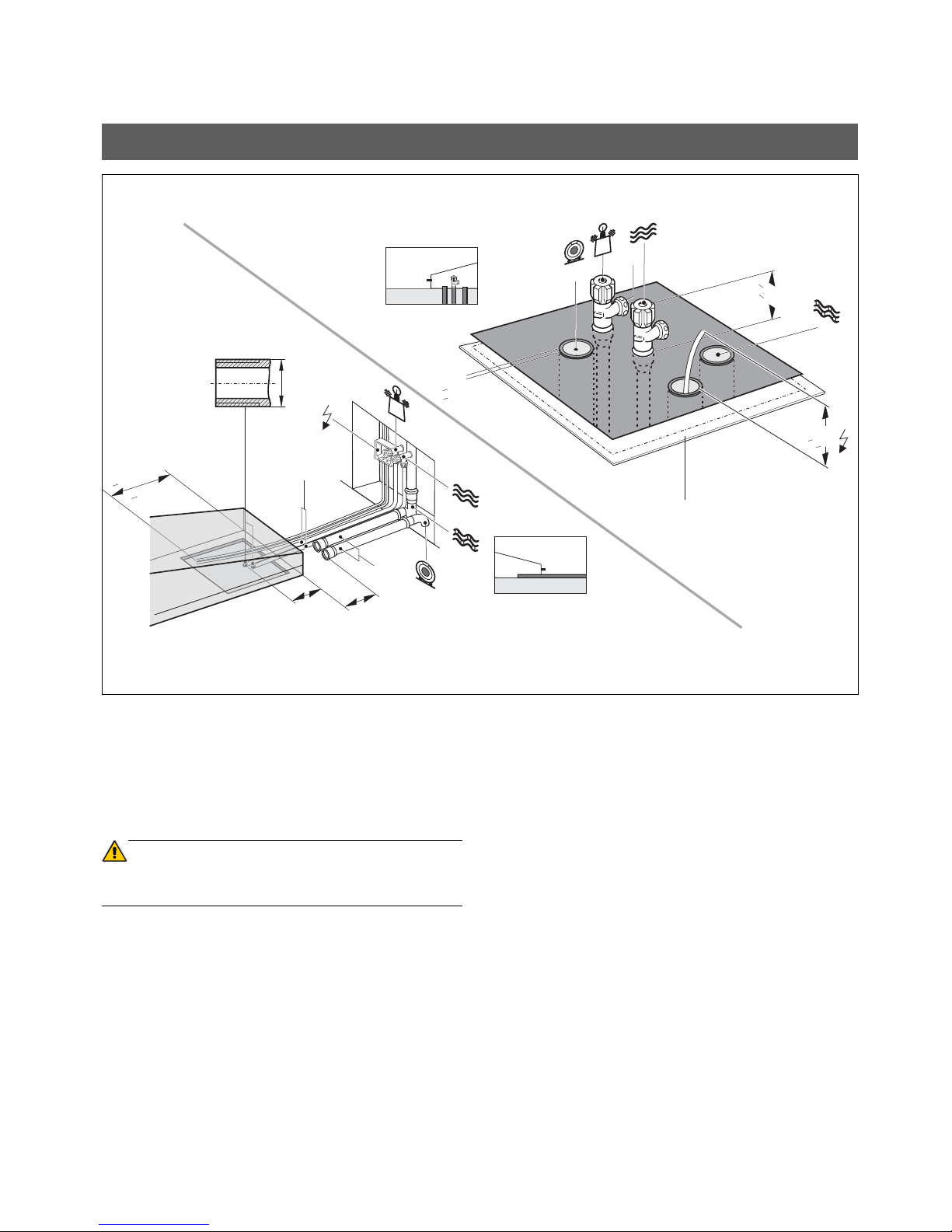

1.4 Supply lines in the termination panel
5
3
6
6
67
Center base plate
opening to floor
1
2
4
9
1 3/8“
min.
500mm
20”
7, 6
max.
60mm
2 3/8”
3 4 5
max.
5 mm
3/16”
max.
5 mm
3/16”
3/8”
12
10 x 1mm 10 x 1mm
3/8
”
x 1/32“
3/8
”
x 1/32“
1 3/8“
Foot end
36.5mm
50mm
36.5mm

1 Preparations Sirona Dental Systems GmbH
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
10 D3415.021.03.08.02
• Observe the national regulations for electrical installa-
tions (e.g. VDE 0100, VDE 0100, Part 710).
• Comply with the national regulations for water supply
installations (e.g. EN 1717) and sewage installations
(e.g. EN 12056-1).
• For the suction pipe, observe the instructions in the
Suction Machine Installation Instructions.
• For fastening the pipe ends in the installation field, we
recommend using an installation template. They can
be ordered from Sirona under REF 33 15 830.
If necessary, you can also prepare the template your-
self based on the above sketch (not true to scale!).
Supply lines in the termination panel
Table 1: Supply lines
Item Description
1Water inlet pipe 10x1 mm,
corner valve outlet 3/8"
2Compressed air inlet pipe 10x1mm, corner
valve outlet 3/8"
3Suction pipe DN40 HT-PP DIN 19560 (polypro-
pylene, inner diameter 36.5mm!)
4Water drain DN40 HT-PP DIN 19560 (polypro-
pylene, inner diameter 36.5mm!)
5Installation pipe, DN40 HT-PP DIN 19560
(polypropylene, 40mm!)
6Suction machine control cable ( )and call
cables ( ) 3x1.5mm2
7Power cable 3x1.5mm2
Fuse: 16A slow-blow
Recommended: Type B automatic circuit breaker
8 Not applicable
9 Installation pipe (or corresponding flat duct) for
additional requirement e.g. practice network
connecting cable
,

Sirona Dental Systems GmbH 1 Preparations
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
D3415.021.03.08.02 11
Supply above the floor, "above-floor installation"
The supply pipe ends, corner valves and cables must be
routed as shown above.
The retrofit kit for above-floor installation (REF 33 17 265)
is required for installation.
CAUTION
For cleaning, flush the air and water pipes thoroughly (metal
chips!).
Supply through the floor, "underfloor installation"
1. The top edges of the corner valves for air and water
must not protrude more than 60mm above the upper
surface of the finished floor.
2. The suction and drain pipes must be flush with the up-
per surface of the floor (a deviation of +5mm is permis-
sible).
Internal diameter for both pipes: 36,5mm.
3. The electrical cables must protrude at least 500mm.
Supply lines in the termination panel
>500mm
<5mm
<60mm
>20“
3/8“
<3/16“
<2 3/8“
Ø 36,5 mm
10x1 mm
3/8” x 1/32”
DN 40
>5
00mm
200mm
250mm
> 20’’
8’’
10’’
Ø 36,6mm
3/8“
20
Ø 36,5 mm
Installation template

1 Preparations Sirona Dental Systems GmbH
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
12 D3415.021.03.08.02
Important information for the installer
Depending on the prevailing local conditions, the existing
cable set can be installed in the cable duct of an underfloor
installation by an installer prior to the installation of the
treatment center. In this case, please observe the following:
Proceed with extreme care when running the cables. Par-
ticularly cables L15 and L38 are very sensitive, and must
never be kinked or twisted. The cables must not overlap or
cross one another.
RS232 (L37) and the XGA cable (L38) are not yet cut to
length and terminated on the PC side. It would be impossi-
ble to pull the cables through when installing them under
floor level if a sub D connector were already connected.
These cables should always be pulled.
Free length A of cables at the treatment center end:
Length A = 600mm
If S video cable L15 is equipped with both a female and a
male connector, make sure that the female connector
(socket) points to the connection box of the treatment cen-
ter.
1. Bend the wire at the front end of cables L37 and L38 to
form a hook.
2. Pull cables L15, L37, L38 and the grounding cable of
the treatment center through the cable duct to the loca-
tion of the PC.
Save the accessory parts for final installation!
1.5 Underfloor installation of SIVISION connections
2.
A
SIVISION
1.
L15, L37, L38,
Protective earth conductor

Sirona Dental Systems GmbH 1 Preparations
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
D3415.021.03.08.02 13
1.6 Mounting plates for equipment with fixed cuspidor
(not for C5+Turn)
Mounting plate
Demonstration chair plate
REF 58 26 511
REF 47 08 074
For especially uneven floor conditions, a steel mounting
plate is available to compensate for the irregularities of
the floor (REF 58 26 511).
For floors which do not permit permanent connection of the unit
(e.g. demo operation at a fair), installation on a steel demonstration
chair plate is possible (REF 47 08 074).

1 Preparations Sirona Dental Systems GmbH
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
14 D3415.021.03.08.02
1.7 Mounting plates for equipment with swiveling
cuspidor (not for C5+Turn)
Mounting plate
Demonstration chair plate
REF 58 71 913
REF 58 66 301
For especially uneven floor conditions, a
steel mounting plate is available to com-
pensate for the irregularities of the floor
(REF 58 71 913).
For floors which do not permit permanent connection of the unit (e.g. demo operation at a fair),
installation on a steel demonstration chair plate is possible (REF 58 66 301).

Sirona Dental Systems GmbH 1 Preparations
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
D3415.021.03.08.02 15
1.8 M1 adapter plate for equipment with swiveling
cuspidor (not for C5+Turn)
Adapter plate
If the C5+is installed as a replacement for an M1 at this position, then
an adapter plate, with the aid of which the existing mounting holes can
be used, is available under the REF 58 70 493.
REF 58 70 493

1 Preparations Sirona Dental Systems GmbH
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
16 D3415.021.03.08.02
1.9 Demonstration chair plate C5+Turn
Demonstration chair plate
750
1266 0,5+
For floors which do not permit per-
manent connection of the unit (e.g.
demo operation at a fair), installa-
tion on a steel demonstration chair
plate is possible (REF 59 46,269).
REF 59 46 269
C5+Turn

C5+, C5+Turn
60 27 978 D3415
D3415.021.03.08.02 17
båÖäáëÜ
2 Dimensions, technical data
2.1 Dimensions of the C5+ 1:20 ................................................................................................... 18
2.2 Dimensions of the C5+ Turn 1:20 .......................................................................................... 21
2.3 Technical data ....................................................................................................................... 28
2.4 Standards/Approvals ............................................................................................................. 30

2 Dimensions, technical data Sirona Dental Systems GmbH
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
18 D3415.021.03.08.02
2.1 Dimensions of the C5+ 1:20
Recommended distances from cabinet or wall.
Hazard warning:
The here mounted lamp, the dentist element / with tray (option)
and the assistent element with long support arm have a wider
swivelling range than the distances indicated!
Center floor opening
250
9 7/8”
> 1100
43 5/16”
> 1100
43 5/16”
2500
98 7/16”
350
13 3/4”
550
21 5/8”
with
Swivellable
cuspidor

Sirona Dental Systems GmbH 2 Dimensions, technical data
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
D3415.021.03.08.02 19
båÖäáëÜ
Standard upholstery
*max.: backrest and chair in highest position
min.: backrest and chair in lowest position
1212
47 3/4”
max. 1340
52 3/4”
min. 810
31 7/8”
*max. 760 30”
min. 400 15 3/4”
45
1 3/4”
1870
73 3/4”
140
5 1/2”
300
11 3/4”
with
Swivellable
cuspidor
SIROLUX FANTASTICLEDview

2 Dimensions, technical data Sirona Dental Systems GmbH
Installation Requirements C5+, C5+Tu r n
60 27 978 D3415
20 D3415.021.03.08.02
180
7”
250
9 7/8”
750
29 1/2”
770
30 3/8”
45
1 3/4”
max.1500
59”
max. 1515
59 5/8"
180°
315°
max. 1200
47 1/4"
Option
Tray
ca. 830
32 5/8”
2070 +50**
81 1/2” +2“ **
max. 1200
47 1/4"
440
17 3/8”
max. 380 +15
15“ +5/8”
430 +15
17“ +5/8”
Option
Support arm,
long
Option
Support arm,
short
Option
Swivellable
cuspidor
** according to chair height
