ATTENTION
Interference with electromedical devices by radio
telephones:
To guarantee the operational safety of electro-
medical devices, the operation of mobile radio tel-
ephones in the medical practice or hospital area
is prohibited.
ATTENTION
When opening the equipment:
Please observe the safety measures
for handling PC boards.
Touch a ground point to remove any
personal electrostatic charge before touching the
components.
kÉï=ëáåÅÉW NMKOMMU
Modification compared with last edition: 11.2007
Chapter or paragraph page
“Sample of a Filled out Form (for USA/Canada only)” . 25
1 Installation Options ................................................................................................................... 3
2 Required Installation hardware ................................................................................................ 4
3 Installing the Wall Adapter ....................................................................................................... 5
4 Installing the Support Arm ........................................................................................................ 6
5 Electrical Connection ............................................................................................................... 7
6 Installing the X-ray Tube Unit ................................................................................................... 9
7 Starting-Up, Measurements and Controls (for USA/Canada only) ......................................... 10
8 Startup .................................................................................................................................... 17
9 Concluding Work .................................................................................................................... 19
10 Setting the Intraoral Sensor Type .......................................................................................... 22
11 Install travel stand .................................................................................................................. 23
12 ATTENTION INSTALLER! (for USA, Canada only) ............................................................... 24
13 Sample of a Filled out Form (for USA/Canada only) .............................................................. 25
List of Contents

Sirona Dental Systems GmbH 1 Installation Options
60 81 785 D 3302
D 3302.031.01.28.02 3
ÇÉìíëÅÜÑê~å´~áëÉëé~¥çä
1. HELIODENT®DS without remote control in treatment
room.
2. HELIODENT DS with remote control in treatment room.
Length of screened off and supplied remote cable
about 10m (400“).
3. HELIODENT DS with remote control outside of X-ray
room, removable manual release.
4. HELIODENT DS with remote control outside of X-ray
room and door contact, removable manual release.
5. HELIODENT DS with remote control outside of X-ray
room, manual release not removable.
6. HELIODENT DS with remote control outside of X-ray
room and door contact, manual release not removable.
7. HELIODENT DS with remote control outside of X-ray
room and security button, removable or not removable
manual release.
8. Heliodent DS with remote timer outside of X-ray room.
1 Installation Options
1. 2. 3.
4. 5. 6.
7. 8.

2 Required Installation hardware Sirona Dental Systems GmbH
60 81 785 D 3302
4D 3302.031.01.28.02
1. For the installation, the service engineer is responsible
for assessing the condition of the wall and the type of
wall attachment needed for the unit.
Suitable wood screws for wooden beams are included
in delivery.
For all other types of wall construction, the appropriate
wall plugs must be obtained from a specialized dealer.
The wall plugs and screws should be identical for each
point of attachment.
As an alternative, an anchorplate can be used as a
counter surface. In this case, M8 threaded rods of the
appropriate length (Thickness of wall + 2 x thickness of
Installation plate + mounting hardware) for the wall are
required.

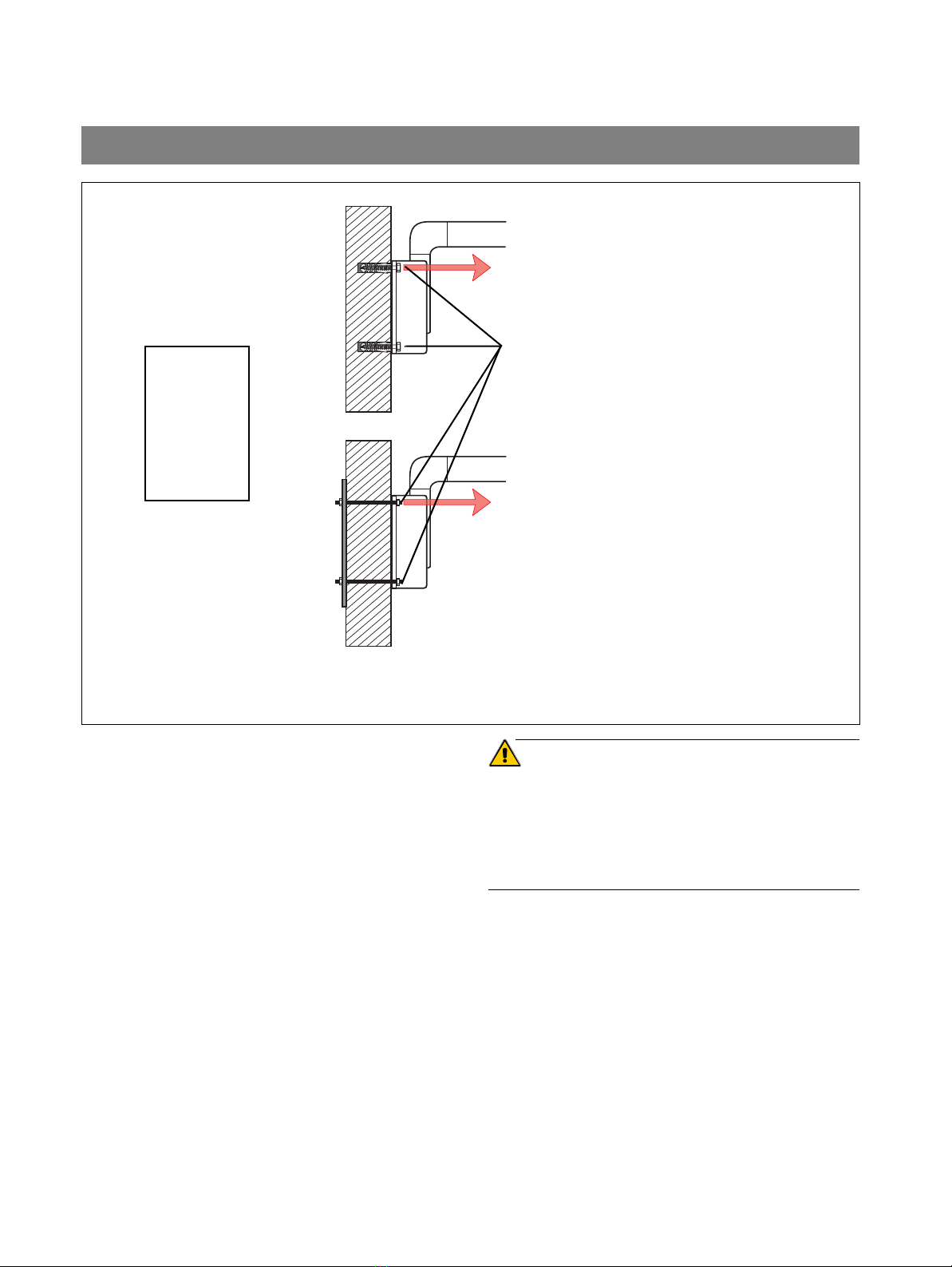

ATTENTION
Support arm till 700 mm: A minimum extraction force of
3600 N is required for the upper wall plugs and screws or for
the threaded rod and nuts.
Support arm 950 mm: A minimum extraction force of
4200 N is required for the upper wall plugs and screws or for
the threaded rod and nuts.
2 Required Installation hardware
1.
Installation
hardware
46 82 162 3600N L≤700mm
4200N L=950mm
3600N L≤700mm
4200N L=950mm

Sirona Dental Systems GmbH 3 Installing the Wall Adapter
60 81 785 D 3302
D 3302.031.01.28.02 5
ÇÉìíëÅÜÑê~å´~áëÉëé~¥çä

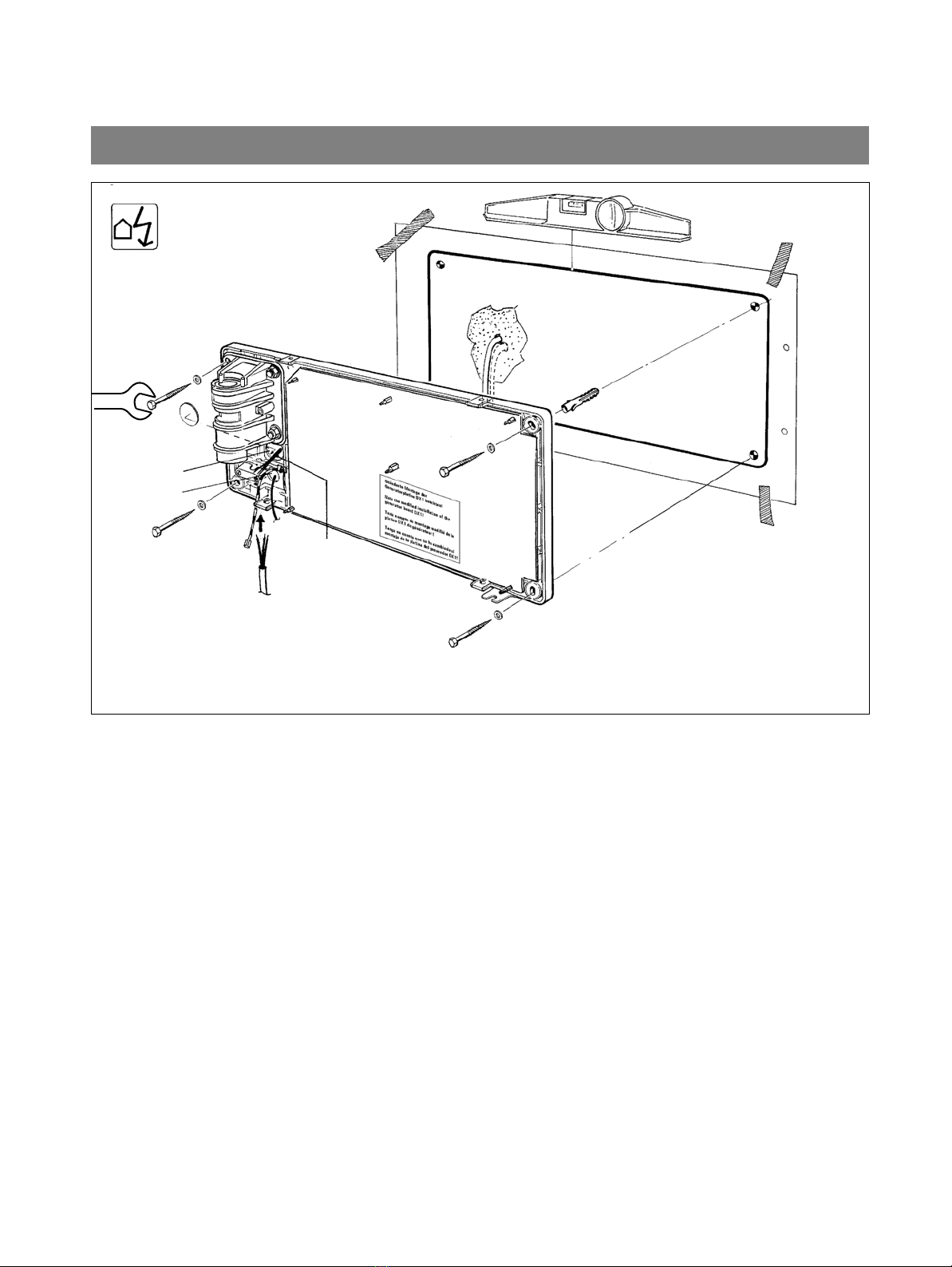

1. Switch OFF power from the main switch for the electri-
cal installation.
2. For a recessed installation, cut away the cable duct us-
ing the Drilling Template.
Align the Drilling template and tape it into place.
3. Mark the center points for the four points of attachment
and drill them.
– If using the countersupport plate drill through the
wall with an ∅ 8mm (5/16“) drill tip.
– When mounting with wall plugs, drill holes accord-
ing to the plugs used (max. ∅10 mm / 3/8“) and
then insert the plugs..
– For a wooden wall drill the holes with a ∅ 6mm
(1/4“) wood drill tip at least 80mm deep.
Remove the drilling template.
4. For recessed installations only with remote con-
trol:
Draw the end of the remote control cable with a cable
tie into the remote control device. Draw the other end
through opening B.
5. Draw the power cable through opening A. (For Ceiling
Version: also draw in the cable of the overhead support,
see Mounting Instructions for Ceiling Version.)
6. For surface-wiring installations only:
Attach self-sticking cover to the rear side.
7. Align the wall adapter with the spirit level and secure it
with four screws and washers.
8. For surface-wiring installations only:
Run the power cable from below into the installation
plate and relieve strain with a cap clamp.
3 Installing the Wall Adapter
1.
2.
3.
4.
A
B
5.
6.
7.
8.
Mounting hardware
Not for wood!
OFF
13mm

4 Installing the Support Arm Sirona Dental Systems GmbH
60 81 785 D 3302
6D 3302.031.01.28.02
ATTENTION
Do not remove the securing belt.
1. Place the disk Bonto the bearing.
Feed in the arm cable and set the support arm into the
bearing.
2. After inserting the support arm, secure it against re-
moval with a retaining ring.
3. Check the support arm with the spirit level.
If necessary, loosen the bearing attachment and insert
compensating angle Abeneath.
NOTE for USA/Canada only
When using a HELIODENT DS for two X-ray chambers
both stop pins Ccan be removed to swing the support arm
around (not for travel stand!).
4 Installing the Support Arm
2.
1.
B
A
A
3.
Mounting hardware

Sirona Dental Systems GmbH 5 Electrical Connection
60 81 785 D 3302
D 3302.031.01.28.02 7
ÇÉìíëÅÜÑê~å´~áëÉëé~¥çä

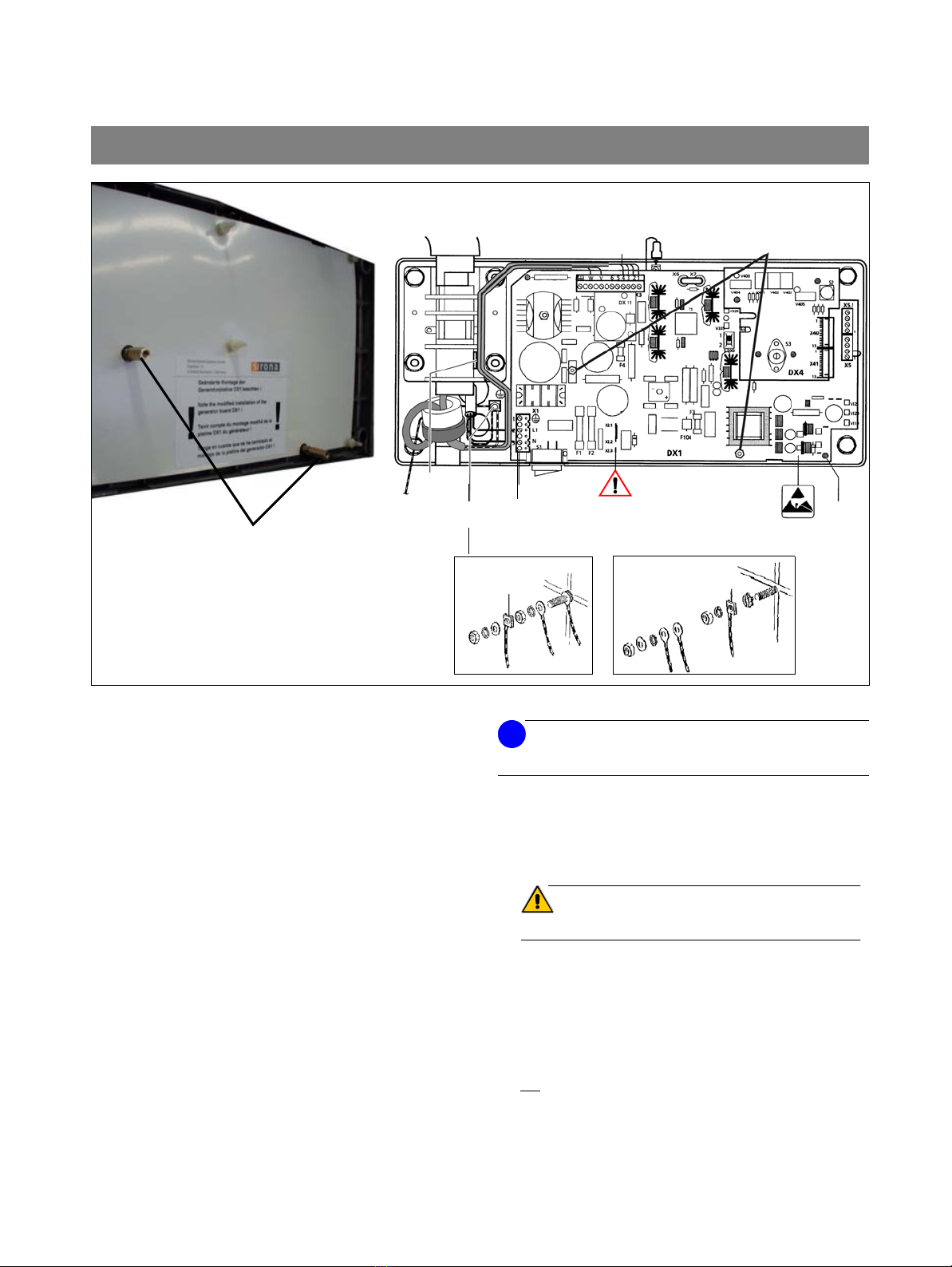

1. Unscrew the 2 bolts „D“ from the wall adapter.
Fix cable lug C.
Insert generator board DX1 on the spacer.
To establish a ground connection, screw on the
generator board DX1 with the two bolts „D“..
With travel stand, cut off wire as short as possible.
2. Pull the arm cable through the ferrite cores as shown
twice.
For Japan: Use Ferrite cores conversion set 61 39 906.
Unscrew the ground wire of the arm cable directly at the
grounding point of the mounting plate by loosening the
two nuts, the serrated washers and clamp A. Screw the
ground wire down as shown.
3. Connect the arm cable:
– orange to X3.1
– gray to X3.2
– blue to X3.3
– red to X3.4
– brown to X3.V * see NOTE 1
– black to X3.W *
4. Attach the arm cable with cable ties at the gummed
base B.
5. Power cable:
NOTE
i
The Heliodent DS wall model is suited for fixed connection only.
– Connect L (brown) to X1.2
– N (blue) to X1.3.
Place the protective ground wire under terminal clamp
A and tighten the nut.
6.
•200 – 230V version
– The jumper must be in the X2.1/2 position.
• 127 V version
– The jumper must be in the X2.2/3 position.
* NOTE 1

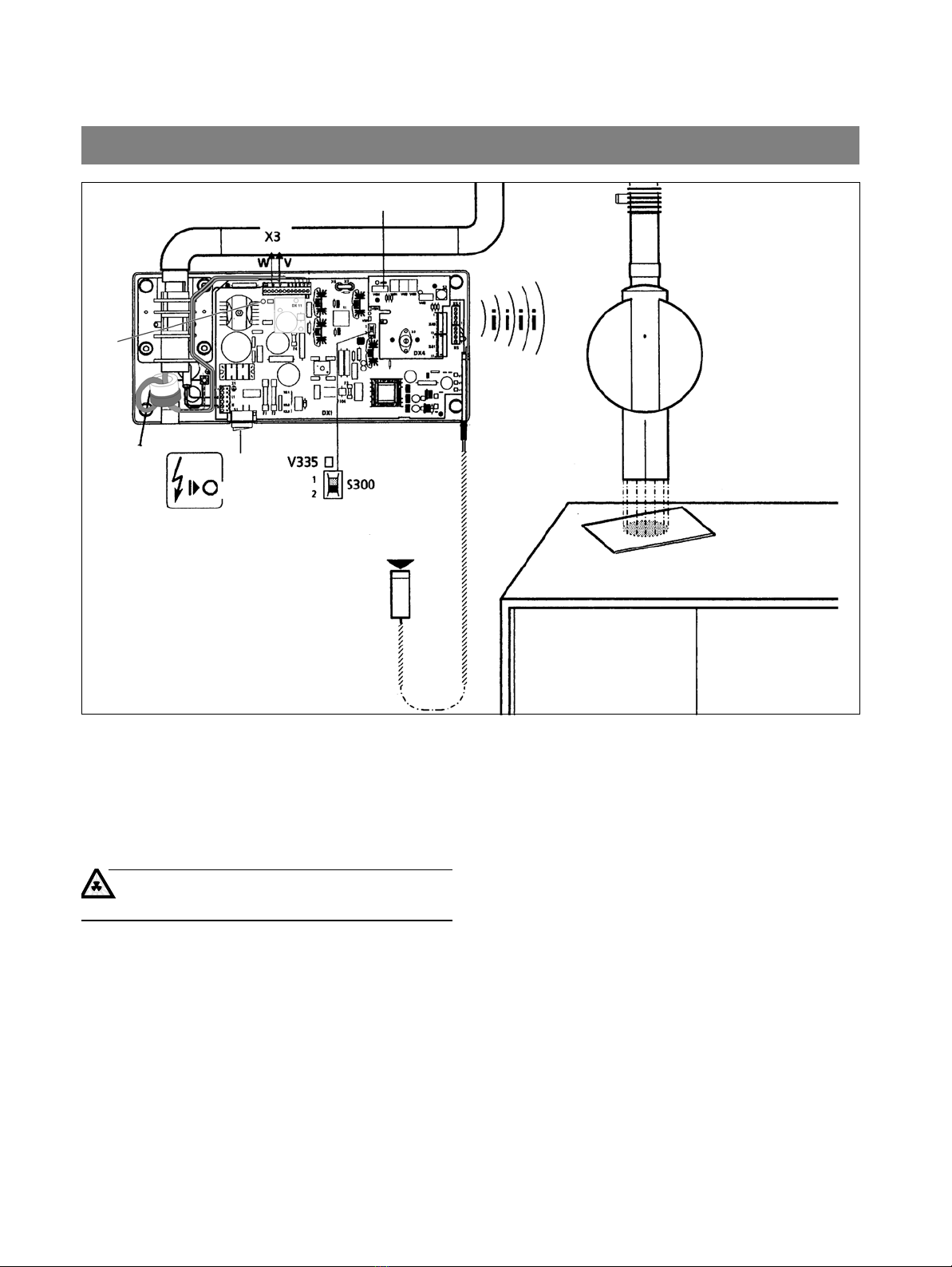

For exhibition mode: (no radiation)
Do not connect brown to X3.V and black to X3.W.
Isolate terminals to prevent contacts with live components.
Set switch S300 to position 2 (no radiation).
LED V335 lights up in exhibition mode.
5 Electrical Connection
6.
3.
4. 5.
B
C
1.
D
D
2.
1.
A
Travel stand
A
Wall version
ATTENTION
CAUTION! line voltage:

5 Electrical Connection Sirona Dental Systems GmbH
60 81 785 D 3302
8D 3302.031.01.28.02
7. Without remote control:
Attach the shielding for the spiral cable with a cable
clamp, screw and serrated washer to the shielding
plate.
8. Attach the shielding plate with the Allen screw to the in-
stallation plate.
Connect the two wires to X5.3 and X5.4.
NOTE
i
Only ONE exposure button may be connected.
9. With remote control:
With surface-wiring installations it is necessary to tie a
knot in the remote control cable for strain relief.
10. Attach the shielding for the remote control cable with a
cable clamp, screw and serrated washer to the shield-
ing plate.
11. Attach the shielding plate with the Allen screw to the in-
stallation plate.
Connect the wires:
– white to X5.3
– brown to X5.4
– yellow to X5.1.3
– green to X5.1.4
12. For recessed installations:
Fasten the remote control cable with adhesive base
and cable ties.
13. It is possible to install a door contact or security switch
at X5.1 and 2 (remove the jumper).
7.
8.
9.
10.
11.
12.
13.
13. Exposure Button
Door Contact or Security Switch (remove jumper)
Exposure Button
Remote Station Exposure Light ONLY green
yellow
brown
white

Sirona Dental Systems GmbH 6 Installing the X-ray Tube Unit
60 81 785 D 3302
D 3302.031.01.28.02 9
ÇÉìíëÅÜÑê~å´~áëÉëé~¥çä
1. Firmly hold the X-ray tube unit. Fit plug K1 together.
Insert the cylindrical pin Ain the hole of the holder and
support bracket up to the stop.
Attach the X-ray tube unit with the two Allen screws and
serrated washers to the support arm.
Remove the cylindrical pin again (no longer required).
ATTENTION
Using an ohmmeter, check the connection between the
tube assembly support bracket and the grounding point in
the wall adapter. The value should be below 2 ohms. This
measurement is not a substitute for the protective ground
wire test described in the service manual!
2. Remove the adhesive tape.
Push the sliding ring (in the covering tube) downwards.
Push the silicone stop downwards until the joint is cov-
ered.
The covering tube must be flush with the bellows.
3. Options:
12” cone
Turn the radiation limiter and remove it.
Insert the 12” cone (press easy the detent stud into
place) and turn until it engages.
Insert the radiation limiter in the 12” cone and turn until
it engages.
12” square cone
Turn the radiation limiter and remove it.
Insert the 12” square cone (press easy the detent stud
into place) and turn until it engages.
4. Loosen the securing belt and remove it.
5. Installing the Remote Control (if present).
NOTE
i
With remote stations with or without a remote timer, there
are separate "Installation Instructions for Remote Controls"
6 Installing the X-ray Tube Unit
3.
4.
2.
K1
1.
12’’
5.
12’’
<2Ω
A
A
1.

7 Starting-Up, Measurements and Controls (for USA/Canada only) Sirona Dental Systems GmbH
60 81 785 D 3302
10 D 3302.031.01.28.02

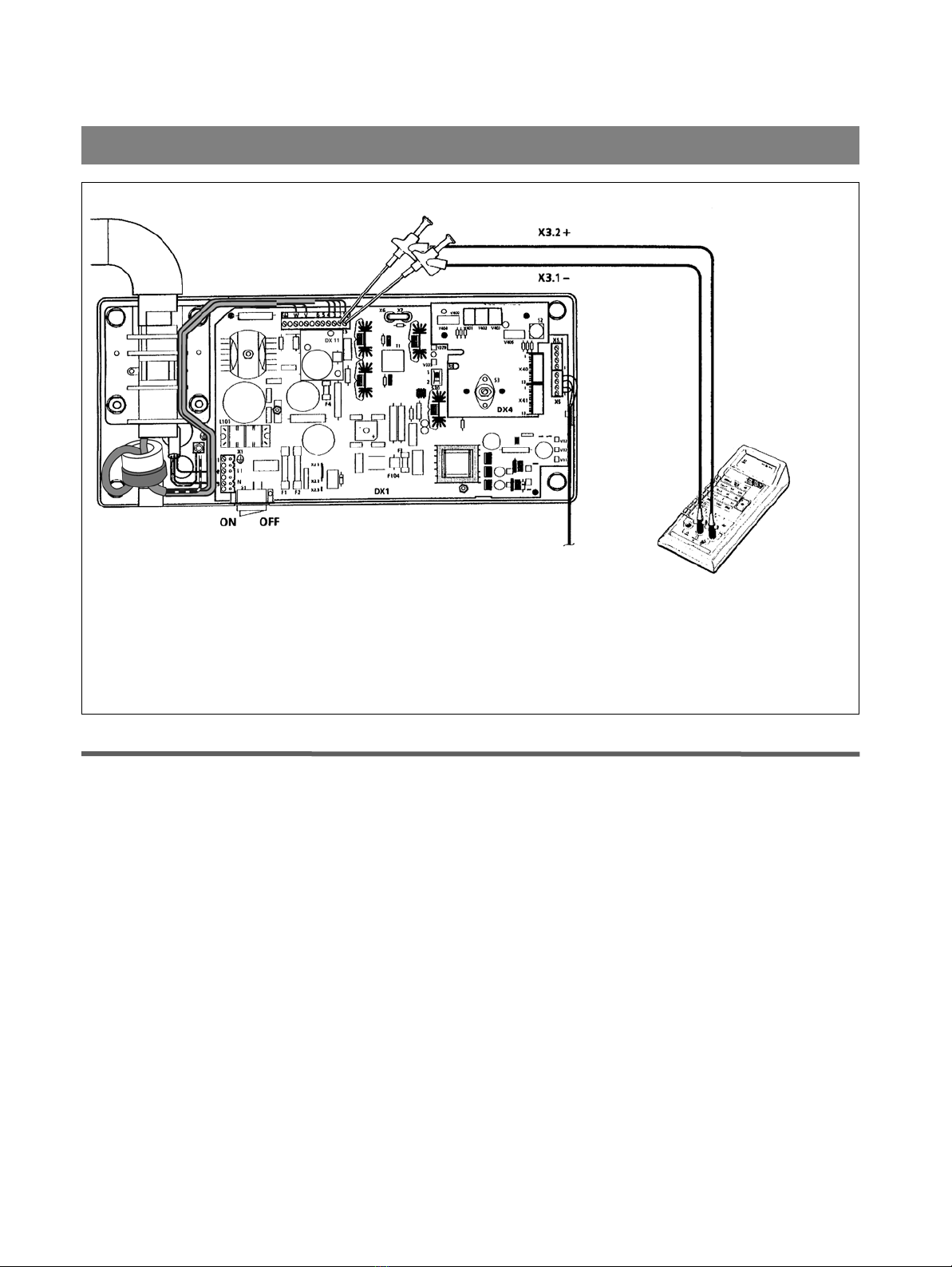

Required Measuring Instruments
1. Digital multimeter Fluke 8000 A, Philips PM 2816 rms
or equivalent.
2. Electromechanical pulse counter KESSLER ELLIS, KT
203±1 pulse, or equivalent.
Radiation Protection
Observe the radiation protection guide lines as outlined in
the Operating Instructions manual.
X-radiation is emitted as long as the exposure button is
depressed.
The X-ray indicator must light up during radiation. An
acoustic signal must also be heard.
Line Voltage
Be sure the jumper on generator board DX1 is plugged
according to nominal line voltage as outlined on page 7
Power Supply Adequacy
To assure that the HELIODENT system performance is in
accordance with Sirona specifications, an adequate power
supply is essential.
The Federal Performance Standard for diagnostic X-ray
units, code of Federal Regulations, title 21 CFR, subchap-
ter J, mandates an adequate power supply.
Duty Cycle
Between exposures maintain a cool-off time (automatic
exposure blocage, see Operating Instructions manual).
Operating Instructions
During measurements and controls it is necessary to ener-
gize or de-energize the unit. For all operating steps please
refer to the Operating Instructions manual.
7 Starting-Up, Measurements and Controls
(for USA/Canada only)
100 – 125 VAC
208 – 230 VAC
X2.3
X2.2
X2.1

Sirona Dental Systems GmbH 7 Starting-Up, Measurements and Controls (for USA/Canada only)
60 81 785 D 3302
D 3302.031.01.28.02 11
ÇÉìíëÅÜÑê~å´~áëÉëé~¥çä
ATTENTION
CAUTION with PC - Boards!
All PC-boards are fitted with electronic components sensi-
tive to electrostatic discharge (ESD). In an environment of
moving people electrostatic charges are unavoidable due
to friction of clothing, carpeting etc.
To prevent damage of electronic chips do not
touch same.
Always handle circuit boards by the edge of
same.
ATTENTION
Electrical Shock Hazard!
Always turn unit OFF before connecting and dis-
connecting the test leads to the test points.
ESD
ON
OFF
I
O

7 Starting-Up, Measurements and Controls (for USA/Canada only) Sirona Dental Systems GmbH
60 81 785 D 3302
12 D 3302.031.01.28.02
7.1 Line voltage
Set the multimeter to AC voltage, range depending on the
local nominal line voltage.
Turn ON power supply at the central distribution panel.
Measure the voltage to terminal strip X1, N and L1.
– When connected for 127 VAC the measured line
voltage must be at least 115 VAC and may not
exceed 139VAC.
– When connected for 200 – 230 VAC the measured
line voltage must be at least 180VAC and may not
exceed 243VAC.
for USA/Canada only

Sirona Dental Systems GmbH 7 Starting-Up, Measurements and Controls (for USA/Canada only)
60 81 785 D 3302
D 3302.031.01.28.02 13
ÇÉìíëÅÜÑê~å´~áëÉëé~¥çä
7.2 Power supply adequacy – voltage drop
Attach object selector switch temporarily to the rotary
switch shaft on DX4. Switch ON unit (see Operating
Instructions).
Select the conventional radiography technique and set the
exposure time on the control panel to 3.2s, using the object
selector switch (see Operating Instructions, chapter ”Pre-
paring the Exposure, Select the radiography technique and
Adapting the base value”).
ATTENTION
Mind radiation protection guide lines!
Make an exposure by holding depressed the exposure but-
ton, X-ray lights up, an audible beep sounds at the wall
adapter. ÖRecord the voltage reading.
No load voltage ……VAC
minus voltage under load ……VAC
Voltage drop ……VAC
The maximum permissible voltage drop must not exceed
5.0VAC in the exposure range given.
If power is insufficient advise to the customer that an ade-
quate power supply must be installed according to Power
supply given in the instructions Pre- Installation, Mount-
ing Template.
for USA/Canada only

7 Starting-Up, Measurements and Controls (for USA/Canada only) Sirona Dental Systems GmbH
60 81 785 D 3302
14 D 3302.031.01.28.02
7.3 Measure voltage at X3
• Adjust the voltmeter in the 2V measuring range.
• The DX1 is automatically aligned to the tube assembly.
Check the voltage on X3.1 – and 2+ as a connection
check:
Nominal value 540mVDC ±200mVDC
– Value for out of tolerance (Volt range):
Check leads to X3 for proper connection (see section
“Electrical Connection” , page 7).
for USA/Canada only
540mVDC
tolerance
±200mVDC

Sirona Dental Systems GmbH 7 Starting-Up, Measurements and Controls (for USA/Canada only)
60 81 785 D 3302
D 3302.031.01.28.02 15
ÇÉìíëÅÜÑê~å´~áëÉëé~¥çä
7.4 Tube Current Verification
• Turn unit OFF.
• Remove jumper from test points DX1.X6/X7.
• Connect multimeter to X6+/ X7 –, range 10mADC.
• Turn unit ON.
• Set the exposure time on the control panel to 3.2s, us-
ing the object selector switch (conventional radiography
technique).
ATTENTION
Make an exposure.
• The reading should be 7mADC ±0.5mA.
• If specified value is obtained turn unit OFF
(WARNING: Electrical shock hazard!).
• Remove meter leads and replace jumper!
• If specified value cannot be obtained, see Service Man-
ual, chapter ”Tube Current Verification”.
for USA/Canada only

7 Starting-Up, Measurements and Controls (for USA/Canada only) Sirona Dental Systems GmbH
60 81 785 D 3302
16 D 3302.031.01.28.02
7.5 Exposure Time Verification (conventional radiography technique)
• For testing the exposure times a mechanical pulse
counter is needed.
• Switch unit OFF
(WARNING: Electrical shock hazard!) and connect
the test leads to test points MP311/MP312 on PCB
DX1.
• Switch unit ON.
• Make an exposure with each of the exposure times giv-
en. CAUTION RADIATION!
• Observe the cooling time between exposures.The
Ready LED flashes until the automatic cooling down
time of the tube assembly has expired.
• Set exposure times using the object selector switch
(see Operating Instructions).
Exposure time 0.4s:
– at 60Hz: 24 pulses Tolerance±1 pulse,
– at 50Hz: 20 pulses Tolerance±1 pulse
Exposure time 3.2s:
– at 60Hz: 192 pulses Tolerance±9 pulses,
– at 50Hz: 160 pulses Tolerance±8 pulses
• If the measured pulse count is not within specified toler-
ance, see Service Manual, chapter ”Exposure Time
Verification”.
• Switch unit OFF
(WARNING: Electrical shock hazard!) and discon-
nect the test leads to test points MP311/MP312.
• Remove the object selector switch knob from the rotary
switch shaft.
for USA/Canada only

Sirona Dental Systems GmbH 8 Startup
60 81 785 D 3302
D 3302.031.01.28.02 17
ÇÉìíëÅÜÑê~å´~áëÉëé~¥çä
ATTENTION
Check the V and W connections at terminal X3 on board
DX1. The connections must not be reversed (see page 6)!
Otherwise a malfunction will occur.
1. Switch ON power supply (installation on site).
2. Switch ON the unit, an acoustical signal sounds briefly.
Preparing the Exposure (see the HELIODENT DS Op-
erating Instructions).
• Adjust the voltmeter in the 2V measuring range.
3. The DX1 is automatically aligned to the tube assembly.
Check the voltage on X3.1 – and 2+ as a connection
check:
540mVDC ±200mVDC
– Value for out of tolerance (Volt range):
Check leads to X3 for proper connection (see Sec-
tion “Electrical Connection” , page 7).
ATTENTION
Observe the following with cable extension (e.g.due to ceil-
ing installation, Centro column or Split Concept ):
– Check the voltage behind the cable extension.
Measure on terminal X10 for ceiling installations
and on terminal K2 for the Centro column and the
Split Concept. The voltage measured (on terminal
X10 or K2) will be lower than the value measured
on DX1, however, still must lie within the tolerance
8 Startup
3. 2.
1.
Radiation indicator
ON
540mV±
200mV brown to X3.Vblack toX3.W

8 Startup Sirona Dental Systems GmbH
60 81 785 D 3302
18 D 3302.031.01.28.02
• For the following tests, observe the radiation protection
guidelines in the Operating Instructions.
4. Check X-radiation
Place a luminous film.
Select 1.0s exposure time.
Darken the room.
Press the exposure button.
CAUTION RADIATION
– The radiation must be visible on the luminescent
film.
– Incandescent lamp Aon board DX1 and the radia-
tion indicator must remain lit for the duration of the
exposure.
– An acoustic signal in the wall adapter must also
accompany the entire exposure.
– With remote control operation, the LED on the remote
control module must also light up.
5. Interrupt the exposure.
Select 3.2s exposure time (see HELIODENT DS Operating
Instructions, Adapting the Base Value).
Press the exposure button until the radiation indicator
lights up and then let go: the exposure must stop imme-
diately.
The elapsed exposure time up to the time of interrup-
tion flashes.
Following the automatic cool-down period, the unit is
again ready.
6. Switch OFF the unit.
7. For exhibition only, with no radiation!
Disconnect the wires from X3.V and X3.W and isolate
them.
Set switch S300 to position 2.
LED V335 lights up in operation.
4.
5.
6. 7.
7.
A
Exposure button
Radiation indicatorFor exhibition unit only

Sirona Dental Systems GmbH 9 Concluding Work
60 81 785 D 3302
D 3302.031.01.28.02 19
ÇÉìíëÅÜÑê~å´~áëÉëé~¥çä
1. Insert the cable bush (for remote control: cable with knot) in
the slot C.
2. – Run the protective ground wire to the cover.
– Set on the cover.
– Option Ceiling Version / Centro Column / Split Con-
cept: place cap Ainto the cover.
– Insert lid Band attach the cover with the four Allen
screws.
Without remote timer:
3. Glue the cover supplied into the recess of the hood.
4. Attach the rotary knob to the rotary switch shaft. It must
be easy to turn.
5. Place the manual release into the holder (if not installed
with the remote control).
9 Concluding Work
AB
1.
2.
3.
4.
2.
2. 5.
C

9 Concluding Work Sirona Dental Systems GmbH
60 81 785 D 3302
20 D 3302.031.01.28.02
9.1 Light Indicators at the Display, Audible Sound at the Wall Adapter
(for USA/Canada only)
• Switch unit ON with master power switch.
• The stored exposure data must light up on the display,
see Operating Instructions under ”Preparing the ex-
posure”.
•Make an exposure:
Set the exposure time to 1.00 s for conventional radiog-
raphy technique (button D must not light up).
•CAUTION RADIATION: Depress the exposure button
and hold until the exposure terminates automatically.
– The radiation indication X-ray must light up during
the exposure period.
– Simultaneously an audible beep must sound at the
wall adapter.
– In operation with remote control, the LED on the
remote station must light up as well.
–TheReady LED flashes until the automatic cooling
down time of the tube assembly has expired.
•Interrupt an exposure – deadman feature:
Set the exposure time to 3.2 s.
•CAUTION RADIATION: Press the exposure button un-
til X-ray lights up and subsequently release – the expo-
sure must terminate immediately.
– The selected exposure time blinks until the auto-
matic cooling down time of the tube assembly has
expired.
• Switch unit OFF.
for USA/Canada only
