Sirona Dental Systems GmbH 1 Possibilities of Installation
60 82 064 D 3297
D 3297.031.01.04.02 5
ÇÉìíëÅÜÑê~å´~áë ÉåÖäáëÜÉëé~¥çä

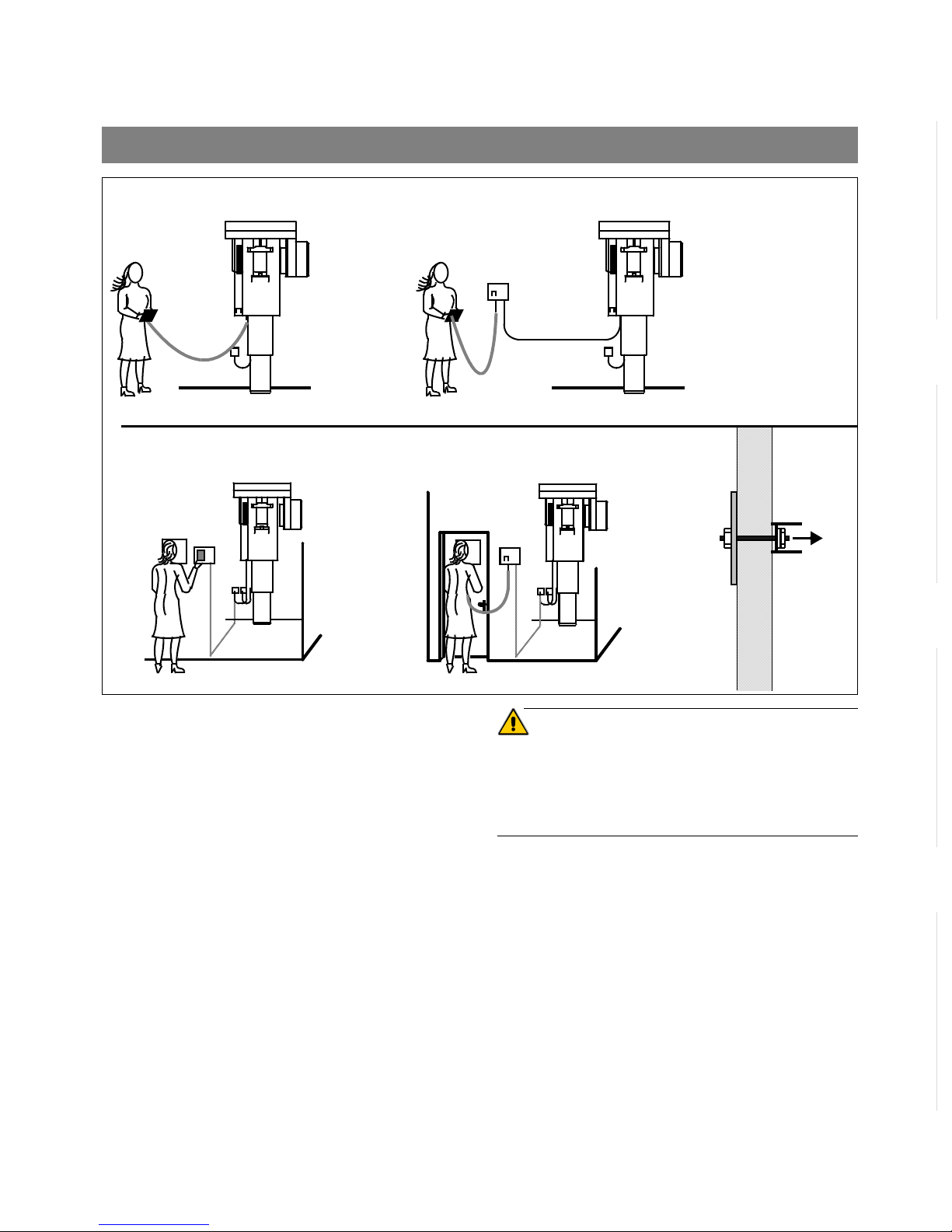

1. ORTHOPHOS®Plus without remote control in the
treatment room.
2. ORTHOPHOS Plus with remote control in the treat-
ment room.
Length of supplied special control cable about 15 me-
ters (591”/49 feet).
3. ORTHOPHOS Plus with remote control outside of X-
ray room, without coiled cable at the Multitimer con-
trol unit.
Length of supplied control cable about 15 meters (591”/
49 feet).
4. ORTHOPHOS Plus with remote control outside of X-
ray room, with coiled cable at the Multitimer control
unit.
Length of supplied control cable about 15 meters (591”/
49 feet).
ATTENTION
Each wall plug must withstand a pull of 700 N (70 kp/
155pounds).
Depending on the construction of the wall, suitable special
wall plugs must be obtained or an anchor plate made.
1 Possibilities of Installation
700 N
1.
5.4.3.
2.

2 Installing the Unit Sirona Dental Systems GmbH
60 82 064 D 3297
6D 3297.031.01.04.02
NOTE
i
The power and control cables1must have a play of at least
0.75 m vertically behind the column, so that system motion
during operation is unhindered.
1. Separate unit with carrying plate and handles from the
transport palette by removing the six screws.
2. Move the carrying plate close to the installation location
and set it up.
CAUTION: Use only the handles of the carrying
plate.
3. Unscrew the carrying plate and vibration buffer.
4. Unscrew the red transportation stabilization screw from
the back (keep with Adjustment Set).
Connect the cover with three M4 countersunk screws.
Use the enclosed Allen wrench.
ATTENTION
Screw down the red transportation stabilization screw with
the unit in vertical position before removing the unit from the
wall!

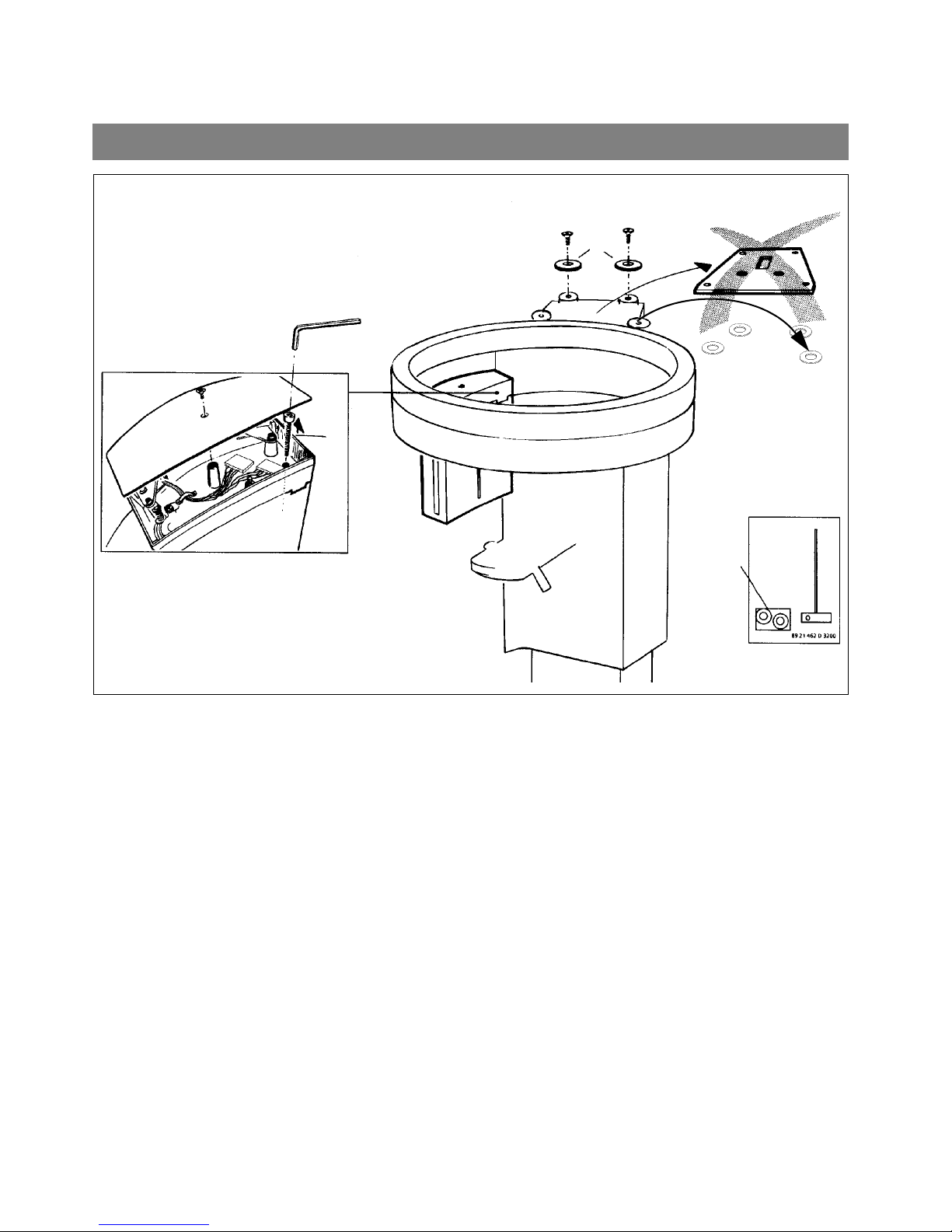

5. Attach the wall spacer with two M8 Allen screws and
washers, but do not screw tightly yet.
2 Installing the Unit
2.
3.
4.
5. 3.
1.
Installation
hardware
Handles
1. Control cable for remote control only.

Sirona Dental Systems GmbH 2 Installing the Unit
60 82 064 D 3297
D 3297.031.01.04.02 7
ÇÉìíëÅÜÑê~å´~áë ÉåÖäáëÜÉëé~¥çä
• Note the information on wall condition on page 5.
6. Move the unit to the desired location taking hold of the
unit only at the rotation ring and/or column.
Align it vertically for both sides with a water balance
on the rotation ring.
7. Mark two holes Aand drill holes.
Insert dowels.
Connect the unit with screws, and recheck alignment
with the water balance. Then tighten screws Aand B.
8. Drill fixing holes Cthrough the floor cover. Insert dow-
els.
Tighten the unit.
9. Place the two covers on the wall spacer.
10. Remove the protective cover of the adhesive tape on
the floor plate cover. Place the floor plate cover on the
floor plate and press down tightly.
11. Remove the protective cover of the adhesive tape and
put on two caps.
Distances: see plan or dimension sheet 6.
10.
11.
7.
6.
9.
8.

3 Removing Transport Fixings Sirona Dental Systems GmbH
60 82 064 D 3297
8D 3297.031.01.04.02
1. Unscrew cassette holder cover.
Unscrew transportation stabilization screw A, and keep
it in the adjustment kit and screw cassette holder cover
back on.
2. Unscrew transportation stabilization plate. Remove
plate upwards.
3. Remove four washers.
4. Attach the two large washers Bfrom the mounting
hardware with two countersunk screws M4.
3 Removing Transport Fixings
1.
2.
4.
Installation hardware
5mm
B
A
M4
B
3.

Sirona Dental Systems GmbH 4 Installing the X-Ray Tube Assembly
60 82 064 D 3297
D 3297.031.01.04.02 9
ÇÉìíëÅÜÑê~å´~áë ÉåÖäáëÜÉëé~¥çä
1. Screw two Philips countersunk screws M5 into the
threaded holes.
ATTENTION
When screwing in, be sure the tube assembly can be insert-
ed into the slot all the way to the stop.
2. Pull plug K3 down from the rotating ring and plug it in.
Engage x-ray tube assembly. Tighten 2 screws lightly.
3. Screw in another two M5 countersunk screws for the x-
ray tube assembly.
Then tighten all four screws cross-wise!
4. Thread cable through the two cable tie loops and affix.
Connect plugs K9 together.
5. Attach cable lug with cable clip to support plate (2
screws).
4 Installing the X-Ray Tube Assembly
1.
2.
3.
4.
1.
2.
3.
5.
K9
Installation material

5 Line Voltage Sirona Dental Systems GmbH
60 82 064 D 3297
10 D 3297.031.01.04.02

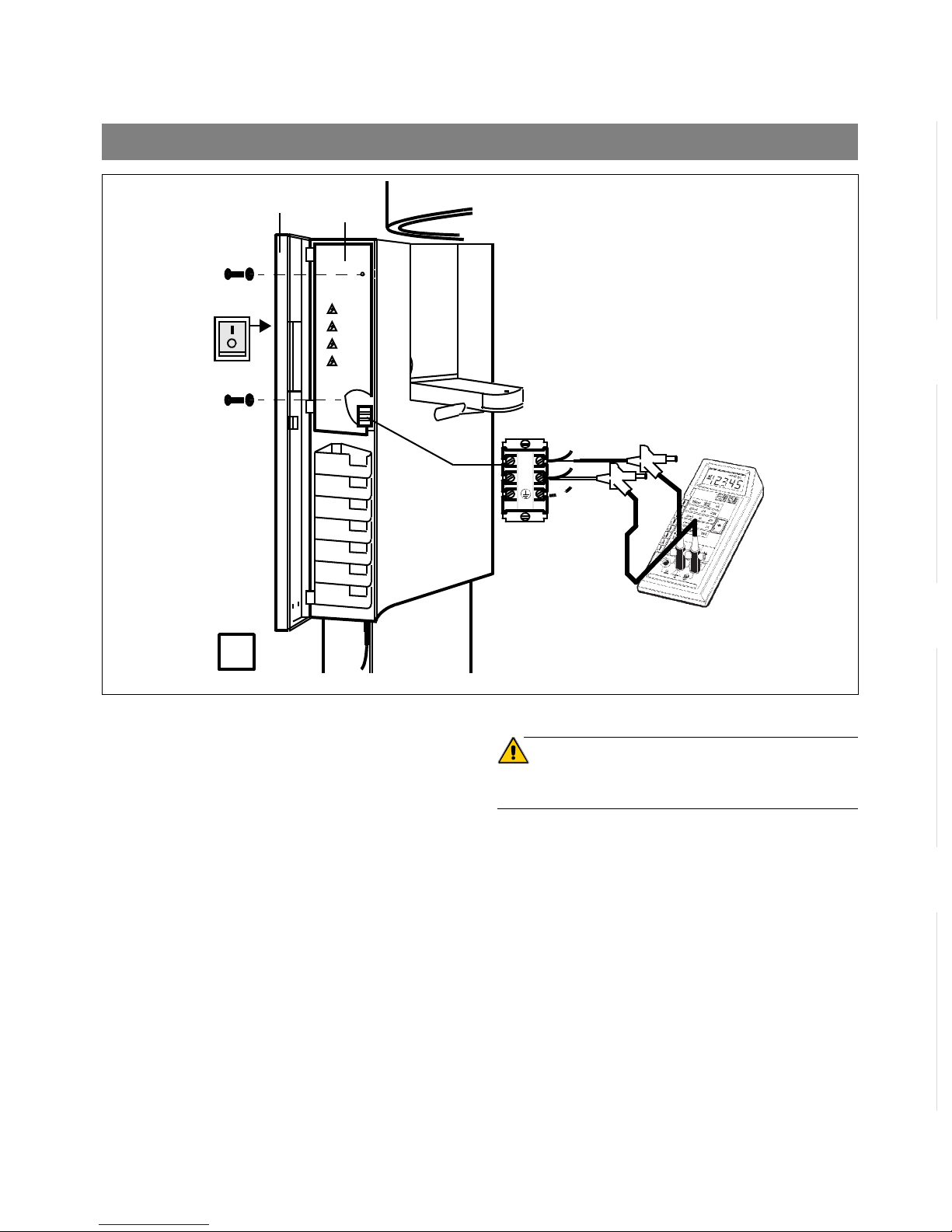

ATTENTION
Replug the line voltage only with the unit switched off.
1.
ATTENTION
The unit is factory-wired for a nominal line voltage of 230
VAC (plug on PCB DX31, X5).
For exhibitions, follow point 4.1.
2. At nominal line voltage of 208 VAC
Swing out the door and unscrew the transformer cover.
Plug in the plug as shown for 208V (X6).
For exhibitions, follow point 4.1.
Reattach cover (two screws with washers) and close
the door.
3. Other nominal line voltages
For other voltages a matching transformer (autotrans-
former) with the following specifications is required:
•Input : nominal line voltage
•Output : 230 V
•Rating: 1 kVA continuous
•Max.voltage drop at 10 A ohmic load:≤6V.
Purchase a matching transformer which complies with
these specifications in the destination country.
For exhibitions, follow point 4.1.
5 Line Voltage
1.
2.
3.

Sirona Dental Systems GmbH 5 Line Voltage
60 82 064 D 3297
D 3297.031.01.04.02 11
ÇÉìíëÅÜÑê~å´~áë ÉåÖäáëÜÉëé~¥çä
4.1 For exhibition only, without radiation !
On board DX31, set switch S88 to position 2.
Disconnect plug X2 and fix as shown.
4.2 For exhibition only in USA/Canada, nominal
line voltage 115V, without radiation! (No transformer
required).
On board DX31, set switch S88 to position 2.
Disconnect plug X2 and fix as shown.
Plug in the plug as shown for 115V (X7).
Reattach cover (two screws with washers) and close
the door.
ATTENTION
Should the unit be required for later operation in a dental
practice, undo all the measures taken for exhibition.
NOTE
i
If the position of switch S88 is changed during operation,
the display S88 is shown on the Multitimer.
4.2
4.1
X2
DX31
S88

6 Remote Control Sirona Dental Systems GmbH
60 82 064 D 3297
12 D 3297.031.01.04.02
NOTE
i
If a door contact is required, connect to K10 according to
Wiring References.
6.1 First installation possibility: Multitimer without spiral cable
ATTENTION
The Multitimer with spiral cable is temporarily connected to
the unit's carriage for start-up.
• Therefore the installation described on the following
page cannot be performed until after the ”Phantom Ra-
diograph” section.
• After installing the Multitimer without spiral cable, an-
other functional check is required:
Take and evaluate a phantom radiograph.
ATTENTION
Keep the spiral cable left over after installation at the cus-
tomer's for later service use.
6 Remote Control

Sirona Dental Systems GmbH 6 Remote Control
60 82 064 D 3297
D 3297.031.01.04.02 13
ÇÉìíëÅÜÑê~å´~áë ÉåÖäáëÜÉëé~¥çä

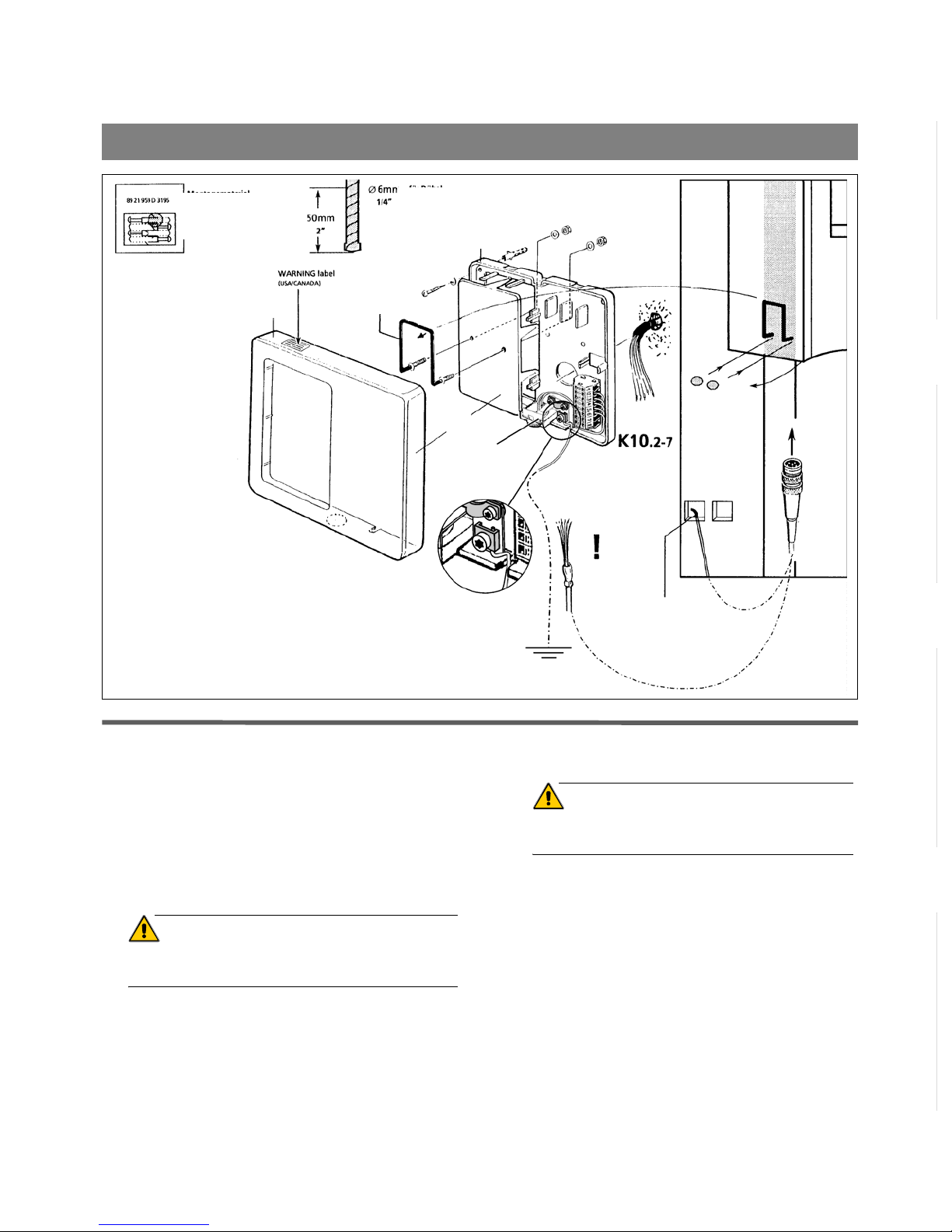

1. Remove the engaged cover.
2. Mark and drill four holes for chassis.
Insert four wall plugs.
3. Run the control cable
- With concealed installation of control cable:
Pull control cable into tubing up to green marking and
affix cable.
Thread the cable into the chassis from the wall.
- With free-hanging control cable:
4. Fasten the chassis using four screws and washers.
5. Plug connector into unit and screw it tight.
6. Remove cover (cut 6 connections).
7. Remove cable at terminal strip K10 and insulate the
flexible leads.
8. Run and connect the ground wire
A white or gray cable (D 1.5mm² , max. 10m long) must
be run from the chassis to a suitable grounding contact
(e.g. the grounding contact of the ORTHOPHOS).
Screw this cable down onto plate A in the chassis.
Green marking
here
6.
1.
2.
4.
3.
5.
7.
Montagematerial
für Dübel
A
8.
ATTENTION
If the control cable is interrupted the shielding must be
bypassed!
ATTENTION
Engage cable from below.
Minimum distance from floor of 1m.

6 Remote Control Sirona Dental Systems GmbH
60 82 064 D 3297
14 D 3297.031.01.04.02
9. Undo the 3 screws on the back of the Multitimer and
open the Multitimer.
10. Pull the helical cable off the Multitimer and connect the
short cable A.
Complete the Multitimer.
11. Stick on rubber spacer.
12. Loosen the clamp.
13. Remove the cable tie and the shrinkdown plastic tubing
from the control cable.
The shielding of the control cable must be visible.
14. Slide short cable A under the clamp from below.
Slide the control cable under the clamp from above.
The shielding must lie underneath the clamp.
Screw the clamp down tight.
15. Connect the short cable to K10.2-6.
16. Connect control cable (6 leads) to terminal K10.2-7.
17. Record serial no. for the Warranty Passport.
18. Fit Multitimer into chassis and engage cover.
USA/CANADA only: Stick on WARNING and DHHS la-
bels.
19. Stick program foil in place.
10. 17.
11.
16.
9.
18.
19.
15.
12.
13.
14.
A

Sirona Dental Systems GmbH 6 Remote Control
60 82 064 D 3297
D 3297.031.01.04.02 15
ÇÉìíëÅÜÑê~å´~áë ÉåÖäáëÜÉëé~¥çä
6.2 Second installation possibility: Using the Multitimer with spiral cable
1. Remove the engaged cover.
2. Mark and drill four holes for chassis.
Insert four wall plugs.
3. Swing out unit cover and unscrew bracket.
Attach bracket to remote chassis.
Seal drill holes on unit with dummy caps.
4. Run control cable
- With concealed installation of control cable:
Pull control cable into tubing up to green marking and
affix cable. Thread the control cable into the chassis .
- With free-hanging control cable:
5. Screw chassis down tight using four screws and wash-
ers.
6. Plug connector into unit and screw it tight.
7. Run and connect ground wire
A white or gray cable (D 1.5mm² , max. 10m long) must
be run from the chassis to a suitable grounding contact
(e.g. the grounding contact of the ORTHOPHOS).
Screw this cable onto plate Ain the chassis.
1. 3.
2.
3.
6.
4.
5.
A
7.
Green marking
here
Installation hardware for wall plugs
ATTENTION
If the control cable is interrupted the shielding must be
bypassed!
ATTENTION
Engage cable from below.
Minimum distance from floor of 1m.

6 Remote Control Sirona Dental Systems GmbH
60 82 064 D 3297
16 D 3297.031.01.04.02
8. Loosen the clamp.
9. Remove the cable tie and the shrinkdown plastic tubing
from the control cable. The shielding of the control ca-
ble must be visible.
10. Slide the control cable under the clamp from above.
The shielding must lie underneath the clamp.
Screw the clamp down tight.
11. Connect control cable (6 leads) to terminal K10.2-7.
12. Engage cover.
USA/CANADA only: Stick on WARNING and DHHS la-
bel.
13. Attach the Multitimer control panel, insert plug and
screw on.
14. Stick program foil in place.
14.
8.
13.
12.
9. / 10.
11.

Sirona Dental Systems GmbH 7 Starting-up, Measurements and Controls for USA/Canada only
60 82 064 D 3297
D 3297.031.01.04.02 17
ÇÉìíëÅÜÑê~å´~áë ÉåÖäáëÜÉëé~¥çä
Required Measuring Instruments
1. Digital multimeter Fluke 8000 A, Philips PM 2816 rms
or equivalent.
2. Electromechanical pulse counter KESSLER ELLIS, KT
203±1 pulse, or equivalent.
Radiation Protection
Observe the radiation protection guide lines as outlined in
the Operating Instructions manual.
X-radiation is emitted as long as the exposure key on the
Multitimer is depressed.
The X-ray indicator must light up on the Multitimer during
radiation. An acoustic signal must also be heard.
Line Voltage
Be sure the plug on PCB DX31 is plugged according to
nominal line voltage as outlined on page 10.
Power Supply Adequacy
To assure that the ORTHOPHOS system performance is in
accordance with Sirona specifications, an adequate power
supply is essential.
The Federal Performance Standard for diagnostic X-ray
units, code of Federal Regulations, title 21 CFR, subchap-
ter J, mandates an adequate power supply.
7 Starting-up, Measurements and Controls
for USA/Canada only
DX31, X6
208V

7 Starting-up, Measurements and Controls for USA/Canada only Sirona Dental Systems GmbH
60 82 064 D 3297
18 D 3297.031.01.04.02
Multitimer
For measurements and controls the remote installed Multi-
timer must be connected directly to the unit's carriage
instead of the control cable's plug.
Duty Cycle
Between exposures maintain at least a cool-off time (auto-
matic exposure blocage, see Operating Instructions man-
ual).
Operating Instructions
During measurements and controls it is necessary to ener-
gize or de-energize the unit. For all operating steps please
refer to the Operating Instructions manual.
CAUTION with PC - Boards!
All PC-boards are fitted with electronic components sensi-
tive to electrostatic discharge (ESD). In an environment of
moving people electrostatic charges are unavoidable due to
friction of clothing, carpeting etc.
ATTENTION
To prevent damage of electronic chips do not touch same.
Always handle circuit boards by the edge of same.
ATTENTION
Electrical Shock Hazard!
Always turn unit OFF before connecting and disconnecting
the test leads to the test points.
X-RAY
ON
OFF
I
O

Sirona Dental Systems GmbH 8 Power Supply Adequacy (for USA/Canada only)
60 82 064 D 3297
D 3297.031.01.04.02 19
ÇÉìíëÅÜÑê~å´~áë ÉåÖäáëÜÉëé~¥çä
To determine power supply adequacy, the line voltage drop
during exposure must be measured.
1. Be sure power cord is not plugged in! Open door and
remove metal cover (2 screws).
2. Select 300VAC line voltage range on multimeter.
3. Connect measuring leads to terminal K1, Land N.
4. Plug in power cord and switch unit ON, see Operating
Instructions.
5. Press button Rat the Multitimer to return X-ray tube
head into the initial position.
6. Remove and reinsert the film cassette. The Ready LED
at the Multitimer must now go out.
7. Select P1 program and 90kV/8mA at the Multitimer.
8.
ATTENTION
Depress the exposure button at the Multitimer until meter
reading is obtained.
Line voltage Max. permissible line
no load: voltage drop:
187 – 200V 8V
201 – 220V 9V
221 – 240V 10V
241 – 264V 11V
Turn unit OFF and remove meter leads.
If the voltage drop is not within the specified range advise
the customer, that an adequate power supply must be
installed. Refer to Pre-Installation Instructions. Disconnect
unit and do not release for use!
8 Power Supply Adequacy (for USA/Canada only)
Terminal strip
main cable
300VAC
ON
L
N
N
L
door metal cover
5. – 8.
see Operating Instructions
K1
1.
2.
3.
4.

9 kV - Verification, kV-Ramp During Panoramic Exposure (for USA/Canada only) Sirona Dental Systems GmbH
60 82 064 D 3297
20 D 3297.031.01.04.02
• During exposure the kV is encreased in the central re-
gion depending on kV/mA selected up to 17%.
This increase can be measured in VDC.
1. Remove covers. For details see Service Manual.
2. Connect digital voltmeter to KV+ and KV– and select
range 20 VDC.
3. Switch unit ON. The X-ray head must be in the initial po-
sition (return button R), temple support fully open.
4. Select P1 program and 73kV/15mA at the Multitimer.
Ready LED above button R must be out.
5.
ATTENTION
Depress the exposure button until the exposure terminates
automatically.
• The following values must be obtained – see also dia-
gram on next page.
– up to 5.25 seconds: 7.3V ±0.4V,
– from 6.25 to 7.85 s: 8.03V ± 0.1V,
– after 8.85 seconds: 7.3V ±0.4V.
• Turn unit OFF and remove meter leads.
• If specified values cannot be obtained, see Service
Manual, ”Radiographic Density in Vertebrae Region In-
correct”.
9 kV - Verification, kV-Ramp During Panoramic
Exposure (for USA/Canada only)
20VDC
com.
ON
KV+
KV –
DX1
KV– KV+
4. – 5. see Operating Instructions
1. 2.
3.
