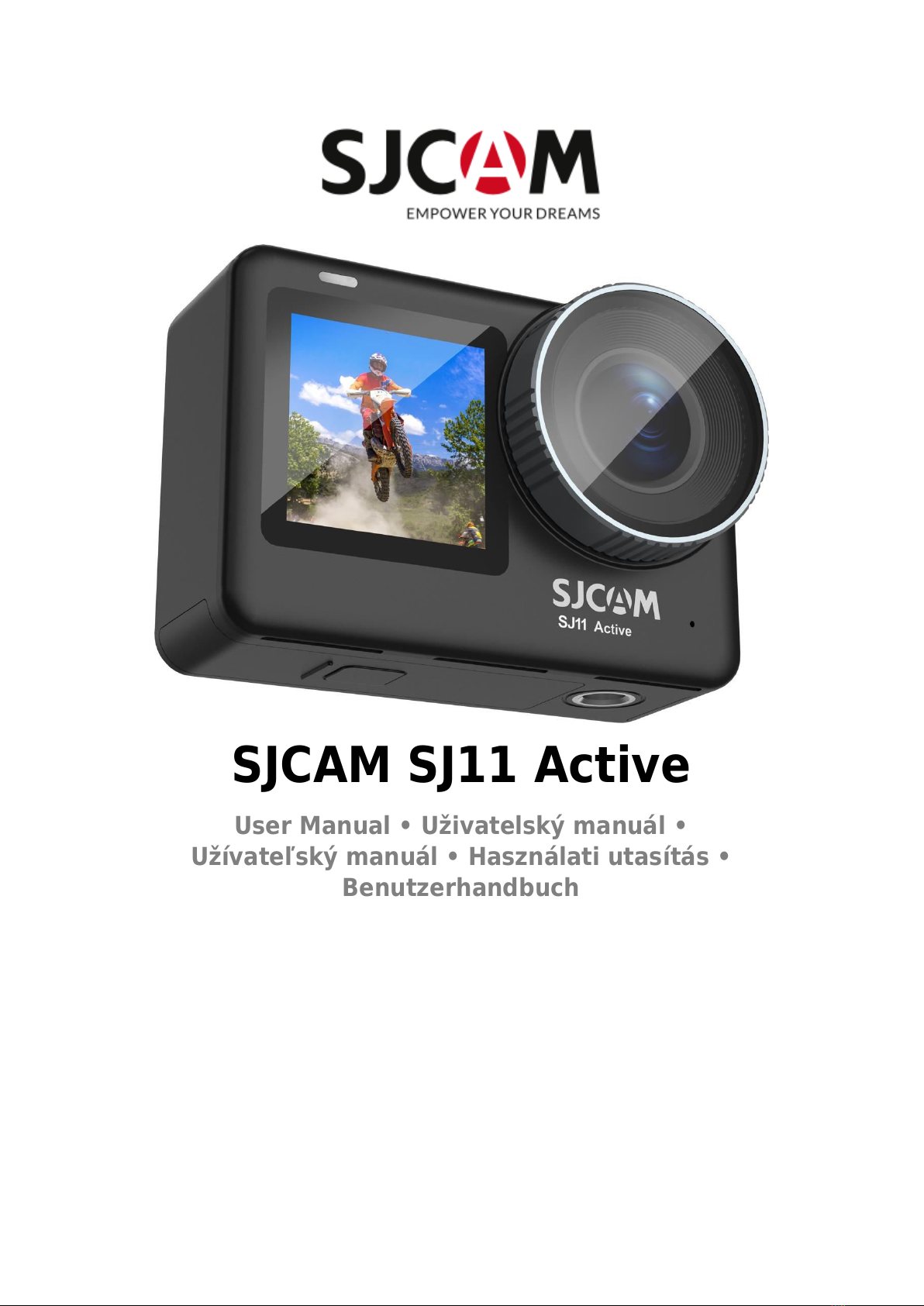

SJCAM SJ11 Active User manual

SJCAM SJ11 Active
User Manual • Uživatelský manuál •
Užívateľský manuál • Használati utasítás •
Benutzerhandbuch

2
English
3 –19
Čeština
20 –36
Slovenčina
37 –53
Magyar
54 –70
Deutsch
71 –87

3
Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully
before first use and keep this user manual for future reference. Pay particular attention to
the safety instructions. If you have any questions or comments about the device, please
contact the customer line.
✉www.alza.co.uk/kontakt
✆[phone]
Importer Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

4
Safety Guidelines
1. Avoid placing the product near strong magnetic fields, such as magnets or motors, and
prevent exposure to strong radio wave sources. This will help prevent potential product
failures caused by magnetic interference and radio waves.
2. Use a reputable brand Micro SD card for optimal performance.
3. Keep the Micro SD card away from strong magnetic fields to prevent data loss.
4. In the event of product overheating, smoking, or unusual odors during charging,
immediately disconnect the charging device to prevent fire hazards.
5. During charging, ensure the product is out of children's reach to prevent electrical
accidents.
6. Store the product in a cool, dry, and dust-free environment, avoiding exposure to high
temperatures and direct sunlight.
7. Handle the product with care, as it is a high-precision instrument. Avoid dropping or
subjecting it to impacts.
Avoid dismantling the camera, as this action can lead to harm to internal parts
and will result in the automatic nullification of your warranty. If you require
technical assistance, please initiate the process by generating a support ticket
at support.sjcam.com.

5

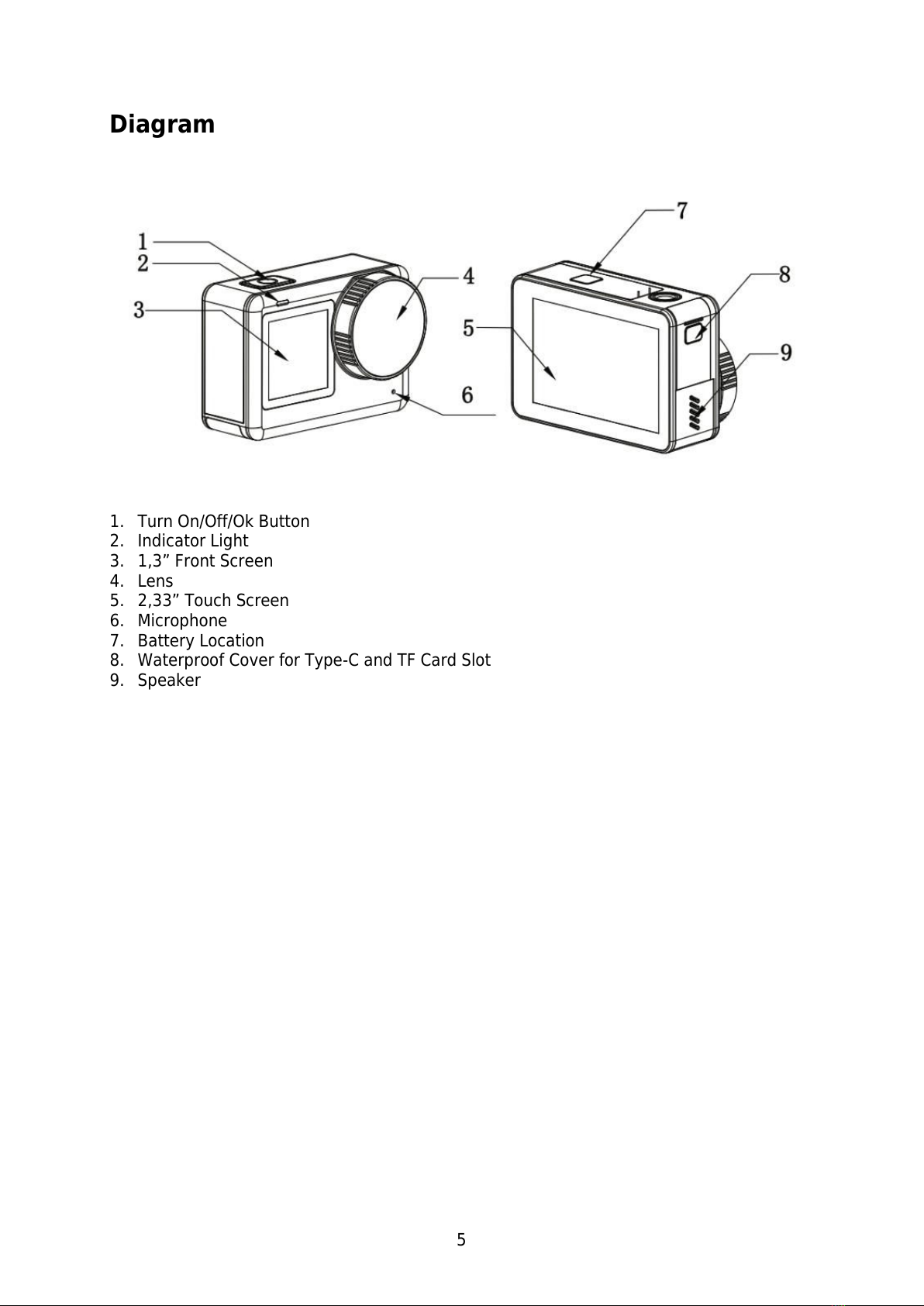

Diagram
1. Turn On/Off/Ok Button
2. Indicator Light
3. 1,3”Front Screen
4. Lens
5. 2,33”Touch Screen
6. Microphone
7. Battery Location
8. Waterproof Cover for Type-C and TF Card Slot
9. Speaker

6
Specifications
Screen
2,33" HD Touch screen (main screen), 1,3"
LCD screen (front screen)
Lens Angle
154 °
Battery
1300 mAh Removable battery
Wi-Fi
2,4 Ghz/5 Ghz
Encoding Format
H.264/h.265
Light Frequency
50 Hz/60 Hz
Video Format
MP4
Photo Format
JPG
Video Resolution
4K (3840×2160) 30 fps, 2K (2560×1440)
60/30 fps, 1080P (1920×1080) 120/60/30
fps, 720P (1280×720) 120/60/30 fps
Photo Resolution
20M (5888×3312),16M (5376×3024),14M
(5008×2816), 12M (4640×2608), 10M
(4320×2432), 8M (3840×2160)
Usb Port
Type-C
Power Input
5V 2A
Storage
Micro SD card, up to 128G
Working Temperature
-10 °c - 45 °c
Dimension
64,5×45×31,5 mm
Languages
English/French/German/Spanish/
Italian/Portuguese/Chinese/Japanese/
Traditional Chinese/Russian/Romanian/
Polish/Czech/Slovak/Hungarian/Finnish/
Danish/Dutch/Turkish/Hebrew/Thai

7
Packaging
1× Waterproof Case
1× Frame
2× Adapter
1× Lens Protective Cover
2× 3M Glue
2× Helmet Base
1× USB Type-C Cable
1× Lens Cleaning Cloth
1× SJCAM Sticker
2× Helmet Base
1× User’s Manual

8

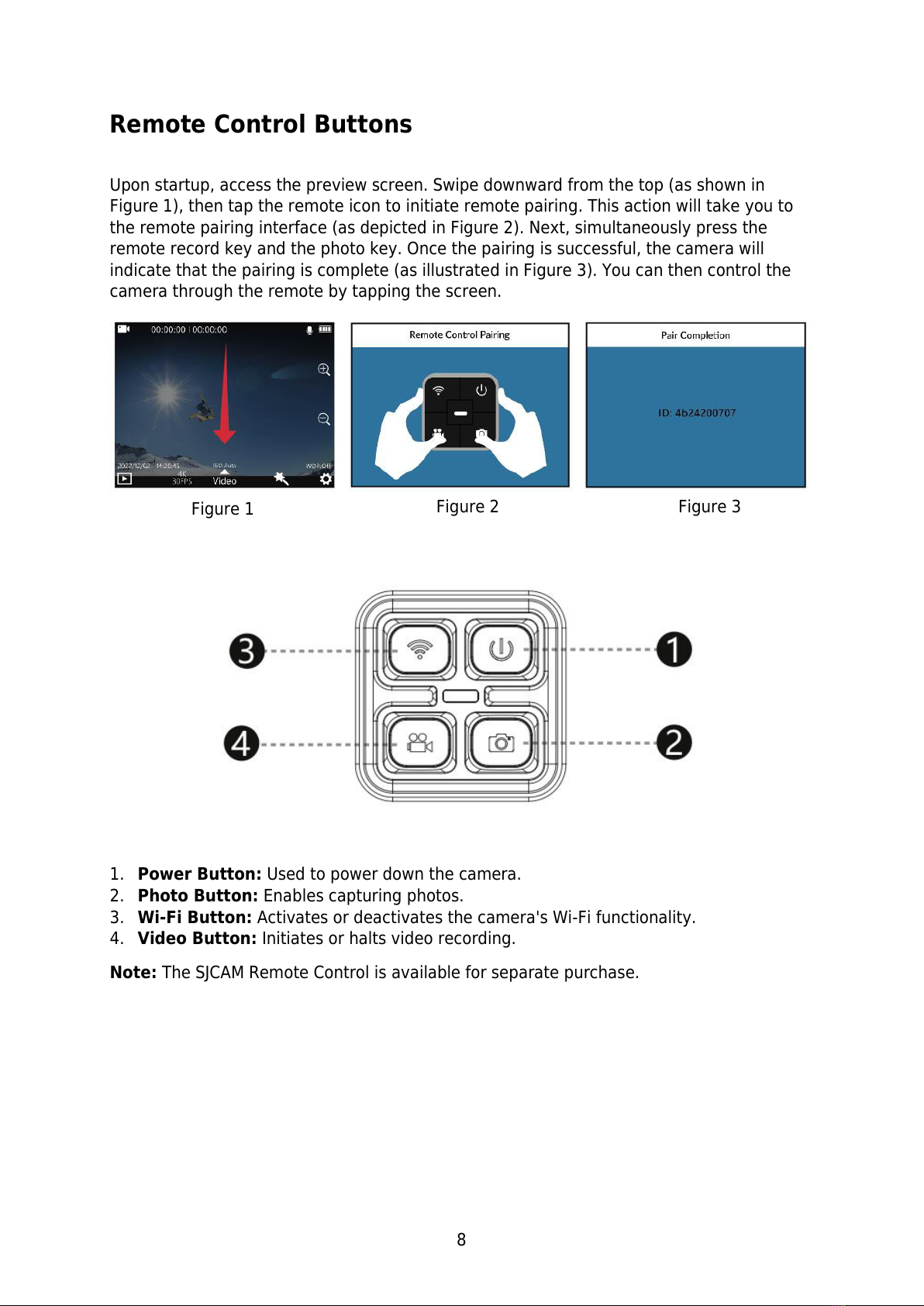

Remote Control Buttons
Upon startup, access the preview screen. Swipe downward from the top (as shown in
Figure 1), then tap the remote icon to initiate remote pairing. This action will take you to
the remote pairing interface (as depicted in Figure 2). Next, simultaneously press the
remote record key and the photo key. Once the pairing is successful, the camera will
indicate that the pairing is complete (as illustrated in Figure 3). You can then control the
camera through the remote by tapping the screen.
1. Power Button: Used to power down the camera.
2. Photo Button: Enables capturing photos.
3. Wi-Fi Button: Activates or deactivates the camera's Wi-Fi functionality.
4. Video Button: Initiates or halts video recording.
Note: The SJCAM Remote Control is available for separate purchase.
Figure 1
Figure 2
Figure 3

9

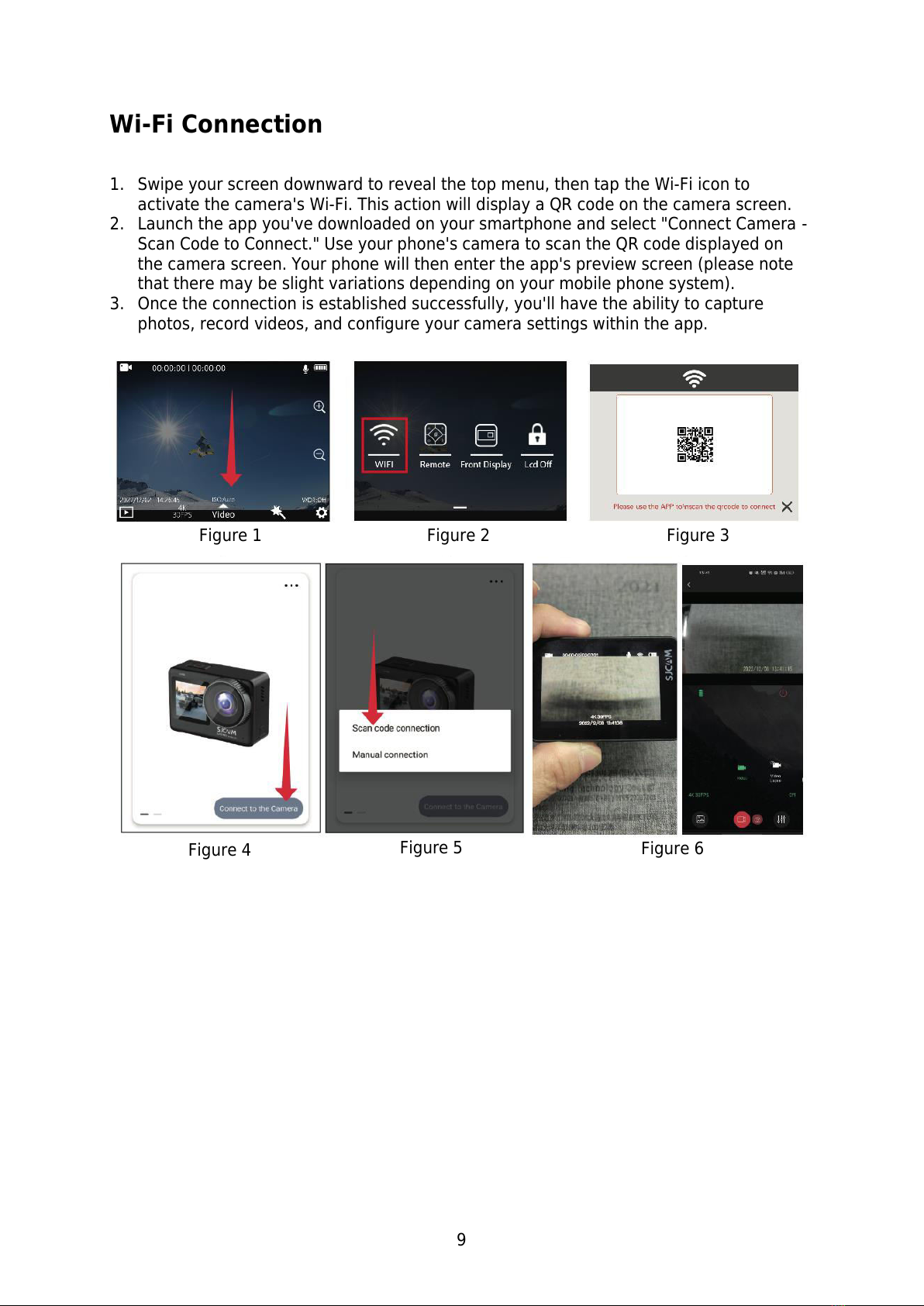

Wi-Fi Connection
1. Swipe your screen downward to reveal the top menu, then tap the Wi-Fi icon to
activate the camera's Wi-Fi. This action will display a QR code on the camera screen.
2. Launch the app you've downloaded on your smartphone and select "Connect Camera -
Scan Code to Connect." Use your phone's camera to scan the QR code displayed on
the camera screen. Your phone will then enter the app's preview screen (please note
that there may be slight variations depending on your mobile phone system).
3. Once the connection is established successfully, you'll have the ability to capture
photos, record videos, and configure your camera settings within the app.
Figure 1
Figure 2
Figure 3
Figure 4
Figure 5
Figure 6

10
Downloading the APP
Scan the code and download the APP.
You can download and install the app by either scanning the QR code on your mobile
phone or by visiting the Apple Store or Google Play and searching for "SJCAM zone".

11

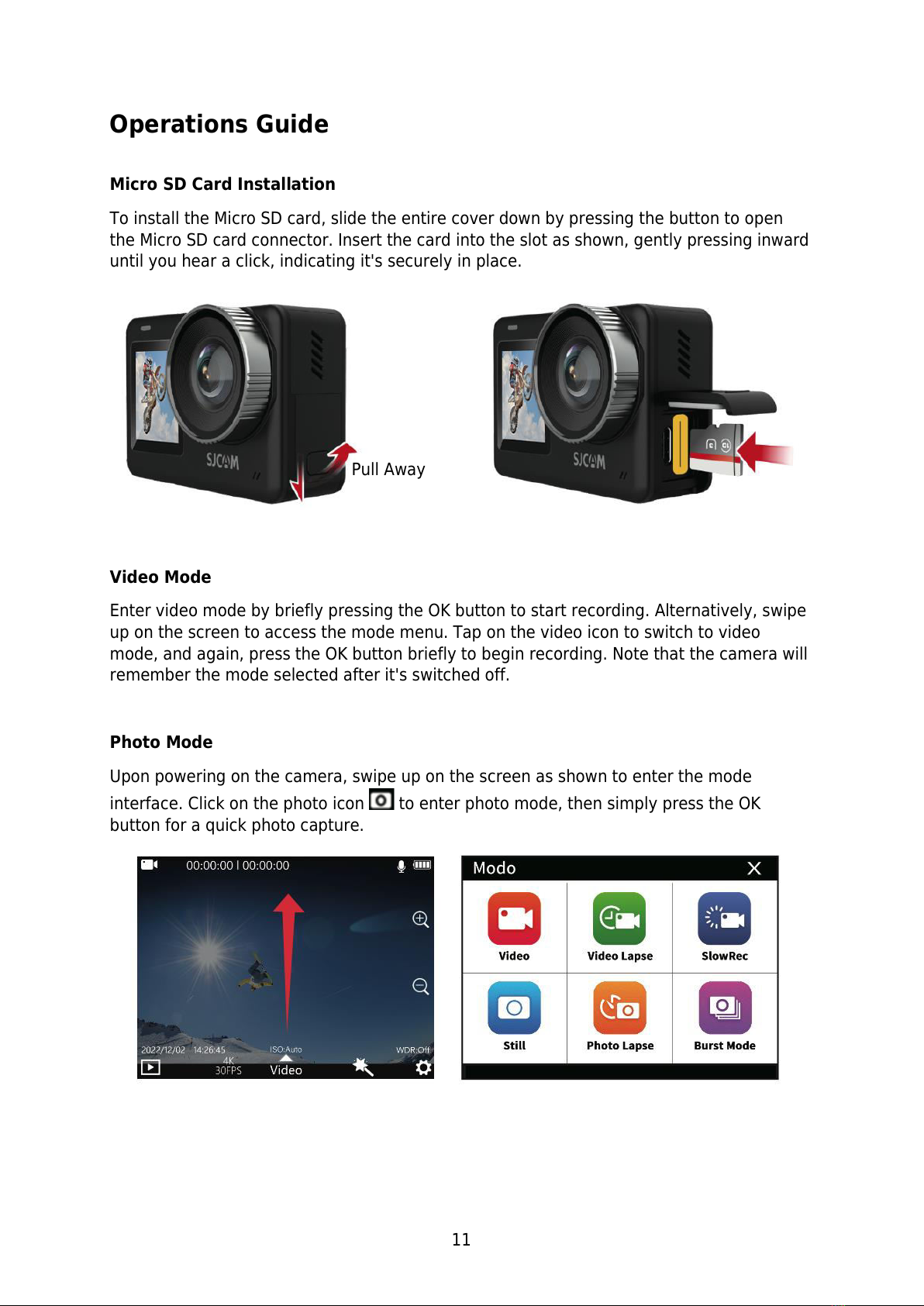

Operations Guide
Micro SD Card Installation
To install the Micro SD card, slide the entire cover down by pressing the button to open
the Micro SD card connector. Insert the card into the slot as shown, gently pressing inward
until you hear a click, indicating it's securely in place.
Video Mode
Enter video mode by briefly pressing the OK button to start recording. Alternatively, swipe
up on the screen to access the mode menu. Tap on the video icon to switch to video
mode, and again, press the OK button briefly to begin recording. Note that the camera will
remember the mode selected after it's switched off.
Photo Mode
Upon powering on the camera, swipe up on the screen as shown to enter the mode
interface. Click on the photo icon to enter photo mode, then simply press the OK
button for a quick photo capture.
Pull Away

12
Playback Mode
While the camera is on, locate the playback icon in the bottom left corner of the
screen, as indicated below. Tap this icon to enter playback mode. Select the video or
photo you wish to review and press the OK button for playback.
Front and Back Screen Switching
A. To switch to the front screen display, slide down from the top after turning on the
camera and click on the small display icon. B. An alternative method is to double click the
OK button after turning on the camera to switch to the front screen display. C. When the
camera is on the front screen, double-clicking the OK button or the back screen will switch
to the back screen display. Note that both screens cannot be displayed simultaneously.

13
Car Mode
After powering on the camera, swipe up on the screen as shown to access the mode
interface. Click on the car mode icon to start car mode recording. Note: If you plan to
mount the camera upside down in car mode, you'll need to enable rotation in the system
settings. When connected to the car power adapter, the camera will start recording
automatically when you start the car and will stop recording and power off five seconds
after you disconnect the power.
Charging Options
There are two ways to charge the camera: A. Connect it to a computer, power adapter, or
car charger. The red light on the device will remain lit during charging and turn off when
fully charged. B. Remove the battery and use a separate special charger (sold separately)
for charging. Please ensure you select 5V1A or 5V2A output power adapters.
Recording Settings
To access recording settings, tap on the resolution icon (Figure 1) and the mode setting
icon (Figure 2) at the bottom of the screen in the video preview screen. Slide the screen to
select the desired options, and then click to confirm your selection.
Figure 1
Figure 2

14
Recording Settings Menu
Resolution
4K (3840×2160) 30 fps, 2K (2560×1440) 60/30 fps, 1080P
(1920×1080) 120/60/30 fps
Encoding Format
H.264, H.265
Loop Recording
Off, 3 mins, 5 mins, 8 mins
Motion Detection
Off, on
Pre-Recording
Off, on
Delayed Recording
Off, on
Viewing Angle
Wide, medium, narrow
WDR
Off, on
HDR
Off, on
Gyro Stabilization
Off, on
Audio Recording
Off, on
Volume Adjustment
1, 2, 3, 4, 5, 6, 7, 8
Date Label
Off, on
Logo
Off, on
Code Stream
High, medium, low
ISO
Auto, 100, 200, 400, 800, 1600, 3200
Sharpness
Strong, standard, soft
Saturation
High, standard, low
Contrast
High, standard, low
Noise Reduction
High, standard, low
Image Brightness
High, standard, low
White Balance
Auto, overcast, daylight, tungsten, fluorescent, underwater
mode
Color
Normal, black and white, retro, warm, cool
Exposure
Compensation
+2,0, +5/3, +4/3, +1,0, +2/3, +1/3, 0,0, -1/3, -2/3, -1,0, -4/3, -
5/3, -2,0
Metering
Average, center, spot metering
Fisheye Correction
Off, on

15

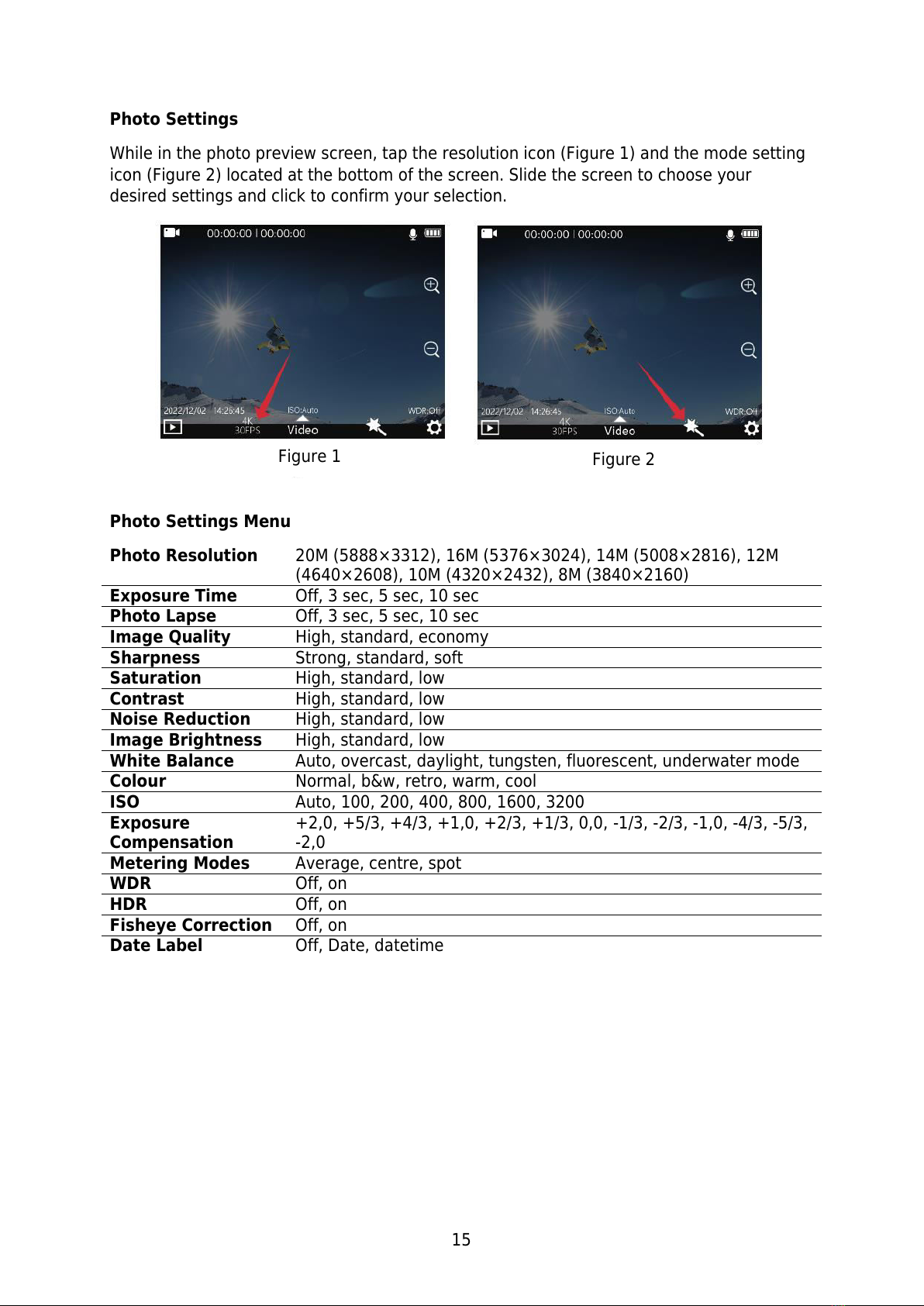

Photo Settings
While in the photo preview screen, tap the resolution icon (Figure 1) and the mode setting
icon (Figure 2) located at the bottom of the screen. Slide the screen to choose your
desired settings and click to confirm your selection.
Photo Settings Menu
Photo Resolution
20M (5888×3312), 16M (5376×3024), 14M (5008×2816), 12M
(4640×2608), 10M (4320×2432), 8M (3840×2160)
Exposure Time
Off, 3 sec, 5 sec, 10 sec
Photo Lapse
Off, 3 sec, 5 sec, 10 sec
Image Quality
High, standard, economy
Sharpness
Strong, standard, soft
Saturation
High, standard, low
Contrast
High, standard, low
Noise Reduction
High, standard, low
Image Brightness
High, standard, low
White Balance
Auto, overcast, daylight, tungsten, fluorescent, underwater mode
Colour
Normal, b&w, retro, warm, cool
ISO
Auto, 100, 200, 400, 800, 1600, 3200
Exposure
Compensation
+2,0, +5/3, +4/3, +1,0, +2/3, +1/3, 0,0, -1/3, -2/3, -1,0, -4/3, -5/3,
-2,0
Metering Modes
Average, centre, spot
WDR
Off, on
HDR
Off, on
Fisheye Correction
Off, on
Date Label
Off, Date, datetime
Figure 1
Figure 2

16

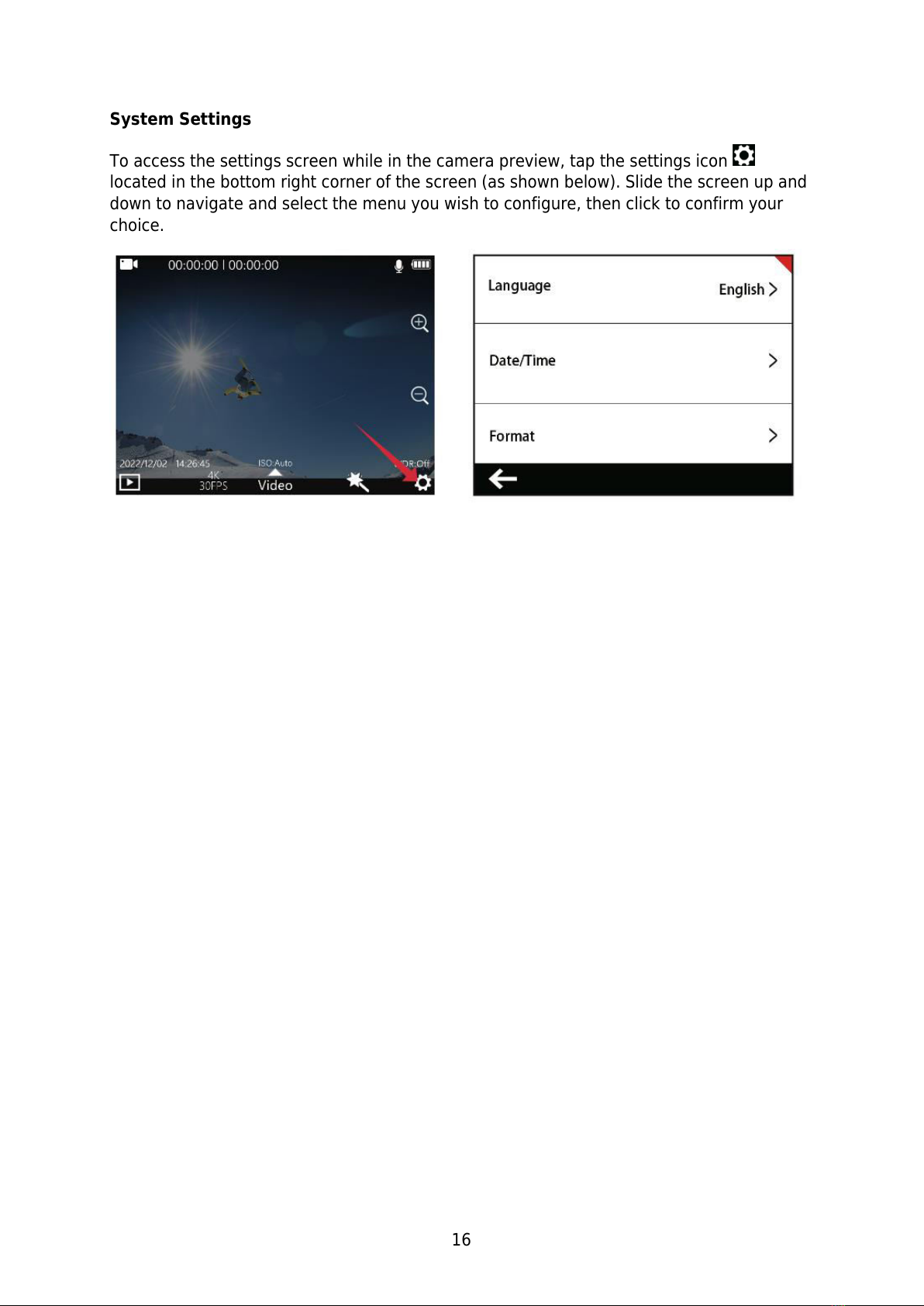

System Settings
To access the settings screen while in the camera preview, tap the settings icon
located in the bottom right corner of the screen (as shown below). Slide the screen up and
down to navigate and select the menu you wish to configure, then click to confirm your
choice.

17

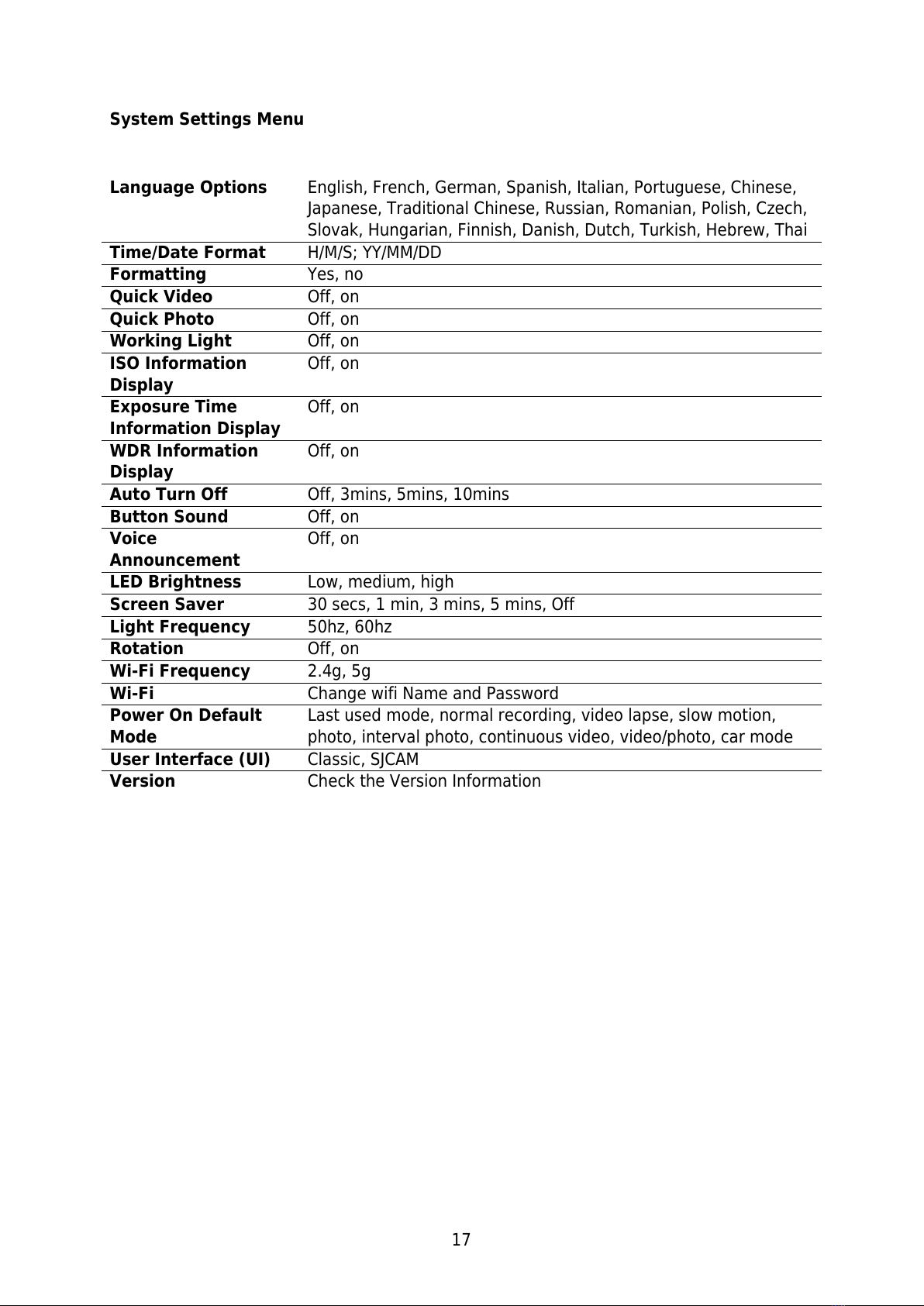

System Settings Menu
Language Options
English, French, German, Spanish, Italian, Portuguese, Chinese,
Japanese, Traditional Chinese, Russian, Romanian, Polish, Czech,
Slovak, Hungarian, Finnish, Danish, Dutch, Turkish, Hebrew, Thai
Time/Date Format
H/M/S; YY/MM/DD
Formatting
Yes, no
Quick Video
Off, on
Quick Photo
Off, on
Working Light
Off, on
ISO Information
Display
Off, on
Exposure Time
Information Display
Off, on
WDR Information
Display
Off, on
Auto Turn Off
Off, 3mins, 5mins, 10mins
Button Sound
Off, on
Voice
Announcement
Off, on
LED Brightness
Low, medium, high
Screen Saver
30 secs, 1 min, 3 mins, 5 mins, Off
Light Frequency
50hz, 60hz
Rotation
Off, on
Wi-Fi Frequency
2.4g, 5g
Wi-Fi
Change wifi Name and Password
Power On Default
Mode
Last used mode, normal recording, video lapse, slow motion,
photo, interval photo, continuous video, video/photo, car mode
User Interface (UI)
Classic, SJCAM
Version
Check the Version Information

18

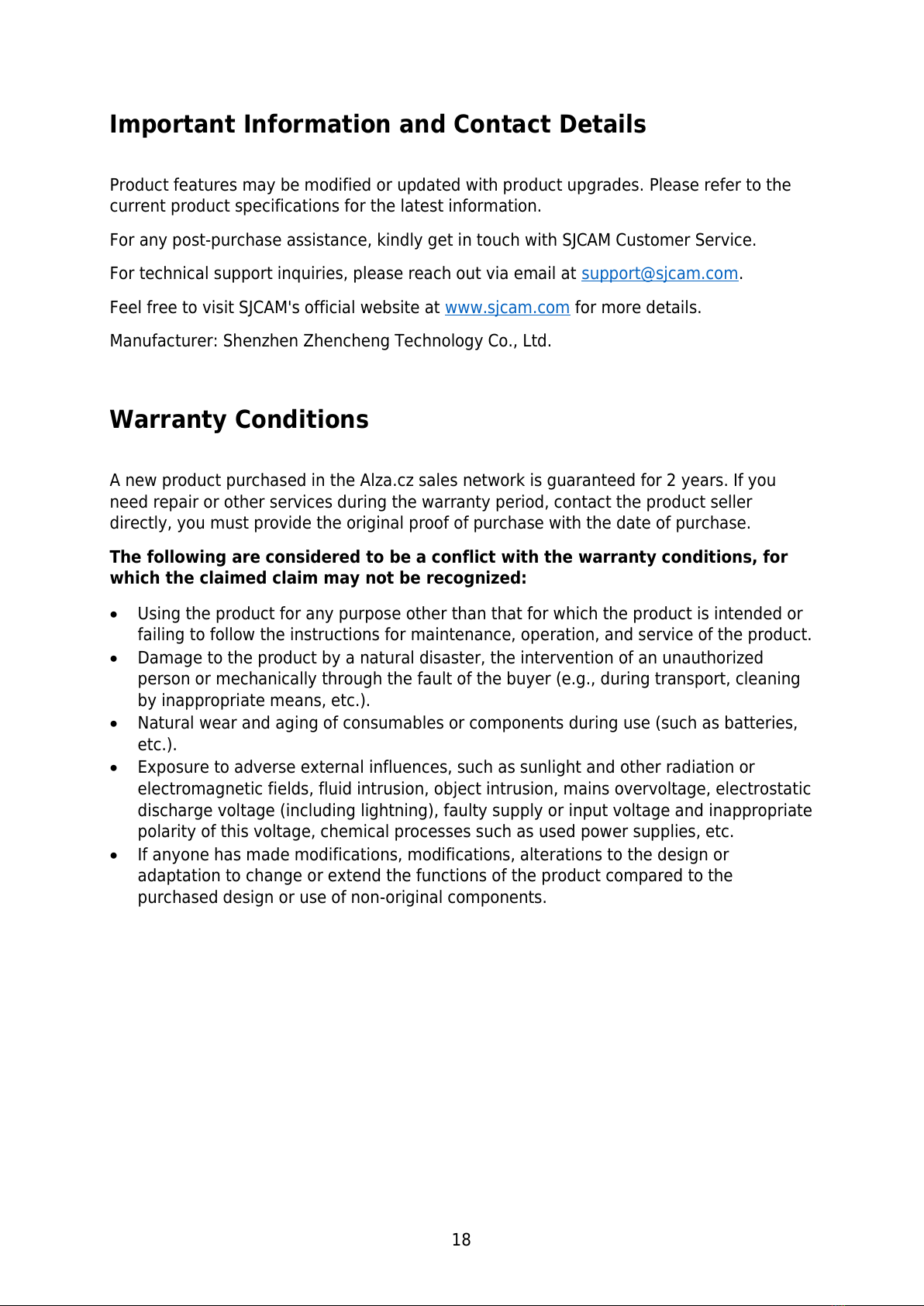

Important Information and Contact Details
Product features may be modified or updated with product upgrades. Please refer to the
current product specifications for the latest information.
For any post-purchase assistance, kindly get in touch with SJCAM Customer Service.
For technical support inquiries, please reach out via email at [e-mail].
Feel free to visit SJCAM's official website at www.sjcam.com for more details.
Manufacturer: Shenzhen Zhencheng Technology Co., Ltd.
Warranty Conditions
A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you
need repair or other services during the warranty period, contact the product seller
directly, you must provide the original proof of purchase with the date of purchase.
The following are considered to be a conflict with the warranty conditions, for
which the claimed claim may not be recognized:
Using the product for any purpose other than that for which the product is intended or
failing to follow the instructions for maintenance, operation, and service of the product.
Damage to the product by a natural disaster, the intervention of an unauthorized
person or mechanically through the fault of the buyer (e.g., during transport, cleaning
by inappropriate means, etc.).
Natural wear and aging of consumables or components during use (such as batteries,
etc.).
Exposure to adverse external influences, such as sunlight and other radiation or
electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage, electrostatic
discharge voltage (including lightning), faulty supply or input voltage and inappropriate
polarity of this voltage, chemical processes such as used power supplies, etc.
If anyone has made modifications, modifications, alterations to the design or
adaptation to change or extend the functions of the product compared to the
purchased design or use of non-original components.

19

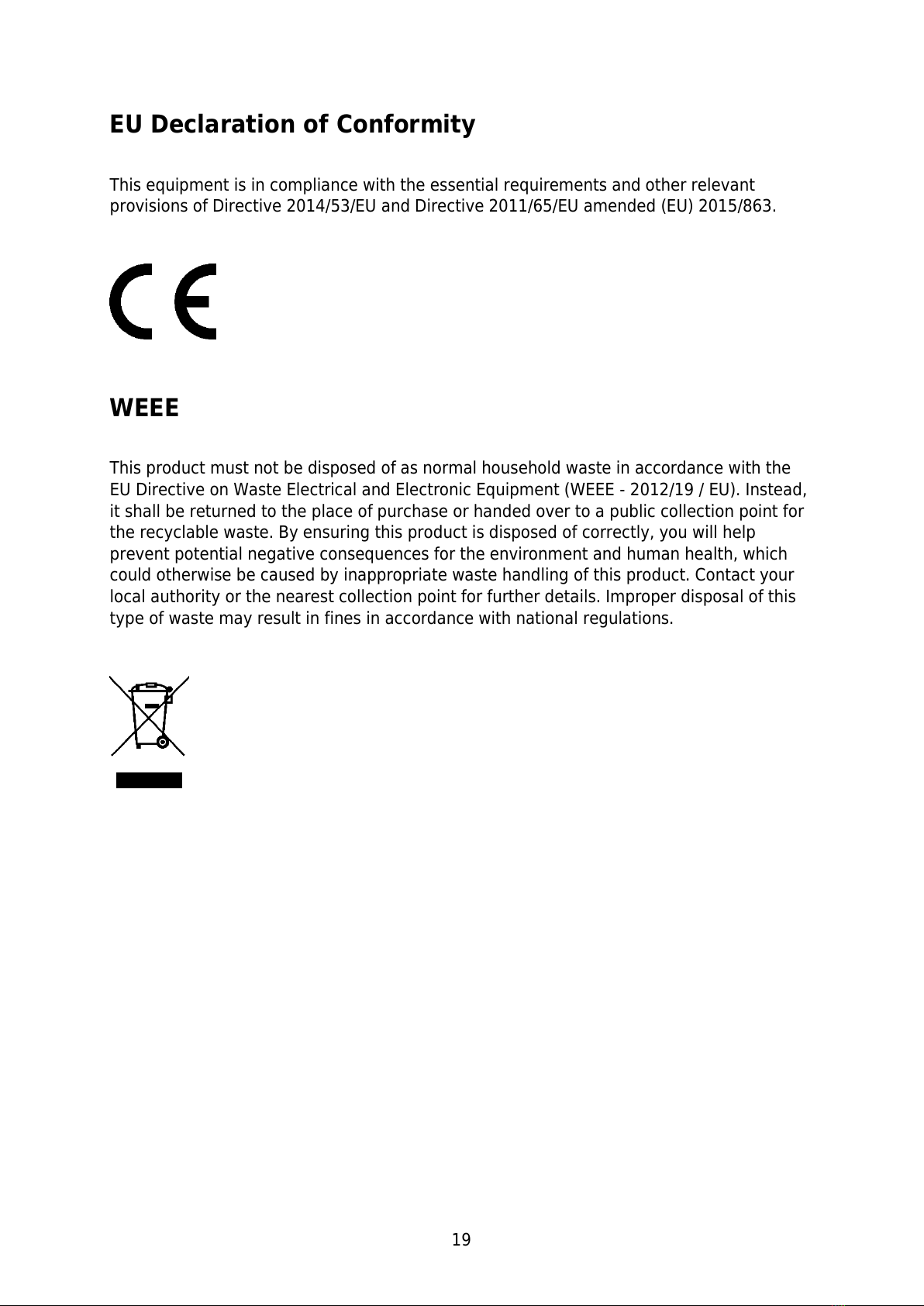

EU Declaration of Conformity
This equipment is in compliance with the essential requirements and other relevant
provisions of Directive 2014/53/EU and Directive 2011/65/EU amended (EU) 2015/863.
WEEE
This product must not be disposed of as normal household waste in accordance with the
EU Directive on Waste Electrical and Electronic Equipment (WEEE - 2012/19 / EU). Instead,
it shall be returned to the place of purchase or handed over to a public collection point for
the recyclable waste. By ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment and human health, which
could otherwise be caused by inappropriate waste handling of this product. Contact your
local authority or the nearest collection point for further details. Improper disposal of this
type of waste may result in fines in accordance with national regulations.

20

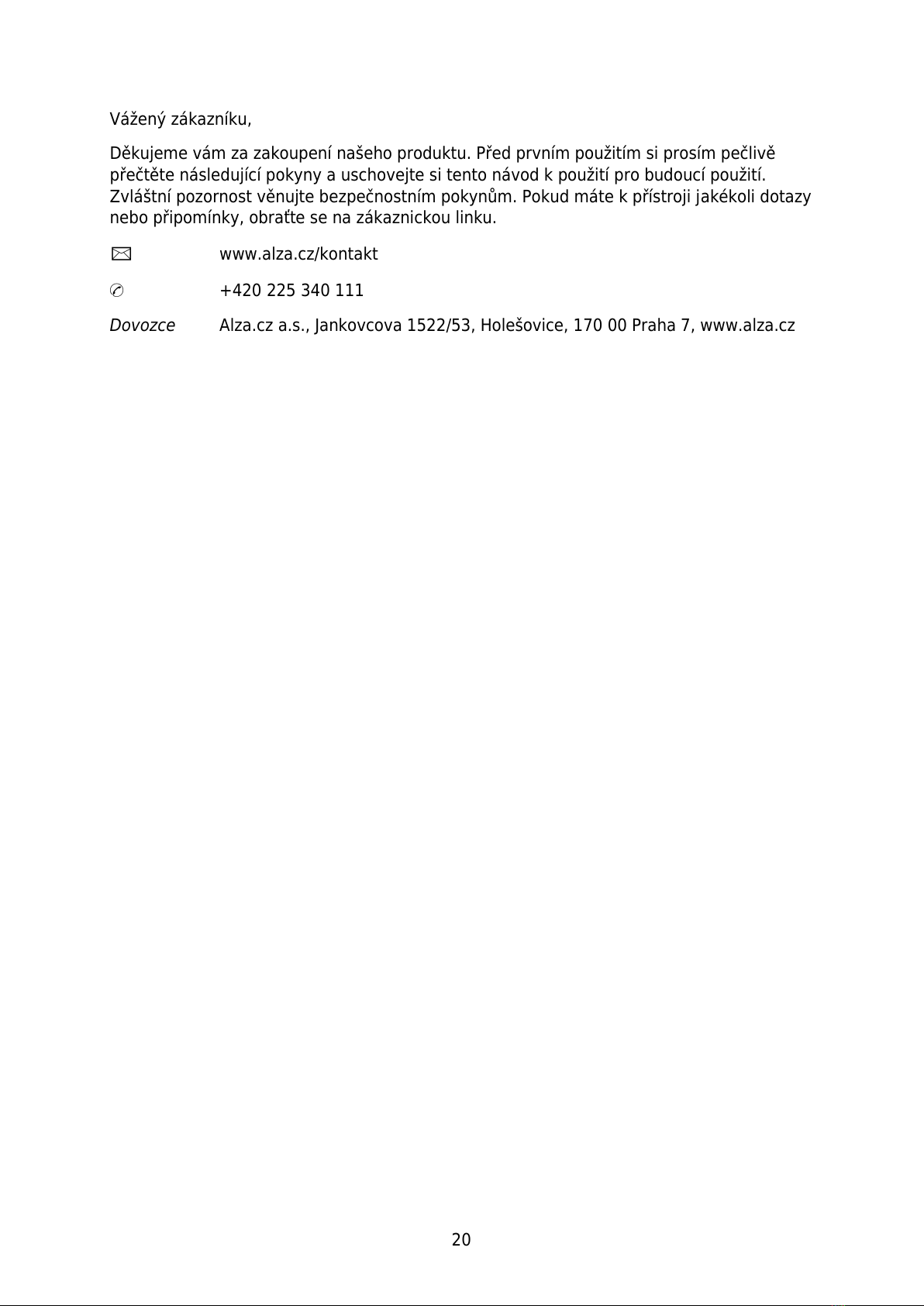

Vážený zákazníku,
Děkujeme vám za zakoupení našeho produktu. Před prvním použitím si prosím pečlivě
přečtěte následující pokyny a uschovejte si tento návod k použití pro budoucí použití.
Zvláštní pozornost věnujte bezpečnostním pokynům. Pokud máte k přístroji jakékoli dotazy
nebo připomínky, obraťte se na zákaznickou linku.
✉www.alza.cz/kontakt
✆[phone]
Dovozce Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz
