Skil AG242001 User manual

WARNING: To reduce the risk of injury, the user must read and understand the
Owner’s Manual before using this product. Save these instructions for future reference.
AVERTISSEMENT : Afin de réduire les risques de blessure, l’utilisateur doit lire et
comprendre le guide d’utilisation avant d’utiliser cet article. Conservez le présent guide
afin de pouvoir le consulter ultérieurement.
ADVERTENCIA : Para reducir el riesgo de lesiones, el usuario debe leer y comprender
el Manual del operador antes de utilizar este producto. Guarde estas instrucciones para
consultarlas en caso sea necesario.
Owner’s Manual
Guide d’utilisation
Manual del propietario
For Customer Service
Pour le service à la clientèle
Servicio al cliente 1-877-SKIL-999 OR www.skil.com
8A Angle Grinder
Meuleuse Aangulaire de 8 A
Amoladora de Ángulo de 8 A
Model/ Modelo/ Modèle: AG242001

2
TABLE OF CONTENTS
General Power Tool Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
Safety Warnings for Angle Grinders ..............................4-6
Additional Safety Warnings .......................................7
Symbols ....................................................8-11
Get to Know Your Angle Grinder .................................12
Specications .................................................12

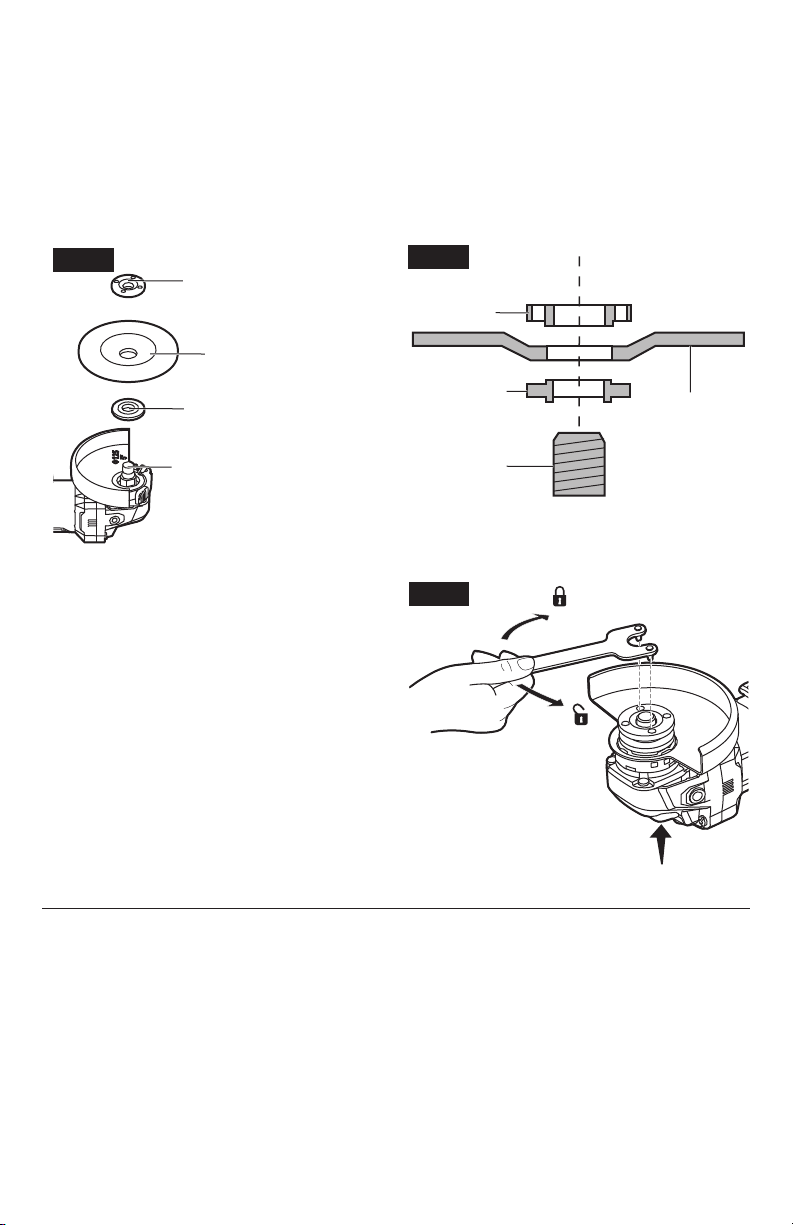

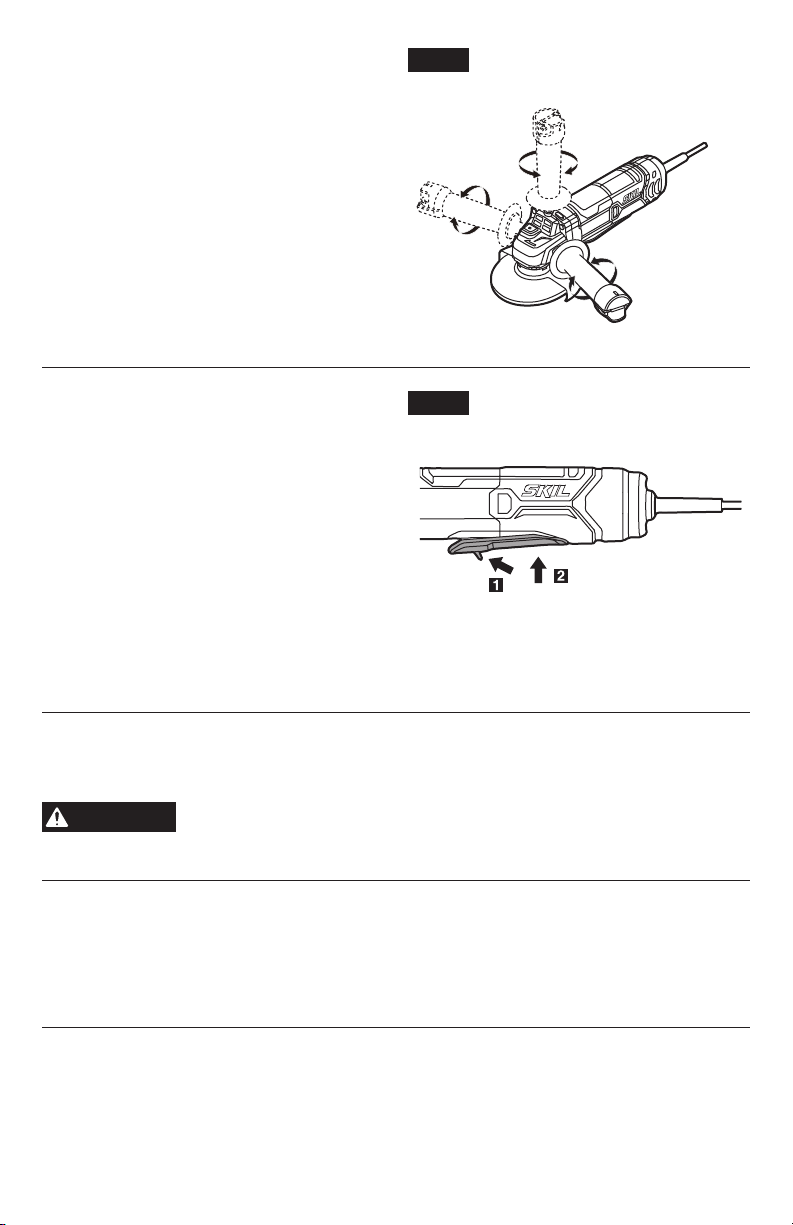

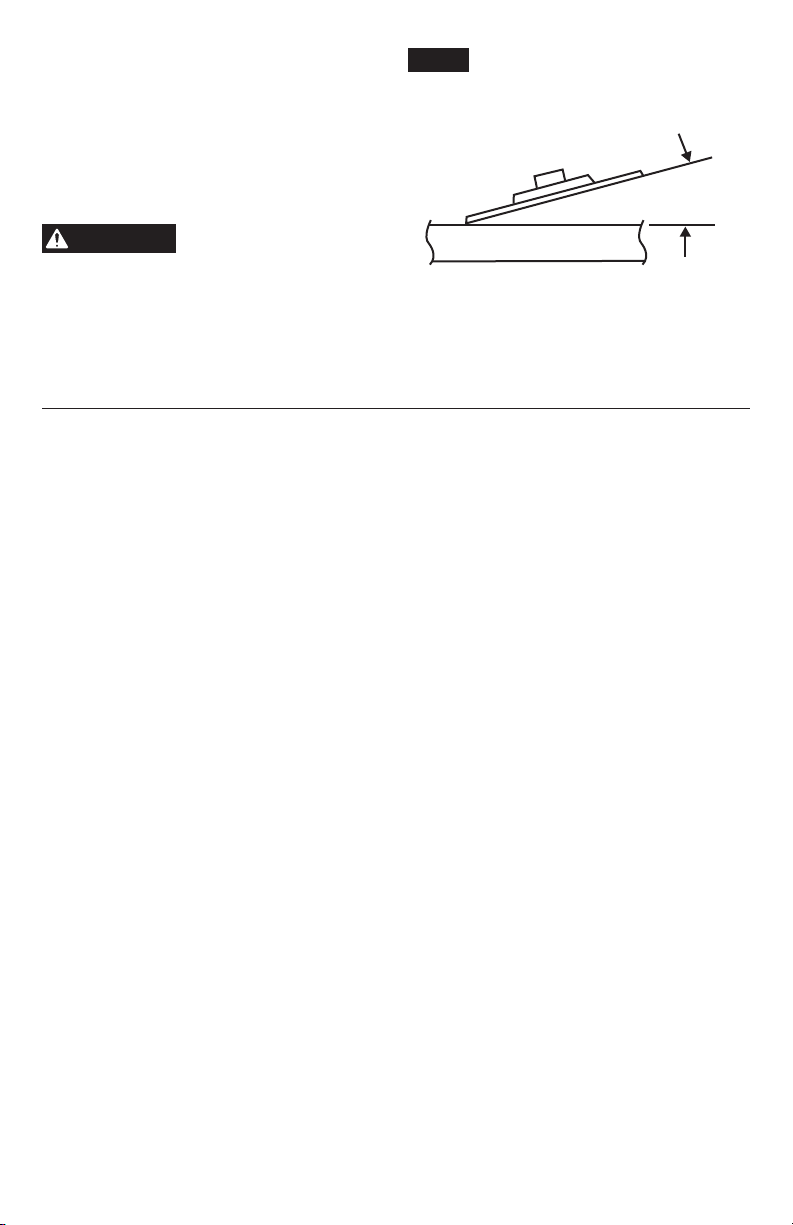

Operating Instructions .......................................13-16

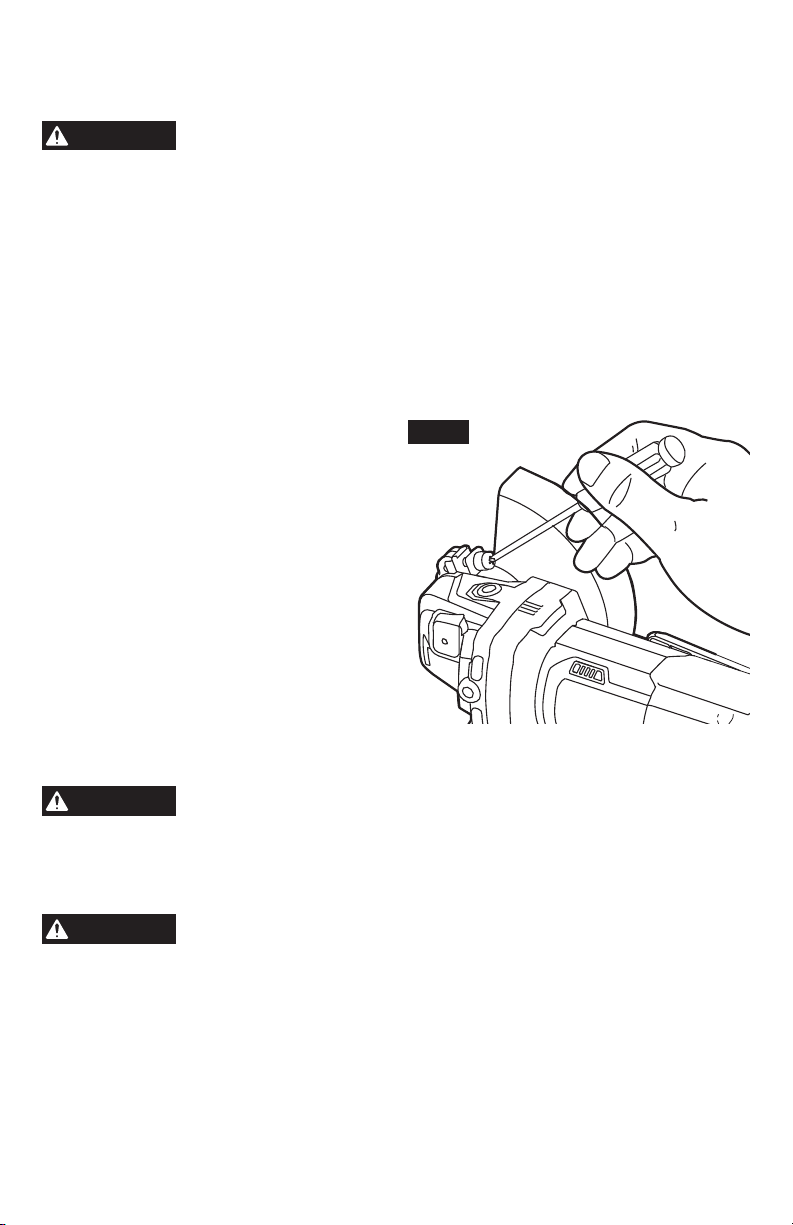

Maintenance...................................................17
Extension Cords ...............................................18
Troubleshooting ...............................................19
Limited Warranty Of SKIL Consumer Portable, Hd,
Shd And Mag Heavy Duty Power Tools.............................20
WARNING
• Some dust created by power sanding, sawing, grinding, drilling and other construction
activities contains chemicals known to the State of California to cause cancer, birth defects
or other reproductive harm. Some examples of these chemicals are:
–Lead from lead-based paints.
–Crystalline silica from bricks, cement, and other masonry products.
–Arsenic and chromium from chemically-treated lumber.
• Your risk from these exposures varies, depending upon how often you do this type of work.
To reduce your exposure to these chemicals:
–Work in a well-ventilated area.
–Work with approved safety equipment, such as dust masks that are specially designed to
lter out microscopic particles.
–Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and
other construction activities. Wear protective clothing and wash exposed areas with soap
and water. Allowing dust to get into your mouth or eyes or to lie on the skin may promote
absorption of harmful chemicals.

3
GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, re and/or serious
injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE
REFERENCE.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
Work area safety
Keep work area clean and well lit. Cluttered or dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of
ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or
fumes.
Keep children and bystanders away while operating a power tool. Distractions can cause
you to lose control.
Electrical safety
Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching
outlets will reduce risk of electric shock.
Avoid body contact with earthed or grounded surfaces, such as pipes, radiators,
ranges and refrigerators. There is an increased risk of electric shock if your body is earthed
or grounded.
Do not expose power tools to rain or wet conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled
cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
If operating a power tool in a damp location is unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.
Personal safety
Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs,
alcohol or medication. A moment of inattention while operating power tools may result in
serious personal injury.
Use personal protective equipment. Always wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate
conditions will reduce personal injuries.
Prevent unintentional starting. Ensure the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the tool.
Carrying power tools with your nger on the switch or energising power tools that have the
switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a
key left attached to a rotating part of the power tool may result in personal injury.

4
Do not overreach. Keep proper footing and balance at all times. This enables better
control of the power tool in unexpected situations.
Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in
moving parts.
If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-
related hazards.
Power tool use and care
Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
Do not use the power tool if the switch does not turn it on and off. Any power tool that
cannot be controlled with the switch is dangerous and must be repaired.
Disconnect the plug from the power source and/or the battery pack from the power tool
before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are
dangerous in the hands of untrained users.
Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained
power tools.
Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the
power tool for operations different from those intended could result in a hazardous situation.
Service
Have your power tool serviced by a qualied repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
SAFETY WARNINGS FOR ANGLE GRINDERS
Safety Warnings Common for Grinding:
This power tool is intended to function as a grinder. Read all safety warnings,
instructions, illustrations and specications provided with this power tool. Failure to
follow all instructions listed below may result in electric shock, re and/or serious injury.
Operations such as sanding, wire brushing, polishing or cutting-off are not
recommended to be performed with this power tool. Operations for which the power tool
was not designed may create a hazard and cause personal injury.
Do not use accessories which are not specically designed and recommended by the
tool manufacturer. Just because the accessory can be attached to your power tool, it does
not assure safe operation.
The rated speed of the accessory must be at least equal to the maximum speed marked
on the power tool. Accessories running faster than their rated speed can break and y apart.
The outside diameter and the thickness of your accessory must be within the capacity
rating of your power tool. Incorrectly sized accessories cannot be adequately guarded or
controlled.

5
Threaded mounting of accessories must match the grinder spindle thread. For
accessories mounted by anges, the arbor hole of the accessory must t the locating
diameter of the ange. Accessories that do not match the mounting hardware of the power
tool will run out of balance, vibrate excessively and may cause loss of control.
Do not use a damaged accessory. Before each use inspect the accessory such as
abrasive wheels for chips and cracks, backing pad for cracks, tear or excess wear,
wire brush for loose or cracked wires. If power tool or accessory is dropped, inspect
for damage or install an undamaged accessory. After inspecting and installing an
accessory, position yourself and bystanders away from the plane of the rotating
accessory and run the power tool at maximum no-load speed for one minute.
Damaged accessories will normally break apart during this test time.
Wear personal protective equipment. Depending on application, use face shield, safety
goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves
and workshop apron capable of stopping small abrasive or workpiece fragments. The
eye protection must be capable of stopping ying debris generated by various operations .
The dust mask or respirator must be capable of ltrating particles generated by your operation.
Prolonged exposure to high intensity noise may cause hearing loss.
Keep bystanders a safe distance away from work area. Anyone entering the work
area must wear personal protective equipment. Fragments of workpiece or of a broken
accessory may y away and cause injury beyond immediate area of operation.
Hold the power tool by insulated gripping surfaces only, when performing an operation
where the cutting accessory may contact hidden wiring or its own cord. Cutting
accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and
could give the operator an electric shock.
Position the cord clear of the spinning accessory. If you lose control, the cord may be cut
or snagged and your hand or arm may be pulled into the spinning accessory.
Never lay the power tool down until the accessory has come to a complete stop. The
spinning accessory may grab the surface and pull the power tool out of your control.
Do not run the power tool while carrying it at your side. Accidental contact with the
spinning accessory could snag your clothing, pulling the accessory into your body.
Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the
housing and excessive accumulation of powdered metal may cause electrical hazards.
Do not operate the power tool near ammable materials. Sparks could ignite these
materials.
Do not use accessories that require liquid coolants. Using water or other liquid coolants
may result in electrocution or shock.
Further safety instructions for all operations
Kickback and Related Warnings:
Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush
or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory
which in turn causes the uncontrolled power tool to be forced in the direction opposite of the
accessory’s rotation at the point of the binding.
For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the
wheel that is entering into the pinch point can dig into the surface of the material causing the
wheel to climb out or kick out. The wheel may either jump toward or away from the operator,
depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels
may also break under these conditions.
Kickback is the result of power tool misuse and/or incorrect operating procedures or conditions
and can be avoided by taking proper precautions as given below.

6
Maintain a rm grip on the power tool and position your body and arm to allow you to
resist kickback forces. Always use auxiliary handle, if provided, for maximum control
over kickback or torque reaction during start-up. The operator can control torque reactions
or kickback forces, if proper precautions are taken.
Never place your hand near the rotating accessory. Accessory may kickback over your
hand.
Do not position your body in the area where power tool will move if kickback occurs.
Kickback will propel the tool in direction opposite to the wheel’s movement at the point of
snagging.
Use special care when working corners, sharp edges etc. Avoid bouncing and snagging
the accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating
accessory and cause loss of control or kickback.
Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create
frequent kickback and loss of control.
Safety Warnings Specic for Grinding:
Use only wheel types that are recommended for your power tool and the specic guard
designed for the selected wheel. Wheels for which the power tool was not designed cannot
be adequately guarded and are unsafe.
The grinding surface of centre depressed wheels must be mounted below the plane of
the guard lip. An improperly mounted wheel that projects through the plane of the guard lip
cannot be adequately protected.
The guard must be securely attached to the power tool and positioned for maximum
safety, so the least amount of wheel is exposed towards the operator. The guard helps to
protect the operator from broken wheel fragments, accidental contact with wheel and sparks
that could ignite clothing.
Wheels must be used only for recommended applications. For example: do not grind
with the side of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding,
side forces applied to these wheels may cause them to shatter.
Always use undamaged wheel anges that are of correct size and shape for your
selected wheel. Proper wheel anges support the wheel thus reducing the possibility of wheel
breakage. Flanges for cut-off wheels may be different from grinding wheel anges.
Do not use worn down wheels from larger power tools. Wheel intended for larger power
tool is not suitable for the higher speed of a smaller tool and may burst.

7
ADDITIONAL SAFETY WARNINGS
Use only type 27 grinding wheels. Using accessories not designed for this tool can cause
serious injury.
GFCI and personal protection devices like electrician’s rubber gloves and footwear will further
enhance your personal safety.
Do not use AC only rated tools with a DC power supply. While the tool may appear to
work, the electrical components of the AC rated tool are likely to fail and create a hazard to
the operator.
Keep handles dry, clean and free from oil and grease. Slippery hands cannot safely control
the power tool.
Use clamps or other practical way to secure and support the workpiece to a stable
platform. Holding the work by hand or against your body is unstable and may lead to loss of
control.
Develop a periodic maintenance schedule for your tool. When cleaning a tool be careful
not to disassemble any portion of the tool since internal wires may be misplaced or
pinched or safety guard return springs may be improperly mounted. Certain cleaning
agents such as gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts.
Risk of injury to user. The power cord must only be serviced by a SKIL Factory Service Center
or Authorized SKIL Service Station.

8
SYMBOLS
Safety Symbols
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols and the explanations with them deserve your careful attention and understanding.
The symbol warnings do not, by themselves, eliminate any danger. The instructions and
warnings they give are no substitutes for proper accident prevention measures.
WARNING Be sure to read and understand all safety instructions in this Operator’s
Manual, including all safety alert symbols such as “DANGER,”
“WARNING,” and “CAUTION” before using this tool. Failure to following all instructions listed
below may result in electric shock, re, and/or serious personal injury.
The denitions below describe the level of severity for each signal word. Please read the manual
and pay attention to these symbols.
This is the safety alert symbol. It is used to alert you to potential
personal injury hazards. Obey all safety messages that follow this
symbol to avoid possible injury or death.
DANGER DANGER indicates a hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING WARNING indicates a hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION CAUTION, used with the safety alert symbol, indicates a hazardous
situation which, if not avoided, will result in minor or moderate injury.
Damage Prevention and Information Messages
These inform the user of important information and/or instructions that could lead to equipment
or other property damage if they are not followed. Each message is preceded by the word
“NOTICE”, as in the example below:
NOTICE: Equipment and/or property damage may result if these instructions are not followed.
WARNING The operation of any power tools can result in foreign
objects being thrown into your eyes, which can result
in severe eye damage. Before beginning power tool operation, always
wear safety goggles or safety glasses with side shields and a full face
shield when needed. We recommend a Wide Vision Safety Mask for use
over eyeglasses or standard safety glasses with side shields. Always use
eye protection which is marked to comply with ANSI Z87.1.

9
SYMBOLS (CONTINUED)
IMPORTANT: Some of the following symbols may be used on your tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to operate the
tool better and safer.
Symbol Name Designation/Explanation
V Volts Voltage (potential)
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
kg Kilograms Weight
min Minutes Time
s Seconds Time
Ø Diameter Size of drill bits, grinding wheels, etc.
n0No load speed Rotational speed, at no load
n Rated speed Maximum attainable speed
…/min Revolutions or reciprocation
per minute Revolutions, strokes, surface speed, orbits, etc. per minute
0 Off position Zero speed, zero torque...
1,2,3,…
I,II,III, Selector settings Speed, torque or position settings. Higher
number means greater speed
Innitely variable selector
with off Speed is increasing from 0 setting
Arrow Action in the direction of arrow
Alternating current Type or a characteristic of current
Direct current Type or a characteristic of current
Alternating or direct current Type or a characteristic of current
Class II tool Designates Double Insulated Construction
tools.
Earthing terminal Grounding terminal
Li-ion RBRC seal Designates Li-ion battery recycling
program
Ni-Cad RBRC seal Designates Ni-Cad battery recycling
program

10
Symbol Name Designation/Explanation
Read manual symbol Alerts user to read manual
Wear eye protection symbol Always wear safety goggles or safety glasses with side shields and a full face
shield when operating this product.

11
SYMBOLS (CERTIFICATION INFORMATION)
IMPORTANT: Some of the following symbols for certication information may be used on your
tool. Please study them and learn their meaning. Proper interpretation of these symbols will
allow you to operate the tool better and more safely.
Symbol Designation/Explanation
This symbol designates that this tool is listed by Underwriters Laboratories.
This symbol designates that this tool is recognized by Underwriters
Laboratories.
This symbol designates that this tool is listed by Underwriters
Laboratories, to United States and Canadian Standards.
This symbol designates that this tool is listed by the Canadian
Standards Association.
This symbol designates that this tool is listed by the Canadian
Standards Association, to United States and Canadian Standards.
This symbol designates that this tool is listed by the Intertek Testing
Services, to United States and Canadian Standards.
This symbol designates that this tool complies to NOM Mexican
Standards.

12
GET TO KNOW YOUR ANGLE GRINDER
SPECIFICATIONS
General
Model No. AG242001
Rated Voltage 120V~, 60 Hz
Rated Power Input 8A
Rated Speed ( n) 12,000 RPM
Wheel Diameter 5’’(125mm)
Wheel Thickness 6mm
Wheel Type Type 27
Spindle Thread 5/8’’(16mm)
Spindle Lock Ventilation
Openings
Spindle
Wrench Storage
Compartment
Wheel Guard
Paddle Switch
Side Handle
Guard Latch
Backing Flange
Grinding
Wheel
Lock Nut
Fig. 1
"Lock-Off" Switch Release Lever
Wrench

13
OPERATING INSTRUCTIONS
Wheel Guard Installation
WARNING Use the wheel guard with disc grinding wheels. Always close the latch to
secure the guard. Keep the guard between you and the wheel. Do not
direct the guard opening toward your body.
To attach the wheel guard, disconnect the tool from the power source.
1. Open the guard latch and position the wheel guard on the spindle neck so that the two lugs
on the guard line up with the two notches on the spindle neck (Fig. 2).
Fig. 2
2. Rotate wheel guard into the desired working position (Fig. 3).
3. Close the guard latch to secure the guard (Fig. 4).
Fig. 3 Fig. 4
To remove wheel guard, disconnect the tool from power source.
1. Open the guard latch and rotate the wheel guard clockwise until the lugs on the guard
match the notches on the spindle neck.
2. Lift the wheel guard off the tool.

14
Grinding Wheel Assembly
Disconnect the tool from power source. Be sure that the wheel guard is in place for grinding.
1. Place the backing ange on the spindle. Check to ensure that the backing ange is properly
seated on the spindle. It will click into place on the spindle and will cause the spindle to
rotate when the backing ange is rotated.
2. Place the grinding wheel on the backing ange.
Thread the lock nut onto the spindle with the at side of the ange facing up. Making sure that
the opening in the wheel is positioned around the raised portion of the lock nut (Fig. 5 & Fig. 6).
Fig. 5
3. Press the spindle-lock button to keep the
spindle from moving. While pressing the
spindle-lock button, tighten the lock nut by
turning it clockwise with the wrench supplied
(Fig.7).
4. To remove the wheel, disconnect the plug
from the electrical outlet. While pressing the
spindle lock button, loosen the lock nut by
turning it counter-clockwise with the wrench
supplied.
Fig. 7
Lock Nut
Grinding Wheel
Backing Flange
Spindle
Fig. 6
Lock Nut
Backing
Flange
Spindle
Grinding
Wheel

15
Installing the Side Handle (Fig.8)
Disconnect the plug from the electrical outlet.
The side handle may be installed on the right
side, the left side, or the upper surface of the
tool. Thread the side handle into the desired
operating position.
Securely tighten the side handle by turning it
clockwise.
Paddle Switch
To unlock the switch and turn tool on: push the
“lock-off” switch release lever forward to unlock
paddle switch, then squeeze paddle switch
(Fig. 9).
To switch tool “off”: release pressure on paddle
lever. The switch is spring loaded and will
return to “off” position automatically.
Grinding Operations
Selecting grinding wheels
WARNING Before using a grinding wheel, be certain that its maximum safe operating
speed is not exceeded by the nameplate speed of the grinder. Do not
exceed the recommended wheel diameter.
Disc grinding wheels
Grinding wheels should be carefully selected in order to use the grinder most efciently.
Wheels vary in type of abrasive, bond, hardness, grit size and structure. The correct type of
wheel to use is determined by the job. Use disc grinding wheels for fast grinding of structural
steel, heavy weld beads, steel casting, stainless steel, and other ferrous metals.
Fig. 9
Fig. 8
Loosen
Loosen
Loosen
Tighten
Tighten
Tighten

16
Grinding tips
Efcient grinding is achieved by controlling the
pressure and keeping the angle between wheel
and workpiece at 10° to 15° (Fig.10). If the
wheel is at, the tool is difcult to control. If the
angle is too steep, the pressure is concentrated
on a small area, causing burning to the work
surface.
WARNING Excessive or sudden
pressure on the wheel will
slow grinding action and put dangerous
stresses on the wheel.
When grinding with a new wheel, be certain
to grind while pulling tool backwards until the
wheel becomes rounded on its edge. New
wheels have sharp corners, which tend to “bite” or cut into work piece when pushing forward.
15°
Fig. 10

17
MAINTENANCE
Service
WARNING Preventive maintenance performed by unauthorized personnel may
result in misplacing of internal wires and components which could
cause serious hazard. We recommend that all tool service be performed by a SKIL Factory
Service Center or Authorized SKIL Service Station.
Tool Lubrication
Your SKIL tool has been properly lubricated and is ready to use. It is recommended that tools
with gears be re-greased with a special gear lubricant at every brush change.
Carbon Brushes
The brushes and commutator in your tool have been engineered for many hours of
dependable service. To maintain peak efciency of the motor, we recommend that the brushes
be examined every two to six months. Only genuine SKIL replacement brushes specially
designed for your tool should be used.
Tightening the Wheel Guard
(Fig. 11)
Disconnect the plug from the electrical outlet.
1. Remove the anges and the wheel; refer to
the section “Grinding Wheel Assembly”.
2. Open the guard latch and rotate the guard to
a proper position.
3. Close the guard latch and tighten the
screw on the guard with a screw driver (not
supplied).
NOTE: After the wheel guard is tightened, the
guard should be xed rmly when the latch is
closed and rotated normally when the latch is
opened.
Cleaning
WARNING To avoid accidents, always disconnect the tool from the power
supply before cleaning or performing any maintenance. The tool may
be cleaned most effectively with compressed dry air. Always wear safety goggles when
cleaning tools with compressed air.
Ventilation openings and switch levers must be kept clean and free of foreign matter. Do not
attempt to clean by inserting pointed objects through openings.
CAUTION Certain cleaning agents and solvents damage plastic parts. Some of
these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents, ammonia, and
household detergents that contain ammonia.
Storage
Store the tool indoors in a place that is inaccessible to children. Keep away from corrosive
agents.
Fig. 11

18
EXTENSION CORDS
WARNING If an extension cord is necessary, a cord with adequate size conductors
that is capable of carrying the current necessary for your tool must be
used. This will prevent excessive voltage drop, loss of power or overheating. Grounded tools
must use 3-wire extension cords that have 3-prong plugs and receptacles.
NOTE: The smaller the gauge number, the heavier the cord.
RECOMMENDED SIZES OF EXTENSION CORDS 120 VOLT
ALTERNATING CURRENT TOOLS
Tool’s Ampere Rating Cord Size in A.W.G Wire sizes in mm2
Cord length in feet
25 50 100 150 Cord length in meters 15 30 60 120
3-6
6-8
8-10
10-12
12-16
18 16 16 14
18 16 14 12
18 16 14 12
16 16 14 12
14 12 - -
0.75 0.75 1.5 2.5
0.75 1.0 2.5 4.0
0.75 1.0 2.5 4.0
1.0 2.5 4.0 -
- - - -

19
TROUBLE SHOOTING
Problem Cause Remedy
Tool will not start 1. The power cord is not
plugged in.
2. The power source fuse or
circuit breaker tripped.
3. The cord damaged.
4. Burned out switch.
1. Plug the tool into a power source.
2. Replace the fuse or reset the
tripped circuit breaker. (If the
product repeatedly causes
the circuit or fuse to trip/blow,
discontinue use immediately and
have it serviced by an Authorized
SKIL Service Center or Service
Station.)
3. Inspect the cord for damage. If
damaged, have the cord replaced
by an Authorized SKIL Service
Center or Service Station.
4. Have switch replaced by an
Authorized SKIL Service Center
or Service Station.
Tool does not come
up to speed 1. Extension cord has insufcient gauge or is too
long.
2. Low house voltage.
1. Replace with an adequate
extension cord (Refer to the part
of “EXTENSION CORDS”).
2. Contact your electric company.

20
LIMITED WARRANTY OF SKIL CONSUMER PORTABLE, HD,
SHD AND MAG HEAVY DUTY POWER TOOLS
Chervon North America (“Seller”) warrants to the original purchaser only, that all SKIL
consumer portable, HD, SHD and MAG Heavy Duty power tools will be free from defects
in material or workmanship for a period of one year from date of purchase. SKIL consumer
portable power tool models will be free from defects in material or workmanship for a period of
ninety days if the tool is used for professional use.
SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited
Warranty and, to the extent permitted by law, any warranty or condition implied by law,
shall be the repair or replacement of parts, without charge, which are defective in material
or workmanship and which have not been misused, carelessly handled, or misrepaired by
persons other than Seller or Authorized Service Station. To make a claim under this Limited
Warranty, you must return the complete product, transportation prepaid, to any SKIL Factory
Service Center or Authorized Service Station. For Authorized SKIL Power Tool Service
Stations, please visit www.Registermyskil.com or call 1-877-SKIL-999 (1-877-754-5999).
THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS
CIRCULAR SAW BLADES, DRILL BITS, ROUTER BITS, JIGSAW BLADES, SANDING
BELTS, GRINDING WHEELS AND OTHER RELATED ITEMS.
ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE YEAR FROM
DATE OF PURCHASE. SOME STATES IN THE U.S., SOME CANADIAN PRO V INCES DO
NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE
ABOVE LIMITATION MAY NOT APPLY TO YOU.
IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL
DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS)
ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME STATES IN THE U.S.
AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION
OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR
EXCLUSION MAY NOT APPLY TO YOU.
THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE
TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY
THIS LIMITED WARRANTY APPLIES ONLY TO PRODUCTS SOLD WITHIN THE UNITED
STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR
WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT YOUR LOCAL SKIL
DEALER OR IMPORTER.
© Chervon North America, 1203 E. Warrenville Rd, Naperville, IL 60563.
05/20
