ANGLE GRINDER
1045 (F0151045..)
SKIL Europe BV - Konijnenberg 60 07/10 2610Z00578
4825 BD Breda - The Netherlands
ME77
ORIGINAL INSTRUCTIONS 6
NOTICE ORIGINALE 11
ORIGINALBETRIEBSANLEITUNG 16
ORIGINELE GEBRUIKSAANWIJZING 22
BRUKSANVISNING I ORIGINAL 28
ORIGINAL BRUGSANVISNING 33
ORIGINAL BRUKSANVISNING 38
ALKUPERÄISET OHJEET 43
MANUAL ORIGINAL 48
MANUAL ORIGINAL 54
ISTRUZIONI ORIGINALI 60
EREDETI HASZNÁLATI UTASÍTÁS 66
PŮVODNÍM NÁVODEM K POUŽÍVÁNÍ 72
ORİJİNAL İŞLETME TALİMATI 77
INSTRUKCJA ORYGINALNA 83
ПОДЛИННИК РУКОВОДСТВА
ПО ЭКСПЛУАТАЦИИ 89
ОРИГІНАЛЬНА ІНСТРУКЦІЯ
З ЕКСПЛУАТАЦІЇ 96
ΠΡΩΤΤΥΠ ∆ΗΓΙΩΝ ΡΗΣΗΣ 102
INSTRUCŢIUNI DE FOLOSIRE
ORIGINALE 109
ОРИГИНАЛНО РЪКОВОДСТВО
ЗА ЕКСПЛОАТАЦИЯ 114
PÔVODNÝ NÁVOD NA POUŽITIE 121
ORIGINALNE UPUTE ZA RAD 127
ORIGINALNO UPUTSTVO ZA RAD 132
IZVIRNA NAVODILA 137
ALGUPÄRANE KASUTUSJUHEND 142
ORIĢINĀLĀ LIETOŠANAS PAMĀCĪBA 147
ORIGINALI INSTRUKCIJA 153
AR
FA
167
AR
FA
164

2
115 mm
MAX.
1200
Watt 2,4 kg
EPTA 01/2003
11000
22 mm
11045
B
C
G
LL
L
HJ
D
E E
F
A
K
2

3
3
5
6
4

4
8 9
7
1
2-3
4-6
6

5
2610388766
ACCESSORIES SKIL nr.
2610Z00986
!
0

6
GB
Angle grinder 1045
INTRODUCTION

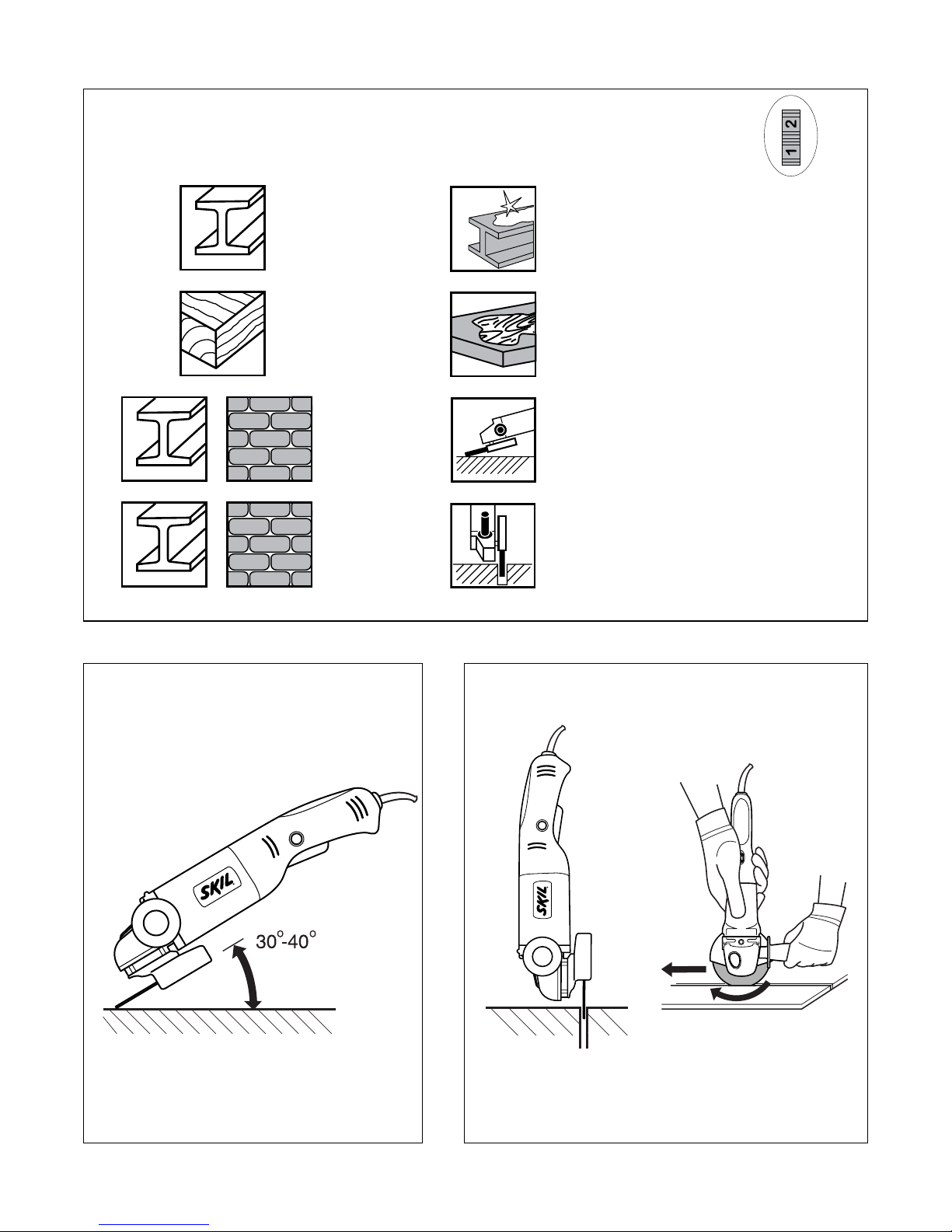

• Thistoolisintendedforgrinding,cuttinganddeburring
metalandstonematerialswithouttheuseofwater;with
the appropriate accessories the tool can also be used
forbrushing,sandingandpolishing
• Donotapplypressureonthetool;letthespeedof
thecuttingdiscdothework
• Cuttingoperationswithabrasivecut-offwheelsare
onlyallowedwhenacut-offguard(availableas
optionalSKILaccessory2610Z00986)isused

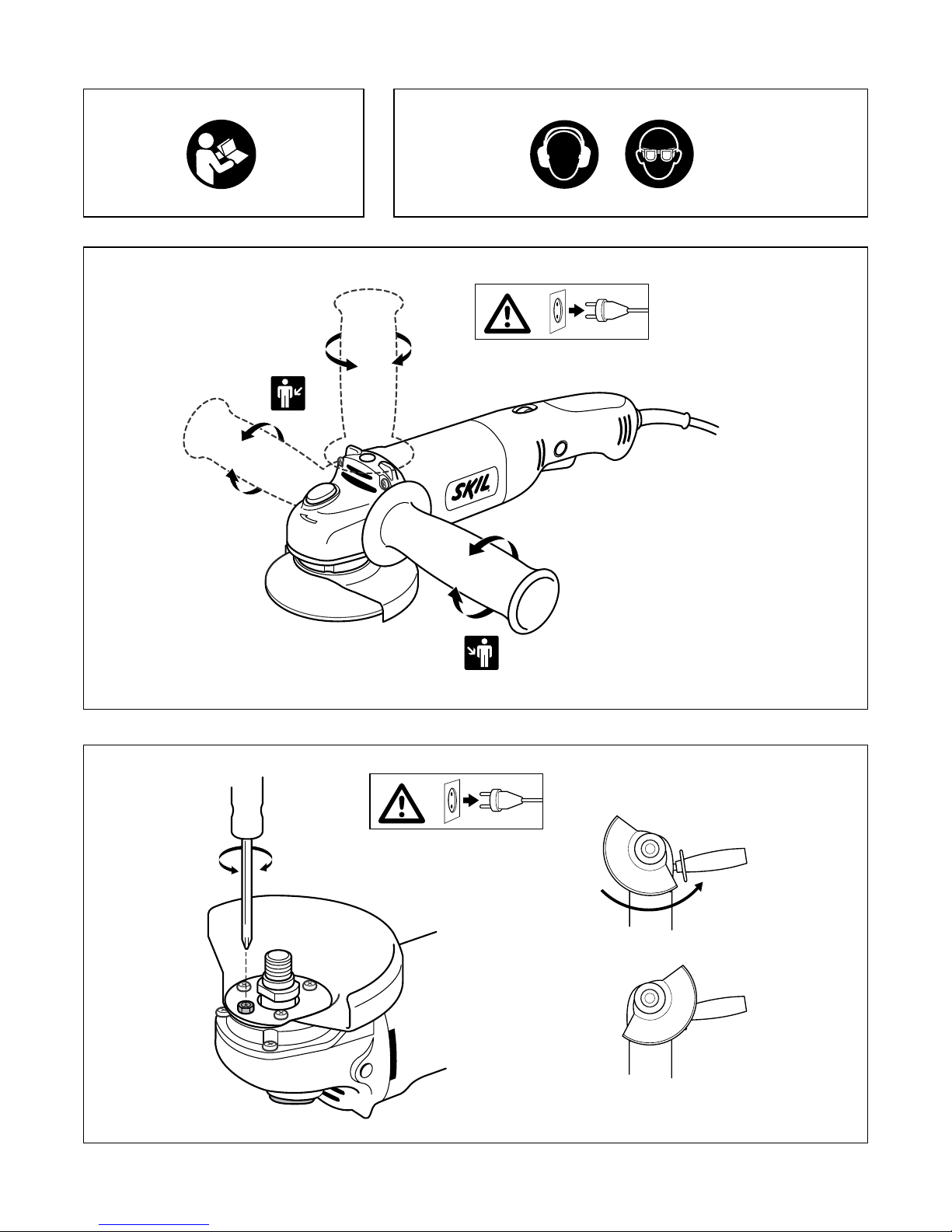

• Readandsavethisinstructionmanual3
TECHNICALSPECIFICATIONS1
TOOLELEMENTS2
AAuxiliary handle
B Protectiveguard
CSpindle
DMounting flange
EClamping flange
FSpanner
GSpindle-lock button
H Safetyswitch
J On/offswitch
KSpeed selection wheel
LVentilation slots
SAFETY
GENERALSAFETYINSTRUCTIONS
WARNING!Readallsafetywarningsandall
instructions.Failuretofollowthewarningsand
instructionsmayresultinelectricshock,fireand/orserious
injury. Saveallwarningsandinstructionsforfuture
reference.Theterm“powertool”inthewarningsrefersto
your mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1)WORKAREASAFETY
a) Keepworkareacleanandwelllit.
Clutteredordarkareasinviteaccidents.
b) Donotoperatepowertoolsinexplosive
atmospheres,suchasinthepresenceofflammable
liquids,gasesordust. Power tools create sparks
whichmayignitethedustorfumes.
c) Keepchildrenandbystandersawaywhileoperating
apowertool. Distractions can cause you to lose
control.
2)ELECTRICALSAFETY
a) Powertoolplugsmustmatchtheoutlet.
Nevermodifythepluginanyway.Donotuseany
adapterplugswithearthed(grounded)powertools.
Unmodified plugs and matching outlets will reduce risk
ofelectricshock.
b) Avoidbodycontactwithearthedorgrounded
surfacessuchaspipes,radiators,rangesand
refrigerators.Thereisanincreasedriskofelectric
shockifyourbodyisearthedorgrounded.
c) Donotexposepowertoolstorainorwetconditions.
Waterenteringapowertoolwillincreasetheriskof
electric shock.
d) Donotabusethecord.Neverusethecordfor
carrying,pullingorunpluggingthepowertool.
Keepcordawayfromheat,oil,sharpedgesor
movingparts. Damaged or entangled cords increase
theriskofelectricshock.
e) Whenoperatingapowertooloutdoors,
useanextensioncordsuitableforoutdooruse.
Useofacordsuitableforoutdoorusereducestherisk
ofelectricshock.
f) Ifoperatingapowertoolinadamplocationis
unavoidable,useanearthleakagecircuitbreaker.
Useofanearthleakagecircuitbreakerreducestherisk
ofelectricshock.
3)PERSONALSAFETY
a) Stayalert,watchwhatyouaredoinganduse
commonsensewhenoperatingapowertool.
Donotuseapowertoolwhileyouaretiredor
undertheinfluenceofdrugs,alcoholormedication.
Amomentofinattentionwhileoperatingpowertools
may result in serious personal injury.
b) Usepersonalprotectiveequipment.Alwayswear
eyeprotection.Protectiveequipmentsuchasdust
mask,non-skidsafetyshoes,hardhat,orhearing
protectionusedforappropriateconditionswillreduce
personal injuries.
c) Preventunintentionalstarting.Ensuretheswitchis
intheoff-positionbeforeconnectingtopower
sourceand/orbatterypack,pickinguporcarrying
thetool. Carrying power tools with your finger on the
switchorenergisingpowertoolsthathavetheswitch
oninvitesaccidents.
d) Removeanyadjustingkeyorwrenchbeforeturning
thepowertoolon.Awrenchorakeyleftattachedtoa
rotatingpartofthepowertoolmayresultinpersonal
injury.
e) Donotoverreach.Keepproperfootingandbalance
atalltimes.Thisenablesbettercontrolofthepower
tool in unexpected situations.
f) Dressproperly.Donotwearlooseclothingor
jewellery.Keepyourhair,clothingandglovesaway
frommovingparts.Looseclothes,jewelleryorlong
haircanbecaughtinmovingparts.
g) Ifdevicesareprovidedfortheconnectionofdust
extractionandcollectionfacilities,ensuretheseare
connectedandproperlyused.Useofdustcollection
can reduce dust-related hazards.
4)POWERTOOLUSEANDCARE
a) Donotforcethepowertool.Usethecorrectpower
toolforyourapplication. The correct power tool will
dothejobbetterandsaferattherateforwhichitwas
designed.
b) Donotusethepowertooliftheswitchdoesnotturn
itonandoff. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.

7
c) Disconnecttheplugfromthepowersourceand/or
thebatterypackfromthepowertoolbeforemaking
anyadjustments,changingaccessories,orstoring
powertools.Suchpreventivesafetymeasuresreduce
theriskofstartingthepowertoolaccidentally.
d) Storeidlepowertoolsoutofthereachofchildren
anddonotallowpersonsunfamiliarwiththepower
toolortheseinstructionstooperatethepowertool.
Powertoolsaredangerousinthehandsofuntrained
users.
e) Maintainpowertools.Checkformisalignmentor
bindingofmovingparts,breakageofpartsandany
otherconditionthatmayaffectthepowertool’s
operation.Ifdamaged,havethepowertoolrepaired
beforeuse. Many accidents are caused by poorly
maintained power tools.
f) Keepcuttingtoolssharpandclean.
Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Usethepowertool,accessoriesandtoolbitsetc.,
inaccordancewiththeseinstructions,takinginto
accounttheworkingconditionsandtheworktobe
performed.Useofthepowertoolforoperations
differentfromthoseintendedcouldresultina
hazardous situation.
5)SERVICE
a) Haveyourpowertoolservicedbyaqualifiedrepair
personusingonlyidenticalreplacementparts.
Thiswillensurethatthesafetyofthepowertoolis
maintained.
SAFETYINSTRUCTIONSFORANGLEGRINDERS
1)SAFETYINSTRUCTIONSFORALLOPERATIONS
a) Thispowertoolisintendedtofunctionasagrinder,
sander,wirebrush,polisherorcut-offtool.
Readallsafetywarnings,instructions,illustrations
andspecificationsprovidedwiththispowertool.
Failuretofollowallinstructionslistedbelowmayresult
inelectricshock,reand/orseriousinjury.
b) Donotuseaccessorieswhicharenotspecifically
designedandrecommendedbythetool
manufacturer.Just because the accessory can be
attachedtoyourpowertool,itdoesnotassuresafe
operation.
c) Theratedspeedoftheaccessorymustbeatleast
equaltothemaximumspeedmarkedonthepower
tool.Accessoriesrunningfasterthantheirratedspeed
can fly apart.
d) Theoutsidediameterandthethicknessofyour
accessorymustbewithinthecapacityratingofyour
powertool.Incorrectly sized accessories cannot be
adequatelyguardedorcontrolled.
e) Thearboursizeofwheels,flanges,backingpadsor
anyotheraccessorymustproperlyfitthespindleof
thepowertool.Accessories with arbour holes that do
notmatchthemountinghardwareofthepowertoolwill
runoutofbalance,vibrateexcessivelyandmaycause
lossofcontrol.
f) Donotuseadamagedaccessory.Beforeeachuse
inspecttheaccessorysuchasabrasivewheelsfor
chipsandcracks,backingpadsforcracks,tearor
excesswear,wirebrushesforlooseorcracked
wires.Ifthepowertooloraccessoryisdropped,
inspectfordamageorinstallanundamaged
accessory.Afterinspectingandinstallingan
accessory,positionyourselfandbystandersaway
fromtheplaneoftherotatingaccessoryandrunthe
powertoolatmaximumnoloadspeedforone
minute.Damaged accessories will normally break apart
during this test time.
g) Wearpersonalprotectiveequipment 4. Depending
onapplication,usefaceshield,safetygogglesor
safetyglasses.Asappropriate,weardustmask,
hearingprotectors,glovesandshopaproncapable
ofstoppingsmallabrasiveorworkpiecefragments.
Theeyeprotectionmustbecapableofstoppingying
debrisgeneratedbyvariousoperations.Thedustmask
orrespiratormustbecapableofltratingparticles
generated by your operation. Prolonged exposure to
high intensity noise may cause hearing loss.
h) Keepbystandersasafedistanceawayfromwork
area.Anyoneenteringtheworkareamustwear
personalprotectiveequipment.Fragmentsofthe
workpieceorofabrokenaccessorymayyawayand
causeinjurybeyondtheimmediateareaofoperation.
i) Holdthepowertoolonlybytheinsulatedgripping
surfaceswhenperforminganoperationwherethe
cuttingtoolmaycontacthiddenwiringoritsown
powercord.Contactwitha“live”wirewillalsomake
exposedmetalpartsofthepowertool“live”andshock
the operator.
j) Positionthecordclearofthespinningaccessory.
Ifyoulosecontrol,thecordmaybecutorsnaggedand
your hand or arm may be pulled into the spinning
accessory.
k) Neverlaythepowertooldownuntiltheaccessory
hascometoacompletestop.The spinning accessory
maygrabthesurfaceandpullthepowertooloutof
your control.
l) Donotrunthepowertoolwhilecarryingitatyour
side.Accidental contact with the spinning accessory
couldsnagyourclothing,pullingtheaccessoryinto
your body.
m)Regularlycleanthepowertool’sairvents.
Themotor’sfanwilldrawthedustinsidethehousing
andexcessiveaccumulationofpowderedmetalmay
cause electrical hazards.
n) Donotoperatethepowertoolnearflammable
materials.Sparks could ignite these materials.
o) Donotuseaccessoriesthatrequireliquidcoolants.
Usingwaterorotherliquidcoolantsmayresultin
electrocution or shock.
2)KICKBACKANDRELATEDWARNINGS
• Kickbackisasuddenreactiontoapinchedorsnagged
rotatingwheel,backingpad,brushoranyother
accessory.Pinchingorsnaggingcausesrapidstallingof
the rotating accessory which in turn causes the
uncontrolledpowertooltobeforcedinthedirection
oppositeoftheaccessory’srotationatthepointofthe
binding.

8
• Forexample,ifanabrasivewheelissnaggedorpinched
bytheworkpiece,theedgeofthewheelthatisentering
intothepinchpointcandigintothesurfaceofthe
material causing the wheel to climb out or kick out.
Thewheelmayeitherjumptowardorawayfromthe
operator,dependingonthedirectionofthewheel’s
movementatthepointofpinching.Abrasivewheels
may also break under these conditions.
• Kickbackistheresultofpowertoolmisuseand/or
incorrect operating procedures or conditions and can
beavoidedbytakingproperprecautionsasgiven
below.
a) Maintainafirmgriponthepowertoolandposition
yourbodyandarmtoallowyoutoresistkickback
forces.Alwaysuseauxiliaryhandle,ifprovided,for
maximumcontroloverkickbackortorquereaction
duringstart-up.Theoperatorcancontroltorque
reactionsorkickbackforces,ifproperprecautionsare
taken.
b) Neverplaceyourhandneartherotatingaccessory.
Theaccessorymaykickbackoveryourhand.
c) Donotpositionyourbodyintheareawherepower
toolwillmoveifkickbackoccurs.Kickback will propel
the tool in the direction opposite to the wheel’s
movementatthepointofsnagging.
d) Usespecialcarewhenworkingcorners,sharp
edgesetc.Avoidbouncingandsnaggingthe
accessory.Corners,sharpedgesorbouncinghavea
tendency to snag the rotating accessory and cause loss
ofcontrolorkickback.
e) Donotattachasawchainwoodcarvingbladeor
toothedsawblade.Suchbladescreatefrequent
kickbackandlossofcontrol.
3)SAFETYWARNINGSSPECIFICFORGRINDINGAND
CUTTINGOFFOPERATIONS
a) Useonlywheeltypesthatarerecommendedfor
yourpowertoolandthespecificguarddesignedfor
theselectedwheel.Wheelsforwhichthepowertool
wasnotdesignedcannotbeadequatelyguardedand
areunsafe.
b) Theguardmustbesecurelyattachedtothepower
toolandpositionedformaximumsafety,sotheleast
amountofwheelisexposedtowardstheoperator.
Theguardhelpstoprotecttheoperatorfrombroken
wheelfragmentsandaccidentalcontactwiththewheel.
c) Wheelsmustbeusedonlyforrecommended
applications.For example: Do not grind with the side
ofacut-offwheel.Abrasivecut-offwheelsareintended
forperipheralgrinding;sideforcesappliedtothese
wheels may cause them to shatter.
d) Alwaysuseundamagedwheelflangesthatareof
correctsizeandshapeforyourselectedwheel.
Proper wheel flanges support the wheel thus reducing
thepossibilityofwheelbreakage.Flangesforcut-off
wheelsmaybedifferentfromgrindingwheelanges.
e) Donotuseworndownwheelsfromlargerpower
tools.Awheelintendedforalargerpowertoolisnot
suitableforthehigherspeedofasmallertoolandmay
burst.
4)ADDITIONALSAFETYWARNINGSSPECIFICFOR
CUTTINGOFFOPERATIONS
a) Donot“jam”thecut-offwheelorapplyexcessive
pressure.Donotattempttomakeanexcessive
depthofcut.Overstressingthewheelincreasesthe
loadingandsusceptibilitytotwistingorbindingofthe
wheelinthecutandthepossibilityofkickbackorwheel
breakage.
b) Donotpositionyourbodyinlinewithandbehindthe
rotatingwheel.Whenthewheel,atthepointof
operation,ismovingawayfromyourbody,thepossible
kickback may propel the spinning wheel and the power
tool directly at you.
c) Whenthewheelisbindingorwheninterruptingacut
foranyreason,switchoffthepowertoolandhold
thepowertoolmotionlessuntilthewheelcomesto
acompletestop.Neverattempttoremovethecut-
offwheelfromthecutwhilethewheelisinmotion,
otherwisekickbackmayoccur.Investigateandtake
correctiveactiontoeliminatethecauseofwheel
binding.
d) Donotrestartthecuttingoperationintheworkpiece.
Letthewheelreachfullspeedandcarefullyre-enter
thecut.Thewheelmaybind,walkuporkickbackifthe
power tool is restarted in the workpiece.
e) Supportpanelsoranyoversizedworkpieceto
minimizetheriskofwheelpinchingandkickback.
Large workpieces tend to sag under their own weight.
Supports must be placed under the workpiece near the
lineofcutandneartheedgeoftheworkpieceonboth
sidesofthewheel.
f) Useextracautionwhenmakinga“pocketcut”into
existingwallsorotherblindareas.The protruding
wheelmaycutgasorwaterpipes,electricalwiringor
objects that can cause kickback.
5)SAFETYWARNINGSSPECIFICFORSANDING
OPERATIONS
a) Whensanding,donotuseexcessivelyoversized
sandingdiscpaper.Followthemanufacturers’
recommendationswhenselectingsandingpaper.
Larger sanding paper extending beyond the sanding
pad presents a laceration hazard and may cause
snagging,tearingofthedisc,orkickback.
6)SAFETYWARNINGSSPECIFICFORPOLISHING
a) Donotallowanylooseportionofthepolishing
bonnetoritsattachmentstringstospinfreely.
Tuckawayortrimanylooseattachmentstrings.
Loose and spinning attachment strings can entangle
your fingers or snag on the workpiece.
7)SAFETYWARNINGSSPECIFICFORWIRE
BRUSHINGOPERATIONS
a) Beawarethatwirebristlesarethrownbythebrush
evenduringordinaryoperation.Donotoverstress
thewiresbyapplyingexcessiveloadtothebrush.
The wire bristles can easily penetrate light clothing and/
or skin.
b) Iftheuseofaguardisrecommendedforwire
brushing,donotallowanyinterferenceofthewire
wheelorbrushwiththeguard.Wire wheel or brush
may expand in diameter due to work load and
centrifugalforces.

9
GENERAL
• Onlyusethistoolfordrygrinding/cutting
• Onlyusethistoolfordrypolishing
• Onlyusetheangeswhicharesuppliedwiththistool
• Thistoolshouldnotbeusedbypeopleundertheageof
16 years
• Alwaysdisconnectplugfrompowersourcebefore
makinganyadjustmentorchanginganyaccessory
ACCESSORIES
• UsetheoriginalSKILaccessorieswhichcanbe
obtainedfromyourSKILdealer
• Formounting/usingnon-SKILaccessoriesobservethe
instructionsofthemanufacturerconcerned
• Neverusereducorsoradaptorstotlarge-hole
grinding/cutting discs
• Neveruseaccessorieswitha“blind”threadedhole
smaller than M14 x 21 mm
OUTDOORUSE
• Connectthetoolviaafaultcurrent(FI)circuitbreaker
withatriggeringcurrentof30mAmaximum
BEFOREUSE
• Beforeusingthetoolforthersttime,itis
recommendedtoreceivepracticalinformation
• Alwayscheckthatthesupplyvoltageisthesameasthe
voltageindicatedonthenameplateofthetool(tools
witharatingof230Vor240Vcanalsobeconnectedto
a 220V supply)
• AlwaysmountauxiliaryhandleA2andprotective
guard B 2;neverusethetoolwithoutthem
• Usesuitabledetectorstofindhiddenutilitylinesor
callthelocalutilitycompanyforassistance (contact
withelectriclinescanleadtoreorelectricalshock;
damagingagaslinecanresultinanexplosion;
penetrating a water pipe will cause property damage or
an electrical shock)
• Donotworkmaterialscontainingasbestos (asbestos
is considered carcinogenic)
• Dustfrommaterialsuchaspaintcontaininglead,some
woodspecies,mineralsandmetalmaybeharmful
(contactwithorinhalationofthedustmaycause
allergic reactions and/or respiratory diseases to the
operatororbystanders);wearadustmaskandwork
withadustextractiondevicewhenconnectable
• Certainkindsofdustareclassiedascarcinogenic
(such as oak and beech dust) especially in conjunction
withadditivesforwoodconditioning;wearadust
maskandworkwithadustextractiondevicewhen
connectable
• Followthedust-relatednationalrequirementsforthe
materials you want to work with
• Becarefulwhencuttinggrooves,especiallyin
supporting walls (slots in supporting walls are subject to
country-specicregulations;theseregulationsaretobe
observedunderallcircumstances)
• Securetheworkpiece (a workpiece clamped with
clampingdevicesorinaviceisheldmoresecurelythan
by hand)
• Donotclampthetoolinavice
• Usecompletelyunrolledandsafeextensioncordswith
acapacityof16Amps(U.K.13Amps)
DURINGUSE
• Inrushcurrentscauseshort-timevoltagedrops;under
unfavourablepowersupplyconditions,otherequipment
maybeaffected(ifthesystemimpedanceofthepower
supplyislowerthan0,25Ohm,disturbancesare
unlikelytooccur);ifyouneedfurtherclarication,you
may contact your local power supply authority
• Ifthecordisdamagedorcutthroughwhileworking,do
nottouchthecord,butimmediatelydisconnecttheplug
• Neverusethetoolwhencordisdamaged;haveit
replacedbyaqualiedperson
• Incaseofelectricalormechanicalmalfunction,
immediatelyswitchoffthetoolanddisconnecttheplug
• Incaseofcurrentinterruptionorwhentheplugis
accidentallypulledout,releaseswitchJ2in order to
preventuncontrolledrestarting
AFTERUSE
• Afterswitchingoffthetool,neverstoptherotationof
theaccessorybyalateralforceappliedagainstit
WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Donotconnecttheblue(=neutral)orbrown(=live)wire
inthecordofthistooltotheearthterminaloftheplug
• Ifforanyreasontheoldplugiscutoffthecordofthis
tool,itmustbedisposedofsafelyandnotleft
unattended
USE
• Mountingofaccessories2
! disconnecttheplug
- clean spindle C and all parts to be mounted
- tighten clamping flange E with spanner F while
pushing spindle-lock button G
! pushspindle-lockbuttonGonlywhenspindleCis
atastandstill
- forremovingaccessorieshandlevice-versa
! grinding/cuttingdiscsbecomeveryhotduring
use;donottouchthemuntiltheyhavecooled
down
! neveruseagrinding/cuttingdiscwithoutthelabel
(“blotter”)whichisgluedontoit
• MountingofauxiliaryhandleA5
! disconnecttheplug
- screwauxiliaryhandleAontheright,thetop,orthe
leftofthetool(dependingontheworktobecarried
out)
• AdjustingprotectiveguardB6
! disconnecttheplug
! ensurethattheclosedsideoftheprotective
guardalwayspointstotheoperator
• Beforeusingthetool
- ensure that accessory is correctly mounted and firmly
tightened
- checkifaccessoryrunsfreelybyturningitbyhand
- test-runtoolforatleast30secondsathighestno-
loadspeedinasafeposition
- stopimmediatelyincaseofconsiderablevibrationor
otherdefectsandchecktooltodeterminethecause
• On/off
- switch on the tool by first pressing knob H 2
(=safetyswitchwhichcannotbelocked)andthen
pulling trigger J 2

10
! beawareofthesuddenimpactwhenthetoolis
switchedon
! beforetheaccessoryreachestheworkpiece,the
toolshouldrunatfullspeed
- switchoffthetoolbyreleasingtriggerJ
! beforeswitchingoffthetool,youshouldliftit
fromtheworkpiece
! theaccessorycontinuestorotateforashorttime
afterthetoolhasbeenswitchedoff
• SpeedselectionwheelK2
- with wheel K the maximum speed can be adjusted
fromlowtohigh(1-6)
- fordeterminingtherightspeedtable7can be used
asreference
! alwaystestoutfirstonapieceofscrapmaterial
• Grinding8
- movethetoolbackandforthwithmoderatepressure
! neveruseacuttingdiscforsidegrinding
• Cutting9
- do not tilt the tool while cutting
- alwaysmovethetoolinsamedirectionasarrowon
toolhead,inordertopreventthetoolfrombeing
pushedoutofthecutinanuncontrolledmanner
- donotapplypressureonthetool;letthespeedof
the cutting disc do the work
- do not brake cutting discs with side pressure
• Holdingandguidingthetool
! whileworking,alwaysholdthetoolatthegrey-
colouredgriparea(s)0
- alwaysholdthetoolrmlywithbothhands,soyou
willhavefullcontrolofthetoolatalltimes
- provideforasecurestance
- payattentiontothedirectionofrotation;alwayshold
thetoolso,thatsparksandgrinding/cuttingdusty
awayfromthebody
- keepventilationslotsL2uncovered
APPLICATIONADVICE
• InsteadofangeE2the”CLIC”quick-clampingange
(SKILaccessory2610388766)canbeused;grinding/
cuttingdiscscanthenbemountedwithouttheuseof
accessory keys
MAINTENANCE/SERVICE
• Alwayskeeptoolandcordclean(especiallyventilation
slots L 2)
! donotattempttocleanventilationslotsby
insertingpointedobjectsthroughopenings
! disconnecttheplugbeforecleaning
• Ifthetoolshouldfaildespitethecaretakenin
manufacturingandtestingprocedures,repairshouldbe
carriedoutbyanafter-salesservicecentreforSKIL
power tools
- send the tool undismantledtogetherwithproofof
purchasetoyourdealerorthenearestSKILservice
station(addressesaswellastheservicediagramof
the tool are listed on www.skileurope.com)
ENVIRONMENT
• Donotdisposeofelectrictools,accessoriesand
packagingtogetherwithhouseholdwastematerial
(onlyforEUcountries)
- inobservanceofEuropeanDirective2002/96/ECon
wasteofelectricandelectronicequipmentandits
implementationinaccordancewithnationallaw,
electrictoolsthathavereachedtheendoftheirlife
must be collected separately and returned to an
environmentallycompatiblerecyclingfacility
- symbol !willremindyouofthiswhentheneedfor
disposing occurs
DECLARATIONOFCONFORMITY
• Wedeclareunderoursoleresponsibilitythatthis
productisinconformitywiththefollowingstandardsor
standardizeddocuments:EN60745,EN55014,in
accordancewiththeprovisionsofthedirectives
2006/95/EC,2004/108/EC,98/37/EC(untilDec.28,
2009),2006/42/EC(fromDec.29,2009on)
• Technicalfileat:SKILEuropeBV(PT-SEU/PJE),
4825BDBreda,NL
Arno van der Kloot
Vice President
Operations & Engineering
SKIL Europe BV, 4825 BD Breda, NL
Jan Trommelen
Approval Manager
22.07.2010
NOISE/VIBRATION
• MeasuredinaccordancewithEN60745thesound
pressurelevelofthistoolis92dB(A)andthesound
powerlevel103dB(A)(standarddeviation:3dB),and
thevibration ✱ (hand-armmethod;uncertainty
K=1.5m/s²)
✱ whensurfacegrinding11.1m/s²
✱ whenpolishing2.5m/s²
✱ whensanding5.9m/s²
! otherapplications(suchascutting-offorwire
brushing)mayhavedifferentvibrationvalues
• Thevibrationemissionlevelhasbeenmeasuredin
accordancewithastandardisedtestgiveninEN60745;
it may be used to compare one tool with another and as
apreliminaryassessmentofexposuretovibrationwhen
usingthetoolfortheapplicationsmentioned
- usingthetoolfordifferentapplications,orwith
differentorpoorlymaintaintedaccessories,may
significantly increasetheexposurelevel
- thetimeswhenthetoolisswitchedofforwhenitis
runningbutnotactuallydoingthejob,may
significantly reducetheexposurelevel
! protectyourselfagainsttheeffectsofvibrationby
maintainingthetoolanditsaccessories,keeping
yourhandswarm,andorganizingyourwork
patterns
