Skil 4900 User manual

RECIPROCATING SAW
4900 (F0154900 . . )
SKIL Europe BV - Konijnenberg 60 03/08 2610396616
4825 BD Breda - The Netherlands
ME77
www.skileurope.com
ORIGINAL INSTRUCTIONS . . . . . . . . . . . . . 7
NOTICE ORIGINALE . . . . . . . . . . . . . . . . . 10
ORIGINALBETRIEBSANLEITUNG . . . . . . 14
ORIGINELE GEBRUIKSAANWIJZING. . . . 17
BRUKSANVISNING I ORIGINAL . . . . . . . . 21
ORIGINAL BRUGSANVISNING . . . . . . . . . 24
ORIGINAL DRIFTSINSTRUKS. . . . . . . . . . 27
ALKUPERÄISET OHJEET . . . . . . . . . . . . . 31
MANUAL ORIGINAL . . . . . . . . . . . . . . . . . 34
MANUAL ORIGINAL. . . . . . . . . . . . . . . . . . 38
ISTRUZIONI ORIGINALI . . . . . . . . . . . . . . 41
EREDETI HASZNÁLATI UTASÍTÁS. . . . . . 45
PÒVODNÍM NÁVODEM K POUÎÍVÁNÍ . . . 48
OR‹J‹NAL ‹fiLETME TAL‹MATI . . . . . . . . . 52
INSTRUKCJÑ ORYGINALNÑ. . . . . . . . . . . 55
ОДЛИННИК РУКОВОДСТВА
ПО ЭКСПЛУАТАЦИИ . . . . . . . . . . . . . . . . 58
ОРИГІНАЛЬНА ІНСТРУКЦІЯ
З ЕКСПЛУАТАЦІЇ . . . . . . . . . . . . . . . . . . . 63
ΠΡΩΤΟΤΥΠΟ Ο∆ΗΓΙΩΝ ΧΡΗΣΗΣ . . . . . . 67
INSTRUCØIUNI DE FOLOSIRE
ORIGINALE . . . . . . . . . . . . . . . . . . . . . . . . 71
ОРИГИНАЛНО РЪКОВОДСТВО
ЗА ЕКСПЛОАТАЦИЯ . . . . . . . . . . . . . . . . 74
PÔVODN¯ NÁVOD NA POUÎITIE. . . . . . . 78
ORIGINALNE UPUTE ZA RAD . . . . . . . . . 82
ORIGINALNO UPUTSTVO ZA RAD. . . . . . 85
IZVIRNA NAVODILA. . . . . . . . . . . . . . . . . . 88
ALGUPÄRANE KASUTUSJUHEND. . . . . . 92
INSTRUKCIJÅM ORI˛INÅLVALODÅ. . . . . 95
ORIGINALI INSTRUKCIJA . . . . . . . . . . . . . 99
GB
F
D
NL
S
DK
N
FIN
E
P
I
H
CZ
TR
PL
RU
UA
GR
RO
BG
SK
HR
SRB
SLO
EST
LV
LT

2
4900
1
180mm
800-2700
28
3
EDLH J AF
G
BC
K
2
20mm30mm
5
4
1050
Watt 3,7 kg
EPTA 01/2003

3
6
E
D
7
D
8

4
E
9
F
0
B
!
@

5
#
18mm
E
L
K
$
E
C
E
%a%b

6
5x 2610397023
5x 2610397022
ACCESSORIES SKIL Nr.
&
^

7
GB
Reciprocating saw 4900
INTRODUCTION
• This tool is intended for cutting of wood, plastic, metal
and building materials as well as for pruning and tree
trimming; it is suitable for straight and curved cuts
• Read and save this instruction manual 3
TECHNICAL SPECIFICATIONS 1

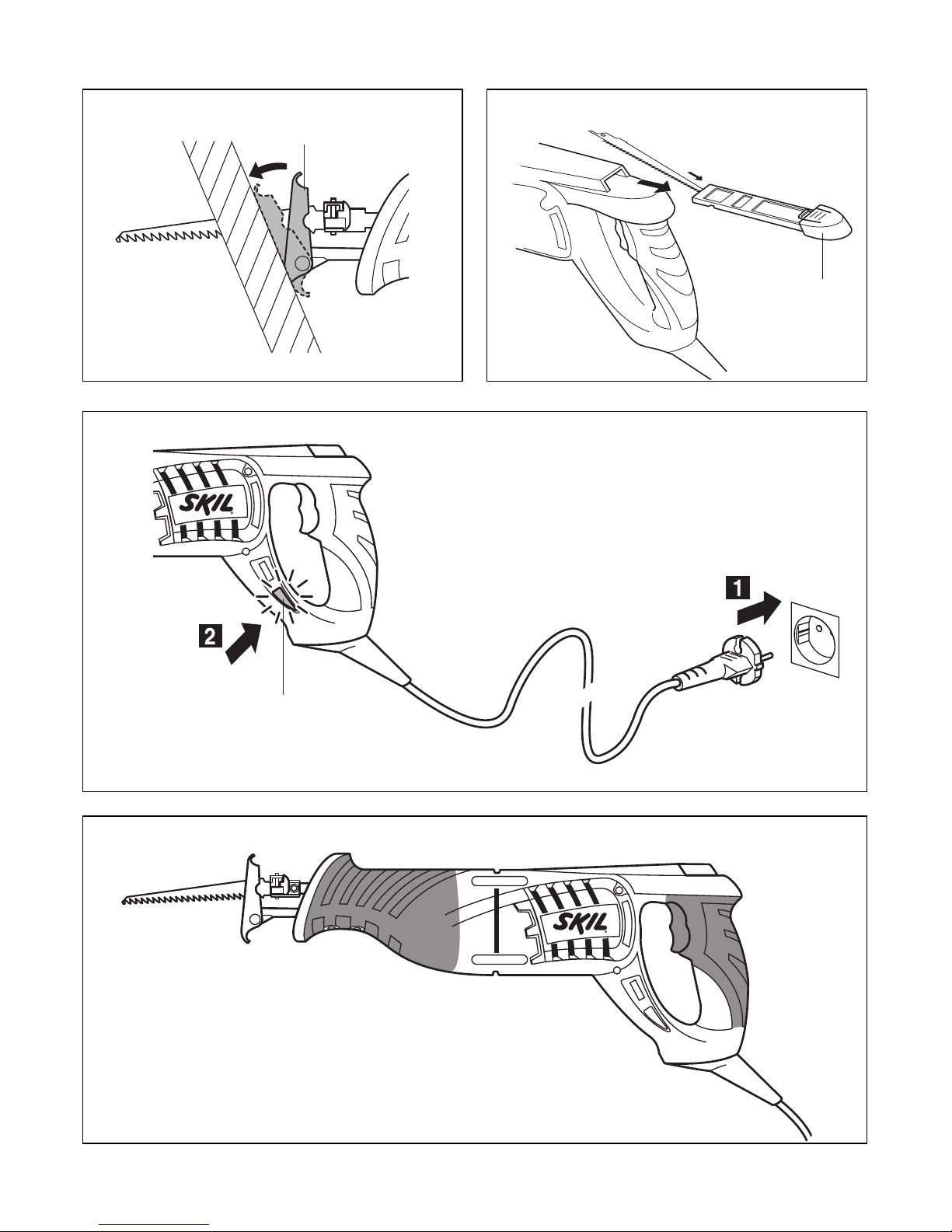

TOOL ELEMENTS 2
AOn/off switch
BIndicator “Power On”
CSpeed selection wheel
DBlade clamp
EAdjustable footplate
FBlade storage compartment
GHandle
HBarrel grip
JVentilation slots
KAdjustment screws
LBlade holder screw
SAFETY
GENERAL SAFETY INSTRUCTIONS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or serious
injury. Save all warnings and instructions for future
reference. The term “power tool” in the warnings refers to
your mains-operated (corded) power tool.
1) WORK AREA SAFETY
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of flammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose
control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power tools.
Unmodified plugs and matching outlets will reduce risk
of electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric
shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of
electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords increase
the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is
unavoidable, use an earth leakage circuit breaker.
Use of an earth leakage circuit breaker reduces the risk
of electric shock.
3) PERSONAL SAFETY
a) Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or under
the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools
may result in serious personal injury.
b) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing
protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power
source, picking up or carrying the tool. Carrying
power tools with your finger on the switch or energising
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal
injury.
e) Do not overreach. Keep proper footing and balance
at all times. This enables better control of the power
tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long
hair can be caught in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection
can reduce dust-related hazards.
4) POWER TOOL USE AND CARE
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will
do the job better and safer at the rate for which it was
designed.
b) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled
with the switch is dangerous and must be repaired.

8
c) Disconnect the plug from the power source before
making any adjustments, changing accessories, or
storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children
and do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained
users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s
operation. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp cutting
edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc.,
in accordance with these instructions, taking into
account the working conditions and the work to be
performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
5) SERVICE
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts.
This will ensure that the safety of the power tool is
maintained.
SAFETY INSTRUCTIONS FOR RECIPROCATING SAWS
• Avoid damage that can be caused by screws, nails and
other elements in your workpiece; remove them before
you start working
• Always check that the supply voltage is the same as the
voltage indicated on the nameplate of the tool (tools
with a rating of 230V or 240V can also be connected to
a 220V supply)
• In case of electrical or mechanical malfunction,
immediately switch off the tool and disconnect the plug
• SKIL can assure flawless functioning of the tool only
when original accessories are used
• Use only accessories with an allowable speed matching
at least the highest no-load speed of the tool
• This tool should not be used by people under the age of
16 years
• Do not work materials containing asbestos (asbestos
is considered carcinogenic)
• Dust from material such as paint containing lead, some
wood species, minerals and metal may be harmful
(contact with or inhalation of the dust may cause
allergic reactions and/or respiratory diseases to the
operator or bystanders); wear a dust mask and work
with a dust extraction device when connectable
• Certain kinds of dust are classified as carcinogenic
(such as oak and beech dust) especially in conjunction
with additives for wood conditioning; wear a dust
mask and work with a dust extraction device when
connectable
• Follow the dust-related national requirements for the
materials you want to work with
• Keep hands away from cutting area and the blade;
keep your second hand on barrel grip H 2(if both
hands are holding the saw, they can not be cut by the
blade)
• Do not reach underneath the workpiece (the
proximity of the blade to your hand is hidden from your
sight)
• Never hold piece being cut in your hands or across
your leg (it is important to support the work properly to
minimise body exposure, blade binding, or loss of
control)
• Use clamps or other equipment to secure and
support the workpiece (holding the workpiece in your
hand or against your body may lead to loss of control)
• Hold tool by insulated gripping surfaces when
performing an operation where the cutting tool may
contact hidden wiring or its own cord (contact with a
“live” wire will also make exposed metal parts of the
tool “live” and shock the operator)
• Use suitable detectors to find hidden utility lines or
call the local utility company for assistance (contact
with electric lines can lead to fire or electrical shock;
damaging a gas line can result in an explosion;
penetrating a water pipe will cause property damage or
an electrical shock)
• Do not use a dull or damaged blade (bent blades can
break easily or cause kickback)
• Keep hands away from between the tool housing
and blade clamp D 2(the blade clamp can pinch your
fingers)
• Ensure that blade clamp D 2is tight before making
a cut (a loose clamp may cause the tool or blade to slip
with loss of control as a result)
• Wear protective glasses and hearing protection 4
• Use protective gloves when removing the blade
from the tool (the saw blade may be hot after
prolonged use)
WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):
• Do not connect the blue (= neutral) or brown (= live) wire
in the cord of this tool to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of this
tool, it must be disposed of safely and not left
unattended
USE
• On/off 5
• Speed control
With wheel C 2the sawing speed can be adjusted from
low to high (6 positions)

9
• Adjusting sawing speed to material used 6
! if the tool does not run with wheel C 2in
position 1, select a higher sawing speed and
lower the sawing speed while the tool runs
• Mounting saw blade 7
! disconnect the plug
- press blade clamp D forward and hold it in that
position
- insert blade (with teeth facing down or up) to full
depth
- release blade clamp D
- pull out blade somewhat until clamp D clicks into a
square position
- push in and pull out blade to check whether it is
locked correctly
! ensure that blade clamp D 2is tight before
making a cut (a loose clamp may cause the tool
or blade to slip with loss of control as a result)
! ensure that the front end of the blade extends
through footplate E for the entire stroke length
• Removing saw blade 8
- press blade clamp D forward and hold it in that
position
- pull out blade
- release blade clamp D
• Adjustable footplate 9
- footplate E tilts in order to keep as much of its
surface in contact with the workpiece
- adjust footplate by holding the saw firmly and turning
footplate to desired position
• Blade storage compartment 0
- ensure that storage compartment F is closed to
prevent blades from falling out
• Operating the tool
! securely clamp the workpiece
- mark the cutting line on the workpiece
- select desired sawing speed with wheel C 2
- connect plug to power source (light B turns on
indicating that the tool is receiving power) !
- hold the tool with one hand on handle G 2and the
other on the insulated barrel grip H 2
- switch on the tool
! the tool should run at full speed before the blade
enters the workpiece
- guide the tool along the marked cutting line
- keep footplate E 2firmly against the workpiece to
minimize counter-force and vibration
• Holding and guiding the tool
! while working, always hold the tool at the grey-
coloured grip area(s) @
- keep ventilation slots J 2uncovered
- do not apply too much pressure on the tool; let the
tool do the work for you
! ensure that the saw blade extends beyond the
work throughout the stroke #
• Adjusting effective stroke length $
- use both adjustment screws K for sliding footplate E
forward/backwards in order to enlarge/reduce the
effective stroke length
! do not attempt to adjust the effective stroke
length with screw L which is pre-set at
manufacturing
• Plunge cutting %a
Plunge cuts can be made in wood and other soft
materials without pre-drilling a hole
- select position 1, 2 or 3 with wheel C
- mark desired cutting line on the workpiece
- position the tool with one edge of footplate E firmly
against the workpiece
- place the tip of the blade (not running) on the cutting
line
- tilt the tool so that the blade does not touch the
workpiece
- switch on the tool and carefully engage the moving
saw blade into the workpiece
- after the blade has penetrated through the workpiece
continue sawing along the marked cutting line
! do not make plunge cuts in metal materials
• For easier plunge cutting, use a thick saw blade, or
mount the blade with the teeth facing upward and hold
the saw upside down as illustrated %b
APPLICATION ADVICE
• Use the appropriate saw blades ^
• When cutting metals, lubricate saw blade regularly with
oil
• Splinter-free cutting
- cover cutting-line with several layers of wide tape
before cutting
- always face the good side of the workpiece down
• For more tips see www.skileurope.com
• Vibration level
The vibration emission level stated at the back of this
instruction manual (indicated by an asterisk) has been
measured in accordance with a standardised test given
in EN 60745; it may be used to compare one tool with
another and as a preliminary assessment of exposure to
vibration when using the tool for the applications
mentioned
- using the tool for different applications, or with
different or poorly maintainted accessories, may
significantly increase the exposure level
- the times when the tool is switched off or when it is
running but not actually doing the job, may
significantly reduce the exposure level
! protect yourself against the effects of vibration by
maintaining the tool and its accessories, keeping
your hands warm, and organizing your work
patterns
MAINTENANCE / SERVICE
• Always keep tool and cord clean (especially the
ventilation slots J 2)
! disconnect the plug before cleaning

10
• If the tool should fail despite the care taken in
manufacturing and testing procedures, repair should be
carried out by an after-sales service centre for SKIL
power tools
- send the tool undismantled together with proof of
purchase to your dealer or the nearest SKIL service
station (addresses as well as the service diagram of
the tool are listed on www.skileurope.com)
ENVIRONMENT
• Do not dispose of electric tools, accessories and
packaging together with household waste material
(only for EU countries)
- in observance of European Directive 2002/96/EC on
waste of electric and electronic equipment and its
implementation in accordance with national law,
electric tools that have reached the end of their life
must be collected separately and returned to an
environmentally compatible recycling facility
- symbol &will remind you of this when the need for
disposing occurs
F
Scie sabre 4900
INTRODUCTION
• Cet outil est conçu pour la découpe du bois, du
plastique, du métal et des matériaux de construction,
ainsi que pour l’élagage et l’ébranchage; il convient
pour les coupes droites et curvilignes
• Lisez et conservez ce manuel d’instructions 3
SPECIFICATIONS TECHNIQUES 1
ELEMENTS DE L’OUTIL 2
AInterrupteur marche/arrêt
BTémoin d’alimentation
CMolette pour régler la vitesse
DSerrage de lame
EAffût réglable
FCompartiment de rangement des lames
GPoignée
HPoignée cylindrique
JFentes de ventilation
KVis de réglage
LVis du porte-lame
SECURITE
INSTRUCTIONS GENERALES DE SECURITE
ATTENTION! Lisez tous les avertissements de
sécurité et toutes les instructions. Ne pas suivre les
avertissements et instructions peut entraîner un choc
électrique, un incendie et/ou de graves blessures sur les
personnes. Conservez tous les avertissements et
toutes les instructions pour pouvoir s’y reporter
ultérieurement. La notion d’”outil électroportatif” dans les
avertissements se rapporte à des outils électriques
raccordés au secteur (avec câble de raccordement).
1) SECURITE DE LA ZONE DE TRAVAIL
a) Maintenez l’endroit de travail propre et bien éclairé.
Un lieu de travail en désordre ou mal éclairé augmente
le risque d’accidents.
b) N’utilisez pas l’outil dans un environnement
présentant des risques d’explosion et où se trouvent
des liquides, des gaz ou poussières inflammables.
Les outils électroportatifs génèrent des étincelles
risquant d’enflammer les poussières ou les vapeurs.
c) Tenez les enfants et autres personnes éloignés
durant l’utilisation de l’outil électroportatif.
En cas d’inattention vous risquez de perdre le
contrôle sur l’outil.
2) SECURITE RELATIVE AU SYSTEME ELECTRIQUE
a) La fiche de secteur de l’outil électroportatif doit être
appropriée à la prise de courant. Ne modifiez en
aucun cas la fiche. N’utilisez pas de fiches
d’adaptateur avec des outils avec mise à la terre.
Les fiches non modifiées et les prises de courant
appropriées réduisent le risque de choc électrique.
b) Evitez le contact physique avec des surfaces mises
à la terre telles que tuyaux, radiateurs, fours et
réfrigérateurs. Il y a un risque élevé de choc électrique
au cas où votre corps serait relié à la terre.
c) N’exposez pas l’outil électroportatif à la pluie ou à
l’humidité. La pénétration d’eau dans un outil
électroportatif augmente le risque d’un choc électrique.
d) N’utilisez pas le câble à d’autres fins que celles
prévues, n’utilisez pas le câble pour porter l’outil ou
pour l’accrocher ou encore pour le débrancher de la
prise de courant. Maintenez le câble éloigné des
sources de chaleur, des parties grasses, des bords
tranchants ou des parties de l’outil en rotation.
Un câble endommagé ou torsadé augmente le risque
d’un choc électrique.
e) Au cas où vous utiliseriez l’outil électroportatif à
l’extérieur, utilisez une rallonge autorisée
homologuée pour les applications extérieures.
L’utilisation d’une rallonge électrique homologuée pour
les applications extérieures réduit le risque d’un choc
électrique.

✎
103

✎
104

105
CE DECLARATION OF CONFORMITY We declare under our sole responsibility that this product is in conformity with the following
standards or standardized documents: EN 60 745, EN 55 014, in accordance with the provisions of the directives 2006/95/EC,
2004/108/EC, 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009 on).
NOISE/VIBRATION Measured in accordance with EN 60 745 the sound pressure level of this tool is 89 dB(A) and the sound power
level 100 dB(A) (standard deviation: 3 dB), and the vibration 14.6 m/s2(hand-arm method; uncertainty K = 1.5 m/s2).
Technical file at: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
CE DÉCLARATION DE CONFORMITÉ Nous déclarons sous notre propre responsabilité que ce produit est en conformité avec les
normes ou documents normalisés suivants: EN 60 745, EN 55 014, conforme aux réglementations 2006/95/CE, 2004/108/CE,
98/37/CE (jusqu’au 28.12.2009), 2006/42/CE (à partir du 29.12.2009).
BRUIT/VIBRATION Mesuré selon EN 60 745 le niveau de la pression sonore de cet outil est 89 dB(A) et le niveau de la puissance
sonore 100 dB(A) (déviation standard: 3 dB), et la vibration 14,6 m/s2(méthode main-bras; incertitude K = 1,5 m/s2).
Dossier technique auprès de: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
CE KONFORMITÄTSERKLÄRUNG Wir erklären in alleiniger Verantwortung, daß dieses Produkt mit den folgenden Normen oder
normativen Dokumenten übereinstimmt: EN 60 745, EN 55 014, gemäß den Bestimmungen der Richtlinien 2006/95/EG,
2004/108/EG, 98/37/EG (bis 28.12.2009), 2006/42/EG (ab 29.12.2009).
GERÄUSCH/VIBRATION Gemessen gemäß EN 60 745 beträgt der Schalldruckpegel dieses Gerätes 89 dB(A) und der Schal-
leistungspegel 100 dB(A) (Standard- abweichung: 3 dB), und die Vibration 14,6 m/s2(Hand-Arm Methode; unsicherheit K = 1,5 m/s2).
Technische Unterlagen bei: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
CE CONFORMITEITSVERKLARING Wij verklaren, dat dit product voldoet aan de volgende normen of normatieve documenten:
EN 60 745, EN 55 014, overeenkomstig de bepalingen van de richtlijnen 2006/95/EG, 2004/108/EG, 98/37/EG (tot 28-12-2009),
2006/42/EG (vanaf 29-12-2009).
GELUID/VIBRATIE Gemeten volgens EN 60 745 bedraagt het geluidsdrukniveau van deze machine 89 dB(A) en het geluids-
vermogen-niveau 100 dB(A) (standaard deviatie: 3 dB), en de vibratie 14,6 m/s2(hand-arm methode; onzekerheid K = 1,5 m/s2).
Technisch dossier bij: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
CE KONFORMITETSFÖRKLARING Vi intygar och ansvarar för, att denna produkt överensstämmer med följande norm och
dokument: EN 60 745, EN 55 014, enl. bestämmelser och riktlinjema 2006/95/EG, 2004/108/EG, 98/37/EG (till 28.12.2009),
2006/42/EG (from 29.12.2009).
LJUD/VIBRATION Ljudtrycksnivån som uppmätts enligt EN 60 745 är på denna maskin 89 dB(A) och ljudeffektnivån 100 dB(A)
(standard deviation: 3 dB), och vibration 14,6 m/s2(hand-arm metod; onoggrannhet K = 1,5 m/s2).
Teknisk tillverkningsdokumentation finns hos: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
CE KONFORMITETSERKLÆRING Vi erklærer under almindeligt ansvar, at dette produkt er i overensstemmelse med følgende
normer eller normative dokumenter: EN 60 745, EN 55 014, i henhold til bestemmelserne i direktiverne 2006/95/EF, 2004/108/EF,
98/37/EF (indtil 28.12.2009), 2006/42/EF (fra 29.12.2009).
STØJ/VIBRATION Måles efter EN 60 745 er lydtrykniveau af dette værktøj 89 dB(A) og lydeffektniveau 100 dB(A) (standard
deviation: 3 dB), og vibrationsniveauet 14,6 m/s2(hånd-arm metoden; usikkerhed K = 1,5 m/s2).
Teknisk dossier hos: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
CE SAMSVARSERKLÆRING Vi erklærer at det er under vårt ansvar at dette produkt er i samsvar med følgende standarder eller
standard- dokumenter: EN 60 745, EN 55 014, i samsvar med reguleringer 2006/95/EF, 2004/108/EF, 98/37/EF (frem til 28.12.2009),
2006/42/EF (fra 29.12.2009).
STØY/VIBRASJON Målt ifølge EN 60 745 er lydtrykknivået av dette verktøyet 89 dB(A) og lydstyrkenivået 100 dB(A) (standard
deviasjon: 3 dB), og vibrasjonsnivået 14,6 m/s2(hånd-arm metode; usikkerhet K = 1,5 m/s2).
Tekniske underlag hos: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
CE TODISTUS STANDARDINMUKAISUUDESTA Todistamme täten ja vastaamme yksin siitä, että tämä tuote en allalueteltujen
standardien ja standardoimisasiakirjojen vaatimusten mukainen EN 60 745, EN 55 014, seuraavien sääntöjen mukaisesti
2006/95/EY, 2004/108/EY, 98/37/EY (28.12.2009 asti), 2006/42/EY (29.12.2009 alkaen).
MELU/TÄRINÄ Mitattuna EN 60 745 mukaan työkalun melutaso on 89 dB(A) ja yleensä työkalun äänen voimakkuus on 100 dB(A)
(keskihajonta: 3 dB), ja tärinän voimakkuus 14,6 m/s2(käsi-käsivarsi metodi; epävarmuus K = 1,5 m/s2).
Tekninen tiedosto kohdasta: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
CE DECLARACION DE CONFORMIDAD Declaramos bajo nuestra sola responsabilidad que este producto está en conformidad
con las normas o documentos normalizados siguientes: EN 60 745, EN 55 014, de acuerdo con las regulaciones 2006/95/CE,
2004/108/CE, 98/37/CE (hasta el 28.12.2009), 2006/42/CE (a partir del 29.12.2009).
RUIDOS/VIBRACIONES Medido según EN 60 745 el nivel de la presión acústica de esta herramienta se eleva a 89 dB(A) y el nivel de
la potencia acústica 100 dB(A) (desviación estándar: 3 dB), y la vibración a 14,6 m/s2(método brazo-mano; incertidumbre K = 1,5 m/s2).
Expediente técnico en: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
GB
F
D
NL
S
N
FIN
E
08 SKIL Europe BV A. v.d. Kloot
DK

106
08 SKIL Europe BV A. v.d. Kloot
ЗАЯВЛЕНИЕ О СООТВЕТСТВИИ Мы с полной ответственностыо заявляем, что это изделие соответствует следующим
стандартам или станда ртизованным документам: EN 60 745, EN 55 014, в соответсувии с инструкциями 2006/95/EC,
2004/108/EC, 98/37/EC (до 28.12.2009), 2006/42/EC (начиная с 29.12.2009).
ШУМНОСТИ/ВИБРАЦИИ При измерении в соответствии co стандартoм EN 60 745 уровень звукового давления для этого
инструмента составляет 89 дБ (A) и уровeнь звуковой мощности - 100 дБ (A) (стандартное отклонение: 3 dB), и вибрации -
14,6 м/с2(по методу для рук; недостоверность K = 1,5 м/с2).
Техническая документация у: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
RU
CE ВІДПОВІДНІСТЬ Ми заявляємо, що відповідність даного продукту наступним стандартам і регулюючим документам
повністю нашою відповідальністю: EN 60 745, EN 55 014, відповідно до положень директив 2006/95/EG, 2004/108/EG,
98/37/EG до 28.12.2009 p.), 2006/42/EG (після 29.12.2009 p.).
ШУМ/ВІБРАЦІЯ Зміряний відповідно до EN 60 745 рівень тиску звуку даного інструменту 89 дБ(А) i потужність звуку
100 дБ(А) (стандартне відхилення: 3 дБ), i вібрація 14,6 м/с2(ручна методика; похибка K = 1,5 м/с2).
Технічні документи в: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
UA
CE ∆ΗΛΩΣΗ ΣYMBATOTΗΤΑΣ ∆ηλώνουµε υπευθύνως τι το προϊν αυτ είναι κατασκευασµένο σύµφωνα µε τους εξής
κανονισµούς ή κατασκευαστικές συστάσεις: EN 60 745, EN 55 014, κατά τις διατάξεις των κανονισµών της Κοινής Αγοράς
2006/95/EK, 2004/108/EK, 98/37/EK (έως 28.12.2009), 2006/42/EK (απ 29.12.2009).
ΘΟΡYΒΟ/ΚΡΑ∆ΑΣΜΟYΣ Μετρηµένη σύµφωνα µε EN 60 745 η στάθµη ακουστικής πίεσης αυτού του εργαλείου ανέρχεται
σε 89 dB(A) και η στάθµη ηχητικής ισχύoς σε 100 dB(A) (κοινή απκλιση: 3 dB), και ο κραδασµς σε 14,6 m/s2(µεθοδος
χειρς/βραχίονα - ανασφάλεια K = 1,5 m/s2).
Τεχνικς φάκελος απ: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
GR
OÂWIADCZENIE ZGODNOÂCI CE Niniejszym oÊwiadczamy ponoszàc osobistà odpowiedzialnoÊç, ˝e produkt wykonany jest
zgodnie z nast´pujàcymi normami i dokumentami normalizujàcymi: EN 60 745, EN 55 014, z godnie z wytycznymi 2006/95/EU,
2004/108/EU, 98/37/EU (do 28.12.2009), 2006/42/EU (od 29.12.2009).
HA¸ASU/WIBRACJE Pomiarów dokonano zgodnie z normà EN 60 745 ciÊnienie akustyczne narz´dzia wynosi 89 dB(A) zaÊ poziom
mocy akustycznej 100 dB(A) (poziom odchylenie: 3 dB), zaÊ wibracje 14,6 m/s2(metoda d∏oƒ-r´ka; b∏àd pomiaru K = 1,5 m/s2).
Dokumentacja techniczna: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
PL
CE DECLARAÇÃO DE CONFIRMIDADE Declaramos sob nossa exclusiva responsabilidade que este producto cumpre as
seguintes normas ou documentos normativos: EN 60 745, EN 55 014, conforme as disposições das directivas 2006/95/CE,
2004/108/CE, 98/37/CE (até 28.12.2009), 2006/42/CE (a partir de 29.12.2009).
RUÍDO/VIBRAÇÕES Medido segundo EN 60 745 o nível de pressão acústica desta ferramenta é 89 dB(A) e o nível de potência
acústica 100 dB(A) (espaço de erro: 3 dB), e a vibração 14,6 m/s2(método braço-mão; incerteza K = 1,5 m/s2).
Processo técnico em: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
P
CE DICHIARAZIONE DI CONFORMITÀ Dichiaramo, assumendo la piena responsabilità di tale dichiarazione, che il prodotto è
conforme alle seguenti normative e ai relativi documenti: EN 60 745, EN 55 014 in base alle prescrizioni delle direttive 2006/95/EG,
2004/108/EG, 98/37/EG (fino al 28.12.2009), 2006/42/EG (a partire dal 29.12.2009).
RUMOROSITÀ/VIBRAZIONE Misurato in conformità al EN 60 745 il livello di pressione acustica di questo utensile è 89 dB(A) ed il livello
di potenza acustica 100 dB(A) (deviazione standard: 3 dB), e la vibrazione 14,6 m/s2(metodo mano-braccio; incertezza K = 1,5 m/s2).
Fascicolo tecnico presso: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
I
CE MINÖSÉGI TANUSITVANY Teljes felelösségünk tudatában kijelentjük, hogy jelen termék a következö szabványoknak vagy
kötelezö hatósági elöírásoknak megfelel: EN 60 745, EN 55 014, a 2006/95/EK, 2004/108/EK, 98/37/EK (2009.12.28-ig), 2006/42/EK
(2009.12.29-tŒl kezdve) elöírásoknak megfelelöen.
ZAJ/REZGÉS Az EN 60 745 alapján végzett mérések szerint ezen készülék hangnyomás szintje 89 dB(A) a hangteljesítmény szintje
100 dB(A) (normál eltérés: 3 dB), a rezgésszám 14,6 m/s2 (kézre-ható érték; szórás K = 1,5 m/s2).
A mıszaki dokumentáció a következŒ helyen található: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
H
CE STRVZUJÍCÍ PROHLÅ◊ENÍ Potvrzujeme na odpovπdnost, Ωe tento v¥robek odpovídå nåsledujícím normåm nebo normativním
podkladüm: EN 60 745, EN 55 014, podle ustanovení smπrnic 2006/95/ES, 2004/108/ES, 98/37/ES (do 28.12.2009), 2006/42/ES
(od 29.12.2009).
HLUÇNOSTI/VIBRACÍ Mπ®eno podle EN 60 745 çiní tlak hlukové vlny tohoto p®ístroje 89 dB(A) a dávka hluçnosti 100 dB(A)
(standardní odchylka: 3 dB), a vibrací 14,6 m/s2(metoda ruka-paΩe; nepfiesnost K = 1,5 m/s2).
Technická dokumentace u: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
CZ
CE STANDARDIZASYON BEYANI Ye¤ane sorumlu olarak, bu ürünün afla¤ıdaki standartlara veya standart belgelerine uygun
oldu¤unu beyan ederiz: EN 60 745, EN 55 014, yönetmeli¤i hükümleri uyarınca 2006/95/EG, 2004/108/EG, 98/37/EG (28.12.2009
tarihine kadar), 2006/42/EG (29.12.2009 tarihinden itibaren).
GÜRÜLTÜ//T‹TREfiIM Ölçülen EN 60 745 göre ses basıncı bu makinanın seviyesi 89 dB(A) ve çal›flma s›ras›ndaki gürültü 100 dB(A)
(standart sapma: 3 dB), ve titreflim 14,6 m/s2(el-kol metodu; tolerans K = 1,5 m/s2).
Teknik belgelerin bulundu¤u merkez: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
TR

107
08 SKIL Europe BV A. v.d. Kloot
DECLARAØIE DE CONFORMITATE CE Declaråm pe proprie råspundere cå acest product este conform cu urmåtoarele standarde
sau documente standardizate: EN 60 745, EN 55 014, în conformitate cu regulile 2006/95/CE, 2004/108/CE, 98/37/CE (pânå la
28.12.2009), 2006/42/CE (începând cu 29.12.2009).
ZGOMOT/VIBRAØII Måsurat în conformitate cu EN 60 745 nivelul de presiune a sunetului generat de acest instrument este de
89 dB(A) iar nivelul de putere a sunetului 100 dB(A) (abaterea standard: 3 dB), iar nivelul vibraøiilor 14,6 m/s2(metoda mînå - braø;
incertitudine K = 1,5 m/s2).
Documentaøie tehnicå la: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
RO
CE ДЕKЛАPAЦИЯ ЗA CБOTВETCTBИE Декларираме на изцяло наша отговорност, че това изделие е съобразено със
следните стандарти или стандартизирани документи: EN 60 745, EN 55 014, в съответствие с нормативната уредба на
2006/95/EG, 2004/108/EG, 98/37/EG (до 28.12.2009), 2006/42/EG (от 29.12.2009).
ШУМ/ВИБPAЦИИ Измерено в съответствие с EN 60 745 нивото на звуково налягане на този инструмент е 89 dB(A) а
нивото на звукова мощност е 100 dB(A) (стандартно отклонение: 3 dB), а вибрациите са 14,6 m/s2(метод ръка-рамо;
неопределеност K = 1,5 m/s2).
Подробни технически описания при: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
BG
CE IZJAVA O USKLA ĐENOSTI Izjavljujemo uz punu odgovornost da je ovaj proizvod usklađen sa slijedeçim normama i
normativnim dokumentima: EN 60 745, EN 55 014, prema odredbama smjernica 2006/95/EG, 2004/108/EG, 98/37/EG (do
28.12.2009), 2006/42/EG (od 29.12.2009).
BUCI/ VIBRACIJAMA Mjereno prema EN 60 745, prag zvuãnog tlaka ovog elektriãnog alata iznosi 89 dB(A) a jakost zvuka
100 dB(A) (standardna devijacija: 3 dB), a vibracija 14,6 m/s2(postupkom na ‰aci-ruci; nesigurnost K = 1,5 m/s2).
Tehniãka dokumentacija se moÏe dobiti kod: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
HR
CE IZJAVA O USKLA ĐENOSTI Pod punom odgovorno‰çu izjavljujemo da je ovaj proizvod usklađen sa sledeçim standardima ili
standardizovanim dokumentima: EN 60 745, EN 55 014, u skladu sa odredbama smernica 2006/95/EG, 2004/108/EG, 98/37/EG (do
28.12.2009), 2006/42/EG (od 29.12.2009).
BUKA/VIBRACIJE Mereno u skladu sa EN 60 745, nivo pritiska zvuka ovog alata iznosi 89 dB(A), a jaãina zvuka 100 dB(A)
(normalno odstupanje: 3 dB), a vibracija 14,6 m/s2(mereno metodom na ‰aci-ruci; nesigurnost K = 1,5 m/s2).
Tehniãka dokumentacija kod: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
SRB
IZJAVA O USTREZNOSTI CE Odgovorno izjavljamo, da je ta izdelek v skladu z naslednjimi standardi ali standardnimi dokumenti:
EN 60 745, EN 55 014, v skladu s predpisi navodil 2006/95/ES, 2004/108/ES, 98/37/ES (do 28.12.2009), 2006/42/ES (od 29.12.2009).
HRUP/VIBRACIJA Izmerjeno v skladu s predpisom EN 60 745 je raven zvoãnega pritiska za to orodje 89 dB(A) in jakosti zvoka
100 dB(A) (standarden odmik: 3 dB), in vibracija 14,6 m/s2 (metoda ‘dlan-roka’; netoãnost K = 1,5 m/s2).
Tehniãna dokumentacija se nahaja pri: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
SLO
CE VASTAVUSDEKLARATSIOON Kinnitame ainuvastutajana, et see toode vastab järgmistele standarditele või
normdokumentidele: EN 60 745, EN 55 014 vastavalt direktiivide 2006/95/EÜ, 2004/108/EÜ, 98/37/EÜ (kuni 28.12.2009),
2006/42/EÜ (alates 29.12.2009) nõuetele.
MÜRA/VIBRATSIOON Vastavalt kooskõlas normiga EN 60 745 läbi viidud mõõtmistele on antud seadme helirõhk 89 dB(A) ja
helitugevus 100 dB(A) (standardkõrvalekalle: 3 dB), ja vibratsioon 14,6 m/s2(käe-randme-meetod; mõõtemääramatus K = 1,5 m/s2).
Tehniline toimik saadaval aadressil: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
EST
CE DEKLARÅCIJA PAR ATBILST±BU STANDARTIEM Mïs ar pilnu atbild¥bu pazi¿ojam, ka ‰is izstrÇdÇjums atbilst standartiem vai
standartizÇcijas dokumentiem EN 60 745, EN 55 014 un ir saska¿Ç ar direkt¥vÇm 2006/95/ES, 2004/108/ES, 98/37/ES (l¥dz
28.12.2009) un 2006/42/ES (no 29.12.2009).
TROKSNIS/VIBRÅCIJA Saska¿Ç ar standartu EN 60 745 noteiktais instrumenta rad¥tÇ trok‰¿a ska¿as spiediena l¥menis ir 89 dB(A)
un ska¿as jaudas l¥menis ir 100 dB (A) (pie tipiskÇs izkliedes: 3 dB), un vibrÇcijas intensitÇte ir 14,6 m/s2(strÇdÇjot rokas reÏ¥mÇ;
izkliede K = 1,5 m/s2).
TehniskÇ lieta no: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
LV
CE ATITIKTIES DEKLARACIJA Mes atsakingai parei‰kiame, kad ‰is gaminys atitinka tokius standartus ir normatyvinius
dokumentus: EN 60 745, EN 55 014 pagal reglament˜ 2006/95/EB, 2004/108/EB, 98/37/EB (iki 2009-12-28), 2006/42/EB
(nuo 2009-12-29) nuostatas.
TRIUK·MINGUMAS/VIBRACIJA ·io prietaiso triuk‰mingumas buvo i‰matuotas pagal EN 60 745 reikalavimus keliamo triuk‰mo
garso slògio lygis siekia 89 dB(A) ir akustinio galingumo lygis 100 dB(A) (standartinis nuokrypis: 3 dB), ir vibracijos pagreitis rankos
pla‰takos srityje tipiniu atveju yra maÏesnis, kaip 14,6 m/s2(paklaida K = 1,5 m/s2).
Techninò byla laikoma: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
LT
CE PREHLÁSENIE O ZHODE Vÿhradne na na√u vlastnú zodpovednos† prehlasujeme, Ωe tento vÿrobok zodpovedá nasledujúcim
normám alebo normovanÿm dokumentom: EN 60 745, EN 55 014, v súlade s predpismi 2006/95/EG, 2004/108/EG, 98/37/EG (do
28.12.2009), 2006/42/EG (od 29.12.2009).
HLUKU/VIBRÁCIÁCH Merané pod¬a EN 60 745 je úroveµ akustického tlaku tohto nástroja 89 dB(A) a úroveµ akustického vÿkonu je
100 dB(A) (√tandardná odch¥lka: 3 dB), a vibrácie sú 14,6 m/s2(metóda ruka - paΩa; nepresnosÈ K = 1,5 m/s2).
Súbor technickej dokumentácie sa nachádzajú na adrese: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.
SK
