SkyLink HA-434TL User manual

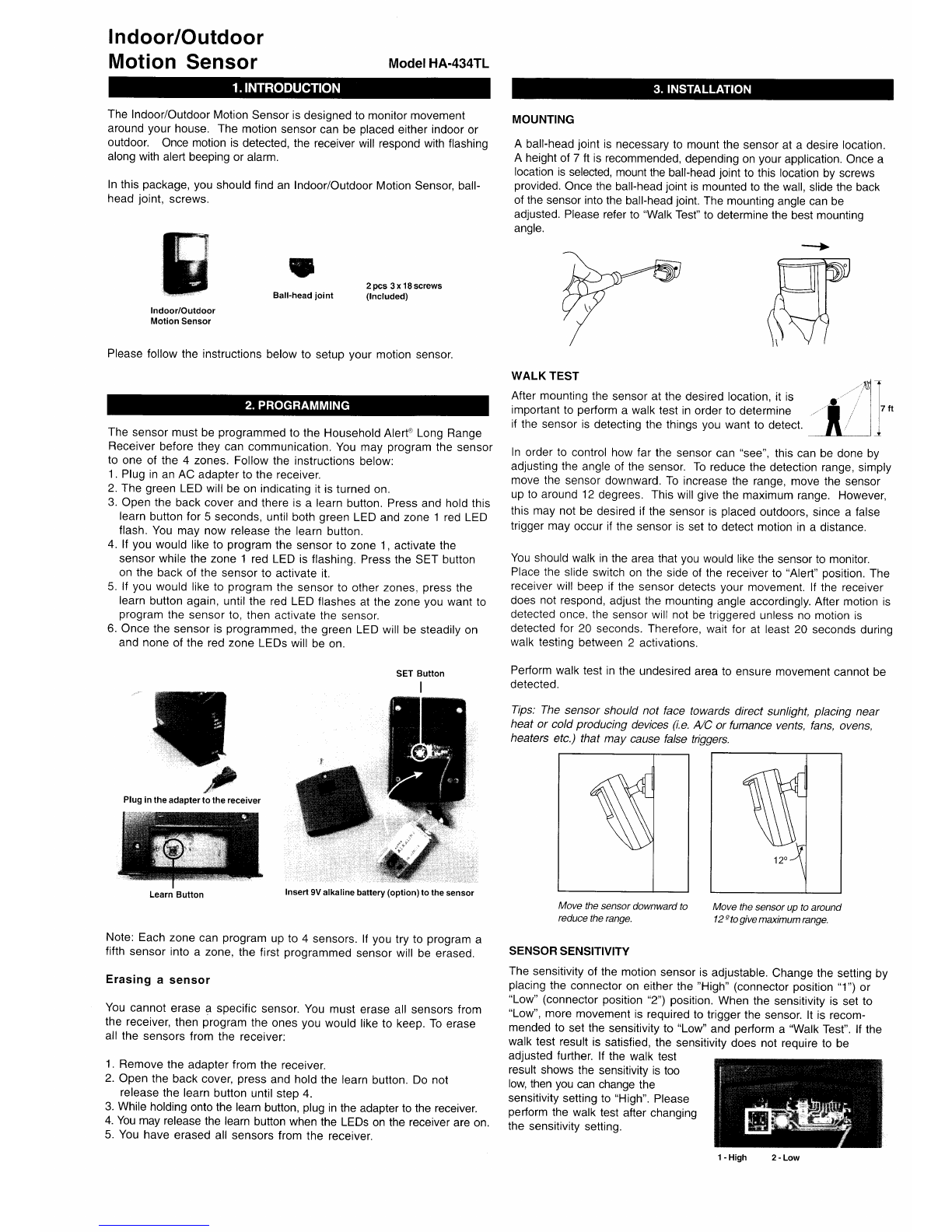

lndoor/Outdoor
Motion Sensor ModelHA-434TL
The lndoor/Outdoor Motion Sensor is designed to monitor movement
around your house. The motion sensor can be placed either indoor or
outdoor. Once motion is detected, the receiver will respond with flashing
along with alert beeping or alarm.
ln this package, you should find an lndoor/Outdoor Motion Sensor, ball-
head joint, screws.
2pcs 3xlSscrews
joint (tnctuded)
Please follow the instructions below to setup your motion sensor.
The sensor must be programmed to the Household Alert" Long Range
Receiver before they can communication. You may program the sensor
to one of the 4 zones. Follow the instructions below:
1. Plug in an AC adapter to the receiver.
2. The green LED will be on indicating it is turned on.
3. Open the back cover and there is a learn button. Press and hold this
learn button for 5 seconds, until both green LED and zone 1 red LED
flash. You may now release the learn button.
4. lf you would like to program the sensor to zone 1, activate the
sensor while the zone 1 red LED is flashing. Press the SET button
on the back of the sensor to activate it.
5. lf you would like to program the sensor to other zones, press the
learn button again, until the red LED flashes at the zone you want to
program the sensor to, then activate the sensor.
6. Once the sensor is programmed, the green LED will be steadily on
and none of the red zone LEDs will be on.
SET Button
I
Plug in the adapter to the receiver
Learn Button lnsert 9V alkaline battery (option) to the sensor
Note: Each zone can program up to 4 sensors. lf you try to program a
fifth sensor into a zone, the first programmed sensor will be erased.
Erasing a sensor
You cannot erase a specific sensor. You must erase all sensors from
the receiver, then program the ones you would like to keep. To erase
all the sensors from the receiver:
1. Remove the adapter from the receiver.
2. Open the back cover, press and hold the learn button. Do not
release the learn button until step 4.
3. while holding onto the learn button, plug in the adapter to the receiver.
4. You may release the learn button when the LEDs on the receiver are on.
5. You have erased all sensors from the receiver.
MOUNTING
A ball-head joint is necessary to mount the sensor at a desire location.
A height of 7 tl is recommended, depending on your application. Once a
location is selected, mount the ball-head joint to this location by screws
provided. Once the ball-head joint is mounted to the wall, slide the back
of the sensor into the ball-head joint. The mounting angle can be
adjusted. Please refer to "Walk Test" to determine the best mounting
angle.
WALK TEST
After mounting the sensor at the desired location, it is
important to perform a walk test in order to determine
if the sensor is detecting the things you want to detect.
ln order to control how far the sensor can "see", this can be done by
adjusting the angle of the sensor. To reduce the detection range, simply
move the sensor downward. To increase the range, move the sensor
up to around 12 degrees. This will give the maximum range. However,
this may not be desired if the sensor is placed outdoors, since a false
trigger may occur if the sensor is set to detect motion in a distance.
You should walk in the area that you would like the sensor to monitor.
Place the slide switch on the side of the receiver to "Alert" position. The
receiver will beep if the sensor detects your movement. lf the receiver
does not respond, adjust the mounting angle accordingly. After motion is
detected once, the sensor will not be triggered unless no motion is
detected tor 20 seconds. Therefore, wait for at least 20 seconds during
walk testing between 2 activations.
Perform walk test in the undesired area to ensure movement cannot be
detected.
Tips: The sensor should not face towards direct sunlight, placing near
heat or cold producing devices (i.e. NC or furnance vents, fans, ovens,
heaters etc.) that may cause false triggers
Move the sensor downward to Move the sensor up to around
reduce the range. l2etogive maximum range.
SENSOR SENSITIVITY
The sensitivity of the motion sensor is adjustable. change the setting by
placing the connector on either the "High" (connector position "1") or
"Low" (connector position "2") position. When the sensitivity is set to
"Low", more movement is required to trigger the sensor. lt is recom-
mended to set the sensitivity to "Low" and perform a "Walk Test". lf the
walk test result is satisfied, the sensitivity does not require to be
adjusted further. lf the walk test
result shows the sensitivity is too
low, then you can change the
sensitivity setting to "High". Please
perform the walk test after changing
the sensitivity setting.
r
ru
lndoor/Outdoor
Motion Sensor
I]'u
l
I
-)
1-High 2-Low

There are 3 different operating modes for the Household Alert@ Long
Range Receiver.
1) Alert - Beeps when a sensor is activated, corresponding zone LED
will also flash.
2) Alarm - Sounds an alarm when a sensor is activated, corresponding
zone LED will also flash.
3) Off - No audio sound will be emitted when sensor is activated.
Zone LED will flash to indicate the activated sensor.
To select the operating mode, place the
slide switch on the side at the desired setting:
OFF - No Audio
ALERT - Alert Mode
ALARM - Alarm Mode
Operation
Alert
When motion is detected in the monitored area, the sensor will send a
signal to the receiver. lt will beep and the corresponding zone red LED
will flash for 15 seconds.
lf the sensor is set to zone 1, zone 1 red LED on the receiver will flash,
and the receiver will emit a continuous "single beep", i.e. "beep" pause,
"beep", pause..... etc.
lf the sensor is set to zone 4, zone 4 red LED will flash, and the receiver
will emit a continuous "4 beeps", i.e. "beep beep beep beep" pause
"beep beep beep beep" pause ......etc.
By the number of beeps emitted by the receiver, user can identify which
zone is triggered.
Mute
When a sensor is triggered for a long period of time, you may stop the
buzzer by pressing the mute button. When another signal comes again.
you can disable lhe buzzer for all currently activated sensors by pressing
the mute button. The receive will beep again if it receives another signal.
For instance, if you are working in your
garage, you may want to disable the
buzzer for this garage only. Then you can
press the "Mute" button after it starts to
sound. lf any other sensor is triggered,
the receiver will sound again.
Alarm
When the receiver is in Alarm operation mode, it will sound its siren
when a sensor is activated. The maximum alarm duration is set for 3
minutes. To terminate the siren during the 3-min interval, press the mute
button. Although the alarm siren is terminated, if that sensor is still
activated, its corresponding LED will continue to flash.
Note: This audio siren is not intended to prevent intruder break-in, it is
rather an alert signal indicating a sensor is activated. Therefore,
turning off the siren does not require specific password.
off
No audio will be emitted even sensor is activated. Only zone LED will flash.
When the battery level on the sensor drops to a certain level, or the
sensor is out of the operating range, the receiver will show a "loss of
signal" indication. The red LED representing that zone will flash rapidly,
i.e. if zone 1 sensor is lost, the zone 1 red LED will flash rapidly.
When the loss of signal indication occurs, move the receiver closer to the
corresponding sensor and trigger that sensor. lf the red LED stops flash-
ing rapidly, that means the receiver or sensor needs to be relocated. lf the
"loss of signal" indication persists, replace the battery of that sensor.
The Household Alert@ Long Range Receiver can work with up to 4
different sensors: garage door monitor sensor, door / window sensor,
water sensor, indoor/outdoor motion sensor, etc. Please visit
more information of how to fully utilize your lndoor/Outdoor Motion Sensor.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1)This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.
WARNING:
Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuantto Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful inter-
ference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. lf this equipment dose cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- lncrease the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
- Consult the dealer or an experienced radioffV technician for help.
lf, within one year from date of purchase, this product should become defective
(except battery), due to faulty workmanship or materials, it will be repaired or
replaced, without charge. Proof of purchase and a Return Authorization are required.
lf you would like to order Skylink's products or have difficulty getting them to
work or download information and user manual, please :
1. visit our FAQ section at www.skylinkhome.com, or
3. call ourtollfree at 1-800-304-1187 from Monday to Friday, 9 am to 5 pm EST.
Fax (800) 286-1 320
CUSTOMER SERVICE
17 Sheard Avenue, Brampton, Ontario, Canada L6Y 1J3
Email :support @ skylinkhome.com
http;//www.skyl i n khome. com
P/N.1Un54
O2O1O SKYLINK GROUP
