Skyrc Ultimate 200W x2 User manual

SkyRC Technology Co., Ltd. 2011 Version 1.0
Dual OutputDual Output
Professional Charger
Discharger

Ultimate 200W×2
TABLE OF CONTENTS
Introduction......................................................................................................................................02
Special features..............................................................................................................................04
Warning and safety notes..............................................................................................................07
Program flow chart........................................................................................................................10
Lithium polymer balance charge program connection diagram..................................................11

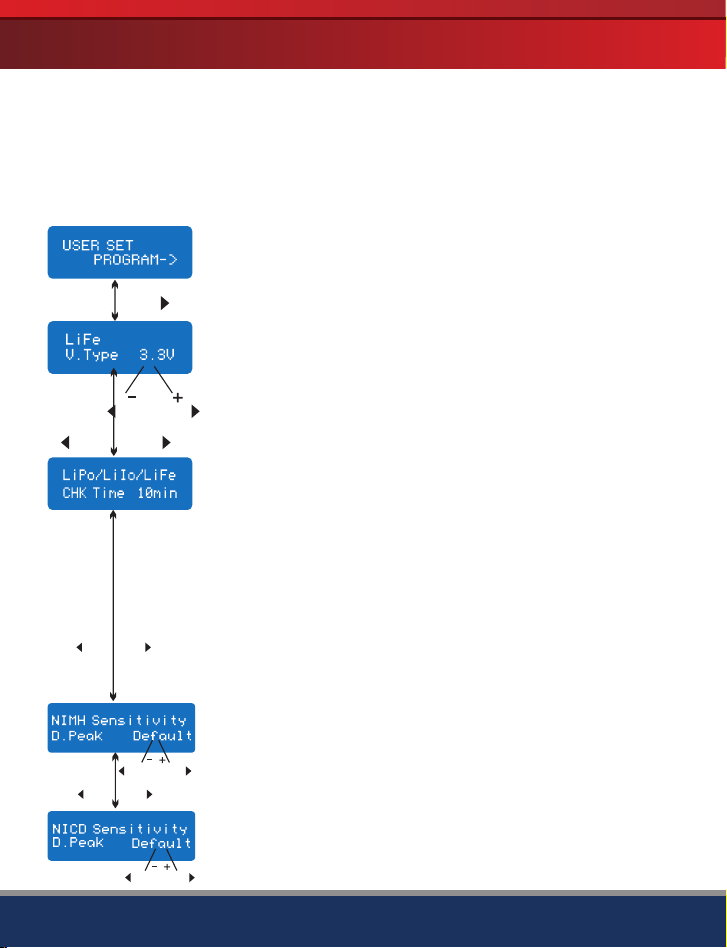

Initial parameter setup (users set up)...........................................................................................13
....................................................................................15

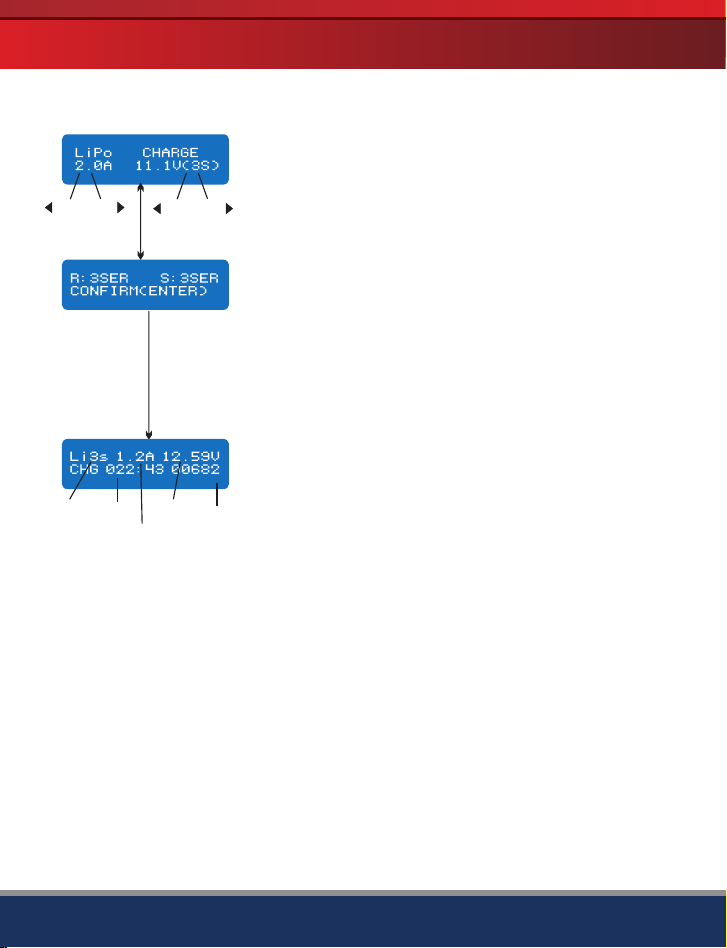

Charging lithium battery in the charge mode...............................................................................16

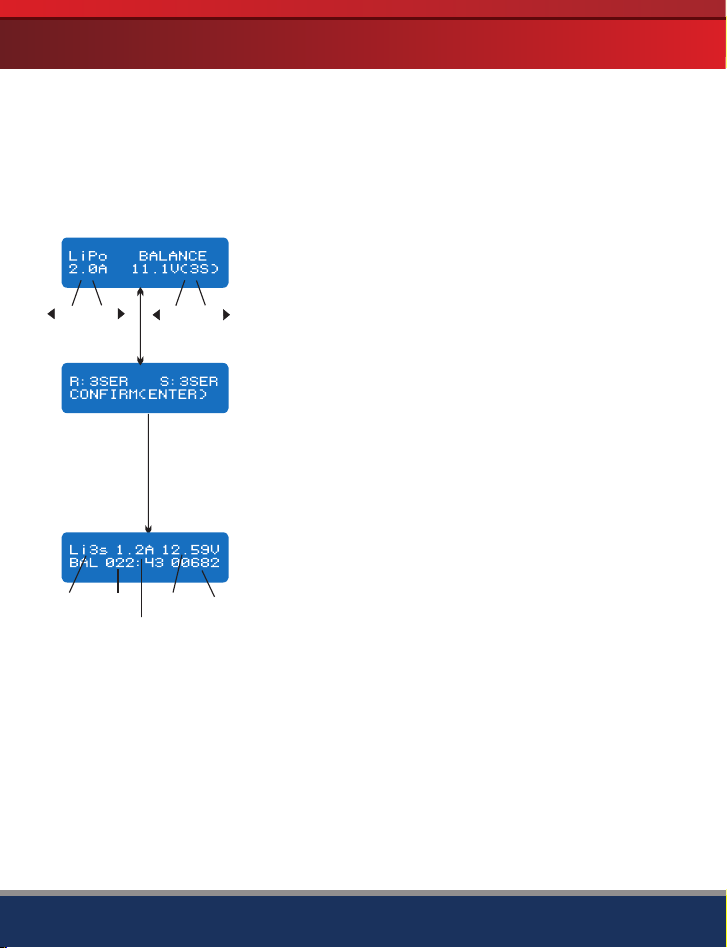

Charging lithium battery in the balance mode.............................................................................17

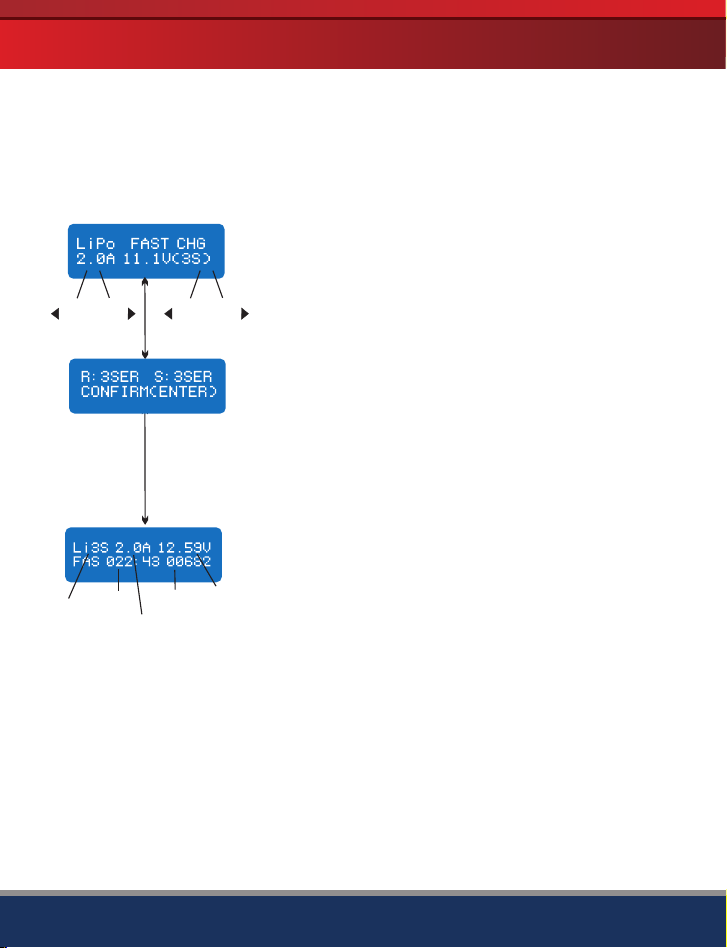

Charging lithium battery in the fast charge mode........................................................................18
Charging lithium battery in the s mode ................. .......19

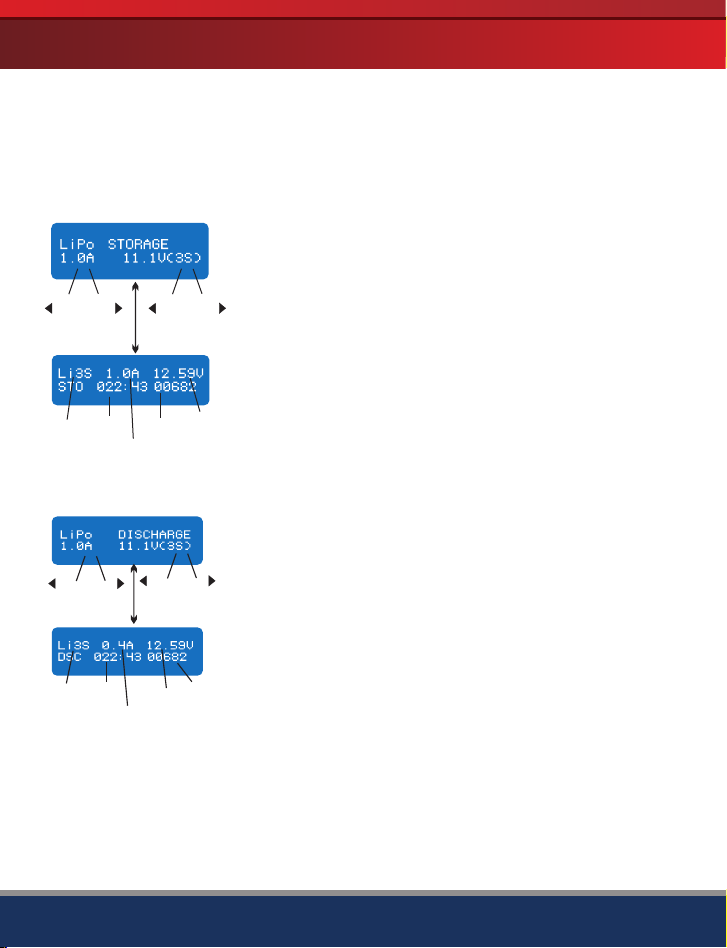

Discharging of lithium battery........................................................................................................19
Charging NiCd/NiMH battery in the charge mode .....................
Discharge of NiCd/NiMH battery..................................................................................................21
..................................
Charging Pb (lead-acid) battery in the charge mode..................................................................22
Discharging of the Pb battery.......................................................................................................22
Storage data program..................................................................................................................23
Load data program.......................................................................................................................24
Various information in the program.............................................................................................24
Warning and error message........................................................................................................25
Recommended accessories........................................................................................................26
Conformity declaration.................................................................................................................27
Specification..................................................................................................................................29
Commonly used terms.................................................................................................................30
Warranty and service....................................................................................................................30
Lithium battery (LiIon/LiPo/LiFe) program
torage ................................................. ....
................................................. 20
Charge/discharge and discharge/charge cycle of NiCd/NiMH battery.... 21
Maximum circuit power chart.......................................................................................................28
· 01

Ultimate 200W×2
Congratulations on your choice of the Ultim digital intelligent charger from
SKYRC Technology Co., Ltd. You are now the owner of a professional charger/discharger
with battery management and integral balancer.
ate 200W×2
Temperature
Controlled Fan
Membrane
Button System
LCD Screen
DC input 12V~18V
Select Button,
Output1/2
Type/Stop Button
Output 1 LED
Output 2 LED
INC/DEC
Button
Enter/Start
Button
INTRODUCTION
02 ·
PC Link Socket USB Power Supply 5V/1A
Charger
Output 1 Temperature
Sensor
Balancing Port Balancing Port
Charger
Output 2

Ultimate 200W×2
INTRODUCTION
Please read this entire operating manual completely and attentively before using this
product, as it covers a wide range of information on operating and safety. Or please do
use this product in company with a specialist!
This unit is simple to use, but the operation of a sophisticated automatic
charger/discharger such as the Ultimate 200W×2 does require some knowledge on the
part of the user. These operating instructions are designed to ensure that you quickly
become familiar with its functions.
It is therefore important that you read right through the Instruction Manual, Warning and
Safety Notes before you attempt to use your new automatic charger for the first time. We
hope you have many years of pleasure and success with your new battery charger.
Ultimate 200W×2 employs the circuit that features dual output power of 200 watts each.
Total output power are 400 Watts. Each output can charge or discharge up 15 cells of
NiCd/NiMH or 6 series of Lithium batteries with maximum current of 10A. Ultimate
200W×2 has an individual cell voltage balancer, so it does not required any balancer
separately when charging Lithium batteries (LiPo/LiIon/LiFe) for voltage balancing.
More reliable/durable membrane button systems are using for charger controls. The fan
cooling system is so smart and efficiently. The fan speed is controlled by internal
temperature sensor.
Please BE SURE to read these instructions and Warning and Safety Notes before you use the
charger for the first time.
It can be dangerous to mishandle batteries and battery chargers, as there is always a risk of
batteries catching fire and exploding.
· 03

Ultimate 200W×2 04 ·
Optimized operating software
Ultimate 200W×2 features the so-called AUTO function that set the feeding current during
the process of charging or discharging. Especially for Lithium batteries, it can prevent the
overcharging which may lead to an explosion due to the user's fault. It can disconnect the
circuit automatically and alarm once detecting any malfunction. All the programs of this
product were controlled through two way linkage and communication, to achieve the
maximum safety and minimize the trouble. All the settings can be configured by users!
Internal independent lithium battery balancer
Ultimate 200W×2 employs an individual-cell-voltage balancer. It isn’t necessary to
connect an external balancer for balance charging.
Balancing individual cells battery discharging
During the process of discharging, Ultimate 200W×2 can monitor and balance each cell
of the battery individually. Error message will be indicated and the process will be ended
automatically if the voltage of any single one cell is abnormal.
Set contents
Special features
SPECIAL FEATURES
1. Ultimate 200W×2 Charger
2. XH Adaptor x 2Sets
3. Crocodile Clip Charging Cable
4. 18AWG Wire Charging Cable x 2Pcs
5. Plug-in Battery Clamps
1
2
3
45

Ultimate 200W×2
SPECIAL FEATURES
Adaptable to various type of lithium battery
Ultimate 200W×2 is adaptable to various types of lithium batteries, such as Li-Ion, LiPo
and the new LiFe series of batteries.
Fast and storage mode of lithium battery
Purposes to charge Lithium battery varies, fast charge reduce the duration of charging,
whereas store state can control the final voltage of your battery, so as to store for a long
time and protect useful time of the battery.
Maximum safety
Delta-peak sensitivity: The automatic charge termination program based on the principle
of the Delta-peak voltage detection. When the battery's voltage exceeds the threshold,
the process will be terminated automatically.
Automatic charging current limit
You can set up the upper limit of the charging current when charging your NiCd or NiMH
battery; it is useful for the NiMH battery of low impedance and capacity in the 'AUTO'
charging mode.
Capacity limit
The charging capacity is always calculated as the charging current multiplied by time. If
the charging capacity exceeds the limit, the process will be terminated automatically
when you set the maximum value.
Temperature threshold
The batteries internal chemical reaction will cause the temperature of the battery to rise.
If the temperature limit is reached, the process will be terminated. This function is
available by connecting temperature probe, which is included in the package.
Processing time limit:
You can also limit the maximum process time to avoid any possible defect.
Data store/load
For user’s convenience, it can store maximum 10 data of different batteries. You can
establish the data contains program setting of the battery to charge or discharge. These
data can be called back at any time you need and the process can be executed without
program setting.
Cyclic charging/discharging
1 to 5 cyclic and continuous process of charge>discharge or discharge>charge is
operable for battery refreshing and balancing to stimulate the batteries activity.
· 05

Ultimate 200W×2 06 ·
SPECIAL FEATURES
USB Power Supply
The USB power supply can provide 5V, 1A continue current. You can power your mobile
phone, digital camera or even iPod via the USB power supply.

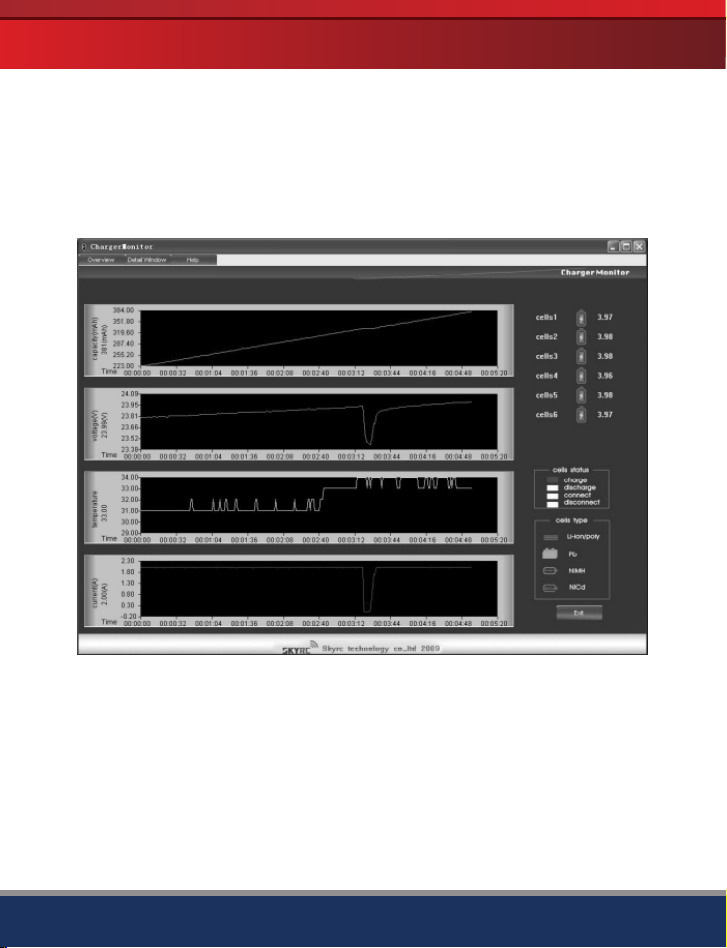

PC Based Analysis Software “Charger Monitor”
PC based analysis using USB Communication (For output 1 only.)
The Ultimate 200W×2 is fitted with a mini USB port on the front side of the case; a USB
cable(not included) can be connected to this socket in order to link the charger to a PC.
“Charger Monitor” program enable you to view graphs of charge and discharge curves,
with a capacity, voltage, temperature and ampere display, and individual curves can be
individually suppressed or superimposed to allow a visual comparison of the data.
“Charger Monitor” software can be downloaded from our website.

Ultimate 200W×2
These warnings and safety notes are particularly important. Please follow the
instructions for maximum safety; otherwise the charger and the battery can be
damaged or at worst it can cause a fire.
Never leave the charger unattended when it is connected to its power supply. If any
malfunction is found, TERMINATE THE PROCESS AT ONCE and refer to the
operation manual.
Keep the charger well away from dust, damp, rain, heat, direct sunshine and .
Never drop it.
vibration
The allowable input voltage is 12~18V DC
This charger and the battery should be put on a heat-resistant, noninflammable and
nonconductive surface. Never place them on a car seat, carpet or similar. Keep all
the inflammable volatile materials away from operating area.
Make sure you know the specifications of the battery to be charged or discharged to
ensure it meets the requirements of this charger. If the program is set up incorrectly,
the battery and charger may be damaged .It can cause fire or explosion due to
overcharging. This warranty is not valid for any damage or subsequent damage
arising as a result of a misuse or failure to observe the procedures outlined in this
manual.
WARNING AND SAFETY NOTES
Standard Battery Parameters
Be very careful to choose the correct voltage for different types of battery otherwise you
may cause damage to the batteries. Incorrect settings could cause the cells to fire or
explode.
3.7V/cell
Nominal
Voltage
Min. Discharge
Voltage
Max Charge
Voltage
Storage
Voltage
Allowable
Fast Charge
3.7V/cell
4.2V/cell
3.8V/cell
≦1C
≧3.0V/cell
LiPo LiIon
3.6V/cell
4.1V/cell
≧2.5V/cell
≦1C
3.3V/cell
3.6V/cell
3.3V/cell
≦4C
≧2.0V/cell
LiFe
1.2V/cell
1.5V/cell
n/a
1C-2C
≧0.85V/cell
NiCd
1.2V/cell
1.5V/cell
n/a
1C-2C
≧1.0V/cell
MiMH
2.0V/cell
2.46V/cell
n/a
≦0.4C
≧1.75V/cell
Pb
· 07

A battery pack which consists of different types of cells (including different
manufacturers)
A battery that is already fully charged or just slightly discharged.
Non-rechargeable batteries (Explosion hazard).
Batteries that require a different charge technique from NiCd, NiMh, LiPo or Gel cell
(Pb, Lead acid).
A faulty or damaged battery.
A battery fitted with an integral charge circuit or a protection circuit.
Batteries installed in a device or which are electrically linked to other components.
Batteries that are not expressly stated by the manufacturer to be suitable for the
currents the charger delivers during the charge process.
Please bear in mind the following points before commencing charging:
Did you select the appropriate program suitable for the type of battery you are
charging?
Did you set up adequate current for charging or discharging?
Have you checked the battery voltage? Lithium battery packs can be wired in parallel
and in series, i.e. a 2 cell pack can be 3.7V (in parallel) or 7.4V (in series).
Have you checked that all connections are firm and secure?
Make sure there are no intermittent contacts at any point in the circuit.
Charging
During charge process, a specific quantity of electrical energy is fed into the
battery. The charge quantity is calculated by multiplying charge current by charge
time. The maximum permissible charge current varies depending on the battery
type or its performance, and can be found in the information by the battery
manufacturer. Only batteries that are expressly stated to be capable of quick-
charge are allowed to be charged at rates higher than the standard charge current.
Connect the battery to the terminal of the charger: red is positive and black is
negative. Due to the difference between resistance of cable and connector, the
charger can not detect resistance of the battery pack, the essential requirement
for the charger to work properly is that the charge lead should be of adequate
conductor cross-section, and high quality connectors which are normally gold-
plated should be fitted to both ends.
Always refer to the manual by the battery manufacturer pertaining to charging
methods, recommended charging current and charging time. Especially, the
Lithium battery should be charged according the charging instruction provided
by the manufacturer strictly.
Never attempt to charge or discharge the following types of batteries.
Ultimate 200W×2 08 ·
WARNING AND SAFETY NOTES

Ultimate 200W×2
Discharging
The main purpose of discharging is to clean residual capacity of the battery, or to
reduce the battery voltage to a defined level. The same attention should be paid to
the discharging process as charging. The final discharge voltage should be set up
correctly to avoid deep-discharging. Lithium battery can not be discharged to lower
than the minimum voltage, or it will cause a rapid loss of capacity or a total failure.
Generally, Lithium battery doesn't need to be discharged. Please pay attention to the
minimum voltage of Lithium battery to protect the battery.
Some rechargeable batteries have a memory effect. If they are partly used and
recharged before the whole charge is accomplished, they remember this and will only
use that part of their capacity next time. This is a memory effect It is said that NiCd
and NiMH batteries are suffering from memory effect. NiCd has more memory effect
than NiMH.
Lithium batteries are recommended to be discharged partially rather than fully
discharged. Frequent full discharging should be avoided if possible. Instead, charge
the battery more often or use a battery of larger capacity. Full capacity cannot be
reached until it has been subjected to 10 or more charge cycles. The cyclic process
of charge and discharge will optimize the capacity of battery pack.
WARNING AND SAFETY NOTES
Attention should be paid to the connection of Lithium battery especially.
Do not attempt to disassemble the battery pack arbitrarily.
Please get highlighted that Lithium battery packs can be wired in parallel and in
series. In the parallel connection, the battery s capacity is calculated by multiplying
single battery capacity by the number of cells with total voltage stay the same. The
voltages imbalance may cause fire or explosion .Lithium battery is recommended to
charge in series.
· 09

Ultimate 200W×2 10 ·
PROGRAM FLOW CHART

Ultimate 200W×2
LITHIUM POLYMER BALANCE CHARGE PROGRAM
CONNECTION DIAGRAM
Important !!! Before connecting a battery it is absolutely essential to check one last time
that you have set the parameters correctly. If the settings are incorrect, the battery may
be damaged, and could even burst into flames or explode. To avoid short-circuits
between the banana plugs, always connect the charge leads to the charger first, and only
then to the battery. Reverse the sequence when disconnecting the pack.
Ultimate 200W×2 comes with male 4mm Bullet connectors attached to the power INPUT
cables. These cables are appropriate for attaching directly to most high-quality AC-DC
power supply units, such as eFUEL model PSU30A (15V, 30A). Also included are large
Terminal Clips with matching 4mm female bullet connectors, for attaching directly to 12V
car batteries. It is critically important that you use either a fully charged 13.8 car battery or
a high quality AC-DC power supply in the range of 12V to18V DC output, with minimum
current rating of 30A to insure reliable performance.
CONNECTING THE CHARGER
CONNECTING THE BATTERY
4mm Bullet
Connectors
plugging
to eFUEL power
supply directly
Using terminal
clip attaching to
car battery
· 11
Important Notice
To take advantage of Ultimate 200W×2’s full power capability,
the power source should be 15V-18V DC, and output power
should be capable of 500W or higher.
Low quality DC power source may damage your Ultimate
200W×2 charger. We recommend you to choose our
PSU30A, 540W DC power supply.

Ultimate 200W×2 12 ·
LITHIUM POLYMER BALANCE CHARGE PROGRAM
CONNECTION DIAGRAM
This diagram shows the correct way to connect your battery to the Ultimate 200W×2
while charging in the balance charge program mode only.
Failure to connect as shown in this diagram will damage this charger.
To avoid short circuit between the charge lead always connect the charge cable to the
charger first, then connect the battery. Reverse the sequence when disconnecting.
WARNING:
Balance socket:
The balance wire attached to the battery must be connected to the charger balancing
port. Take care to maintain correct polarity!
(Wiring diagram: see below.)

Ultimate 200W×2
INC
DEC INC
INCDEC
User set up starting screen.
The screen displays the nominal voltage of Lithium battery. There
are three kinds of Lithium battery: LiFe(3.3V), Lilo(3.6V) or LiPo
(3.7V). This is very important so you have to check the battery
carefully and set it up correctly. If it is different from correct value
the battery may be exploded during charge process.
Ultimate 200W×2 recognize the cell count of Lithium battery
automatically at the beginning of charge or discharge process to
avoid from erroneous setting by user. But deeply discharged
battery can be perceived incorrectly. To prevent the error, you can
set the time term to verify the cell count by the processor. Normally,
10 minutes are enough to perceive the cell count correctly. For the
battery of larger capacity, you may extend the time term. But if you
set the time term too long for the battery of smaller capacity, the
charge or discharge process can be finished within the time term
with the erroneous cell count. This may cause the fatal result. If the
processor recognizes the cell count incorrectly at the beginning of
charge or discharge process, you may extend the time. Otherwise,
you had better use with the default value.
Termination of NiMH and NiCd battery, the effective value ranges
from 5 to 20mV per cell. If the trigger voltage is set higher, there is
a danger of over charging the battery; if it is set lower, there is a
possibility of premature termination. Please refer the technical
specification of the battery. (NiCd default: 12mV, NiMH default:
7mV)
Ultimate 200W×2 will be operated with the default value of the essential user settings
when it is connected to a 12V battery for the first time. The screen displays the following
information in sequence and the user can change the value of parameter on each screen.
When you are willing to alter the parameter value in the program, press start/enter key to
make it blink then change the value with Inc> or <Dec key. The value will be stored by
pressing start/enter key once.
Initial parameter set up (Users set up)
INITIAL PARAMETER SETUP (USERS SET UP)
INCDEC
INCDEC
DEC INC
DEC INC
· 13

Ultimate 200W×2 14 ·
DEC INC
DEC INC
INCDEC
DEC INC
DEC INC
DEC INC
INCDEC
The battery is on the cyclic process of charge and discharge can
often become warm after charge or discharge period. The
program can insert a time delay to occur after each charge and
discharge process to allow the battery adequate time to cool
down before being subjected to the next process. The value
ranges from 1 to 60 minutes.
You can set the trickle charge mode on or off. If it is on, the
charger will automatically supply the trickle charge current to
achieve the full charge without overheating the battery after fast
charge has been terminated.
INITIAL PARAMETER SETUP (USERS SET UP)
DEC INC
INCDEC
INCDEC
DEC INC
DEC INC DEC INC
DEC INC DEC INC
INCDEC
DEC INC
INCDEC
This program sets the maximum charge capacity that will be
supplied to the battery during charge. If the delta-peak voltage is
not detected nor the safety timer expired by any reason, this
feature will automatically stop the process at the selected
capacity value.
This program monitors the voltage of input battery. If the voltage
drops below the value you set the operation forcibly terminated to
protect the input battery.
When you start a charge process, the integral safety timer
automatically starts running at the same time. This is
programmed to prevent overcharge the battery if it proves to be
faulty, or if the termination circuit cannot detect the battery full.
The value for the safety timer should be generous enough to
allow a full charge of the battery.
The beep sounds at every time pressing the buttons to confirm
your action. The beep or melody sounded at various times during
operation to alert different mode changes. These audible sounds
can be turned on or off.
You can adjust the brightness of LCD screen at the charger.
An optional feature using temperature probe contacting the
surface of battery, the temperature cut-off can be on or off. If it is
on, set the maximum temperature at which the charger should
allow battery to reach during charge. Once a battery reaches this
temperature during charge, the process will be terminated to
protect the battery.

Ultimate 200W×2
LITHIUM BATTERY (LIION/LIPO/LIFE) PROGRAM
Lithium battery (LiIon/LiPo/LiFe) program
These programs are only suitable for charging and discharging Lithium batteries with a
nominal voltage of 3.3V, 3.6V and 3.7V per cell. These batteries need to adopt different
charge technique that is termed constant current (CC) and a constant voltage (CV)
method. The charge current varies according to the battery capacity and performance.

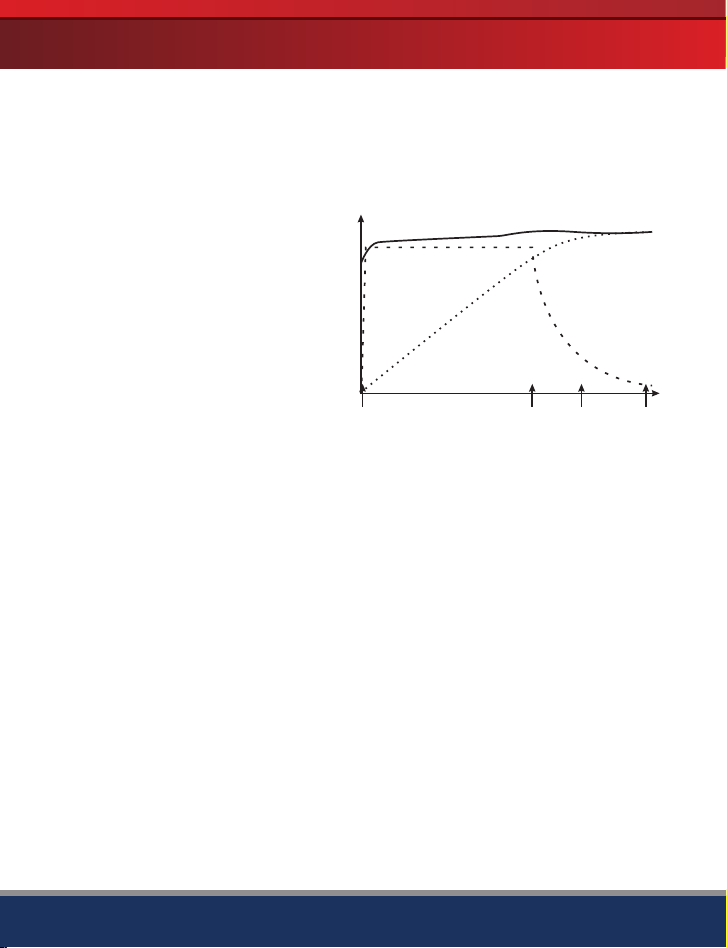

The Lithium battery is charged at a
constant current until it reaches the final
charge voltage of 4.2 V per cell (B).
After this point the voltage is kept at a
constant level, and the residual charge
takes the form of a declining current
curve (C) until the cut-off point (D) is
reached. Charge current = C/10. At this
point the battery can be disconnected
from the charger, and is ready for use.
The final voltage of charge process is also very important; it should be precisely matched
with the charged voltage of the battery. They are 4.2V for LiPo, 4.1V for Lilo, and 3.6V for
LiFe. The charge current and nominal voltage as for cell count set on the charge program
must always be correct for the battery to be charged.
4.2V
V
A
Ah
ABCD
t
V/A/Ah
When you are willing to alter the parameter value in the program, press start/enter key to
make it blink then change the value with Inc> or <Dec key. The value will be stored by
pressing start/enter key once.
· 15

Ultimate 200W×2 16 ·
CHARGING LITHIUM BATTERY IN THE CHARGE MODE
INC
INC DEC
DEC -
-+
+
Start
Enter
Batt type
Stop
Start
Enter
Charged
capacity
Number
of
cells
Charging
time
Charging
current
Battery
voltage
The left side of the first line shows the type of battery you
choose. The value on the left of the second line of the
charger is current user set. After setting the current and
voltage, press Start/Enter key for more than 3 seconds to
start the process.(charge current: 0.1-10.0A, voltage: 3.7-
22.2V).
This displays the number of cells you set up and the
processor detects. R shows the number of cells detected by
the charger and S is the number of cells set by you at the
previous screen. If both numbers are identical you can start
charging by press Start/Enter button. If not, press Batt
Type/Stop button to go back to previous screen to carefully
check the number of cells of the battery pack before going
ahead.
This screen shows the real-time status during charge
process. Press Batt Type/Stop key once to stop the charge
process.
This charging mode is for charging Li-Po/Ion/Fe battery without balance lead.
Charging lithium battery in the charge mode
'> 3 seconds '

Ultimate 200W×2
CHARGING LITHIUM BATTERY IN THE BALANCE MODE
INC
INC DEC
DEC -
-+
+
Start
Enter
Batt type
Stop
Start
Enter
The left side of the first line shows the type of battery you
choose. The value on the left of the second line of the
charger is current user set. After setting the current and
voltage, press Start/Enter key for more than 3 seconds to
start the process.(charge current: 0.1-10.0A, voltage: 3.7-
22.2V).
This function is for balancing the voltage of Lithium-polymer battery cells while charging.
In the balance mode, the battery needs to have a balance lead to connect to the
individual balance port of the charger. And you need to connect the battery's power lead
to the output of charger. Charging in this mode is different from the normal modes,
because the built-in processor monitors voltage of individual cell and control input current
fed into each cell to equalized voltage of individual cell.
Charging lithium battery in the balance mode
Number
of
cells
Battery
voltage
Charging
time Charged
capacity
This screen shows the real-time status during charge
process. Press Batt Type/Stop key once to stop the charge
process.
This displays the number of cells you set up and the
processor detects. R shows the number of cells detected by
the charger and S is the number of cells set by you at the
previous screen. If both numbers are identical you can start
charging by press Start/Enter button. If not, press Batt
Type/Stop button to go back to previous screen to carefully
check the number of cells of the battery pack before going
ahead.
Charging
current
'> 3 seconds '
· 17

Ultimate 200W×2 18 ·
Charging lithium battery in the fast charge mode
CHARGING LITHIUM BATTERY IN THE FAST CHARGE MODE
INCINC DECDEC
-- ++
Start
Enter
Start
Enter
Batt type
Stop
The value on the left side of the second lines sets the
charge current. The value on the right side of the second
lines sets the battery pack's voltage. After setting current
and voltage, press Star/Enter for more than 3 seconds to
start the process.
The charging current is getting smaller as the process goes to the near end term of
Lithium battery charging. To finish charging process earlier, this program eliminate certain
term of CV process. Actually, the charging current will goes to 1/5 from the initial value to
end the process while the normal charging goes to 1/10 during CV term. The charging
capacity may be a bit smaller than normal charging but the process time will be reduced.
This displays the number of cells you set up and the
processor detects. R shows the number of cells detected
by the charger and S is the number of cells set by you at
the previous screen. If both numbers are identical you can
start charging by press Start/Enter button. If not, press
Batt Type/Stop button to go back to previous screen to
carefully check the number of cells of the battery pack
before going ahead.
Current
voltage
battery
Supplied
capacity
Charge
current
Charging
time
Number
of
cells
This screen shows the real-time status during charge
process. Press Batt Type/Stop key once to stop the
charge process.
'> 3 seconds '

Ultimate 200W×2
CHARGING LITHIUM BATTERY IN THE STORAGE MODE
Number
of
cells
DEC
-+
At this screen, you can set up the current and voltage of the
battery pack. Charging and discharging will make the
batteries come to the voltage level of storage state.
Batt type
Stop
Elapsed
time
INC
Charge
or discharge
current
Supplied
capacity
DEC
Start
Enter
-
INC
+
Current
voltage
battery
Charging lithium battery in the storage mode
This is for charging or discharging Lithium battery not to be used for the time being. The
program will determine to charge or discharge the battery to the certain voltage
depending on the voltage of the battery at its initial stage. They are different from the type
of the battery, 3.75V for LiIo, 3.85V for LiPo and 3.3V for LiFe per cell. If the voltage of
battery at its initial stage is over the voltage level to storage, the program will start to
discharge.
Number
of
cells
DEC
-
Batt type
Stop
elapsed
time
INC
+
Battery
voltage
DEC
Start
Enter
-
INC
+
Discharged
capacity
The value of discharge current on the left can not exceed 1C,
and the value on the right can not be under the voltage
recommended by the manufacturer to avoid deep discharging.
Press Start/Enter for more than 3 seconds to start
discharging.
discharge
current
Discharging of lithium battery
This screen shows the real-time status charging. Press Batt
Type/Stop key once to stop the charge process.
This shows the real-time status of discharging, you can press
Batt Type/Stop key to stop discharging.
'> 3 seconds '
'> 3 seconds '
· 19
