Skytron ELITE 3000 User manual

ELITE SERIES SURGICALTABLES
MODEL ELITE 3000
OPERATORS MANUAL
REV 3-06

Page 1
TABLE OF CONTENTS
TITLE PAGE
REV 3/06
Although current at time of publication, SKYTRON's policy of continuous development makes this manual
subject to change without notice.
EQUIPMENT LABELS AND SPECIFICATONS ................................................................................... 2
3000 Series Imaging Table Specifications ............................................................................................. 3
SPECIAL USER ATTENTION .............................................................................................................. 4
SECTION I INTRODUCTION ............................................................................................................... 6
1-1. General....................................................................................................................................... 6
1-2. Power Requirements.................................................................................................................. 6
1-3. Pendant Control Unit .................................................................................................................. 7
1-4. Floor Lock/Brake System........................................................................................................... 7
SECTION II OPERATION.................................................................................................................... 8
2-1. Electrical Power ......................................................................................................................... 8
2-2. Positioning Functions ................................................................................................................. 8
a. Floor Lock/Brake system ..................................................................................................... 8
b. Trendelenburg....................................................................................................................... 9
c. LateralTilt ............................................................................................................................. 9
d. Elevation ............................................................................................................................... 9
e. Return To Level ....................................................................................................................10
2-3. Emergency Brake Release ........................................................................................................10
2-4. Positioning..................................................................................................................................11
SECTION III MAINTENANCE ...............................................................................................................12
3-1. Preventive Maintenance.............................................................................................................12
3-2 Cleaning Recommendations ......................................................................................................12
3-3. Service .......................................................................................................................................13

Page 2
INDICATES DANGEROUS VOLTAGE, 120 V, 60 Hz
FUSE TYPE 10 AMP, FAST ACTING (FA)
CLASS I DEFIBRILLATION PROOF, TYPE B EQUIPMENT- IPX4 RATED.
INTERNALLY POWERED EQUIPMENT
PROTECTIVE GROUNDING.
IN ORDER TO ENSURE PROPER GROUNDING RELIABILITY,
THIS TABLE MUST BE CONNECTED TO A PROPERLY GROUNDED
HOSPITAL GRADE OUTLET.
CONNECTION FOR NEUTRAL CONDUCTOR SUPPLIED
UNIT TO BE USED ONLY IN SPECIFIED ENVIRONMENTAL CONDITIONS
IPX4
V
TEMPERATURE: 15˚ - 30˚ C (60˚ -85˚ F)
ENCLOSURE CLASS
VOLTAGE RATING OF THE UNIT
A
AMPERAGE RATING OF THE UNIT
HZ
FREQUENCY OF THE UNIT
ATTENTION, CONSULT MANUAL FOR FURTHER INSTRUCTIONS.
INDICATES SPECIAL USER ATTENTION.
POWERED BY AC VOLTAGE
AC VOLTAGE
HUMIDITY: 30% - 60% RELATIVE HUMIDITY, NON CONDENSING
TYPE B
EQUIPMENT
N
EQUIPMENT LABELS AND SPECIFICATIONS
10A

Page 3
3000 Series Imaging Table Specifications
TOPVIEW
Electrical Specifications
Power requirements
Current Leakage
Power Cord
120 VAC, 60Hz, 450 Watts
Less than 100 micro amps
15 feet w/hospital grade connector
ENTELA CERTIFIED
TO UL2601-1,
CAN/CSA601.1, IEC 60601-2-46
82.5" 65"
19.7"
39" MAX
28" MIN
40.5" 19"
8.25"
SIDEVIEW END VIEW
5.75"

Page 4
Do not place objects on the base of the table, a
danger of damage exists during positioning.
Use caution when articulating the table top, pinch
hazards exist.
WARNING
Risk of electrical shock. Make sure
power cord is disconnected prior to
accessing fuses.
NOTE
Activating any function button will acti-
vate the brake system. Using the
TABLE UP function to set the brakes
provides a visual assurance that the
brakes are locked without altering the
tableposition,exceptwhenemergency
brake is released.
WARNING
DO NOT use the table in the presence
of FLAMMABLE GASES (Flammable
gases are not commonly used in the
U.S.).
Do not use worn or damaged accessories, they
represent an injury hazard.
Remove possible obstacles before lowering or
tiltingthe operatingtable
Priortouse,allpersonnelthatmayoperatethis
table must be instructed in the correct opera-
tional procedures. This table is designed for
use by trained and qualified personnel for hu-
man medical purposes only.
Initialuseshouldnotbeginuntilaftertheusers
have been instructed by the manufacturer's
representative.
A routine instructional program must be imple-
mented by the facility for proper usage instruc-
tionsforallpersonnelthatmayoperatethistable.
Certainaccessories canbedamagedwhenchang-
ingthepositionofthetabletop. Alwayslookfirstto
seeifadesiredmovementisgoingtointerferewith
any accessories in use.
The operator has the ultimate responsibility of
preventing damage to the table and surrounding
equipment or possible injury to the patient or staff.
In general, common sense will dictate when there
is a potential hazard.
During table set-up and patient positioning, the
following items should be observed.
The table top is constructed of a radioluscent
composite material. Use caution when using ac-
cessories to protect the table top from damage
includingnicksorscratchestomaintainclearimag-
ing capability.
The 500 pound lift and articulate capacity is
based on the patient weight load being evenly
distributed on the table top. Refer to figures 3-1,
3-2 and 3-3 for proper patient positioning.
SPECIAL USER ATTENTION
WARNING
Indicates a possibility of personal injury.
CAUTION
Indicates a possibility of damage to
equipment.
NOTE
Indicatesimportantfactsorhelpfulhints.
The following precautions should be reviewed
by all personnel prior to operating the table.

Page 5
CAUTION

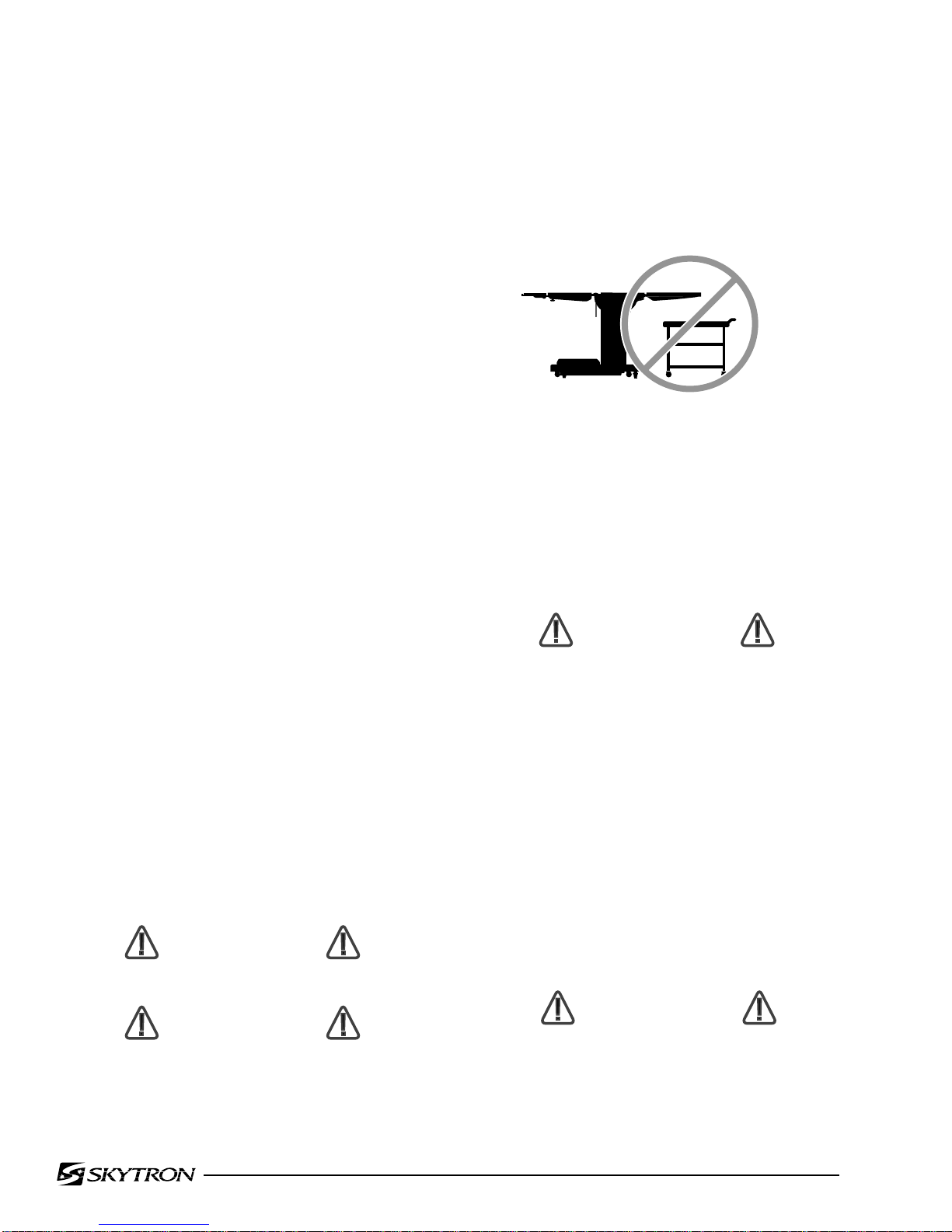

MAXIMUM ENDLOAD180POUNDS.
During transfer, DO NOT seat the pa-
tientatthedistalendofthetable. Table
stability may be compromised.
LithotomypositioningisNOTADVISED
for the 3000 series tables.
NOTE
Always follow current AORN Journal
Guidelines to ensure proper cleaning
and disinfection procedure.
WARNING
AlwaysfollowOSHAblood-bornepatho-
gens standards for protective clothing,
including gloves, masks and eye pro-
tectionwhencleaningthesurgicaltable.
CAUTION
Thoroughly read and follow the
manufacturer's directions for all clean-
ing fluids. DO NOT use cleaners con-
tainingphenolics.
CAUTION
When using spray cleaners DO NOT
spray fluids directly into electrical re-
ceptacles or micro switches.
CAUTION
Beforereplacingpadsonthetable,make
sure the pads and all mating surfaces
are completely dry. Moisture trapped
betweenthe padsandmating surfaces
may cause distortion of table tops.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
WARNING
To maximize patient safety, utilize
properrestraintmethodsduringextreme
Trendelenburg and lateral tilt position-
ing.
NOTE
•The Emergency Brake Release Valve
must be closed and tightened (clock-
wise) before activating any hydraulic
function.
•IftheEmergencyBrakeReleaseValve
has been operated, the BRAKE UN-
LOCKbuttononthependantcontrolwill
have to be pressed before brakes will
lock again.
WARNING
Consult manufacturer's instructions
when using high frequency surgical
equipment,cardiacdefibrillatorandcar-
diac defibrillator monitors.
WARNING
Whenanantistaticpathwayisrequired,
thetablehastobeusedonanantistatic
floor
WARNING
Theantistaticpropertiesofthetableare
dependentontheuseoftheoriginalpad
set which was furnished with the table
or an alternate approved replacement.

Page 6
SECTION I INTRODUCTION
1-1. General
SKYTRON’s Elite 3000 Series Imaging Tables are
electro-hydraulically operated. See figure 1-1.
The electro-hydraulic positioning functions oper-
ated by the hand-held, pendant control unit are:
Trendelenburg,lateraltilt,elevation,returntolevel,
and the floor lock/brake system.
A manual control is provided for emergency brake
release.
1-2. Power Requirements
TheElite3000SurgicalTablerequiresa120VAC,
60Hzelectricalpowersupply. Thetableisequipped
witha15footlongpowercordwithastandardthree
prong, hospital grade plug. The electrical protec-
tionfuses(2)arelocatedbehindacoverplateinthe
electrical enclosure on the front edge of the base.
Seefigure1-2. ThemainpowerON/OFFswitchis
located on the electrical enclosure.
Figure 1-1. Elite 3000
WARNING
Risk of electrical shock. Make sure
power cord is disconnected prior to
accessing fuses.

Page 7
1-4. Floor Lock/Brake System
The floor lock/brake system consists of four self-
leveling,hydraulic brakecylinders whichraise and
support the table base off from the casters. Press
theELEVATION-UPbuttononthependantcontrol
tosetthe table’s brakes. Anelectronictimer in the
brakecircuitwillactivatethebrakesystemuntilthe
brakes are completely set, approximately 8-10
seconds.
NOTE
Activating any function button will acti-
vate the brake system. Using the
TABLE UP function to set the brakes
provides a visual assurance that the
brakes are locked without altering the
tableposition,exceptwhenemergency
brake is released.
To unlock the brakes, press the BRAKE UNLOCK
button and release. The brakes will retract auto-
matically in approximately 7-8 seconds.
ELITE / 3000
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
*
PRESSTO
LOCK BRAKES
RETURN
ELEVATION
LATERAL TILT
TRENDELENBURG
POWER
BRAKE
UNLOCK
ELITE / 3000
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
*
PRESSTO
LOCK BRAKES
RETURN
ELEVATION
LATERAL TILT
TRENDELENBURG
POWER
BRAKE
UNLOCK
SPRING
CLIP
HANGER POWER
INDICATOR
FUNCTION
BUTTONS
ELITE / 3000
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
*PRESSTO
LOCK BRAKES
RETURN
ELEVATION
LATERALTILT
TRENDELENBURG
POWER
BRAKE
UNLOCK
TRENDELENBURG
LATERALTILT
POWER
INDICATOR
TABLE UP
(BRAKE LOCK)
RETURN
TO LEVEL
TABLE DOWN
BRAKE UNLOCK
Figure 1-2. Power Switch and Fuse Location
1-3. Pendant Control Unit
Thehand-heldpendantcontrolunit(figure1-3)has
a non-slip rubber cover which assures a positive
gripduringuse. Aspringcliphangerlocatedonthe
backofthecontrolallowsittobestoredonthetable
bracket.
(2) FUSES
10 Amp FA
MAIN POWER
SWITCH
POWER
CORD
ELECTRICAL
ENCLOSURE
COVER
PLATE
Figure 1-3. Pendant Control Unit
The function buttons are identified with symbols
and descriptions for all functions. See figure 1-4.
The Trendelenburg and table-up buttons are red,
the remaining buttons are all green. Figure 1-4. Function Push Buttons

Page 8
Figure 2-3. Brake System Activation
ELITE / 3000
ELEVATION
LATERAL TILT
TRENDELENBURG
POWER
ELEVATION
UP
POWER
CORD
MAIN
POWER
SWITCH
SECTION II OPERATION
2-1. Electrical Power
a. Check to be sure the power cord is plugged
into 120VAC outlet.
WARNING
Prior to operating the table, observe all
table caution labels and review the
SPECIAL USER ATTENTION section
in the front of this manual.
WARNING
DO NOT use the table in the presence
of FLAMMABLE GASES (Flammable
gases are not commonly used in the
U.S.)
b. Depress Main Power ON/OFF switch on the
electrical enclosure. See figure 2-1. The green
PowerONindicatorlightonthependantcontrolunit
should now be illuminated. Figure 2-2. Pendant Control Unit
a. FloorLock/BrakeSystem. Toactivatethe
brakes without affecting table positioning, press
theELEVATION-UPbutton. See figure 2-3. The
elevationcylinderwillnotfunctionuntilthebrakes
are completely extended.
2-2. Positioning Functions
The hand-held pendant control unit (figure 2-2)
activates the following table functions:
Figure 2-1. Main Power Switch
ELITE / 3000
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
*
PRESS TO
LOCK BRAKES
RETURN
ELEVATION
LATERAL TILT
TRENDELENBURG
POWER
BRAKE
UNLOCK
TRENDELENBURG
LATERALTILT
POWER
INDICATOR
TABLE UP
(BRAKE LOCK)
RETURN
TO LEVEL
TABLE DOWN
BRAKE UNLOCK

Page 9
PresstheBRAKE-UNLOCKbuttononthependant
controltoreleasethefourself-levelingbrakefeetin
ordertomovethetable. Seefigure2-3. Thebrake
delay circuit automatically retracts the brake sys-
tem with just one press of the BRAKE-UNLOCK
button. It takes approximately 7-8 seconds to
totally release the system.
WARNING
DO NOT unlock brakes wh
en a patient is on the table. An uneven
patientweight loadmaycause instabil-
ity.
b. Trendelenburg. To achieve Trendelenburg
positioning, press the appropriate
TRENDELENBURG button (figure 2-4). Trende-
lenburg positioning of up to 20° may be obtained.
WARNING
To maximize patient safety, utilize
properrestraintmethodsduringextreme
Trendelenburg and lateral tilt position-
ing.
20˚
20˚
ELITE / 3000
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
*
PRESS TO
LOCK BRAKES
RETURN
ELEVATION
LATERALTILT
TRENDELENBURG
POWER
BRAKE
UNLOCK
TRENDELENBURG
Figure 2-4. Trendelenburg Positioning
c. Lateral Tilt. To achieve lateral tilt right
positioning, press the appropriate LATERAL-TILT
button(figure2-5). Tiltofupto20°maybeobtained.
Figure 2-5. Lateral Tilt Positioning
20˚ 20˚
ELITE / 3000
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
*PRESSTO
LOCK BRAKES
RETURN
ELEVATION
LATERALTILT
TRENDELENBURG
POWER
BRAKE
UNLOCK
LATERALTILT
d. Elevation. To raise table top, press the UP
button(figure2-6.). Thetablewillliftapatientweight
of 500 pounds up to a maximum height of 39". To
lower the table top, press the DOWN button. The
table top will go down to a minimum height of 28"
(minus pad).
ELITE / 3000
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
*
PRESS TO
LOCK BRAKES
RETURN
ELEVATION
LATERALTILT
TRENDELENBURG
POWER
BRAKE
UNLOCK
TABLE UP TABLE DOWN
28" 39"
Figure 2-6. Elevation Function

Page 10
NOTE
•The Emergency Brake Release Valve
must be closed and tightened (clock-
wise) before activating any hydraulic
function.
•IftheEmergencyBrakeReleaseValve
has been operated, the BRAKE UN-
LOCKbuttononthependantcontrolwill
have to be pressed before brakes will
lock again.
WARNING
Consult manufacturer's instructions
when using high frequency surgical
equipment,cardiacdefibrillatorandcar-
diac defibrillator monitors.
WARNING
Whenanantistaticpathwayisrequired,
thetablehastobeusedonanantistatic
floor.
WARNING
Theantistaticpropertiesofthetableare
dependentontheuseoftheoriginalpad
set which was furnished with the table
or an alternate approved replacement.
e. ReturnToLevel. Toreturnthetabletoptoalevel
position, press the RETURN button (figure 2-7).
CAUTION
HANG PENDANT CONTROL
ON SIDE RAIL WHEN NOT IN
USE. KEEP CORD CLEAR OF
MOVING PARTS.
ELITE / 3000
*PRESSTO
LOCK BRAKES
RETURN
ELEVATION
LATERALTILT
TRENDELENBURG
POWER
BRAKE
UNLOCK
RETURN
TO LEVEL
EMERGENCY
BRAKE RELEASE
BRAKE (4)
Figure 2-7. Return To Level
2-3. Emergency Brake Release
In case of a power failure or an electrical problem
within the table, the emergency brake release
systemcanbeusedtomovethetable. Thecontrol
lever for this function is located on the side of the
table base and is identified by an EMERGENCY
BRAKE RELEASE label. Turn the lever counter-
clockwise to release the brakes. See figure 2-8.
Figure 2-8. Emergency Brake Release

Page 11
2-4. Positioning
During table set-up and patient positioning, the
following items should be observed.
The table top is constructed of a radioluscent
composite material. Use caution when using ac-
cessories to protect the table top from damage
includingnicksorscratchestomaintainclearimag-
ing capability.
The 500 pound lift and articulate capacity is
based on the patient weight load being evenly
distributed on the table top and the patient's head
over the elevation column. The weight capacity
with the patient's head away from the elevation
column is 400 pounds. Refer to figures 3-1,
3-2 and 3-3 for proper patient positioning.
CAUTION
MAXIMUM ENDLOAD180POUNDS.
During transfer, DO NOT seat the pa-
tientatthedistalendofthetable. Table
stability may be compromised.
LithotomypositioningisNOTADVISED
for the 3000 series tables.
Figure 3-1.
Figure 3-2.
Figure 3-3.
STANDARD
ARMBOARD (2)
RESTRAINT
STRAP
6" ACCESSORY
RAIL CLAMP
ELEVATION
COLUMN
400 POUND CAPACITY
RESTRAINT
STRAP
DUAL
CARBON FIBER
ARMBOARD
6" ACCESSORY
RAIL CLAMP ELEVATION
COLUMN
400 POUND CAPACITY
RESTRAINT
STRAP
SINGLE
CARBON FIBER
ARMBOARD (2)
6" ACCESSORY
RAIL CLAMP
ELEVATION
COLUMN
500 POUND CAPACITY

Page 12
3-2. Cleaning Recommendations
NOTE
Always follow current AORN Journal
Guidelines to ensure proper cleaning
and disinfection procedure.
Thefollowingproceduresshouldbefollowedwhen
cleaning the surgical table between cases.
Place table top in level position prior to starting
cleaning procedure.
WARNING
AlwaysfollowOSHAblood-bornepatho-
gens standards for protective clothing,
including gloves, masks and eye pro-
tectionwhencleaningthesurgicaltable.
Remove major contaminants from the table with
disposablematerialsfollowingappropriatebiohaz-
ard waste disposal procedures.
Remove all table pads and place them on a flat
surface for cleaning.
CAUTION
Thoroughly read and follow the
manufacturer's directions for all clean-
ing fluids. DO NOT use cleaners con-
tainingphenolics.
Apply cleaning fluid liberally to top and sides of
each pad and wipe with a clean lint-free cloth.
Using a clean, damp, lint-free cloth, wipe the pads
to remove the cleaning fluid.
Using a clean, dry, lint-free cloth, wipe the pads to
remove all moisture.
Repeat the steps to clean the bottom of the each
pad.
3-1. Preventive Maintenance
Thefollowing preventivemaintenancechecksand
services are recommended to ensure the service-
ability and proper operation of your SKYTRON
Surgical Table.
a. During normal cleaning, a general visual ex-
amination should be made checking for leaks,
loose bolts or parts and cracked or chipped paint.
Any necessary repairs should be made.
b. Semi-annuallythefollowing checks and ser-
vices should be performed:
1. Check all hydraulic fittings, mini-valves
and slave cylinders for proper operation
and any signs of leaks.
2. Check the hydraulic speed controls and
adjust if necessary.
3. Pressure check (with a gauge) the pres-
sure relief valve.
4. Check all mechanical adjustments and
adjust as necessary.
5. Check hydraulic fluid level.
6. Lubricate the elevation slider assembly.
7. Inspect table top for nicks, scratches or
dents.
SECTION III MAINTENANCE

Page 13
CAUTION
When using spray cleaners DO NOT
spray fluids directly into electrical re-
ceptacles or micro switches.
Repeat cleaning procedure for all table surfaces
includingthetop,sides,elevationcolumn,baseand
all accessories.
CAUTION
Beforereplacingpadsonthetable,make
sure the pads and all mating surfaces
are completely dry. Moisture trapped
between the pads and mating surfaces
may cause distortion of table tops.
Whenthecleaning procedure iscomplete,replace
all pads and accessories as applicable.
Remove pendant control from table bracket and
apply cleaning solution to the pendant control and
cord.
Use a clean cloth dampened with water to remove
cleaningsolution.
Use another clean damp cloth to remove any re-
mainingresidue.
Installpendantcontrolonbracketforstoragewhen
cleaning procedure is complete.
3-3. Service
Table maintenance can be performed by trained
maintenance personnel using SKYTRON autho-
rized replacement parts and service techniques.
Service instructions and parts are available from
SKYTRON.
To obtain service instructions, replacement parts,
factory service or preventive maintenance con-
tracts,contacttheSKYTRONrepresentativelisted
below.
Or contact:
SKYTRON
5000 - 36th Street S.E.
Grand Rapids, MI 49512
1-800-SKYTRON (1-800-759-8766)
FAX: [phone]

500036thStreetS.E.,GrandRapids,MI 49512
1-800-SKYTRONor1-616-957-0500 • FAX[phone]

Page 37
ELITE SERIES SURGICAL TABLES
MAINTENANCE MANUAL
MODEL ELITE 3000 and 3001

Page 31
Table of Contents
SECTION I HYDRAULIC SYSTEM......................................................................................................... 1
1-1. General ......................................................................................................................................... 1
1-2. Component Operation .................................................................................................................. 2
a. Motor/Pump Operation ............................................................................................................. 2
b. Pressure Relief Valve............................................................................................................... 2
c. Mini-Valves ............................................................................................................................... 3
d. Mini-Valve in Neutral Position .................................................................................................. 3
e. Mini-Valve Right Port Activated................................................................................................ 4
f. Mini-Valve Left Port Activated .................................................................................................. 4
g. Hydraulic Cylinders (Slave Cylinders) ...................................................................................... 5
h. Elevation Cylinder Return Circuit ............................................................................................. 7
i. Brake System........................................................................................................................... 7
j. Emergency Brake Release ...................................................................................................... 8
1-3. Hydraulic Adjustments .................................................................................................................. 8
a. Fluid Level ................................................................................................................................ 8
b. Bleeding The Hydraulic System ............................................................................................... 8
c. Pressure Relief Valve............................................................................................................... 9
d. Speed Controls......................................................................................................................... 9
SECTION II MECHANICAL TABLE ADJUSTMENTS .......................................................................... 10
2-1. Elevation Column Adjustment..................................................................................................... 10
SECTION III HYDRAULIC TROUBLESHOOTING............................................................................... 11
3-1. Precautions................................................................................................................................. 11
3-2. Troubleshooting Notes................................................................................................................ 11
3-3. ELEVATION DIAGNOSIS CHART ............................................................................................. 12
3-4. TRENDELENBURG DIAGNOSIS CHART ................................................................................. 13
3-5. LATERAL - TILT DIAGNOSIS CHART....................................................................................... 14
3-6. LATERAL SLIDE DIAGNOSIS CHART....................................................................................... 15
3-7. LONGITUDINAL SLIDE DIAGNOSIS CHART ............................................................................ 16
3-8. BRAKE CIRCUIT DIAGNOSIS CHART...................................................................................... 17
3-11. Flexible Hose Identification and Placement................................................................................ 18
This manual covers the Model 3000 and Model 3001. All reference to top slide pertains to Model 3001 only.
Although current at time of publication, SKYTRON's policy of continuous development makes this manual
subject to change without notice.
7/03

Page 32
Table of Contents (continued)
SECTION IV ELECTRICAL SYSTEM................................................................................................... 20
4-1. General ....................................................................................................................................... 20
4-2. Components ............................................................................................................................... 20
SECTION V ELECTRICAL SYSTEM TROUBLESHOOTING ............................................................. 21
5-1. Troubleshooting Notes................................................................................................................ 21
5-2. Main Switch................................................................................................................................. 21
5-3. Pendant Control.......................................................................................................................... 22
5-4. Relay Box.................................................................................................................................... 23
5-5. Solenoids .................................................................................................................................... 24
5-6. Motor/Pump Assembly................................................................................................................ 26
5-7. Return-to-Level Micro-Switches.................................................................................................. 27
5-8. Troubleshooting .......................................................................................................................... 28
SECTION VI ELECTRICAL SYSTEM ADJUSTMENTS ....................................................................... 29
6-1. Relay Box Adjustments............................................................................................................... 29
WARNING
Indicatesa possibilityof personalinjury.
CAUTION
Indicates a possibility of damage to
equipment.
NOTE
Indicatesimportantfactsorhelpfulhints.

Page 33
BASIC RECOMMENDED TOOLS:
1/8". 1/4" STRAIGHT BLADE SCREWDRIVERS
#2 PHILLIPS SCREWDRIVER
HYDRAULIC PRESSURE GAUGE SKYTRON P.N. 6-050-02
METRIC ALLEN® WRENCHES 1.5mm-8mm
ADJUSTABLE CRESCENT WRENCH
DIGITAL VOLTMETER, TRUE RMS
METRIC OPEN END WRENCHES 7mm-18mm
LEVEL (CARPENTERS)
BASIC RECOMMENDED MAINTENANCE PROCEDURES
The basic items noted below should be inspected at a minimal interval period of 6 months (dependant on
usage). For optimal usage, safety and longevity of the product, have it serviced only by an authorized
Skytron representative with authentic Skytron replacement parts.
• Check Power Cord (if applicable)
• Check Pendant Control (if applicable)
• Check Auxiliary Control Devices (if applicable)
• Check Oil Level in Reservoir
• Check For Hydraulic Leaks
• Check Pressure Relief Valve Setting
• Check All Table Functions
• Check Side Rails
• Check Velcro
• Lubricate Elevation Slider Assembly with SKYTRON Slider Grease P/N D6-010-89
• Lubricate Castors
• Check brake pads for wear and inspect brake cylinders for proper operation.
• Check Carbon Fiber Top for Damage
Only facility-authorized SKYTRON trained, maintenance personnel should troubleshoot the
SKYTRON Surgical Table. Trouble shooting by unauthorized personnel could result in
personal injury or equipment damage.
How to contact us:
Skytron
5000 36th St. SE, Grand Rapids, MI 49512
PH: 1-800-759-8766 (SKY-TRON)
FAX: [phone]

Page 34
INDICATES DANGEROUS VOLTAGE, 120 V, 60 Hz
CLASS I DEFIBRILLATION PROOF, TYPE B EQUIPMENT- IPX4 RATED.
INTERNALLY POWERED EQUIPMENT
PROTECTIVE GROUNDING.
IN ORDER TO ENSURE PROPER GROUNDING RELIABILITY,
THIS TABLE MUST BE CONNECTED TO A PROPERLY GROUNDED
HOSPITAL GRADE OUTLET.
CONNECTION FOR NEUTRAL CONDUCTOR SUPPLIED
UNIT TO BE USED ONLY IN SPECIFIED ENVIRONMENTAL CONDITIONS
IPX4
V
TEMPERATURE: 15˚ - 30˚ C (60˚ -85˚ F)
ENCLOSURE CLASS
VOLTAGE RATING OF THE UNIT
A
AMPERAGE RATING OF THE UNIT
HZ
FREQUENCY OF THE UNIT
ATTENTION, CONSULT MANUAL FOR FURTHER INSTRUCTIONS.
INDICATES SPECIAL USER ATTENTION.
POWERED BY AC VOLTAGE
AC VOLTAGE
HUMIDITY: 30% - 60% RELATIVE HUMIDITY, NON CONDENSING
TYPE B
EQUIPMENT
N
EQUIPMENT LABELS AND SPECIFICATIONS
ENTELA CERTIFIED
TO UL2601-1
CAN/CSA601.1, IEC 60601-2-46
