SMART Board 600i3 User manual

Configuration and User’s Guide
SMART Board™ 600i3
Interactive Whiteboard System

FCC Warning
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the manufacturer’s instructions, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his
own expense.
Trademark Notice
SMART Board, GoWire, smarttech and the SMART logo are trademarks or registered trademarks of SMART Technologies ULC in the U.S.
and/or other countries. Bluetooth is a trademark owned by Bluetooth SIG, Inc. and is used by SMART Technologies ULC under license. All
other third-party product and company names may be the trademarks of their respective owners.
Copyright Notice
© 2008-2009 SMART Technologies ULC. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed,
stored in a retrieval system or translated into any language in any form by any means without the prior written consent of SMART
Technologies ULC. Information in this manual is subject to change without notice and does not represent a commitment on the part
of SMART.
Patent No. US6320597; US6326954; US6540366; US6741267; US7151533; US7184030; US7289113; and CA2058219. Other patents pending.
Printed in USA. 03/2009.
If you register your SMART product, we’ll notify you of new features and
software upgrades.
Register online at www.smarttech.com/registration.
Keep the following information available, in case you need to contact
Technical Support:
Serial Number
Serial Number
Date of Purchase
Registration Benefits

99-00915-20 B0 Important Information i
Important Information
Read This Section First
NOTE: If you own a SMART product other than a SMART Board™ 600i3 interactive whiteboard system, refer to
the installation guide that came with your product for relevant warnings and maintenance instructions.
In this document, “SMART Board 600i3 interactive whiteboard system” refers to the SMART Board 600 series
interactive whiteboard and its UF55/UF55w projector, accessories and optional equipment. Before you install and
use the SMART Board 600i3 interactive whiteboard system, read and understand the safety warnings and
precautions in this user’s guide, the projector user’s guide and the warnings document. These safety warnings
and precautions describe the safe and correct operation of the interactive whiteboard system and its
accessories, helping you prevent injuries and equipment damage. You must always ensure that the interactive
whiteboard system is being used correctly.
The UF55/UF55w projector included with your system is designed to work only with certain SMART Board
interactive whiteboard models. Contact your authorized SMART reseller for more information.

ii Important Information 99-00915-20 B0
Safety Warnings
WARNING • If the projector is mounted on the projector’s arm, the manufacturer recommends contacting
your authorized SMART reseller to exchange the lamp.
• Uncovering the lamp while the projector is mounted on a projector’s arm might lead to
product damage or personal injury from falling pieces of glass if the lamp is broken.
• Remove the projector from the projector’s arm before servicing the lamp. Complete the
procedure described in this document before following the instructions included in your
replacement lamp box.
• Avoid turning off the projector during the lamp ignition phase as this may lead to premature
lamp failure. Before turning the projector off, keep the lamp on for a minimum of 15 minutes
after turning it on to preserve the lamp life.
• This projector detects its own remaining lamp life. Replace the lamp when lamp life warning
messages appears.
• When the lamp is approaching the end of its life, the message “Lamp is approaching the end
of its useful life in full power operation” appears on the screen. Contact your
authorized SMART reseller or service center to change the lamp as soon as possible.
• Refer to the safety warnings and precautions published by the projector manufacturer.
• Never replace the lamp assembly with a previously-used lamp assembly.
• To prevent premature lamp failure or exposure to mercury, always handle the fragile lamp
assembly with care. Use gloves when touching the lamp. Do not touch the lamp with
your fingers.
• Do not attempt to service the projector other than performing routine lamp replacement.
Service should be performed only by an authorized service provider. Other than the lamp
module, there are no user-serviceable parts inside the unit.
• Replacing the lamp in a boom-mounted projector might result in a fall or injury.
• Do not remove any screws other than those specified in the lamp replacement instructions.
• The lamp used in the UF55/UF55w projector contains mercury. Recycle or dispose of it as
hazardous waste, in accordance with local regulations.
• If you continue to use the projector after the replacement message appears, the lamp might
shatter or burst, scattering glass throughout the projector head.
• If the lamp has shattered or burst, do not touch the glass fragments because they might
cause injury. Leave and then ventilate the area where the lamp shattered or burst. Wash
your hands thoroughly if you have come into contact with lamp debris. Thoroughly clean the
area around the projector, and discard any edible items placed in that area because they
might be contaminated.
• If the lamp has shattered or burst, call an authorized SMART reseller for instructions.
Do not attempt to replace the lamp.
• Wear protective eyewear while changing the lamp. Failure to do so can cause injury or loss
of eyesight if the lamp shatters or bursts.
• Cleaning a boom-mounted projector may result in a fall or injury.

WARNING • Use only replacement lamps approved by SMART Technologies. Contact your authorized
SMART reseller for replacement parts.
• Turn the projector off and wait 30 minutes for the lamp to cool completely before removing
the old lamp assembly.
• Do not stare (or allow children to stare) directly into the beam of light created by the
projector. Instruct children not to look in the direction of, or stare at, this beam of light.
Encourage users to keep their back to the projector when working at the interactive
whiteboard. Before they turn to face the audience, users should step sideways, out of the
projector’s beam.
• Do not climb (or allow children to climb) on any part of
your wall-mounted SMART Board interactive
whiteboard system.
• Do not open or disassemble the projector as this may
cause electric shock.
• Ensure that any cables extending across the floor to your
SMART product are properly bundled and marked to
prevent a trip hazard.
• To reduce the risk of fire or electric shock, do not expose
any component of your SMART Board interactive
whiteboard system to rain or moisture.
• When mounting the projector on a framed wall, you must
attach both the mounting bracket and safety tether to a
stud to safely support the projector’s weight. If you use only drywall anchors, the drywall can
fail, resulting in product damage and possible personal injury.
• If you remove the bolt supporting the limit strap, the projector’s arm will be free to swing.
Make sure that the bolt is tightened, and never remove it from the unit without supporting the
projector’s arm first.
• Two people are required to mount the projector and the interactive whiteboard on a wall
because they might be too heavy for one person to maneuver onto their
wall-mounting brackets.
• Climbing on the interactive whiteboard or projector arm could result in personal injury or
product damage. Do not climb on, hang from or suspend objects from the UF55/UF55w
projector’s arm.
• Make sure that an electrical socket is near to your SMART product and remains easily
accessible during use.
• Two people are required to re-mount the projector.
99-00915-20 B0 Important Information iii

WARNING • Failure to follow the installation instructions shipped with your SMART product could result in
personal injury and damage to the product.
CAUTION • Never operate this unit immediately after moving it from a cold location to a warm location.
When the unit is exposed to such a change in temperature, moisture may condense on the
lens and crucial internal parts. Allow the system to reach room temperature before operation
to prevent possible damage to the unit.
• In a high altitude location where the altitude is over 6000' (1828.8 m), where the air is thin,
cooling efficiency is reduced, so use the projector with the fan mode set to High.
• Do not place in hot locations, such as near heating equipment. Doing so could cause a
malfunction and shorten the life of the projector.
• Before you clean the UF55/UF55w projector, put the system into Idle mode by pressing the
power button twice on the ECP or remote, and allow the bulb to cool for 30 minutes.
• Do not allow liquids or commercial solvents of any kind to flow into the projector base or
head. Do not use spray cleaners or solvents near any part of the projector, as it may damage
or stain the unit.
• Cycling power to the projector repeatedly can lock or damage the interactive whiteboard
system. After you turn off the system, wait at least 15 minutes for cooling before starting the
system.
• Do not connect your serial cable directly to the projector’s RS-232 serial interface. The
extended control panel’s (ECP’s) RS-232 serial interface is the only recommended
connection point.
• You must connect the USB cable that came with your SMART Board interactive whiteboard
to a computer that has a USB compliant interface and that bears the USB logo. In addition,
the USB source computer must be compliant with CSA/UL/EN 60950 and bear the CE mark
and CSA and/or UL Mark(s) for CAS/UL 60950. This is for operating safety and to prevent
damage to the SMART Board interactive whiteboard.
IMPORTANT • Using the UF55/UF55w projector system near a TV or radio may cause interference to the
images or sound. If this happens, move the TV or radio away from the projector.
• Securing the pen tray can provide theft deterrence for the interactive whiteboard.
The screws that secure the interactive whiteboard to the wall are located directly behind the
pen tray. The pen tray must be removed before you can remove the interactive whiteboard.
When you secure the pen tray, you also secure the interactive whiteboard.
• The SMART Board 600i3 interactive whiteboard system does not include speakers. Consult
your authorized SMART reseller to determine your audio output options.
• If you have peripheral devices that do not use a 4-pin mini-DIN connector or an RCA
composite video jack, or if your device has an audio connection that does not use RCA
jacks, you may need to purchase third-party adapters.
• Wipe the exterior of the projector using a lint-free cloth.
iv Important Information 99-00915-20 B0

99-00915-20 B0 Important Information v
Other Precautions
To ensure operating safety and to avoid product damage, observe the following precautions.
• Turn off the product before cleaning it.
• Use a soft cloth moistened with a mild detergent to clean the projector housing.
• Do not use abrasive cleaners, waxes or solvents to clean the unit.
• Disconnect the power plug from the AC outlet if the product is not being used for a long period of time.
• Do not block the ventilation slots and openings on the unit.
• Do not place the interactive whiteboard system near any appliance that generates a strong magnetic field.
• Do not place the interactive whiteboard system in direct sunlight.
• Do not set up or use the interactive whiteboard in an area with excessive levels of dust, dirt, humidity
or smoke.
• Do not add extra weight or apply pressure to the UF55/UF55w projector boom, the wall-mounted interactive
whiteboard or its pen tray. SMART Technologies designed the brackets to support only the weight of the
components during normal use.
• To reduce the risk associated with a leaking battery in your projector’s remote control:
– use only a coin-cell type battery
– orient the battery’s plus (+) and minus (-) terminal according to the markings on the remote control
– do not leave the battery in the remote control for an extended period
– do not heat, disassemble, short or recharge the battery, or expose it to fire or high temperatures
– avoid eye and skin contact if the battery has a leak
– dispose of the exhausted battery and product components in accordance with applicable regulations
• If the interactive whiteboard system requires replacement parts, make sure that the service technician uses
replacement parts specified by SMART Technologies, or parts with the same characteristics as the original.
Transporting the SMART Board 600i3 Interactive Whiteboard System
If you need to ship any part of your SMART Board 600i3 interactive whiteboard system, repack it with the original
packaging. If the original packaging is no longer available, you may purchase replacement packaging from your
authorized SMART reseller.
If you prefer to use your own packaging materials, make sure that you adequately protect the unit. Ship the
interactive whiteboard in an upright position to deter shippers from placing heavy objects on it.

vi Important Information 99-00915-20 B0

99-00915-20 A0 Table of Contents vii
Table of Contents
Important Information i
Read This Section First................................................................................................................................... i
Safety Warnings............................................................................................................................................. ii
Other Precautions .......................................................................................................................................... v
Transporting the SMART Board 600i3 Interactive Whiteboard System ......................................................... v
Table of Contents vii
About Your SMART Board 600i3 Interactive Whiteboard System 1
SMART Board 600i3 Interactive Whiteboard System Features ..................................................................... 2
Standard Accessories .................................................................................................................................... 4
Optional Accessories ..................................................................................................................................... 4
Installing Your SMART Board 600i3 Interactive Whiteboard System 7
Environmental Requirements......................................................................................................................... 8
Before Installing Your SMART Board 600i3 Interactive Whiteboard System ................................................. 9
After Installing Your SMART Board 600i3 Interactive Whiteboard System .................................................. 10
Focusing the Image...................................................................................................................................... 11
Performing an Image Alignment................................................................................................................... 12
Securing the Pen Tray and the Interactive Whiteboard ............................................................................... 16
Connecting Your SMART Board 600i3 Interactive Whiteboard System 19
Installing SMART Notebook Software .......................................................................................................... 19
Connecting the Cables to the UF55/UF55w Projector ................................................................................. 20
Using Your SMART Board 600i3 Interactive Whiteboard System 27
Turning the System On and Off and Selecting an Input............................................................................... 27
Using Your Interactive Whiteboard............................................................................................................... 28
Using Your UF55/UF55w Projector .............................................................................................................. 28
Troubleshooting Your SMART Board 600i3 Interactive Whiteboard System 33
System Warning Lights ................................................................................................................................ 33
Errors ........................................................................................................................................................... 34
Interactive Whiteboard Indicators and Controls ........................................................................................... 36
Maintaining Your SMART Board 600i3 Interactive Whiteboard System 37
Preventing Damage to Your Interactive Whiteboard .................................................................................... 37
Cleaning Your Interactive Whiteboard.......................................................................................................... 37
Cleaning the Pen Tray ................................................................................................................................. 38
Cleaning the UF55/UF55w Projector ...........................................................................................................39
Locating Your Projector Serial Number ........................................................................................................ 40
Appendix A: Replacing Your UF55/UF55w Projector Lamp 41
Replacing the Projector Lamp...................................................................................................................... 41

viii Table of Contents 99-00915-20 A0
Appendix B: Remotely Managing Your SMART Board 600i3 Interactive Whiteboard System 51
Programming Commands for Your SMART Board 600i3 Interactive Whiteboard System Settings.............51
Command Inventory.....................................................................................................................................54
Hardware Environmental Compliance 63
Waste Electrical and Electronic Equipment Regulations (WEEE Directive).................................................63
Restriction of Certain Chemicals (REACH Directive) ................................................................................... 63
Restriction of Certain Hazardous Substances (RoHS) Directives................................................................63
Batteries .......................................................................................................................................................63
Packaging ....................................................................................................................................................63
China’s Electronic Information Products Regulations ..................................................................................64
U.S. Consumer Product Safety Improvement Act........................................................................................64
Customer Support 65
Online Information and Support ................................................................................................................... 65
Training ........................................................................................................................................................65
Technical Support.........................................................................................................................................65
Shipping and Repair Status..........................................................................................................................65
General Inquiries.......................................................................................................................................... 65
Registration ..................................................................................................................................................65
Warranty.......................................................................................................................................................66
Index 67

99-00915-20 B0 About Your SMART Board 600i3 Interactive Whiteboard System 1
About Your SMART Board 600i3 Interactive
Whiteboard System
The SMART Board 600i3 interactive whiteboard system combines the UF55/UF55w wall mounted,
short-throw projector system with a SMART Board 600 series interactive whiteboard.
Topics in this chapter describe the features and accessories that you can use with your SMART Board 600i3
interactive whiteboard system:
• SMART Board 600i3 Interactive Whiteboard System Features (page 2)
– Interactive Whiteboard Features (page 2)
– UF55/UF55w Projector System Features (page 3)
– ECP and Cable (page 3)
• Standard Accessories (page 4)
– Remote Control (page 4)
– Pen Tray Tools (page 4)
– Eraser (page 4)
• Optional Accessories (page 4)
– SMART Board Audio (SBA) USB Speakers (page 4)
– GoWire™ SMART Notebook Software Auto-launch Cable (USB-GW) (page 4)
– Active USB Extension Cables (USB-XT) (page 5)
– Wireless Bluetooth® Connection (WC6) (page 5)
– Cat 5 to USB Cable Extender (CAT5-XT) (page 5)
– Serial Conversion Module (RS-232) (page 5)

2About Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0

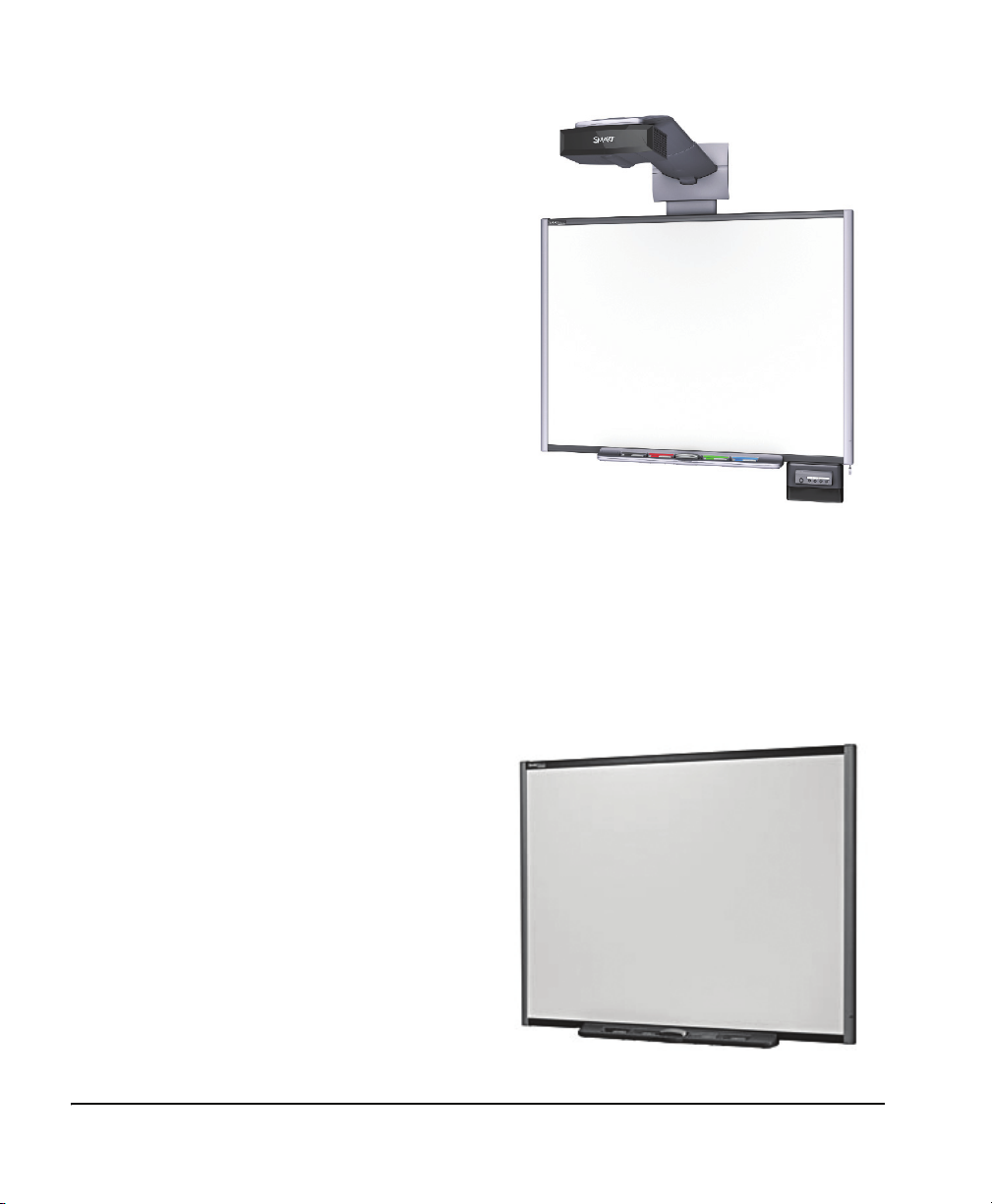

SMART Board 600i3 Interactive Whiteboard System Features
The SMART Board 600i3 interactive whiteboard system
uses the UF55/UF55w short-throw, high-offset projector.
Although the projector’s basic operation is the same as
in earlier models, SMART has made many
improvements to make the SMART Board 600i3
interactive whiteboard system easier to install, use,
service and upgrade.
When the UF55/UF55w projector displays an image from
a computer on the touch-sensitive interactive
whiteboard, you can draw over the image in digital ink
using a pen tray pen or your finger. This projector also
supports video and audio connections from a variety of
devices, including DVD players, VCRs, document
cameras and digital cameras, and can project media
from these sources onto the interactive screen.
When you use the system with a computer, you can do
everything you can do at a computer workstation—open
files, conference with others, work on documents, visit
websites, play video clips and more—simply by touching
the screen.
When you use SMART Notebook software with your 600i3 interactive whiteboard system, you can write over any
Ink Aware applications in digital ink using a pen tray pen or your finger, and then save these notes either in the
application or to a SMART Notebook file for future reference and distribution.
Interactive Whiteboard Features
The SMART Board 600 series interactive whiteboard includes many features of other SMART Board interactive
whiteboards, such as a resistive touch screen and a pen tray. The SMART Board 600 series performs best with
the UF55/UF55w projector because of its exceptional color performance and input response.
Other features of the interactive whiteboard include:
•A SMART Pen Tray that automatically detects
when you pick up a pen tray pen or the eraser
• Pen tray buttons that activate Help functions and,
when used with a computer, activate the on-screen
keyboard and right-click functions
• A durable hard-coated, tear-proof surface that is
optimized for projection and compatible with
dry-erase markers, and that cleans easily with
whiteboard cleaner
• A standard USB interface to connect the
SMART Board interactive whiteboard to the
host computer
• A security device to prevent theft of the pen tray or
the interactive whiteboard

99-00915-20 B0 About Your SMART Board 600i3 Interactive Whiteboard System 3
UF55/UF55w Projector System Features
The UF55/UF55w projector system includes a short-throw projector for use with SMART Board 600 series
interactive whiteboards, an extended control panel (ECP) and a sturdy support system for classroom
environments. The features of the projector system include:
• A wall-mounted, high-offset SBP-10X (for XGA or UF55) and SBP-20W (for WXGA or UF55w) projector
engine that uses DLP® technology by Texas Instruments®, providing Brilliant Color™ performance and
quality Gamma 2.2 correction with High Brightness, Standard and True Color modes
• Safety-oriented design that includes a boom support with a controlled-collapse feature
• PAL, PAL-N, PAL-M, SECAM, NTSC, NTSC 4.43 video system compatibility
• Composite, S-video, and VESA RGB with additional interface support for Component YPbPr and
Component YCbCr inputs with proper adapters (not included)
• WXGA, QVGA, VGA, SVGA, XGA, SXGA, SXGA+, UXGA video format compatibility
• UF55 has 1024 × 768 resolution
• UF55w has 1280 × 800 resolution
• Serial RS-232 interface on the ECP for connecting a room control system
• Self-protection timer for a hot re-strike of the projector lamp
• Protected cable routing through the projector housing and a cable cover to prevent tampering and clutter
• A secure mounting and installation system that includes:
– A projector padlock loop
– Mounting hardware for solid masonry or framed wall installations
– Templates and instructions for positioning the system in a safe manner

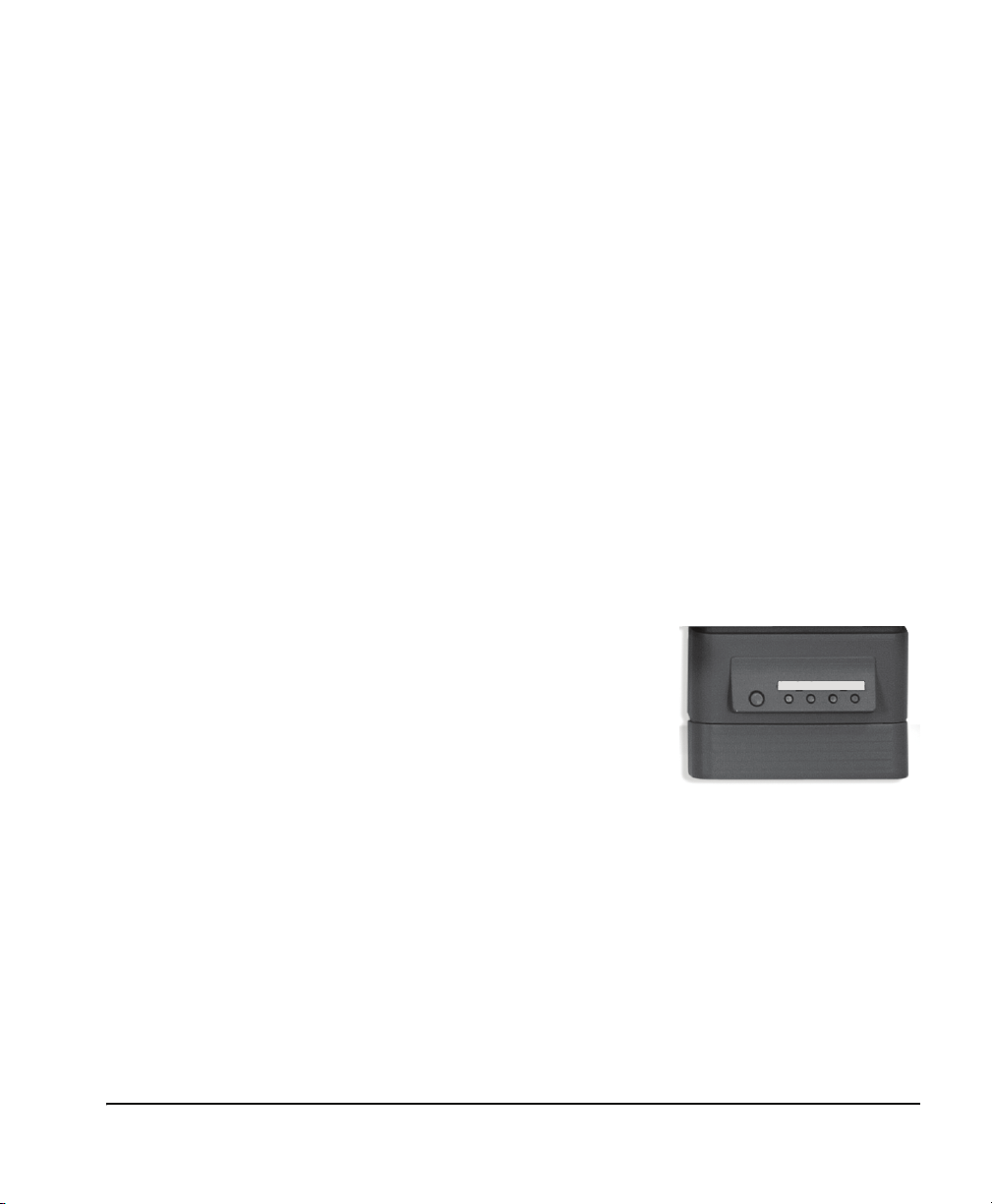

ECP and Cable
The interactive whiteboard system’s ECP features connectors for three
inputs and control for four inputs, including the direct HD-DB15 RGB
connection to the projector. Direct inputs supported include:
• A single HD-DB15 (RGB) input connector and associated audio
(3.5 mm jack) for RGB or component video and HDTV sources
(YPbPr/YCbCr with proper adaptors, not included)
• An S-video (4-pin mini-DIN) and associated audio (two RCA jacks)
• A Composite video (RCA jack) and associated audio (two RCA jacks)
A specialized harness cable provided by SMART allows output to the projector.

4About Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0

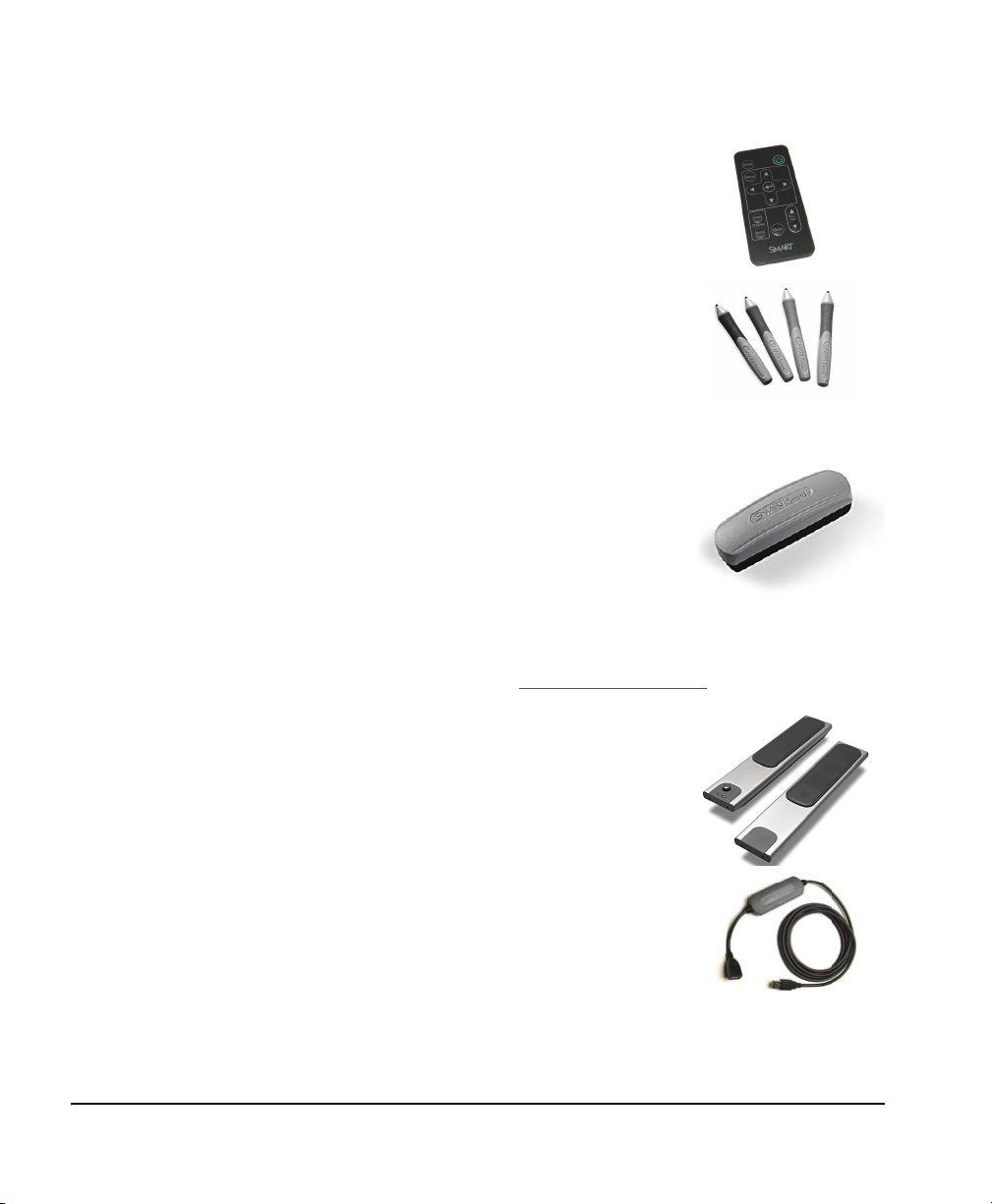

Standard Accessories
SMART provides the following accessories with your SMART Board 600i3 interactive whiteboard system.
Remote Control
The remote control lets you control the system and set up your UF55/UF55w
projector. Use the remote control to access menu options, system information
and input selection options.
Pen Tray Tools
The pen tray tools include four pens and an eraser. The pens have a rubberized
grip area, colored to match the four colors of digital ink: black, green, red and
blue. You can use dry-erase markers instead of the supplied pens, as long as
they are a similar shape, do not scratch or mark the surface of the interactive
whiteboard and reflect infrared light. If the pens you provide don’t reflect infrared
light, the pen tray sensor might not detect the presence of the pen. You can use
EXPO® markers or substitutes.
NOTE: Pens from earlier interactive whiteboards weren’t designed to reflect
infrared light, so the pen tray may not detect them reliably. You can wrap
light-colored tape around the pen to improve the reflection of infrared light and to
help with tool detection.
Eraser
The eraser resembles a rectangular chalkboard eraser. You can use a substitute
eraser provided it has a similar shape, does not scratch or mark the surface of
the interactive whiteboard and reflects infrared light.
Optional Accessories
For more information on optional accessories, contact your authorized SMART reseller.
SMART Board Audio (SBA) USB Speakers
Your interactive whiteboard system requires an audio system to deliver
presentations with sound. The SBA system consists of a pair of 15-watt,
stereo-amplified speakers with a two-port USB hub and a volume control knob.
You need an RCA plug to 3.5 mm audio jack cable long enough for your
installation conditions (not included).
GoWire SMART Notebook Software Auto-launch Cable (USB-GW)
Your GoWire cable contains SMARTNotebook software and launches it
automatically on a guest computer, providing full access to all interactive
whiteboard software tools without installing SMART Notebook software.

99-00915-20 B0 About Your SMART Board 600i3 Interactive Whiteboard System 5

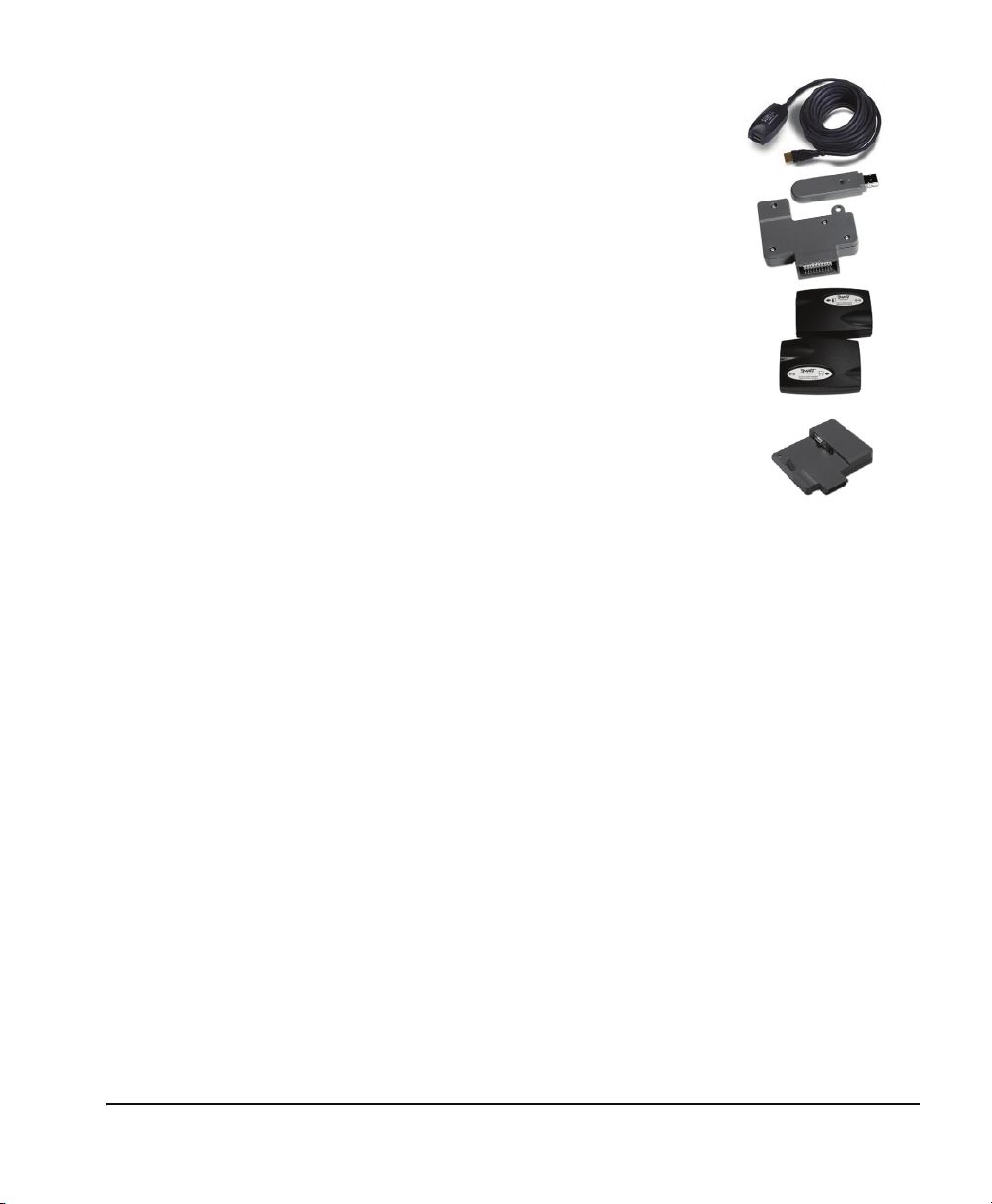

Active USB Extension Cables (USB-XT)
You can connect up to four 16' (5 m) active USB extension cables to extend your
interactive whiteboard’s USB connection to a maximum of 64' (20 m).
Wireless Bluetooth Connection (WC6)
This accessory eliminates the need for a USB cable between the computer and
your interactive whiteboard. The included 7V DC switching power supply provides
power to the module and to your interactive whiteboard.
Cat 5 to USB Cable Extender (CAT5-XT)
Use the SMART Cat 5 to USB cable extender to extend your interactive
whiteboard’s USB connection up to 120' (36.6 m) using RJ45 Cat 5 cable (not
included). The extender includes two 6' (1.8 m) USB cables to connect your
computer and your interactive whiteboard to the extender units.
Serial Conversion Module (RS-232)
Use the RS-232 module to convert your interactive whiteboard’s USB connection
to a serial connection.

6About Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0

99-00915-20 B0 Installing Your SMART Board 600i3 Interactive Whiteboard System 7
Installing Your SMART Board 600i3 Interactive
Whiteboard System
Consult the SMART Board 600i3 interactive whiteboard system installation documents that came with your
product for instructions on how to install your product and use the mounting template and the ECP.
This chapter includes additional information, optional installation procedures and tips to consider before you
install a SMART Board 600i3 interactive whiteboard system. Topics covered include:
• Environmental Requirements (page 8)
– Humidity (page 8)
– Water and Fluid Resistance (page 8)
– Dust and Scratching (page 8)
– Electrostatic Discharge (ESD) (page 8)
– Cables (page 8)
– Conducted and Radiated Emissions (page 9)
• Before Installing Your 600i3 Interactive Whiteboard System (page 9)
– Recommended Mounting Heights (page 9)
• After Installing Your SMART Board 600i3 Interactive Whiteboard System (page 10)
– Adjusting Keystone Alignment (page 10)
• Focusing the Image (page 11)
• Performing an Image Alignment (page 12)
• Securing the Pen Tray and the Interactive Whiteboard (page 16)
IMPORTANT Use the instructions found in the UF55/UF55w projector boxes to install your system, not the
instructions in your SMART Board interactive whiteboard product box.

8Installing Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0
Environmental Requirements
Before installing your SMART Board 600i3 interactive whiteboard system, review the following
environmental requirements.
SMART Board 600i3 interactive whiteboard systems can operate in a temperature range of 41°F to 95°F
(5°C to 35°C) from sea level to an altitude up to 6000' (0 m to 1829 m) and in a temperature range of
41°F to 86°F (5°C to 30°C) from 6000' to 9800' (1829 m to 2987 m). The product can withstand storage
temperatures from -40°F to 122°F (-40°C to 50°C).
Humidity
SMART Board 600i3 interactive whiteboard systems can operate between 30% and 70% humidity,
non-condensing. Humidity above 80% might cause slight wrinkling in the sheet of the SMART Board 600 series
interactive whiteboard. The wrinkles disappear once the humidity lowers.
Water and Fluid Resistance
SMART Board 600i3 interactive whiteboard systems are for indoor use only and do not meet any
salt-spray or water ingress requirements. Do not pour or spray any liquids directly onto the interactive
whiteboard, the UF55/UF55w projector or any of its sub-components. These liquids might get into areas where
they could damage sensitive electronic components. Refer to the chapter on maintenance (page 33) for detailed
instructions on cleaning your system’s components.
Dust and Scratching
SMART Board 600i3 interactive whiteboard systems are for use in office and classroom environments and are
not for industrial use, where heavy dust and pollutants can cause malfunctions or impaired operation.The
design is for pollution degree 1 (P1) as per EN61558-1, which is defined as “No pollution or only dry
non-conductive pollution.”
Electrostatic Discharge (ESD)
SMART Board 600i3 interactive whiteboard systems meet the requirements of EN61000-4-2 severity level 4 for
direct and indirect ESD. No malfunction or damage up to 8kV (both polarities) with a 330 ohm, 150 pF probe
(air discharge). Unmated connectors meet 4kV (both polarities) for direct (contact) discharge.
Cables
All SMART Board 600i3 interactive whiteboard system cables should be shielded, to prevent potential accidents
and degraded video and audio quality.
CAUTION • Never operate this unit immediately after moving it from a cold location to a warm location.
When the unit is exposed to such a change in temperature, moisture may condense on the
lens and crucial internal parts. Allow the system to stabilize to room temperature before
operation to prevent possible damage to the unit.
• In a location over 6000' (1828.8 m) altitude, the air is thin and cooling efficiency is reduced,
so use the projector with the fan mode set to High.
• Do not place in hot locations, such as near heating equipment. Doing so could cause a
malfunction and shorten the life of the projector.

99-00915-20 B0 Installing Your SMART Board 600i3 Interactive Whiteboard System 9
Conducted and Radiated Emissions
The narrowband-radiated electric field from SMART Board 600i3 interactive whiteboard systems meets the limits
for Class A performance as defined in EN55022/CISPR 22.
IMPORTANT
Before Installing Your SMART Board 600i3 Interactive Whiteboard System
Choose a location for your SMART Board 600i3 interactive whiteboard system that is far from bright light
sources, such as windows or overhead lighting. Bright light sources can cause distracting shadows on the
interactive whiteboard and can reduce the contrast of the projected image.
Locate a wall with a flat, regular surface and minimum clearance to accommodate your interactive whiteboard
system. Make sure that the UF55/UF55w projector and the SMART Board interactive whiteboard are installed on
the same flat surface. For best presentation alignment, SMART recommends that you mount your interactive
whiteboard system in a location that is central to your audience’s viewing direction. For mobile installation or
adjustable installation options, contact your authorized SMART reseller. If the mounting surface is slightly
irregular or the interactive whiteboard system cannot be directly mounted on a stud, consult document 119764
on the SMART Technical Support website.
Recommended Mounting Heights
SMART includes a mounting template with each of its SMART Board 600i3 interactive whiteboard systems. If
you lose this template, contact your authorized SMART reseller.Using this template ensures that you:
– Mount the UF55/UF55w projector at a safe height for head space clearance, while maintaining enough
space for airflow and installation access above the unit
– Position the projector at the correct height above the 600 series interactive whiteboard to make sure
that the projected image aligns with the touch screen
Dimensions on the template recommend a distance from the floor that is suitable for adults of average height.
Although you should consider the general height of your user community when you choose a position for the
interactive whiteboard, consult your local regulations before mounting the unit.
WARNING
Using the UF55/UF55w projector system near a TV or radio may cause interference to the
images or sound. If this happens, move the TV or radio away from the projector.
When mounting the projector on a framed wall, you must attach both the mounting bracket and
safety tether to a stud to safely support the projector’s weight. If you use only drywall anchors,
the drywall can fail, resulting in product damage and possible personal injury.
If you remove the bolt supporting the limit strap, the projector boom will be free to swing. Make
sure that the bolt is tightened, and never remove it from the unit without supporting the projector
boom first.

10 Installing Your SMART Board 600i3 Interactive Whiteboard System 99-00915-20 B0
After Installing Your SMART Board 600i3 Interactive Whiteboard System
Adjusting Keystone Alignment

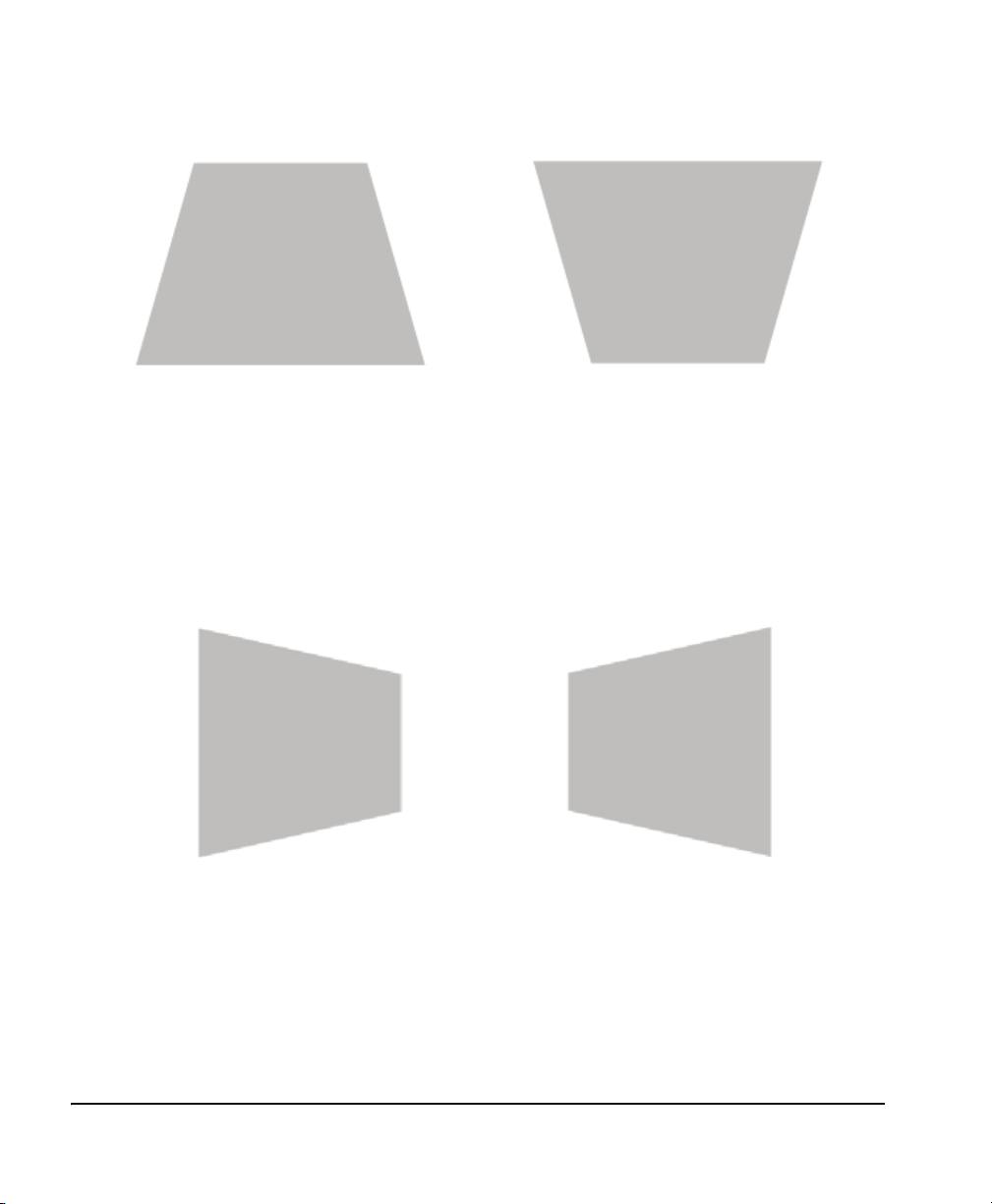

Keystone errors occur when the projected image isn’t perpendicular to the screen.
From the projector, the image path is
shorter along the top.
From the projector, the image path is
shorter along the bottom.
The image appears shorter across the top when the image path’s distance from the projector to the top of the
screen is shorter than the distance to the bottom of the screen. The image appears shorter across the bottom
when the image path’s distance from the projector to the bottom of the screen is shorter than the distance to the
top of the screen. Vertical keystone errors can occur when you mount the UF55/UF55w projector and the
SMART Board 600 series interactive whiteboard on an uneven surface or a wall that has obstructions.
Horizontal keystone errors can occur when you swivel the UF55/UF55w projector too far from the SMART Board
600 series interactive whiteboard’s vertical center, when you mount the projector and the interactive whiteboard
on an uneven surface, or when the board is slightly closer to the projector on one side than the other.
From the projector, the image path is
shorter along the right side.
From the projector, the image path is
shorter along the left side.
The image appears shorter across the right side when the distance from the projector to the right of the screen
is shorter than the distance to the left of the screen. The image appears shorter across the left side of the image
when the distance from the projector to the left of the screen is shorter than the distance to the right of
the screen.
