Smart watch H20HVR4A4I User manual

SmartWatch Hybrid Video Recorder
H20HVR4A4I / H20HVR8A8I / H20HVR16A16I
Operation Manual

User Manual of Digital Video Recorder
1
This manual maycontain several technically incorrect placesor printing errors, and the content is subject to change without
notice. The updates will be added into the new version of this manual. We will readily improve or update the products or
procedures described in the manual.
In order to simplify the description, we make the following conventions (unless otherwise stated):
We define H20HVR series as HDVR (Hybrid DVR) in this manual.
The figures shown in this manual are for reference only. The appearance and interface of the device are subject to the
actual model.

User Manual of Digital Video Recorder
2
Regulatory information
FCC information
FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
FCC conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the
applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC Directive
2004/108/EC, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in
the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new
equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in
the European Union. See the product documentation for specific battery information. The battery is marked with this
symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return
the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.

User Manual of Digital Video Recorder
3
Preventive and Cautionary Tips
Before connecting and operating your device, please be advised of the following tips:
•Ensure unit is installed in a well-ventilated, dust-free environment.
•Unit is designed for indoor use only.
•Keep all liquids away from the device.
•Ensure environmental conditions meet factory specifications.
•Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it
may cause damage to the sensitive electronics within the unit.
•Use the device in conjunction with an UPS if possible.
•Power down the unit before connecting and disconnecting accessories and peripherals.
•A factory recommended HDD should be used for this device.
•Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or
equivalent type only. Dispose of used batteries according to the instructions provided by the battery
manufacturer.

User Manual of Digital Video Recorder
4
Product Key Features
General
Connectable to the network cameras, network dome and encoders.
Connectable to the third-party network cameras like ACTI, Arecont, AXIS, Brickcom, Bosch,
Canon, PANASONIC, Pelco, SAMSUNG and SANYO, SONY, Vivotek and ZAVIO.
Connectable to the third-party cameras that support ONVIF or PSIA protocol.
PAL/NTSC adaptive video inputs.
H.264 video compression with high reliability and superior definition.
Each channel supports dual-stream.
Up to 32 network cameras can be added.
Independent configuration for each channel, including resolution, frame rate, bitrate, image quality,
etc.
The quality of the input and output video is configurable.
Each channel supports two kinds of compression parameters, the normal continuous and event. Sub-
stream can be configured locally.
Encoding for both audio/video composite stream and video stream; audio and video synchronization
during composite stream encoding.
Support CABAC (this feature is supported by analog cameras only).
Watermark technology.
Local Monitoring
Simultaneous HDMI, VGA and CVBS outputs.
HDMI output and VGA output at up to 1920×1080P resolution.
1/4/6/8/9/16-division live view is supported, and the display sequence of screens is adjustable.
Live view screen can be switched in group, and manual switch and auto-switch review is also
provided, the interval of auto-switch can be adjusted.
Quick setting menu is provided for live view.
The selected live view channel can be shielded.
Motion detection, video tampering, video exception alarm and video loss alarm functions.
Privacy mask.
Several PTZ protocols supported; PTZ preset, patrol and pattern.
Zooming in by clicking the mouse and PTZ tracing by dragging mouse.
HDD Management
Up to 2 SATAhard disks can be connected, each disk with a maximum of 4TB storage capacity.
8 network disks (8 NAS disks, or 7 NAS disks+1 IP SAN disk) can be connected.
HDD group management.
HDD property: redundancy, read-only, read/write (R/W).
HDD quota management; different capacity can be assigned to different channel.
Support S.M.A.R.T. and bad sector detection.
Recording and Playback
Provide new playback interface with easy and flexible operation.
Holiday recording schedule configuration.
Normal and event video encoding parameters.
Multiple recording types: manual, normal, alarm, motion, motion | alarm, motion & alarm.
8 recording time periods with separated recording types.

User Manual of Digital Video Recorder
5
Pre-record and post-record for alarm, motion detection recording, and pre-record time for schedule
and manual recording.
Searching record files by events (alarm input/motion detection).
Customization of tags, searching and playing back by tags.
Locking and unlocking record files.
Local redundant recording.
Searching and playing back record files by camera No., recording type, start time, end time, etc.
Smart search for the selected area in the video.
Zooming in when playback.
Reverse playback for multi-channel.
Supports pause, fast forward, slow forward, skip forward, and skip backward when playback,
locating by dragging the mouse.
Up to 16-ch synchronous playback at WD1 real time.
Backup
Export video data by USB device.
Export video clips when playback.
Management and maintenance of backup devices.
Support NTFS and FAT32 formatted backup devices.
Alarm and Exception
Configurable arming schedule of alarm input/output.
Alarm for video loss, motion detection, tampering, abnormal signal, video input/output standard
mismatch, illegal login, network disconnected, IP confliction, abnormal record, HDD error, and
HDD full, etc.
Alarm triggers full screen monitoring, audio alarm, notifying surveillance center, sending email and
alarm output.
Automatic restore when system is abnormal.
Other Local Functions
Users can operate by mouse and IR remote control.
Three-level user management; admin user is allowed to create many operating accounts and define
their operating permission, which includes the limit to access any camera.
Operation, alarm, exceptions and log recording and searching.
Manually triggering and clearing alarms.
Importing and exporting of device configuration file.
Network Functions
1 self-adaptive 10M/100M/1000M (10M/100M for H20HVR4A4I) network interface.
IPv6 is supported.
TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS and iSCSI are supported.
TCP, UDP and RTP for unicast.
Auto/Manual port mapping and automatically discovered by UPnP™.
Remote web browser access by HTTPS ensures high security.
Remote reverse playback by RTSP.
Support accessing by the platform by ONVIF.
Remote search, playback, download, locking and unlocking the record files, and downloading files
broken transfer resume.
Remote parameters setup; remote import/export of device parameters.

User Manual of Digital Video Recorder
6
Remote viewing of the device status, system logs and alarm status.
Remote locking and unlocking of control panel and mouse.
Remote HDD formatting and program upgrading.
Remote system restart.
RS-485 transparent channel transmission.
Alarm and exception information can be sent to the remote host
Remotely start/stop recording.
Remotely start/stop alarm output.
Upgraded by remote FTP server is supported.
Remote PTZ control.
Remote JPEG capture.
Two-way audio and voice broadcasting.
Embedded WEB server.
Development Scalability:
SDK for Windows and Linux system.
Source code of application software for demo.
Development support and training for application system.

User Manual of Digital Video Recorder
7
TABLE OF CONTENTS
Product Key Features.........................................................................................................4
Chapter 1 Introduction....................................................................................................11

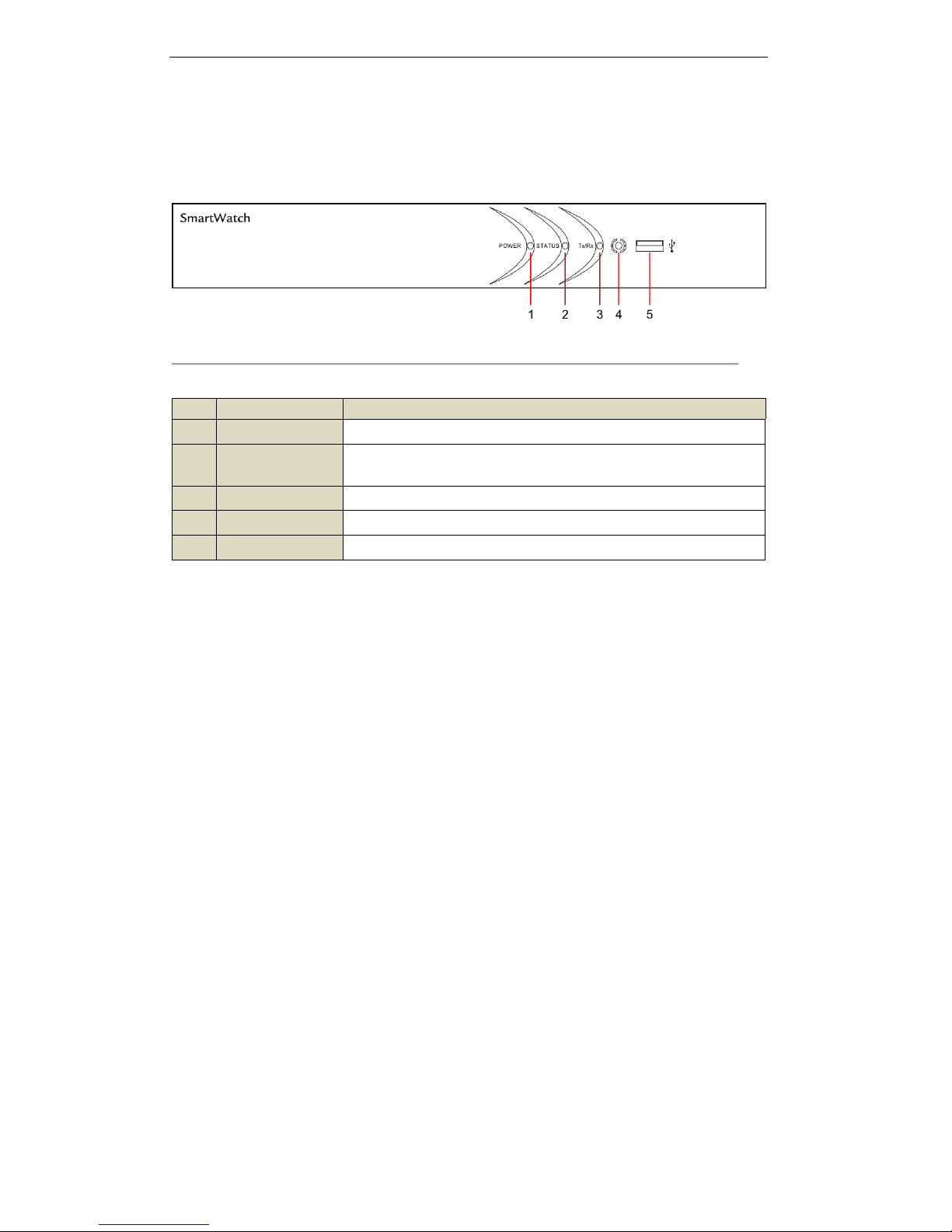

1.1 Front Panel............................................................................................................12

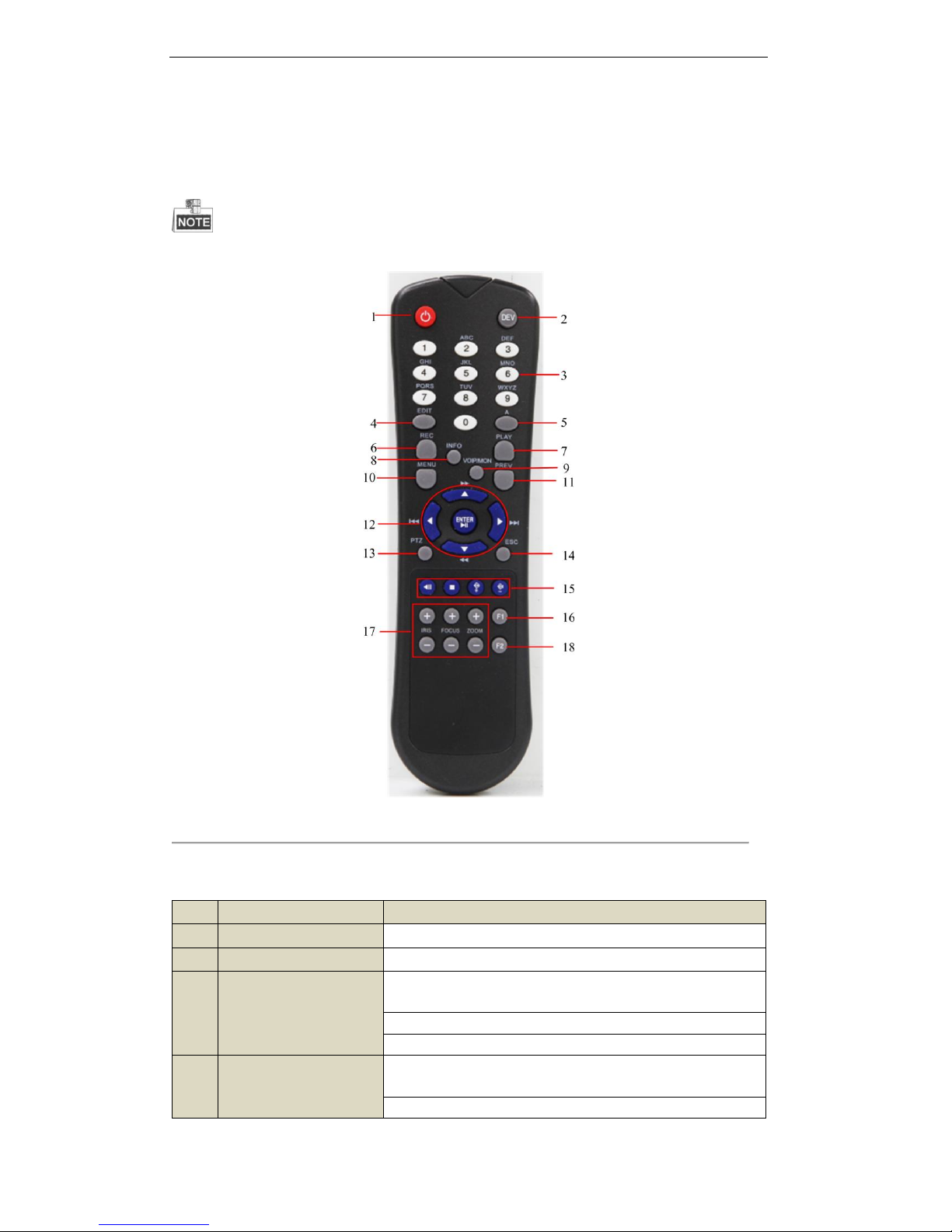

1.2 IR Remote Control Operations..............................................................................13
1.3 USB Mouse Operation..........................................................................................16

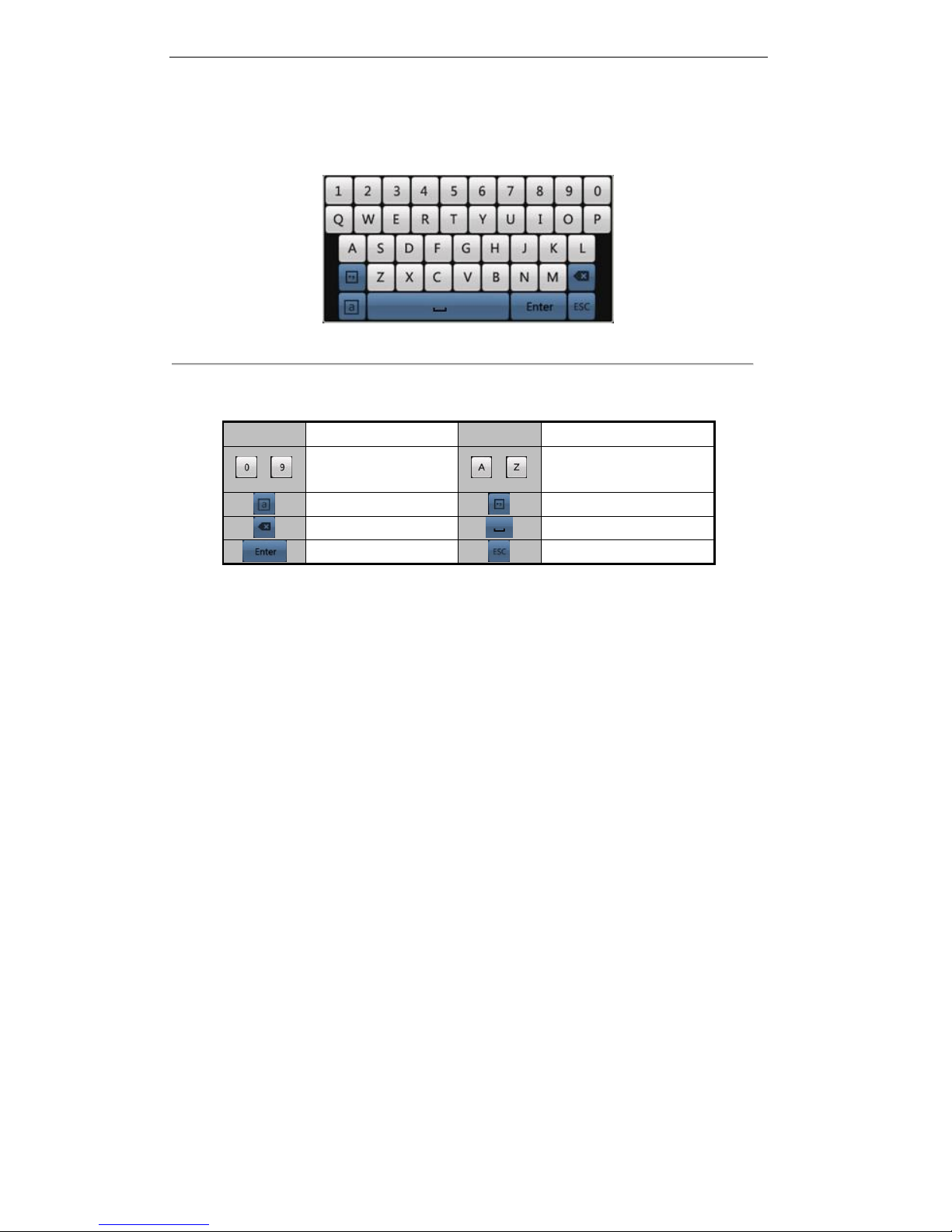

1.4 Input Method Description .....................................................................................17
1.5 Rear Panel .............................................................................................................18

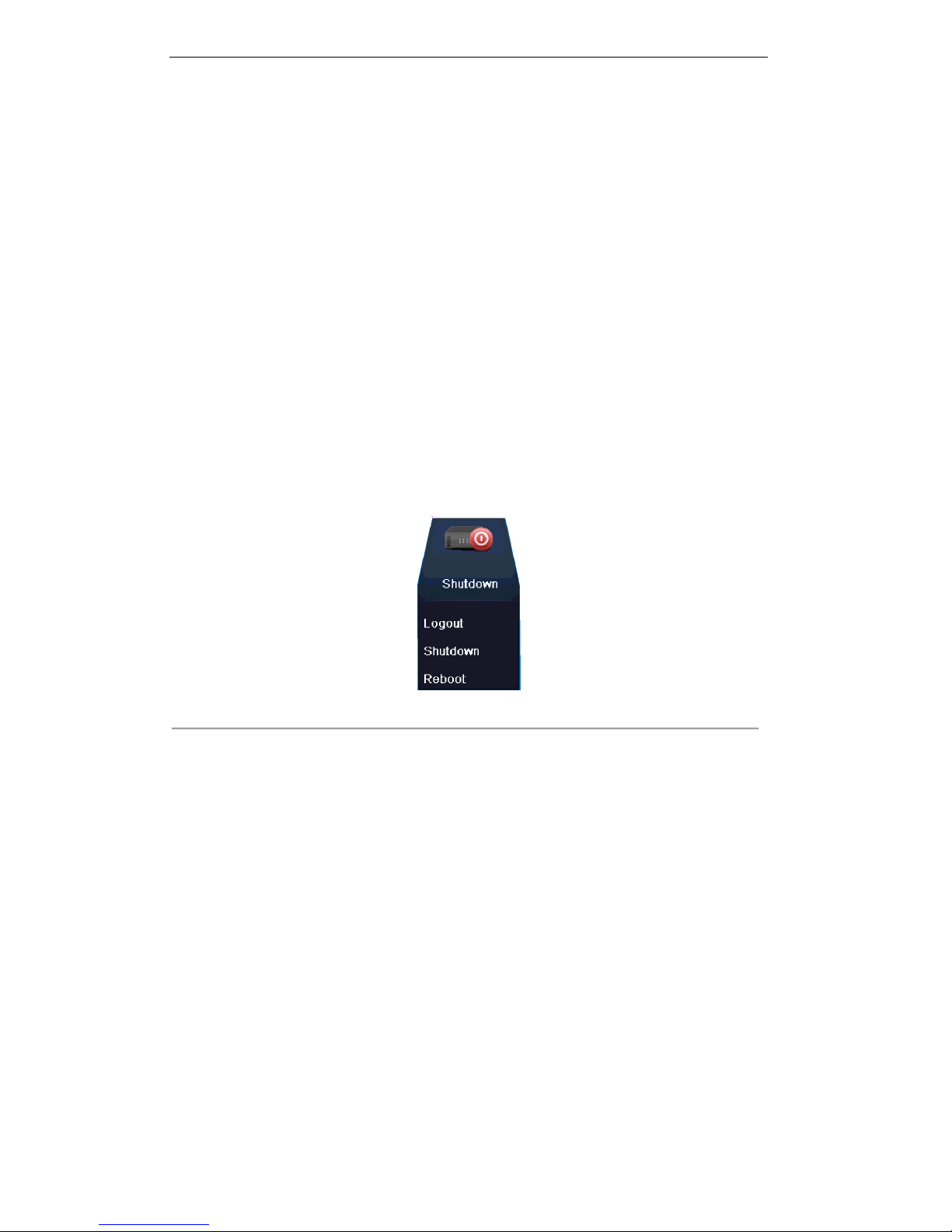

1.6 Starting Up and Shutting Down the Device..........................................................19
Chapter 2 Getting Started...............................................................................................20
2.1 Using the Wizard for Basic Configuration............................................................21
2.2 Adding and Connecting the IP Cameras................................................................25
2.2.1 Adding the Online IP Cameras.................................................................25
2.2.2 Configuring the Connected IP Cameras...................................................28
Chapter 3 Live View.........................................................................................................31
3.1 Introduction of Live View.....................................................................................32
3.2 Operations in Live View Mode .............................................................................33
3.2.1 Using the Mouse in Live View.................................................................33
3.2.2 Using an Auxiliary Monitor .....................................................................34
3.2.3 Quick Setting Toolbar in Live View Mode...............................................34
3.3 Adjusting Live View Settings................................................................................37
3.4 User Logout...........................................................................................................39
Chapter 4 PTZ Controls..................................................................................................40
4.1 Configuring PTZ Settings .....................................................................................41
4.2 Setting PTZ Presets, Patrols & Patterns................................................................42
4.2.1 Customizing Presets.................................................................................42
4.2.2 Calling Presets..........................................................................................42
4.2.3 Customizing Patrols .................................................................................43
4.2.4 Calling Patrols..........................................................................................45
4.2.5 Customizing Patterns................................................................................46
4.2.6 Calling Patterns........................................................................................47
4.3 PTZ Control Panel.................................................................................................48
Chapter 5 Recording Settings .........................................................................................49
5.1 Configuring Encoding Parameters ........................................................................50
5.2 Configuring Record Schedule...............................................................................53
5.3 Configuring Motion Detection Recording ............................................................56
5.4 ConfiguringAlarm Triggered Recording..............................................................58
5.5 Configuring Manual Recording ............................................................................60
5.6 Configuring Holiday Recording............................................................................61
5.7 Configuring Redundant Recording .......................................................................63
5.8 Configuring HDD Group for Recording...............................................................65
5.9 Files Protection......................................................................................................67
Chapter 6 Playback..........................................................................................................69

User Manual of Digital Video Recorder
8
6.1 Playing Back Record Files....................................................................................70
6.1.1 Playing Back by Channel.........................................................................70
6.1.2 Playing Back byTime..............................................................................72
6.1.3 Playing Back by Event Search .................................................................74
6.1.4 Playing Back byTag.................................................................................77
6.1.5 Playing Back by Searching System Log ..................................................80
6.1.6 Playing Back External Files.....................................................................81
6.2 Auxiliary Functions of Playback...........................................................................83
6.2.1 Playing Back Frame by Frame.................................................................83
6.2.2 Smart Search ............................................................................................83
6.2.3 Digital Zoom............................................................................................86
6.2.4 Reverse Playback of Multi-channel .........................................................86
Chapter 7 Backup.............................................................................................................88
7.1 Backing up Record Files .......................................................................................89
7.1.1 Backing up by Normal Video Search.......................................................89
7.1.2 Backing up by Event Search ....................................................................91
7.1.3 Backing up Video Clips............................................................................94
7.2 Managing Backup Devices....................................................................................97
Chapter 8 Alarm Settings................................................................................................99
8.1 Setting Motion Detection....................................................................................100
8.2 Setting Sensor Alarms.........................................................................................103
8.3 Detecting Video Loss ..........................................................................................106
8.4 Detecting Video Tampering.................................................................................108
8.5 Handling Exceptions...........................................................................................110
8.6 Setting Alarm Linkage Actions ........................................................................... 111
8.7 Triggering or ClearingAlarm Output Manually..................................................113
Chapter 9 Network Settings ..........................................................................................114
9.1 Configuring General Settings..............................................................................115
9.2 ConfiguringAdvanced Settings ..........................................................................116
9.2.1 Configuring PPPoE Settings ..................................................................116
9.2.2 Configuring DDNS Settings...................................................................116
9.2.3 Configuring NTP Server Settings...........................................................120
9.2.4 Configuring SNMP Settings...................................................................121
9.2.5 Configuring UPnP™ Settings ................................................................122
9.2.6 Configuring Remote Alarm Host Settings..............................................123
9.2.7 Configuring Multicast Settings ..............................................................124
9.2.8 Configuring RTSP Settings....................................................................125
9.2.9 Configuring Server and HTTP Ports Settings ........................................125
9.2.10 Configuring HTTPS Settings.................................................................126
9.2.11 Configuring High-speed Download Settings..........................................127
9.2.12 Configuring Email Settings....................................................................128
9.3 Checking Network Traffic...................................................................................130
9.4 Network Detection ..............................................................................................131
9.4.1 Testing Network Delay and Packet Loss................................................131

User Manual of Digital Video Recorder
9
9.4.2 Exporting Network Packet.....................................................................131
9.4.3 Checking Network Status.......................................................................133
9.4.4 Checking Network Statistics..................................................................134
Chapter 10 HDD Management .......................................................................................135
10.1 Initializing HDDs................................................................................................136
10.2 Managing Network HDD....................................................................................138
10.3 Managing HDD Group........................................................................................141
10.3.1 Setting HDD Groups..............................................................................141
10.3.2 Setting HDD Property............................................................................142
10.4 Configuring Quota Mode....................................................................................144
10.5 Checking HDD Status.........................................................................................145
10.6 Checking S.M.A.R.T. Information......................................................................146
10.7 Detecting Bad Sector...........................................................................................147
10.8 Configuring HDD Error Alarms..........................................................................148
Chapter 11 Camera Settings ...........................................................................................149
11.1 Configuring OSD Settings ..................................................................................150
11.2 Configuring Privacy Mask ..................................................................................151
11.3 Configuring Video Parameters............................................................................152
Chapter 12 Device Management and Maintenance.......................................................154
12.1 Viewing System Information ..............................................................................155
12.1.1 Viewing Device Information..................................................................155
12.1.2 Viewing Camera Information.................................................................155
12.1.3 Viewing Record Information..................................................................155
12.1.4 Viewing Alarm Information ...................................................................156
12.1.5 Viewing Network Information ...............................................................156
12.1.6 Viewing HDD Information.....................................................................157
12.2 Searching & Exporting Log Files........................................................................158
12.3 Importing/Exporting Configuration Files............................................................161
12.4 Upgrading System...............................................................................................162
12.4.1 Upgrading by Local Backup Device ......................................................162
12.4.2 Upgrading by FTP Server.......................................................................162
12.5 Restoring Default Settings ..................................................................................163
Chapter 13 Others............................................................................................................164
13.1 Configuring General Settings..............................................................................165
13.2 Configuring DST Settings...................................................................................166
13.3 Configuring More Settings..................................................................................167
13.4 Managing User Accounts....................................................................................168
13.4.1 Adding a User ........................................................................................168
13.4.2 Deleting a User.......................................................................................170
13.4.3 Editing a User.........................................................................................170
13.4.4 Changing Password ofAdmin................................................................171
13.5 Logging out / Shutting down / Rebooting Device...............................................173
Chapter 14 Appendix.......................................................................................................174
Glossary .........................................................................................................................175
