Smeg SNZ61MFA1 User manual

Contents
1. INSTRUCTIONS FOR PROPER USE ..................................................................................... 4
2. DISPOSAL INSTRUCTIONS – OUR ENVIRONMENT POLICY ............................................. 5
3. SAFETY PRECAUTION .......................................................................................................... 6
4. INTENDED USE OF THE APPLIANCE ................................................................................... 6
5. KNOW YOUR COOKER .......................................................................................................... 7
6. BEFORE FIRST USE .............................................................................................................. 7
7. USE OF THE HOB .................................................................................................................. 8
8. FRONT CONTROL PANEL ..................................................................................................... 9
9. USE OF THE OVENS ............................................................................................................11
10. AVAILABLE ACCESSORIES .............................................................................................. 13
11. ELECTRONIC PROGRAMMER ......................................................................................... 14
12. CLEANING AND MAINTENANCE ....................................................................................... 16
13. EXTRAORDINARY MAINTENANCE ................................................................................... 18
14. INSTALLATION OF THE APPLIANCE ................................................................................ 19
15. ADAPTATION TO DIFFERENT TYPES OF GAS ............................................................... 22
16. FINAL OPERATIONS .......................................................................................................... 24
Thank you for choosing our product.
We advise you to read this manual carefully. It contains all necessary instructions for maintaining
unaltered the appearance and functional qualities of the cooker.
INSTRUCTIONS FOR THE USER: these provide recommendations for use, a description of the controls
and the correct procedures for cleaning and maintaining the appliance
INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified engineer who is to install,
commission and test the appliance
3

Instructions for proper use
4
1. INSTRUCTIONS FOR PROPER USE
THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE AND THEREFORE MUST BE KEPT IN
ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE
COOKER. WE ADVISE READING THIS MANUAL AND ALL THE INSTRUCTIONS THEREIN BEFORE
USING THE COOKER. ALSO KEEP THE SERIES OF NOZZLES SUPPLIED. INSTALLATION MUST
BE CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN
FORCE. THIS APPLIANCE IS INTENDED FOR DOMESTIC USES AND CONFORMS TO CURRENT
REGULATIONS IN FORCE. THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING
FUNCTIONS: COOKING AND HEATING-UP OF FOOD. ALL OTHER USES ARE CONSIDERED
IMPROPER.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR IMPROPER USE.
NEVER USE THIS APPLIANCE FOR HEATING ROOMS.
DO NOT LEAVE THE PACKING IN THE HOME ENVIRONMENT. SEPARATE THE VARIOUS WASTE
MATERIALS AND TAKE THEM TO THE NEAREST SPECIAL GARBAGE COLLECTION CENTRE.
THIS APPLIANCE IS MARKED ACCORDING TO THE EUROPEAN DIRECTIVE 2002/96/EC ON
WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE).
THIS GUIDELINE IS THE FRAME OF A EUROPEAN-WIDE VALIDITY OF RETURN AND RECYCLING
ON WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT.
DO NOT OBSTRUCT VENTILATION OPENINGS AND HEAT DISPERSAL SLITS.
THIS APPLIANCE IS DESIGNED FOR COOKING FOOD AND IT SHALL NOT BE USED AS A SPACE
HEATER.
THE I.D. PLATE WITH TECHNICAL DATA, REGISTRATION NUMBER AND BRAND NAME IS VISIBLY
POSITIONED IN THE STORAGE COMPARTMENT.
THE PLATE MUST NOT BE REMOVED.
DO NOT USE METALLIC SPONGES OR SHARP SCRAPERS: THEY WILL DAMAGE
THE SURFACE.
USE NORMAL NON-ABRASIVE PRODUCTS FOR STEEL, AND A WOODEN OR
PLASTIC TOOL IF NECESSARY.
RINSE THOROUGHLY AND DRY WITH A SOFT CLOTH OR DEERSKIN.
DO NOT ALLOW RESIDUES OF SUGARY FOODS (SUCH AS JAM) TO SET INSIDE THE
OVEN. IF LEFT TO SET FOR TOO LONG, THEY MIGHT DAMAGE THE ENAMEL LINING
OF THE OVEN.
The manufacturer declines all responsibility for damage to persons or things caused by non-
observance of the above prescriptions or by interference with any part of the appliance or by the use of
non-original spares.

Safety instruction
5
2. DISPOSAL INSTRUCTIONS – OUR ENVIRONMENT POLICY
Our appliances are only packaged using non-pollutant, environment-friendly, recyclable materials. We
urge you to cooperate by disposing of the packaging properly. Contact your local dealer or the
competent local organisations for the addresses of collection, recycling and disposal facilities.
Never leave all or part of the packaging lying around. Packaging parts, and especially plastic bags, may
represent a suffocation hazard for children.
Your old appliance must also be disposed of properly.
Important deliver the appliance to your local organisation authorised to collect scrapped appliances.
Proper disposal allows the intelligent recovery of valuable materials. Refrigeration appliances contain
gases which may damage the environment; it is important to ensure that the refrigeration circuit
pipelines are not damaged until the competent service has taken delivery of the appliance.
Before scrapping your appliances it is important to remove doors and leave shelves in position as for
use, to ensure that children cannot accidentally become trapped inside during play. Also, cut the power
supply lead and remove it and the plug.

Safety instruction
6
3. SAFETY PRECAUTION
4. INTENDED USE OF THE APPLIANCE
ELECTRICAL CONNECTION: PLEASE REFER TO INSTALLATION INSTRUCTION FOR THE GAS &
ELECTRICAL SAFETY REGULATIONS AND THE VENTILATION REQUIREMENTS.
IN YOUR OWN INTEREST, AND THAT OF SAFETY, IT IS THE LAW THAT ALL GAS APPLIANCES BE
INSTALLED AND SERVICE BY COMPETENT PERSONS, WHO WILL COMPLY WITH THE
RELEVANT STANDARDS AND REGULATIONS.
CORGI REGISTERED INSTALLERS UNDERTAKE TO WORK TO SATISFCTIORY STANDARDS.
DISCONNECTION OF GAS AND ELECTRIC APPLIANCES SHOULD ALWAYS BE CARRIED OUT BY
COMPETENT PERSON.
THE PLUG TO BE CONNECTED TO THE POWER CABLE AND THE SOCKET MUST BE THE SAME
TYPE AND MUST CONFORM TO CURRENT REGULATIONS.
THE SOCKET MUST BE ACCESSIBLE AFTER THE APPLIANCE HAS BEEN BUILT IN.
NEVER UNPLUG BY PULLING ON THE CABLE.
DO NOT INSTALL THIS APPLIANCE ON A RAISED PLATFORM.
IT IS COMPULSORY THAT THE APPLIANCE BE GROUNDED ACCORDING TO THE METHODS
REQUIRED BY SAFETY RULES.
IMMEDIATELY AFTER INSTALLATION CARRY OUT A BRIEF INSPECTION TEST OF THE
APPLIANCE, FOLLOWING THE INSTRUCTIONS BELOW. SHOULD THE APPLIANCE NOT
FUNCTION, DISCONNECT IT FROM THE SUPPLY AND CALL THE NEAREST TECHNICAL
ASSISTANCE CENTRE. NEVER ATTEMPT TO REPAIR THE APPLIANCE.
DO NOT PUT PANS WITHOUT PERFECTLY SMOOTH AND FLAT BOTTOMS ON THE HOB GRIDS.
DO NOT USE CONTAINERS OR BROILERS THAT EXTEND BEYOND THE OUTER PERIMETER OF
THE HOB.
NEVER PUT INFLAMMABLE OBJECTS IN THE OVEN: THEY COULD BE ACCIDENTALLY LIGHTED
AND CAUSE FIRES.
DURING USE THE APPLIANCE BECOMES VERY HOT. TAKE CARE NOT TO TOUCH THE HEATING
ELEMENTS INSIDE THE OVEN.
THE APPLIANCE IS DESIGNED FOR USE BY ADULTS. DO NOT ALLOW CHILDREN TO GO NEAR
OR PLAY WITH IT.
WHEN OPERATING THE GRILL ALL ACCESSIBLE PARTS COULD BECOME VERY HOT: KEEP OUT
OF THE WAY OF CHILDREN.
WHEN NOT IN USE, MAKE SURE THAT THE CONTROL KNOBS ARE IN THE CORRECT (OFF)
POSITION .
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
BEFORE THE APPLIANCE IS PUT INTO OPERATION, ALL THE LABELS AND PROTECTIVE FILMS
APPLIED INSIDE OR OUTSIDE MUST BE REMOVED.
THE APPLIANCE HAS BEEN BUILT TO CARRY OUT THE FOLLOWING FUNCTIONS: COOKING
AND HEATING-UP OF FOOD. ALL OTHER USES ARE CONSIDERED IMPROPER.
The manufacturer declines all responsibility for damage to persons or things caused by non-
observance of the above prescriptions or by interference with any part of the appliance or by the use of
non-original spares.

Instructions for the user
7
5. KNOW YOUR COOKER
6. BEFORE FIRST USE
COOKING HOB
CONTROL PANEL
MAIN OVEN
STORAGE COMPARTMENT
Do not leave the packing in the home environment. separate the various waste materials and take them to
the nearest special garbage collection centre.
The inside of the appliance should be cleaned to remove all manufacturing residues. For further
information about cleaning, see section "12. CLEANING AND MAINTENANCE"
Using the oven and the grill for the first time, heat them to the maximum temperature (260°C) for as long
as it takes to burn off any production oil residues which could give a nasty flavour to the food. After a
power cut, the oven display will flash intermittently and show . To adjust refer to paragraph "11.
ELECTRONIC PROGRAMMER”

Instructions for the user
8
7. USE OF THE HOB
7.1 Lighting of the hob burners
Before lighting the hob burners check that the flame caps are in the correct position and that
their burner caps are in place, making sure that the holes A in the flame caps correspond to the
spark plugs and thermocouples.
The optional grid Bis for use with “woks” (Chinese pans).
To prevent deterioration of the hob we have equipped the cooker with a raised pan stand Cto be placed
underneath pans more than 26 cm in diameter.
The supplied reduction rest Cis used also for small pans.
The drawing next to each knob shows the corresponding burner. The appliance
has an electronic lighting device. Simply press and turn the knob anticlockwise
to the minimum flame symbol , until the flame is lit. Hold the knob down for a
few seconds to allow the thermocouples to heat up. The burner may go out
when the knob is released: this is because the thermocouple has not been
sufficiently heated. Repeat the operation holding down the knob a little longer.
This operation is not necessary for burners without thermocouples.
For models with thermocouples, should the burner accidentally go out, a safety device will be activated
which stops the gas flow even if the tap is open.
7.2 Practical advice for using the hob burners
For better use of the burners and lower gas consumption, use covered vessel that are proportional in
size to the burner to prevent the flame from licking the sides (see paragraph “ 7.3 Diameter of the
vessels to be used on each burner”). When water reaches the boiling point, lower the flame so that it
doesn’t overflow. To avoid burns or damage to the hob, all vessels or griddle plates must be placed within
the perimeter of the hob. All vessels must have a flat and smooth bottom. When using fats or oils, be
extremely careful that they don’t overheat and catch fire.
If the flame accidentally goes out, turn off the control knob and wait at least 1 minute before trying to re-
light the burner.
7.3 Diameter of the vessels to be used on each burner
BURNERS
1. Auxiliary
2. Semirapid
4. WOK
Ø MIN. AND MAX. (IN CM.)
12 - 14
16 - 24
18 - 26

Instructions for the user
9
8. FRONT CONTROL PANEL
All the cooker controls and commands are on the front panel.
ELECTRIC OVEN THERMOSTAT REAR LEFT BURNER
ELECTRIC OVEN FUNCTION KNOB REAR RIGHT BURNER
FRONT LEFT BURNER FRONT RIGHT BURNER
If the cooker is equipped with an electronic programmer, before using the oven make sure that the
symbol ; appears on the display. See paragraph “11. ELECTRONIC PROGRAMMER”.
HOB BURNER COMMAND KNOB
The flame is lit by pressing the knob and turning it anticlockwise to minimum
flame . To adjust the flame turn the knob between maximum ( ) and
minimum ( ). The burner goes out when the knob is returned to the position.
MAIN OVEN THERMOSTAT KNOB
Selection of cooking temperature is carried out by turning the knob clockwise to
the required temperature, between 50° and 260°C.
If the appliance has an electric oven, the warning light will come on when the
oven is heating up. When it goes out it means that the required temperature has
been reached. Regular flashing means that oven temperature is being
constantly maintained at the programmed level.
MAIN OVEN CONTROL KNOB
Each of the functions listed below can be used (except the oven light and the
small grill) only together with the correct temperature thermostat regulation as
described on page of this manual.
UPPER AND LOWER HEATING ELEMENT GRILL ELEMENT + VENTILATION
LOWER HEATING ELEMENT LOWER HEATING ELEMENT +
VENTILATION
UPPER HEATING ELEMENT + GRILL
ELEMENT
VENTILATED HEATING ELEMENT +
VENTILATION
GRILL ELEMENT DEFROSTING

Instructions for the user
10

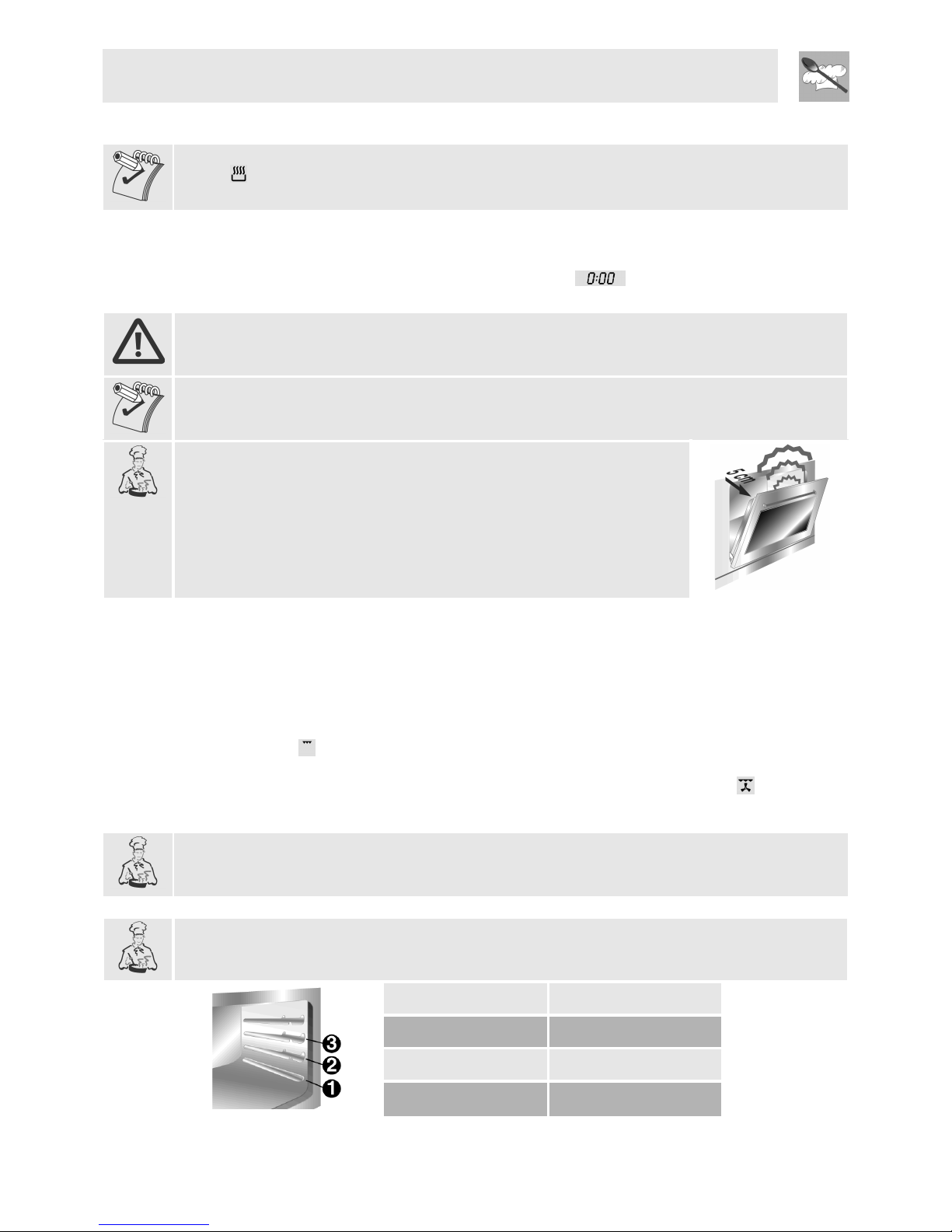

9. USE OF THE OVEN
For the models with electronic programmer, before using the oven make sure that the display shows the
symbol .
9.1 Warnings and general advice
Using the oven and the grill for the first time, heat them to the maximum temperature (260°C) for as long
as it takes to burn off any production oil residues which could give a nasty flavour to the food. After a
power cut, the oven display will flash intermittently and show . To adjust refer to paragraph "11.
ELECTRONIC PROGRAMMER ”
During cooking, do not cover the bottom of the oven with aluminium or tin foil and do not place pans or
oven trays on it as this may damage the enamel coating. If you wish to use greaseproof paper, place it so
that it will not interfere with the hot air circulation inside the oven.
Oven accessories which may come into contact with foods are made from materials complying with the
requirements of the current directive.
To prevent problems caused by steam in the oven, open the door in two stages:
half open (5 cm approx.) for 4-5 seconds and then fully open.
To access food, always leave the door open as short a time as possible to
prevent the temperature in the oven from falling and ruining the food.
9.2 Cooling system
The oven is equipped with a cooling system which automatically comes on upon a few minutes after the
oven has been turned on.
Fans cause a steady outflow of air from above the door which may continue for a brief period of time
even after the oven has been turned off.
9.3 Use of the electric grill
For short cooking procedures, such as the final crisping of meat which is already cooked, select the
static grill function and turn the thermostat knob to the maximum temperature. The fan grill function
allows actual cooking procedures to be carried out, thanks to the fan function which ensures that the
heat penetrates into the food. For this cooking mode, select the fan grill function and turn the
thermostat knob to the ideal cooking temperature (never set at more than 220). Cooking procedures in
this mode must never last more than 60 minutes.
All cooking with the grill and grill + spit must be done with the door closed to prevent the knobs
and the front panel of the equipment to overheat.
Failure to do this will void the warranty.
9.3.1 How to use the grill
Food should be flavoured and basted with oil or melted butter before cooking. An oven dish should be
used to contain the sauces. The food should be placed on the oven shelf which is positioned on one of
the guides supplied with the different ovens, following the instructions below:
FOOD GRILLE ON THE SHELF
Flat or thin meat 3
Rolled roast joints 2 - 3
Poultry 2 - 3

Instructions for the user
11
9.4 WARNING
• Cooking procedures in this mode must never last more than 60 minutes.
• In models with electric oven, the door must be close during grilling and grill-rotisserie cooking.
• To avoid dangerous overheating when the oven or the grill is used, the glass cover must always be
up.
• During and after use the accessible parts of the oven may be very hot, and children must always be
kept at a distance.
• During cooking with the rotisserie, one of the oven trays provided with the cooker should be placed in
the bottom of the oven, inserting it on the bottom runners, in order to collect the grease and fats which
may be formed.
• When using the oven, remove all unused baking sheets and shelves from the interior.
9.5 Storage compartment
A storage compartment, accessible by pulling on the top edge of the
door, is located beneath the oven.
Never store flammable materials such as rags, paper or the like. The
compartment is intended only for holding the metal accessories of the
range.
Never open the storage compartment when the oven is on and still hot. The temperature inside may be
very high.

Instructions for the user
12
10.AVAILABLE ACCESSORIES

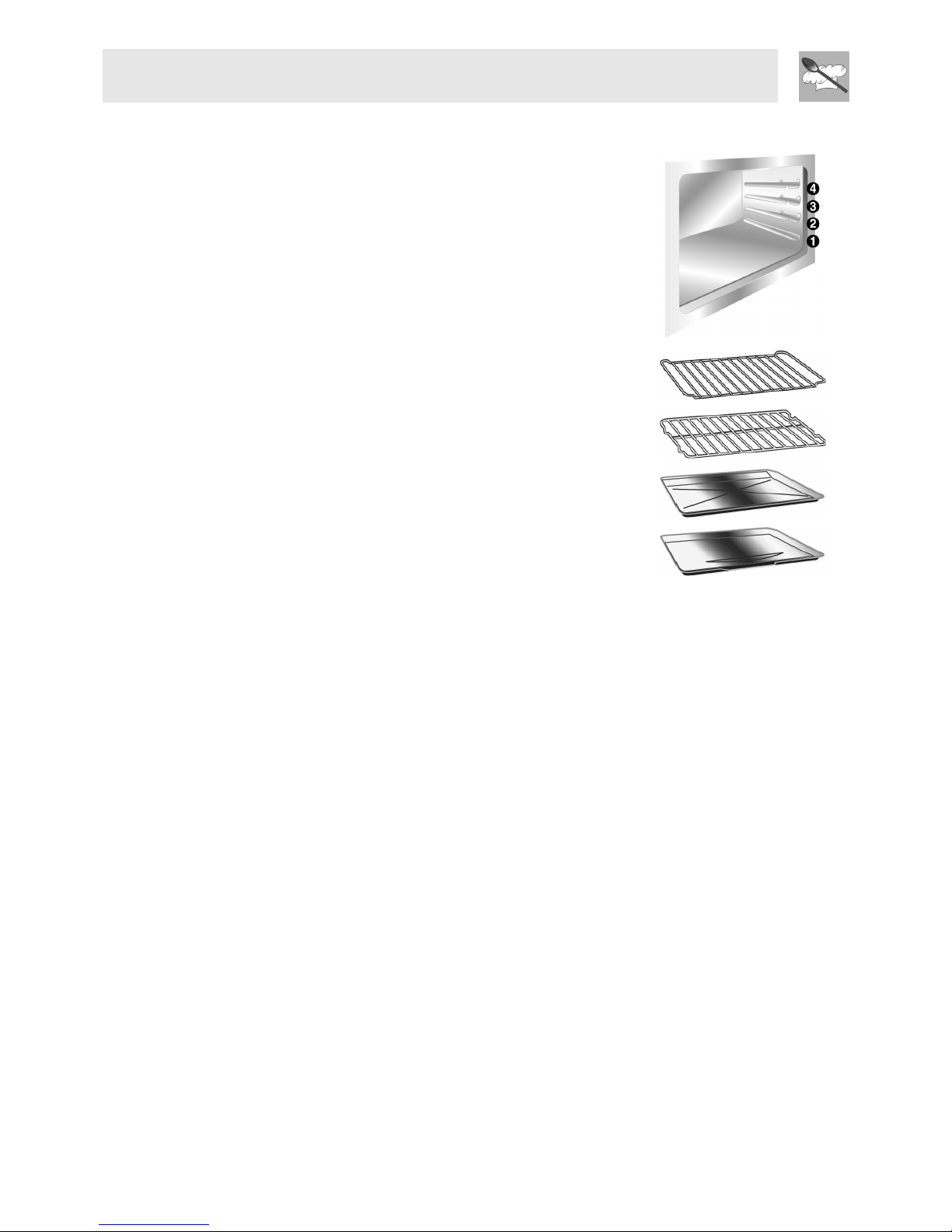

The oven has 4 support for positioning plates and racks at various
heights.
Oven grill: for cooking food on plates, small cakes, roasts or food
requiring light grilling.
Plate grill: for placing above plate for cooking foods that might drip.
Oven plate: useful for catching fat from foods on the grill above.
Pastry plate: for baking cakes, pizza and oven desserts.
