Smeg KIV90XT-1 User manual

Instructions Manual
Manual de instrucciones
Manual de Instruções
KIV90XT-1

2
2
INDEX
RECOMMENDATIONS AND SUGGESTIONS ..................................................................................................................... 3
CHARACTERISTICS ............................................................................................................................................................. 4
INSTALLATION...................................................................................................................................................................... 6
USE ...................................................................................................................................................................................... 10
MAINTENANCE................................................................................................................................................................... 11
ÍNDICE
CONSEJOS Y SUGERENCIAS........................................................................................................................................... 13
CARACTERÍSTICAS ........................................................................................................................................................... 14
INSTALACIÓN ..................................................................................................................................................................... 16
USO...................................................................................................................................................................................... 20
MANTENIMIENTO............................................................................................................................................................... 21
ÍNDICE
CONSELHOS E SUGESTÕES............................................................................................................................................ 23
CARACTERÍSTICAS ........................................................................................................................................................... 24
INSTALAÇÃO....................................................................................................................................................................... 26
UTILIZAÇÃO ........................................................................................................................................................................ 30
MANUTENÇÃO.................................................................................................................................................................... 31
EN
ES
PT

EN 3
3
RECOMMENDATIONS AND SUGGESTIONS
The Instructions for Use apply to several versions of this appliance. Accordingly, you may
find descriptions of individual features that do not apply to your specific appliance.
INSTALLATION
• The manufacturer will not be held liable for any damages resulting from incorrect or im-
proper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm
(some models can be installed at a lower height, please refer to the paragraphs on work-
ing dimensions and installation).
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the
inside of the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate
earthing.
Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm.
The route of the flue must be as short as possible.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers,
fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appli-
ances), a sufficient degree of aeration must be guaranteed in the room in order to prevent
the backflow of exhaust gas. The kitchen must have an opening communicating directly
with the open air in order to guarantee the entry of clean air. When the cooker hood is
used in conjunction with appliances supplied with energy other than electric, the negative
pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into
the room by the cooker hood.
• In the event of damage to the power cable, it must be replaced by the manufacturer or by
the technical service department, in order to prevent any risks.
USE

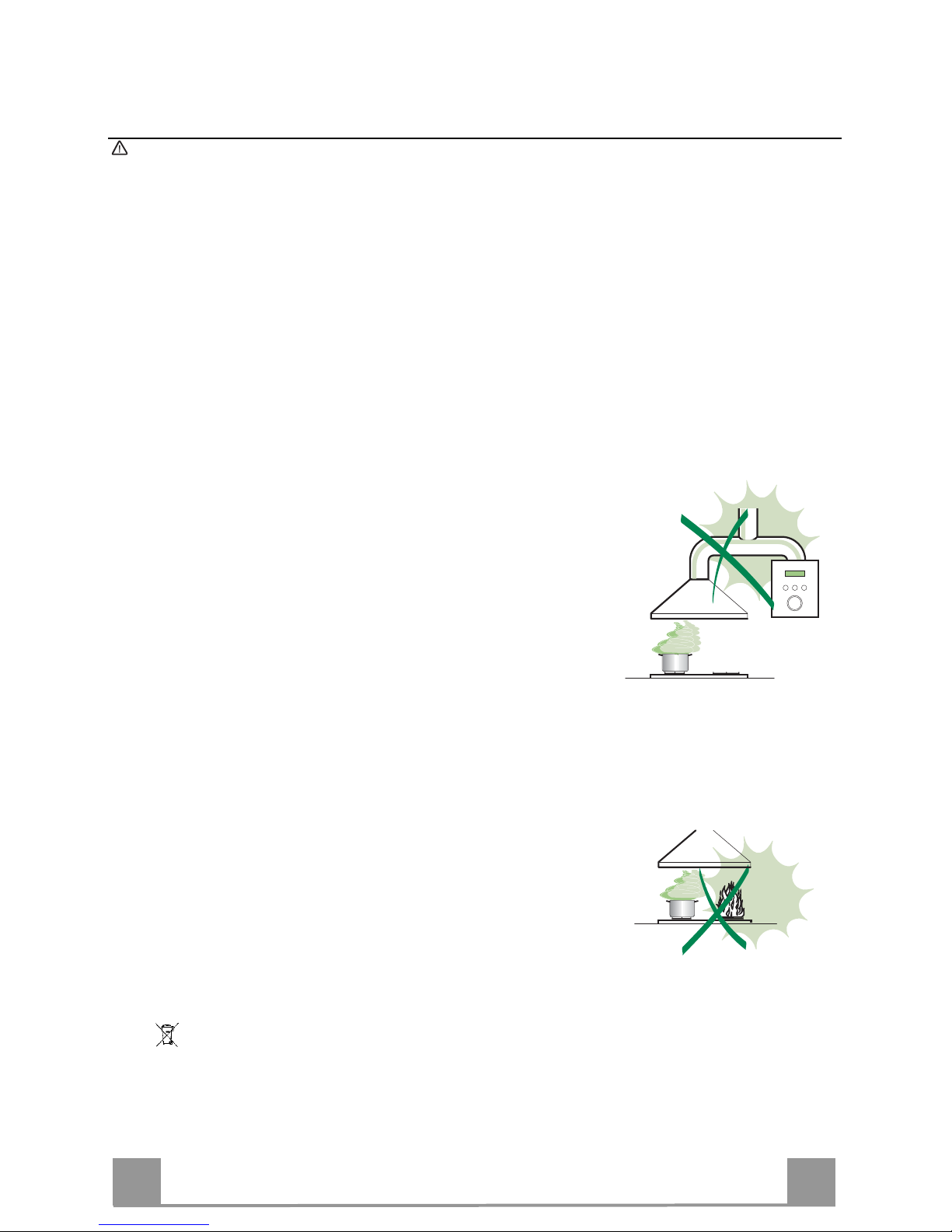

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen
smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it
does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into
flames.
• Do not flambè under the range hood; risk of fire
• This appliance is not intended for use by persons (including children) with reduced physi-
cal, sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the appliance by a person respon-
sible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• “ CAUTION: Accessible parts may become hot when used with cooking appliances.”.

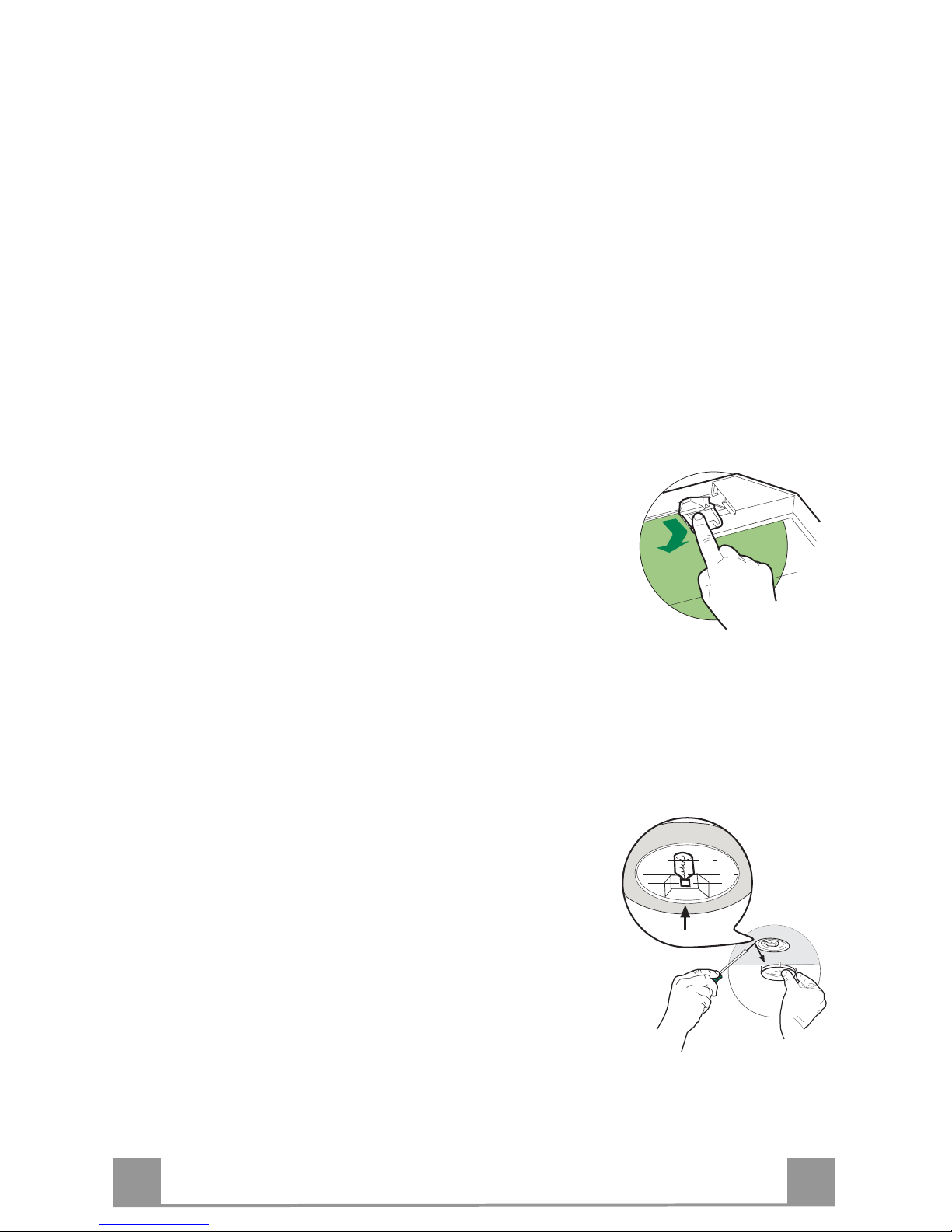

MAINTENANCE
• Switch off or unplug the appliance from the mains supply before carrying out any mainte-
nance work.
• Clean and/or replace the Filters after the specified time period (Fire hazard).
• Clean the hood using a damp cloth and a neutral liquid detergent.
The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be
handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by
inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased the product.

EN 4
4
CHARACTERISTICS
Dimensions
650
290
70
90
132
310
150
350
700
Min 780
Max
1070
36
Min.
500mm
Min.
650mm

EN 5
5

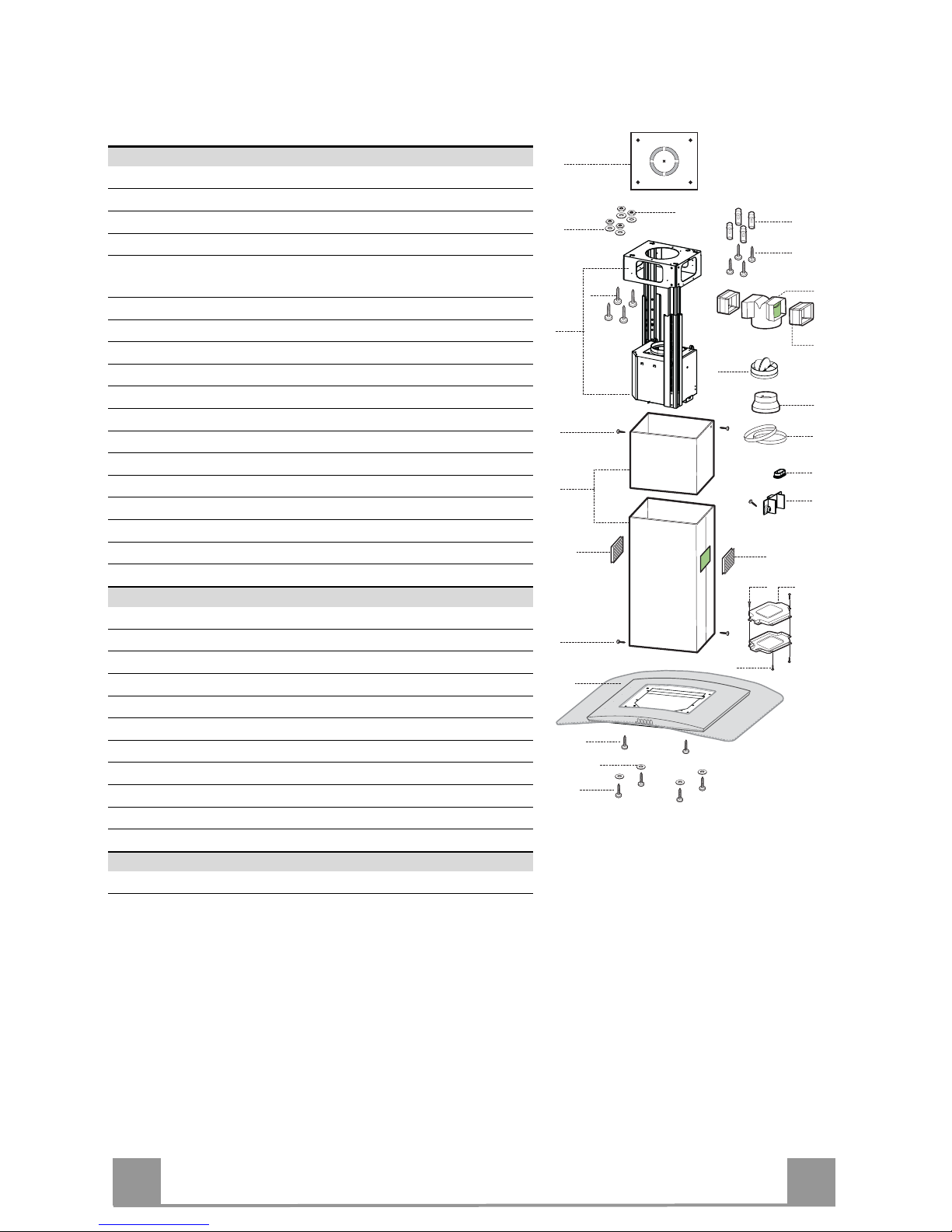

Components
Ref. Q.ty Product Components
1 1 Hood Canopy complete with: Controls, Lights, Filters
21 Telescopic chimney made up of:
2.1 1 Upper chimney
2.2 1 Lower chimney
7.1 1 Telescopic frame complete with Suction fan, made up
of:
7.1a 1 Upper frame
7.1b 1 Lower frame
8a 1 Rh Air Outlet Directional Grille
8b 1 Lh Air Outlet Directional Grille
91 Reduction flange ø 150-120 mm
10 1 Dumper
14.1 1 Air Outlet Connector Extension
15 1 Air Outlet Connector
24 1 Connection box
25 Pipe clamps (not included)
26 2 Cable clamps
27 1 Finishing plug
Ref. Q.ty Installation Components
11 4 Wall Plugs ø 10
12c 6 Screws 2,9 x 6,5
12e 2 Screws 2,9 x 9,5
12f 2 Screws M4 x 80
12g 4 Screws M6 x 80
12h 4 Screws 5,2 x 70
12q 4 Screws 3,5 x 9,5
21 1 Drilling template
22 8 6.4 mm int. dia washers
23 4 M6 nuts
Q.ty Documentation
1Instruction booklet
12c
7.1a
7.1
22
23
12h
7.1b
2
2.1
2.2
8b 8a
12c
11
21
12g
1
25
24
12e
14.1
15
9
12c
26
27
12f
12q
22
10

EN 6
6
INSTALLATION

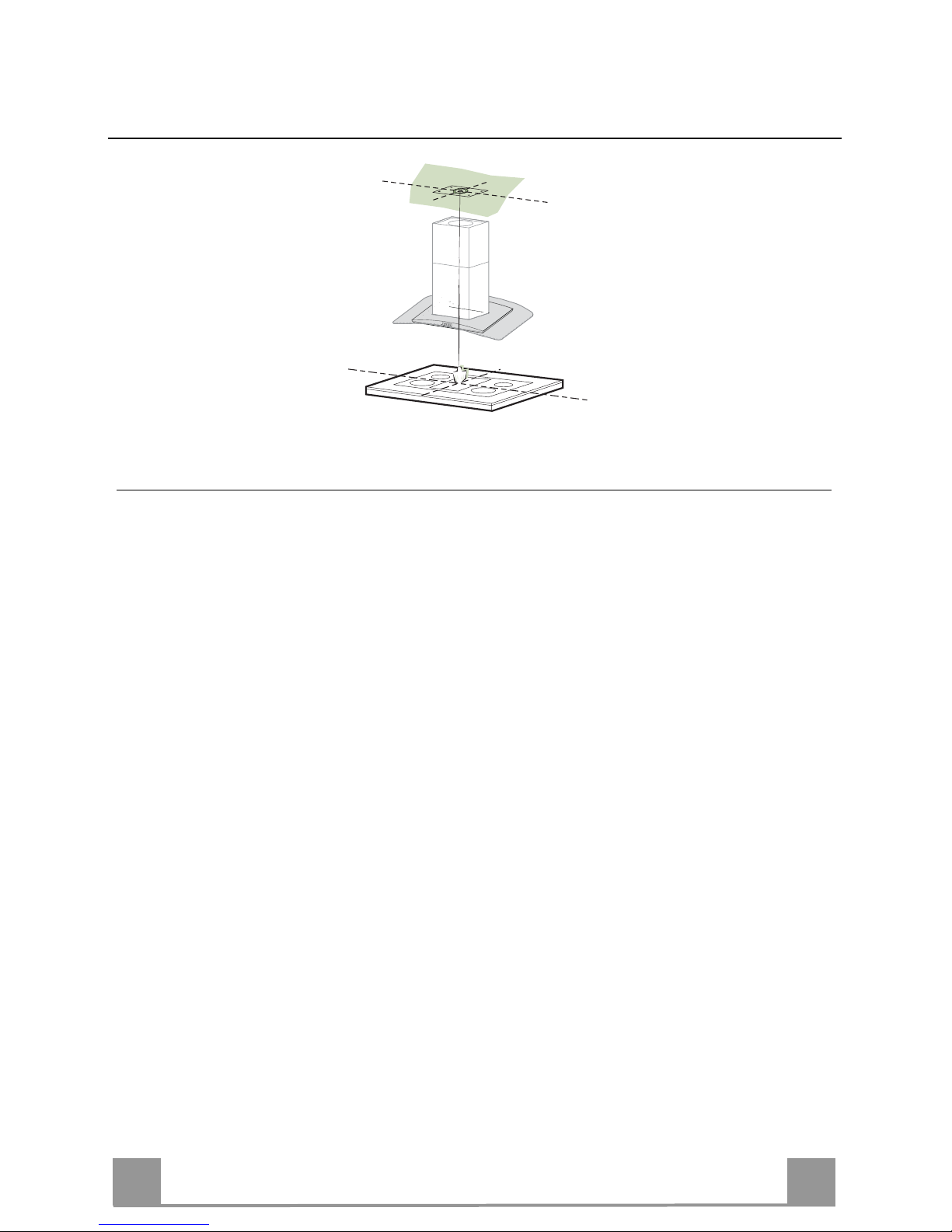

Drilling the Ceiling/shelf and fixing the frame
DRILLING THE CEILING/SHELF
• Use a plumb line to mark the centre of the hob on the ceiling/support shelf.
• Place the drilling template 21 provided on the ceiling/support shelf, making sure that the
template is in the correct position by lining up the axes of the template with those of the hob.
• Mark the centres of the holes in the template.
• Drill the holes at the points marked:
• For concrete ceilings, drill for plugs appropriate to the screw size.
• For hollow brick ceilings with wall thickness of 20 mm: drill ø 10 mm(immediately insert
the Dowels 11 supplied).
• For wooden beam ceilings, drill according to the wood screws used.
• For wooden shelf, drill ø 7 mm.
• For the power supply cable feed, drill ø 10 mm.
• For the air outlet (Ducted Version), drill according to the diameter of the external air ex-
haust duct connection.
• Insert two screws of the following type, crossing them and leaving 4-5 mm from the ceiling:
• For concrete ceilings, use the appropriate plugs for the screw size (not provided).
• for Cavity ceiling with inner space, with wall thickness of approx. 20 mm, Screws 12h,
supplied.
• For wooden beam ceilings, use 4 wood screws (not provided).
• For wooden shelf, use 4 screws 12g with washers 22 and nuts 23, provided.

EN 7
7
Fixing the frame
• Loosen the two screws fastening the lower chimney and re-
move this from the lower frame.
• Loosen the two screws fastening the upper chimney and re-
move this from the upper frame.
If you wish to adjust the height of the frame, proceed as follows:
• Unfasten the metric screws joining the two columns, located at
the sides of the frame.
• Adjust the frame to the height required, then refit all the screws
removed as above.
• Insert the upper chimney stack from above, and leave it run-
ning free on the frame.
• Lift up the frame, fit the frame slots onto the screws up to the
slot end positions.
• Tighten the two screws and fasten the other two screws pro-
vided with the hood.
Before tightening the screws completely it is possible to adjust
the frame by turning it. Make sure that the screws do not come
out of their seats in the slotted holes.
• The frame mountings must be secure to withstand the weight
of the hood and any stresses caused by the occasional side
thrust applied to the device.
On completion, check that the base is stable, even if the frame
is subjected to bending.
• In all cases where the ceiling is not strong enough at the sus-
pension point, the installer must provide strengthening using
suitable plates and backing pieces anchored to the structurally
sound parts.
22
11
Connections
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the
chimney using either a flexible or rigid pipe ø 150 or 120mm, the
choice of which is left to the installer.
To install a ø 150 pipe
• To install the dumper 10
• Fix the pipe in position using sufficient pipe clamps (not sup-
plied).
To install a ø 120 pipe
• To install a ø 120 mm air exhaust connection, insert the re-
ducer flange 9on the dumper 10.
• Fix the pipe in position using sufficient pipe clamps (not sup-
plied).
• Remove any activated charcoal filters.
ø 120
25
10
9
10
ø 150
25

EN 8
8

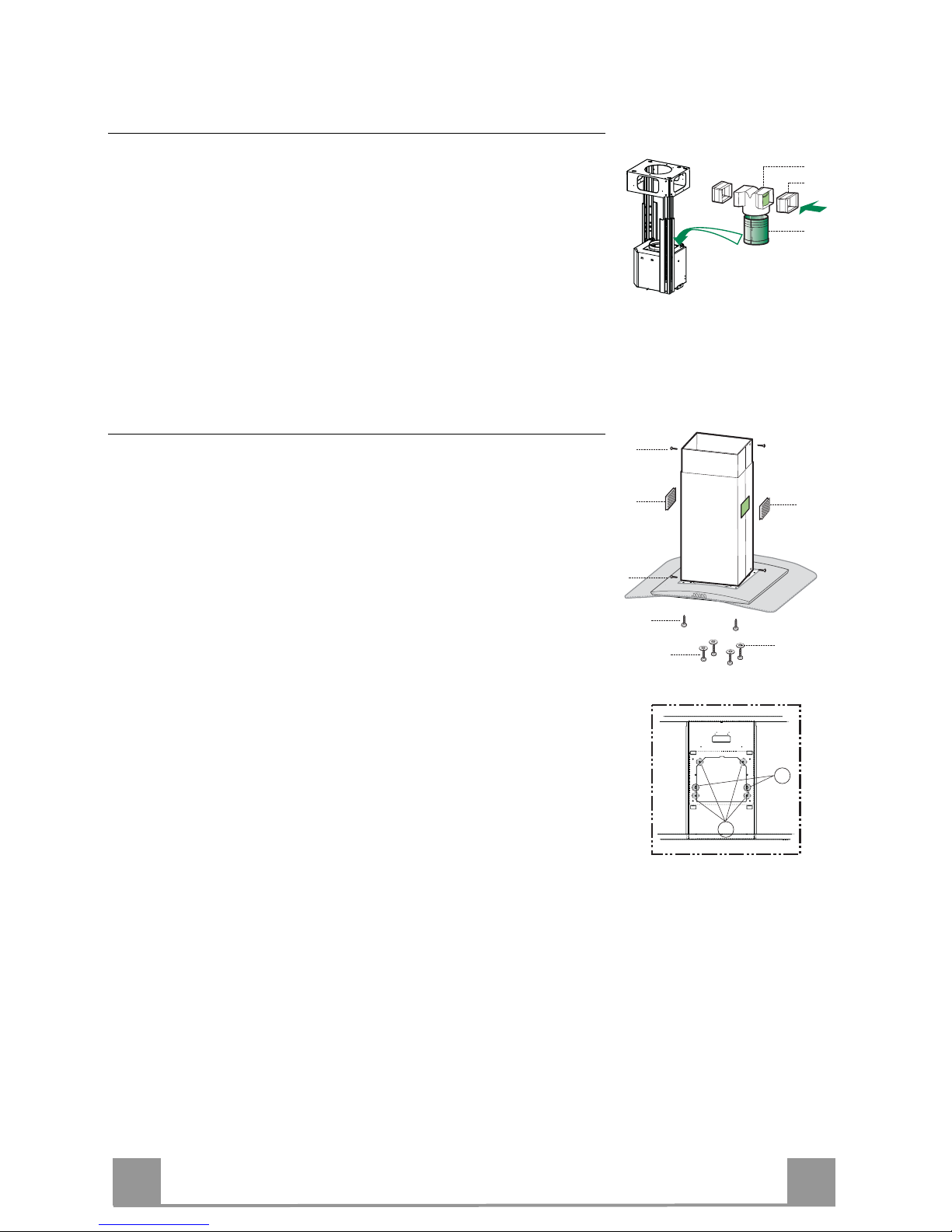

RECIRCULATION VERSION AIR OUTLET
• Assemble the two halves of the hood body extension piece 14
(if necessary).
• Push fit the assembled hood body extension piece 14 onto the
air outlet (if necessary).
• Push fit connection 15 onto the hood body extension piece 14
or directly onto the hood body.
• Insert the connection extension pieces laterally 14.1 in connec-
tion 15.
Should the central reinforcing piece of the frame somehow inter-
fere the chimney air outlet grille, it is possible to unscrew it and
to place it in another screw hole set.
14
15
14.1
Flue assembly - Mounting the hood body
• Position the upper chimney section and fix the upper part to the
frame using the 2 screws 12c (2,9 x 6,5) provided.
• Similarly, position the lower chimney section and fix the
lower part to the frame using the 2 screws 12c (2,9 x 6,5) pro-
vided.
Recirculation version
• Make sure that the outlet of the extension pieces 14.1 is hori-
zontally and vertically aligned with the chimney outlets.
• Otherwise, remove the lower chimney and adjust the position
by inverting the extension pieces for air outlet connection 14.1
or by cutting the hood body extension piece 14 (if any) along
one of the chases destined to the predetermined extension
lengths. Replace then the elements as earlier described.
• Fit the directional grids 8a - 8b in their housings making sure
that the directional symbols are towards the top. Also make
sure that they are correctly inserted in the connection exten-
sion pieces 14.1.
Before fixing the hood canopy to the frame:
• Screw the 2 screws 12f half way into the holes provided in the
sides of the bottom of the frame.
• Remove the grease filters from the hood canopy.
• Remove any activated charcoal filters.
• Lift the hood canopy and engage the screws 12f in the slots (A)
as far as they will go.
• Working from below, fix the hood canopy to the frame (B),
using the 4 screws 12q and 4 washers 22 provided, then tighten
all the screws securely.
8b 8a
12c
12c
A
B
22
12f
12q

EN 9
9

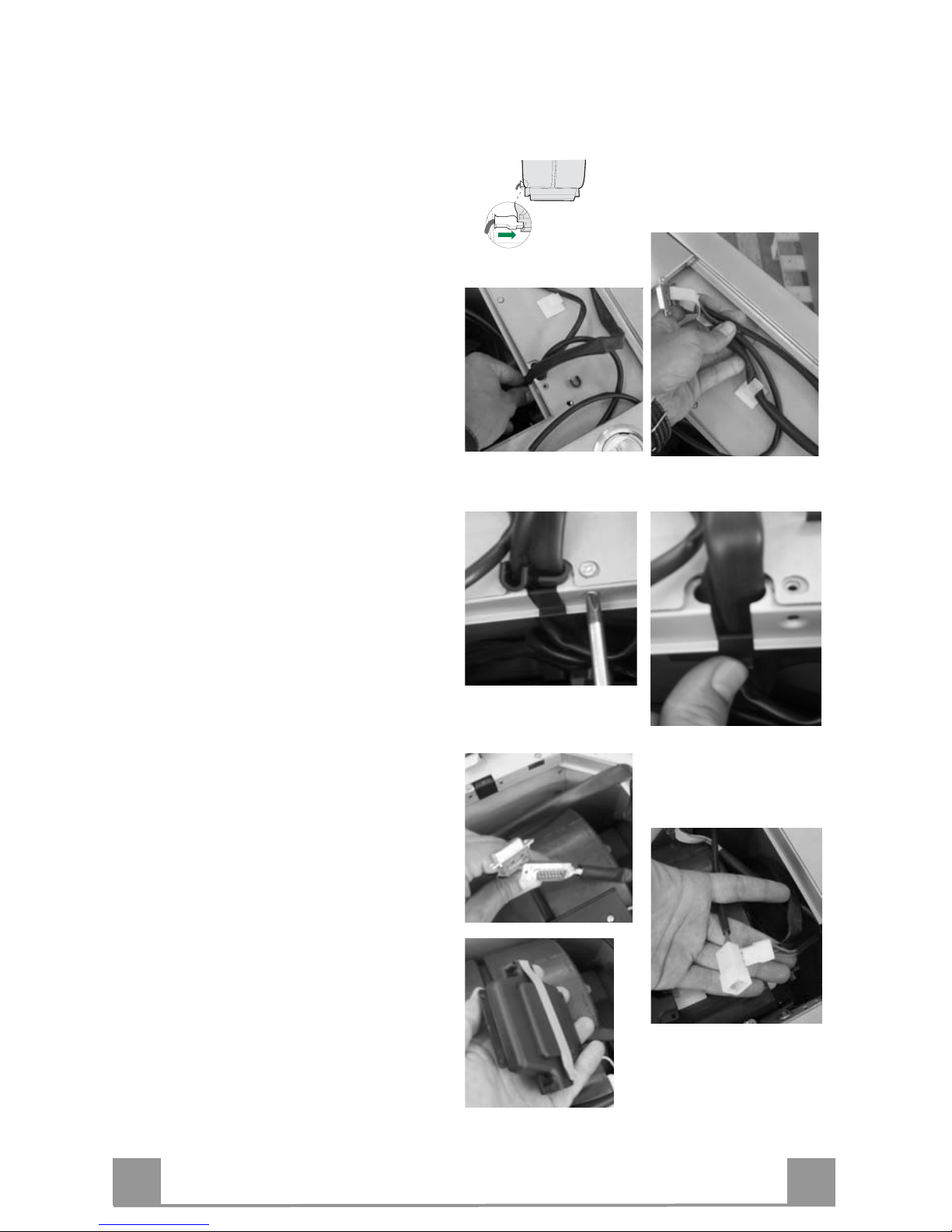

ELECTRICAL CONNECTION
• Connect the Hood to the Mains power sup-
ply, inserting a two-pole Switch with a con-
tact aperture of at least 3 mm.
• Remove the Metal grease filters (see par.
on “Maintenance”) and make sure that the
power supply Cable is properly inserted in
the Suction fan socket.
• Take the wires indicated in fig.1and pass
them through the slot formed on the galva-
nized diffuser support, as shown in fig.2.
• Position the finishing plug 27 over the
housing in the diffuser support, fixing it us-
ing a screw 12e (2.9 x 9.5) and applying the
2 cable clamp elements 26 as indicated in
figs. 3and 4.
• Connect the Controls Connector fig. 5.
• Connect the Lighting Connector fig. 6.
• Store both the Connectors in the Protective
box 24 and close it with 2 Screws 12e (2.9
x 9.5), provided.
• Remove the protective film from the dou-
ble-sided adhesive on the connection box,
and fix it inside the motor compartment fig.
7.
1
2
34
5
6
7

EN 1
10
USE
L T1 T2 T3 T4
L1 L2 L3 L4

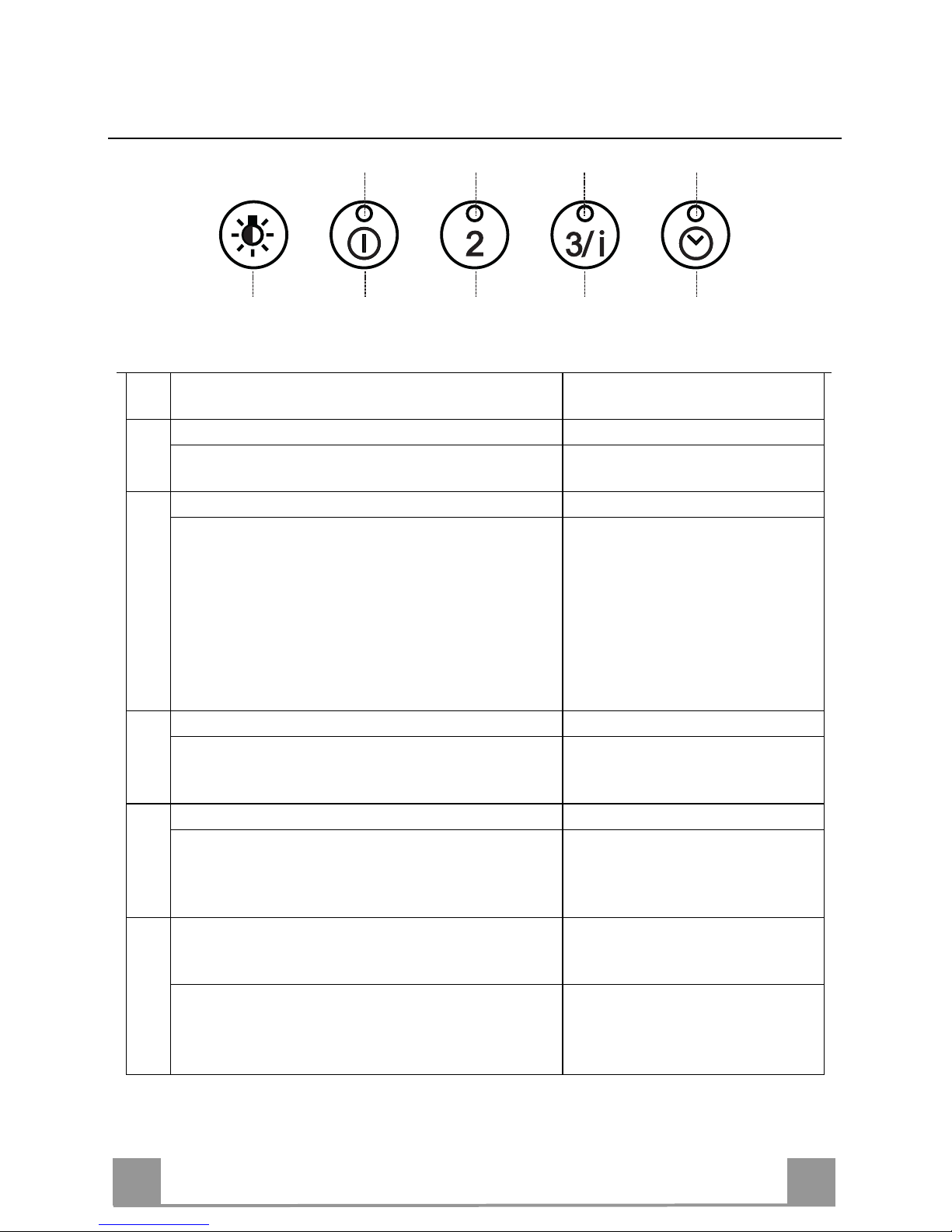

Control panel
But
ton
Function Led
L Turns the lighting system on and off. -
Press and hold for approx. 2 seconds to turn the lighting
system on and off at reduced intensity.
-
T1 Turn the suction motor on and off at speed one. On.
Press and hold the button for approximately 2 seconds,
with all the loads turned off (Motor and Lights), to reset
the Filters and turn off the Leds that are lit.
After 100 working hours all the
LEDs (L1-L2-L3-L4) will light up
and remain lit to indicate saturation
of the metal grease filters.
After 200 working hours all the
LEDs (L1-L2-L3-L4) will light up
and start to flash to indicate
saturation of the activated charcoal
filters.
T2 Turn the suction motor on at speed two. On.
Press and hold for approximately 5 seconds, with all the
loads turned off (Motor and Lights), to enable/disable
the Remote control.
2 flashes, Remote control Enabled.
1 flash, Remote control Disabled.
T3 Turn the suction motor on at speed three. On.
Press and hold the button for 2 seconds to activate
intensive speed. This speed is timed to run for 10
minutes. At the end of this time the system will
automatically return to the speed set before.
T4 Press and hold the button for approximately 2 seconds to
activate automatic shutdown with a 30' delay
(Motor+Lights).
On.
Press and hold for approximately 5 seconds to
enable/disable the Activated Charcoal Filter alarm.
2 Flashes of the Leds (L1-L2-L3)
Filter Alarm Enabled.
1 Flash of the Leds (L1-L2-L3)
Filter Alarm Disabled.

EN 1
11
MAINTENANCE
Metal grease filters
These can also be washed in the dishwasher, and need to be
cleaned when all the command LEDs light up in a continuous
manner or at least once every 2 months use, or more frequently if
use is particularly intensive.
Resetting the alarm signal
• Press button T1 (see the paragraph on Use).
Cleaning the Filters
• Remove the Filters one at a time, pushing them towards the
back of the unit and at the same time pulling downward.
• Wash the Filters without bending them, and leave them to dry
completely before replacing.
• Replace, taking care to ensure that the handle faces forwards.

EN 1
12
Activated Charcoal Filter (Recirculation Version)
• This cannot be washed or regenerated, and must be changed when all the command LEDs
start to flash, or at least once every 4 months.
Activating the alarm signal
• In Recirculation Version Hoods, the Filter Saturation Alarm must be activated on installation or at
a later date.
• Press and hold the Delay button (T4) on the keypad for 5 seconds and the following will be dis-
played:
• Leds (L1-L2-L3) flash twice – Activated Charcoal Filter saturation alarm ACTIVATED.
• Leds (L1-L2-L3) flash once – Activated Charcoal Filter saturation alarm DEACTI-
VATED.
CHANGING THE ACTIVATED CHARCOAL FILTER
Resetting the alarm signal
• Press button T1 (see the paragraph on Use).
Changing the Filter
• Remove the Metal grease filters.
• Remove the saturated Activated Charcoal filter, as shown in
the figure.
• Fit the new Filter, hooking it into place.
• Replace the Metal grease filters.
Lighting
LIGHT REPLACEMENT
20 W halogen light.
• Remove the snap-on lamp cover by levering it from under the
metal ring, supporting it with one hand.
• Remove the halogen lamp from the lamp holder by pulling
gently.
• Replace the lamp with a new one of the same type, making
sure that you insert the two pins properly into the housings on
the lamp holder.
• Replace the snap-on lamp cover.
