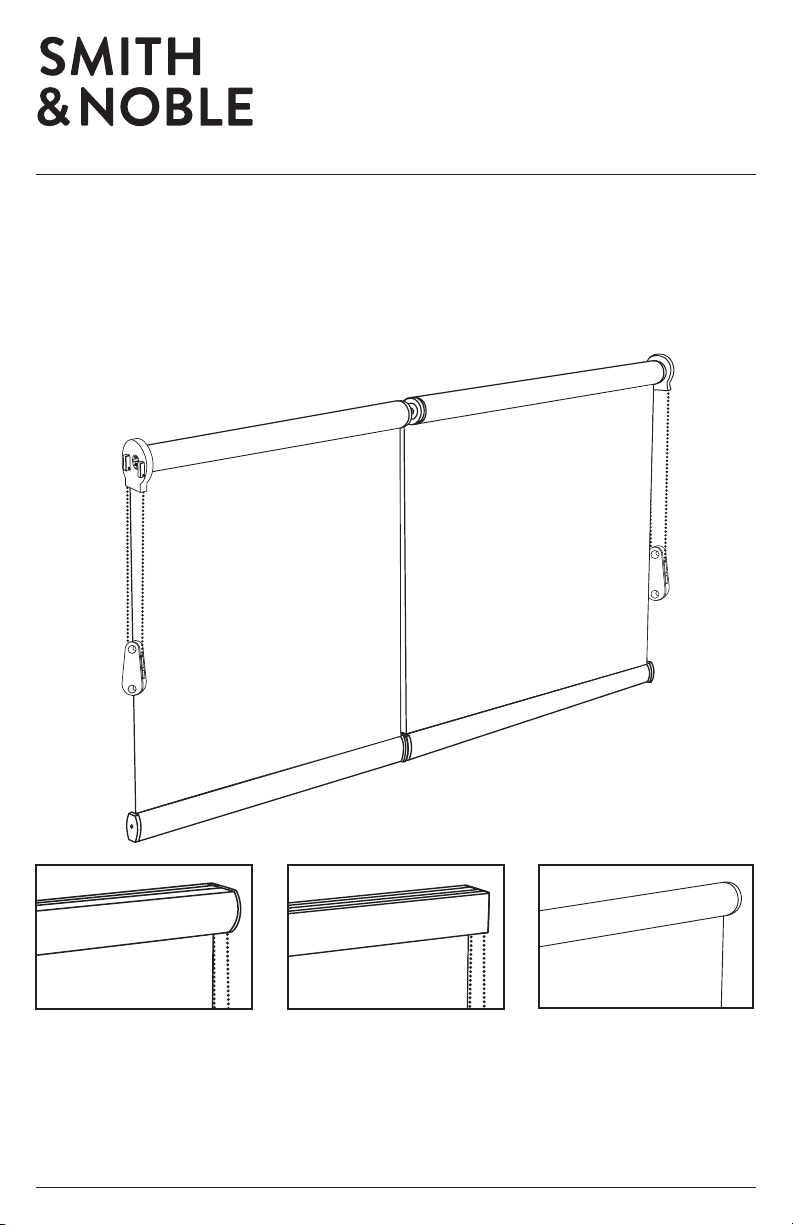

Smith & Noble Solar & Roller Shades User manual

Solar & Roller Shades
STEP BY STEP INSTALLATION INSTRUCTIONS
2 on 1 Headrail
Loop Control & Motorization

12
smithandnoble.com 800.248.8888
Table of Contents
Step 1 - Getting Started ..................................3
Overview - 2 on 1 Loop Control..............................4
Step 2 - Mounting Brackets ............................. 5-6
Step 3 - Hanging the Shade ..............................7
Step 4 - Installing Cord Tensioner .........................8
Step 5 - Operating the Shade .............................9
Overview - 2 on 1
Motorization ..............................10
Step 2 - Mounting Brackets ...........................11-12
Step 3 - Hanging the Shade .............................13
Overview - 2 on 1
Loop Control with Metal Valance .............14
Step 2 - Mounting Brackets ...........................15-16
Step 3 - Hanging the Shade .............................17
Step 4 - Attaching the Valance ...........................17
Step 5 - Installing Cord Tensioner ........................18
Step 6 - Operating the Shade ............................18
Overview - 2 on 1
Motorization with Metal Valance ................. 19
Step 2 - Mounting Brackets ...........................20-21
Step 3 - Hanging the Shade .............................22
Step 4 - Attaching the Valance ...........................22
Optional - Skew Adjustment ...............................25
Optional - Hold Down Brackets ............................25

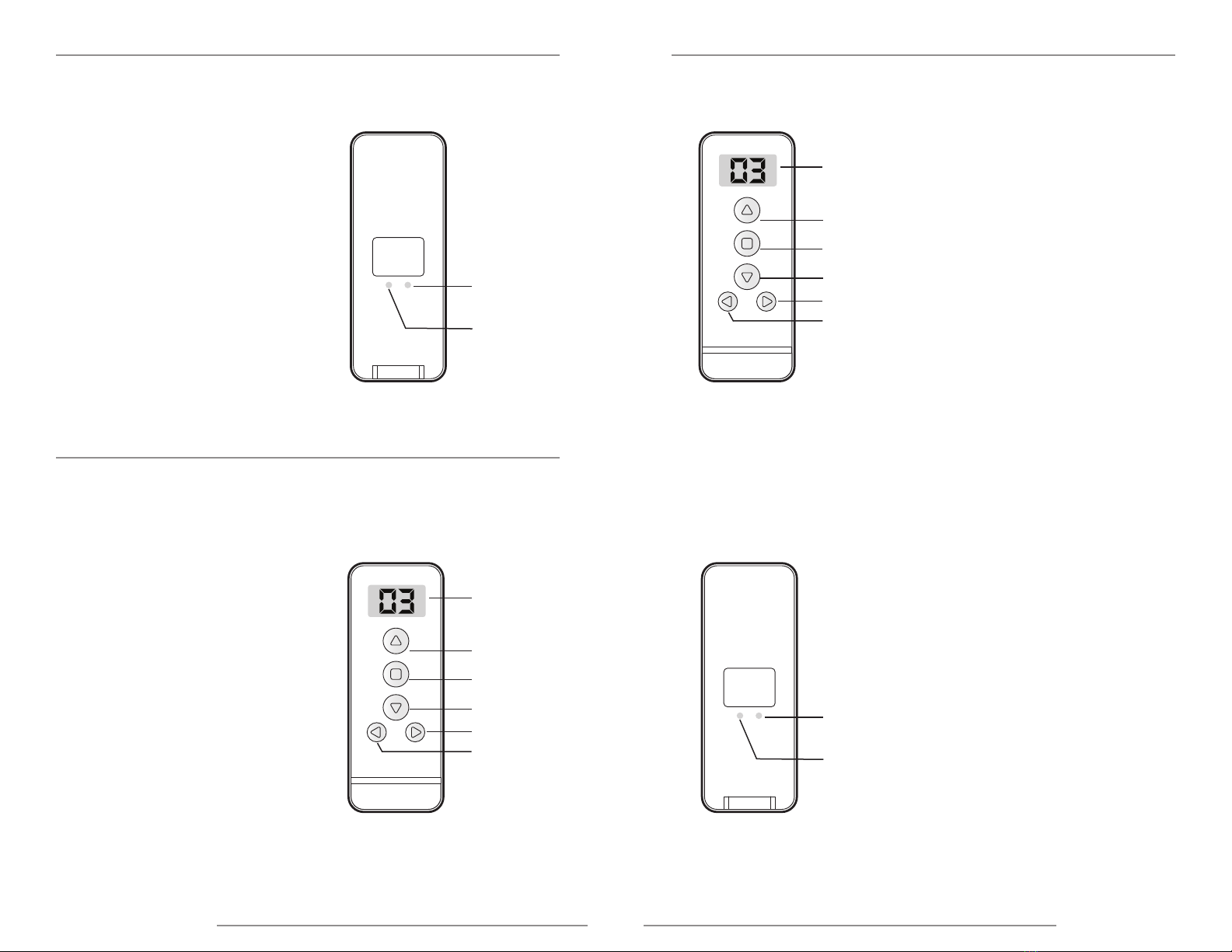

Pair / Unpair the Remote Control .............................26
Operating the Remote ......................................29
Recharging the Shade.......................................36
Troubleshooting............................................40
Care & Cleaning Instructions ................................41
Safety .................................................... 41
Warranty ..........................................Back Cover
A Smooth Set-Up
We want you to love your new window coverings and that includes
having a smooth installation experience. We recommend saving
this guide. If you encounter any difculties or questions, please
reach out to us for help. It’s why we’re here. Call us at 800.248.8888
for more info on installation.
We recommend you hold on to all packaging until your window
coverings are fully installed. Should something go wrong (we
strongly doubt it), we want any potential returns to be as
painless as possible.
Customer Service Hours
Monday — Friday: 6am — 6pm PT
Saturday — Sunday: 7am — 4pm PT
smithandnoble.com
Everything
You Need

34
smithandnoble.com 800.248.8888
First, make sure you have all the parts and tools required to install your shades.
ALL THE HARDWARE YOU’LL NEED:
Pencil, screw-driver, ¼” nut driver, level, and a drill with
a 1⁄16” drill bit.
Then nd wooden studs where you’ll want to attach
the brackets; if you need to mount your shades to wallboard or plaster, use a secure fastener
designed for hollow wall applications. For metal surfaces, pre-drill holes and use the included
screws. For concrete, stone, brick, or tile surfaces, use a masonry drill and appropriate plugs,
anchors, or screws.
It’s important when selecting a fastener to make sure it’s designed to support the weight of the
shade. Follow the fastener manufacturer’s instruction from there on out.

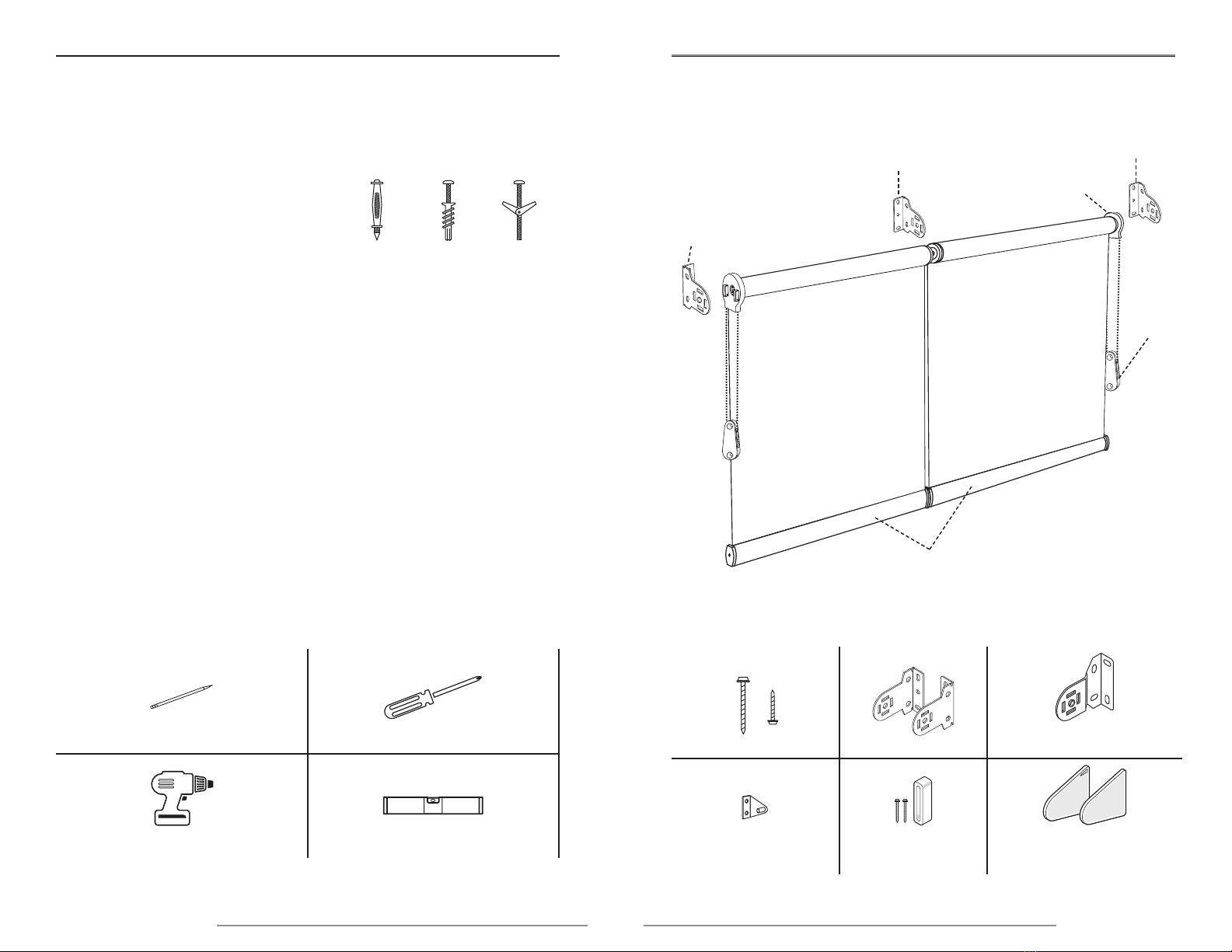

Parts & Tools - Loop Control and Motorization
STEP 1 - GETTING STARTED
PENCIL
(NOT INCLUDED)
SCREWDRIVER
(NOT INCLUDED)
POWER DRILL
(NOT INCLUDED)
LEVEL
(NOT INCLUDED)
Loop Control – No Headrail
Bottom Bar
Cord
Tensioner
Clutch
Bracket
Bracket
Bracket

SCREWS MOUNTING BRACKETS
INTERMEDIATE
MOUNTING BRACKET
HOLD DOWN BRACKET
(OPTIONAL)
SPACER BLOCK
(OPTIONAL)
BRACKET COVERS
NO HEADRAIL - OUTSIDE MOUNT
(OPTIONAL FOR INSIDE MOUNT)
PartsTools you will need:
MOLLY
BOLT
SELF DRILLING
ANCHOR
TOGGLE
BOLT

56
smithandnoble.com 800.248.8888
Inside Mount
The end installation brackets are
always mounted so that the short
legs face in. Brackets must be in line
and level. Shim brackets on inside
mounts if necessary. The roller must
be level for the shade to operate
properly.
Hold the left shade in the window
frame. Mark the position of the
brackets. Make sure the brackets
are aligned. Brackets should be top
mounted for proper alignment.
Hold up the next shade positioning
the left end into the installed bracket
and mark position of center bracket.
The spring pin end should compress
half way for best t. Install bracket
using both screws making sure it is
aligned with other installed brackets.
Inside Mount No Headrail
with Bracket Covers
Place the brackets 1⁄16" from the
window casing. This will create a
gap for the bracket cover.
Attach each bracket using two
screws through the top holes.
Do not use side holes.
See HANGING THE SHADE for next
steps.
No Headrail
1/16"
Gap
No Headrail with Bracket Covers
STEP 2 - 
Left Shade Right Shade
Left Shade Middle Shade Right Shade
Left Shade Middle Shade Right Shade
Outside Mount
The end installation brackets are
always mounted so that the short
legs face in. Brackets must be in line
and level. The roller must be level for
the shade to operate properly.
Hold the left shade above the window
so that it’s positioned in the desired
location over the window opening.
Mark the position of the brackets on
the wall. Mount the brackets to the
wall using both screws making sure
the mounting brackets are aligned.
Hold up the next shade positioning
the left end into the installed bracket
and mark position of next bracket.
The spring pin end should compress
half way for best t. Install bracket
using both screws making sure it is
aligned with other installed brackets.
See HANGING THE SHADE for next
steps.
No Headrail Outside Mount
BRACKET CONFIGURATION


78
smithandnoble.com 800.248.8888
Hanging Shades without
Headrail
Once the brackets are secured and
level, the fabric roll can be inserted.
Make sure your hands are clean to
avoid soiling the fabric.
Be sure the clutch and roller end plug
are inserted into the roller. Hold the
shade with the bottom of the clutch
facing the oor, and the beaded cord
hanging straight down. Be sure the
shade is fully rolled on the tube.
Insert the spring loaded pin end into
the round hole of the bracket.
Push the clutch end toward the pin
end to compress the spring. The pin
should compress half way in for best
t. Line up the hooks on the clutch
with the two slots in the bracket.
Allow the spring to release and let
the hooks go into the slots.
Once the two hooks are through the
slots, gently pull down on the clutch
until the hooks lock securely to the
bracket.
Bracket covers come standard
for outside mount shades and if
requested for non-ush inside
mounted shades. If your shade came
with bracket covers, slide the bracket
covers over the bracket until they
snap into place.
No Head Rail
STEP 3 - 

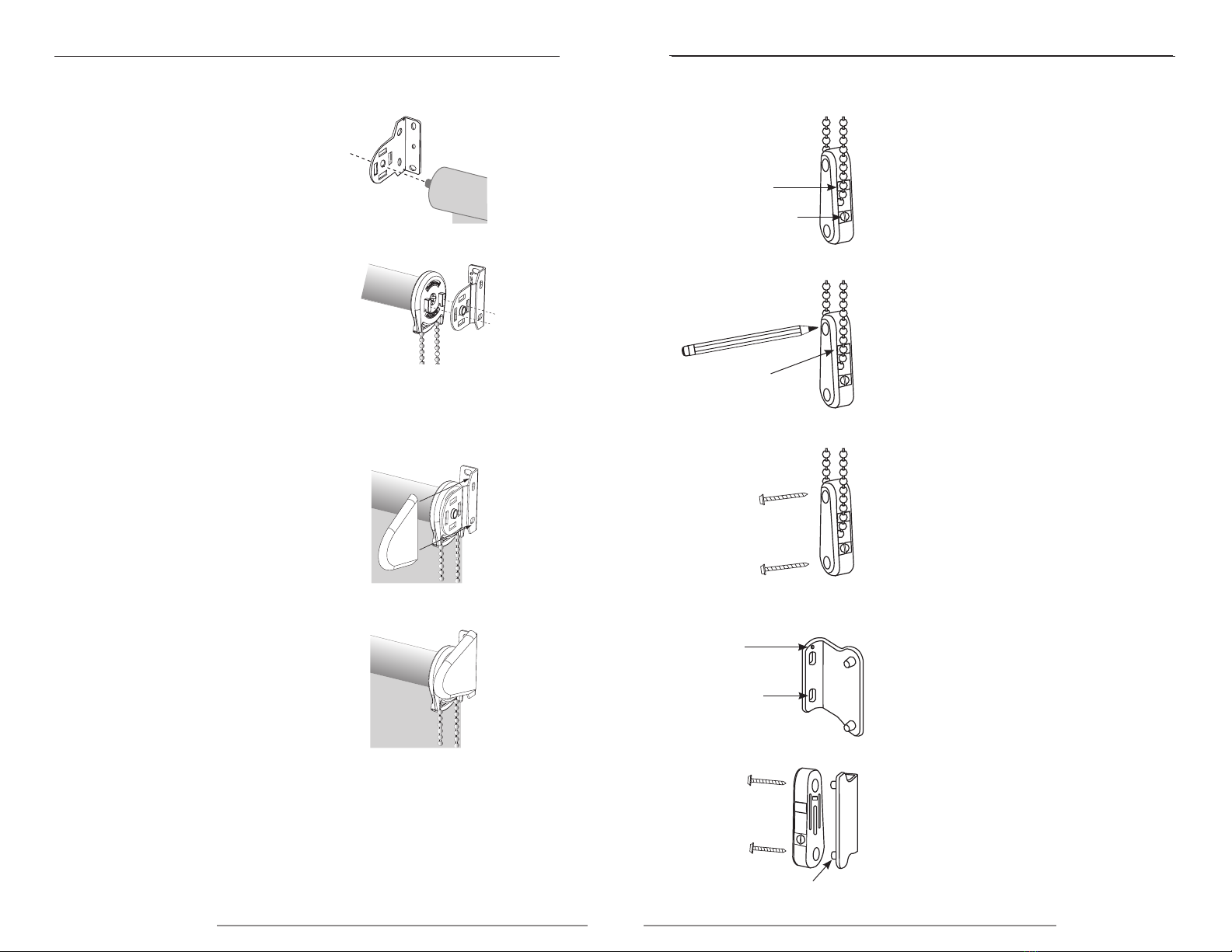

Installing Cord Tensioner
Your window shade has arrived with a
cord tensioner to comply with current
child safety standards. The cord tensioner
must be mounted and secured before the
window shade will operate correctly.
Before doing anything, you must rst
slide the tension device to the bottom of
the bead chain.
While holding the tension device in
one hand, pull the plunger away from
the bead chain with the other hand. Lift
the bead chain out of the bead locking
groove and slide the tension device to the
bottom of the chain loop.
Pull the tension device down until the
bead chain is fully tensioned (plunger will
be at the top) and then move the tension
device up approximately 1⁄8".
Mark the screw hole locations on the wall
with a pencil.
INSIDE MOUNT
If mounting into wood, pre-drill screw
holes and then install the tension device
using the 2 large screws provided.
If not securing into wood, use appropriate
anchors for the substrate and follow
anchor manufacturer's instructions.
OUTSIDE MOUNT
Align the mounting bracket sight holes
with the pencil marks.
If mounting into wood, pre-drill screw
holes and then install the mounting
bracket using the 2 large screws provided.
If not securing into wood, use appropriate
anchors for the substrate and follow
anchor manufacturer's instructions.
Press the tension device onto the
mounting bracket posts. Carefully install
the 2 small screws provided, through the
tension device into the mounting bracket
using a phillips head screwdriver. DO
NOT OVER-TIGHTEN.
Plunger
Bead
locking
groove
Plunger
Location
Sight
hole
Screw
hole
Post


910
smithandnoble.com 800.248.8888
Loop Control
Opening and closing your new Smith
& Noble shades is entirely hassle-
free. Using the loop control, pull the
rear bead chain to lower the shade
and, pull the front bead chain to
raise.
If shade was ordered as a reverse
roll, the front cord will lower the
shade and the back cord will raise
the shade.
Rear
Bead
Chain
Front
Bead
Chain
STEP 5 - 

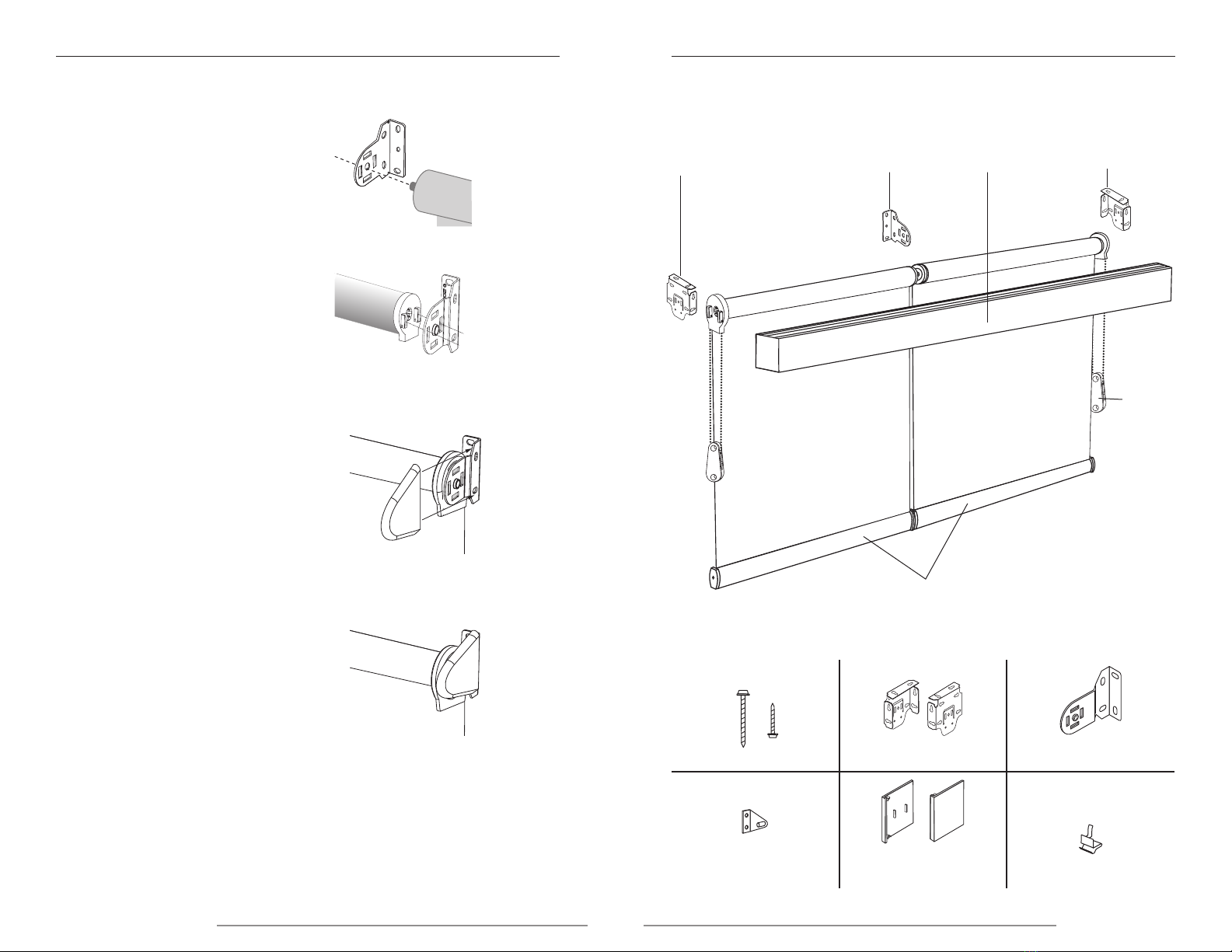

Motorization with No Headrail - Remote Control
Bottom Bar
Bracket
Bracket
REMOTE
CONTROL
Bracket

SCREWS MOUNTING BRACKETS
INTERMEDIATE
MOUNTING BRACKET
HOLD DOWN BRACKET
(OPTIONAL)
SPACER BLOCK
(OPTIONAL)
BRACKET COVERS
NO HEADRAIL - OUTSIDE MOUNT
(OPTIONAL FOR INSIDE MOUNT)
Parts

11 12
smithandnoble.com 800.248.8888
Inside Mount
The end installation brackets are
always mounted so that the short
legs face in. Brackets must be in line
and level. Shim brackets on inside
mounts if necessary. The roller must
be level for the shade to operate
properly.
Hold the left shade in the window
frame. Mark the position of the
brackets. Make sure the brackets
are aligned. Brackets should be top
mounted for proper alignment.
Hold up the next shade positioning
the right end into the installed
bracket and mark position of next
bracket. The spring pin end should
compress half way for best t. Install
bracket using both screws making
sure it is aligned with other installed
brackets.
Inside Mount No Headrail
with Bracket Covers
Place the brackets 1⁄16" from the
window casing. This will create a
gap for the bracket cover.
Attach each bracket using two
screws through the top holes.
Do not use side holes.
See HANGING THE SHADE for next
steps.
No Headrail
1/16"
Gap
No Headrail with Bracket Covers
STEP 2 - 
Left Shade Right Shade
Left Shade Middle Shade Right Shade
Left Shade Middle Shade Right Shade
Outside Mount
The end installation brackets are
always mounted so that the short
legs face in. Brackets must be in line
and level. The roller must be level for
the shade to operate properly.
Hold the left shade above the window
so that it’s positioned in the desired
location over the window opening.
Mark the position of the brackets on
the wall. Mount the brackets to the
wall using both screws making sure
the mounting brackets are aligned.
Hold up the next shade positioning
the left end into the installed bracket
and mark position of next bracket.
The spring pin end should compress
half way for best t. Install bracket
using both screws making sure it is
aligned with other installed brackets.
See HANGING THE SHADE for next
steps.
No Headrail Outside Mount
BRACKET CONFIGURATION


13 14
smithandnoble.com 800.248.8888
Hanging Shades without
Headrail
Once the brackets are secured and
level, the fabric roll can be inserted.
Make sure your hands are clean to
avoid soiling the fabric.
Be sure the motor and roller end plug
are inserted into the roller. Hold the
shade with the bottom of the motor
facing the oor. Be sure the shade is
fully rolled on the tube.
Insert the spring loaded pin end into
the round hole of the bracket.
Push the motor end toward the pin
end to compress the spring. The pin
should compress half way in for best
t. Line up the hooks on the motor
with the two slots in the bracket.
Allow the spring to release and let
the hooks go into the slots.
Once the two hooks are through the
slots, gently pull down on the motor
until the hooks lock securely to the
bracket.
Bracket covers come standard
for outside mount shades and if
requested for non-ush inside
mounted shades. If your shade came
with bracket covers, slide the bracket
covers over the bracket until they
snap into place.
No Headrail
STEP 3 - 
Loop Control – with Metal Valance
END
BRACKET
CENTER
BRACKET
END
BRACKET
CORD
TENSIONER
METAL
VALANCE
BOTTOM
BARS

SCREWS
BRACKETS FOR SHADES
WITH METAL VALANCE
INTERMEDIATE
MOUNTING BRACKET
HOLD DOWN BRACKET
(OPTIONAL)
METAL VALANCE
BRACKET COVER
(OUTSIDE MOUNT ONLY)
METAL VALANCE
BRACKET COVER
(OUTSIDE MOUNT ONLY) METAL VALANCE CLIP
Parts

15 16
smithandnoble.com 800.248.8888

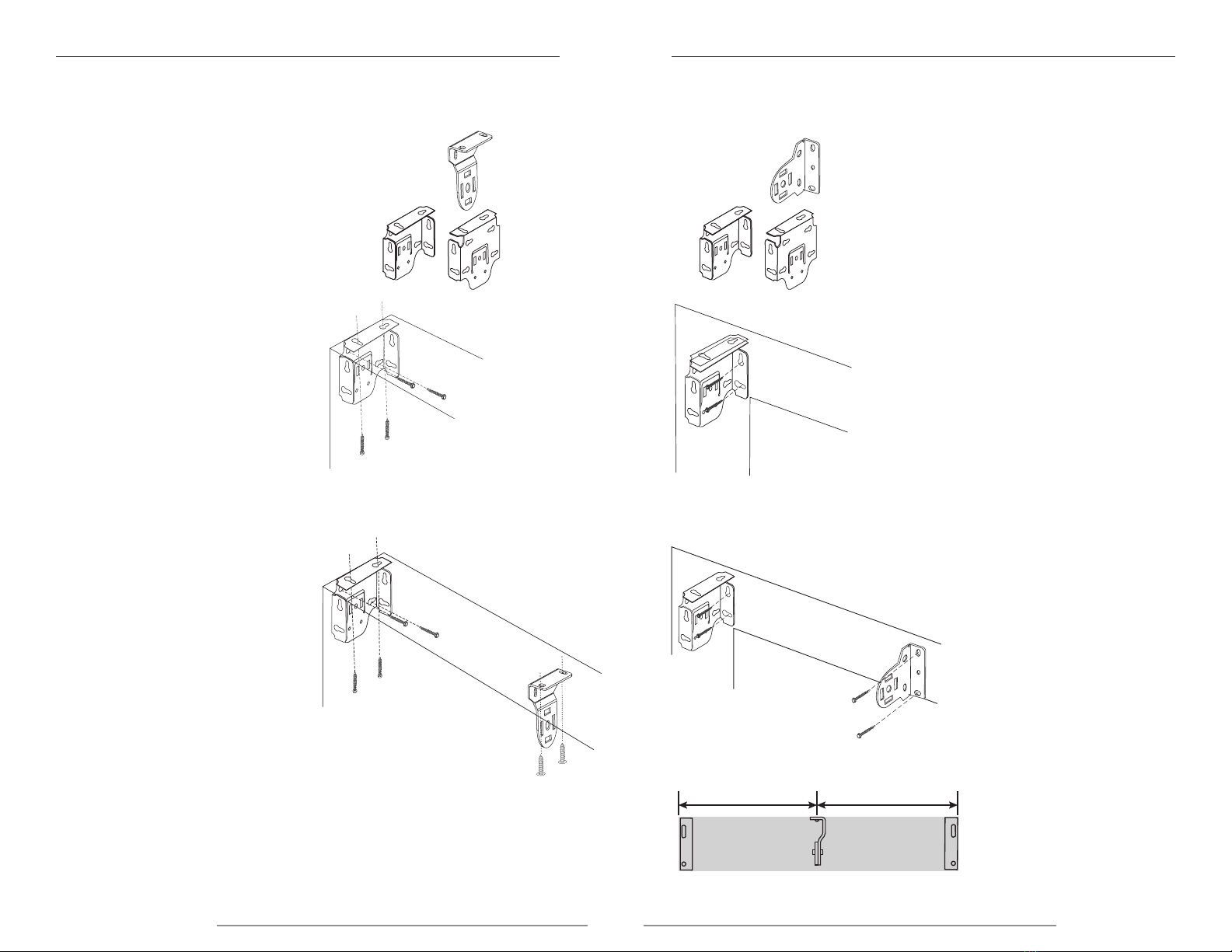

Inside Mount Loop Control
with Metal Valance
The installation brackets are always
mounted so that the short legs face in.
Brackets must be in line and level. Shim
brackets on inside mounts if necessary.
The roller must be level for the shade to
operate properly.
Hold the left shade in the window
frame. Mark the position of the square
end bracket. Attach the square end
bracket using two screws through the
top of the bracket. The square end
bracket should be installed with the
open end down.
Hold up the next shade positioning
the left end into the installed square
end bracket and mark position of
intermediate bracket. The spring pin
end should compress half way for best
t. Install the intermediate bracket
using both screws making sure it is
aligned with other installed brackets.
Hold the right shade in the window
frame. Mark the position of the square
end bracket. Attach the square end
bracket using two screws through the
top of the bracket. The square end
bracket should be installed with the
open end down.
Make sure all brackets are aligned and
installed following the proper bracket
conguration (Page 16). Brackets
should be top mounted for proper
alignment.
INSIDE MOUNT
STEP 2 - 
Outside Mount Loop Control
with Metal Valance
The end installation brackets are always
mounted so that the short legs face in.
Brackets must be in line and level. The
roller must be level for the shade to
operate properly.
Hold the left shade above the window
so that it’s positioned in the desired
location over the window opening.
Mark the position of the square end
brackets on the wall. Mount the square
end bracket to the wall using both
screws. The square end bracket should
be installed with the open end down.
Hold up the shade positioning the
left end into the installed square
end bracket and mark position of
intermediate bracket. The spring pin
end should compress half way for best
t. Install the intermediate bracket
using both screws making sure it is
aligned with other installed brackets.
Hold the right shade up and mark the
position of the square end bracket.
Attach the square bracket using two
screws. The square bracket should be
installed with the open end down.
Make sure all brackets are aligned and
installed following the proper bracket
conguration (below).
OUTSIDE MOUNT

Left Shade Right Shade
Left Shade Middle Shade Right Shade
Left Shade Middle Shade Right Shade
BRACKET CONFIGURATION

17 18
smithandnoble.com 800.248.8888
Attaching the Valance
Insert a valance clip into the bottom front
keyhole slot of each bracket.
Press the bottom firmly to lock into place.
Hold the valance on the top of the bracket
first, and rotate downward.
Press until the bottom hook feature on
the valance engages and is locked to the
valance clip.
Bracket Covers - Outside Mount
Press the covers onto the brackets as
shown. Covers will snap in place.
Bracket Covers - Inside Mount
Snap or peel adhesive backing and stick
cover over exposed portion of installation
bracket.
Hanging the Shade
Once the brackets are secured and level,
the fabric roll can be inserted. Make sure
your hands are clean to avoid soiling
the fabric.
Be sure the clutch and roller end plug are
inserted into the roller. Hold the shade
with the bottom of the clutch facing
the floor, and the beaded cord hanging
straight down. Be sure the shade is fully
rolled on the tube.
Insert the spring loaded pin end into the
round hole of the bracket.
Push the clutch end toward the pin end
to compress the spring. The pin should
compress half way in for best t. Line
up the hooks on the clutch with the two
slots in the bracket. Allow the spring to
release and let the hooks go into the
slots.
Once the two hooks are through the
slots, gently pull down on the clutch until
the hooks lock securely to the bracket.
Press
Pull Locked
"L"
portion of valance
STEP 3 - 
STEP 4 - 
Plunger
Bead
locking
groove
Installing Cord Tensioner
Your window shade arrived with
a cord tensioner to comply with
current child safety standards. The
cord tensioner MUST be mounted
and secured before the window
shade will operate correctly. Please
see installing cord tensioner on p8.
Operating your Shade
Opening and closing your new Smith
& Noble shades is entirely hassle-
free. Using the loop control, pull the
rear bead chain to lower the shade
and, the front bead chain to raise.
Rear
Bead
Chain
Front
Bead
Chain



19 20
smithandnoble.com 800.248.8888
BOTTOM BARS

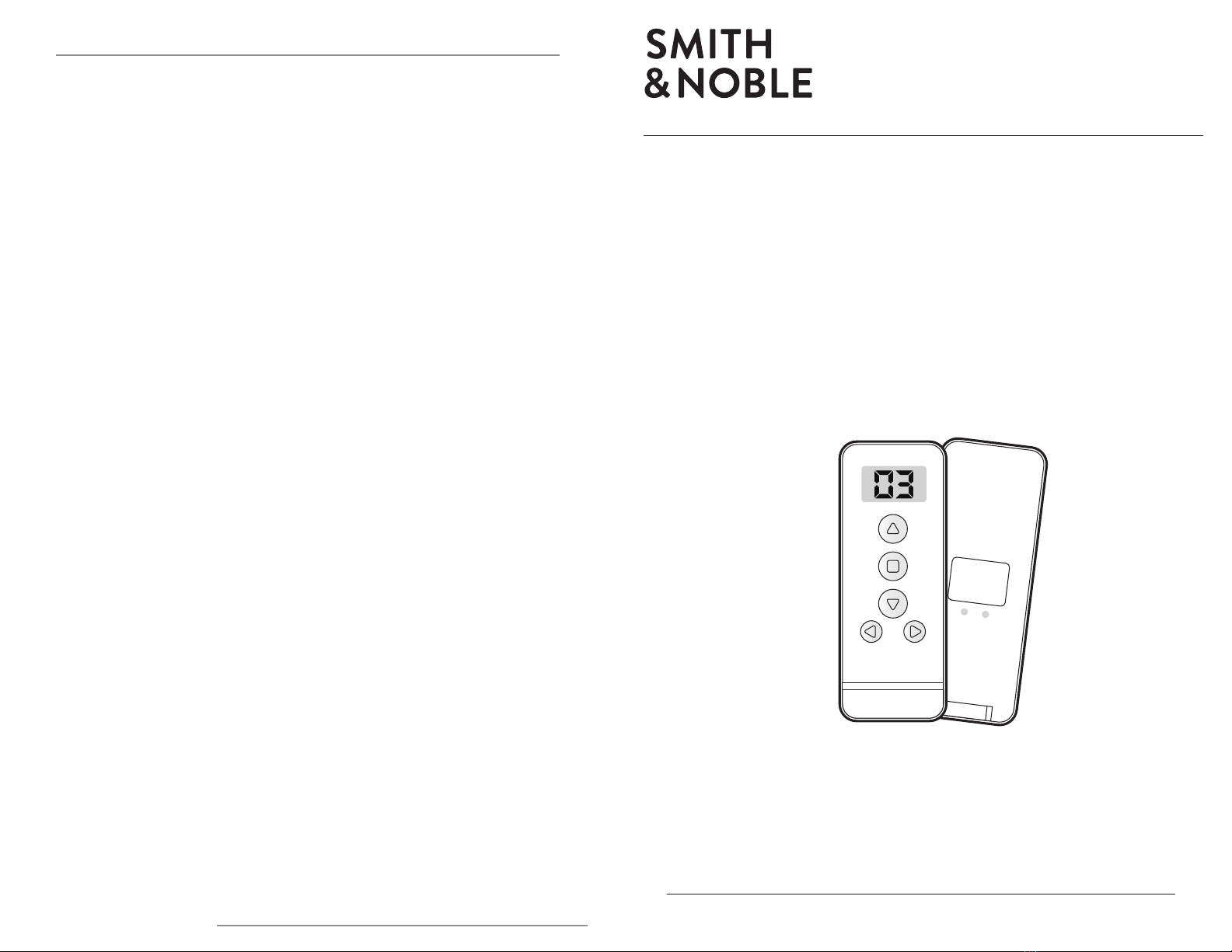

Motorization with Metal Valance - Remote Control
REMOTE
CONTROL
END
BRACKET
END
BRACKET
CENTER
BRACKET
METAL
VALANCE

Inside Mount MOTORIZATION
with Metal Valance
The installation brackets are always
mounted so that the short legs face in.
Brackets must be in line and level. Shim
brackets on inside mounts if necessary.
The roller must be level for the shade to
operate properly.
Hold the left shade in the window frame.
Mark the position of the square end
bracket. Attach the square end bracket
using two screws through the top of the
bracket. The square end bracket should
be installed with the open end down.
Hold up the shade positioning the left
end into the installed square end bracket
and mark position of intermediate
bracket. The spring pin end should
compress half way for best t. Install the
intermediate bracket using both screws
making sure it is aligned with other
installed brackets.
Hold the farthest right shade in the
window frame. Mark the position of the
square end bracket. Attach the square
end bracket using two screws through
the top of the bracket. The square end
bracket should be installed with the
open end down.
Hold the right shade up and mark the
position of the square end bracket.
Attach the square bracket using two
screws. The square bracket should be
installed with the open end down.
Make sure all brackets are aligned and
installed following the proper bracket
conguration (see illustrations to left).
Brackets should be top mounted for
proper alignment.
INSIDE MOUNT
END BRACKET

SCREWS
BRACKETS FOR SHADES
WITH METAL VALANCE
INTERMEDIATE
MOUNTING BRACKET
HOLD DOWN BRACKET
(OPTIONAL)
METAL VALANCE
BRACKET COVER
(OUTSIDE MOUNT ONLY)
METAL VALANCE
BRACKET COVER
(OUTSIDE MOUNT ONLY) METAL VALANCE CLIP
Parts
Left Shade Right Shade
Left Shade Middle Shade Right Shade
Left Shade Middle Shade Right Shade
BRACKET CONFIGURATION

21 22
smithandnoble.com 800.248.8888
Outside Mount MOTORIZATION
with Metal Valance
The end installation brackets are always
mounted so that the short legs face in.
Brackets must be in line and level. The
roller must be level for the shade to
operate properly.
Hold the left shade above the window so
that it’s positioned in the desired location
over the window opening. Mark the
position of the square end brackets on the
wall. Mount the square end bracket to the
wall using both screws. The square end
bracket should be installed with the open
end down.
Hold up the shade positioning the left end
into the installed square end bracket and
mark position of intermediate bracket.
The spring pin end should compress half
way for best t. Install the intermediate
bracket using both screws making sure it
is aligned with other installed brackets.
Hold the right shade up and mark the
position of the square end bracket. Attach
the square bracket using two screws. The
square bracket should be installed with
the open end down.
Make sure all brackets are aligned and
installed following the proper bracket
conguration (below).
OUTSIDE MOUNT
STEP 2 - 
Hanging the Shade
Once the brackets are secured and level,
the fabric roll can be inserted. Make sure
your hands are clean to avoid soiling the
fabric.
Be sure the clutch and roller end plug are
inserted into the roller. Hold the shade
with the bottom of the clutch facing the
floor, and the beaded cord hanging
straight down. Be sure the shade is fully
rolled on the tube.
Insert the spring loaded pin end into the
round hole of the bracket.
Push the clutch end toward the pin end
to compress the spring. The pin should
compress half way in for best t. Line up
the hooks on the clutch with the two slots
in the bracket. Allow the spring to release
and let the hooks go into the slots.
Once the two hooks are through the slots,
gently pull down on the clutch until the
hooks lock securely to the bracket.


24
800.248.8888
23 smithandnoble.com

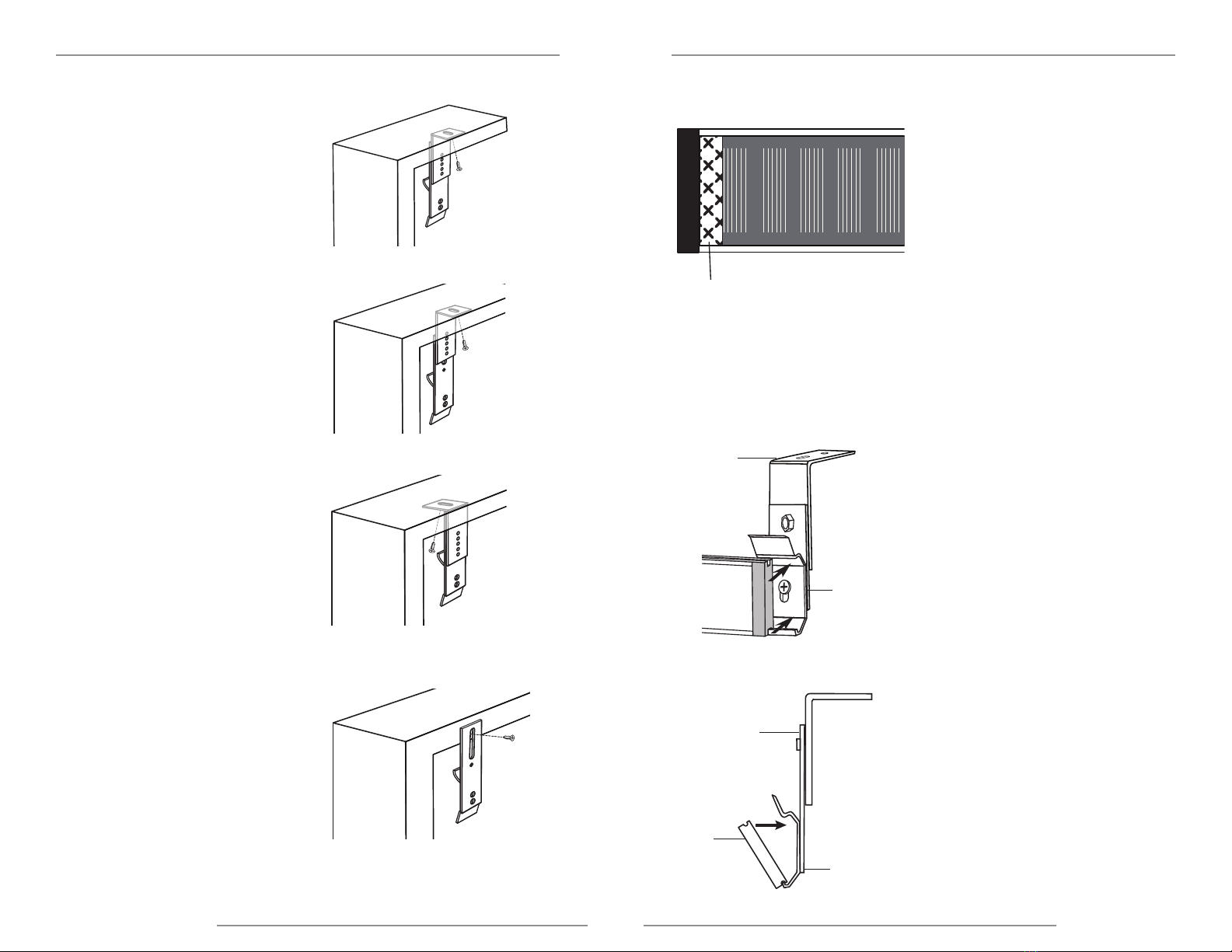

Hold Down Bracket
Optional Hold Down Brackets are
mounted with the supplied screws.
With the shade at its proper drop,
place the pin of each Hold Down into
the hole in each End Cap and make
sure the pins are level and aligned.
Mark the screw holes with a pencil.
Raise the shade, then screw the Hold
Down Bracket into the mounting
surface.
Hold Down
Bracket
Skew Adjustment
If the shade does not raise evenly,
rst make sure the mounting brackets
are mounted level with each other.
If the shade is level and it still
skews, use the Skew Adjustment Kit
included with your shade to adjust
skewing.
If these suggestions don’t work,
then please give us a call or visit our
website.


Fabric Roll
Place tape at this end
Attaching the Valance
Insert a valance clip into the bottom front
keyhole slot of each bracket.
Press the bottom firmly to lock into place.
Hold the valance on the top of the bracket
first, and rotate downward.
Press until the bottom hook feature on
the valance engages and is locked to the
valance clip.
Bracket Covers - Outside Mount
Press the covers onto the brackets as
shown. Covers will snap in place.
Bracket Covers - Inside Mount
Snap or peel adhesive backing and stick
cover over exposed portion of installation
bracket.
Press
Pull Locked
"L"
portion of valance

25 smithandnoble.com
Operang & Programming Guide For
Rechargeable Motorized Shades
Smith & Noble
Smart Shades
Roller & Solar Shades
Sheer Shadings

27 28
smithandnoble.com 800.248.8888

Pair The Remote
1. Select the channel that you want to
pair the shades to, using the CHANNEL
selector buon. The buon will scroll
through channels in ascending order
only. The remote will go back to
channel 1 aer channel 14.
2. Press the SETTING buon on the
motor unl the shade jogs & beeps.
3. Press and hold the CONFIRM buon
unl the shade(s) jogs & beeps once.
The shade is now paired to the remote.
3. Repeat steps 1-3 to pair remaining
shades to the rest of the channels.
For added protecon, your remote
control arrived with a protecve lm on
top. Please remove this lm prior to use.
Your shades will need to be paired to the
remote prior to operang your shade. See
Pair the Remote below.
Pair The Remote
This remote control has 14 channels.
Before pairing the remote, determine
which shade(s) you want on which
channel. All shades paired to a remote
will also automacally be programmed to
the “ALL” channel.
If a baery is not already installed in the
remote, follow the instrucons REPLACE
BATTERY IN REMOTE.
SETTING
BUTTON
CHARGING
PORT
SHADE MOTOR
ON/OFF
SWITCH
PROTECTIVE
FILM
REMOTE BACK
LIMIT
BUTTON
CONFIRM
BUTTON
CHANNEL
DISPLAY
UP
STOP/
FAVORITES
DOWN
CHANNEL
RAIL
SELECTOR
REMOTE FRONT

29 30
smithandnoble.com 800.248.8888

Select the desired channel with the CHANNEL
buon.

Press the UP or DOWN buons to raise or
lower the shade.
Tapping the UP or DOWN buons for less
than 2 seconds will move the shade in short
steps. Holding the UP or DOWN buons down
for more than 2 seconds before releasing will
operate the shade at the faster standard speed.
Press the STOP buon to stop the shade at the
desired posion.

Shadings Only)
Select a channel using the CHANNEL buon.
The buon will scroll through channels in
ascending order.
Lower the shading all the way down, using the
DOWN buon.
Tapping the UP or DOWN buon for less than
2 seconds will move the shade in short steps.
This allows precise control of the vane open/
close posion.
Holding the UP or DOWN buon down for
more than 2 seconds before releasing will
operate the shade in the faster standard speed.


The lower and upper limits have been set at
the factory. If you need to make adjustments
to the limits, follow the instrucons below.

limits, both the upper and lower limits will
need to be reset.
Use the CHANNEL buons to select the
channel for the shade that needs to be
adjusted. Then follow the direcons below.
When adjusng one shade, the other shades
on that channel need to be temporarily
unpaired from the remote (see UNPAIR
THE REMOTE) or turn the motor o using
the ON/OFF switch.
Follow the SETTING LIMITS instrucons
and then re-pair shades by following the
steps to PAIR THE REMOTE or turn the
motor on using the ON/OFF switch.
If there is only a single shade on the channel,
proceed to SETTING LIMITS.
SETTING
BUTTON
CHARGING
PORT
SHADE MOTOR
ON/OFF
SWITCH
REMOTE BACK
LIMIT
BUTTON
CONFIRM
BUTTON
CHANNEL
DISPLAY
UP
STOP/
FAVORITES
DOWN
CHANNEL
RAIL
SELECTOR
REMOTE FRONT
REMOTE BACK
LIMIT
BUTTON
CONFIRM
BUTTON
CHANNEL
DISPLAY
UP
STOP/
FAVORITES
DOWN
CHANNEL
RAIL
SELECTOR
REMOTE FRONT

31 32
smithandnoble.com 800.248.8888

Hold the LIMIT buon unl the shade jogs
& beeps.

Use the DOWN buon to lower the
shade. Press stop when the shade is near
the desired lower limit.
WARNING: The motor will not stop unl
the STOP buon is pressed. If the shade
is not stopped, the motor will connue to
work past the operable limit and will cause
damage to the shade.
Use the UP and DOWN buons to adjust
the length more accurately.
Hold the CONFIRM buon unl the shade
jogs & beeps. This locks in the lower limit.

Use the UP buon to raise the shade.
Press stop when the shade is near the
desired upper limit.
WARNING: The motor will not stop unl
the STOP buon is pressed. If the shade
is not stopped, the motor will connue to
work past the operable limit and will cause
damage to the shade.
Use the UP and DOWN buons to adjust
the upper limit more accurately.
Hold the CONFIRM buon unl the shade
jogs & beeps. This locks in the upper limit.
Note: If you also desire to set a favorite
posion you should do so prior to
turning on or re-pairing other shades on
that channel. See SETTING & USING A
FAVORITE POSITION.
SETTING & USING A FAVORITE POSITION
If there is only a single shade on the channel
proceed to SETTING A FAVORITE POSITION
below.
If there is more than one shade on the channel, all
shades on that channel will need to be unpaired
(see UNPAIR THE REMOTE) or turn the motor o
using the ON/OFF switch.
Follow the steps in PAIR THE REMOTE to pair only
the shade that needs a favorite posion set. Then
proceed to SETTING A FAVORITE POSITION.

Use the UP or DOWN buons to posion the
shade at the desired “favorite” posion. While
holding the LIMIT buon, quickly press and hold
the UP buon. Release both buons when the
shade jogs & beeps.
When complete, re-pair previously unpaired shades
by following the steps to PAIR THE REMOTE or
turn the motor on using the ON/OFF switch.

With the shade at either the upper or lower limit,
simply press the STOP/FAVORITE buon to bring
the shade to the “favorite” posion. To go to the
“favorite” posion from any other locaon, make
sure the shade has been stopped for at least three
seconds before pressing the STOP/FAVORITE
buon.

Use the UP or DOWN buons to posion the
shade at the desired “favorite” posion. While
holding the LIMIT buon, quickly press and hold
the UP buon. Release both buons when the
shade jogs & beeps.
To erase a “favorite” posion, bring the shade to
the upper limit. Press and hold the LIMIT buon
on the back of the remote, then press and hold
the UP buon. Release both buons when the
shade jogs & beeps.
When complete, re-pair previously unpaired shades
by following the steps to PAIR THE REMOTE.
SETTING
BUTTON
CHARGING
PORT
SHADE MOTOR
ON/OFF
SWITCH
REMOTE BACK
LIMIT
BUTTON
CONFIRM
BUTTON
CHANNEL
DISPLAY
UP
STOP/
FAVORITES
DOWN
CHANNEL
RAIL
SELECTOR
REMOTE FRONT
REMOTE BACK
LIMIT
BUTTON
CONFIRM
BUTTON
CHANNEL
DISPLAY
UP
STOP/
FAVORITES
DOWN
CHANNEL
RAIL
SELECTOR
REMOTE FRONT

33 34
smithandnoble.com 800.248.8888


To unpair a shade(s) from a selected channel,
press and release the CONFIRM buon on
the back of the remote.
Connue to press & release unl the shade
jogs & beeps.
Please note: All shades assigned to the selected
channel will be unpaired during this process.
The 14 channel remote has the opon
of turning o unused channels, making
channel selecon easier.
Press and hold both UP and DOWN
buons for 3 seconds unl 00 Channel
displays. Release the buons and the 00
will start to ash.
Press the UP or DOWN buon to
select the required number of channels
(between 1-14).
Press and hold the CHANNEL and RAIL
selector buons at the same me to
conrm selecon. The display will go
back to channel 01.
Follow the same process if you need to
re-add channels.
NOTE: 00 will only show the rst me
you disable unused channels. Aer that,
the display will ash with the number of
acve channels set to the remote.




1. Press the SETTING buon on the motor
unl the shade jogs & beeps once.
Release the buon immediately aer the
rst jog & beep - this should not be more
than 3 seconds. Repeat this step for all
shades that will be controlled by a single
channel buon.
2. Select the channel that you want to add
using the CHANNEL selector buon.
3. Press and hold the CONFIRM buon unl
the shade(s) jogs & beeps.
4. Repeat steps 1-4 to add the rest of the
channels on a mul-channel remote.



1. Select the channel that you want to unpair.
2. Press and hold the CONFIRM buon on
the back of the remote. Connue to press
& release unl the shade jogs & beeps.
The original remote or channels have been
unpaired.
3. Press the SETTING buon again on the
motor unl the shade jogs & beeps. Release
the buon immediately aer the rst jog
& beep - this should not be more than 3
seconds. Repeat this step for all shades that
will be controlled by a single channel.
4. Select the channel that you want to add
using the CHANNEL selector buon.
5. Press and hold the CONFIRM buon unl
the shade(s) jogs & beeps.
6. Repeat steps 3-5 to program the rest of the
channels on a mul-channel remote.
REMOTE BACK
LIMIT
BUTTON
CONFIRM
BUTTON
CHANNEL
DISPLAY
UP
STOP/
FAVORITES
DOWN
CHANNEL
RAIL
SELECTOR
REMOTE FRONT REMOTE BACK
LIMIT
BUTTON
CONFIRM
BUTTON
CHANNEL
DISPLAY
UP
STOP/
FAVORITES
DOWN
CHANNEL
RAIL
SELECTOR
REMOTE FRONT

35 36
smithandnoble.com 800.248.8888

The remote comes pre-set with jogging
funcon acvated. Follow the direcons
below if you would like to de-acvate it.
1. Press down and up on the back cover to
slide it approximately 1
/4inch.
2. Carefully remove the back cover of
the remote.
3. Slide the switch from the H posion to
the R posion.
4. Replace the back cover of the remote
making sure that the rubber piece that
goes over the conrm and limit buons
stays in place.

H R
REMOTE BACK
REMOTE BACK

Remove the baery tray from the remote by
inserng a ngernail into the indentaon on
the back of the remote. To avoid the baery
falling out of the remote, remove the tray
while the remote is face up.
Insert the new baery (CR2430 lithium) into
the baery tray so that the wring is facing
up (posive up) when the remote is face up.
Slide the tray back into the remote.
ACCESS
DOOR BATTERY
TRAY
FRONT OF
REMOTE
BACK OF
REMOTE
CHARGER


When the shade begins to operate slower
than normal it is me to charge the baery.
Plug the 8.4v charger into the port on the
motor.
Plug the charger into an electrical outlet. A
red light on the charger indicates that the
baery is charging.
To fully charge the baeries, allow the
baeries to charge for at least 1 hour aer
the light on the charger turns green. A typical
charge cycle can take between 4-6 hours.
Do not leave the charger plugged in for more
than 24 hours. This could prematurely age the
baery.
INSERT
CHARGER
SETTING
BUTTON
CHARGING PORT
SHADE MOTOR
ON/OFF
SWITCH

37 38
smithandnoble.com 800.248.8888
Determine Solar Panel Placement
The solar panel should be placed where it
gets the maximum amount of sunlight per
day.
In most cases, this can be achieved by
mounng the unit directly to the glass with
double sided tape.
Brackets are provided if aaching to the
glass is not possible.
The brackets may be mounted several
dierent ways depending on the applicaon
(window depth, window width, etc.).
The unit requires 19" minimum window
width to mount horizontally.
Inside Mount
Bracket can be mounted behind or next to
shade mounng bracket.
Inside Mount Extended
Boom poron of the bracket may be
lowered if needed for more sun exposure.
Bracket can be mounted behind or next to
shade mounng bracket.
Note: only two of the holes are threaded.

The top poron of the bracket may be
reversed if necessary depending on space.
Bracket can be mounted behind or next to
shade mounng bracket.
Outside Mount
This method will provide the least amount
of sun exposure. Bracket can be mounted
next to shade mounng bracket.
INSIDE MOUNT
INSIDE MOUNT EXTENDED
INSIDE MOUNT WITH TOP REVERSED
OUTSIDE MOUNT
 
Tape Method
Cut the tape to t inside the white border
as shown. Clean the ends of the solar panel
where the tape will go with rubbing alcohol.
When dry, remove the release liner from one
side of the double sided tape and adhere
them to face of the panel.
Make sure to put the tape on the face (black
side) of the panel.
Clean the window surface with rubbing
alcohol. When dry, remove the release
liners and aach the solar panel to the glass,
pressing rmly to adhere.
Note: It is important to clean both surfaces
with alcohol as debris or oils will compromise
the bond.
Double sided tape can be removed from the
window surface by using a at razor knife.
Adhesive residue can be removed by using a
liquid adhesive remover.
Bracket Method
If using brackets, set the boom groove of
the unit onto the boom bracket hook.
Then press the top of the unit unl it snaps
into place.
If space is limited it may be easier to aach
the brackets to the solar unit before screwing
the brackets in place.
DOUBLE SIDED
TAPE
SOLAR PANEL RECHARGE UNIT
BRACKET
BOTTOM
BRACKET
HOOK
SOLAR
PANEL
BOTTOM
BRACKET
HOOK
BRACKET
SOLAR
PANEL
