Smithco SweepStar 48 Quick start guide

Product Support: Hwy SS & Poplar Ave; Cameron WI 54822
1-800-891-9435 [e-mail]
Parts & Service
SweepStar 48
48-000-C
SN: GH5156
November 2010

Introduction Service Diagrams Parts Accessories Reference
CONTENTS
Introduction..........................................1-10
Introduction ...............................................................................................1-3
SafePractices..........................................................................................2
Specification.............................................................................................3
OptionalEquipment ..................................................................................3
Service .....................................................................................................4-10
Maintenance..........................................................................................4-6
ServiceChart ............................................................................................7
EndUser’sServiceChart..........................................................................8
Adjustments.............................................................................................9
Storage.....................................................................................................9
ReelHeightAdjustment ..........................................................................10
Diagrams................................................................................................ 11-15
WiringDiagram.................................................................................. 12-13
HydraulicDiagramHighLift ............................................................... 14-15
Parts ....................................................................................................... 16-49
BodyandFrameHighLift .................................................................. 16-17
Steering ............................................................................................. 18-19
FrontFork ......................................................................................... 20-21
LinkageHighLift................................................................................ 22-23
ConsoleHighLift ............................................................................... 24-25
Fuel and Oil Tank High Lift................................................................. 26-27
HydraulicLiftCylinder........................................................................ 28-29
ReelLiftCylinder ............................................................................... 30-31
Tailgate Cylinder ................................................................................ 30-31
EngineandExhaustHighLift ............................................................ 32-35
ElectricClutchDrivenBelt Drive and Muffler ...................................... 36-37
FingerReelHighLift .......................................................................... 38-39
RearAxleHighLift............................................................................. 40-41
HopperandTailgateHighLift ............................................................. 42-43
76-32215SeriesSundstrandPump .................................................. 44-45
48-137RearWheel Motor.................................................................. 46-47
76-023 3-BankHydraulicValve ......................................................... 48-49
Reference .............................................................................................. 50-52
Notes .....................................................................................................50
Decal List ............................................................................................... 51
Quick ReferenceReplacement Parts ......................................................52
Warranty ........................................................................Inside BackCover

1
Introduction
Information needed when ordering replacement parts:
1. Model Number of machine
2. Serial Number of machine
3. Name and Part Number of part
4. Quantity of parts
INTRODUCTION
Thank you for purchasing a product.
Read this manual and all other manuals pertaining to the Sweep Star 48 carefully as they have safety, operat-
ing, assembly and maintenance instructions. Failure to do so could result in personal injury or equipment dam-
age.
Keep manuals in a safe place after operator and maintenance personnel have read them. Right and left sides
are from the operator’s seat, facing forward.
All machines have a Serial Number and Model Number. Both numbers are needed when ordering
parts. The serial number plate on the Sweep Star 48 is located on the right main frame, in front of the oil and
gas tanks. Refer to engine manual for placement of engine serial number.
For easy access record your Serial and Model numbers here.

2
Introduction
SAFEPRACTICES
1. It is your responsibility to read this manual and all publications associated with this machine (engine,
accessories and attachments).
2. Never allow anyone to operate or service the machine or its attachments without proper training and
instructions. Never allow minors to operate any equipment.
3. Learn the proper use of the machine, the location and purpose of all the controls and gauges before you
operate the equipment. Working with unfamiliar equipment can lead to accidents.
4. Wear all the necessary protective clothing and personal safety devises to protect your head, eyes, ears,
hands and feet. Operate the machine only in daylight or in good artificial light.
5. Inspect the area where the equipment will be used. Beware of overhead obstructions and underground
obstacles. Stay alert for hidden hazards.
6. Never operate equipment that is not in perfect working order or without decals, guards, shields, or other
protective devices in place.
7. Never disconnect or bypass any switch.
8. Carbon monoxide in the exhaust fumes can be fatal when inhaled, never operate a machine without
properventilation.
9. Fuel is highly flammable, handle with care.
10. Keep engine clean.Allow the engine to cool before storing and always remove the ignition key.
11. After engine has started, machine must not move. If movement is evident, the neutral mechanism is not
adjusted correctly. Shut engine off and readjust so the machine does not move when in neutral position.
13. Never use your hands to search for oil leaks. Hydraulic fluid under pressure can penetrate the skin and
cause serious injury.
14. This machine demands your attention. To prevent loss of control or tipping of the vehicle:
A. Use extra caution in backing up the vehicle. Ensure area is clear.
B. Do not stop or start suddenly on any slope.
C. Reduce speed on slopes and in sharp turns. Use caution when changing directions on slopes.
D. Stay alert for holes in the terrain and other hidden hazards.
15. Before leaving operator’s position for any reason:
A. Disengage all drives.
B. Lower all attachments to the ground.
C. Set park brake.
D. Shut engine off and remove the ignition key.
16. Keep hands, feet and clothing away from moving parts. Wait for all movement to stop before you clean,
adjust or service the machine.
17. Keep the area of operation clear of all bystanders.
18. Never carry passengers.
19. Stop engine before making repairs/adjustments or checking/adding oil to the crankcase.
20. Use parts and materials supplied by SMITHCO only. Do not modify any function or part.
21. Do not remove the radiator cap when the engine is hot. When cooled, loosen cap slightly to the stop to
relieveanypressurebefore removing thecapcompletely.
These machines are intended for professional maintenance on golf courses, sports turf, and any other
area maintained turf and related trails, paths and lots. No guaranty as to the suitability for any task is
expressed or implied.

3
Introduction
SPECIFICATIONSFORSWEEPSTAR48HIGHLIFT
WEIGHTSANDDIMENSIONS HIGHLIFT
Length 121"(307cm)
Width 60"(153cm)
HeightwithHopper Down 63" (160 cm)
HeightwithHopper Up 126" (320 cm)
Wheel Base 70" (179 cm)
Weight 1900lbs(862 kg)
SOUNDLEVEL(DBA)
Atearlevel 90dba
At 3 ft (0.914 m) 91 dba
At 30 ft (9.14 m) 76 dba
ENGINE
Make Kohler
Model# CH25
Type / Spec# CH730-0100
Horsepower 25 Hp (19kw)
Fuel Unleaded87Octane
Gasoline Minimum
Cooling System Air Cooled
LubricationSystem Full Pressure
Alternator 15 Amp
WHEELS&TIRE Front: One 18 x 9.50 x 8 Multi-rib
Rear: Two 24 x 12.00 x 12 NHS (20 psi max)
Castor: 9 x 3.50 - 4
BRAKES DynamicThroughHydrostat
PARKBRAKE HandOperatedLever, Discs on RearAxle
SPEED
Forward Speed 0 to10 mph (0-16kph)
Reverse Speed 0 to 4 mph (0-6 kph)
BATTERY 12 Volt Automotive IBS type 45-50
Cold Cranking Amps 48 minimum
Ground Terminal Polarity Negative (-)
Maximum Length 9" (23cm)
Maximum Width 5.38" (14cm)
Maximum Height 9" (23cm)
FLUIDCAPACITY
Crankcase Oil See Engine Manual
Fuel 6 gallon(22,7liters)
HydraulicFluid 5 gallon (19 liters)
Grade of Hydraulic Fluid SAE 10W-40 API Service SG Motor Oil
OPTIONALEQUIPMENT
48-084 48" Brush Reel Kit (includes pillow blocks and pulley drive)
48-085 48" Finger Reel Kit (includes pillow blocks and pulley drive)
48-120 Dust and Filtration pack - High lift

4
Service
MAINTENANCE
Before servicing or making adjustments to machine, stop engine and remove key from
ignition.
Use all procedures and parts prescribed by the manufacturer's. Read the engine
manual.
LUBRICATION
UseNo.2GeneralPurposeLithiumBaseGreaseandlubricateevery 100 hours.TheSweepStar48haseleven
greasefittings.
One on the top of each tower.
One on the center of park brake relay on rear axle.
Oneonhydrostaticpedalunder the floorboard.
Oneonthepillowblockbearingoneachendoffinger/brushreel.
One on castor wheel mount bracket.
One on reel clutch relay.
One on reel clutch belt tightener.
One on rod end of the tailgate cylinder.
Every500hoursofoperation,separatethehydrostaticpumpfromtheengine,cleanthesplinedareasandlightly
grease the male portion of the pump spline. Use either Dow Corning® G-N MetalAssembly Paste or #77As-
sembly Paste (Kohler # 25 357 12-s).
As you remount the pump to the engine, be certain the mating surfaces are clean and free of any foreign mate-
rial, and that the pump is correctly aligned.
HYDRAULICOIL
1. Use SAE 10W-40 API Service SG motor oil.
2. For proper warranty, change oil every 500 hours or annually, which ever is first and change the filter after
the first 20 hours, then at 100 hours, then every 250 hours thereafter.
3. The oil level should be 2" to 21/2" (5 - 6.4 cm) from top of fill neck when fluid is cold. Do not overfill.
4. After changing oil and/or filter, run the machine for a few minutes. Check oil level and for leaks.
5. Always use caution when filling hydraulic oil tank or checking level to keep system free of contaminants.
Check and service more frequently when operating in extremely cold, hot or dusty conditions.
6. If natural color of fluid is now black or smells burnt, it is possible that an overheating problem exists.
7. If fluid becomes milky, water contamination may be a problem.
8. If either of the above conditions happen, change oil and filter immediately after fluid is cool and find
cause. Take fluid level readings when system is cold.
9. In extreme temperatures you can use straight weight oil. We recommend SAE 30WAPI Service SG
when hot (above 90°F (33°C)) and SAE 10W API Service SG when cold (below 32°F (0°C)) ambient
temperature. Use either motor oil or hydraulic oil, but do not mix.
10. Oil being added to the system must be the same as what is already in the tank. Mark tank fill area as to
which type you put in.

5
Service
MAINTENANCE (CONTINUED)
TIREPRESSURE
Caution must be used when inflating a low tire to recommended pressure. Over inflating can cause tires to
explode. Front and rear tires and castor wheel should be 20 psi (1.4bar) maximum. Improper inflation will re-
duce tire life considerably.
WHEELMOUNTINGPROCEDURE
REAR WHEELS
1. Set park brake. Turn machine off and remove key.
2. Block one of the other wheels.
3. Loosen nuts slightly on wheel to be removed.
4. Jack up machine being careful not to damage underside of machine.
5. Remove nuts, remove wheel.
5. Place new wheel on hub lining up bolt holes.
6. Torque nuts to 64-74 ft/lb (87-100Nm) using a cross pattern. Retorque after first 10 hours and every 200
hours thereafter.
7. Lower machine to ground and remove blocks and jack.
FRONT WHEEL
1. Set park brake. Turn machine off and remove key.
2. Block one of the other wheels.
3. Remove cotter pins from each end of the axle.
4. Remove axle nuts, machine bushings and axle locks.
5. Jack up front of machine being careful not to damage underside of machine.
6. Wheel and axle will come out of slots in the u-bracket, pull wheel forward.
7. Place new wheel on hub lining up bolt holes.
8. Torque nuts to 64-74 ft/lb (87-100Nm) using a cross pattern. Retorque after first 10 hours and every 200
hours thereafter.
9. Place wheel back on front fork. Tighten all bolts.
10. Lower machine to ground and remove blocks and jack.
ENGINEOIL
Change and add oil according to charts below. Do not overfill. Use a high quality detergent oil. For Kohler
engine use oil classified “For Service SG or SH”.
SAEViscosityGradesCH25
Starting Temperature Range Anticipated Before Next Oil Change

6
Service
MAINTENANCE (CONTINUED)
BATTERY
Batteries normally produce explosive gases which can cause personal injury. Do not allow flames, sparks or
any ignited object to come near the battery. When charging or working near battery, always shield your eyes
and always provide proper ventilation.
Battery cable should be disconnected before using “Fast Charge”.
Charge battery at 15 amps for 10 minutes or 7 amps for 30 minutes. Do not exceed the recommended charg-
ing rate. If electrolyte starts boiling over, decrease charging.
Always remove grounded (-) battery clamp first and replace it last.Avoid hazards by:
1. Filling batteries in well-ventilated areas.
2. Wear eye protection and rubber gloves.
3. Avoid breathing fumes when electrolyte is added.
4. Avoid spilling or dripping electrolyte.
Battery Electrolyte is an acidic solution and should be handled with care. If electrolyte is
splashed on any part of your body, flush all contact areas immediately with liberal amounts
of water. Get medical attention immediately.
JUMPSTARTING
Use of booster battery and jumper cables. Particular care should be used when connecting a
booster battery. Use proper polarity in order to prevent sparks.

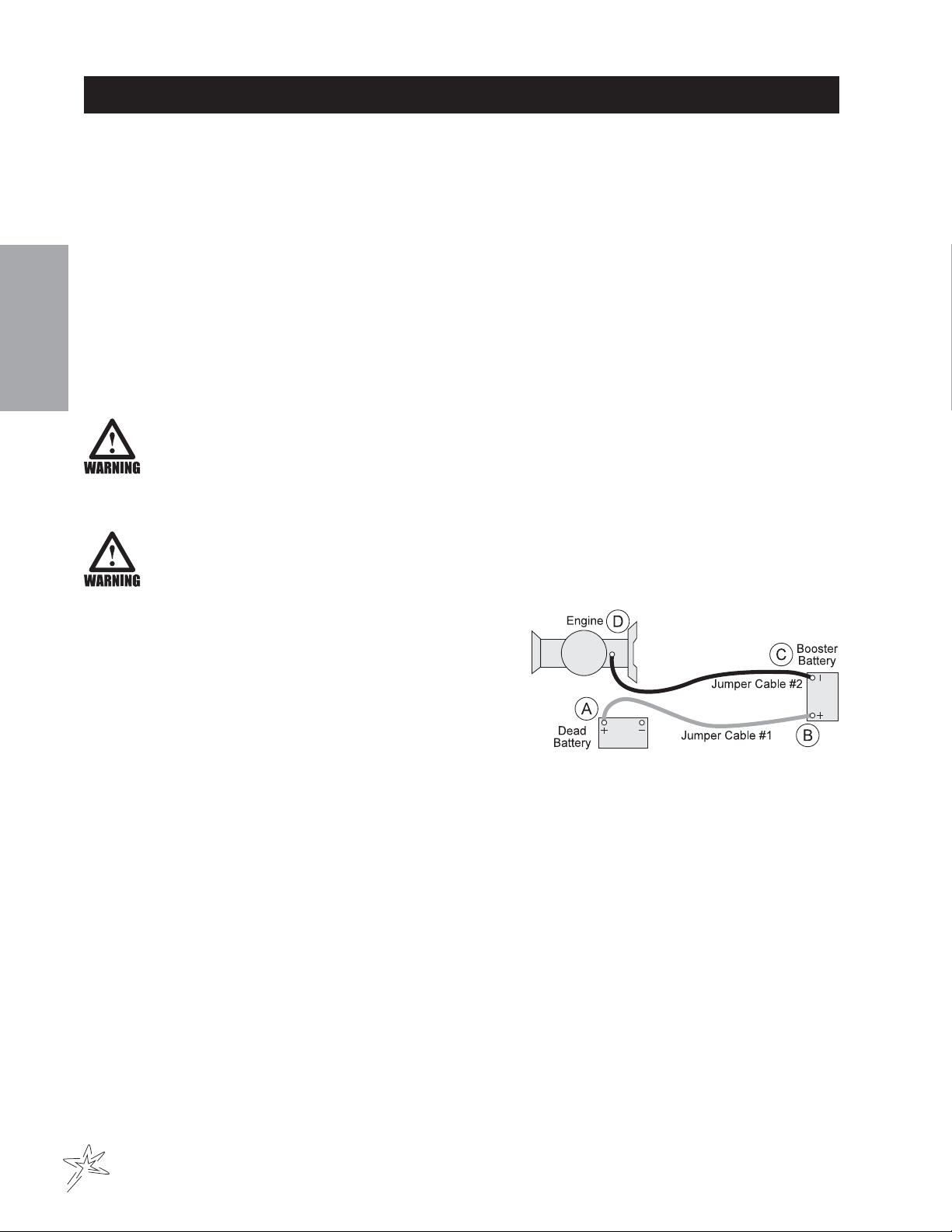

To jump start (negative grounded battery):
1. Shieldeyes.
2. Connect ends of one cable to positive (+) terminals of
each battery, first (A) then (B).
3. Connect one end of other cable to negative (-) terminal
of "good" battery (C).
4. Connect other end of cable (D) to engine block on unit
being started (NOT to negative (-) terminal of battery)
To prevent damage to other electrical components on unit being started, make certain that engine is at idle
speed before disconnecting jumper cables.
TOWING
When it is necessary to move the Sweep Star 48 without engine running, the bypass valve built into hydrostatic
pumpmustbe“open”byturningitcounterclockwise.An“open”valveallowsfluidtopass through the wheels
freely. When normal, driven, operation is desired, valve should be closed by turning it clockwise. Failure to
“close” the valve with engine running means no power to wheels. Tow slowly. 2 m.p.h. or less.
Thebypassvalveisa3/8diameter shaftwitha11/64hole for inserting something for leverage so you can turn it. On
the high lift it is on the top of the hydrostatic. On the ground level dump it is on the bottom of the hydrostatic.
FILTERPACK
Filter pack can be removed and cleaned by shaking or use a low pressure water hose. Filter will disintegrate if
cleanedunderhighpressure.
TAILGATE
Must raise hopper to open and close tailgate to disengage the locks.

7
Service
SERVICECHART
Before servicing or making adjustments to the machine, stop engine, set park break, block
wheels and remove key from ignition.
Follow all procedures and ONLY use parts prescribed by the manufacturer. Read the engine
manual before maintenance.
Thesuggestedmaintenancechecklistisnotofferedasareplacementforthemanufacturer’s engine manual but
asasupplement.You must adhere to the guidelines establishedbythemanufacturerforwarrantycoverage.In
adverseconditionssuchasdirt,mudorextremetemperatures,maintenanceshouldbe more frequent.
Maintenance Service Interval Maintenance Procedure
Torque the wheel lug nuts. (64-74 ft/lb (87-100 Nm))
Change the engine oil and filter.
After the first 20 operating hours Replace hydraulic filter
Check the engine oil.
Check the hydraulic fluid level.
Check the tire pressure.
Check condition of hydraulic hoses and fittings.
Inspect and clean the machine.
Inspect cooling system.
Check the battery fluid level and cable connections.
Change oil when operating under heavy load or high
ambient temperatures.
Change the engine oil and filter.
Change hydraulic filter
Check engine for leaks or loose parts.
Check air cleaner.
Check tire pressure (5 psi (.035 bar)).
Torque the wheel lug nuts. (64-74 ft/lb (87-100 Nm))
Grease Machine.
Check belt tension (where needed)
Every 200 Hours Torque the wheel lug nuts. (64-74 ft/lb (87-100 Nm))
Change oil filter
Change hydraulic filter
Clean battery terminals
Every 400 hours Check spark plugs
Lubricate machine
Visual inspection of machine and hydraulic hoses
Change oil.
Torque lug nuts.
Check battery terminals and electrolyte level.
Change all filters.
Every 250 hours
Every 500 hours or yearly
Every 100 hours
After the first 5 operating hours
Before each use daily
Every 25 hours

8
Service
ENDUSERSSERVICECHART
Duplicate this page for routine use.
Mon Tues. Wed. Thurs. Fri. Sat. Sun.
Check the Safety Seat Switch
Check Steering Operation
Check the fuel level
Check the engine oil level.
Check the condition of the air filter
Clean the engine cooling fins.
Check for unusual engine noises
Check the hydraulic oil level
Check hydraulic hoses and fittings for damage
Check for fluid leaks.
Check the tire pressure (5 psi)
Check the Instrumentation
Inspect electrical system for frayed wires
Check park brake adjustment
Change oil filter.
Change oil.
Lubricate Machine
Ensure all warning decals are intact.
Item
For the week of:
Maintence Check Item
Areas of Concern
Inspection Performed by: Date Information

9
Service
ADJUSTMENTS
PARKBRAKEADJUSTMENT
By turning knob on end of park brake lever you can tighten or loosen brake a
small amount. To tighten turn the knob clockwise. To loosen turn counter
clockwise. If this is not enough turn clevis on the rear of the brake cable to
adjust length of cable. Do not adjust the clevis on the front of the machine.

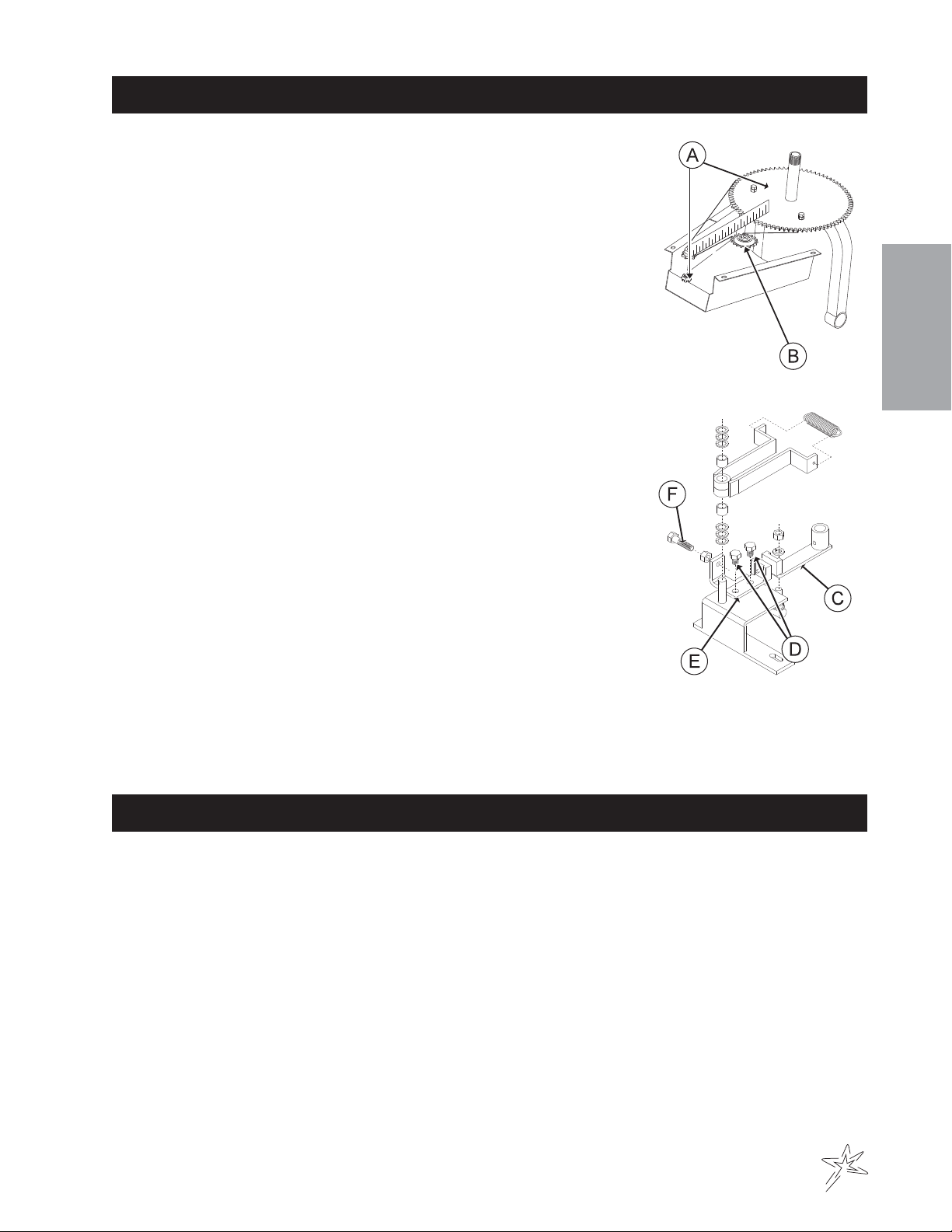

STEERINGCHAINADJUSTMENT
Steering Sprockets (A) should be level with each other. Check with straight
edge. Make any adjustments. Slide Idler Pulley (B) so that it is snug onto the
chain. Tighten all nuts and bolts in place.
WHEEL'CREEP'ADJUSTMENT
‘Creep’ is when engine is running and hydrostatic transmission is in neutral,
but due to inadequate alignment, wheels still move. Do the following proce-
dures to stop this motion.
1. Lift up and support the unit so rear wheels are off the ground and can
turn freely.
2. Below seat of machine, on the bottom of the hydrostatic transmission is
the shift arm (C). Loosen bolts (D).
3. With engine running, move stop (E) so it moves shift arm (C) to center
and wheel creep stops.
4. Tighten all fasteners and test by using foot pedal linkage to see that the
‘creep’ is removed.
5. Thereversespeediscontrolledbybolt(F).Turnclockwisetoreduce
reverse speed and counter clockwise to increase speed.
6. Turn the engine off and lower the machine.
RUBBERFINGERSANDNYLONBRUSHES
In normal use, rubber fingers and nylon brushes wear out and require replacement. They will break, dislodge,
and wear prematurely if used in less than ideal conditions.
STORAGE
Whenstoring,removethekeyfromthekeyswitchtoavoidunauthorizedpersonsfromoperatingmachine.
1. Beforestoringcleanmachinethoroughly.
2. Check bolts and nuts, tighten as necessary.
3. Makeallrepairsthatareneededandremoveany debris.
4. Remove the battery, adjust the electrolyte level and recharge it. Store the battery in a dry, dark place.
5. Store in a clean and dry area, but NOT near a stove, furnace or water heater which uses a pilot light or any
device that can create a spark.
6. Enginesstoredover30daysneedtobeprotectedordrainedoffuel to prevent gum from forming in a fuel
system or on essential carburetor parts. Check the engine manual and follow the instructions for the
storage of the engine.

10
Service

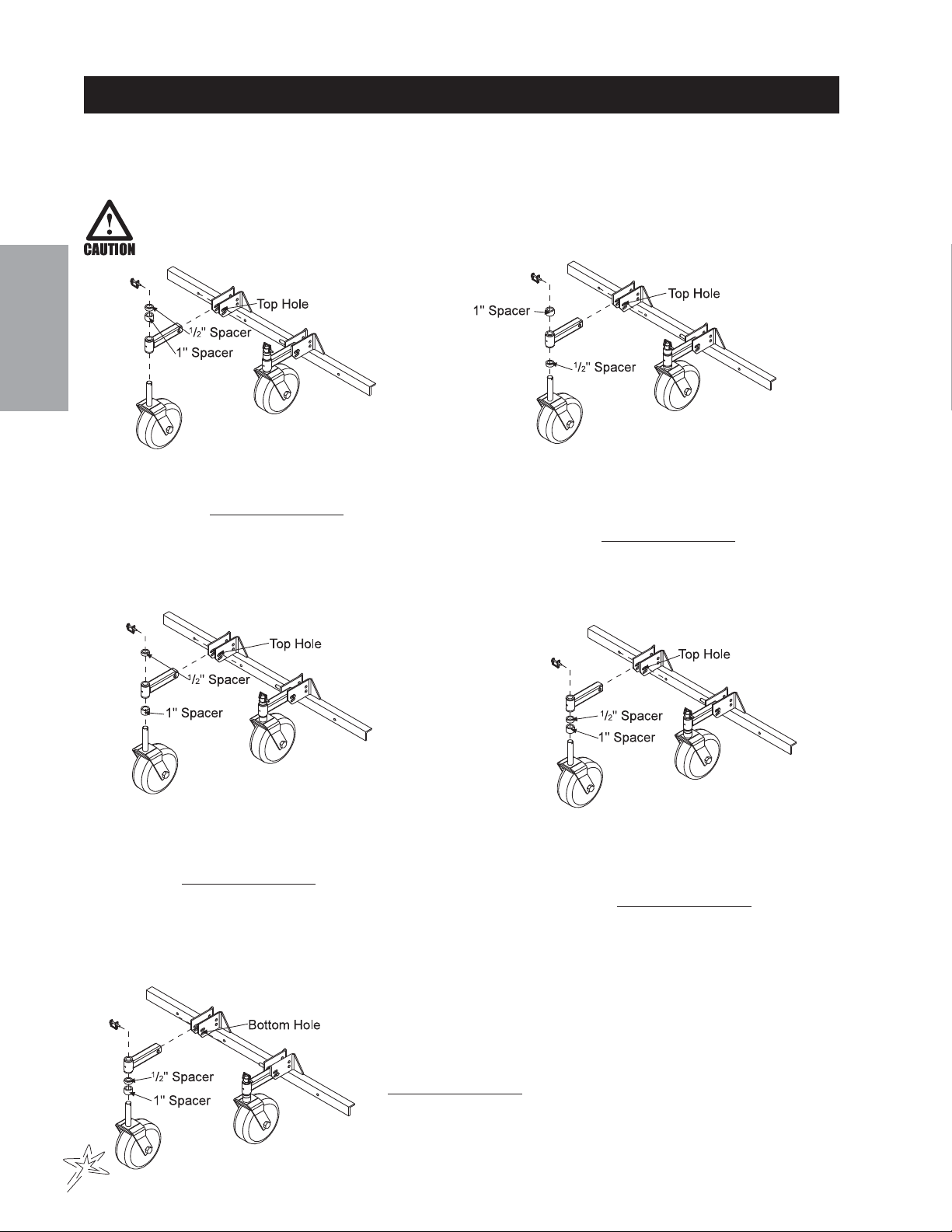

REELHEIGHTADJUSTMENT
Below are the various ways that the Sweep Star 48 castor wheels can be adjusted to accommodate for the fin-
ger/brush reel height. By changing the two spacers around on the castor wheel fork you can experience a range
ofgroundclearanceson the finger/brush reel. Keep both castor wheels at the same height.
These clearances change as the brush and finger reels wear.
No Spacer
Top Hole
Ground Clearance
Brush Reel 7/8"
Finger Reel 1/2"
1/2" Spacer
Top Hole
Ground Clearance
Brush Reel 3/4"
Finger Reel 11/8"
1" Spacer
Top Hole
Ground Clearance
Brush Reel 5/8"
Finger Reel 11/4"
1" Spacer
1/2" Spacer
Top Hole
Ground Clearance
Brush Reel 11/8"
Finger Reel 17/16"
1" Spacer(2 per)
1/2" Spacer(1 per)
Bottom Hole
Ground Clearance
Brush Reel 11/2"
Finger Reel 17/8"

11
NOTES

12
Diagrams
Color Code Chart
Bl Blue
Br Brown
Y Yellow
Grn Green
O Orange
R Red
B Black
P Purple

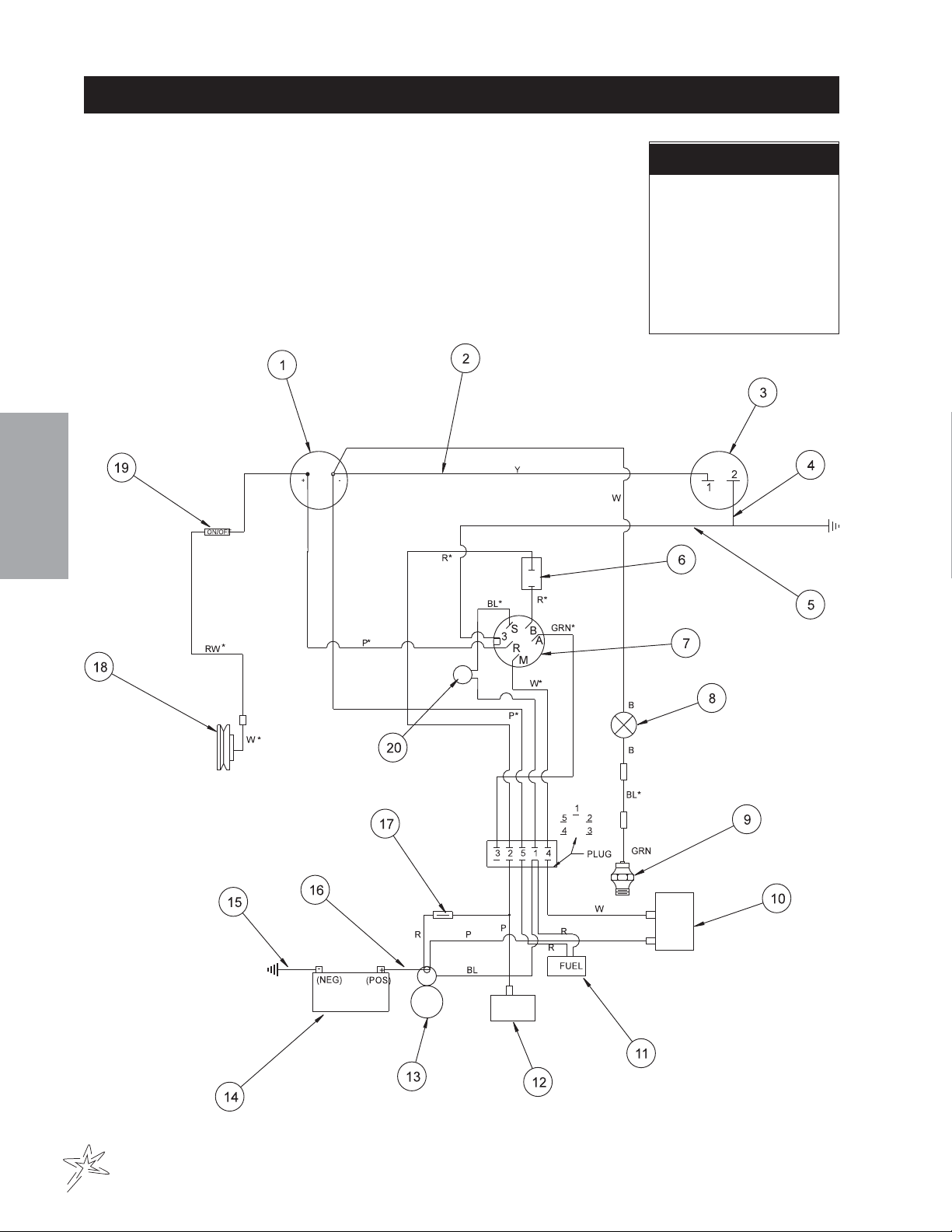

WIRINGDIAGRAM

13
Diagrams
WIRINGDIAGRAMPARTSLIST
REF# PART# DESCRIPTION QUANTITY
1 22-003 Ammeter 1
2 76-269 PowerWiretoHourMeter 1
3 12-017 HourMeter 1
4 76-259 GroundWireforHour Meter 1
5 77-209 GroundWireforIgnitionSwitch 1
6 34-146 PanelMountCircuitBreaker 1
34-145 CircuitBreakerBoot 1
7 13-288 Key Switch with Hardware(Kohler #25 099 04) 1
76-310 Key Switch 1
8 50-359 WarningIndicatorLight 1
9 Oil Sender (Part of Engine)
10 Ignition Module(Part of Engine)
11 FuelShut-OffSolenoid(PartofEngine)
12 Rectifier ( Part of Engine)
13 Starter (Part of Engine)
14 22-073 Battery 1
48-166 BatteryHold-down 1
15 48-147 Black Battery Cable 1
16 48-157 RedBatteryCable 1
8892-46.5 Hose Wrap 1/4x 461/21
17 Wire With Fuse (Part of Engine)
FuseAGC 30
18 76-337 Electric Clutch 1
17-271 Pigtail 1
19 15-314 ToggleSwitch 1
15-472 Switch Boot 1
20 14-292 Seat Switch 1
* 76-392 Wire Harness (Includes all wire color with *) 1
48-144 CircuitBreakerWire(startertowireharness) 1

14
Diagrams
HYDRAULICDIAGRAM (HIGHLIFT)
76-023 3-BankHydraulicValve
ReliefValve set at 2000PSI(137.93Bar)
76-322 HydrostatPump
Displacement Variable to .913 in3/R(15cc3/R)
14.23GPM(53.85LPM)at3600RPM
MaxOperatingSpeed 3600RPM
RatedPressure 3000PSI(206.8 Bar)
MaxPressure 4500PSI(310Bar)
Max Inlet Vacuum 5 in Hg(.17 Bar)
MaxInletTemperature 220°F(104°C)
MaxAllowable CasePressure 25 PSI(1.72Bar)
76-323 GearPump
Displacement .366in3/R(6cm3/R)5.7GPM(21.6lPM)

15
Diagrams
HYDRAULICDIAGRAMPARTSLIST (HIGH LIFT)
REF# PART# DESCRIPTION QUANTITY
1 76-242 HydraulicCylinder 2
2 48-012 HydraulicHose 1
3 48-013 HydraulicHose 1
4 48-137 WheelMotor 2
5 34-057 Tee 2
6 48-015 HydraulicHose 4
7 8810-19 Hose5/8ID 1
18-077 HoseClamp 2
8895-22 HoseWrap22" 1
8 48-016 HydraulicHose 2
8895-44 HoseWrap44" 2
9 76-322 HydrostaticPump 1
10 76-323 Gear Pump (replacement; no repair) 1
11 48-020 HydraulicHose 1
. 8895-40 HoseWrap40" 1
12 8810-07 Hose 5/8ID x 7" 1
18-077 HoseClamp 2
8895-8 Hose Wrap 8" 1
13 8832-19 Hose 3/4ID x 19" 1
18-040 HoseClamp 2
8895-22 HoseWrap22" 1
14 48-083 Oil Filter 1
48-083-01 Filter Element (replacement only) 1
15 60-473 OilTank 1
16 48-062 HydraulicHose 1
8895-67 HoseWrap67" 1
17 34-105 OilCooler 1
18 48-021 HydraulicHose 1
8895-92 HoseWrap92" 1
19 48-018 HydraulicHose 1.
8895-73 HoseWrap73" 1
20 76-115 Hydraulic Hose 2
8895-74 HoseWrap74" 2
21 76-023 3-BankHydraulicValve 1
22 48-019 HydraulicHose 2
8895-54.5 HoseWrap54.5" 2
23 76-478 HydraulicCylinder 1
24 48-017 HydraulicHose 1
8895-73 HoseWrap73" 1
25 18-173 Tee 3/8JunctionUnion 2
26 48-014 HydraulicHose 1
27 15-839 HydraulicCylinder 1
28 27-065 HydraulicHose 1

16
Diagrams

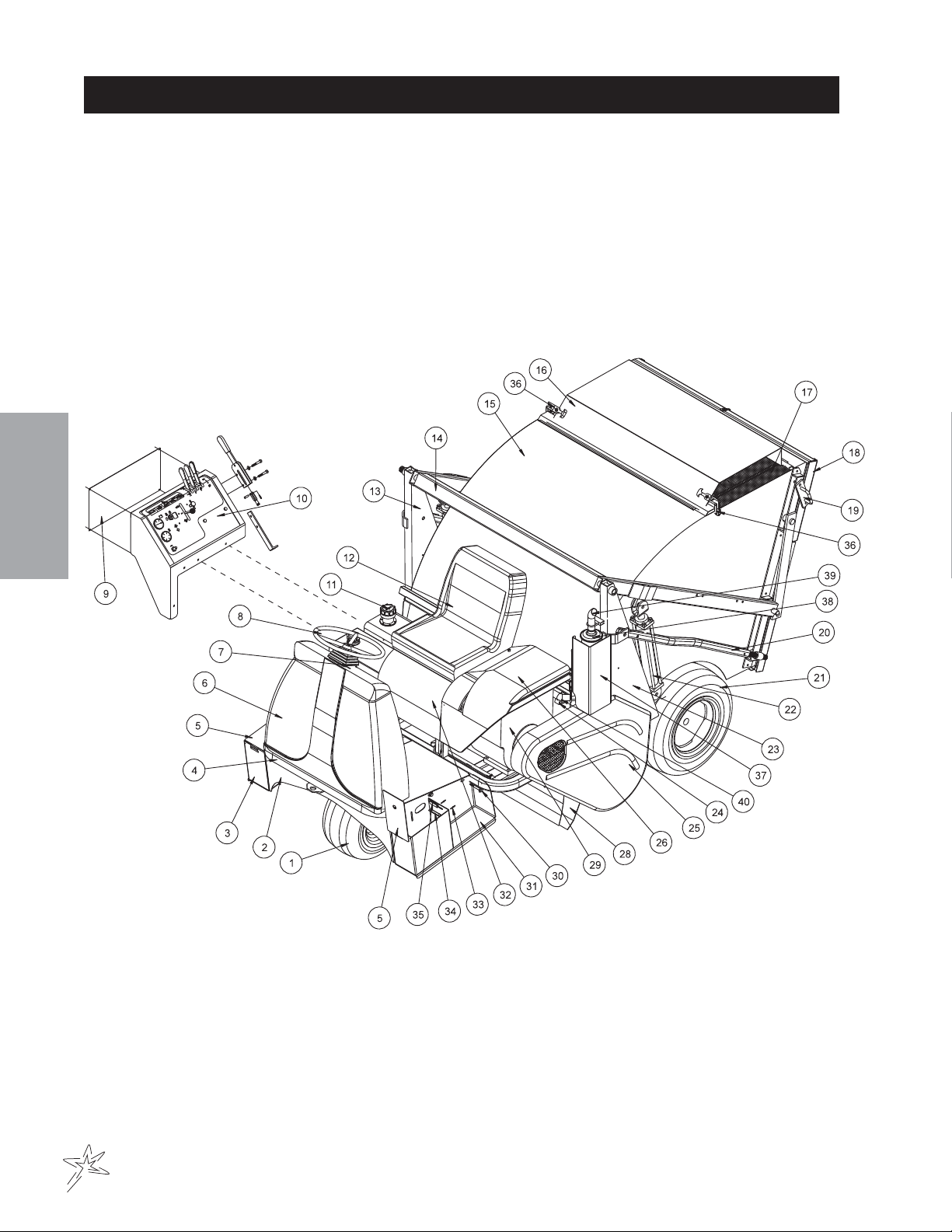

BODYANDFRAMEDRAWING

17
Parts
BODYANDFRAMEPARTSLIST
REF# PART# DESCRIPTION QUANTITY
1 60-130 Tire and Wheel 1
60-130-01 Tire 18 x 9.5 x 8 1
60-130-02 Wheel 1
2 48-158 Front Cover 1
HB-14-20-075 Bolt 1/4- 20 x 3/44
HW-14 Washer 1/44
HNFL-14-20 Flange Whiz Lock Nut 1/4-20 4
3 48-161 Left Step 1
4 48-173 Main Frame 1
5 48-159 BatteryBox Cover 2
8803-10 Black Trim 10" (along side closest to machine) 2
6 76-264 Nose Cone 1
76-354 21/2# ABC Dry Chemical Fire Extinguisher 1
7 76-362 Mini Tilt Steering Mechanism 1
76-364 Tilt Steering Boot (comes with 76-362) 1
8 13-718 Steering Wheel 1
13-726 Steering Wheel Cap 1
HNJ-58-18 Cap Nut 5/8 - 18 1
9 76-214 Side Panel 1
10 76-265 Console 1
11 60-473 Oil Tank 1
13-747 Filler Breather 1
12 14-270 High Back Seat 1
42-098 Plastic Spacer 4
13 48-008 Right Tower 1
14 48-044 Arm Pivot Tube 1
15 48-007 Hopper 1
16 48-004 Hopper Screen Cover 1
17 48-022 Hopper Screen 1
18 48-005 Tailgate 1
48-023 Tailgate Screen 1
19 48-053 Tailgate Hinge 2
20 48-061 Hopper Dump Arm 2
21 10-114 Tire and Wheel 2
10-114-01 Tire 24 x 12.00 x 12 2
10-114-02 Wheel 2
22 76-242 Lift Cylinder 2
23 48-009 Left Tower 1
24 48-029 Grass Chute 1
25 48-112 Belt Guard 1
48-047 Side Belt Guard Tab 1
26 48-111 Engine Cover 1
28 48-028 Front Baffle 1
29 48-194 Engine Kohler CH25 1
30 HB-38-16-300 Bolt 3/8-16 x 3 3
HW-38 Washer 3/83
HNTL-38-16 Lock Nut 3/8- 16 3
31 48-160 Right Step 1
8803-10 Black Trim 10" 1
32 48-026 Seat Support 1
33 HRS-18-050 Rivet 1/8x1/24
HW-6 Washer #6 4
34 48-165 Magnet Bracket 2
35 48-164 Magnet 2
36 15-437 Latch 2
HRS-316-1125 Steel Pop Rivet 3/16 x 11/86
37 48-217 Outer Muffler Cover 1
38 48-228 Muffler 1
39 48-233 Extension Pipe 1
40 48-238 Exhaust Pipe 1

18
Parts
ROLLOVERPROTECTIONDRAWING
