Snorkel TM12 Series User manual

Part Number 514233-200
Serial Number 060000 and after
August 2017
Inc. Option 2-2 deg
Replaces Nov 2014

TM12
ENGLISH
When contacting Snorkel for service or parts information, be sure to include the model and
serial numbers from the equipment name plate. Should the name plate be missing, the serial
number is also stamped on top of the chassis above the front axle pivot.
THE SERIAL NUMBER IS ON
THE NAME PLATE HERE
THE SERIAL NUMBER IS ALSO STAMPED
ON THE CHASSIS UNDER THE CHASSIS
COVER HERE
FIGURE 2-1: Serial number location on TM12


FOREWORD
HOW TO USE THIS MANUAL
This manual is divided into six sections.
SECTION 1 INTRODUCTION
General description and machine specifications.
SECTION 2 OPERATION AND SPECIFICATIONS
Information on how to operate the work platform and how to prepare it for operation.
SECTION 3 MAINTENANCE
Preventative maintenance and service information.
SECTION 4 TROUBLESHOOTING
Causes and solutions to typical problems.
SECTION 5 SCHEMATICS
Schematics and valve block diagram with description and location of components. Large sche-
matic drawings may be located in the back of the manual.
SECTION 6 ILLUSTRATED PARTS BREAKDOWN
Complete parts lists with illustrations. Large parts drawings may be located in the back of the
manual.
SPECIAL INFORMATION


 






 
 

TM12 SEVICE AND PARTS MANUAL
SECTION 7 WASTE REMOVAL AND DISPOSAL

 







      






 


 

 



 
 




  
 
 

  
 


 

  

 






  

















Introduction 

  
 





Page 2 -TM12
WARNING
All personnel shall carefully read, understand and follow all safety rules and operating instructions before operating or
performing maintenance on any SNORKEL aerial work platform.
USE OF THE AERIAL WORK PLATFORM: This aerial work platform is intended to lift a person or persons and their tools in-
cluding material needed for a job. The work platform is designed to be used for repair and assembly jobs ONLY at overhead work
places (ceilings, cranes, roof structures, buildings, etc.).
The use and operation of the aerial work platform as a lifting tool or a crane is prohibited!
Climbing up the railing of the platform, standing on or stepping from the platform unto buildings, steel or prefab concrete structures
etc is prohibited!
NEVER use the machine if damaged, not functioning properly, has damaged or missing decals.
NEVER attach notice boards etc. to the platform as this will increase the wind loading.
INSULATION: The aerial work platform is not insulated. It is imperative to keep a safe distance from live parts or electrical
equipments. DO NOT get closer than the minimum distance recommended by the “National Regulations”.
PLATFORM CAPACITY: Exceeding the specied permissible maximum load is prohibited! Refer to platform capacity on page 24
for details.
MANUAL FORCE: NEVER exceed the manual force allowed for this machine. Refer to manual force on page 24 for details.
LOAD DISTRIBUTUION: Ensure that all loads are distributed evenly on the platform.
SURVEILLANCE: NEVER operate the machine without rst surveying the work area for surface hazards such as holes, drop-offs,
bumps, curbs or debris and avoiding them.
WHEEL LOAD: OPERATE the machine only on surfaces capable of supporting wheel load.
WIND SPEED: NEVER operate the machine when the wind speed exceeds the machine’s wind speed rating. Refer to the Beaufort
scale for details.
EMERGENCY STOP: In case of an emergency, push the EMERGENCY STOP switch to de-activate all powered functions.
ALARM: If the alarm sounds while the platform is elevated, STOP operation immediately and carefully lower the platform. Move the
machine to a rm, level surface.
ENTRY GATE: Dismantling the entry gate or other railing components is prohibited! Always make certain that the entry gate is
closed and securely locked.
It is prohibited to keep the entry gate in an open position when the platform is raised.
Extending the height of the platform by placing ladders, scaffolds or similar devices on the platform is prohibited!
SERVICING: NEVER perform service on machine while platform is elevated without blocking the elevating assembly. Refer to
“maintenance” for details.
INSPECT: the machine thoroughly for cracked welds, loose or missing hardware, hydraulic leaks, loose wire connections and
damaged cables or hoses before usage.
DECALS: VERIFY that all labels are in place and legible before using the machine.
BATTERIES: NEVER charge batteries near sparks or open ame. Charging batteries emit explosive hydrogen gas.
STORAGE: AFTER USE, secure the work platform from unauthorised use by turning the key switch off and removing the key.
HARNESS: Harness attachment points are provided on the platform and the manufacturer recommends the usage of a fall restraint
harness especially where required by national safety regulations.
ELECTROCUTION
HAZARD
TIP OVER HAZARD COLLISION HAZARD FALL HAZARD TRAPPING/CRUSHING
HAZARD
THIS MACHINE IS NOT
INSULATED
NEVER ELEVATE THE
PLATFORM OR DRIVE
THE MACHINE WHILE
ELEVATED UNLESS THE
MACHINE IS ON A FIRM
LEVEL SURFACE
NEVER POSITION THE
PLATFORM WITHOUT
FIRST CHECKING
FOR OVERHEAD
OBSTRUCTIONS OR
OTHER HAZARDS
NEVER CLIMB, STAND
OR SIT ON PLATFORM
GUARDRAILS OR
MIDRAIL
BEWARE OF CRUSHING
HAZARD WHEN HOLDING
HANDRAILS WHILE THE
PLATFORM IS MOVING
IN CLOSE PROXIMITY TO
OTHER OBJECTS
SAFETY RULES
1
OPERATION MANUAL

Page 2 - TM12
Harness attachment points are provided in the platform and the manufacturer recommends the usage of a fall
restraint harness, especially where required by national safety regulations.
All harness attachment points on SNORKEL vehicles have been tested with a force of 3,650 lbs (16.3 KN)
per person.
See below examples of harness attachment points used on SNORKEL vehicles with their corrosponding rating;
Type 1.
Harness attachment point Type 1. is rated for one
lanyard attachment per loop as shown in the
illustrations depending upon platform occupancy rating
(see operators manual & decals).
Type 2.
Harness attachment point Type 2. is rated for two
lanyard attachments per loop as shown in the
illustrations depending upon platform occupancy rating
(see operators manual & decals).
Type 3.
Harness attachment point Type 3. is rated for one
lanyard attachment per loop as shown in the
illustrations depending upon platform occupancy rating
(see operators manual & decals).
Top View Top View
2 lanyard
attachments
Top View
1 lanyard
attachment
Top View
2 lanyard
attachments
1 lanyard
attachment
1 lanyard
attachment
Top View
Front View
Type 4.
Harness attachment point Type 4. is rated for one
lanyard attachment per loop as shown in the
illustrations depending upon platform occupancy rating
(see operators manual & decals).
1 lanyard
attachment
NOTE: There can be more harness attachment points per machine than the
maximum number of occupants allowed in a platform. Refer to
the platform decal & specifications table listed in the operators
manual for the correct occupancy rating before use.
SAFETY NOTICE
2

Page 2 -TM12
NOTE:
1. To bypass any safety equipment is prohibited and presents a danger for the person/persons
on the aerial work platform and in its working range.
2. Modication to the aerial work platform is prohibited or permissible only at the approval of
Snorkel.
3. The driving of MEWP’S on the public highway is subject to national trafc regulations.
4. It is important to ensure that the machine meets the requirements of stability during use, trans-
portation, assembly, dismantling when out of service, testing or foreseeable breakdowns.
5. In an event of an accident or breakdown, refer to the “Emergency lowering” on page 16. DO
NOT operate the aerial work platform if it is damaged or not functioning properly. Qualied
maintenance personnel must correct the problem before putting the aerial platform back into
service.
SAFETY NOTICE
3

Page 2 - TM12
Model Modello
Modell Verticaal model
TM12
Modele Malli
Modelo Serial number Serienummer
Matricola Numero de serie
Sarajanumero Matricola
No fied body Number 0545
Notifizierte Stelle Organisme notifie Powered Access Organismo notificado Certification Ltd (PAC)
Aangemelde instantie Applethwaite Lodge Myndighet Windermere
Avendte harmoniserte standarder Cumbria LA23 1JQ
Udpeget organ United Kingdom Asiasta on tehty ilmoitus seuraaville tahoille
Ente Notificatore
EC Type Examination Certificate number
EC-Typenprufung Zertifikat-Nr
Examen type CE Numero de Certificat
Inspeccion tipo CE Numero de certificado
Attestato di certificazione CE nr Onderzoek van het type EC Certificaatnummer
EU typkontroll Certifieringsnummer
EF-typeproving Sertifikatnummer
EF-typegodkendelse Nummer pa typeattest
EU-tyyppitarkastuksen nr.
Signed for Snorkel
EC Declaration of Conformity of Machinery 2006/42/EC
EC-Konformitätserklärung für Maschinen 2006/42/EC
Declaration De Conformite CE pour les Machines 2006/42/EC
Declaracion De Conformidad CE Para Maquinaria 2006/42/EC
Dichiarazione Di Conformità CE Per Le Macchine 2006/42/EC
CE Conformiteitsverklaring voor Machinerie 2006/42/EC
EU Deklaration Avseende Överensstammelse För Maskinutrustning
2006/42/EC
EF-Samsvarserklaering For Maskiner 2006/42/EC
EF-Overensstemmelseserklaering for Maskiner 2006/42/EC
EU Vaatimustenmukaisuusvakuutus 2006/42/EC
Manufacturer Snorkel, Fabrikant
Hersteller Vigo Centre, Washington Tillverkare Fabricant Tyne and Wear, England Produsent
Fabricante Tel: [phone] Valmistaja
Fabbricante FAX: [phone]
Authorized Representative Simon Downes (Global Project Manager)
Autorisierte Vertretung Vigo Centre, Washington
Representant autorise Tyne and Wear, England
Representante autorizado Tel: [phone]
Mandatario FAX: [phone]
Erkend vertegenwoordiger
Auktoriserad representant
Autorisert representant
Represenentant
Valtuutettu edustaja
Description.......................................Aerial Work Platform
Bezeichnung .....................................Arbeitsbühne
Description ........................................Plate-forme elevatrice de personnel
Descripcion........................................Platforma aerea de trabajo con motor
Descrizione........................................Piattaforma di sollevamento motorizzata
Beschrijving.......................................Mechanisch aangedreven werkplatform
Beskrivning........................................Höj-och sänkbar arbetsplattform
Beskrivelse ........................................
Selvgående arbetsplattform
Beskrivelse ........................................Motordrevet lofteplatform
Kuvaus...............................................Konevoimalla toimiva nostolava
Selvgående personarbetslift
Manufacturing Quality Manager
Date
Datum
Fecha
Data
Dato
Paivamaara
4

Page 2 -TM12
CONTENTS
INTRODUCTION 2-6
GENERAL DESCRIPTION 2-6
SPECIAL LIMITATIONS 2-7
SPEED AND ELEVATION 2-7
PLATFORM CAPACITY 2-7
MANUAL FORCE 2-7
BEAUFORT SCALE 2-7
CONTROLS/PRE-OPERATION 2-8
CONTROLS AND INDICATORS 2-8
PRE-OPERATION AND SAFETY INSPECTION 2-8
SYSTEM FUNCTION INSPECTION 2-9
OPERATION 2-11
STEERING 2-11
ELEVATING PLATFORM 2-11
LOWERING PLATFORM 2-11
TRAVEL WITH PLATFORM LOWERED 2-11
TRAVEL WITH PLATFORM ELEVATED 2-12
DRIVE SPEED 2-12
DRIVE/LIFT LEVEL SENSOR INTERLOCK 2-12
EXTENDING THE PLATFORM 2-13
PLATFORM EXTENSION PROCEDURE 2-13
PLATFORM RETRACTION PROCEDURE 2-13
EMERGENCY LOWERING 2-14
PARKING BRAKE RELEASE 2-14
MACHINE TRANSPORTATION 2-15
CRANE 2-15
FORKLIFT 2-15
TRUCK 2-16
MAINTENANCE 2-17
BLOCKING THE ELEVATING ASSEMBLY 2-17
INSTALLATION PROCEDURE 2-17
REMOVAL PROCEDURE 2-17
HYDRAULIC FLUID 2-18
HYDRAULIC FLUID CHECK PROCEDURE 2-18
BATTERY MAINTENANCE 2-18
BATTERY CHARGING 2-19
INSPECTION AND MAINTENANCE SCHEDULE 2-20
MAINTENANCE CHECKLIST 2-21
DAILY PREVENTATIVE MAINTENANCE SCHEDULE 2-21
SPECIFICATIONS 2-22
SPECIFICATIONS (2-2OON NAMEPLATE/2OMAX CHASSIS INCLINATION) OPTION 2-23
WASTE REMOVAL AND DISPOSAL 2-25
5

Page 2 - TM12
INTRODUCTION
This manual covers all models of the TM12 aerial work platform. This manual must be stored on
the machine at all times. Read, understand and follow all safety rules and operating instructions
before attempting to operate the machine.
GENERAL DESCRIPTION
COMPONENTS OF THE TM12 SERIES
1. Main Platform
2. Entry gates
3. Elevating mast
4. Platform controls
5. Manual case
6. Chassis controls
7. Hydraulic reservoir
8. Power/Control module, including
level sensor (EZlift 230)
9. Battery tray
10. Emergency lowering valve
11. Battery charger
12. Extension deck
!
W A R N I N G
!
DO NOT use the maintenance platform without guardrails properly assembled and in place.
1
12
10
8
7
6
3
5
2
4
11
9

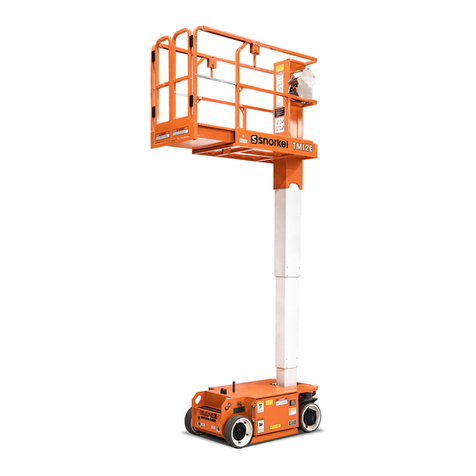

FIGURE 2-2: TM12 Series
6

Page 2 -TM12
SPECIAL LIMITATIONS
SPEED AND ELEVATION
• Travel with the platform raised is limited to a maximum speed of 0.43 km/h (0.27mph)
• Elevating the platform is limited to hard, level surfaces only.
PLATFORM CAPACITY
The maximum platform capacity for the TM12 is 227kg (500lbs). Two people may occupy the
platform indoors (only one person on the extension deck) while only one may occupy the platform
outdoors.
MANUAL FORCE
Manual force is the force applied by the occupants to objects such as walls or other structures out-
side the work platform. The maximum allowable manual force is limited to 200N (45 lbs) of force
per occupant outdoors, with a maximum of 400N (90 lbs) in total for two occupants indoors.
BEAUFORT SCALE
Never operate the machine when the wind speed exceeds 12.5 m/s (28mph). This falls under the
Beaufort rating of 6 as shown on the Beaufort scale in table 2-1.
!
D A N G E R
The elevating function shall ONLY be used when the work platform is level and on a hard surface. The work
platform is NOT intended to be driven over uneven, rough or soft terrain.
!
!
D A N G E R
!
DO NOT exceed the maximum platform capacity or the platform occupancy limits for this machine.
!
D A N G E R
!
DO NOT exceed the maximum amount of manual force for this machine.
Beaufort
Scale
m/Sec Ground Conditions
3 3.5-5
4 6-8 Raises dust and loose paper; small branches are moved
5 9-10 Small trees in leaf begin to sway; crested wavelets on inland waterways.
6 11-13 .
7 14-17 Whole trees in motion; inconvenience felt when walking against wind.
8 18-21 Breaks twigs off trees; generally impedes progress.
9 22-24 Slight structural damage occurs (chimney pots and slates removed)
TABLE 2-1: Beaufort scale
7

Page 2 - TM12
CONTROLS/PRE-OPERATION
CONTROLS AND INDICATORS
PRE-OPERATION AND SAFETY INSPECTION
NOTE: Carefully read, understand and follow all safety rules, operating instructions, labels
and National Safety Instructions/Requirements. Perform the following steps each day be-
fore use.
1. Open the chassis door and inspect for damage, uid leaks or missing parts.
2. Make sure the platform is fully lowered before checking the level of hydraulic uid.
Open the chassis door to gain access to the hydraulic tank.
Check that the uid level is between the minimum and maximum level marks indicated on
either the side of the hydraulic tank or on the dipstick (if tted).
The dipstick (if tted) can be found on the bottom of the lling cap.
Add recommended hydraulic uid if necessary using specications set on page 24.
3. Check that the A.C. extension cord has been disconnected from the chassis outlet.
4. Check that the uid level in the batteries is correct to that stated under “Battery maintenance”
on page 20.
5. Verify that the batteries are charged by checking the % value under BCI on the EZcal display
as shown on gure 2-3.
6. Check that all guardrails are in place and all fasteners are correctly tightened.
7. Inspect the machine thoroughly for cracked welds and structural damage, loose or missing
hardware, hydraulic leaks, damaged control cable and loose wire connections.
L
1
7
6
8
5
94
3
2
10
ESC ENTER
PLATFORM
CONTROLLER CHASSIS
CONTROLLER
KEY
1 JOYSTICK 6 PLATFORM RAISE/
LOWER SWITCH
2 EMERGENCY STOP 7 ENABLE SWITCH
3 LIFT/DRIVE SELECT SWITCH 8 KEYSWITCH
4 LOW BATTERY INDICATOR 9 HORN BUTTON
5 EMERGENCY STOP (CHASSIS) 10 EZcal DISPLAY
FIGURE 2-3: Controls and indicator locations
8

Page 2 -TM12
SYSTEM FUNCTION INSPECTION
Refer to gure 2-2 and 2-3 for the locations of various controls and indicators.
1. Move the machine if necessary, to an unobstructed area to allow for full elevation.
2. Turn the chassis and platform emergency stop switches on by twisting clockwise and pulling
the buttons out.
3. Check the level sensor operation by positioning the machine off level by more than 1.5 degrees
side to side.
4. Raise the platform using the chassis controls. The alarm should sound and the platform should
not be higher than 500 mm.
5. Lower the platform by pushing the chassis lift switch to a downwards position while holding the
enable switch on and fully elevate the platform.
6. Repeat steps 3 and 4 with the machine off level by more than 2 degrees front to back.
7. Level the machine.
8. Push the chassis lift switch to the upwards position while holding the enable switch on and fully
elevate the platform.
9. Visually inspect the mast assembly for damage or erratic operation. Check for missing or loose
parts.
10. Refer to gure 2-5;
Visually inspect the two chain tensioning bolts on the platform mast and also the second
mast to ensure locknuts are not loose.
Ensure the bolt thread is vissible through the inspection holes in the tension blocks.
!
W A R N I N G
!
STAND CLEAR of the work platform while performing the following checks.
Before operating the machine, survey the work area for surface hazards such as holes, drop o’s bumps and debris.
Check in all directions, including above the work platform for obstructions and electrical conductors.
CHASSIS
CONTROLS
TENSION BLOCK
FIGURE 2-4: Chassis control unit FIGURE 2-5: Tension blocks
9

Page 2 - TM12
SYSTEM FUNCTION INSPECTION
POT HOLE BARS
(1 ON EACH SIDE)
EMERGENCY LOWERING
VALVE
FIGURE 2-6: Pot hole bars FIGURE 2-7: Emergency lowering valve
11. Verify that the pot hole cylinders have rotated the pot - hole bars into position under the ma-
chine.
12. Check to make sure the chassis emergency lowering valve as shown on gure 2-7 is operat-
ing correctly using the following procedure:
Open the valve by pulling the knob out.
Once the platform is fully lowered, close the valve by releasing the knob.
13. Push the chassis emergency stop switch into the off position to check that all machine func-
tions are disabled. Pull out the chassis emergency stop switch to resume.
14. Check that the route is level and capable of supporting the wheel load, clear of holes and drop
offs, persons and obstructions.
15. Turn the key switch to platform control and mount the platform.
16.After mounting the platform, ensure gates are closed. Secure gate latch if supplied (Australian
machines only).
17. To inspect the platform extension;
Inspect the foot lever to ensure that it releases the pin to extend the platform as shown in
gure 2-8.
While facing the rear of the platform, step down on the foot lever and push the top rail of
the extension deck backwards until the pin engages the stop and locates securely.
To retract the extension deck, face the rear of the platform. Step down on the foot lever and
grasp the top rail of the extension deck pulling backwards to retarct the deck until the pin
engages the rear stop.
Make sure the platform extension deck is locked in position before continuing.
18. Select drive mode.
19. While pressing on the joystick interlock switch, slowly position the joystick to forward and re-
verse to check for speed and directional control. The further you push or pull the joystick from
the centre, the faster the machine will travel.
20. While pressing on the joystick interlock switch, move the steering switch button right and then
left to check for steering control.
21. Push the platform emergency stop switch down to the the off position to check that all machine
functions are disabled. Twist and pull up the platform emergency switch to enable all machine
functions.
10

Page 2 -TM12
OPERATION
Before operating the machine, ensure that the pre-operation safety inspection has been completed
and that any deciencies have been corrected. Never operate a damaged or malfunctioning ma-
chine. The operator must be thoroughly trained on this machine.
STEERING
NOTE: Steering is not automatically centred. Wheels must be returned to straight ahead position
by operating the steering switch.
1. Select DRIVE mode.
2.
While operating the interlock switch, push the steering switch to right or left to turn the
wheels in the desired direction.
Observe the tyres while manoeuvring the machine to ensure it moves in the correct
direction.
ELEVATING PLATFORM
NOTE: If the chasis inclination exceeds the specication maximum inclination value, the tilt alarm
will sound and the machine will not lift or drive. If the tilt alarm sounds, the platform must be low-
ered and the machine moved to a level location before attempting to re-elevate the platform.
1. Check clearances below and to the sides of the platform.
2. Select LIFT mode
3. While operating the joystick interlock switch, push joystick forward to the up position. The fur-
ther you push the joystick, the faster the platform will elevate.
LOWERING PLATFORM
1. Check clearances below and to the sides of the platform.
2. Select lift mode.
3. While operating the joystick interlock switch, pull back on the joystick.
TRAVEL WITH PLATFORM LOWERED
NOTE: The machine’s full travel speed range is enabled when the platform is in the lowered
(stowed) conguration.
1. Check that the route is level and capable of supporting the wheel load, clear of holes and
drop-offs, persons and obstructions.
2. Verify that the chassis key switch is turned to platform control and the chassis emergency stop
switch is on by twisting and pulling the button out.
3. After mounting the platform, ensure gates are close behind you.
4. Check clearances above, below and to the sides of the machine.
5. Be aware of the potential crushing hazards when holding handrails while the platform is mov-
ing in close proximity to other objects.
6. Twist and pull the platform controller emergency stops switch up to the on position.
7. Select drive mode.
8. While operating the joystick interlock switch, slowly push or pull the joystick forward or
reverse to travel in the desired direction.
The further you push or pull the joystick from the centre, the faster the machine will
travel.
11

Page 2 - TM12
OPERATION
TRAVEL WITH PLATFORM ELEVATED
NOTE: The machine will travel at reduced speed when the platform is elevated.
1. Check that the route is level and capable of supporting the wheel load, clear of holes and drop-
offs, persons and obstructions.
2. Check clearances above, below and to the sides of the platform.
3. Be aware of the potential crushing hazards when holding handrails while the platform is moving
in close proximity to other objects.
4. While the machine is elevated above 500mm, select “DRIVE” mode.
5. While operating the joystick interlock switch, push joystick to forward or reverse for desired
direction of travel.
6. If the chassis inclination exceeds the specication maximum inclination value, the tilt alarm
will sound and the machine will not lift or drive.
If the tilt alarm sounds, the platform must be lowered and the machine moved to a level
location before attempting to re-elevate the platform.
DRIVE SPEED
The drive speed is proportional to the joystick position. The further the joystick is moved, the faster
the machine will travel. Always slow down before travelling over rough terrain or surfaces.
Drive speed ranges are interlocked via a mast proximity switch which senses the platform position
(Stowed or Elevated).
When the platform elevation (platform oor to oor level) is below approximately 750mm
(29.5”), the full drive speed range is enabled.
When the platform elevation (platform oor to oor level) is above approximately 750mm
(29.5”), only reduced drive speed range is enabled.
Do not use the aerial platform if it drives faster than 0.43km/h (0.27mph) which is 3600mm (17’9”)
in 30 seconds when the platform elevation (platform oor to oor level) is above approximately
750mm (29.5”).
DRIVE/LIFT LEVEL SENSOR INTERLOCK
When the platform elevation (platform oor to oor level) is approximately 750mm (29.5”), lift and
drive functions are interlocked through a level sensor system. If the chassis inclination is greater
than 1.5 degrees side to side or 2 degrees front to back, platform raise and drive functions are
disabled and an alarm sounds when these controls are activated.
If the drive/lift level sensor interlock shuts off the platform raise and drive functions, lower the plat-
form and drive to a level surface.
!
W A R N I N G
!
The potential for an accident increases when safety devices do not function correctly. Death or serious injury could
result from such accidents. DO NOT alter, disable or override any safety device.
12

Page 2 -TM12
OPERATION
EXTENDING THE PLATFORM
PLATFORM EXTENSION PROCEDURE
1. Enter the platform, close the gate and secure gate latch if supplied (Australian machines only)
2. While facing the rear of the platform, step down on the foot lever and push the top rail of the
extension deck backwards to extend the deck until the pin engages the front stop. Refer to
gure 2-8.
3. Try to move the rails back and forth to make sure the platform extension deck is locked in
position.
PLATFORM RETRACTION PROCEDURE
1. Enter the platform, close the gate and secure gate latch if supplied (Australian machines only).
2. While facing the rear of the platform, step down on the foot lever and pull the top rail of the
extension deck forward until the pin engages the rear stop. Refer to gure 2-8.
3. Try to move the rails back and forth to make sure the platform extension deck is locked in
position.
!
W A R N I N G
!
The extension deck is free to move when the foot lever is pressed down on. Personal injury may result from
accidentally extending or retracting the deck. Make certain the pin is engaged when the deck is extended in the
working position and when it is stowed. DO NOT attempt to extend or retract the platform unless the aerial
platform is on level surface.
FRONT STOP
GATE
PIN FOOT LEVER
REAR STOP
PLATFORM STOWED
PLATFORM EXTENDED
FIGURE 2-8: Platform stowed and extended positions
13
