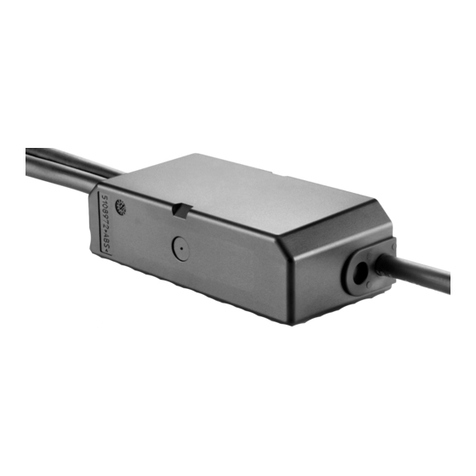

SOMFY SLIM io receiver User instructions

1
SLIM io receiver for screens
Settings with a local control (1W transmitter)
The end limits of the motor are set
Setting of the running time and programming a transmitter
2 Take control of the motor
...short movement
Press at the same
time until...
3 Check the rotation direction
Press briefly not OK step 4OK step 5
or
Settings of the SLIM io receiver for screens
1 Wiring
1 Blue Neutral
2 Black Phase
3 - -
Yellow/green Earth
1 Blue Neutral
2 Black Rotation 1
3 Brown Rotation 2
Yellow/green Earth
Motor sidePower supply

2
SLIM io receiver for screens
...short movement
Press at the same
time until...
4 Change the rotation direction, if required
5 Activate the setting mode
6 Put the screen in the upper end limit
Press until... ...short movement OK
step 5
2 s
>2 s
Settings of the SLIM io receiver for screens
7 Set the running time manually
Push directly on the “my” button
when the screen reach the lower
end limit until
Press at the
same time
until...
Press on the up
button until...
...the screen
is in the upper
end limit
...the screen
goes down
8 Programming the transmitter
Short movement OK
...a short movement
of the screen
Briefly press the PROG button until...
<1 s
<1 s
Back of the
Smoove
Back of the Situo
5 s
