USER MANUAL

EARTH RESISTANCE METER

MRU-11

SONEL S.A.

Wokulskiego 11

58-100 Świdnica

Version 1.0522.07.2021

MRU-11 –USER MANUAL

The MRU-11 meter is a modern, easy and safe measuring device. Please acquaint yourself with this

manual in order to avoid measuring errors and prevent possible problems in operation of the meter.

MRU-11 –USER MANUAL

CONTENTS

1Safety ................................................................................................................4

2Turning the meter ON and activating screen backlight ...............................5

3Meter configuration .........................................................................................6

4Measurements..................................................................................................9

4.1 Measurement of interference voltages DC + AC...................................................... 9

4.2 Measurement of earth resistances with 3-pole method (RE3P)..............................10

4.3 Measurement of earth resistances with 4-lead method (RE4P)..............................14

4.4 Measurement of earth resistances with 2-pole method (RE2P)..............................18

4.5 Soil resistivity measurement (ρ) .............................................................................20

5Power supply..................................................................................................23

5.1 Monitoring the power supply voltage...................................................................... 23

5.2 Replacing (rechargeable) batteries........................................................................24

5.3 General principles regarding using Ni-MH rechargeable batteries ........................25

6Cleaning and maintenance ...........................................................................25

7Storage............................................................................................................25

8Dismantling and disposal .............................................................................26

9Technical data................................................................................................26

9.1 Basic data .............................................................................................................. 26

9.2 Additional data ....................................................................................................... 28

9.2.1 Influence of serial interference voltage on the resistance measurements for function

RE3P, RE4P, ρ................................................................................................................28

9.2.2 Influence of the auxiliary electrodes on earth resistance measurements for function

RE3P, RE4P, ρ................................................................................................................28

9.2.3 Additional uncertainties according to IEC 61557-5 (RE3P)....................................................28

10 Accessories....................................................................................................29

10.1 Standard accessories ............................................................................................ 29

10.2 Optional accessories..............................................................................................30

11 Manufacturer ..................................................................................................31

12 Laboratory services.......................................................................................32

MRU-11 –USER MANUAL

1 Safety

The following international symbols are used in the Analyzer and in this manual:

Warning;

See explanation in the manu-

Dual insulation

(Protection class II)

Do not dispose of with other

household waste

Declaration of Conformity with EU di-

rectives (Conformité

Européenne)

MRU-11 meter is designed for measuring parameters important for safety of electrical installations.

Therefore, in order to provide conditions for correct operation and accuracy of obtained results, the

following recommendations must be observed:

Before you proceed to operate the meter, acquaint yourself thoroughly with the present manual

and observe the safety regulations and specifications provided by the producer.

MRU-11 meter is designed to measure earth resistance values. Any application that differs from

those specified in the present manual may result in a damage to the device and constitute a

source of danger for the user.

The meter must be operated solely by appropriately qualified personnel members holding re-

quired certificates for carrying measurements in electric installations. Unauthorized use of the

meter may result in its damage and may be a source of serious hazard to the user.

Using this manual does not exclude the need to comply with occupational health and safety regu-

lations and with other relevant fire regulations required during the performance of a particular type

of work. Before starting the work with the device in special environments, e.g. potentially fire-

risk/explosive environment, it is necessary to consult it with the person responsible for health and

safety.

It is unacceptable to operate the device when:

a damaged meter which is completely or partially out of order,

a meter with damaged insulation,

a meter stored for an excessive period of time in disadvantageous conditions (e.g. excessive

humidity). If the meter has been transferred from a cool to a warm environment with a

high level of relative humidity, do not start measurements until the meter is warmed up

to the ambient temperature (approximately 30 minutes).

Before measurement make sure that test leads are connected to appropriate measuring termi-

nals.

Do not power the meter from sources other than those listed in this manual.

The inputs of the meter are protected electronically against overload e.g. due to having been

connected to a live circuit, for all combinations of inputs - up to 276 V for 30 seconds.

Factory calibration does not include the resistance of the test leads. The result displayed by the

meter is a sum of the resistance of the measured object and the resistance of leads.

The device meets the requirements of standards EN 61010-1 and EN 61557-1, -5.

Due to continuous product development, the manufacturer reserves the right to intro-

duce changes to the functionality, appearance, accessories and technical data of the

meter. Due to continuous development of the meter’s software, the actual appearance

of the display, in case of some of the functions, may slightly differ from the display

presented in this operating manual.

MRU-11 –USER MANUAL

2 Turning the meter ON and activating screen backlight

To turn ON the meter,

press ON/OFF button.

The screen of the device

will activate its all seg-

ments (self-test), and

then it will briefly show

the software version.

When the meter is ON, a

short press on ON/OFF

button will turn ON and

then OFF the screen

backlight;

To turn OFF the device,

press and hold ON/OFF

button for approx. 2 sec-

onds.

A screen indicating shut-

ting off the device is

shown briefly.

MRU-11 –USER MANUAL

3 Meter configuration

Turn on the meter by pressing and holding DOWN

button and pressing ON/OFF button.

After switching the meter ON, a screen is shown

with network frequency settings Fn.

When the Fn screen is displayed, use UP and

DOWN buttons to set the network frequency of

50 Hz or 60 Hz (default: 50 Hz).

Short press START button to accept the selected

value.

You will enter the screen with settings of audio

messages - bEEP.

Use UP and DOWN buttons to turn the audio

messages ON ( ) or OFF ( ).

MRU-11 –USER MANUAL

Short press START button to accept the selected

option.

The screen of Auto-OFF time settings will be

shown: oFF.

Use UP and DOWN buttons to set the auto-off

time at 300 s, 600 s, 900 s or "- - - -" (Auto-OFF

inactive). Auto-OFF function is used to turn-off in-

active meter after a preselected time, which is

signalled by a beep.

Short press START button to accept the selected

option.

You will enter the screen with measuring voltage

selection Un.

Use UP and DOWN buttons to set the measuring

voltage at 25 V or 50 V. The measuring voltage

set relates to all measurement functions in the

meter.

MRU-11 –USER MANUAL

Short press START button to accept the selected

option.

You will enter the screen with settings of units soil

resistivity.

Use UP and DOWN buttons to set the unit:

meters mor

feet ft.

Short press START button to accept the selected

option.

You will enter the screen with settings of distance

between auxiliary electrodes.

Use UP and DOWN buttons to set the distance.

Short press START button to accept the selected

option and return to the network frequency selec-

tion screen Fn.

Long press (> 2 s) START button to the introduced

changes and proceed to the measurement screen

RE3P.

Long press (> 2 s) ON/OFF button to turn off the

meter without accepting the changes introduced at

the current setting position.

Short press (> 2 s) ON/OFF button to enter the

measurement screen RE3P without accepting the

changes introduced at the current setting position.

MRU-11 –USER MANUAL

4 Measurements

Earth resistance measurements significantly different from other measurements performed to

assess the protection against electric shock. They require a thorough knowledge of the structure of

the earthing system, the phenomena occurring during the measurements and the skills of coping with

adverse outdoor conditions. Earthing system tests/measurements require adequate knowledge and

measuring equipment, which will be able to maximally facilitate these examinations.

4.1 Measurement of interference voltages DC + AC

In measuring functions,

before START button is

pressed, the meter moni-

tors the measuring volt-

age at the terminals (be-

tween Esocket and S / H

sockets) and the interfer-

ence voltage value is

displayed on the screen.

Additional information displayed by the meter

UN>100V!, >100V

and a continuous beep ,

NOISE! and

Voltage at test terminals is higher than 100 V, the meas-

urement is blocked.

UNxxV!, >40V and a continuous

beep , NOISE! and

Where xx is the value of interference voltage. Voltage at

test terminals is higher than 40 V but lower than 100 V, the

measurement is blocked.

UNxxV!, >24V, NOISE! and

Where xx is the value of interference voltage. Voltage at

test terminals is higher than 24 V but lower than 40 V, the

measurement is blocked.

NOISE!

The interference voltage is lower than 24 V, but with a high

value - the measurement result may be affected by addi-

tional uncertainty.

MRU-11 –USER MANUAL

4.2 Measurement of earth resistances with 3-pole method (RE3P)

For earth resistance measurements, the most commonly used method is the 3-pole method, of-

ten called the potential drop method, or technical method. During the measurement, the voltage drop

at the earthing is measured with current flowing through it, then the Ohm's law is used to calculate

the resistance.

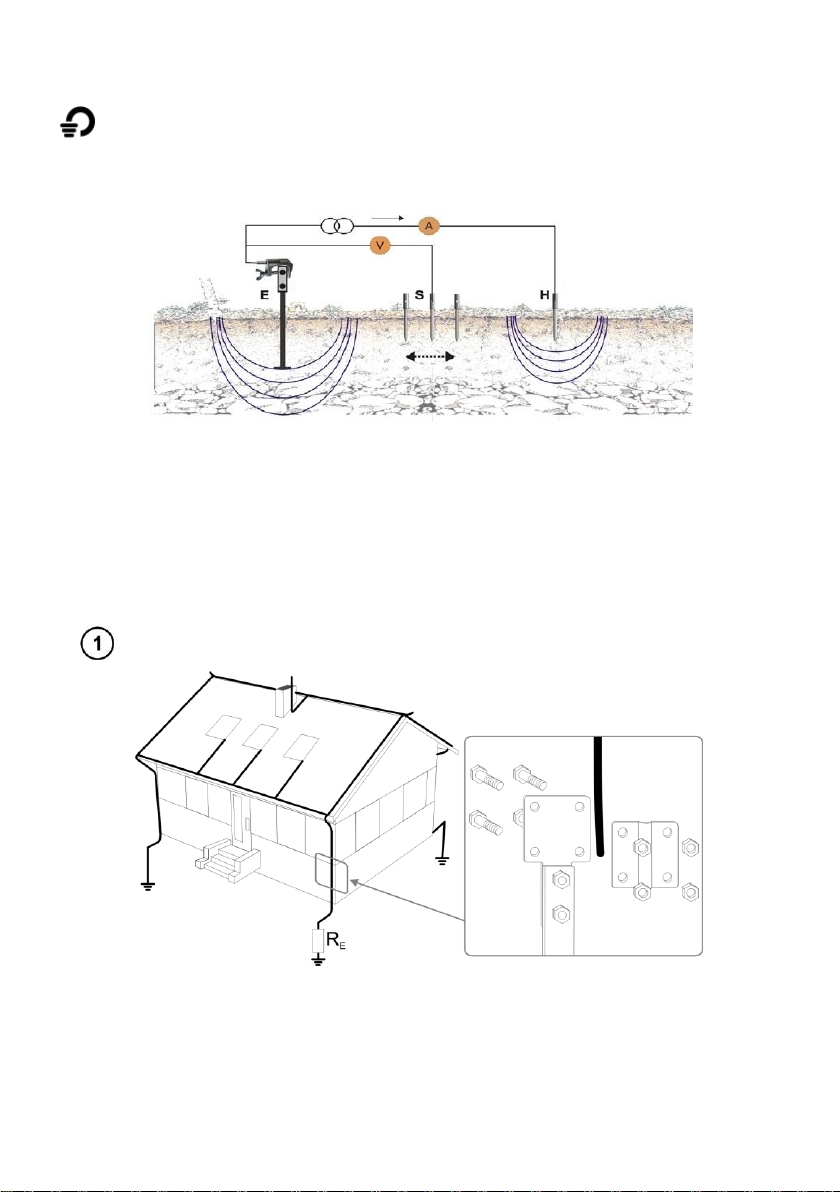

The scheme of measuring the earthing resistance with the 'technical method' is shown above. The

figure shows the measurement of earthing resistance RE. To perform the measurement, use two ad-

ditional auxiliary electrodes:

•Helectrode (current electrode) to allow excitation of current flow in the circuit: tested earth electrode

RE→ meter → H current electrode → earth → tested earth electrode;

•Selectrode (voltage electrode) for measuring the voltage drop across the resistance of the meas-

ured earthing as a result of current flow.

Disconnect the tested earth electrode from the installation of the facility.

Tested

earthing system

Voltage

probe

Current

probe

MRU-11 –USER MANUAL

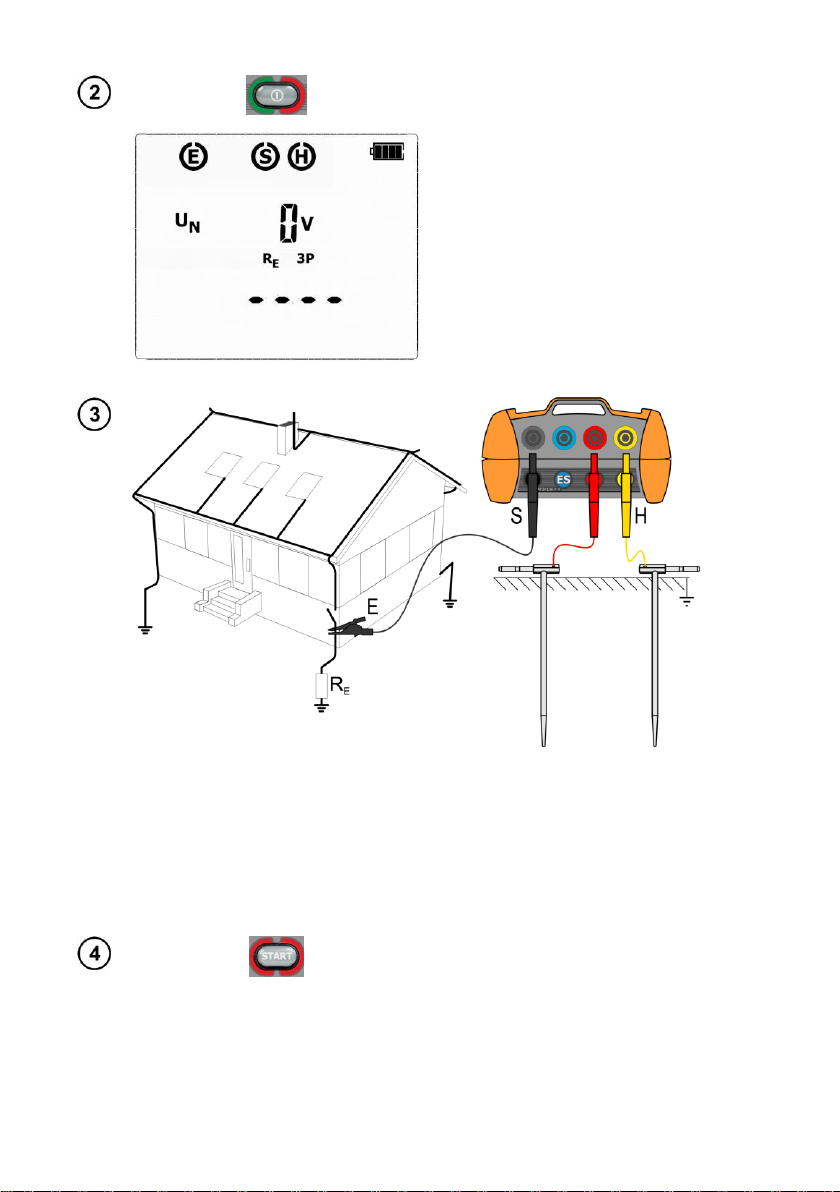

Turn on the meter using ON/OFF button.

The meter enters the measurement function

screen RE3P.

The meter is in the mode of measuring the

interference voltage between the test termi-

nals. The measuring voltage is compatible

with the voltage selected when setting up

the device.

Test leads should be connected to the measurement terminals in the device, as shown

above.

The current electrode H (driven into earth) should be connected to Hsocket of the meter.

The voltage electrode S (driven into earth) should be connected to Ssocket of the meter.

The earth electrode being tested should be connected to Esocket of the meter with the

lead.

The earth electrode being tested and the current electrode and the voltage electrode should

be located in one line.

Press START.

The progress of the measurement is indi-

cated by horizontal lines on the screen.

MRU-11 –USER MANUAL

After completing the measurement, results

are displayed for all the measurements car-

ried-out: at the bottom of the screen, the

main result is shown for RE, whereas the

upper part of the screen shows additional

results for RH.The result is displayed for

20 seconds. The result can be recalled by

pressing UP button.

Use UP button to view the component re-

sults in the following order:

RHRSERUN, where:

RH–resistance of electrode H

RS–resistance of electrode S

ER –additional uncertainty resulting from

the electrode

UN- interference voltage

Repeat the measurements (steps )

moving the voltage electrode a few meters -

placing it farther and closer to the measured

earth electrode.

If REmeasurement results differ from one

another by more than 3%, the distance of

the current electrode from the earth elec-

trode being tested should be considerably

increased and the measurements should be

repeated.

NOTE!

Measurement of resistance-to-earth may be carried out if voltage of interferences

does not exceed 24 V. Voltage of interferences is measured up to the level of 100 V,

but above 40 V it is signalled as dangerous. The meter must not be connected to

voltages exceeding 100 V.

MRU-11 –USER MANUAL

Particular attention should be paid to quality of connection between the object being

tested and the test lead –the contact area must be free from paint, rust, etc.

If resistance of electrodes is too high, REearth electrode measurement will include

an additional uncertainty. Particularly high uncertainty of measurement occurs when

a small value of resistance-to-earth is measured with electrodes that have a weak

contact with earth (such a situation occurs frequently when the earth electrode is

well made and the upper soil layer is dry and slightly conductive). In such a case,

the ratio of resistance of the electrodes to resistance of the tested earth electrode is

very high and consequently, uncertainty of measurement that depends on this ratio

is also very high. Then, you can make a calculations according to the formulas giv-

en in sec. 9.2 to estimate the influence of measurement conditions. You can im-

prove the contact between the electrode and soil, for example, by dampening with

water the place where the electrode is driven into earth, driving the probe into earth

in a different place or using a 80 cm-long electrode. Check also the test leads for

possible insulation damage and for corroded or loosened connection between the

banana plug and the test lead. In majority of cases the achieved measurement ac-

curacy is satisfactory. However, you should always be aware of the uncertainty in-

cluded in the measurement.

Additional information displayed by the meter

RE>9999 Ω

Measuring range is exceeded.

UN>100 V, >100 V

and a continuous beep ,

NOISE! and

Voltage at test terminals is higher than 100 V, measure-

ment is blocked.

UNxxV, >40 V

and a continuous beep ,

NOISE! and

Where xx is the value of interference voltage. Voltage at

test terminals is higher than 40 V, measurement is

blocked.

UNxxV, >24 V,

NOISE! and

Where xx is the value of interference voltage. Voltage at

test terminals is higher than 24 V but lower than 40 V, the

measurement is blocked.

NOISE!

The interfering signal (noise signal) is too high - the meas-

urement result may be affected by additional uncertainty.

and ER together with the value

expressed in %

Measurement due to the resistance of the auxiliary elec-

trodes > 30%. (Measured values are used in calculation of

uncertainty.)

and RHor RSwith the value of Ω

Resistance of auxiliary electrodes H and S, or one of them

exceeds 19.9 kΩ, correct measurement is not possible.

Flashing edges

Flashing edges of symbols: E or H or S, two or all three at

the same time: disconnected one, two or three leads to the

terminals, or the resistance of the auxiliary auxiliary elec-

trode/s is outside the measuring range.

MRU-11 –USER MANUAL

4.3 Measurement of earth resistances with 4-lead method (RE4P)

The four-lead method is recommended in the case of measurements of earth resistance of very

low values. It permits to eliminate the influence of the test leads resistance over the result of the

measurement. In order to evaluate the resistivity of the ground it is recommended to use the dedicat-

ed measurement function.

Disconnect the tested earth electrode from the installation of the facility.

Turn on the meter using ON/OFF button.

Press DOWN button until the screen of RE4P

measurement appears.

The meter is in the mode of measuring the in-

terference voltage between the test terminals.

The measuring voltage is compatible with the

voltage selected when setting up the device.

MRU-11 –USER MANUAL

Test leads should be connected to the measurement terminals in the device, as shown

above.

Connect the current electrode driven into ground to the Hsocket of the meter.

Connect the voltage electrode driven into ground to the Ssocket of the meter.

Connect the tested earth electrode to the Esocket of the meter.

Connect the ES socket to the earth electrode In question below the E cable.

The tested earth electrode as well as the current electrode and voltage electrode should

be aligned.

Press START.

The progress of the measurement is indicated

by horizontal lines on the screen.

After completing the measurement, results are

displayed for all the measurements carried-out:

at the bottom of the screen, the main result is

shown for RE, whereas the upper part of the

screen shows additional results for RH.The re-

sult is displayed for 20 seconds. The result

can be recalled by pressing UP button.

MRU-11 –USER MANUAL

Use UP button to view the component results in

the following order:

RHRSERUN, where:

RH–resistance of electrode H

RS–resistance of electrode S

ER –additional uncertainty resulting from the

electrodes

UN- interference voltage

Repeat the measurements (steps )

moving the voltage electrode a few meters -

placing it farther and closer to the measured

earth electrode.

If REmeasurement results differ from one an-

other by more than 3%, the distance of the cur-

rent electrode from the earth electrode being

tested should be considerably increased and

the measurements should be repeated.
