Sonos CONNECT
The Sonos CONNECT™ is designed to be used with an external amplifier. It contains both analog and digital
outputs so you can easily connect it to your existing audio equipment.
• Use a CONNECT to listen to music in a room where you already have an amplifier, such as your home
theater system or the stereo system in your family room.
• Use a CONNECT to listen to music in your home office where you already have a computer or a pair of
powered speakers.
• Use a CONNECT if you have a distributed audio system that is driven from an amplifier in one central
location with speaker wires home-run to this central location.
New to Sonos?
It takes just a few steps to get your Sonos system up and running—simply follow the setup instructions
packaged with your CONNECT. Once you’ve got it set up, you can add additional Sonos products any time.
Adding to an existing Sonos system?
Sonos can be easily expanded room by room. You can turn directly to Adding to an Existing Sonos System
if you are adding this CONNECT to an existing Sonos system.

Product Guide
2
Your Home Network
To access Internet music services, Internet radio, and any digital music stored on your computer or Network-
Attached Storage (NAS) device, your home network must meet the following requirements:
Home network requirements
• High-speed DSL/Cable modem, or fiber-to-the-home broadband connection for proper playback of
Internet-based music services. (If your Internet service provider only offers Satellite Internet access, you
may experience playback issues due to fluctuating download rates.)
• If your modem is not a modem/router combination and you want to take advantage of Sonos' automatic
online updates, or stream music from an Internet-based music service, you must install a router in your
home network.If you do not have a router, purchase and install one before proceeding. If you are going
to use the Sonos Controller App on an Android™ or iOS device, or you are setting up Sonos wirelessly,
you will need a wireless router.
• Connect a Sonos BRIDGE, BOOST™ or player to your router if:
• You have a larger home where the WiFi performance isn’t reliable and you want to strengthen the
wireless performance of your Sonos system.
• Your WiFi network is already in high demand with streaming video and web surfing and you want to
create a separate wireless network exclusively for your Sonos speakers.
• Your home network is 5GHz only (not switchable to 2.4GHz).
• For best results, you should connect the computer or NAS drive that contains your personal music library
collection to your home network router using an Ethernet cable.
The Sonos App
You can use the free Sonos app with any compatible device, including:
•Sonos app (Android)—Android 2.2 and higher; certain features require later versions. (Standard wireless
setup is only supported on Android 2.3 or 4.0 and higher.)
Touch t h e Play Store or Market button on your Android device to download the free Sonos app from
Google Play.
•Sonos app (iOS)—iPhone, iPad and iPod touch running iOS 7.0 or later; certain features may require
later versions.
Touch t h e App Store button on your iPhone, iPod touch or iPad to download the free Sonos app, or
download the application from iTunes®. (If you download from iTunes, you will need to sync before you
see the Sonos logo display on your device.)
Note: Your network must have a high-speed Internet connection, as the Sonos
system is designed to provide you with free, online software updates. Your Sonos
system must be registered to receive these updates so be sure to register during
the setup process. We do not share your e-mail address with other companies.
Note: Sonos communicates over a 2.4GHz home network supporting 802.11
b/g/n wireless technology. 5GHz networks are not supported in a completely
wireless Sonos setup.

Sonos CONNECT 3
•Sonos app (PC)—Windows® XP SP3 and higher; certain features require later versions. (Standard
wireless setup is only supported on Windows 7 and higher.)
Download from our website at www.sonos.com/support/downloads.
•Sonos app (Mac)—Macintosh® OS X 10.7 or later
Download from our website at www.sonos.com/support/downloads.
CONNECT Front
Note: Sonos CONTROL has been discontinued, but it’s compatible with your new
Sonos product.
On/Off Your Sonos system is designed to be always on; the system uses
minimal electricity whenever it is not playing music. To quickly stop
streaming audio in all rooms, select Pause All from the Rooms menu.
To stop streaming audio in one room, press the
Play/Pause button on the CONNECT.
Status indicator Indicates the current status. During normal operation the white light is
dimly lit. If desired, you can turn off the white light from Room Settings.
See Player Status Indicators for a complete list of status indications.
Play/Pause Toggles between playing and pausing the audio in this room (defaults to
restarting the same music source when pressed unless a different
source is selected).
• Press once to start or stop streaming audio
• Press twice to skip to the next track (if applicable to the selected
music source)
Volume up (+)
Volume down (-)
Press these buttons to adjust the volume up and down.

Product Guide
4

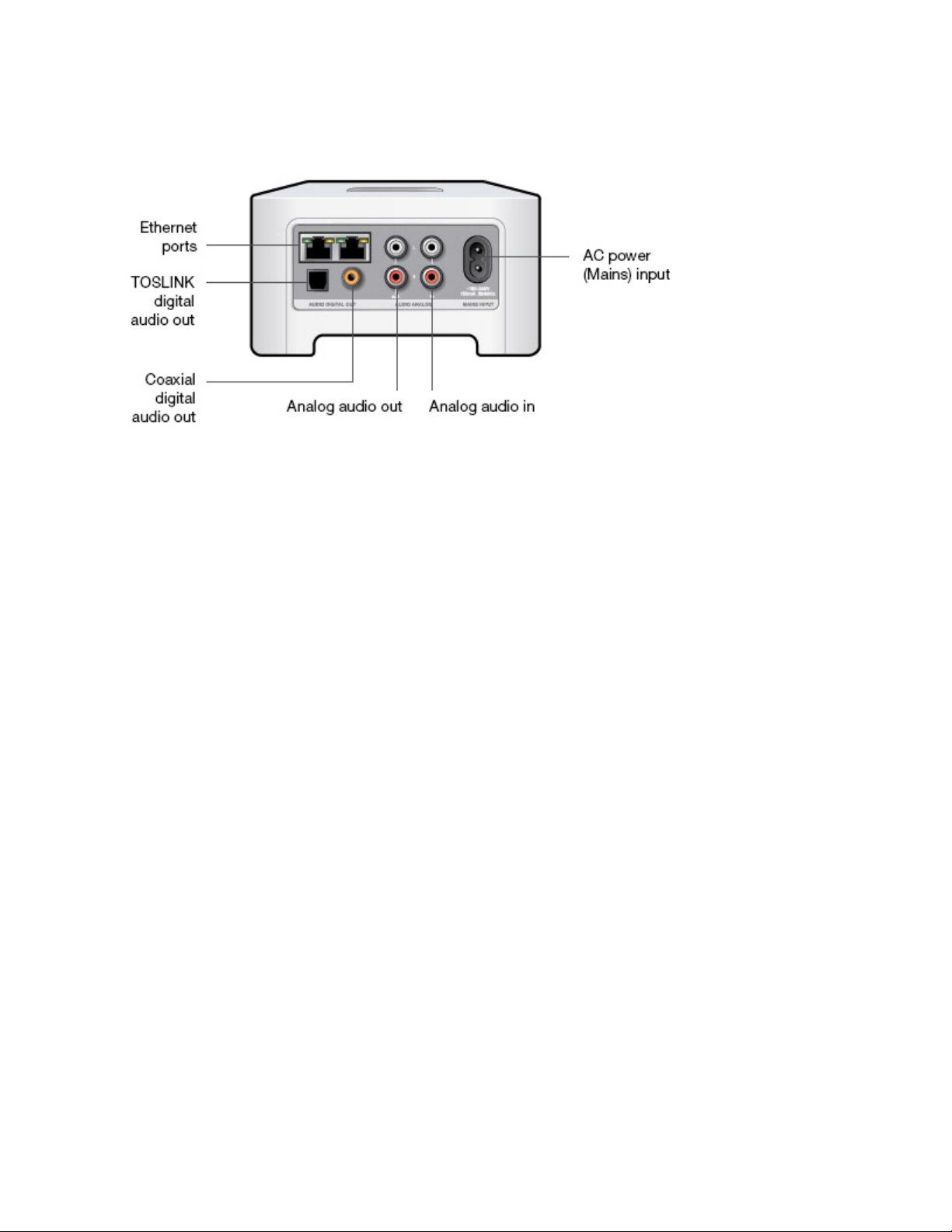

CONNECT Back
Ethernet ports (2) You can use an Ethernet cable (supplied) to connect to a router,
computer, or additional network device such as a network-attached
storage (NAS) device.
LED indicators:
• Flashing Green (network activity)
• Yellow (link connection)
AC power (mains) input
(100 - 240 VAC, 50/60 Hz)
Use only the supplied power cord to connect to a power outlet (using a
third party power cord will void your warranty).
Analog audio in Use a standard RCA audio cable to connect the audio outputs from a
separate audio component such as a CD player, to the Sonos
CONNECT’s analog audio inputs.
Analog audio out (fixed/variable) Use a standard RCA audio cable to connect the Sonos product’s
analog audio outputs to the audio inputs on a separate audio
component, such as an amplifier or your home theater receiver.
TOSLINK® digital audio out You can use a TOSLINK optical audio cable to connect the Sonos
CONNECT’s TOSLINK digital audio output to the audio inputs on a
separate audio component, such as an amplifier or your home theater
receiver.
Coaxial digital audio out You can use a digital coaxial cable to connect the Sonos product’s
coaxial digital audio output to the audio inputs on a separate audio
component, such as an amplifier or your home theater receiver.

Sonos CONNECT 5
Adding to an Existing Sonos System
Once you’ve got your Sonos system set up, you can easily add more Sonos products any time (up to 32). Use
the Sonos CONNECT’s audio outputs to connect it to a home theater, computer, powered speakers, or
amplifier.
If your house has structured (built-in) wiring, you can make a wired connection to the additional Sonos
products. If you don’t have structured wiring, our built-in wireless technology is ideal for you.
1. Attach the power cord and plug in the Sonos CONNECT.
The Audio indicator (green) and the Player status indicator (white) will begin to flash.
2. Choose one of the following options:

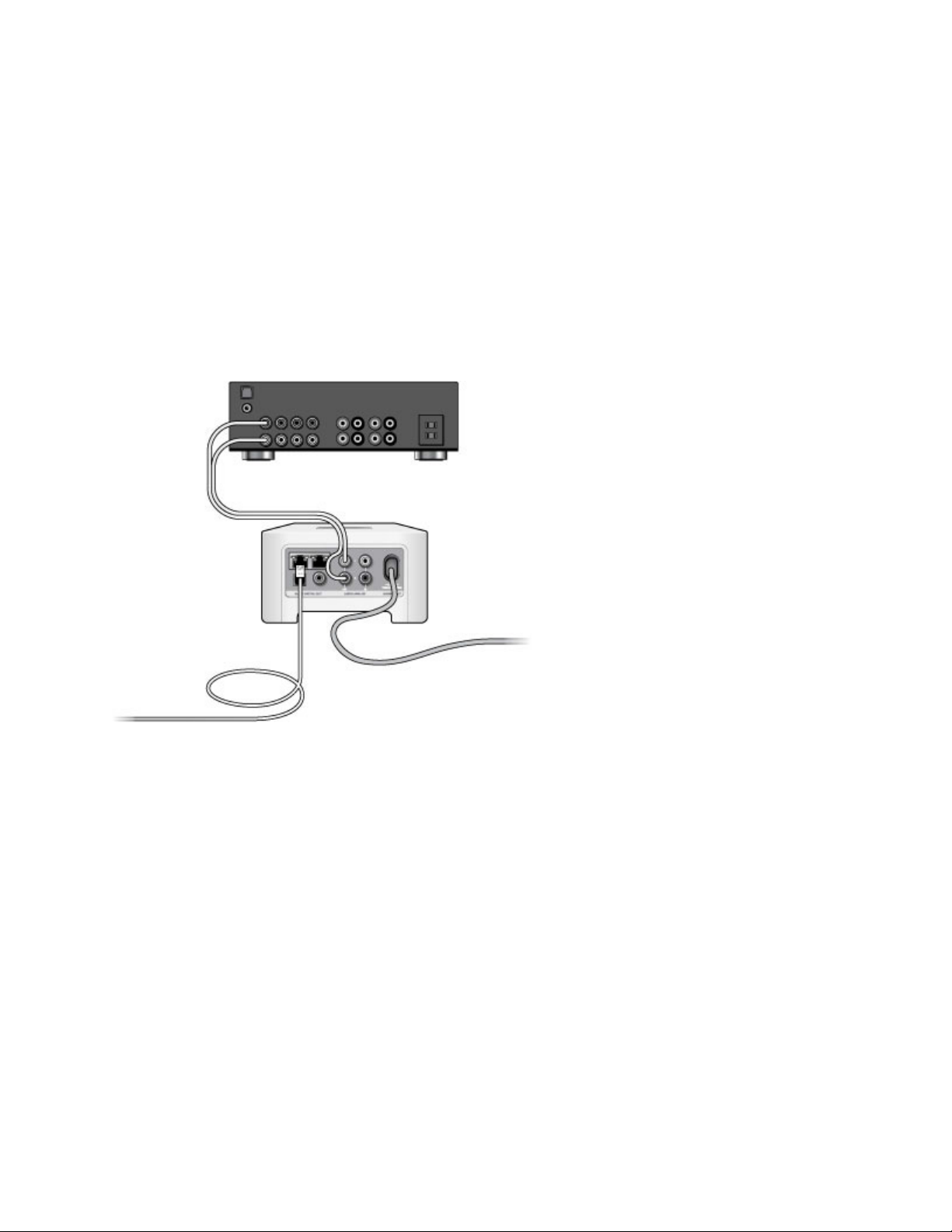

Connect to a home theater or amplifier
• If you have digital inputs on your home theater or amplifier, you can use either a TOSLINK® optical audio
cable or a digital coaxial cable to connect the Sonos CONNECT’s digital output to the digital input on the
receiver.
• If you have analog inputs on your home theater or amplifier, use a standard RCA audio cable to connect
the Sonos CONNECT’s analog audio output to the audio inputs on the receiver.
• Select the proper input channel on the receiver. See Controlling the volume from your home theater or
amplifier to adjust volume settings.
Connect to a computer or powered speakers
•If you are connecting to your computer: You will need a stereo mini to RCA Y-adapter audio cable (one
1/8-inch stereo miniplug to dual RCA male connectors) to connect the Sonos product’s analog audio
output to the computer’s audio input.
•If you are connecting to powered speakers:You may need a Y-adapter audio cable (one 1/8-inch
stereo miniplug to dual RCA male connectors) to connect the computer’s speakers to the audio outputs
on the Sonos product. If your speakers have a male 1/8-inch stereo plug, you will need to attach a
female-to-female coupler between the speaker plug and the Y-adapter audio cable.

Product Guide
6
3. If you are making a wireless connection, skip this step and continue on to step 4. If you are making a wired
connection, connect a standard Ethernet cable from your router or another Sonos product (or a live
network wall plate if you have built-in wiring) to one of the Ethernet switch connections on the back of the
new Sonos product.
4. Choose one of the following options:
• Using a handheld Sonos controller: Select Add a Player or SUB from the Settings menu and follow the
on-screen prompts to add this product to your Sonos system.
• Using the Sonos Controller App for Mac or PC: Select Add a Player or SUB from the Manage menu and
follow the prompts to add the new product to your Sonos system.
Thick walls, 2.4 GHz cordless telephones, or the presence of other wireless devices can interfere with or block
the wireless network signals from your Sonos system. If you experience difficulty after positioning a Sonos
product, try one or more of the following resolutions—relocate the Sonos product; change the wireless
channel your music system is operating on; connect a Sonos product to your router if your setup is currently
wireless.
Line-In
You can easily stream an external source such as a CD player or portable music player through Sonos using
the audio-in connections on your Sonos product. The device will be automatically detected as soon as you
plug it in.
• Use a standard RCA cable to plug an external source like a CD player into the analog Audio In
connections on the back of your Sonos CONNECT.
• If you are connecting a portable music player to the Sonos CONNECT, you will need a 1/8 inch mini-
stereo to RCA audio cable instead. Plug the mini-stereo end into the portable device and the RCA end
into the Audio In connection on the Sonos product.
Using the Sonos app on a mobile device
• To play music from this line-in source, select Line-In from the Sonos music menu, select the source, and
select Play Now.
• To change the name of this device, select Room Settings from the Settings menu. Select the Sonos
product this source is connected to, and then touch Line-In Source Name. Select a new name from the
list, or type a unique name.
• To change the line-in level, select Room Settings from the Settings menu. Select the Sonos product
this source is connected to, and then touch Line-In Source Level. Select a new level.
Using the Sonos app on a Mac or PC
• To play music from this source select Line-In from the MUSIC pane, click next to the music source,
and select Play Now.
• To change the settings for this device:
• Select Manage -> Settings (PC) or Sonos -> Preferences -> Room Settings (Mac).
• Select the Sonos product your Airport Express is connected to from the Room Settings for drop-
down list.
• Click the Line-In tab and update the settings.

Sonos CONNECT 7
A default (typical) line-in level is automatically assigned when you select a source name, but if the volume
sounds too low, you can select a higher line level for this device. (You may experience sound distortion at
higher volume levels if you set the level too high.)
Line-in encoding settings
When you have line-in music sources attached to a Sonos product, line-in encoding determines how Sonos
will encode the data coming in from these sources. Your Sonos system defaults to automatic in order to
provide the optimal playback experience. Sonos recommends you do not change this default. However, if you
decide to make a change, we recommend the following usage guidelines:
Use Uncompressed if:
• You want optimal performance with home theaters.
• You want to produce the highest quality sound for your Sonos system (this selection requires more
network bandwidth than compressed audio.)
Use Compressed if:
• You are connecting more than 4 rooms wirelessly.
• You are in an environment with heavy wireless interference and are experiencing dropouts.
To change the line-in encoding setting, select one of the following options:
• Using a handheld Sonos controller: From the Settings menu, select Advanced Settings -> Audio
Compression.
• Using the Sonos Controller for PC: Select Manage -> Settings -> Advanced.
• Using the Sonos Controller for Mac: Select Sonos -> Preferences -> Advanced.
Line-Out
Controlling the volume from your home theater or amplifier
To control the volume exclusively from your home theater or amplifier, you can change the line-out level on the
Sonos CONNECT to Fixed by selecting one of the following options:
• Using a handheld Sonos controller: Select Room Settings from the Settings menu. Select the Sonos
product
attached to the receiver. Select Line-Out Level, and choose Fixed.
• Using the Sonos Controller for PC: Select Manage -> Settings. Select the Sonos product attached to
the receiver. Choose Fixed from the Line-Out Level drop-down on the Basic tab.
• Using the Sonos Controller for Mac: Select Sonos -> Preferences -> Rooms Settings. Select the Sonos
product
attached to the receiver, and then choose Fixed from the Line-Out Level drop-down on the Basic tab.
Note: When you change the line-out level to Fixed on your Sonos CONNECT you
will not be able to adjust the volume or the equalization settings using a Sonos
controller.

Product Guide
8
Controlling the volume from your Sonos system
1. Adjust your home theater or amplifier’s volume to typical listening volume.
2. If the line-out level is not currently set to Variable, you will need to change it:
• Using a handheld Sonos controller: Select Room Settings from the Settings menu. Select the Sonos
product attached to the receiver. Select Line-Out Level, and choose Variable from the Line-Out Level
drop-down on the Basic tab.
• Using the Sonos Controller for PC: Select Manage -> Settings. Select the Sonos product attached to
the receiver, and then choose Variable from the Line-Out Level drop-down on the Basic tab.
• Using the Sonos Controller for Mac: Select Sonos -> Preferences -> Rooms Settings. Select the Sonos
product attached to the receiver, and then choose Variable from the Line-Out Level drop-down on the
Basic tab.
3. Use a Sonos controller to adjust the volume on your Sonos system so you can hear music. This may be at
the high end of the volume scale.
4. If desired, you can readjust the volume on your home theater system or amplifier so that the volume range
for the controller falls within your typical listening range.
Playing Music
Make a selection from the Sonos music menu on your mobile device or from the MUSIC pane on a Mac or
PC.
Radio
Sonos includes a radio guide that provides immediate access to thousands of free Internet radio stations and
broadcast programs. You can easily find radio from all over the world—music, news, and variety
programming, including archived shows and podcasts.
To select an Internet radio station, simply select Radio and choose a station.
Music services
A music service is an online music store or online service that sells audio on a per-song, per audiobook, or
subscription basis. Sonos is compatible with several music services - you can visit our website at
www.sonos.com/music for the latest list. (Some music services may not be available in your country. Please
check the individual music service’s website for more information.)
If you are currently subscribed to a music service that’s compatible with Sonos, simply add your music service
user name and password information to Sonos as needed and you’ll have instant access to the music service
from your Sonos system.
1. To add a music service, touch Add Music Services from the Sonos music menu.
2. Select the Sonos-compatible music service you would like to add.
3. Select Add Account, and then follow the on-screen prompts. Your login and password will be verified
with the music service. As soon as your credentials have been verified, the music service displays on the
Sonos music menu.
Free music service trials are available in some countries. (Please check the individual music service’s website
for more information.) If there is a music service trial visible on the Music Services menu, simply touch it to
select. Touch Add Account -> I’m new to [music service], and then follow the prompts to activate the music
trial. After the trial period is up, you will need to subscribe to the music service to keep the music playing.

Sonos CONNECT 9
Local music library
The Sonos system can play music from any computer or network-attached storage (NAS) device on your
home network where you have shared music folders. During the setup process, you are guided through the
process of accessing your local music library (such as your iTunes library). Over time, you may wish to add or
remove folders from this list.
To make changes to your shared folders list, select the Settings menu from a handheld Sonos controller and
then choose one of the following options:
• To add a new music folder to Sonos, select Manage Music Library-> Music Library Setup -> Add New
Share on a handheld controller.
• To remove a music folder, select Manage Music Library-> Music Library Setup. Touch the share you
wish to remove and then select Remove.
The Sonos system indexes your music folders so you can view your music collection by categories (such as
artists, albums, composers, genres, or tracks.) If you add new music to a folder that is already indexed, simply
update your music index to add this music to your Sonos music library.
• To update your music index, touch Settings -> Manage Music Library -> Update Music Index Now.
• If you’d like your music library to update automatically each day, open the Sonos Controller app on your
Mac or PC. Select Manage -> Music Library Settings and click the Advanced tab. Check Library
Updates and select an update time.
Wireless iTunes playback
You can select and play music and podcasts stored on any iOS device that’s on the same wireless network as
your Sonos products. Playback is perfectly synchronized, in any or every room of your home. Simply choose
On this iPad, On this iPhone, or On this iPod touch from the Sonos app on your iOS device to make audio
selections.
Wireless playback from Android devices
You can select and play music stored on any Android device that’s on the same wireless network as your
Sonos products. Playback is perfectly synchronized, in any or every room of your home. Simply choose On
this Mobile Device from the Sonos app on your Android smartphone or tablet to make audio selections.
Google Play Music (Android devices)
You can play music to your Sonos system directly from the Google Play Music app on any Android device.
This feature is available for both Standard and All Access Google Play Music customers.
To play music directly from the Google Play Music app to your Sonos system, you must have both the Google
Play Music app and the Sonos Controller App installed on your mobile device.
Simply open the Google Play Music app and connect to a Sonos room or room group to start the music.
Note: We recommend using the Sonos Controller for Mac or PC to add shared
folders. For more information, please visit our website at
http://faq.sonos.com/manage.

Product Guide
10
Player Status Indicators
Indicator Lights Player State Sonos Product Additional Information
Flashing white Powering up BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR
Solid white
(dimly lit)
Powered up and associated
with a Sonos system (normal
operation)
BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR
If desired, when the product is in normal
operation, you can turn the white status
indicator light on or off from Room
Settings. (The SUB and any players set to
surround reflect the same setting as the
player they are paired with.)
Solid white
(brightly lit)
Touch control(s) active PLAY:5 (gen2) Brightens when touch controls are
activated and remains at full brightness for
the duration of contact.
Flashing green Powered up, not yet
associated with a Sonos
system
Or,
WAC (wireless access
configuration) join ready
BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR
For a SUB, this may indicate the SUB is
not yet paired with a player.
Slowly flashing
green
Surround audio is off or
SUB audio is off
PLAY:1, PLAY:3,
PLAY:5 (gen2),
SUB
Applicable for player configured as a
PLAYBAR surround speaker, or for a SUB
paired with a PLAYBAR
Solid green Volume set to zero or muted CONNECT,
CONNECT:AMP,
PLAY:1, PLAY:3,
PLAY:5,
PLAYBAR
Flashing orange During SonosNet setup, this
occurs after a button press
while the product is
searching for a household to
join.
BRIDGE, BOOST,
CONNECT, SUB,
CONNECT:AMP,
DOCK, PLAY:1,
PLAY:3, PLAY:5,
PLAYBAR

Sonos CONNECT 11
Important Safety Information
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry soft cloth. Household cleaners or solvents can damage the finish on your Sonos
products.
7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus that
produce heat.
8. Protect the power cable from being walked on or pinched, particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
9. Only use attachments/accessories specified by the manufacturer.
Rapidly flashing
orange
Playback / Next Track failed CONNECT,
CONNECT:AMP,
PLAY:1, PLAY:3,
PLAY:5,
PLAYBAR
Indicates either playback or next track
was not possible
Solid orange During wireless setup, this
occurs while the Sonos open
access point is temporarily
active.
If you are not setting up your
Sonos system, this may
indicate warning mode.
CONNECT, SUB,
CONNECT:AMP,
PLAY:1, PLAY:3,
PLAY:5,
PLAYBAR
If the orange light is on AND the player’s
volume level automatically reduces, this
indicates the player is in warning mode.
• Press the Pause button to stop the
audio
• For Sonos products with a vent
opening (SUB, CONNECT:AMP),
check to make sure it’s not blocked
• Check the room temperature to make
sure it’s less than 104°F/ 40° C
• If the player is in direct sunlight,
provide shade
• Allow the player to cool for several
minutes and then press Play to restart
the audio
• If the problem does not resolve,
please contact Customer Support
Warning: Do not open Sonos products as there is a risk of electric shock. Under
no circumstances should Sonos products be repaired by anyone other than an
authorized Sonos repair center, as this will invalidate the warranty. Please contact
Sonos Customer Support for more information.
Indicator Lights Player State Sonos Product Additional Information

Product Guide
12
10. Unplug this apparatus during lightning storms or when unused for long periods of time.
11. Refer all servicing to Sonos qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cable or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.
12. The Mains plug should be readily available to disconnect the equipment.
13. Warning: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
14. Do not expose apparatus to dripping or splashing and do not place objects filled with liquids, such as
vases, on the apparatus.
Specifications
Caution: To avoid damage to speakers, turn off the external amplifier before
unplugging your Sonos CONNECT.
Feature Description
Audio
Sound Quality THD+N<0.009%, 20Hz-20kHz
Line In Analog (RCA), auto-detecting
Line Out Analog (RCA), digital (optical and coaxial)
Music Access
Audio Formats Supported Support for compressed MP3, AAC (without DRM), WMA without DRM
(including purchased Windows Media downloads), AAC (MPEG4), AAC+,
Ogg Vorbis, Apple Lossless, Flac (lossless) music files, as well as
uncompressed WAV and AIFF files.
Native support for 44.1kHz sample rates. Additional support for 48kHz,
32kHz, 24kHz, 22kHz, 16kHz, 11kHz, and 8kHz sample rates. MP3 supports
all rates except 11kHz and 8kHz.
Note: Apple “Fairplay”, WMA DRM and WMA Lossless formats not currently
supported. Previously purchased Apple “Fairplay” DRM-protected songs
may be upgraded.
Music Services Supported Sonos works seamlessly with most music services, including Apple
Music™, Deezer, Google Play Music, Pandora, Spotify and Radio by TuneIn,
as well as downloads from any service offering DRM-free tracks. Service
availability varies by region. For a complete list, see
http://www.sonos.com/music.
Operating Systems (for stored files) Windows XP SP3 and higher; Macintosh OS X 10.6 or later; NAS (network-
attached storage) devices supporting CIFS
Internet Radio Supported Streaming MP3, HLS/AAC, WMA

Sonos CONNECT 13
* Specifications subject to change without notice.
Need More Help?
• Visit our Frequently Asked Questions (FAQ) pages at www.sonos.com/support.
• Ask us a question at http://www.sonos.com/emailsupport.
Submit Feedback
We’d love to hear from you! Send us feedback on our guides at: [e-mail]
Album Art Supported JPEG, PNG, BMP, GIF
Playlists Supported Rhapsody, iTunes, WinAmp, and Windows Media Player (.m3u, .pls, .wpl)
Networking
Wireless Connectivity Connects to your home WiFi network with any 802.11 b/g/n, 3x3 MIMO,
dual-band (2.4GHz/5GHz) router.
SonosNet™Extender Functions to extend and enhance the power of SonosNet, a secure AES
encrypted, peer-to-peer wireless mesh network dedicated exclusively for
your Sonos system to reduce WiFi interference.
Network Bridging 2-port switch allows Ethernet devices to connect through SonosNet
Internet connectivity Internet connection required for access to Internet radio stations, online
music services and software updates. (DSL, cable modem or LAN-based
high-speed Internet connection required.) Internet functionality may require
payment of separate fee to a service provider; local and/or long distance
telephone charges may apply.
General
Power Supply 100 - 240 VAC, 50/60 Hz, auto-switchable
Front Panel Buttons Volume and Play/Pause
Front Panel LED Indicators Audio and player status indicators
Dimensions (H x W x D) 2.91 x 5.35 x 5.51 in (74 x 136 x 140 mm)
Weight 1.5 lbs. (.69 kg)
Operating Temperature 32º to 104º F (0º to 40º C)
Storage Temperature 4º to 158º F (-20º to 70º C)
Finish Light gray/high quality polycarbonate material
Feature Description
