Sony BRAVIA KD-43XH8077 Operation instructions

Dismantling information for use
by professional recyclers
LCD TV
9-888-778-41
ORIGINAL MANUAL ISSUE DATE:
Model
：
KD-43XH8077
KD-43XH8096
KD-43XH8196
KD-49XH8077
KD-49XH8096
KD-49XH8196
KE-55XH8077
KE-55XH8096
KE-55XH8196
KE-65XH8077
KE-65XH8096
KE-65XH8196
Conditions of Use:
(1) Please use this information only for the purpose of repair and recycling of Sony products. Using this information for any
purpose other than the purpose described foregoing is forbidden.
(2) Do not copy, replicate, reproduce, alter, translate, transmit, sell, lease, or distribute this information in whole or in part
without the prior written permission of the author.
Revision of Information:
This information may be changed or updated at any time without any prior notice. Please confirm that this information is up-
to-date before using it.Sony Home Entertainment & Sound Products Inc.
© 2021.02
KE-75XH8096
KE-85XH8096
2021.02

MODEL LISTS
MODEL REMOTE DESTINATION
KD-43XH8077 RMF-TX500E CEI
KD-43XH8096 RMF-TX500E CEI, UKA
KD-43XH8196 RMF-TX600E CEI, UKA
KD-49XH8077 RMF-TX500E CEI
KD-49XH8096 RMF-TX500E CEI, UKA
KD-49XH8196 RMF-TX600E CEI, UKA
KE-55XH8077 RMF-TX500E CEI
KE-55XH8096 RMF-TX500E CEI, UKA
KE-55XH8196 RMF-TX500E CEI, UKA
KE-65XH8077 RMF-TX500E CEI
KE-65XH8096 RMF-TX500E CEI, UKA
KE-65XH8196 RMF-TX500E CEI, UKA
KE-75XH8096 RMF-TX500E CEI, UKA
KE-85XH8096 RMF-TX500E CEI, UKA

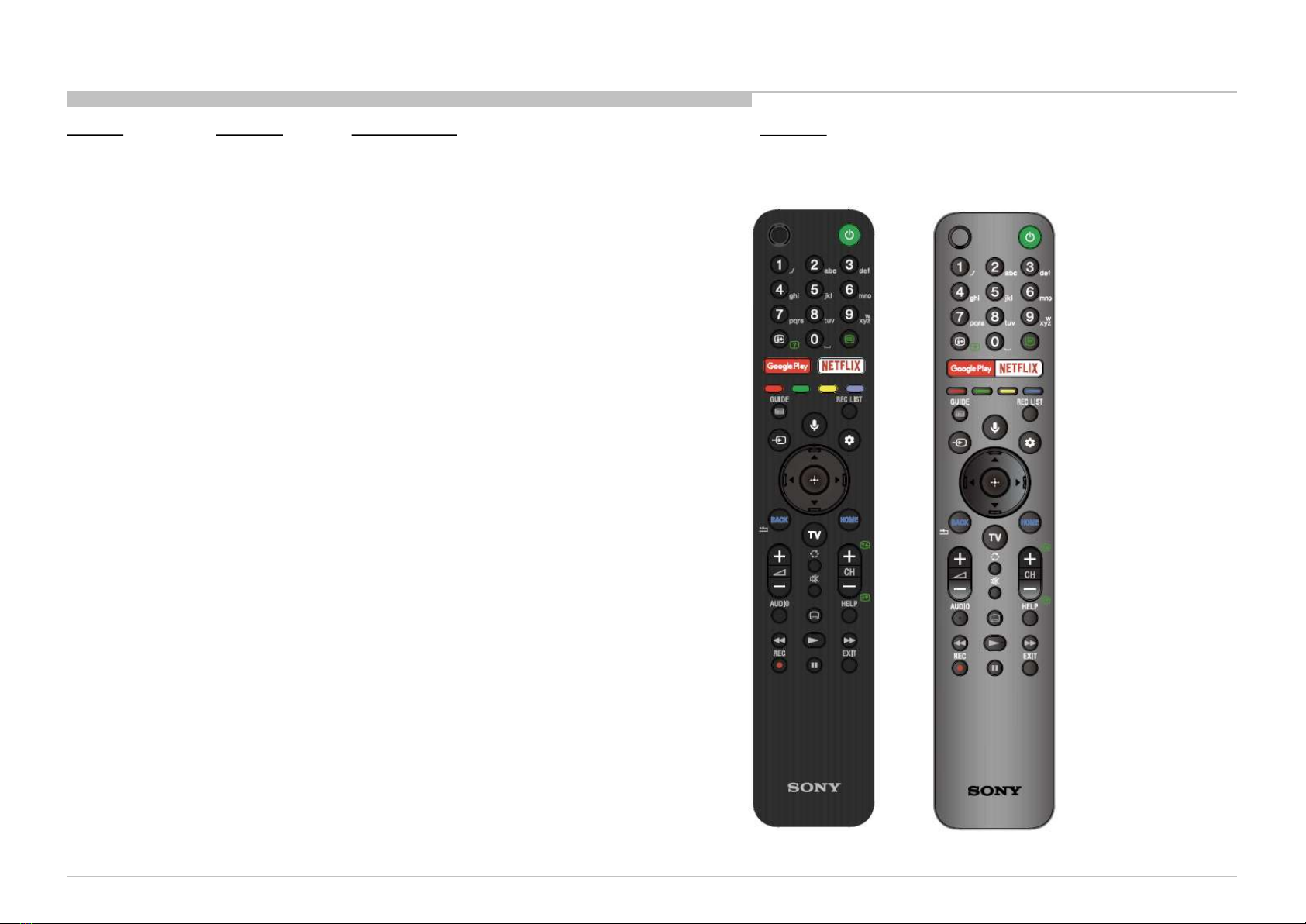

REMOTE
RMF-TX500E RMF-TX600E

3
TOOLS & EQUIPMENTS
1 LIST OF ITEMS TO BRING
1. Screwdriver (e.g. #2 Phillips Screwdriver)
2. Multimeter
3. ESD Wrist Straps
4. Metal Washer (Flat) or Coin (for remove Rear Cover)
5. Ruler (for remove Rear Cover)
2 OPTIONAL EQUIPMENT
1. Screwdriver (e.g. #0 Phillips Screwdriver)
2. Parts Tray for loose screws and small items
3. Flashlight
For Surface Mounted Parts/Connectors;
Hot-Air Type soldering Iron is needed.
Thickness: approx. 1.5mm
Diameter: 20~25mm
(wrap in tape (L=50mm))
Plastic or Metal Ruler
(In case of Metal ruler, wrap
in tape (L=50mm) for prevent
scratches)

DISSASSEMBLY AND REMOVAL CAUTION 43”

* Only on limited region / country /
TV model
•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•! and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
Stand
22 23
1-4 EXPLODED VIEW AND
PART LIST
5
1
2
3
4
5
4
6
7
8
9
10
11
12
13
14
15
16
17
15
19 20
18
21
*

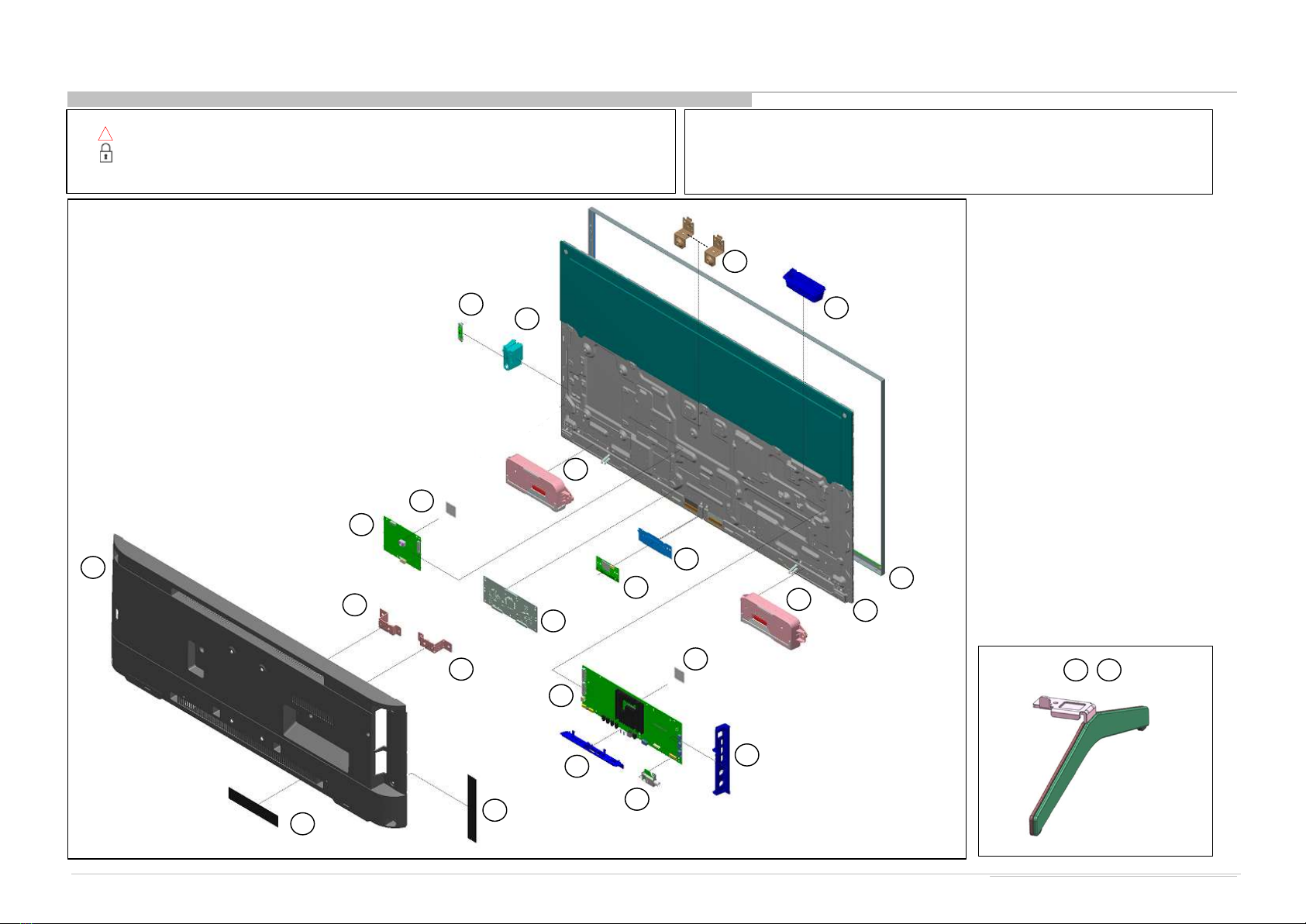

EXPLODED VIEW 43”

CONNECTOR
6
3
5
1
2
4
REF. NO PART NO. DESCRIPTION DESTINATION REMARKS
11-006-226-11 HARNESS ASSY CN1202(BCN)-CN1(SM) / CN3201(BCN)-
SP(1)
21-006-228-11 CONNECTOR ASSY 30P CN400(BCN)-
CN3000(LD3)(1)
31-006-229-11 FLEXIBLE FLAT CABLE 51P KD-43XH8005 / 8096 (RU3) CN4400(BCN)-(T-
CON)(1)
31-006-230-11 FLEXIBLE FLAT CABLE 51P KD-43XH8077 / 8096 / 8196 (CEI, UKA) CN4400(BCN)-(T-
CON)(1)
41-006-231-11 FLEXIBLE FLAT CABLE 15P KD-43XH8005 / 8096 (RU3) CN1200(BCN)-
CN103(HCN)(1)
41-006-232-11 FLEXIBLE FLAT CABLE 15P KD-43XH8077 / 8096 / 8196 (CEI, UKA) CN1200(BCN)-
CN103(HCN)(1)
51-006-233-11 FLEXIBLE FLAT CABLE 20P KD-43XH8005 / 8096 (RU3) CN1200(BCN)-
WIFI(1)
51-006-234-11 FLEXIBLE FLAT CABLE 20P KD-43XH8077 / 8096 / 8196 (CEI, UKA) CN1200(BCN)-
WIFI(1)
HARNESS/CABLES 43”

REF. NO PART NO. DESCRIPTION REMARKS
14 A-5010-444-A LD4_43 MOUNT KD-43XH8077 / 8096 / 8196 (CEI, UKA)
18 A-5015-343-A COMPL_SVC_BCN_AEP
19 1-001-519-11 MOUNTED PWB E-T-CON (43)
20 A-5017-617-A P-MOD (YS9S043HNG01)(SERVICE) KD-43XH8005 / 8096 / 8196
20 A-5017-618-A P-MOD (YS9S043HNG01)(SERVICE) KD-43XH8077
SET PART LIST
7
!
!
PARTS LIST 43”
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors
Liquid Crystal Display
OTHER PARTS
PART NO. DESCRIPTION REMARKS
1-493-490-13 AC ADAPTOR (120W) KD-43XH8077 / 8096 / 8196 (CEI, UKA)
1-912-186-12 POWER SUPPLY CORD SET KD-43XH8077 / 8096 / 8196 (CEI)
1-846-421-11 CORD SET, POWER-SUPPLY KD-43XH8096 / 8196 (UKA)
!
!
AC Adaptor
Cable

8

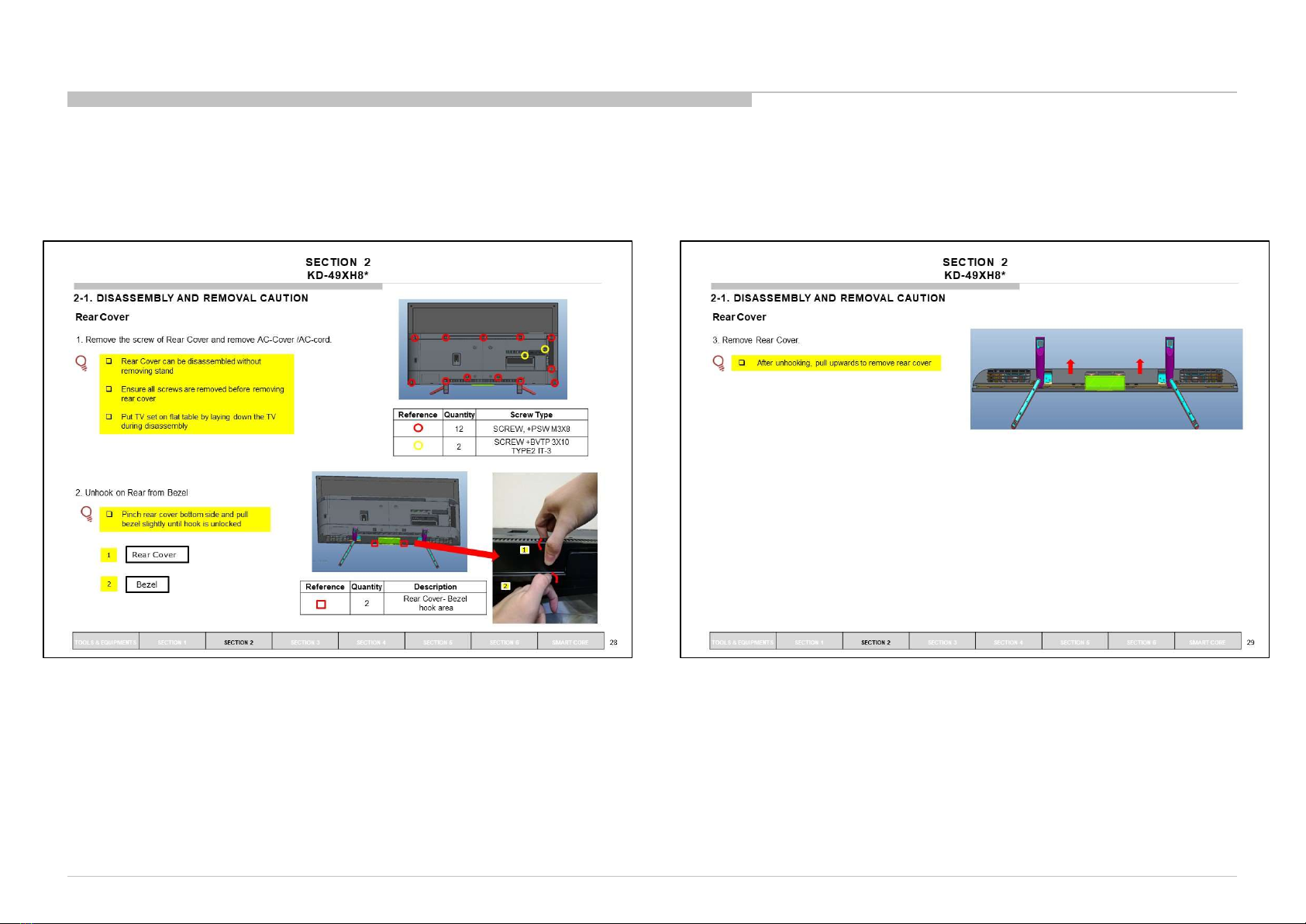

DISSASSEMBLY AND REMOVAL CAUTION 49”

•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•! and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
Stand
23 24
2-4 EXPLODED VIEW AND
PART LIST
9
1
2
3
5
7
8
9
10
11
12
13
14
15
17
18
19
16
16
20
21
22
4
* Only on limited region / country /
TV model
*
56
EXPLODED VIEW 49”

REF. NO PART NO. DESCRIPTION DESTINATION REMARKS
11-006-235-11 HARNESS ASSY CN1202(BCN)-CN1(SM) / CN3201(BCN)-
SP(1)
21-006-237-11 CONNECTOR ASSY 30P CN400(BCN)-
CN3000(LD3)(1)
31-006-238-11 FLEXIBLE FLAT CABLE 51P KD-49XH8005 / 8096 (RU3) CN4400(BCN)-(T-
CON)(1)
31-006-239-11 FLEXIBLE FLAT CABLE 51P KD-49XH8077 / 8096 / 8196 (CEI, UKA) CN4400(BCN)-(T-
CON)(1)
41-006-240-11 FLEXIBLE FLAT CABLE 15P KD-49XH8005 / 8096 (RU3) CN1200(BCN)-
CN103(HCN)(1)
41-006-241-11 FLEXIBLE FLAT CABLE 15P KD-49XH8077 / 8096 / 8196 (CEI, UKA) CN1200(BCN)-
CN103(HCN)(1)
51-006-242-11 FLEXIBLE FLAT CABLE 20P KD-49XH8005 / 8096 (RU3) CN1200(BCN)-
WIFI(1)
51-006-243-11 FLEXIBLE FLAT CABLE 20P KD-49XH8077 / 8096 / 8196 (CEI, UKA) CN1200(BCN)-
WIFI(1)
CONNECTOR
10
12
3
4
5
HARNESS/CABLES 49”

SET PART LIST
11
REF. NO PART NO. DESCRIPTION REMARKS
15 A-5014-214-A LD4_49_EUJP_MOUNT KD-49XH8077 / 8096 / 8196 (CEI, UKA)
19 A-5015-343-A COMPL_SVC_BCN_AEP
20 1-001-521-11 MOUNTED PWB E-T-CON (49)
21 A-5017-614-A P-MOD (YS9S049HNG01)(SERVICE) KD-49XH8005 / 8096 / 8196
21 A-5017-615-A P-MOD (YS9S049HNG01)(SERVICE) KD-49XH8077
!
!
PARTS LIST 49”
Printed Circuit Board, incl. capacitors
Liquid Crystal Display
PART NO. DESCRIPTION REMARKS
1-493-490-13 AC ADAPTOR (120W) KD-49XH8077 / 8096 / 8196 (CEI, UKA)
1-912-186-12 POWER SUPPLY CORD SET KD-49XH8077 / 8096 / 8196 (CEI)
1-846-421-11 CORD SET, POWER-SUPPLY KD-49XH8096 / 8196 (UKA)
OTHER PARTS
!
!
AC Adaptor
Cable
Printed Circuit Board, incl. capacitors
Printed Circuit Board, incl. capacitors

12

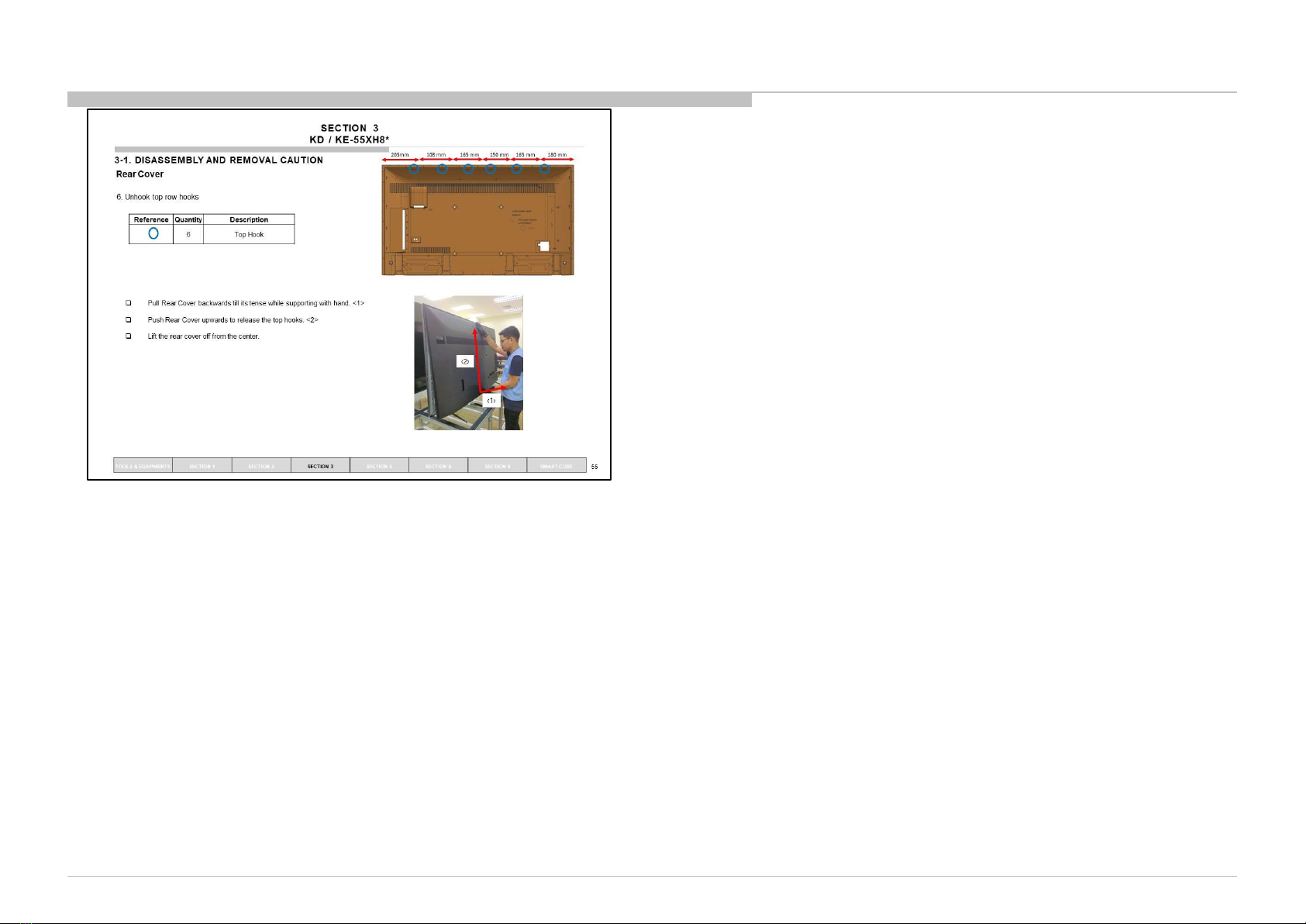

DISSASSEMBLY AND REMOVAL CAUTION 55”

13
DISSASSEMBLY AND REMOVAL CAUTION 55”

•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•! and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
Stand
17 18
3-4 EXPLODED VIEW AND
PART LIST
14
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
19
* Only on limited region / country /
TV model
*

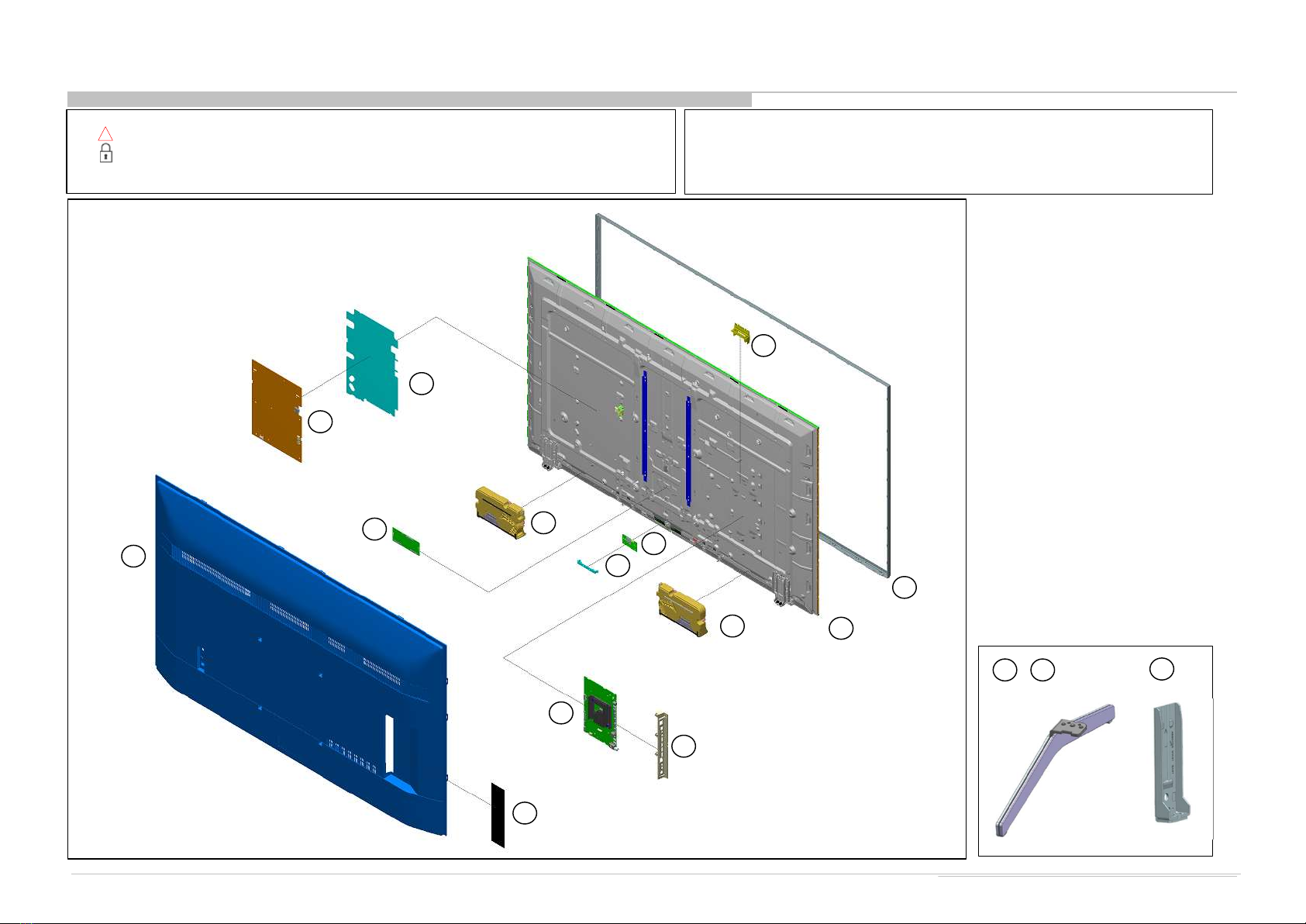

EXPLODED VIEW 55”

REF. NO PART NO. DESCRIPTION DESTINATION REMARKS
11-006-502-21 CONNECTOR ASSY 30P KD-55XH8005 / 8096 (RU3) CN400(BNB)-
CN6401(G)(1)
11-006-502-11 CONNECTOR ASSY 30P KD / KE-55XH8077 / 8096 / 8196 (CEI, UKA) CN400(BNB)-
CN6401(G)(1)
21-006-503-11 FLEXIBLE FLAT CABLE 51P KD-55XH8005 / 8096 (RU3) CN4400(BNB)-(T-
CON)(1)
21-006-504-11 FLEXIBLE FLAT CABLE 51P KD / KE-55XH8077 / 8096 / 8196 (CEI, UKA) CN4400(BNB)-(T-
CON)(1)
31-006-506-11 FLEXIBLE FLAT CABLE 20P KD-55XH8005 / 8096 (RU3) CN1200(BNB)-
WIFI(1)
31-006-505-11 FLEXIBLE FLAT CABLE 20P KD / KE-55XH8077 / 8096 / 8196 (CEI, UKA) CN1200(BNB)-
WIFI(1)
41-006-507-11 FLEXIBLE FLAT CABLE 25P KD-55XH8005 / 8096 (RU3) CN1201(BNB)-
CN102(HT1)(1)
41-006-508-11 FLEXIBLE FLAT CABLE 25P KD / KE-55XH8077 / 8096 / 8196 (CEI, UKA) CN1201(BNB)-
CN102(HT1)(1)
51-006-501-41 CONNECTOR ASSY 4P (SP) KD-55XH8005 / 8096 (RU3) CN3201(BNB)/CN9002(BM3JT)-
SP(1)
51-006-501-11 CONNECTOR ASSY 4P (SP) KD / KE-55XH8077 / 8096 / 8196 (CEI, UKA) CN3201(BNB)/CN9002(BM3JT)-
SP(1)

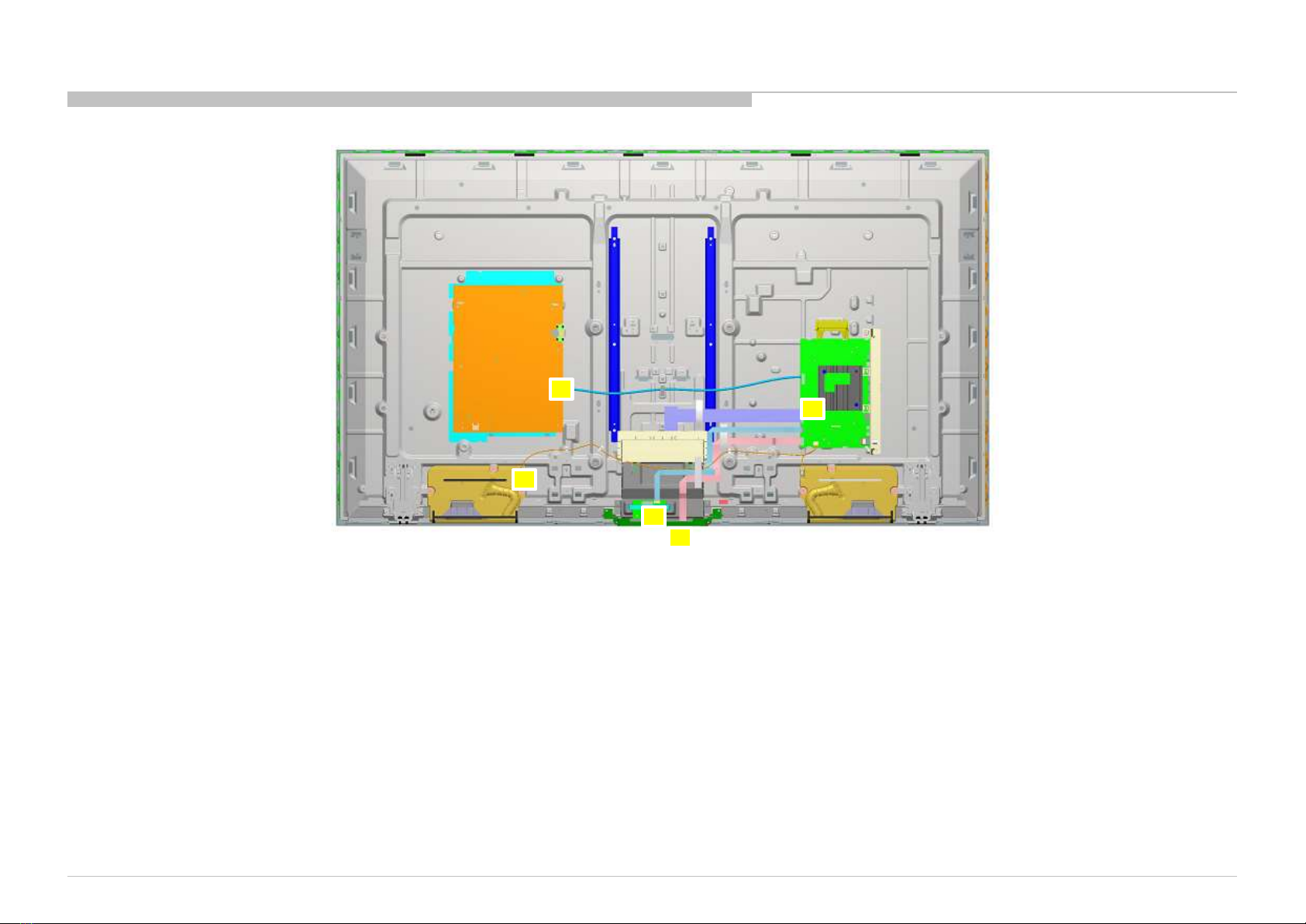

CONNECTOR
15
1
2
3
5
4
HARNESS/CABLES 55”

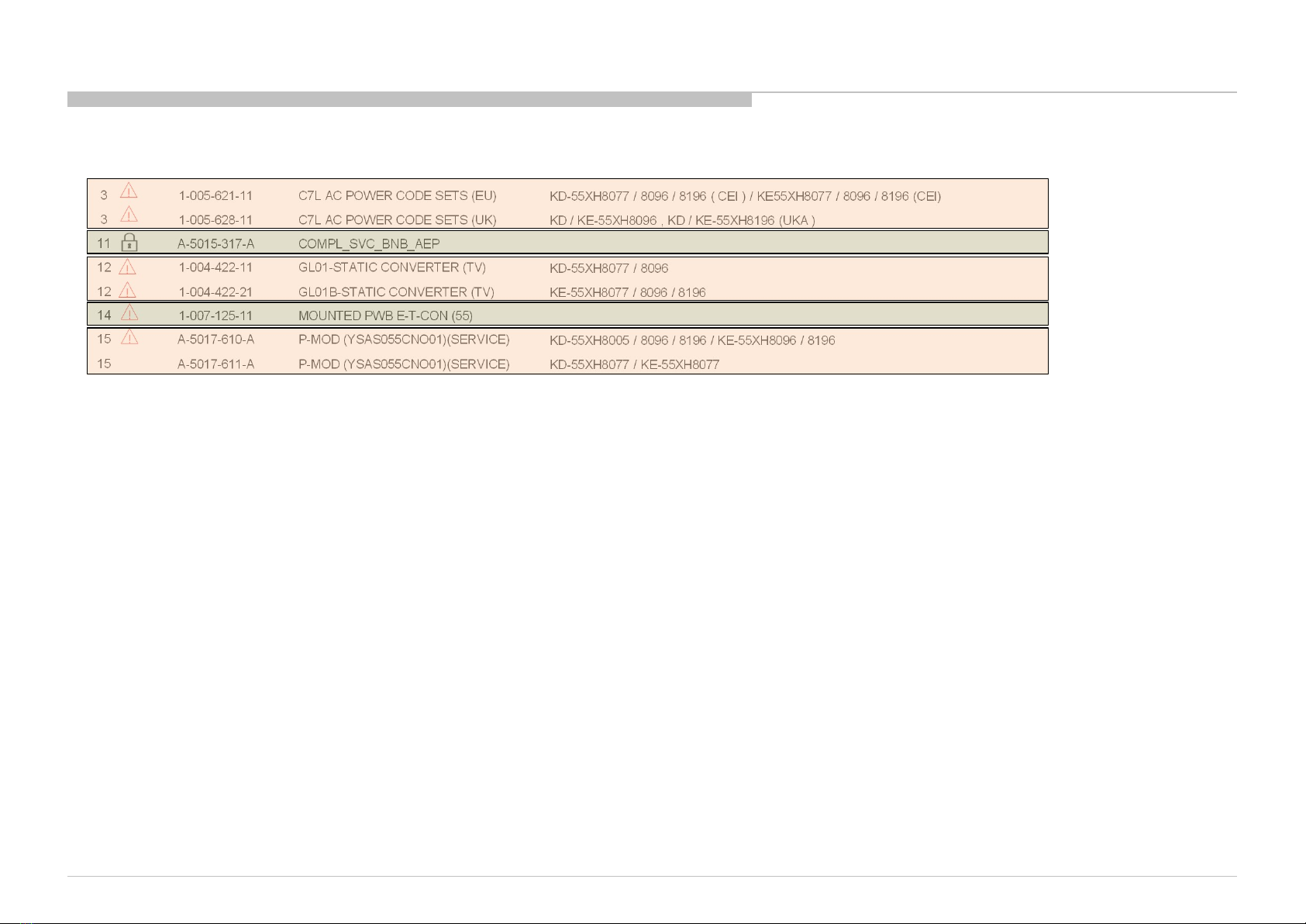

REF. NO PART NO. DESCRIPTION REMARKS
31-005-621-11 C7L AC POWER CODE SETS (EU) KD-55XH8077 / 8096 / 8196 ( CEI ) / KE55XH8077 / 8096 / 8196 (CEI)
31-005-628-11 C7L AC POWER CODE SETS (UK) KD / KE-55XH8096 , KD / KE-55XH8196 (UKA )
11 A-5015-317-A COMPL_SVC_BNB_AEP
12 1-004-422-11 GL01-STATIC CONVERTER (TV) KD-55XH8077 / 8096
12 1-004-422-21 GL01B-STATIC CONVERTER (TV) KE-55XH8077 / 8096 / 8196
14 1-007-125-11 MOUNTED PWB E-T-CON (55)
15 A-5017-610-A P-MOD (YSAS055CNO01)(SERVICE) KD-55XH8005 / 8096 / 8196 / KE-55XH8096 / 8196
15 A-5017-611-A P-MOD (YSAS055CNO01)(SERVICE) KD-55XH8077 / KE-55XH8077
!
SET PART LIST
16
!
!
!
!
!
PARTS LIST 55”
Printed Circuit Board, incl. capacitors
Liquid Crystal Display
Printed Circuit Board, incl. capacitors
Internal power supply
Cable

17
DISSASSEMBLY AND REMOVAL CAUTION 65”

18
DISSASSEMBLY AND REMOVAL CAUTION 65”

•Place the TV set facing downwards on a stable, level surface before disassembly and assembly of parts.
•! and shaded parts are critical for safety. Replace only with part number specified.
• Parts contain confidential information. Strictly follow the instruction whenever the components are
repaired and/or replaced.
(*) Parts are not stocked since they are seldom required for routine service.
Some delays should be anticipated when ordering these components.
Picture provided in this section might have slight difference from the actual sets.
The reference number beside the part indicates the disassembly sequence.
Remove screws before disassembly. Unplug connectors before disassembly
4-4 EXPLODED VIEW AND
PART LIST
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Stand
15 16 17
* Only on limited region / country /
TV model
*
EXPLODED VIEW 65”

REF. NO PART NO. DESCRIPTION REMARKS
11-006-502-11 CONNECTOR ASSY 30P CN400(BNB)-
CN6401(G)(1)
21-006-504-11 FLEXIBLE FLAT CABLE 51P CN4400(BNB)-(T-
CON)(1)
31-006-505-11 FLEXIBLE FLAT CABLE 20P CN1200(BNB)-
WIFI(1)
41-006-508-11 FLEXIBLE FLAT CABLE 25P CN1201(BNB)-
CN102(HT1)(1)
51-006-513-11 CONNECTOR ASSY 4P (SP) CN3201(BNB)/CN9002(BM3JT)-
SP(1)
CONNECTOR
20
1
2
3
4
5
HARNESS/CABLES 65”
