Sony WRT-805A User manual

3-860-341-12 (1)
WRT-805A
UHF
SynthesizedTransmitter
Operating Instructions page 2
Manual de instrucciones página 17
Mode d’emploi page 32
EN
E
F
1997 by Sony Corporation [U68]

2
Owner’sRecord
The model and serial numbers are located at the rear of the
unit. Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony
dealer regarding this product.
Model No. WRT-805A Serial No.
Notice for customers in the U.S.A.
Use of Sony wireless devices is regulated by the Federal
Communications Commission as described in Part 74
subpart H of the FCC regulations and users authorized
thereby are required to obtain an appropriate licence.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
Notice for customers in Canada:
Use of Sony wireless devices is regulated by the Industry
Canada as described in their Radio Standard Specification
RSS-123.
A licence is normally required. The local district office of
Industry Canada should therefore be contacted. When the
operation of the device is within the broadcast band, the
licence is issued on no-interference, no-protection basis with
respect to broadcast signals.
English

3
Precautions
•The unit is designed for use in ambient temperature range
of 0°C to 50°C (32°F to 122°F).
•Do not place the unit on or near heat sources, such as
lighting equipment, power amplifiers, or in a place subject
to direct sunlight or excessive moisture. In such places,
the external finish or internal parts of the unit may be
damaged.
Table of Contents
•If the unit is used in a very humid or dusty place or in a
place subject to an active gas, clean its surface as well as
the connectors with a dry, soft cloth soon after use.
Lengthy use of the unit in such places or not cleaning it
after its use in such places may shorten its life.
•When cleaning the unit, never use organic solvents such
as thinner or benzine, which will damage the finish of the
unit.
•The unit has been factory adjusted precisely. Do not
tamper with its internal parts or attempt to repair it.
Precautions ......................................................................... 3
Introduction ....................................................................... 4
Features .......................................................................... 4
Channels and Carrier Frequencies .................................. 6
Parts Identification ............................................................ 7
Power Supply ..................................................................... 9
Connections ...................................................................... 11
Notes on Microphone System Operation....................... 12
Settings.............................................................................. 12
Initiating Setting Mode ................................................ 12
Changing the Channel Selection.................................. 13
Changing the Input Attenuation Setting ...................... 14
Resetting the Accumulated Time Indication ............... 15
Error Messages ................................................................ 15
Specifications.................................................................... 16
EN
English

4
Introduction
The WRT-805A is a transmitter to be used in combination
with the WRR-800A/801A UHF Synthesized Diversity
Tuner for an 800 MHz band UHF synthesized wireless
microphone system for broadcast or movie production
purpose.
The WRT-805A can also be used in conventional Sony
Wireless Microphone System composed of the WRT-810A/
820A UHF Synthesized Transmitter, the WRR-810A/820A/
840A/850A UHF Synthesized Diversity Tuner, etc.
The microphone/transmitter and tuners of the wireless
microphone system are classified by frequency band.
A 12 MHz frequency band (or two consecutive-numbered
TV channels, such as 68 and 69 of the WRT-805A) is
assigned to each microphone/transmitter and tuner model.
In building up a UHF wireless microphone system, be sure
to combine a microphone/transmitter and a tuner having the
same TV channel number.
Features
Easy selection of 94 channels
The unit can operate on any one of 94 carrier frequencies
selected by a simple button operation.
Compact and lightweight
Innovative high-density mounting technology has enabled
the creation of this compact and lightweight transmitter,
which lets you move anywhere for Electronic News
Gathering (ENG) and Electronic Field Production (EFP).
The curved design of the moulded case allows a comfortable
fit to your waist.
Battery status information
This transmitter has capability of transmitting “Battery
status information” to the WRR-800A/801A/850A to give
advance warning of battery depletion.
The information is sent to the WRR-800A/801A/850A in
approx. 1 hour advance to battery exhaust so that they can
safely replace battery of the transmitter.
When the WRR-800A/801A/850A receives the information,
the LED and the LCD on the panel start flashing.
Operation powered by easily available battery
The built-in high-efficiency DC-DC converter allows stable
operation, for about 6 hours continuously, with just a single
LR6 (size AA) alkaline battery.

5
LCD for coordinated operation control
The LCD shows the current channel number, the residual
battery power, input attenuation setting, AF input level and
RF output.
An accumulated operation time indication is also provided
for simple control of the time of battery use (in 1-minute
increments).
Saved channel and input attenuation settings
The unit stores the channel and the input attenuation setting
when it is turned off. The saved settings are retained even if
the battery is removed. Therefore, when using the unit next
time, you need not make the same settings again.
Highly reliable electronic attenuator
The built-in input level attenuator is adjustable in a range of
0 to 21 dB in 3-dB steps. It reduces signal distortion when
an excessively strong audio signal is inputted.
RF carrier with tone signal
The unit transmits the RF carrier accompanied by a tone
signal, enabling the tuner with a tone squelch circuit to take
out only the target audio signal received.
Wide dynamic range and low noise
The compander (compressor/expander) system enables
transmission over a wide dynamic range with minimum
noise.
Audio input connector (3.5-mm dia.) with locking
mechanism
The screw-type locking mechanism ensures reliable
connection.
Compact helical antenna

6
The WRT-805A can transmit on any selected wireless
channel among those listed below. For channel selection, see “Changing the Channel Selection” on page 13.
Channels and Carrier Frequencies
lennahC )zHM(ycneuqerF dnaB86-VT lennahC )zHM(ycneuqerF dnaB86-VT lennahC )zHM(ycneuqerF dnaB96-VT lennahC )zHM(ycneuqerF dnaB96-VT
10-86521.49752-86521.79710-96521.00852-96521.308
20-86052.49762-86052.79720-96052.00862-96052.308
30-86573.49772-86573.79730-96573.00872-96573.308
40-86005.49782-86005.79740-96005.00882-96005.308
50-86526.49792-86526.79750-96526.00892-96526.308
60-86057.497 03-86057.797 60-96057.008 03-96057.308
70-86578.49713-86578.79770-96578.00813-96578.308
80-86000.59723-86000.89780-96000.10823-96000.408
90-86521.59733-86521.89790-96521.10833-96521.408
01-86052.597 43-86052.897 01-96052.108 43-96052.408
11-86573.59753-86573.89711-96573.10853-96573.408
21-86005.59763-86005.89721-96005.10863-96005.408
31-86526.59773-86526.89731-96526.10873-96526.408
41-86057.59783-86057.89741-96057.10883-96057.408
51-86578.59793-86578.89751-96578.10893-96578.408
61-86000.697 04-86000.997 61-96000.208 04-96000.508
71-86521.69714-86521.99771-96521.20814-96521.508
81-86052.69724-86052.99781-96052.20824-96052.508
91-86573.69734-86573.99791-96573.20834-96573.508
02-86005.697 44-86005.997 02-96005.208 44-96005.508
12-86526.69754-86526.99712-96526.20854-96526.508
22-86057.69764-86057.99722-96057.20864-96057.508
32-86578.69774-86578.99732-96578.20874-96578.508
42-86000.79742-96000.308

7
AF RF BATT
CH
a b c
d
POWER
OFF ON
INPUTPHASE
SETCH
AF
RF
BATT
+
–

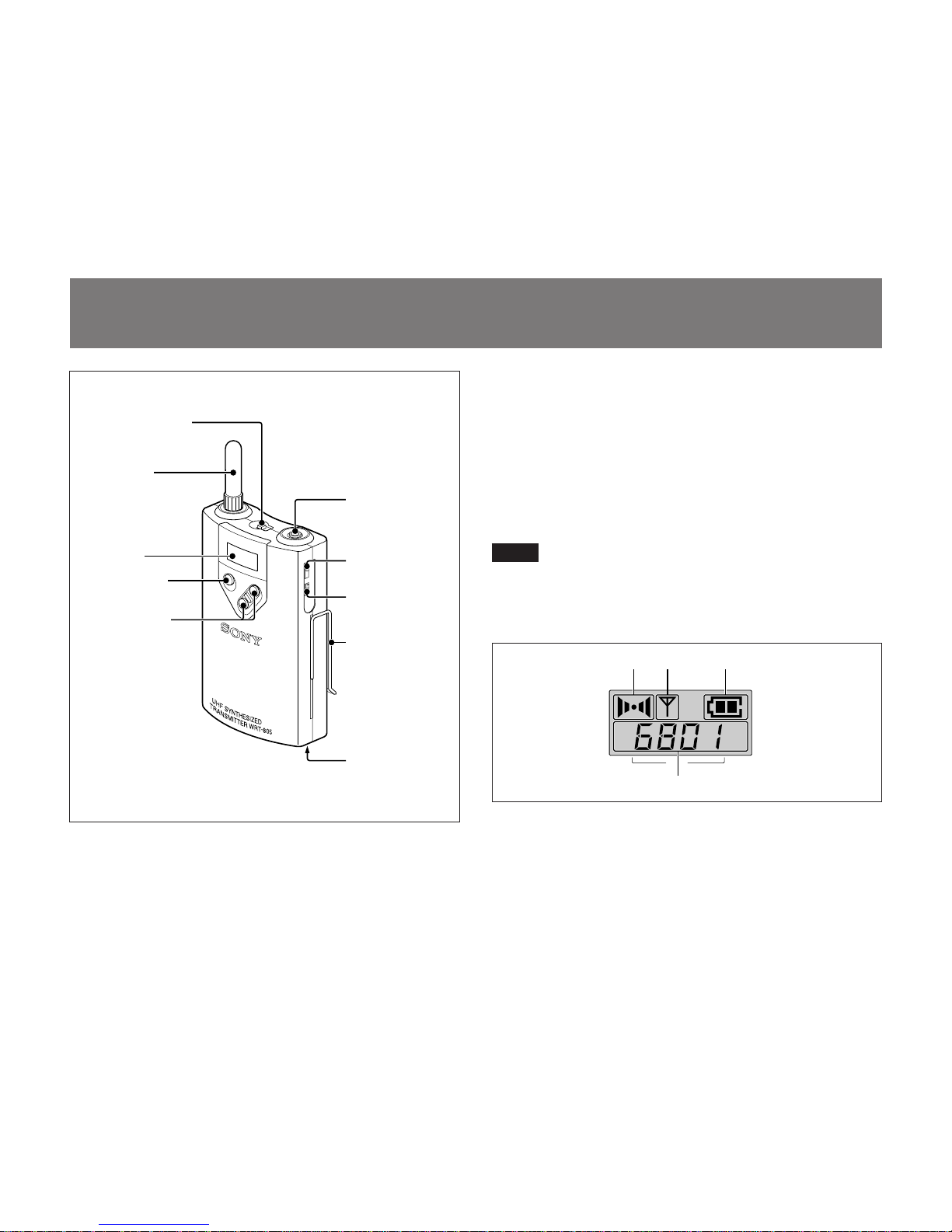

Parts Identification
Location of parts
1POWER switch
Turns the power of the transmitter ON or OFF.
When you set this switch to ON without holding any other
button, the transmitter is set to normal Transmit mode and
transmits the signal of the selected channel.
When you set this switch to ON while holding the SET
button down, Setting mode is initiated. No signal is
transmitted in Setting mode.
For setting mode, see “Settings” on page 12.
Note
Be sure to connect a microphone or guitar cable before
turning the power ON.
2Liquid-crystal display
aAF (audio input) indication
Lights when an audio signal over the reference level is being
supplied.
Battery
compartment
(See page 9.)
2Liquid-crystal
display
4+/– buttons
3SET button
8Belt clip
6INPUT level
switch
7PHASE switch
Antenna
1POWER switch
5Audio input
connector

8
CH CH CH
Parts Identification
bRF (antenna output) indication
Lights when a signal is being transmitted from the antenna.
cBATT (battery) indication
Displays the status of the battery.
See “Battery indication” on page 10.
dCH (channel) indication
Displays the transmission channel.

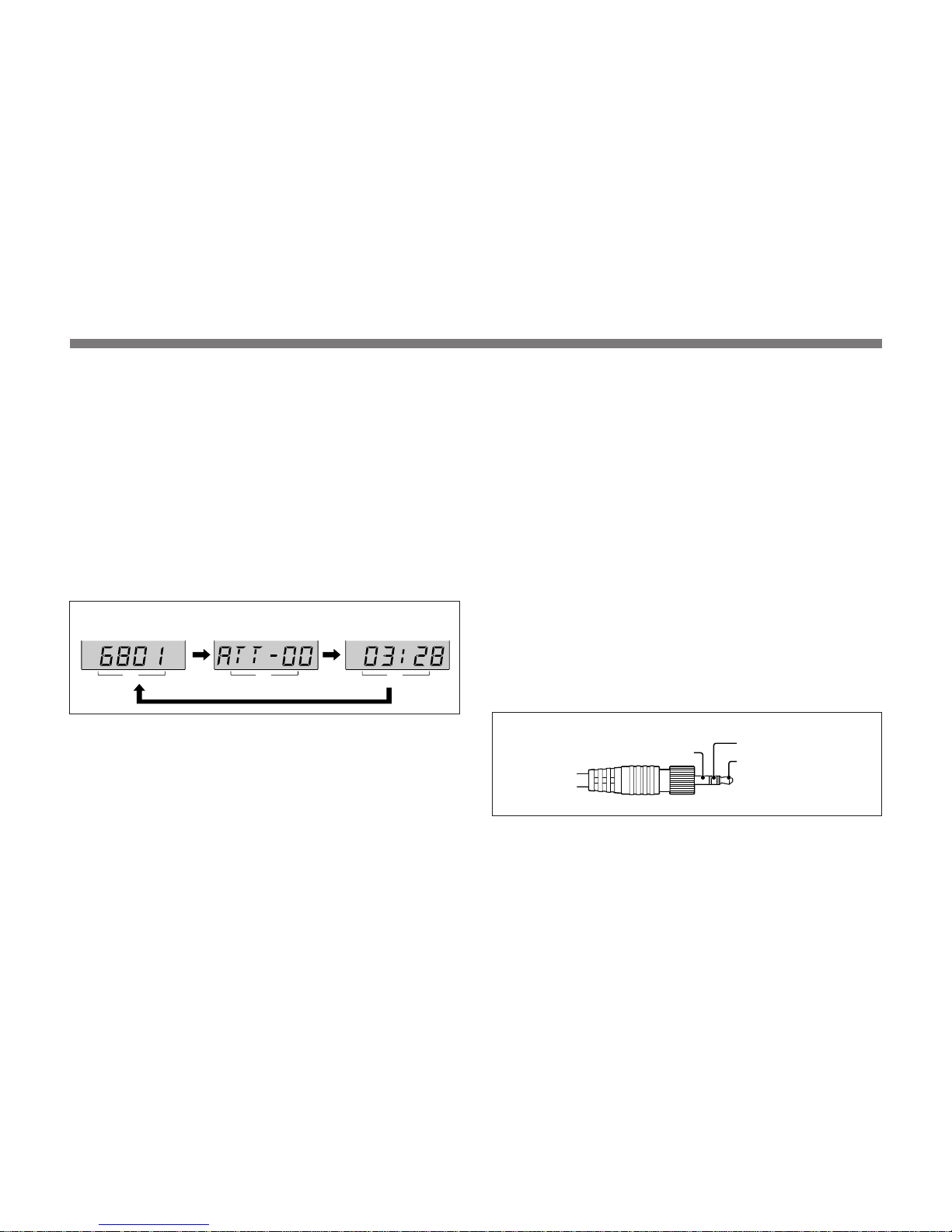

Each time you press the SET button in normal Transmit
mode, the channel indication changes to the input
attenuation and accumulated time indications.
In Attenuation indication mode, it displays the input
attenuation setting in dB, which can be changed in a range
of 0 to 21 dB in 3-dB steps.
In Accumulated time indication mode, it displays the
accumulated time of battery use (in 1-minute increments).
For adjustments, see “Changing the Channel Selection” on
page 13, “Changing the Input Attenuation Setting” on page
14 or “Resetting the Accumulated Time Indication” on page
15.
3SET button
In normal transmit mode, press this button to change the
indication items in the lower half of the liquid-crystal
display.
When you set the POWER switch to ON while holding this
button down, setting mode is initiated. In Setting mode,
press this button to select the item to be set.
For Setting mode, see “Settings” on page 12.
4+ (+ selection) / – (– selection/reset) buttons
In setting mode, select the transmission channel and
attenuator level using either of these buttons, or reset the
accumulated time indication to “00:00” with the – button.
For Setting mode, see “Settings” on page 12.
5Audio input connector (ø3.5 mm, with locking
mechanism)
To connect a microphone or other audio source.
See “Connections” on page 11.
GND +5 V (output)
INPUT
Channel
indication Attenuation indication Accumulated time
indication

9
SET
CH
+
–
PUSH
6INPUT level switch
Select the reference input level appropriate for the connected
audio source.
–60 dBV: For a microphone
–40 dBV: For an electric guitar
7PHASE switch
Select the input phase appropriate for the connected audio
source.
= : For a microphone other than the ECM-44BMP or an
electric guitar
ø : For the ECM-44BMP
Power Supply
The transmitter can operate on one LR6 (size AA) alkaline
battery continuously for about 6 hours at 25°C (77°F).
Inserting the battery
1Slide the lid in the direction of the arrow ($) to open the
battery compartment.
2Match the polarities and insert the battery.
3Close the lid and slide it in the reverse direction to lock.
Lid
Switch functions
7hctiwsESAHP 6hctiwslevelTUPNI VBd06–VBd04–
=
PMB121-MCE
PMB221-MCE
PMB013-MCE PM7.0-CG
øPMB44-MCE—
8Belt clip
You can easily carry the transmitter attached to your
clothing on your belt, etc. Depending on your selection of
the mount holes for the belt clip, you can adjust the position
or even carry the unit with the antenna downward.

10
Battery indication
When you turn the power on, the battery status appears in
the BATT indication on the liquid-crystal display.
1234
TTAB
noitacidni
sthgiLsthgiLsehsalFffoseoG
yrettaB
noitidnoc
dooGnahtsseL
egrahc-flah
tsomlA
detsuahxe yletelpmoC detsuahxe
When the battery reaches stage 3 shown in the table, the
BATT indication on the WRR-800A/801A/850A also starts
flashing.
Promptly replace the battery when the indications flash.
Note
The indication may be incorrect if the battery is not new
when inserted. If you plan to use the transmitter for a long
period, it is best to replace the battery with new one.
Power Supply
Notes on battery
•Use a new alkaline battery.
•Be careful to insert the battery with the correct polarity.
•When not using the transmitter for a long period, remove the
battery to avoid leakage. If the battery does leak, clean all
leakage from the unit and insert a new battery. Leakage left
in the unit may cause poor battery contact. If there seems to
be poor battery contact, consult your Sony dealer.

11
POWER
OFF ON
INPUTPHASE
SETCH
AF
RF
BATT
+
–
1
2
Connections
Caution
When connecting a microphone or electric guitar to the unit,
be sure to turn the unit off.
To connect an electric guitar
For connection of an electric guitar, use the optional GC-0.7
MP Guitar Cable.
To obtain the proper output level
The optimum level setting depends on type of guitar. Set the
INPUT level switch and the ATT (attenuator) level of this unit
according to the guitar to be used.
INPUT switch: –60 dBV
Set the PHASE switch to “ø” when
using the ECM-44BMP.
For other microphone, set it to “=.”
INPUT level switch: –40 dBV
PHASE switch: =
GC-0.7 MP
guitar cable
(optional)
Loud noise: If noise is not negligible even if the INPUT
switch is set at “–40 dBV” and the ATT level is “0 dB,” set
the INPUT switch to “–60 dBV” and adjust the ATT level
for an optimum result.
Distortion: If the guitar sound is distorted even if the
INPUT switch is set at “–40 dBV” and the ATT level is “0
dB,” increase the ATT level by 3 dB (0 to 3 to 6 . . . 21 dB).
For the ATT level adjustment, see page 13.
To connect a microphone
When using one of the following optional Sony Electret
Condenser Microphones equipped with a miniature phone
plug, connect it as illustrated below.
Sony
Electret Condenser
Microphones (optional):
ECM-44BMP
ECM-122BMP
ECM-121BMP
ECM-310BMP
POWER
OFF ON
INPUTPHASE
SETCH
AF
RF
BATT
+
–
1
2

12
CH CH CH
Channel selection Attenuator
adjustment Accumulated time
indication reset
Press the SET button.
Notes on Microphone
System Operation
•To operate with 2 or more channels, maintain a distance of
at least 30 cm (1 ft.) between each pair of transmitters.
For details of operation with 2 or more channels, refer to
the Operating Instructions for the WRR-800A/801A UHF
Synthesized Diversity Tuners.
•Ensure that the tuners set to channels not being used are
either turned off or set to the minimum output level.
•When powering the transmitter on or off, to keep the noise
to a minimum, set the audio output level from the tuner or
mixer to a minimum.
•Powering the transmitter on without checking the channel
selection first may interfere with the operation of other
microphones/transmitters, if the current setting is already
being used.
•Separate the reception antennas and the transmitter by more
than 3 meters (10 ft.).
Settings
Initiating Setting Mode
In Setting mode, you can change the transmission channel
and the attenuation level, or reset the accumulated time
indication.
To enter Setting mode
While holding down the SET button, set the POWER switch
to ON.
Hold the SET button down until a display appears on the
liquid-crystal display.
The transmitter enters Setting mode and the indication
before the transmitter was previously turned OFF flashes on
the liquid-crystal display.
Each time you press the SET button, Channel selection
mode, Attenuator adjustment mode (page 14) and
Accumulated time indication reset mode (page 15) are
cyclically switched.

13
68-01 68-02 68-47
69-47 69-02 69-01
AF RF BATT
CH
AF RF BATT
CH
+ button
– button
3Once the desired channel number appears, set the
POWER switch to OFF to release Setting mode.
Or, press the SET button to continue operations in Setting
mode.
The next time you turn on the power only by setting the
POWER switch to ON, the transmitter will be set to
Transmit mode with the selected channel.
Notes
•The unit cannot transmit in Setting mode.
•Make sure that the channel selected is the same as that
selected on the tuner used in the same system.
•Depending on the noise or interference conditions, the
selectable channels may not necessarily all be usable. If
necessary, you can determine the usable channels by
stepping the channel selection through a number of
channels on a tuner with the transmitter set to OFF. Those
channels on which the RF indicator of the tuner does not
light are usable.
•If there is a TV broadcasting station near by, do not use
the station's channel.
•The unit may not operate correctly if it is turned on again
immediately after turning off the power while in setting
mode. Pause for a few seconds or more before turning on
the power again.
Changing the Channel Selection
1Set the unit to Setting mode.
If the channel number is not displayed, press the SET
button to obtain the channel number indication.
2Press the + or – button to select the channel.
Pressing the + button cyclically changes the channel
indication in the order shown in the table of “Channels
and Carrier Frequencies” on page 6. Pressing the –
button changes it in reverse order.
If you keep either button pressed, the channel setting will
be incremented or decremented successively.
The display will cycle from 68-01 through 69-47.

14
AF RF BATT
CH
AF RF BATT
CH
Settings
Changing the Input Attenuation Setting
You can change the input attenuation setting in 3-dB steps
in a range of 0 to 21 dB. You can change it either in Setting
mode or in Transmit mode.
Changing in Setting mode
1Set the unit to Setting mode.
2If the attenuation level is not displayed, press the SET
button to obtain the attenuation indication.
3Press the + or – button to select the attenuation setting.
If you keep either button pressed, the level will be
incremented or decremented successively.
4Once the desired level appears, set the POWER switch to
OFF to release Setting mode.
Or, press the SET button to continue operations in Setting
mode.
+ button
– button
The next time you turn on the power only by setting the
POWER switch to ON, the transmitter will be set to
Transmit mode with the selected attenuation setting.
Changing in Transmit mode
You can also change the input attenuation setting during
transmission.
1If the attenuation level is not displayed, press the SET
button to obtain the attenuation indication.
2Press the + or – button to select the attenuation setting.

15
When a problem occurs, one of the following error messages
may appear on the display.
Error Messages
Resetting the Accumulated Time Indication
The time indication accumulates time in hours and minutes
when the WRT-805A is on.
Reset the indication to “00:00” whenever you replace the
battery so that it can display the running time of the battery.
1Set the unit to Setting mode.
2If the accumulated time is not displayed, press the SET
button to obtain the accumulated time indication.
3Press the – button.
The time indication resets to “00:00.”
While you see “00:00” indication, you can go back to
previous value by pressing the + button.
4Set the POWER switch to OFF to release Setting mode.
AF RF BATT
CH
AF RF BATT
CH
– button
segasseMstnetnoCserusaeM
11rorrE.atadyromempukcabniderruccororrenA dnalennahcgnittimsnartehtteS.dezilaitinisawatadehT
.niaganoitaunettatupnieht
12rorrE.elbuortnisitiucricdezisehtnysLLPehT .relaedynoSruoytcatnoC
13rorrE.eulavelbawollaehtsdeecxeegatlovyrettabehT .yrettabdeificepsehtesU
14rorrEtiucriclanretninafotcefeD .relaedynoSruoytcatnoC15rorrEtiucricretrevnocD/AehtfotcefeD
16rorrEtiucriclanretninafotcefeD

16
Specifications
Transmitter and modulator section
Oscillator Crystal controlled PLL synthesizer
Type of emission 110KF3E
Carrier frequencies 794.125 to 805.875 MHz
(94 settings at 125 kHz intervals)
RF power output 10 mW
Frequency stability Within ±0.005%
Spurious radiation 20 nW or less
Tone signal 32.768 kHz
Type of antenna 1/4-wavelength helical
Audio section
Pre-emphasis 50 µs
Deviation ±16 kHz (–40 dBV1), 1 kHz input)2)
±5 kHz (–60 dBV1), 1 kHz input)2)
Maximum deviation ±40 kHz
Frequency response 70 to 15,000 Hz
Signal-to-noise ratio 57 dB or more
(A-weighted, modulation frequency
1 kHz, with reference deviation at
WRR-800A/801A)
Audio attenuator 0 to 21 dB, variable in 3-dB steps
Reference input level –60/–40 dBV1) at audio attenuator
0 dB
Power section
Power requirements 1.5 V DC
(one LR6/size AA alkaline battery)
Battery life Approx. 6 hours at 25°C or 77°F
with Sony LR6 alkaline battery
General
Operating temperature 0°C to +50°C (32°F to 122°F)
Storage temperature –30°C to +60°C (–22°F to +140°F)
Dimensions 58 ×95 ×21 mm (w/h/d)
(23/8×33/4×27/32 inches)
Mass Approx. 100 g (3.5 oz) including
battery
Supplied accessory
Operating Instructions (1)
Design and specifications are subject to change without
notice.
.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1) 0 dBV = 1 Vrms 2) INPUT switch at –60 dBV position

17
•Cuando limpie la unidad, no utilice solventes orgánicos
tales como diluyentes o bencina que puedan dañar el
acabado de la unidad.
•La unidad ha sido ajustada precisamente en fábrica. No
debe tocar o tratar de reparar sus piezas interiores.
Precauciones
•La unidad ha sido diseñada para emplearse a una
temperatura ambiente de 0°C a 50°C (32°F a 122°F).
•No coloque la unidad en o cerca de fuentes de calor tales
como lámparas o amplificadores de potencia, o un lugar
expuesto a los rayos del sol o a humedad excesiva. Estos
lugares pueden afectar la terminación exterior o las piezas
en el interior de la unidad.
•Si se utiliza la unidad en lugares muy húmedos o con
mucho polvo o si se coloca en un lugar expuesto al gas,
limpie bien su superficie y los conectores con un paño
seco y suave, después del uso. Un uso prolongado de la
unidad en dichos lugares, o si no la limpia después de
utilizarla en tales lugares, puede acortar su longevidad.
Español Índice
Precauciones..................................................................... 17
Introducción ..................................................................... 18
Características .............................................................. 18
Canales y frecuencias portadoras .................................. 20
Identificación de partes ................................................... 21
Fuente de alimentación ................................................... 23
Conexiónes........................................................................ 25
Notas sobre el funcionamiento del sistema
de micrófono ............................................................... 26
Ajustes .............................................................................. 26
Activación del modo de ajuste..................................... 26
Cambio de la selección de canal .................................. 27
Cambio del ajuste de atenuación de entrada ................ 28
Reposición de la indicación de tiempo acumulado de
utilización..................................................................... 29
Mensajes de error ............................................................ 30
Especificaciones ............................................................... 31
Español
E

18
Introducción
El WRT-805A es un transmisor para utilizarse en
combinación con el sintonizador de recepción en diversidad
sintetizado de UHF WRR-800A/801A para un sistema de
micrófono inalámbrico sintetizado de UHF de 800 MHz
para fines de producción de programas de radiodifusión o de
películas.
El WRT-805A también puede utilizarse en un sistema de
micrófono inalámbrico Sony convencional compuesto por el
transmisor sintetizado de UHF WRT-810A/820A, el
sintonizador de recepción en diversidad sintetizado de UHF
WRR-810A/820A/840A/850A, etc.
El micrófono/transmisor y los sintonizadores del sistema de
micrófono inalámbrico se clasifican por la banda de
frecuencias.
Una banda de frecuencias de 12 MHz (o dos canales de
televisión de número consecutivo, como el 68 y el 69 del
WRT-805A) está asignada a cada modelo de micrófono/
transmisor y sintonizador.
Para componer un sistema de micrófono inalámbrico de
UHF, cerciórese de combinar un micrófono/transmisor y un
sintonizador que posean el mismo número de canal de TV.
Características
Selección fácil de 94 canales
La unidad puede funcionar con cualquiera de 94 frecuencias
portadoras seleccionadas mediante una sencilla operación de
teclas.
Compacto y ligero
La innovadora tecnología de montaje de alta densidad ha
permitido la creación de este transmisor compacto y ligero,
que le permitirá moverse a cualquier parte para la
recopilación electrónica de noticias (ENG) y la producción
electrónica en el sitio (EFP).
El diseño curvado de la caja moldeada le permitirá adaptarlo
cómodamente a su cintura.
Información sobre el estado de la pila
Este transmisor posee la capacidad de poder transmitir
“información sobre el estado de la pila” al WRR-800A/
801A/850A para ofrecerle un aviso anticipado del
agotamiento de la pila.
Cuando el WRR-800A/801A/850A reciba la informción, el
LED y el visualizador de cristal líquido del panel
comenzarán a parpadear.

19
Alimentación fácil con pila
El convertidor de CC-CC de gran eficacia incorporado
permite la operación estable, durante 6 horas continuas, con
una sola pila LR6 (tamaño AA).
Visualizador de cristal líquido para el control
coordinado de la operación
El visualizador de cristal líquido mostrará el número del
canal actual, la energía restante de la pila, el ajuste de la
atenuación de entrada, el nivel de entrada de AF, y la salida
de RF.
También existe una indicación de tiempo de operación
acumulado para poder controlar fácilmente la utilización de
la pila (en incrementos de 1 minuto).
Ajustes de canal almacenado y atenuación de entrada
La unidad conservará los ajustes de canal y de la atenuación
de entrada aunque desconecte su alimentación. Los ajustes
almacenados se conservará incluso aunque extraiga la pila.
Por lo tanto, cuando vuelva a utilizar la unidad, no
necesitará volver a realizar los mismos ajustes.
Atenuador electrónico de gran fiabilidad
El atenuador de nivel de entrada incorporado podrá ajustarse
dentro de un margen de 0 a 21 dB en pasos de 3 dB. Esto
reducirá la distorsión de la señal cuando se reciba una señal
de entrada de gran intensidad.
Portadora de RF con señal de tono
La unidad transmite la portadora de RF acompañada por una
señal de tono, lo que permitirá que el sintonizador, con su
circuito silenciador, elija solamente la señal de audio
pretendida.
Amplia gama dinámica y bajo ruido
El sistema compansor (compresor/expansor) permite la
transmisión en una amplia gama dinámica con el ruido
mínimo.
Conector de entrada de audio (3,5 mm de diámetro) con
mecanismo de bloqueo
El mecanismo de bloqueo de tipo tornillos asegura una
conexión fiable.
Antena helicoidal compacta

20
El WRT-805A puede transmitir en cualquiera de los canales
inalámbricos indicadas a continuación. Con respecto a la selección del canal, consulte “Cambio de la selección de canal” de la página 27.
Canales y frecuencias portadoras
lanaC )zHM(aicneucerF 86VTedadnaB lanaC )zHM(aicneucerF 86VTedadnaB lanaC )zHM(aicneucerF 96VTedadnaB lanaC )zHM(aicneucerF 96VTedadnaB
10-86521,49752-86521,79710-96521,00852-96521,308
20-86052,49762-86052,79720-96052,00862-96052,308
30-86573,49772-86573,79730-96573,00872-96573,308
40-86005,49782-86005,79740-96005,00882-96005,308
50-86526,49792-86526,79750-96526,00892-96526,308
60-86057,497 03-86057,797 60-96057,008 03-96057,308
70-86578,49713-86578,79770-96578,00813-96578,308
80-86000,59723-86000,89780-96000,10823-96000,408
90-86521,59733-86521,89790-96521,10833-96521,408
01-86052,597 43-86052,897 01-96052,108 43-96052,408
11-86573,59753-86573,89711-96573,10853-96573,408
21-86005,59763-86005,89721-96005,10863-96005,408
31-86526,59773-86526,89731-96526,10873-96526,408
41-86057,59783-86057,89741-96057,10883-96057,408
51-86578,59793-86578,89751-96578,10893-96578,408
61-86000,697 04-86000,997 61-96000,208 04-96000,508
71-86521,69714-86521,99771-96521,20814-96521,508
81-86052,69724-86052,99781-96052,20824-96052,508
91-86573,69734-86573,99791-96573,20834-96573,508
02-86005,697 44-86005,997 02-96005,208 44-96005,508
12-86526,69754-86526,99712-96526,20854-96526,508
22-86057,69764-86057,99722-96057,20864-96057,508
32-86578,69774-86578,99732-96578,20874-96578,508
42-86000,79742-96000,308
